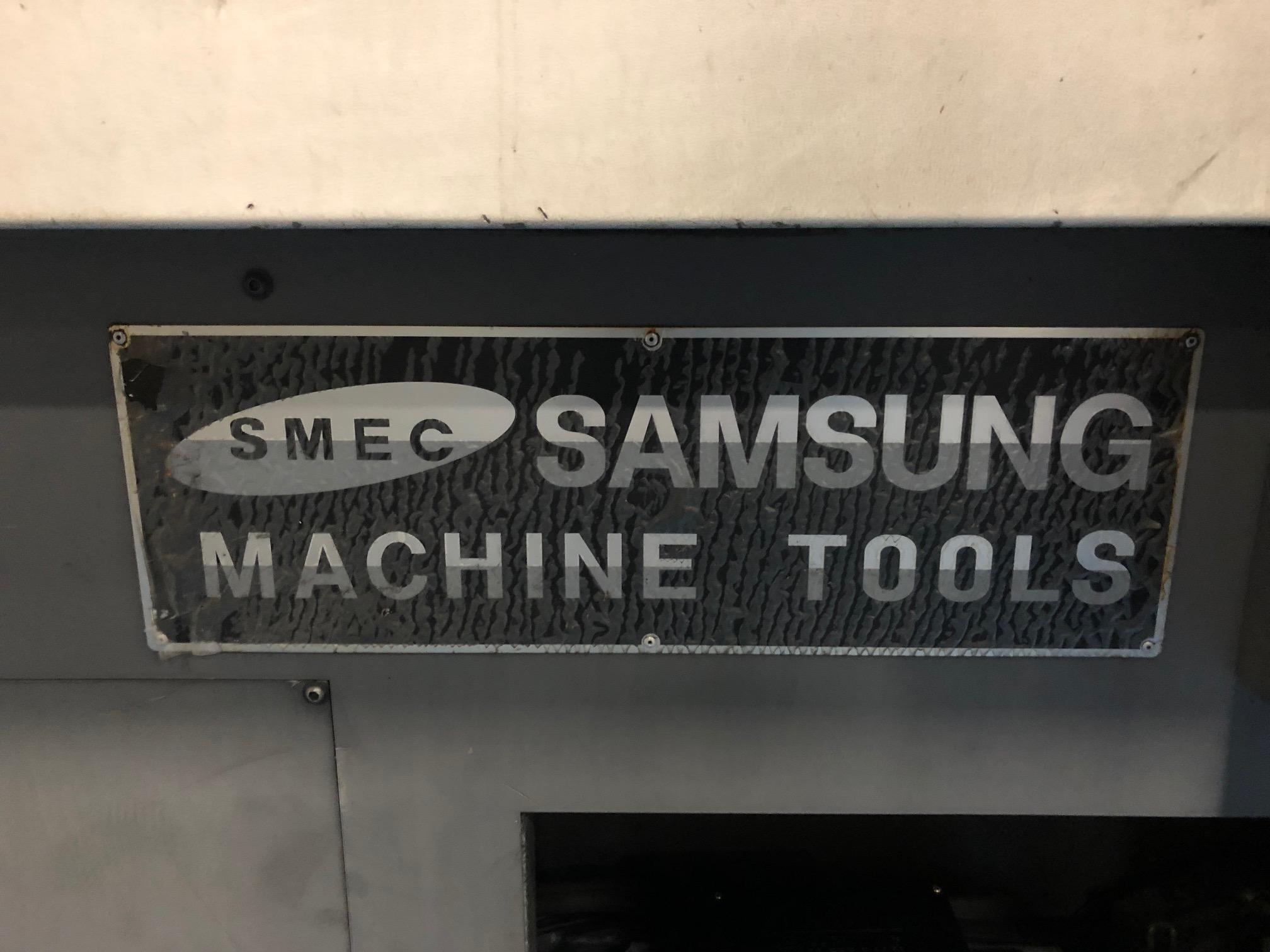

Samsung SL V80 - Vertical Lathes

Share Machine
Specifications Print Specs
Model: SL V80
Year: 2012
Stock #: 13214 Sold
Highlights:
- Fanuc 0i-TD CNC Control
- Gearbox

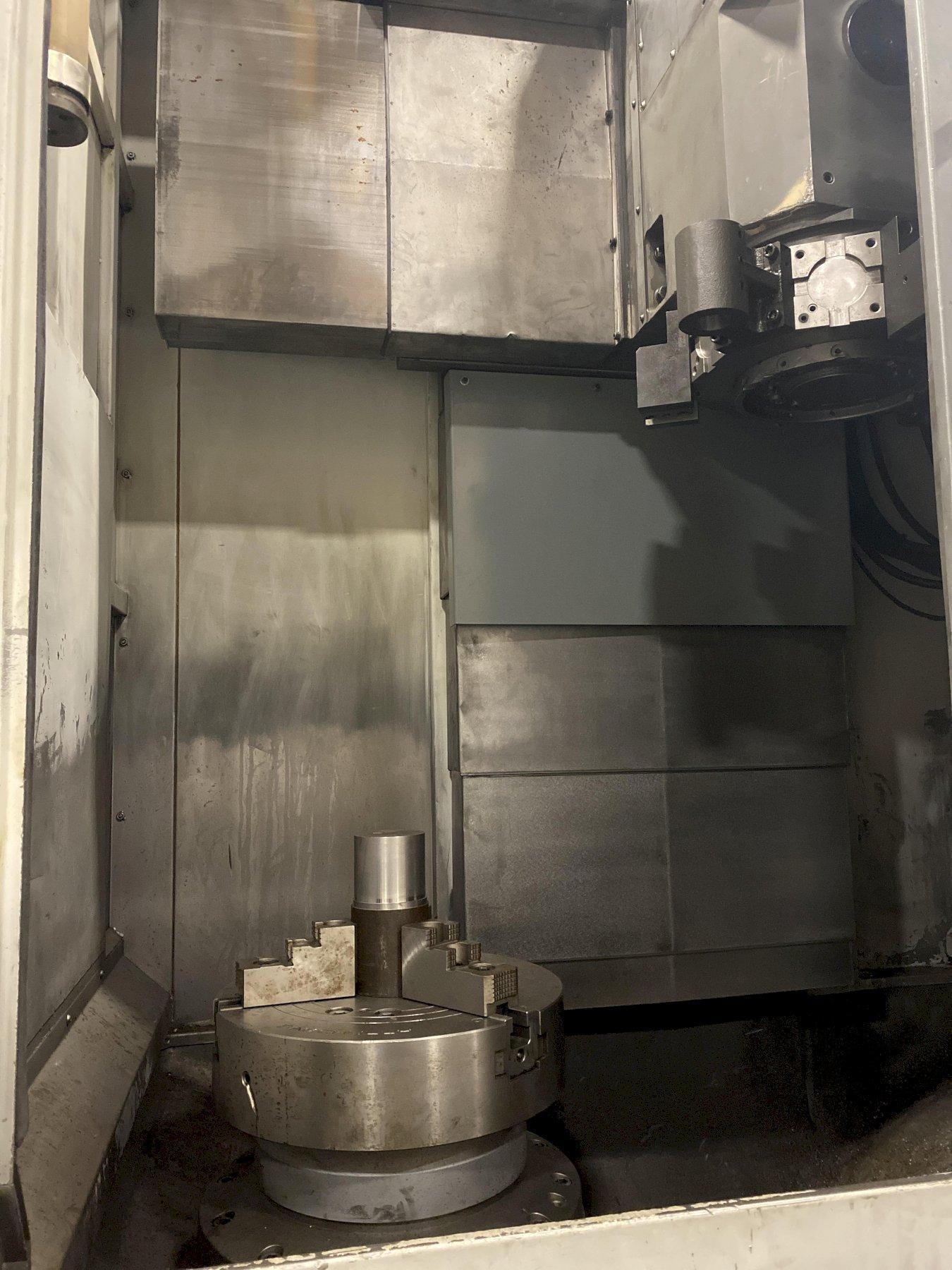

- Samchully HC-18D Chuck (18" 3-Jaw)
- Chip Conveyor

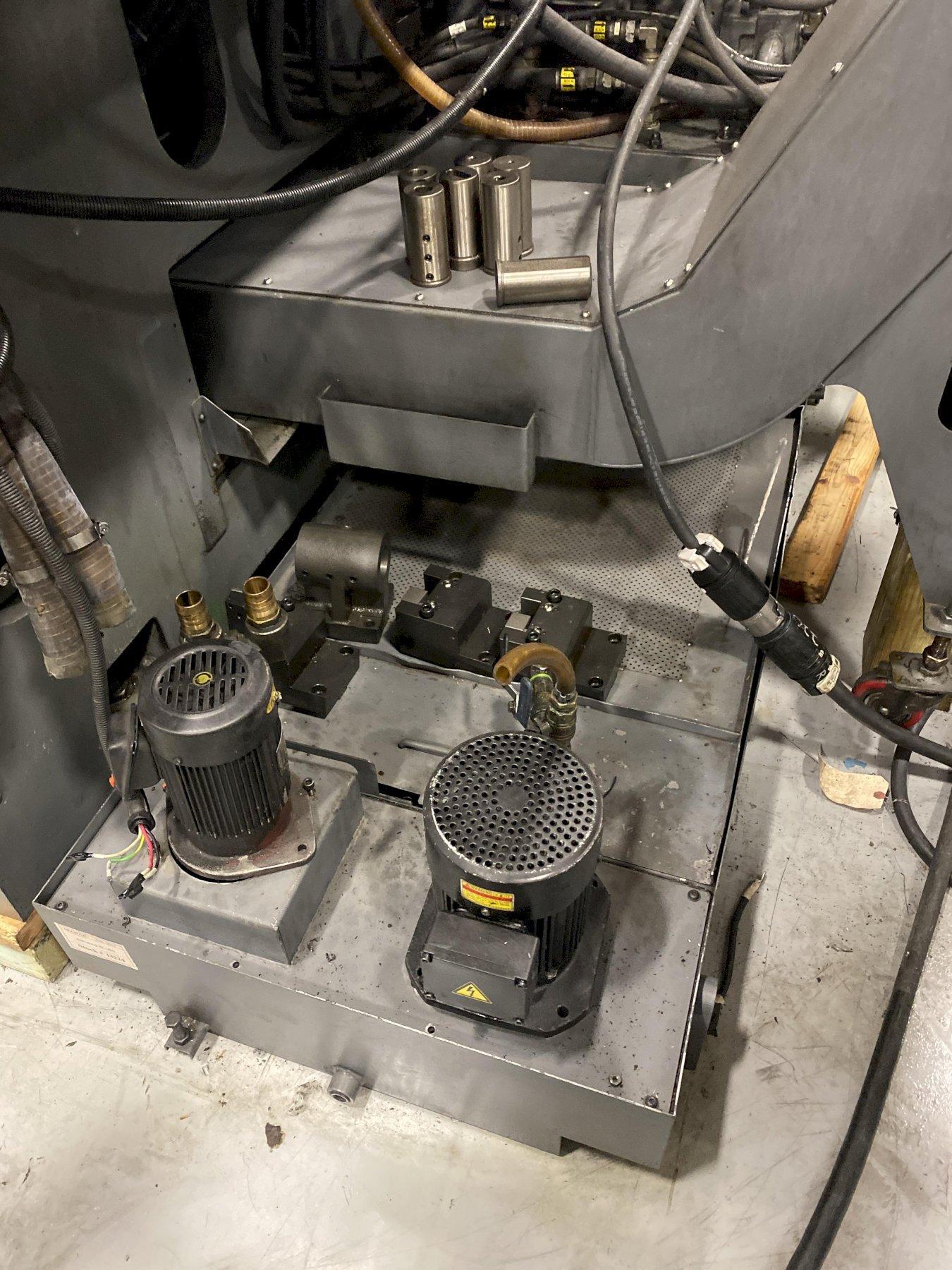

- Coolant Tank

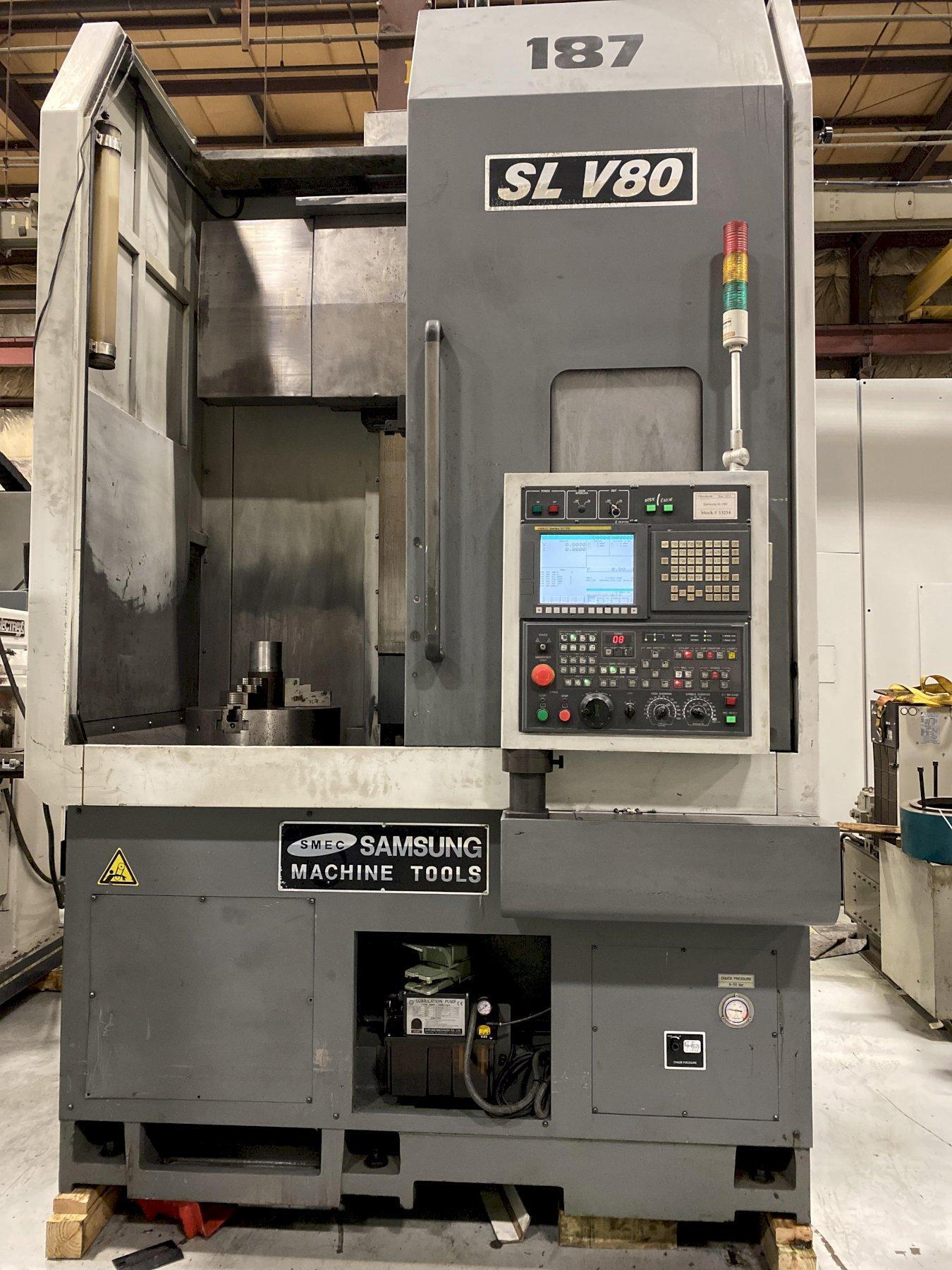

2012 Samsung SL V80 - CNC Vertical Turret Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TD
Table Dia
18"
Swing
35"
Turning Diameter
32.68"
Max Turning Length
31.5"
Chuck Size
18"
X-Axis Travel
16.9"
Z-Axis Travel
31.5"
Rapid Traverse (X/Z)
787 ipm
Spindle Nose
A2-11
Spindle Speed
2,000
Spindle Motor
50 hp
Live Tooling
no

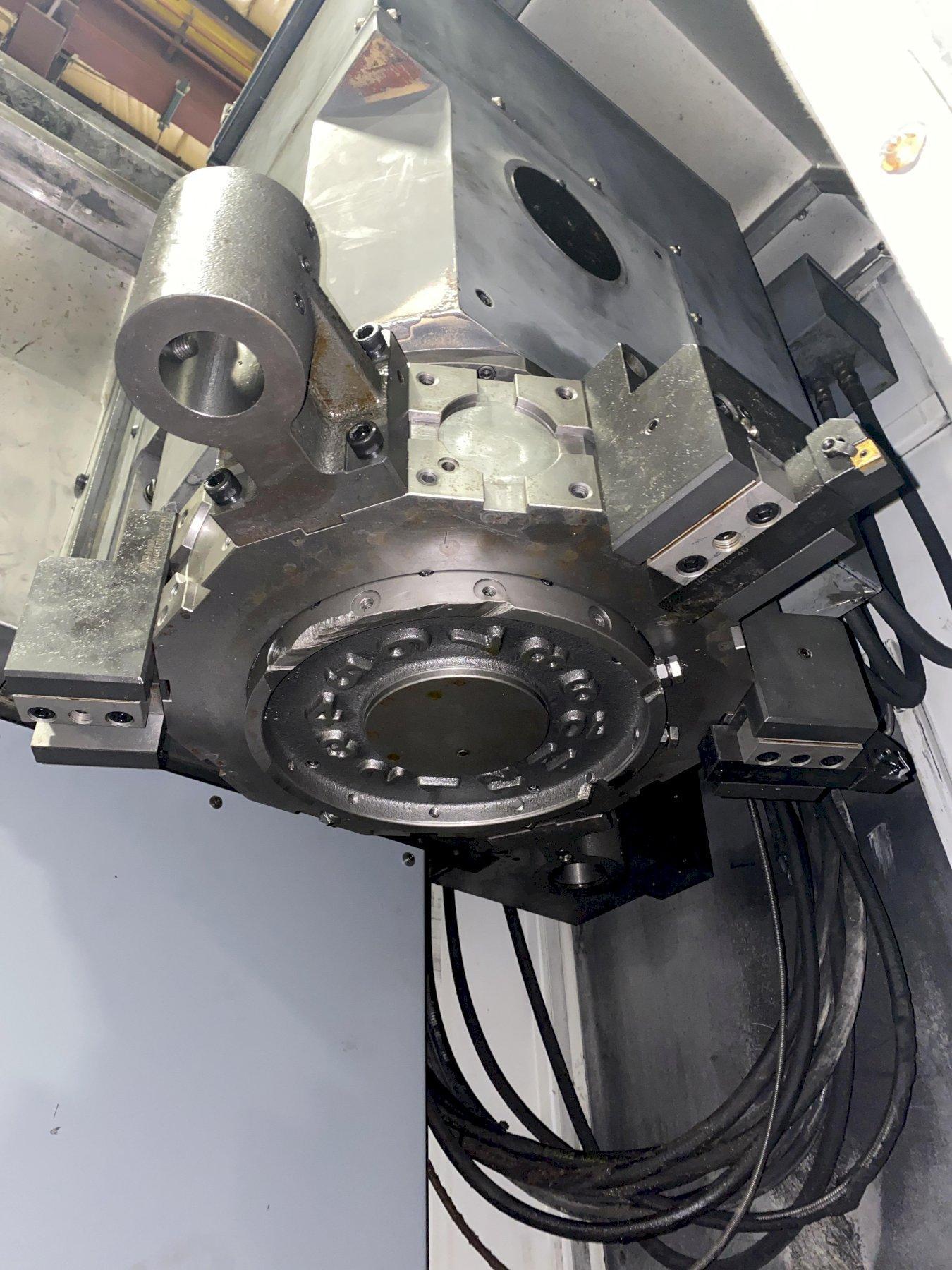

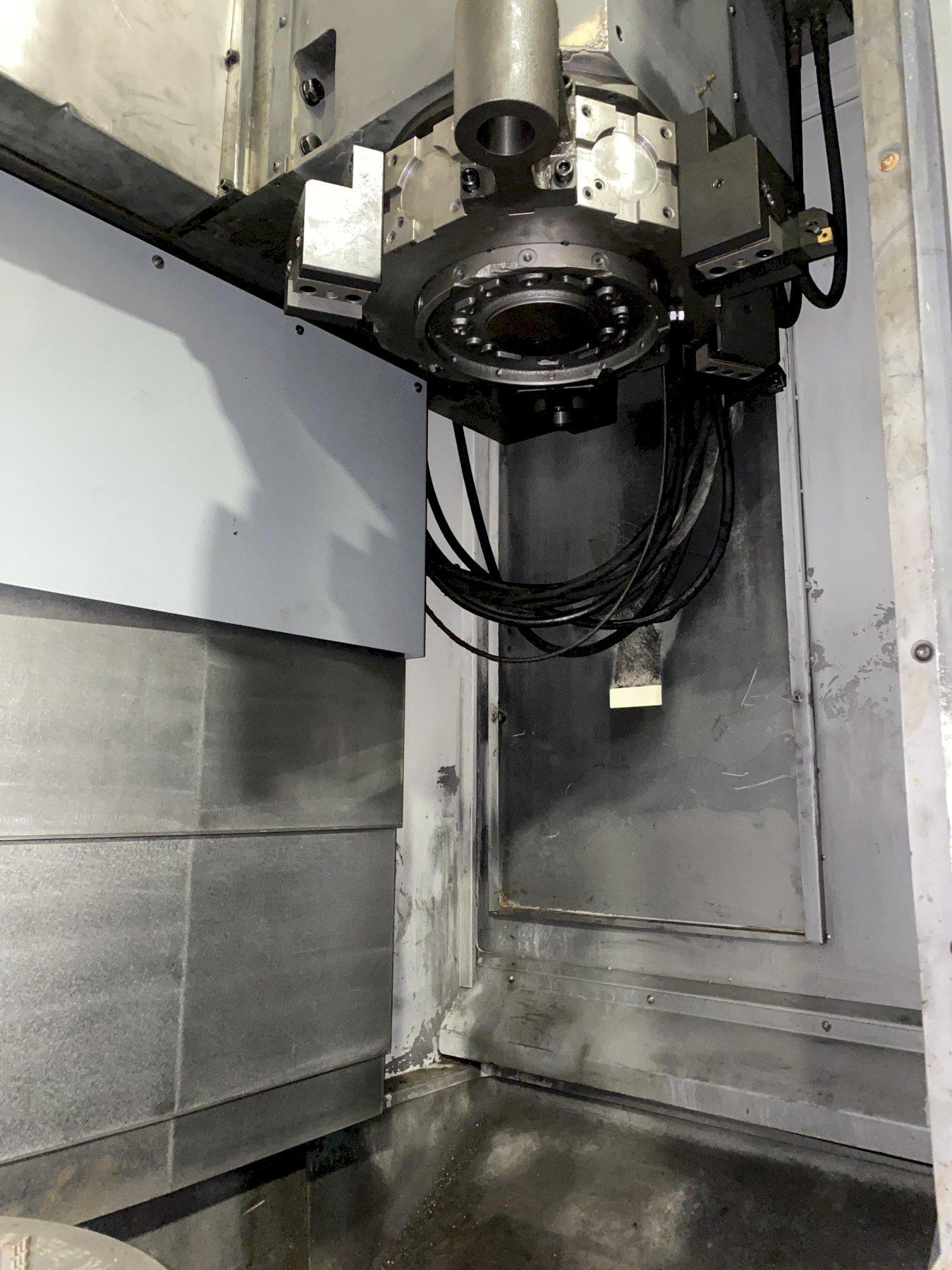

Turret Capacity
12
Machine Dimensions
77" (L-R) x 88" (F-B) x 134"(H)
Machine Weight
24,250 pounds

Equipped With:

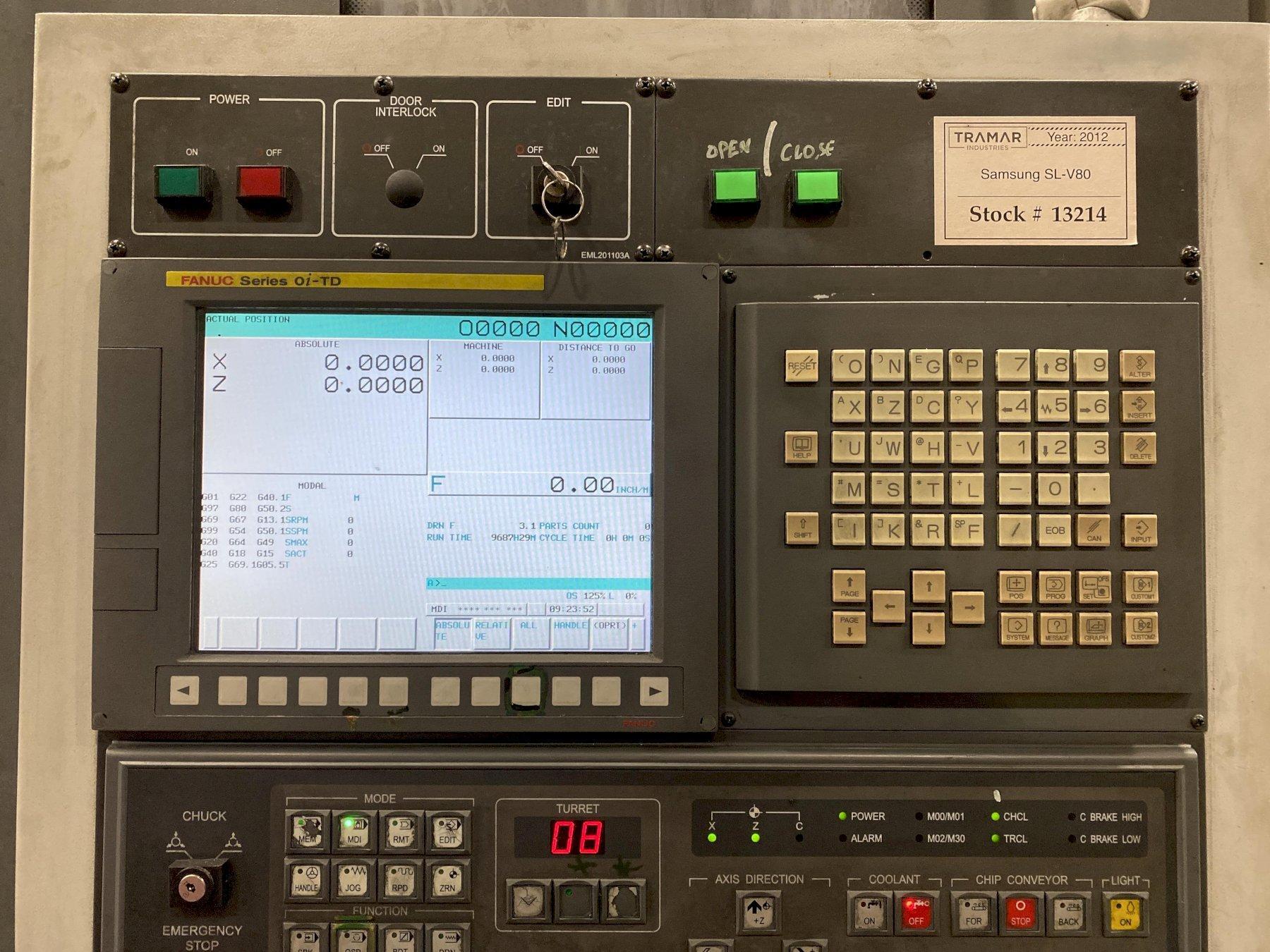

- Fanuc 0i-TD CNC Control

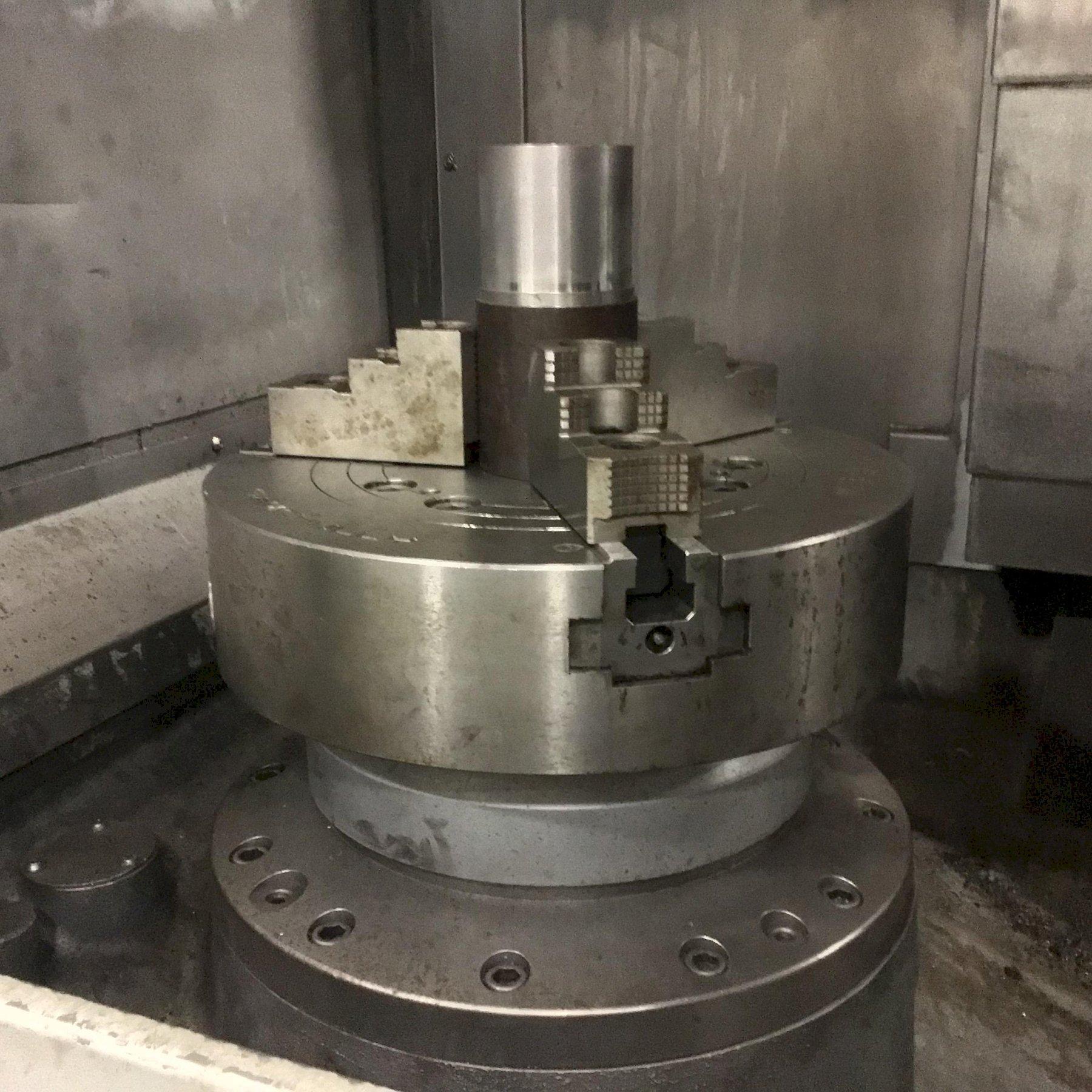

- Samchully HC-18D Chuck (18" 3-Jaw)
- Gearbox
- Chip Conveyor
- Coolant Tank
- 77" (L-R) x 138" Front to back with conveyor x 124" High (shipping)/134" overall

** Video - Click Here **

The Samsung SL V80 is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
