Haas EC-16004AX - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: EC-16004AX
Year: 2014
Stock #: DR25011 Sold
Yes
Highlights:

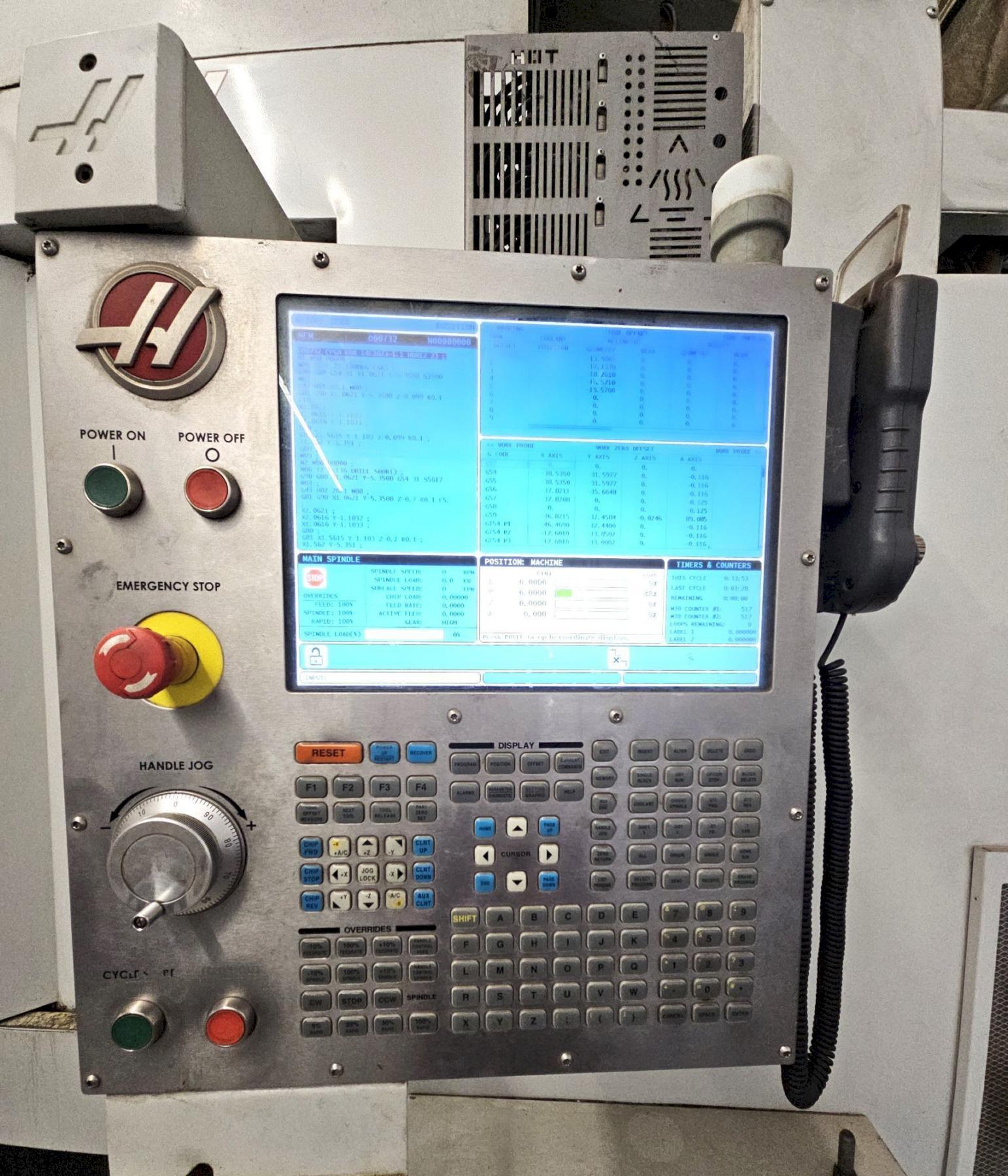

- Haas CNC Control
- Built in 4th Axis Rotary Table
- 30 Station Sidemount ATC
- Coolant Thru Spindle
- Chip Auger
- Coolant Tank & Pumps
- 2-Speed Gearbox

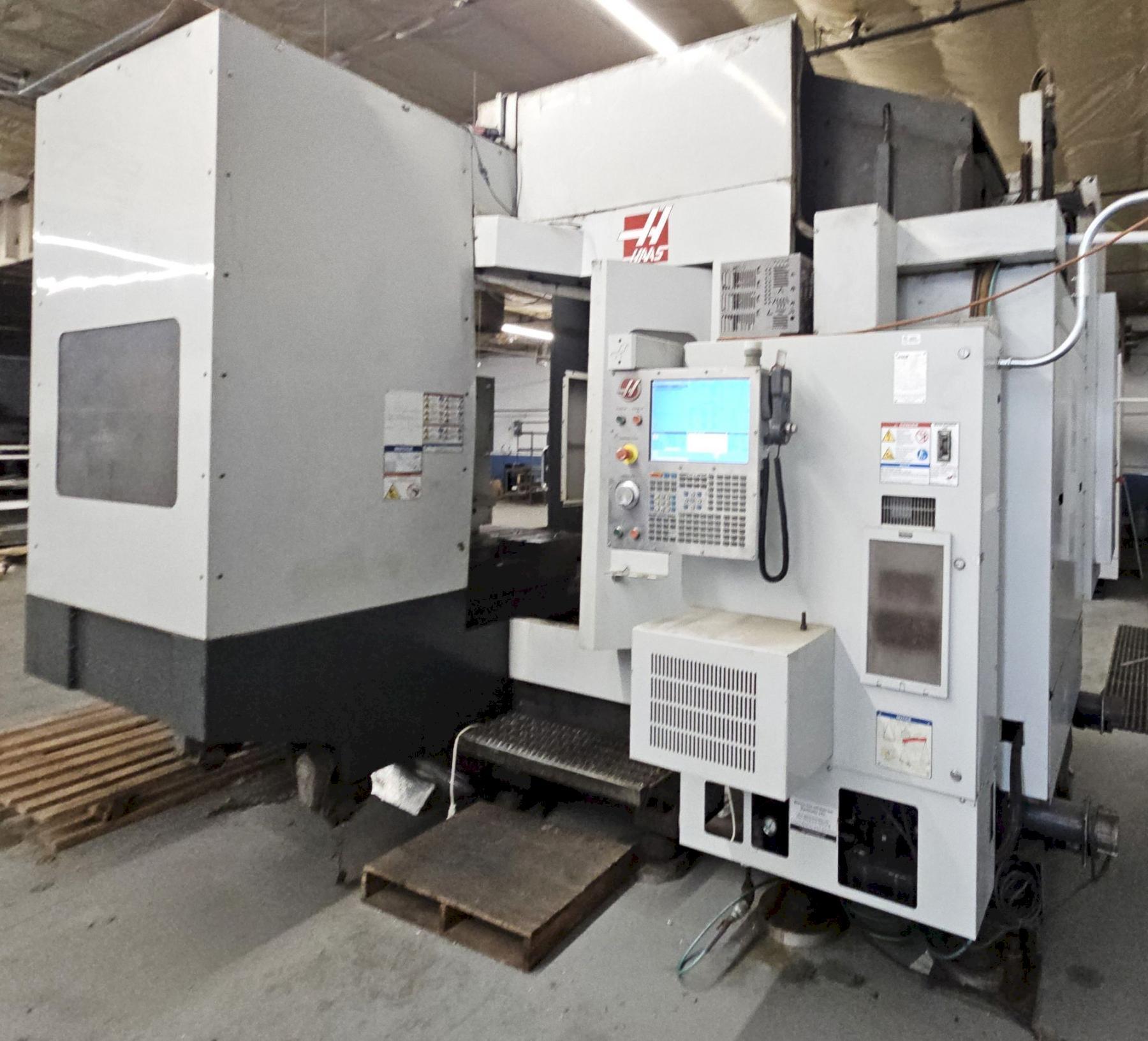

2014 HAAS EC-1600 CNC 4-Axis Horizontal Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
4
Pallet Length
64"
Pallet Width
36"
Pallet Load Capacity
4,000 pounds
Pallet Indexing (B-Axis)
Full
X-Axis Travel
64"
Y-Axis Travel
50"
Z-Axis Travel
32"
Rapid Traverse Rate (X/Y/Z)
1,400
Spindle Taper
Cat 50
Spindle Speed
7,500
Spindle Motor (HP)
30
Tool Changer Capacity
30
Coolant Through Spindle
yes
Machine Dimensions
24" x 200" x 100"
Machine Weight
35,000 pounds

Equipped With:

-Haas CNC Control

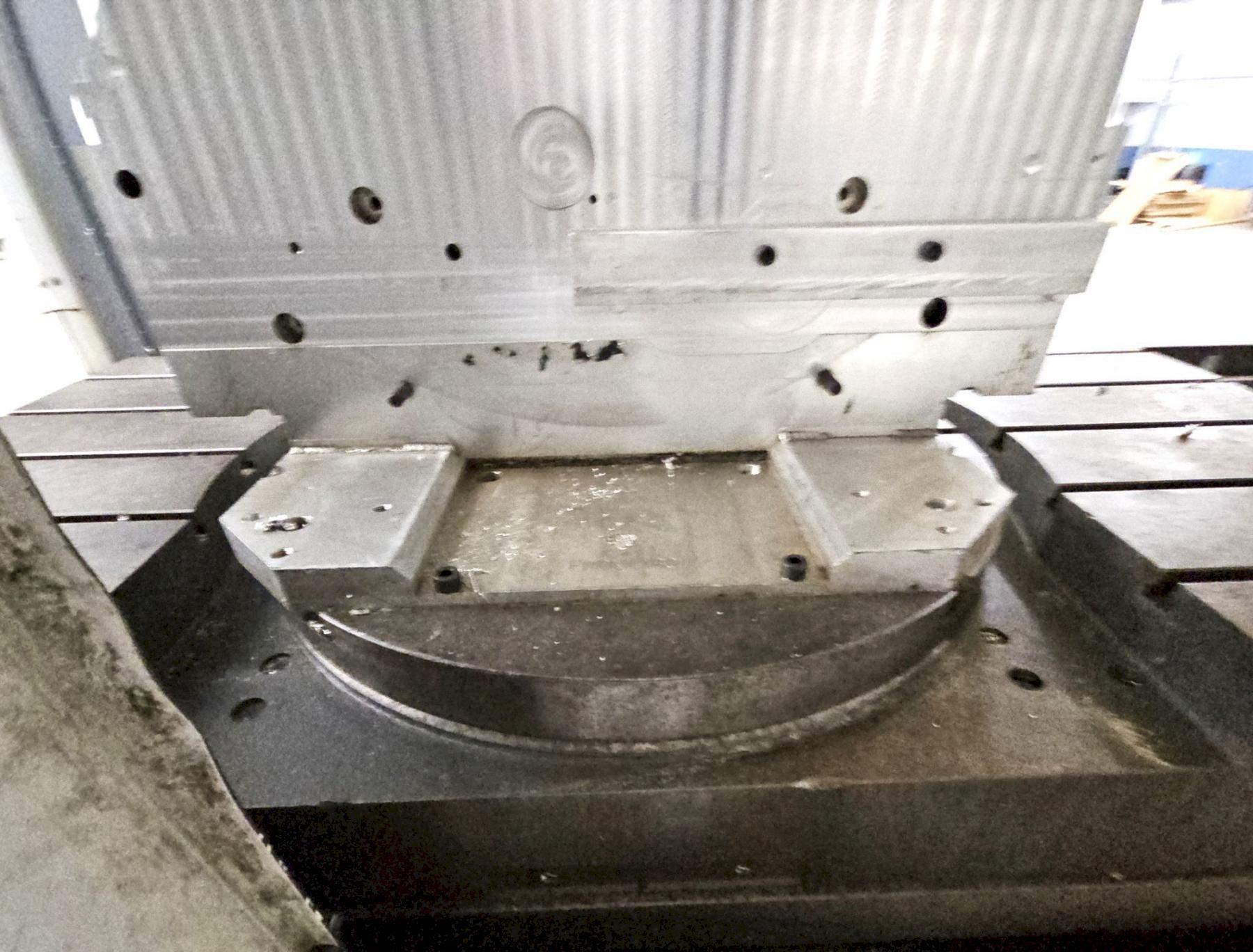

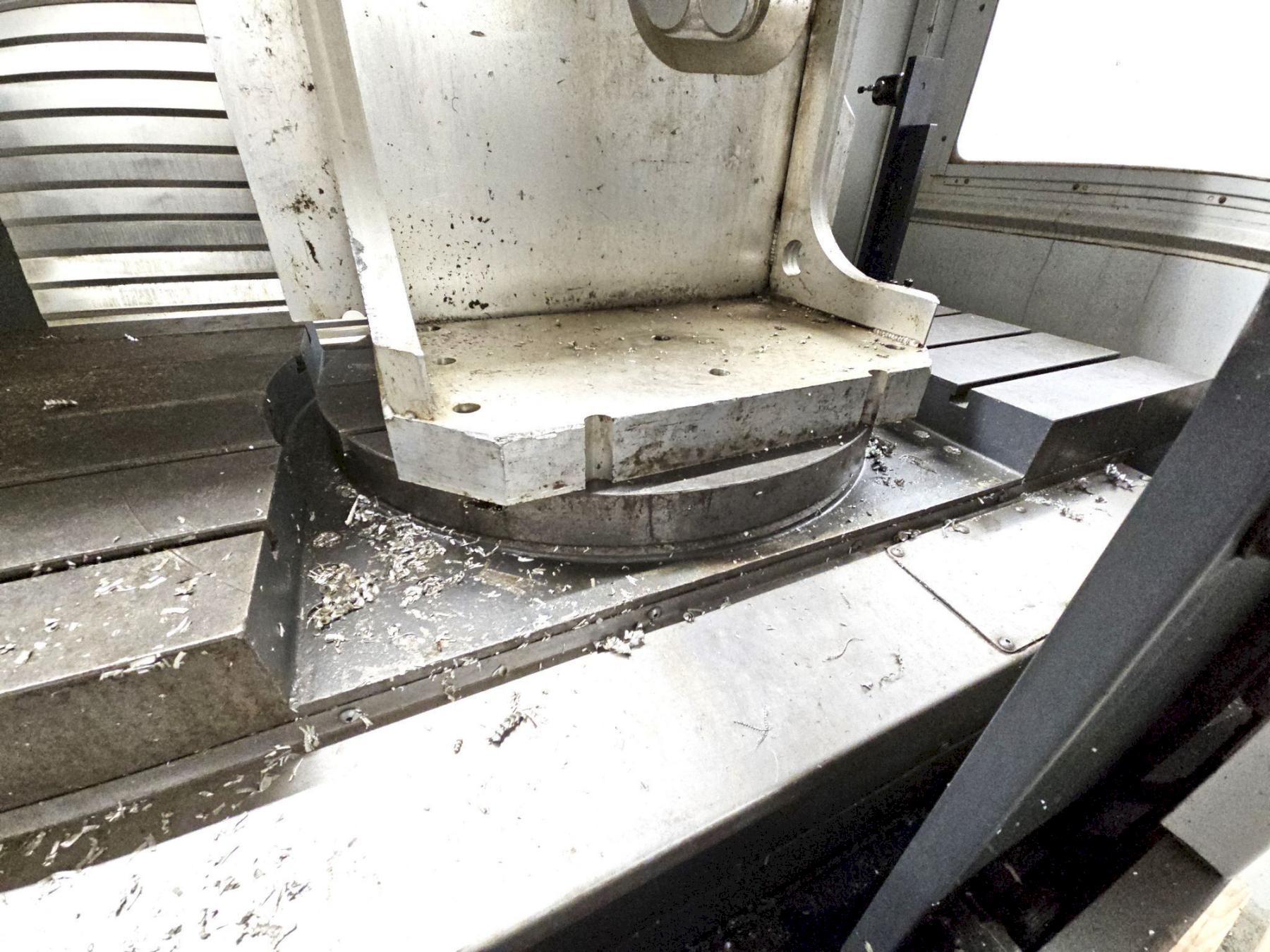

-31.5" Built in 4th Axis Rotary Table
-Side Mount 30-Position Automatic Tool Changer
-30 HP 2-Speed Gear Drive
-Thru-Spindle Coolant
-Linear Scales
-Dual Chip Auger

The Haas EC-16004AX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
