Samsung SL-25BMC/1000 - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: SL-25BMC/1000
Year: 2014
Stock #: 680113 Sold
Highlights:
Fanuc Control
Live Tooling
40" Center Distance
(3) Machines Available

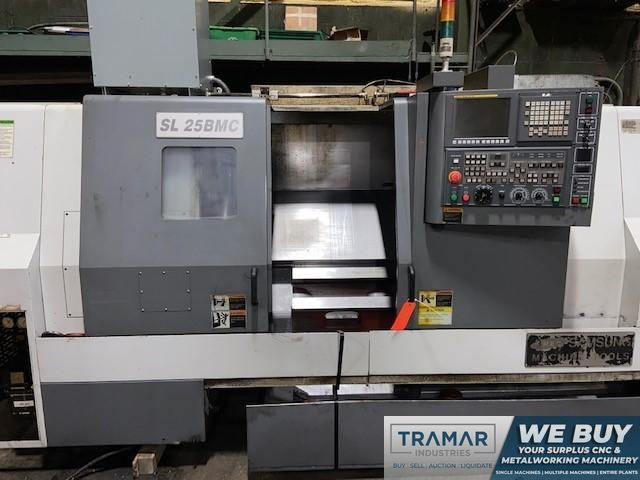

2014 Samsung SL-25BMC/1000 CNC Horizontal Lathe
Machine Specifications
Year
2014
Control Type
Fanuc
# Axis
3
Chuck Size
10
Swing
25.06
Turning Diameter
13.78
Center Distance
44.3
Bar Capacity
3
X Axis Travel
8.6
Z Axis Travel
42.91
Y Axis (Yes / No)
no
Spindle Nose
A2-8
Spindle Speed
3,500 rpm
Main Motor
30 hp
Live Milling (Yes / No)
yes
Live Tooling Speed
5,000 rpm
Turret Capacity
12
Tailstock (Yes/No)
yes
Weight
15,000

Equipped With:

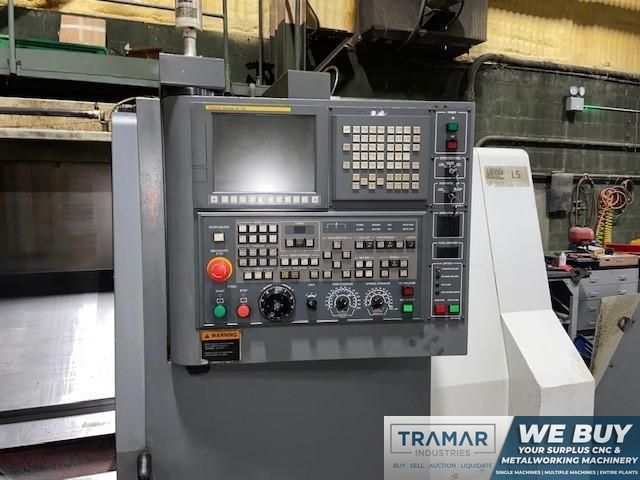

- Fanuc Control
- Tool Presetter
- Chip Conveyor
- Coolant Tank & Pump

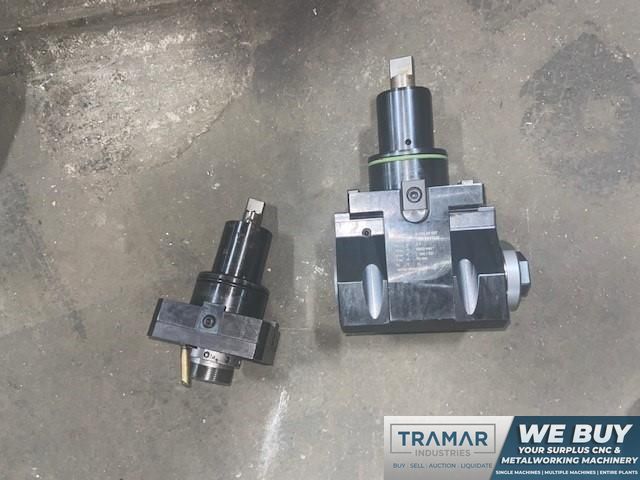

- (1) Axial & (1) Radial Live Tool Holder
- Misc. Static Holders

The Samsung SL-25BMC/1000 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
