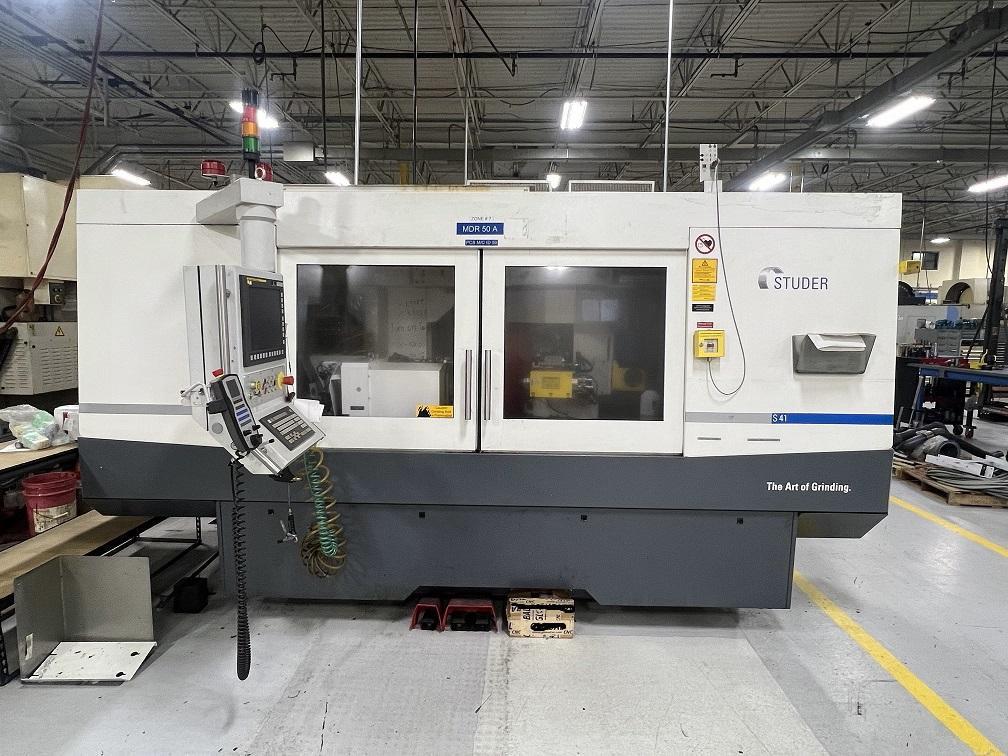

Studer S41 - Cylindrical Grinders (Universal)

Request Quote
Share Machine
Specifications Print Specs
Model: S41
Year: 2015
Stock #: K91225
Highlights:
(1) OD Wheel - 4,500 rpm
(1) ID Spindle - 42,000 rpm
(1) Grooving Spindle for Splines
B Axis -45° to +225°
C Axis Workhead
Probing & Gauging

2015 Studer S41 CNC Cylindrical OD/ID Grinder For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model A
Center Height
8.9"
Center Distance
39.4"
Max Weight Between Centers
550 pounds
X Axis Travel
13.8"
Z Axis Travel
45.3"
Workhead Speed
1,500 rpm
Workhead Power
13.6 horsepower
C Axis
yes
C Axis Index
0.0001°
B-axis Indexing
-45° to +225°
Grinding Wheel Dimensions
20" x 3.54" x 8"
Wheel Speed (RPM)
4,500 rpm
Wheel Head Motor
20 hp
ID Spindle Speed
(2x) 42,000 rpm
Dimensions
154" x _ x 99"
Weight
20,000 pounds

Equipped With:

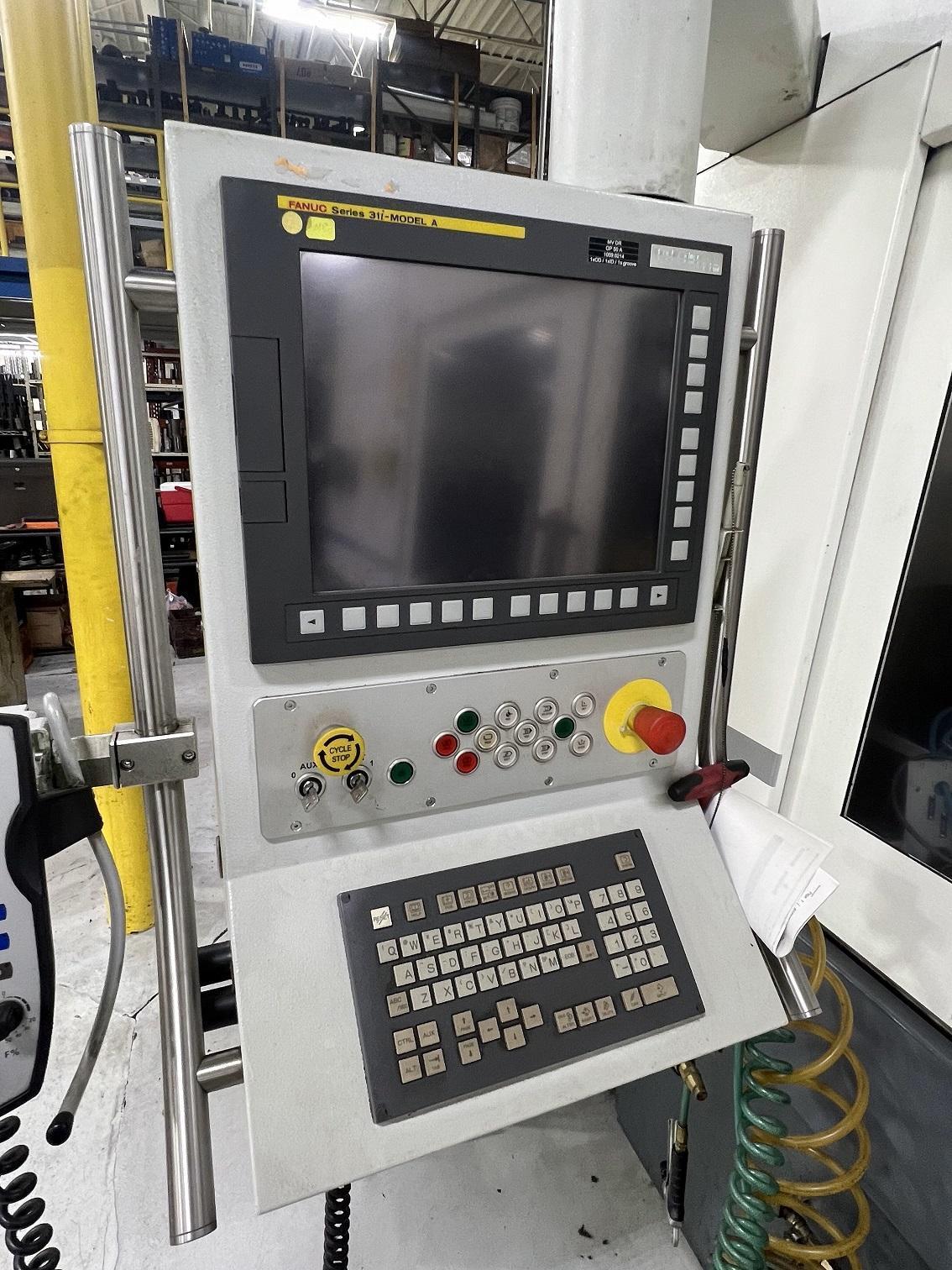

- Fanuc 31i-Model A Control

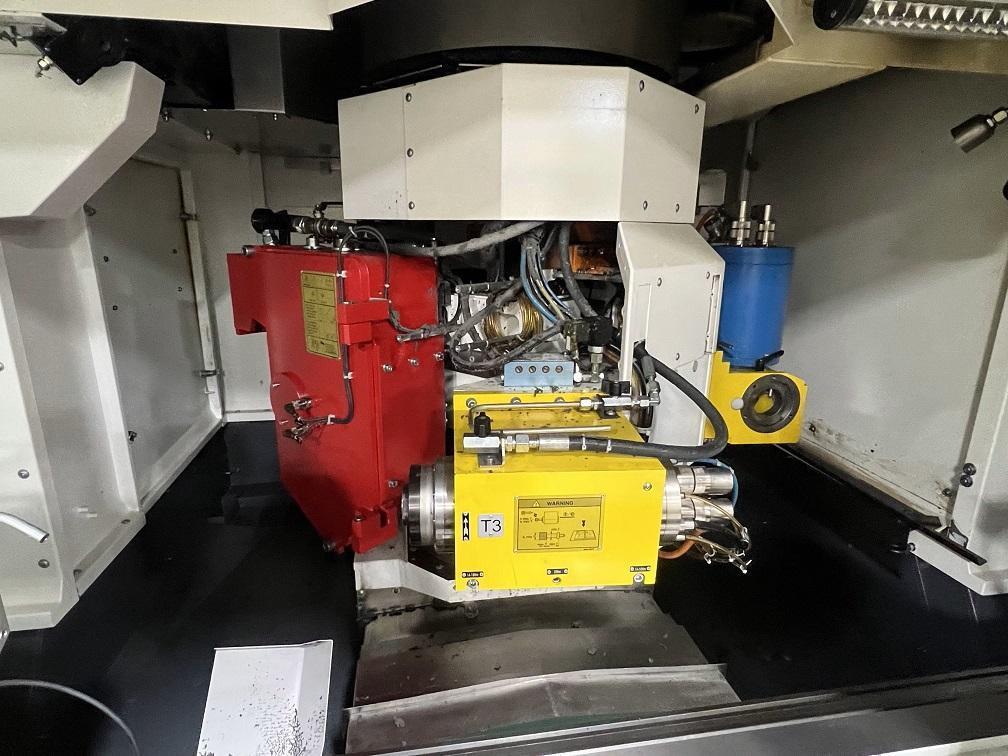

- (1) Fischer ID Spindle - 42,000 rpm T3

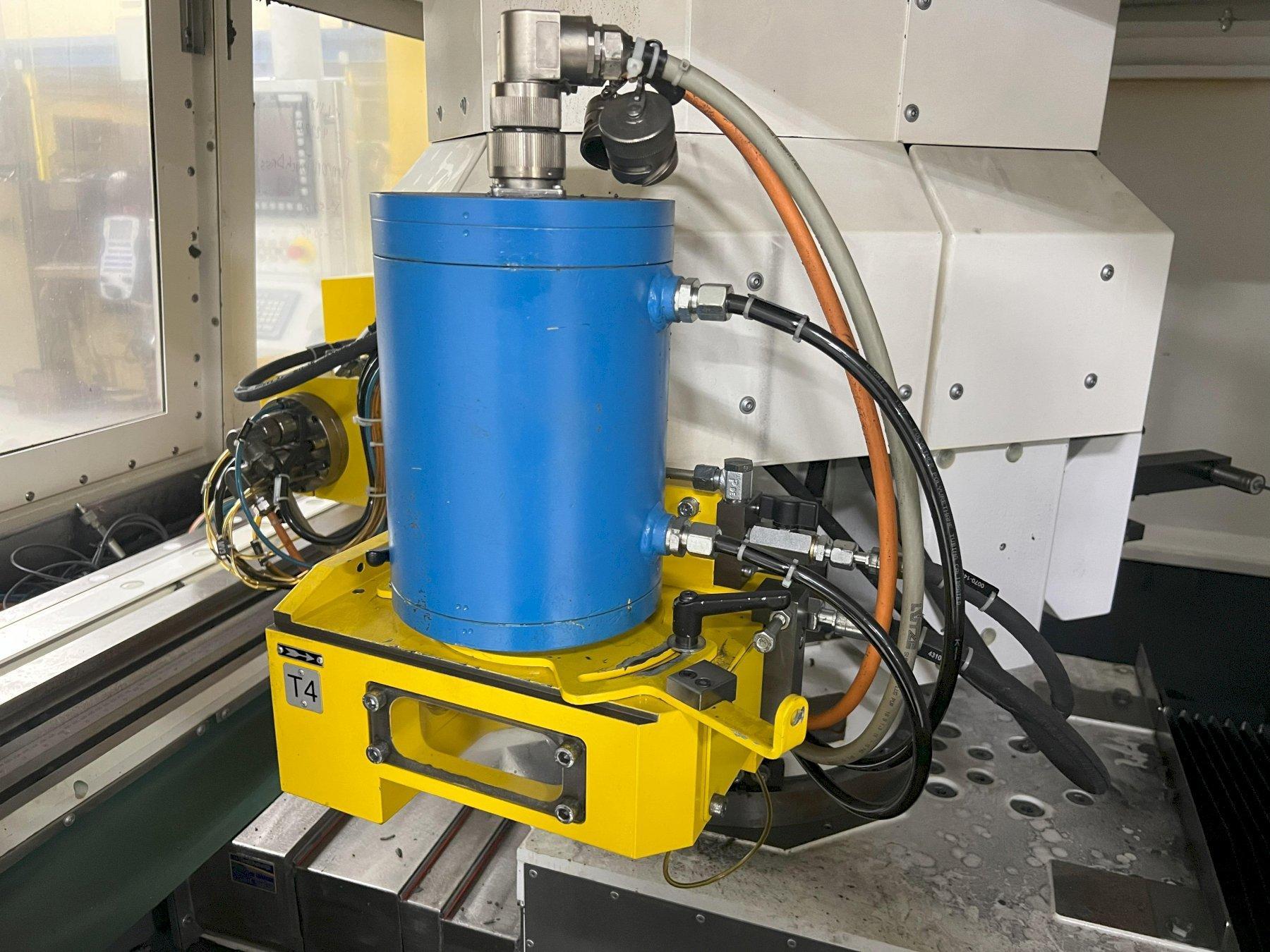

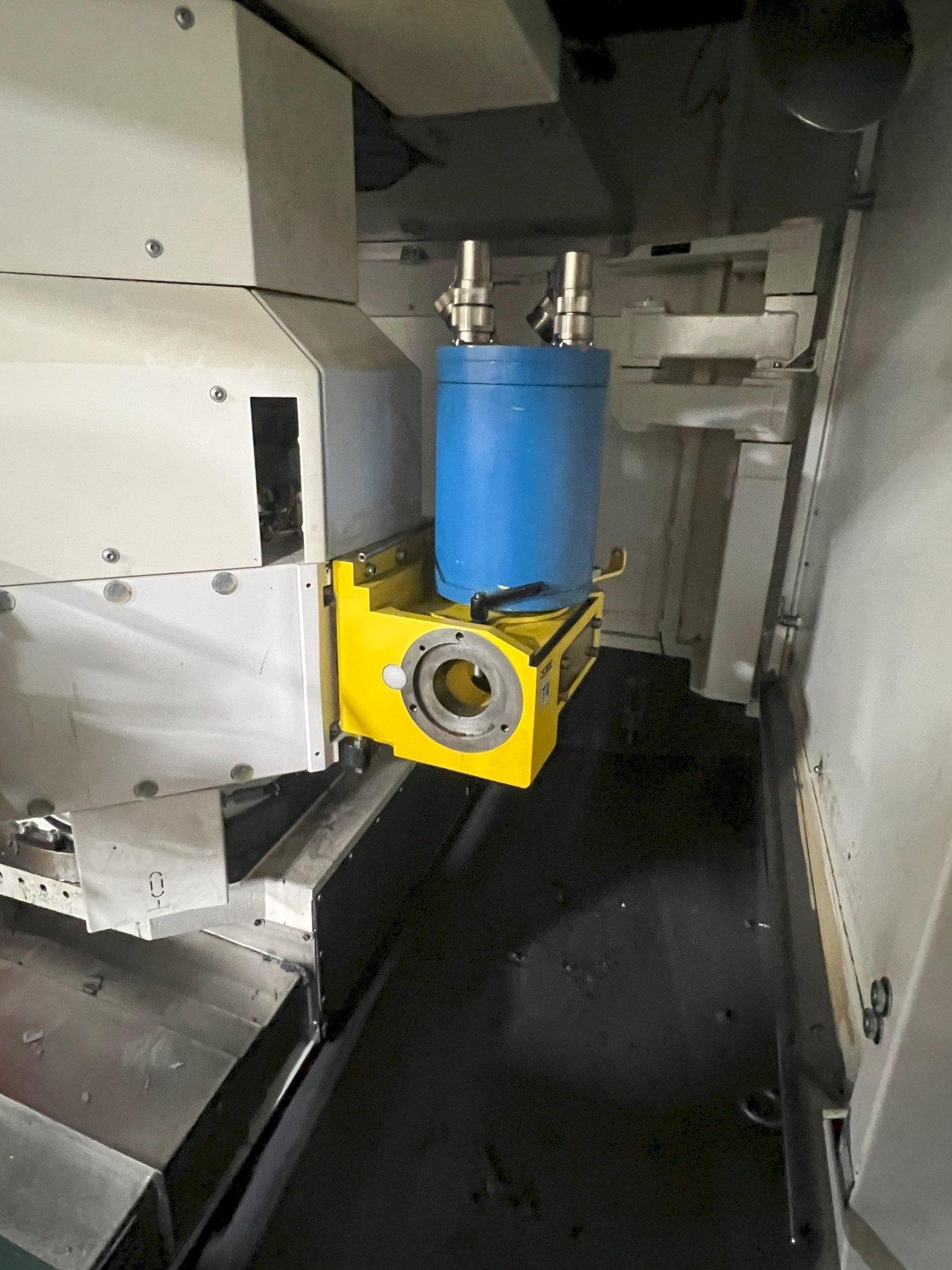

- (1) Grooving Spindle T4
- (1) OD Grinding Wheel 15748 sfpm T2

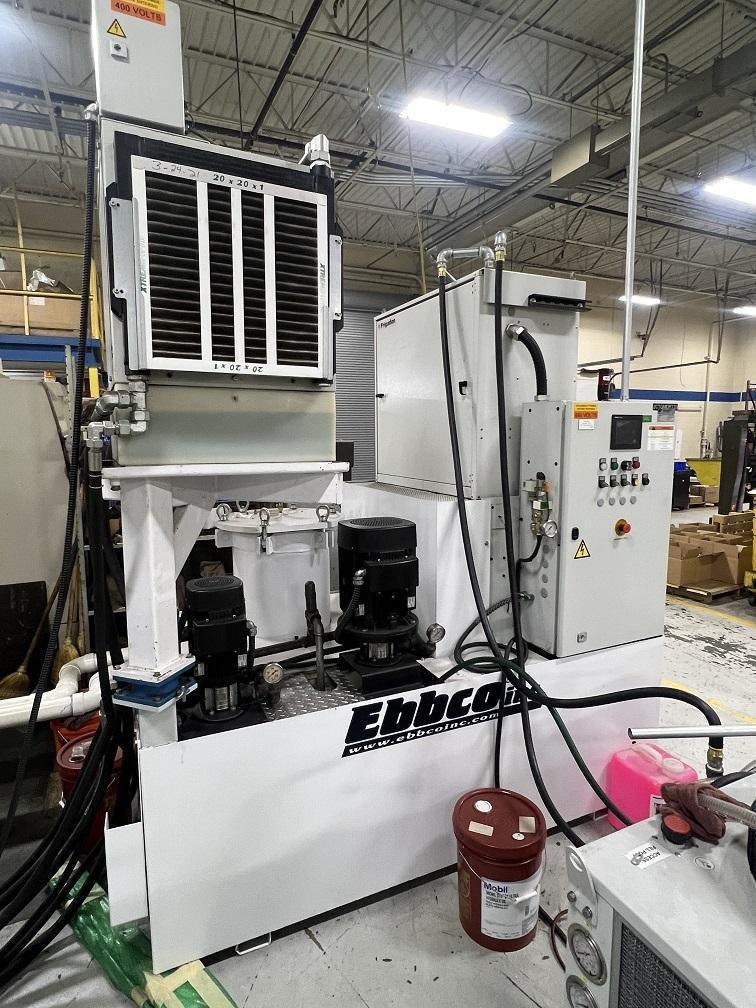

- Transor Filtration System
- Marposs Gauging
- Dittell Balancing M6000
- Workhead w/C Axis
- B Axis Wheelhead
- No Tailstock
- Probing H1 Touch Probe
- Rotary Dresser

The Studer S41 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
