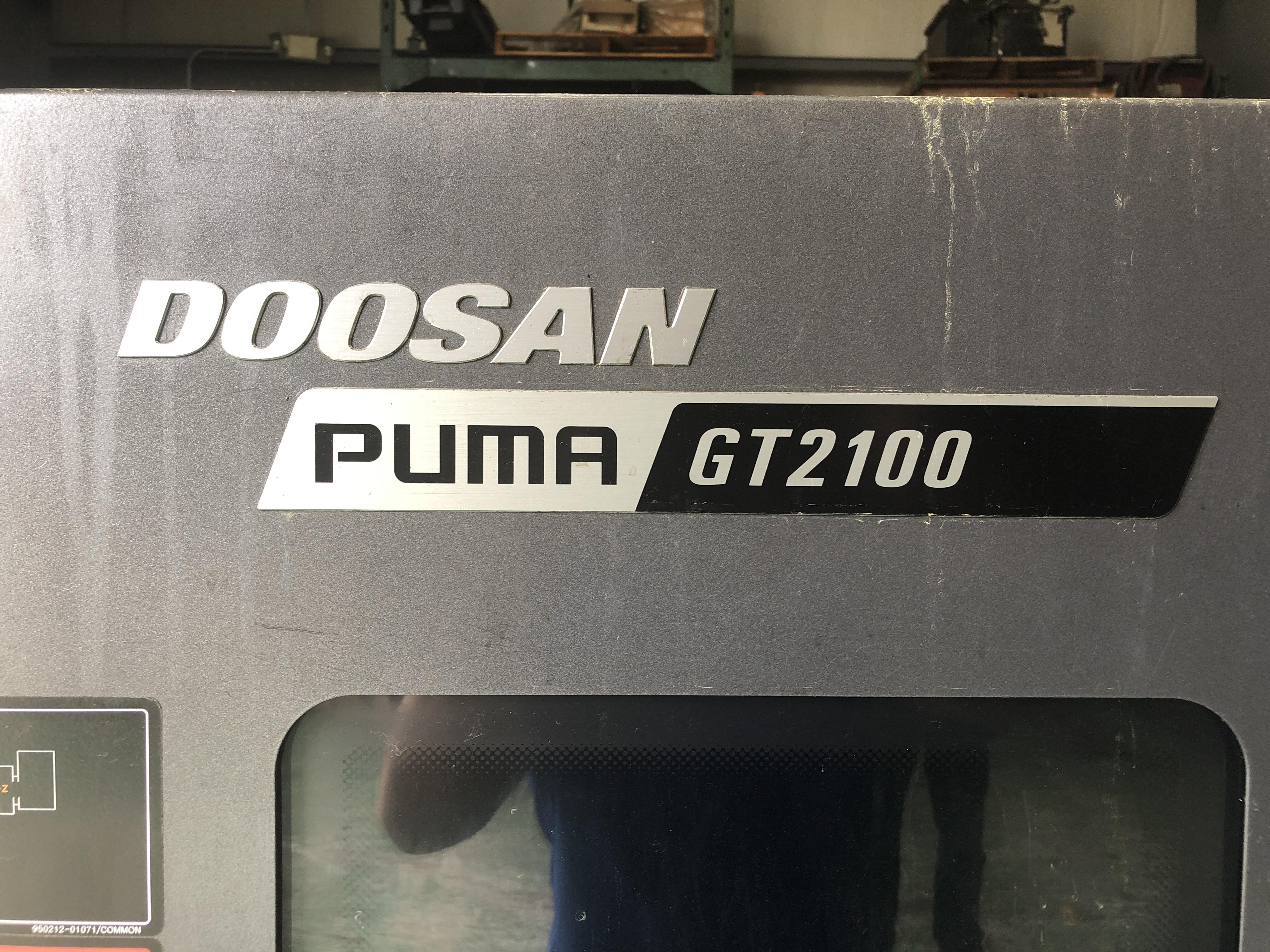

Doosan Puma GT-2100 - Horizontal Lathes

Model: Puma GT-2100
Year: 2016
Stock #: 13199 Sold
Highlights:

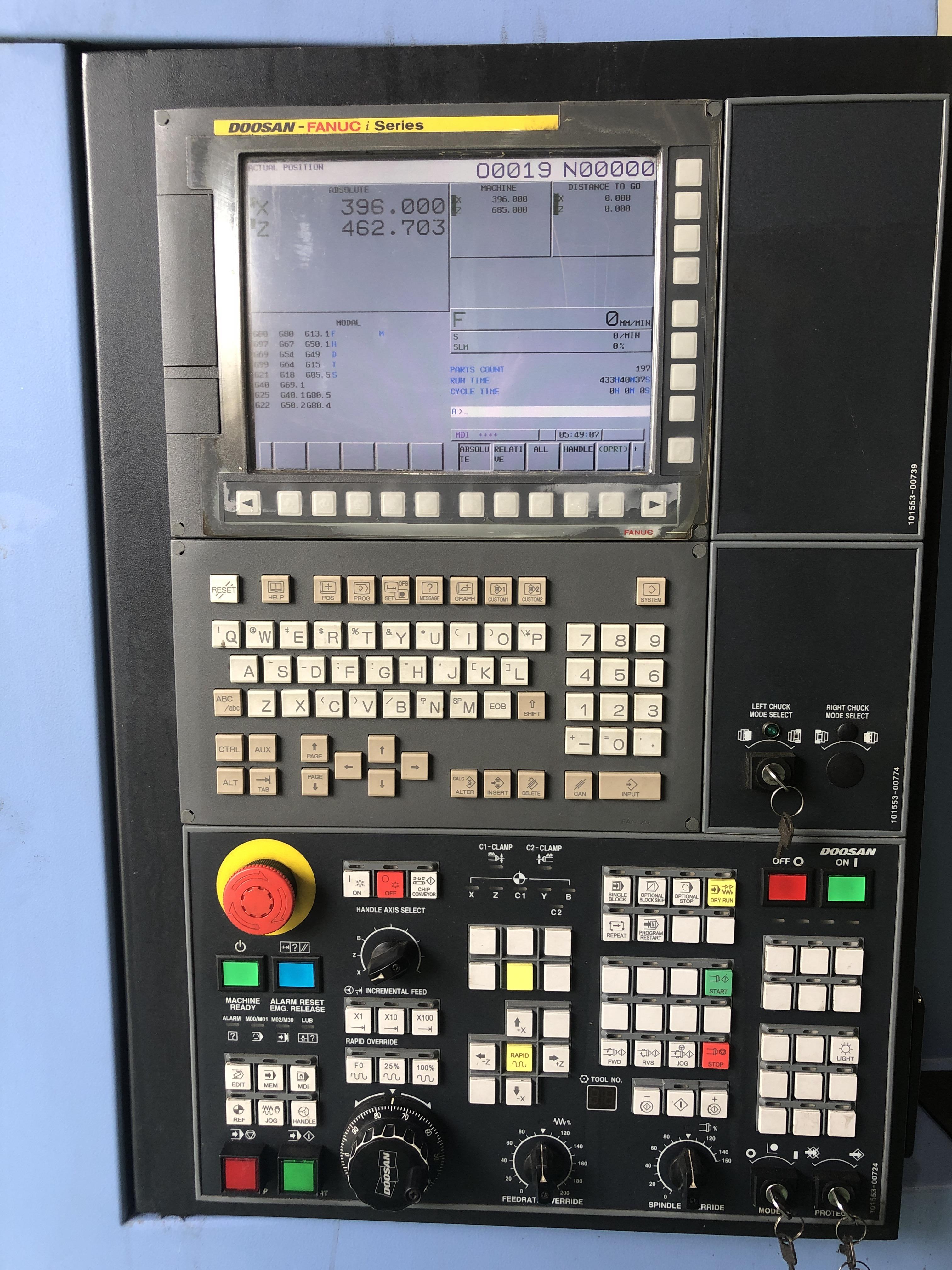

- Fanuc i Series CNC Control

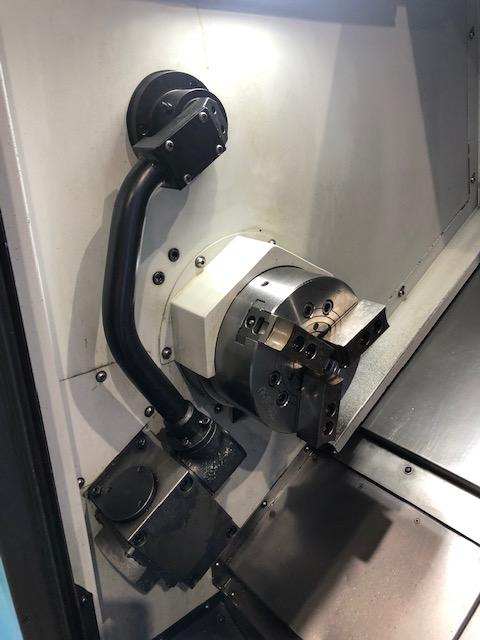

- Samchully 8" Hydraulic Chuck

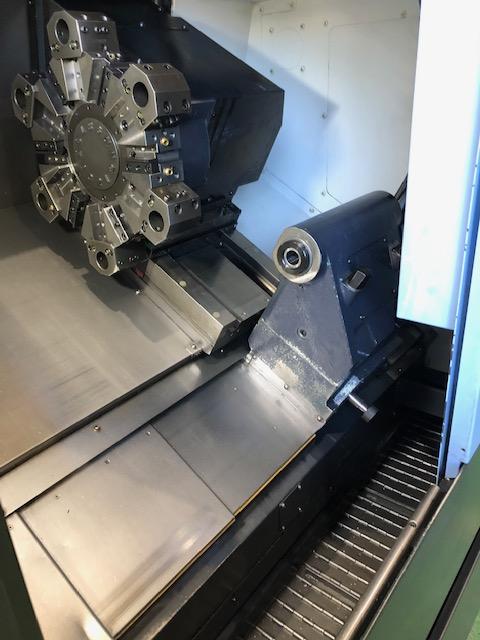

- Tool Presetter | Tailstock
- Box Way Machine | Excellent Condition

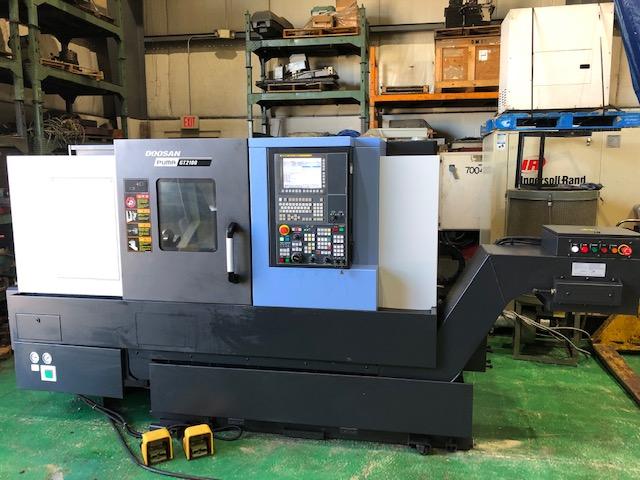

2016 Doosan Puma GT2100 - CNC Horizontal Lathe
Machine Specifications
Year
2016
Control Type
Fanuc i Series
Chuck Size
8"
Swing
23.6"
Turning Diameter
15.35"
Center Distance
22"
Bar Capacity
2.6"
X Axis Travel
9.1"
Z Axis Travel
22.8"
Rapid Traverse (X/Z)
945/1,181
Spindle Speed (RPM)
4,500
Main Motor
20 HP
Turret Capacity
12
Tailstock
yes
Y Axis
no
Dimensions
90" x 97" x 67"
Weight
7,500 pounds
Live Tooling
no
Sub Spindle
no

Equipped With:

- Fanuc i Series Control
- Samchully 8" Hydraulic Chuck (HH-208)
- Coolant Tank & Pump
- Tailstock
- Tool Presetter
- Available Manuals
- Box Way Machine
- Chip Conveyor
- 11/2016 (Installed in 2017)

The Doosan Puma GT-2100 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
