Model: VF-9/40
Year: 2016
Stock #:
Highlights:

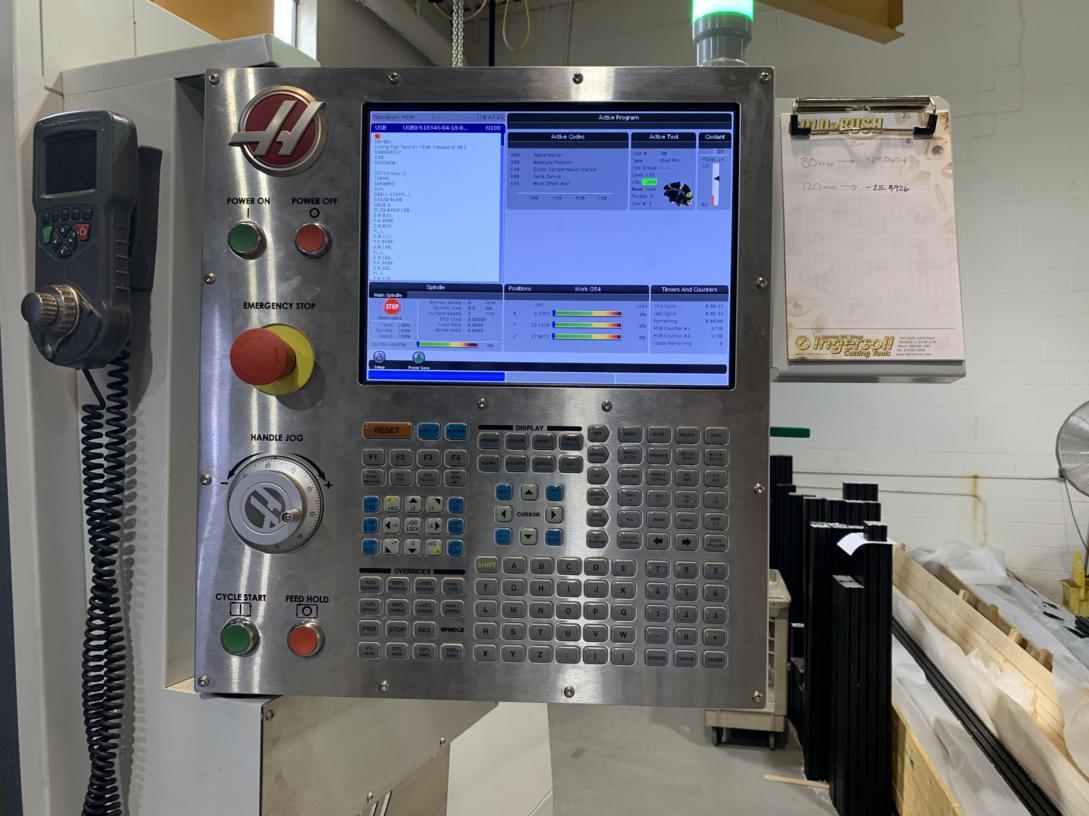

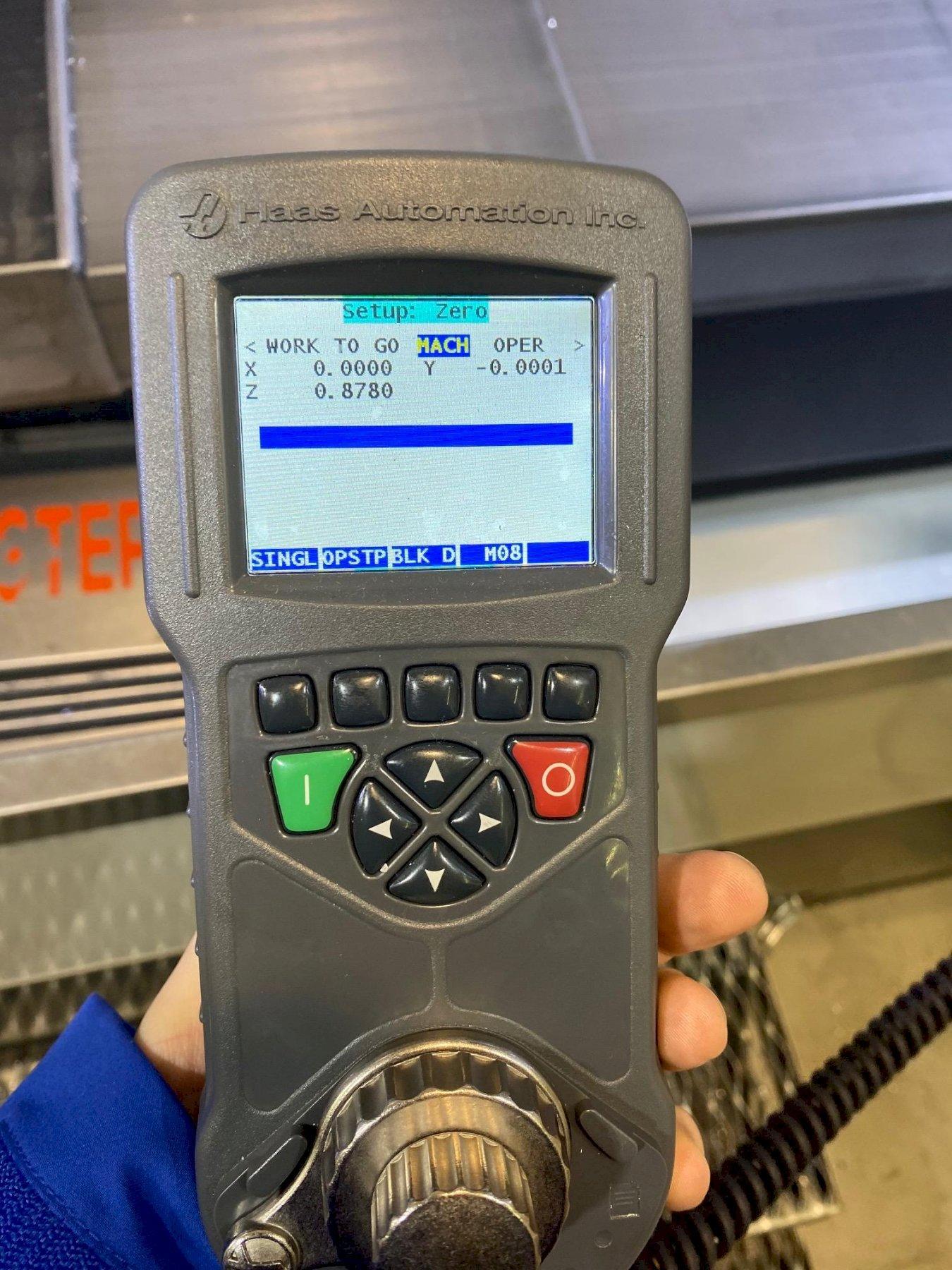

- Remote LCD Handheld MPG

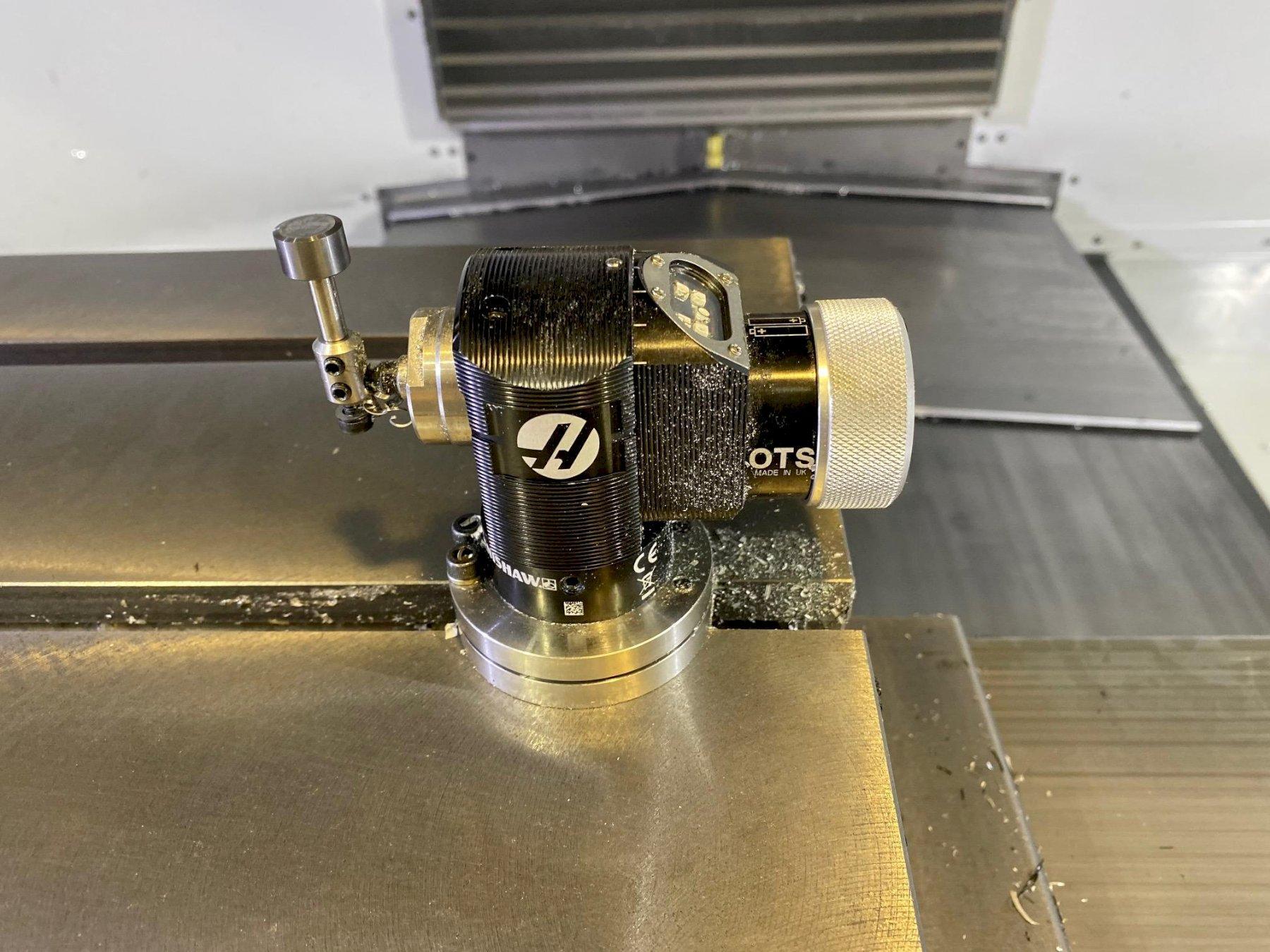

- Renishaw Tool Touch Probe
- 5 Axis Trunion Table (Model TR310)
- 24 Station Sidemount ATC
- 15,000 RPM | 30HP Spindle Upgrade
- Travels (X/Y/Z): 84"/40"/30"

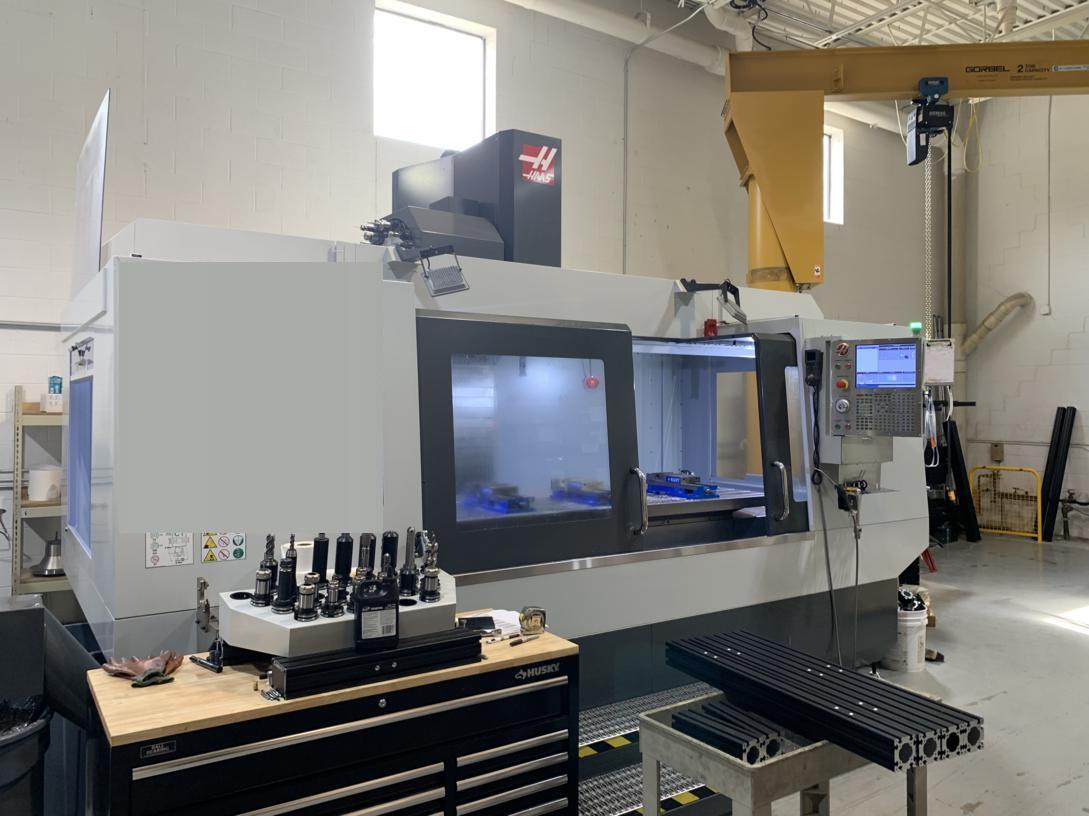

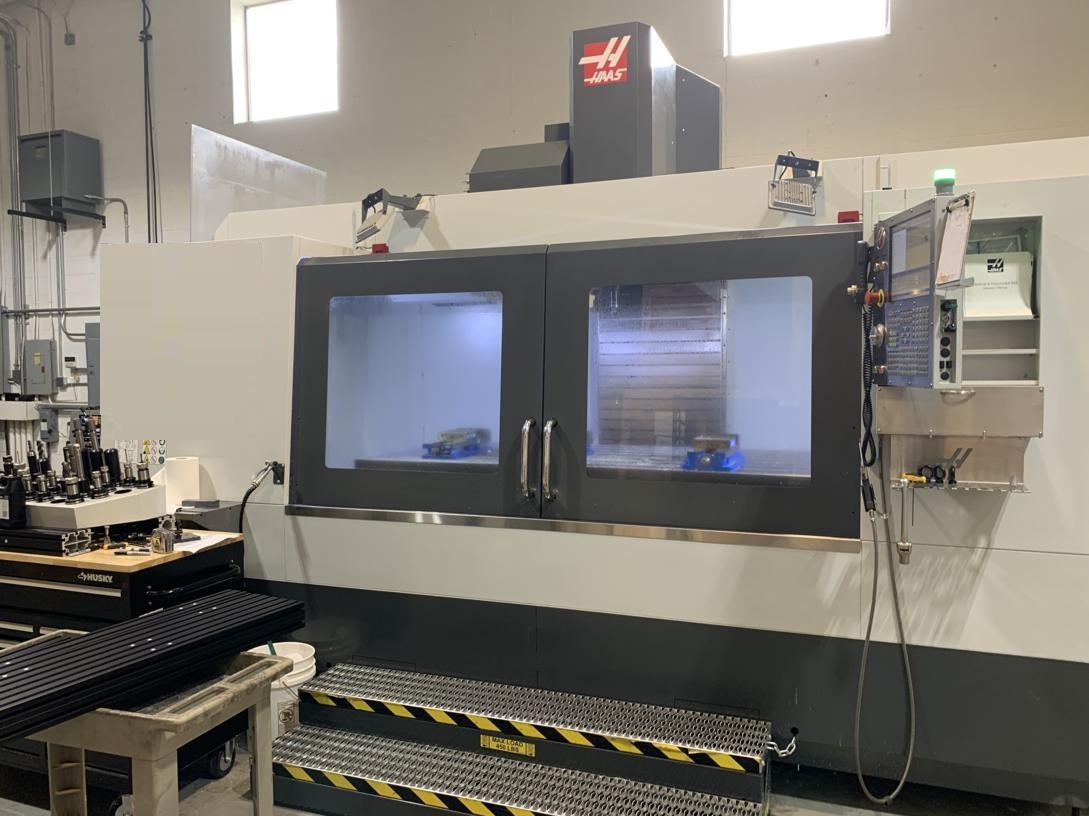

2016 Haas VF-9/40 - Vertical Machining Center
Machine Specifications
Year
2016
Control Type
Haas
# Axis
5

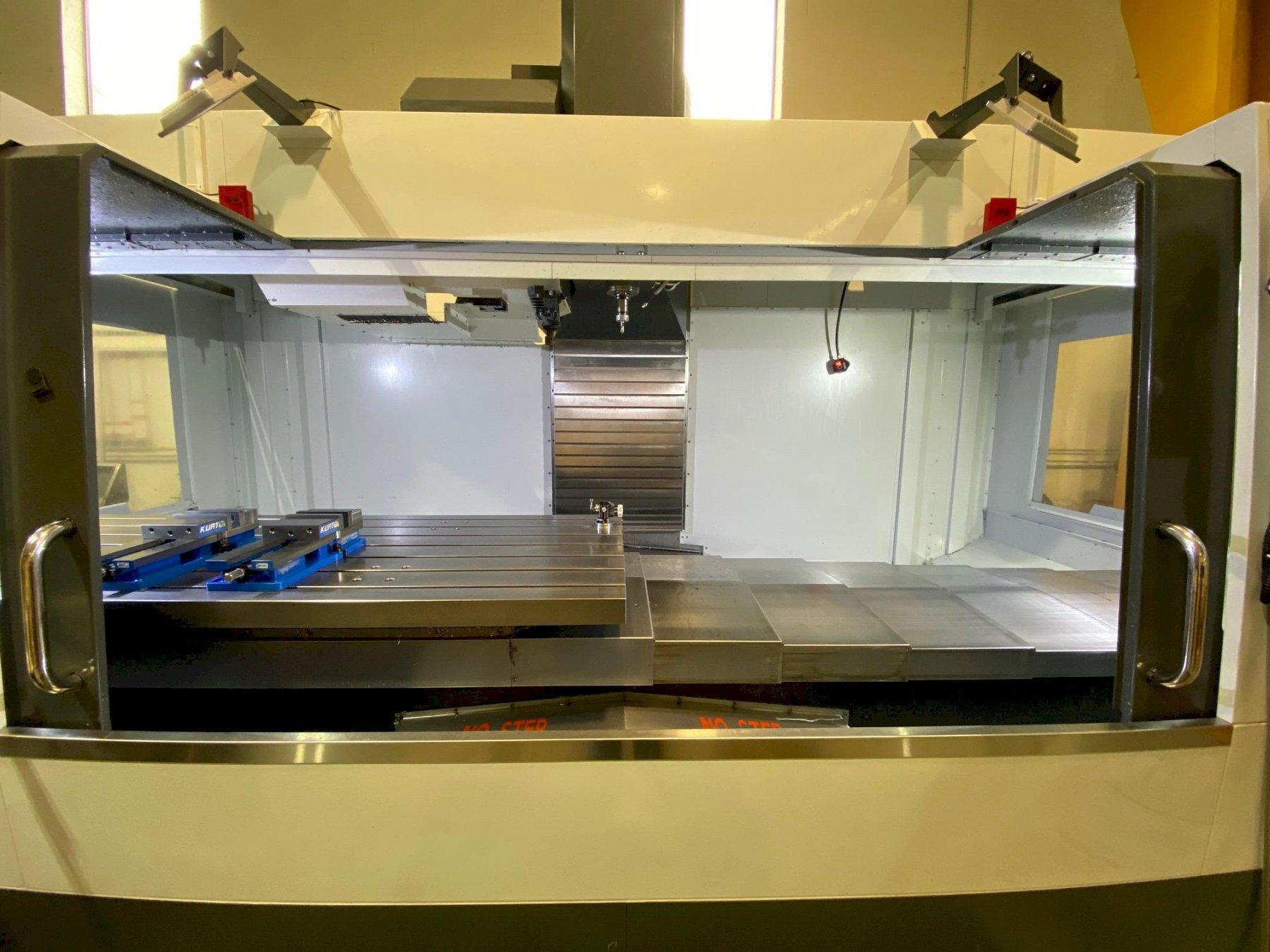

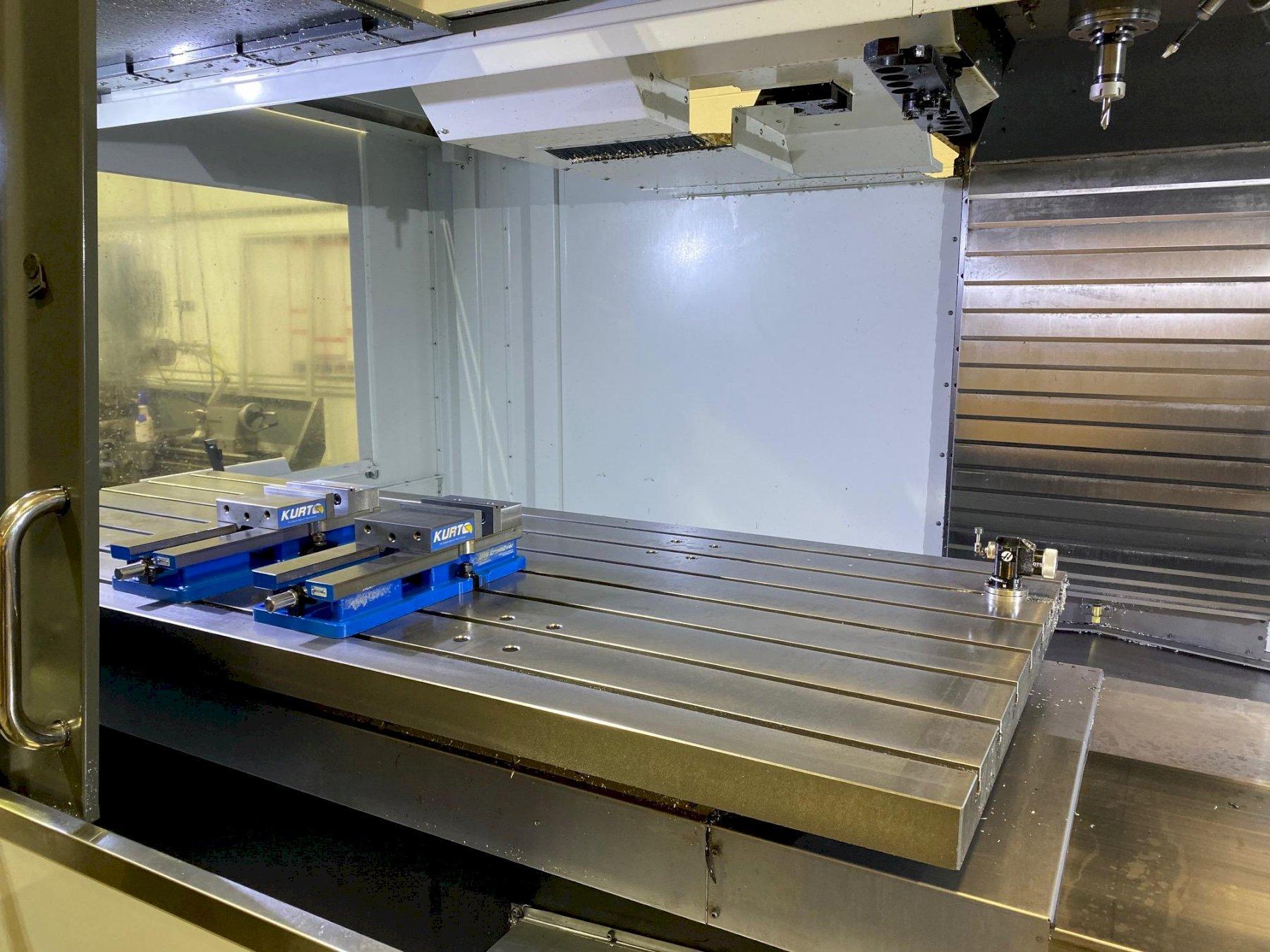

Table Size
84 x 36
Table Capacity
4,000 pounds
X-Axis Travel
84"
Y-Axis Travel
40"
Z-Axis Travel
30"
Spindle Speed
15,000
Spindle Taper
CAT 40
Main Motor
30
Tool Changer Capacity
24
Weight
28,300 pounds

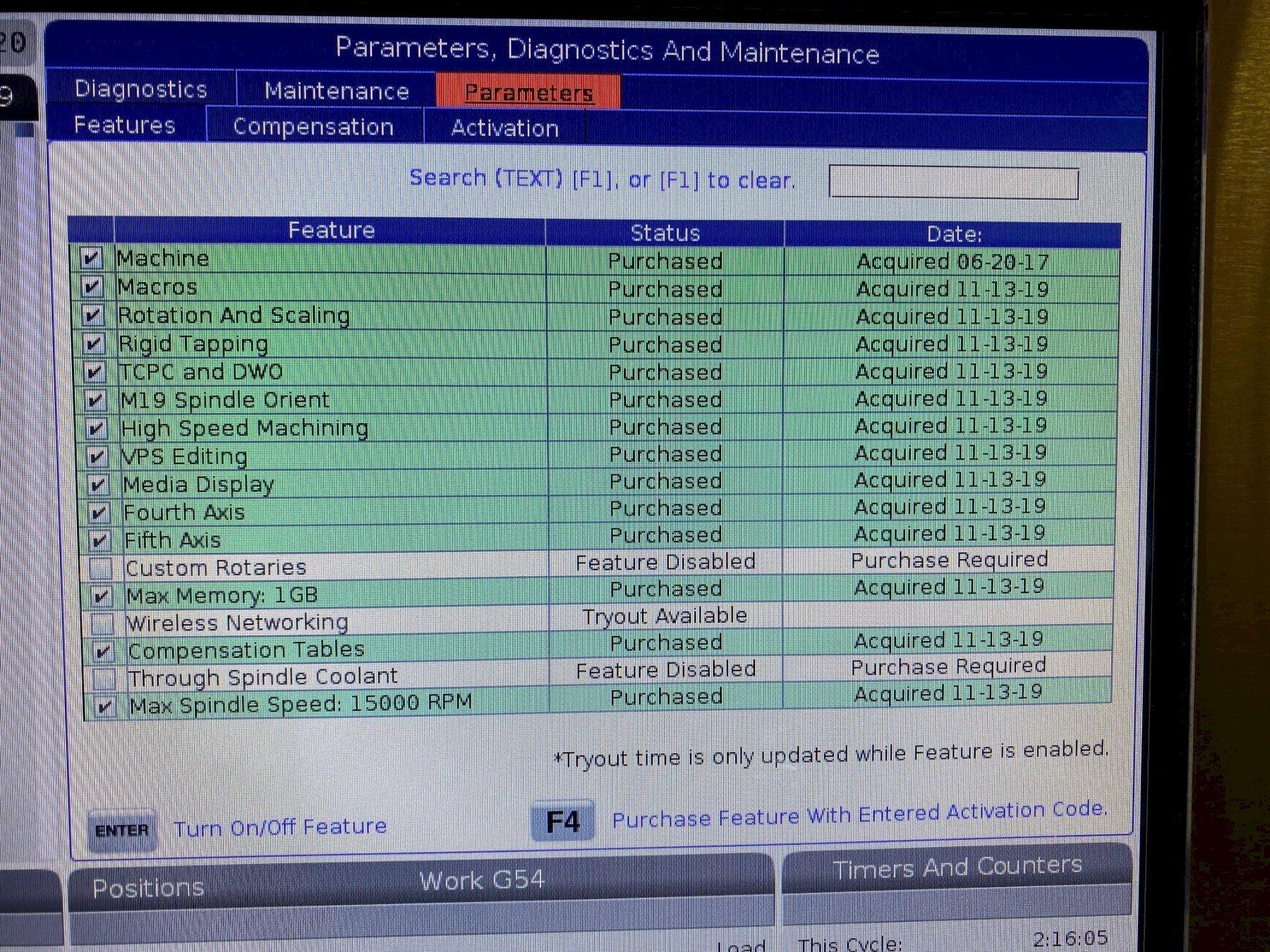

Equipped With:

- Haas 5 Axis Trunion Table (Model: TR310)

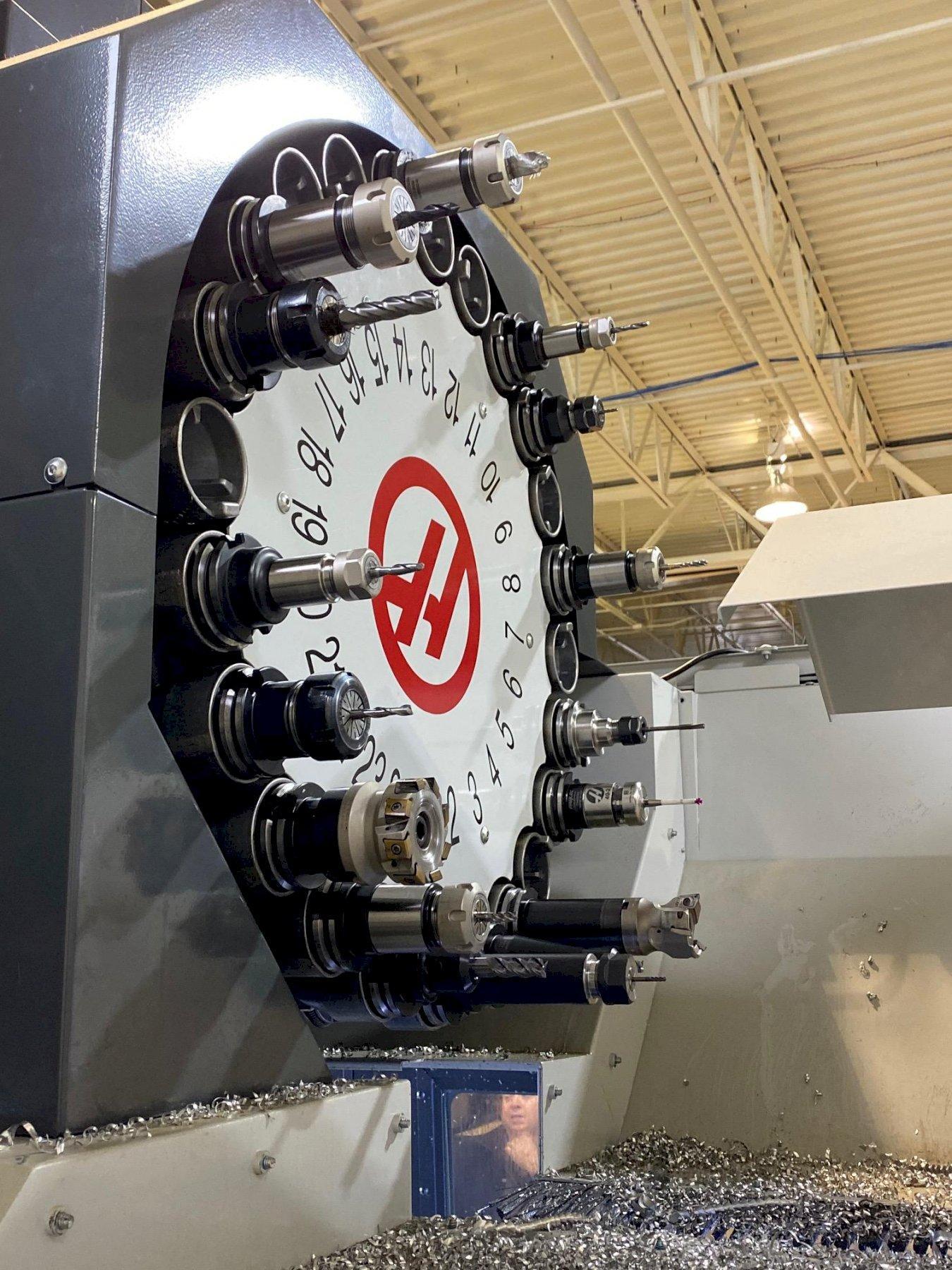

- Side Mount Tool Changer, 24+1
- 1 GB Memory
- Ethernet Interface w/ USB Port
- Rigid Tap
- Early Power Failure Detection Module
- 55 Gallon Coolant Tank System
- 105 Work Offsets
- 200 Tool Offsets
- Tool Life Management
- Tool Load Monitoring
- Visual Part Programming System
- Macro Programming
- Spindle Orientation
- Coordinate, Rotation and Scaling

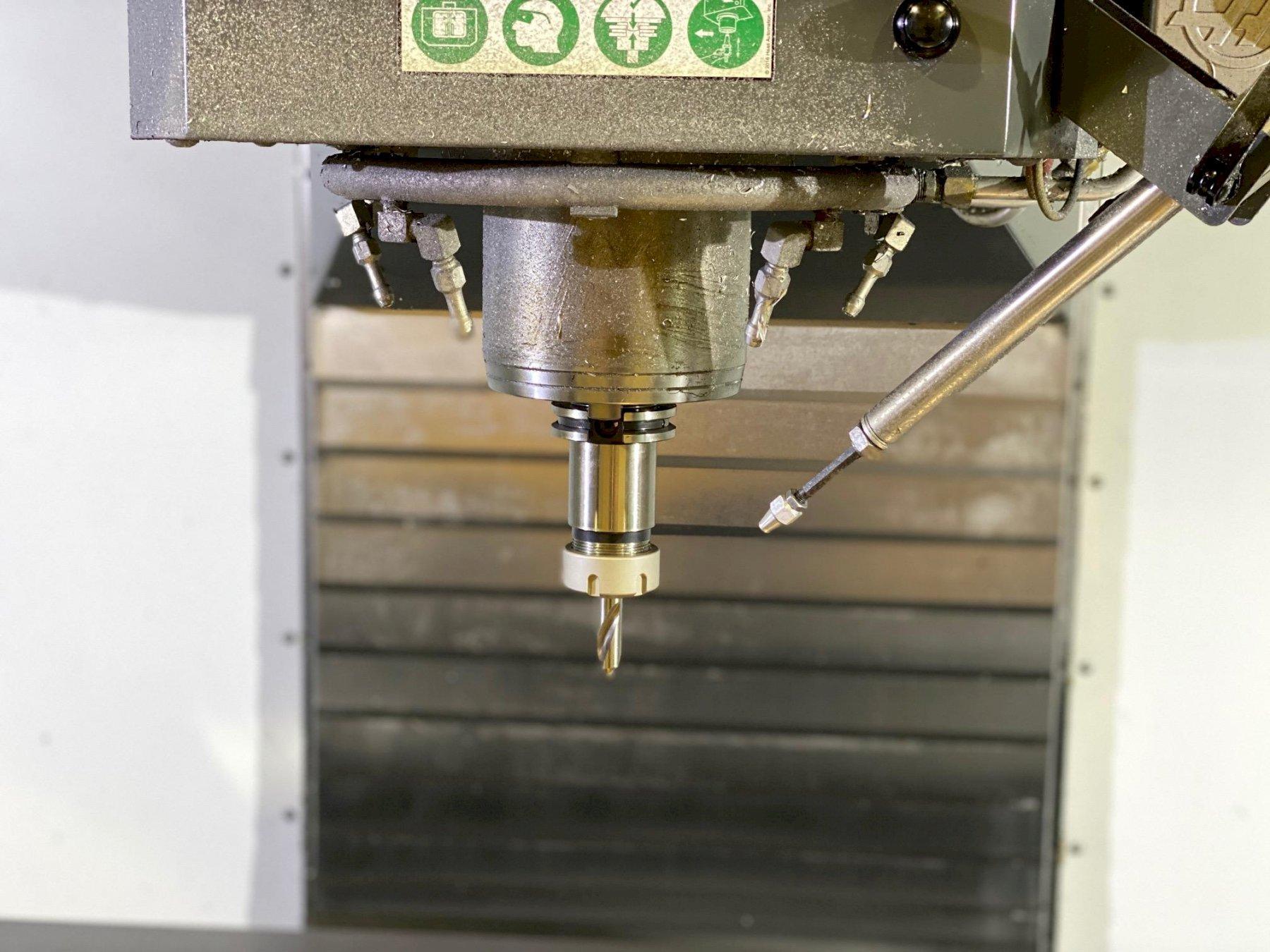

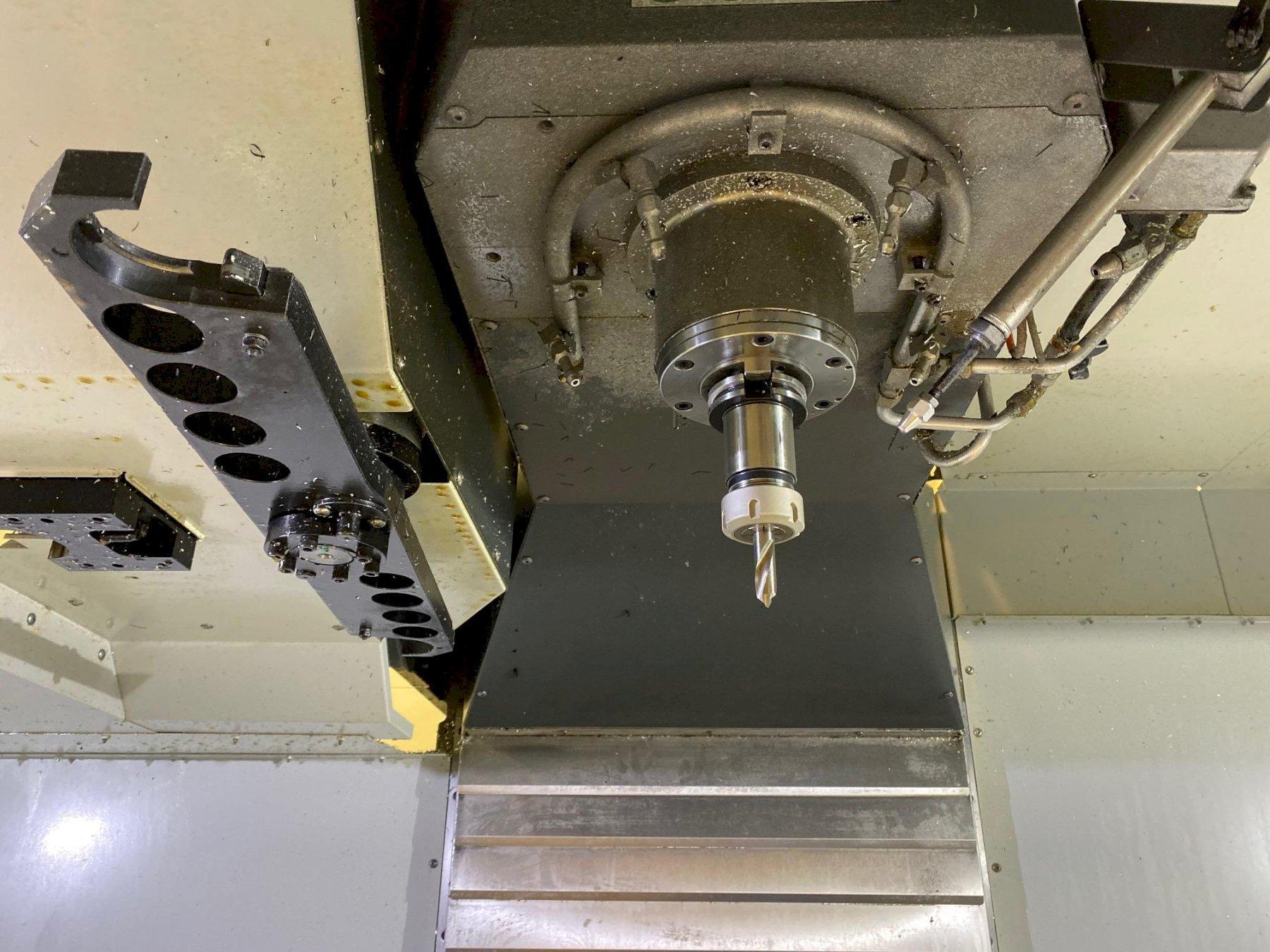

- 15,000 RPM 30 HP Inline Spindle Upgrade
- Dynamic Work Offsetting & Tool Center Point Control
- High Speed Machining
- Automatic Air Nozzle
- Wireless Intuitive Probing System- Renishaw

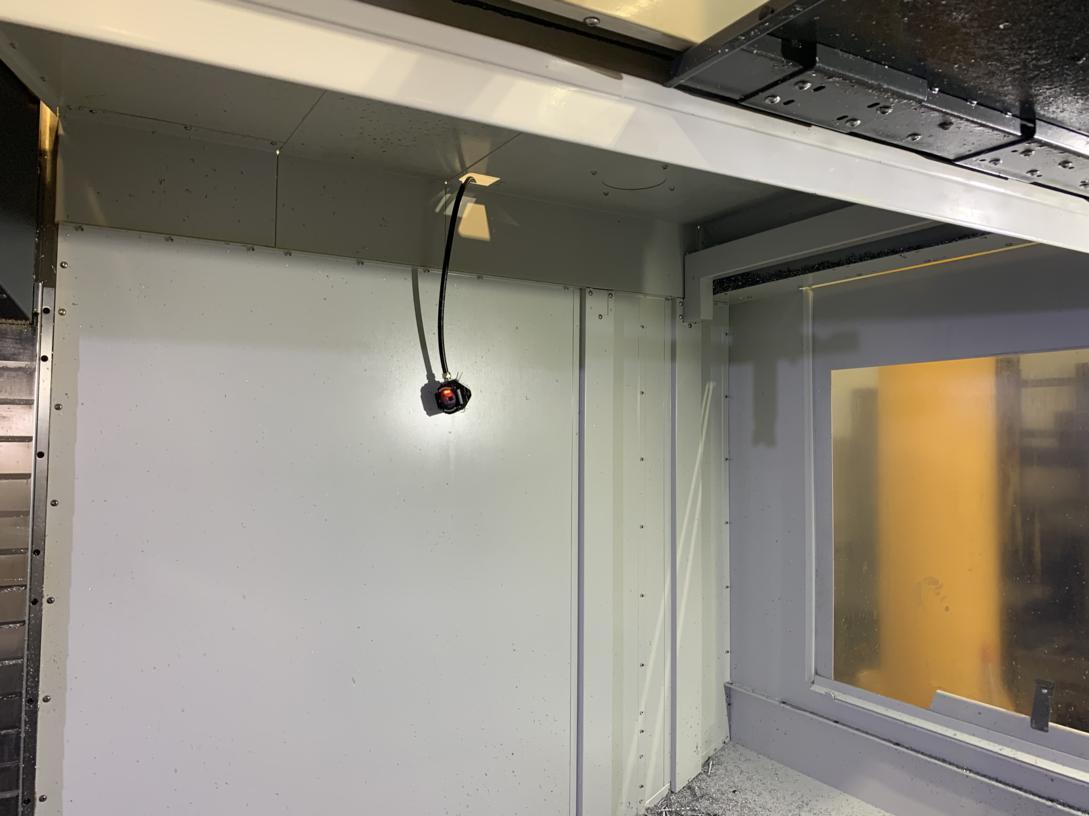

- High Intensity Lighting
- 4th Axis Drive and Wiring
- 5th Axis Drive and Wiring

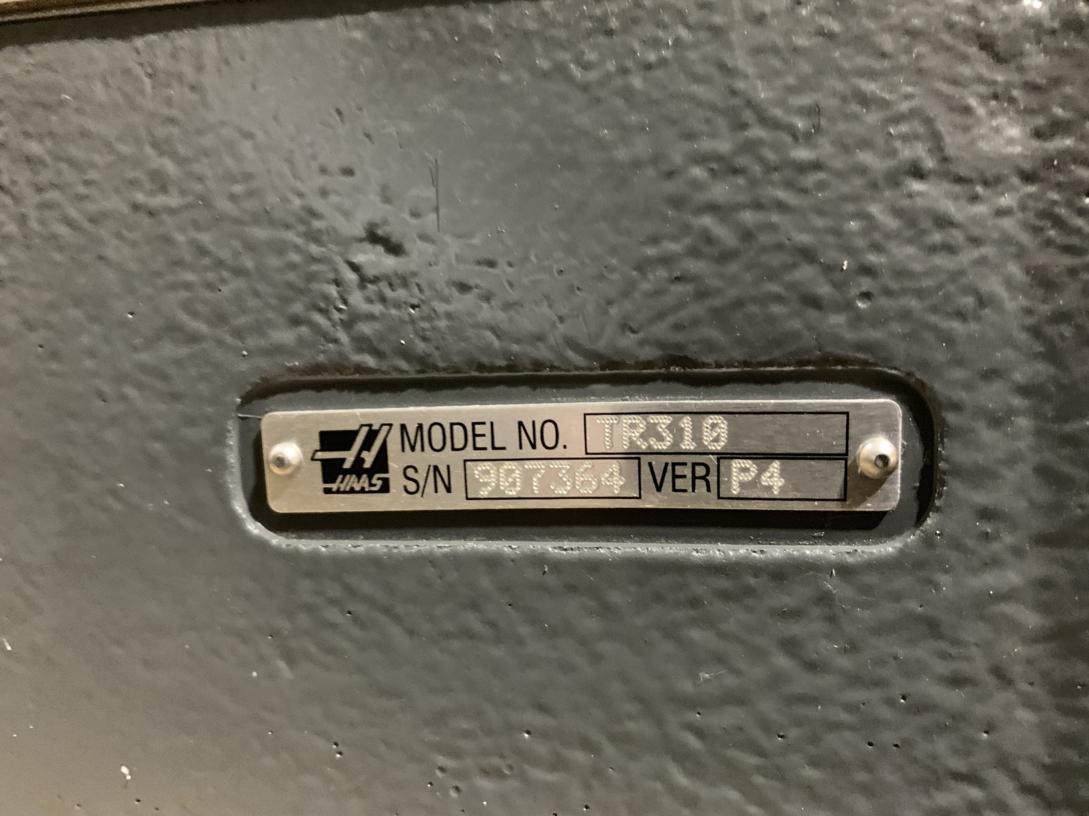

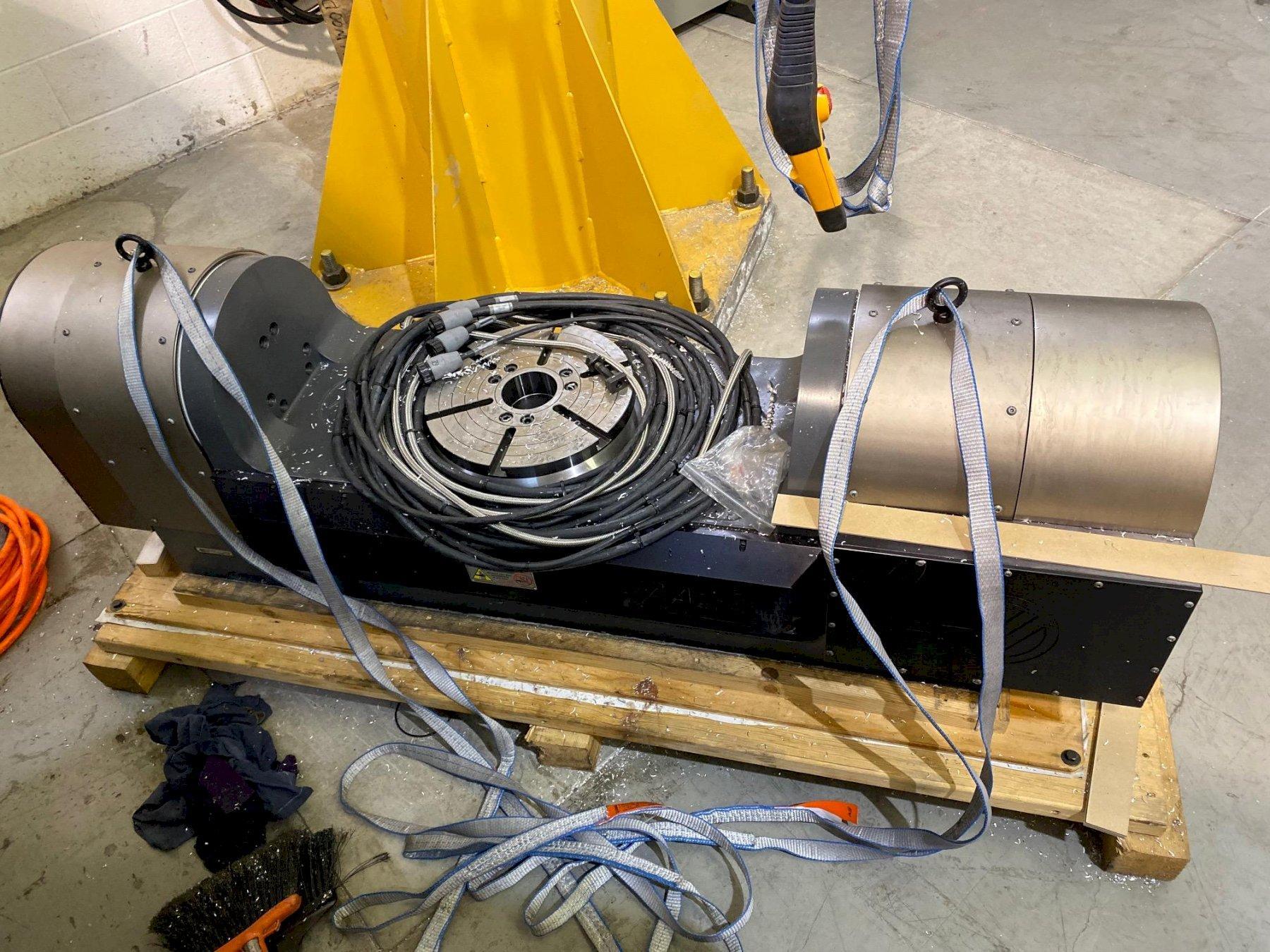

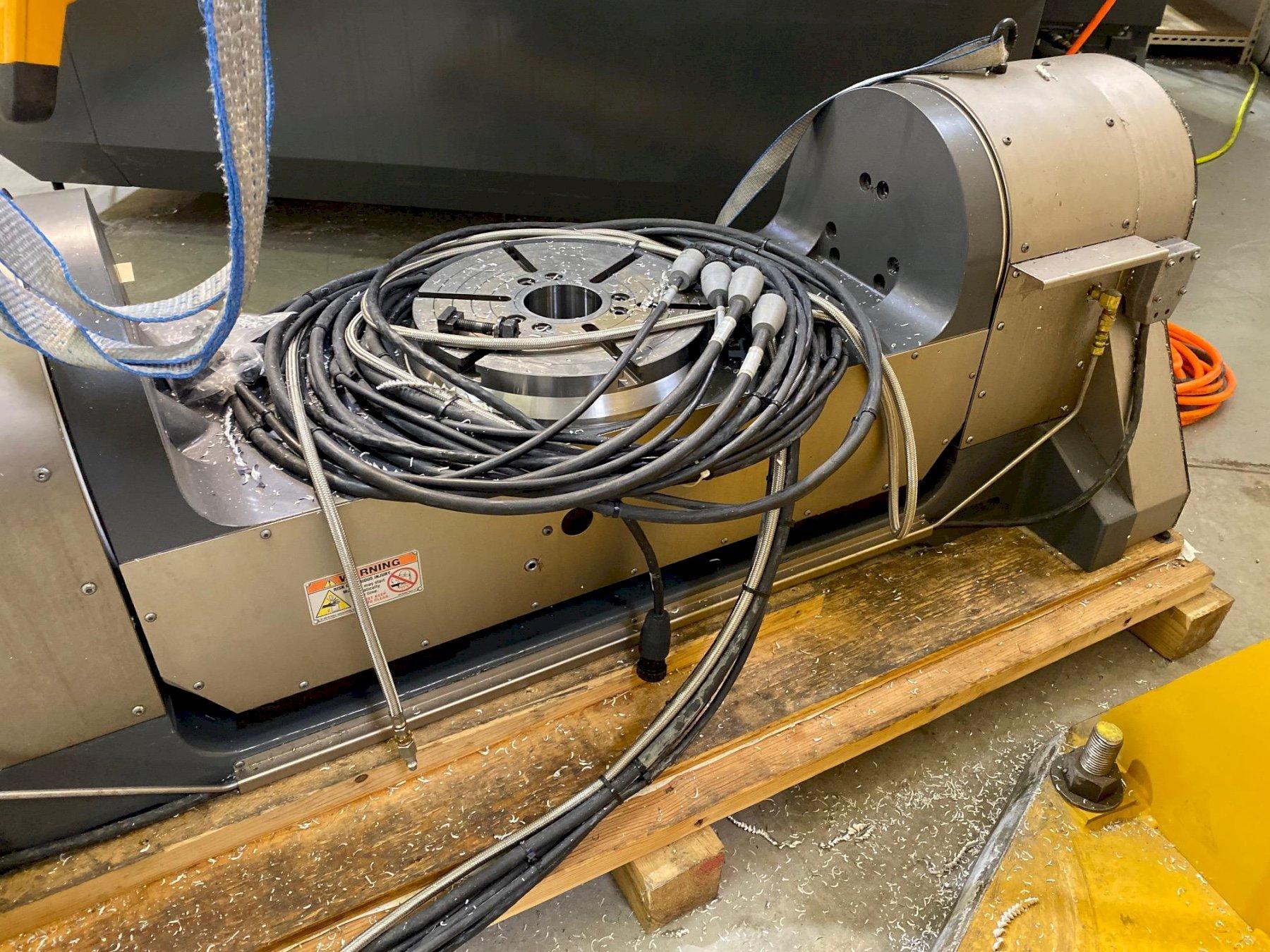

- Haas 5 Axis Trunion Model:TR310, 310MM Tilting 2-Axis Trunnion Rotary Table


The Haas VF-9/40 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
