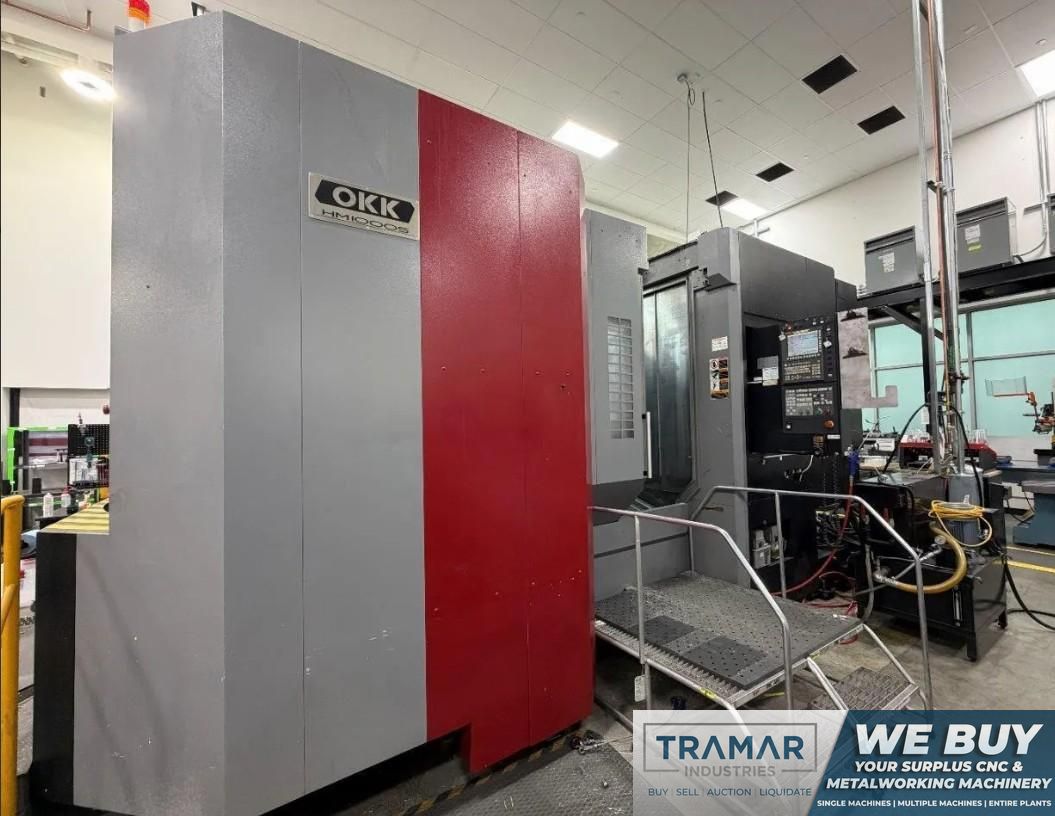

OKK HM-1000S - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HM-1000S
Year: 2016
Stock #: 60595-SC
Highlights:

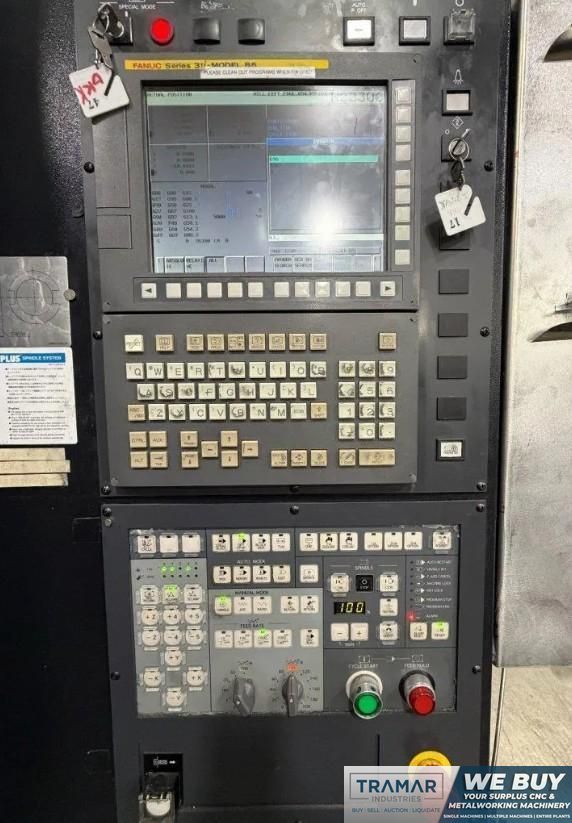

Fanuc 31i-Model B5 CNC Control

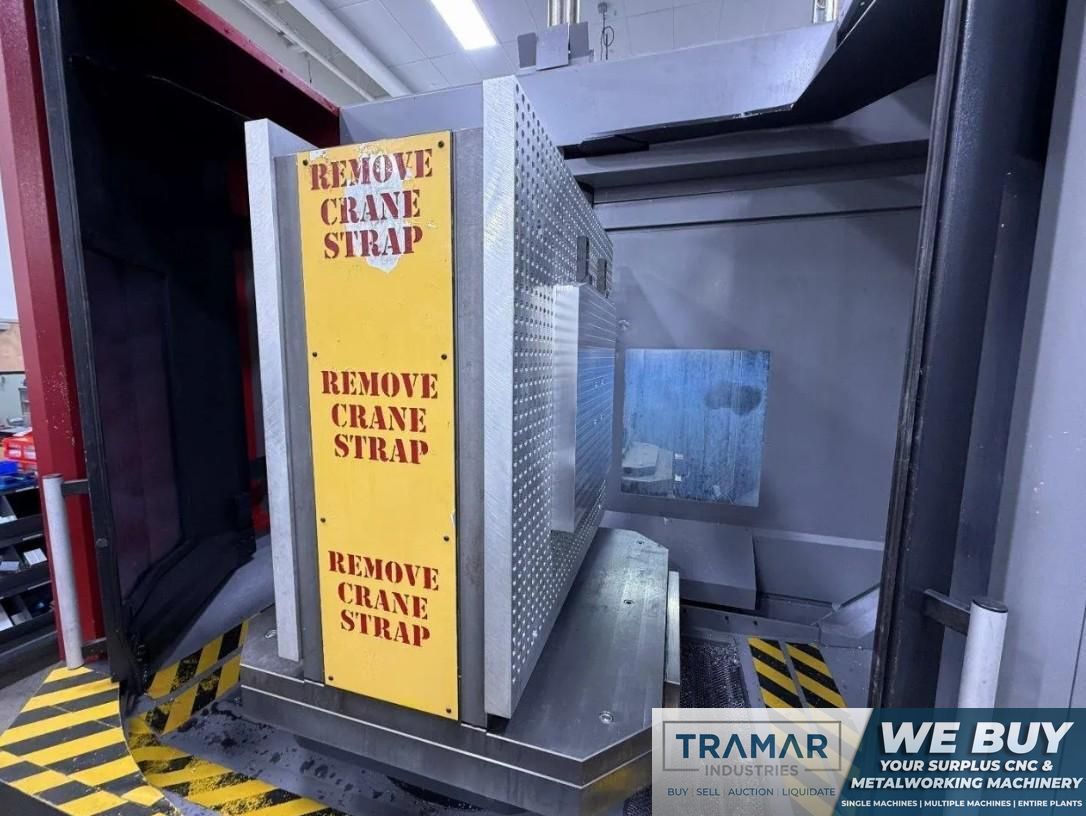

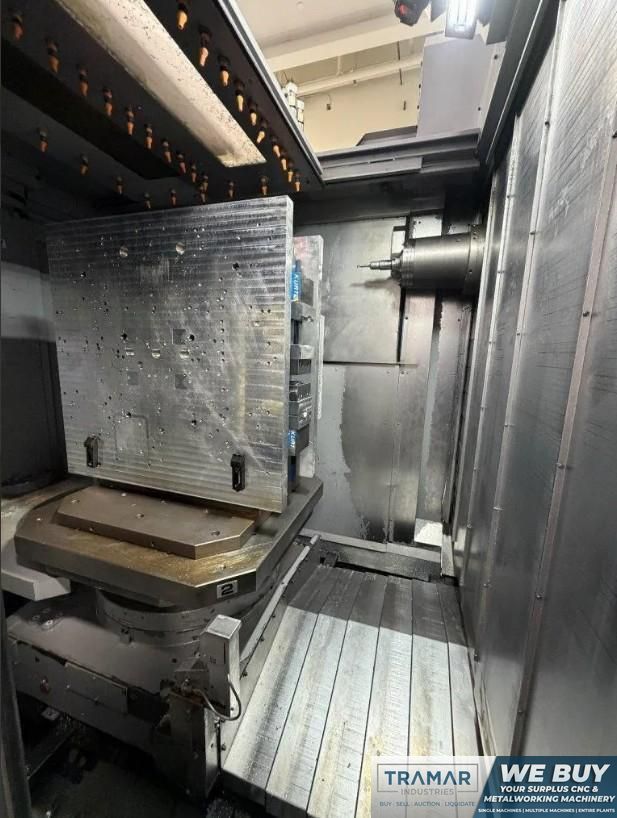

Pallet Size: 39.4" x 39.4" | 5,500 lbs
Travels: X-55.2" / Y-43.3" / Z-39.4"
Full B-Axis 0.001°
CAT 50 Big Plus | 12,000 rpm | 60 hp
60 Station Tool Changer
1,000 psi Coolant Thru Spindle

2016 OKK HM1000S Used CNC Horizontal Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model B5
# Axis
4
Pallet Length
39.4"
Pallet Width
39.4"
Pallet Load Capacity
5,500 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
55.2"
Y-Axis Travel
43.3"
Z-Axis Travel
39.4"
Rapid Traverse Rate (X/Y/Z)
1,889 ipm
Spindle Taper
CAT 50 Big Plus
Spindle Speed
12,000 rpm
Spindle Motor (HP)
60 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Weight
55,000 pounds

Equipped With:

- Fanuc 31i-Model B5 CNC Control
- 1000 PSI Thru-Spindle Coolant
- BRT Full 4th Axis Table
- 35-12,000 RPM, CAT50 BIG PLUS, 60/40 HP, High Torque Spindle
- Renishaw Probe System
- Hyper HQ control function: MODE B ..This function G05P_ is tuned by OKK
- Fanuc / High precision contour control function with 64 bit RISC processor
- 600 block Look Ahead
- 1 mm line segments data processing capability: 150 m/min (5,905 IPM)
- Price includes Data server with Ethernet interface- 1.0 Gigabyte (FA-J534)

The OKK HM-1000S is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
