Model: VR-11
Year: 2022
Stock #: BR666221
Highlights:
5 Axis Capabilities

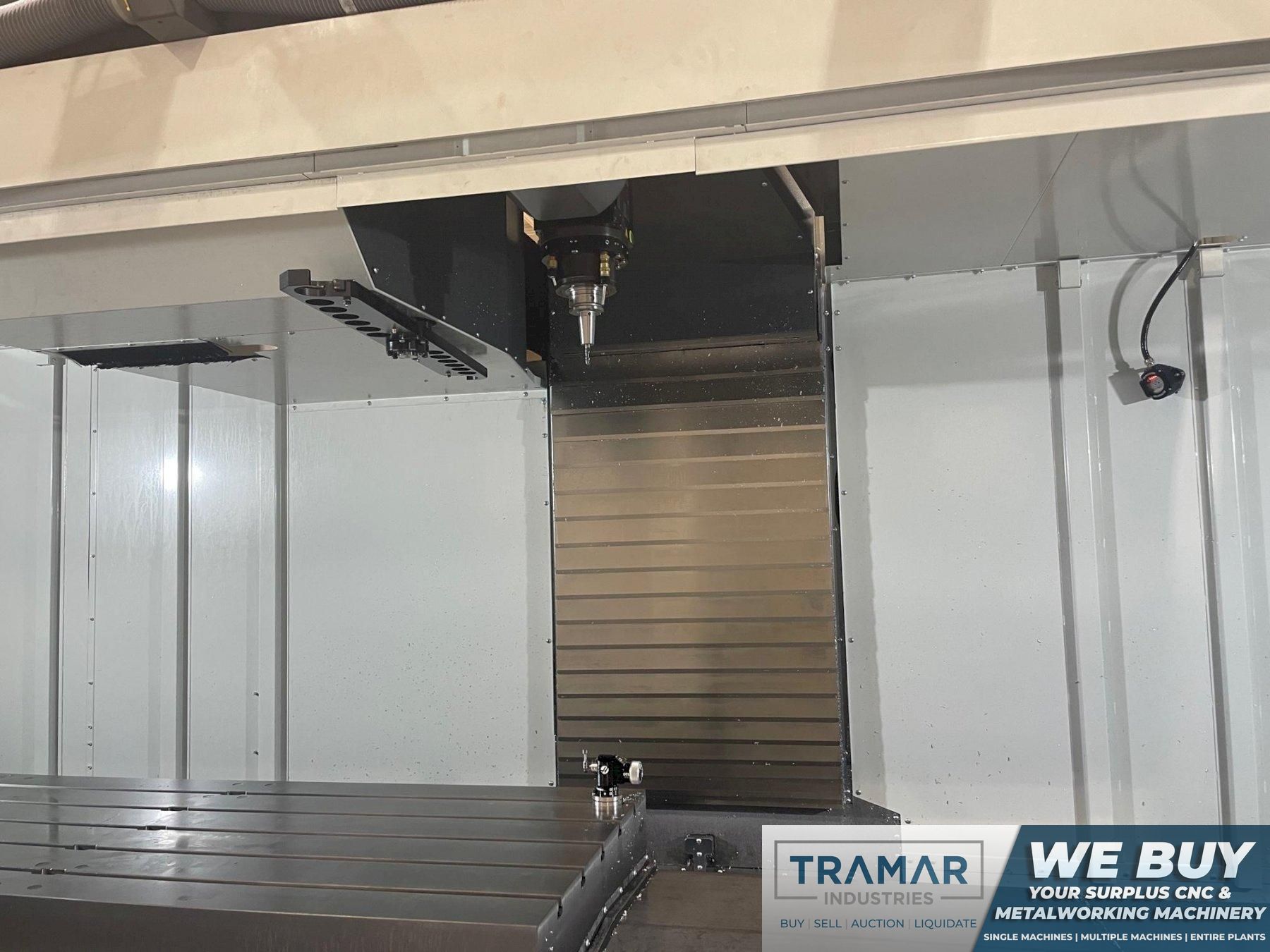

20,000 rpm | HSK-A63 Spindle
50+1 Sidemount Tool Changer
Coolant Thru Spindle
Wireless Intuitive Probing System

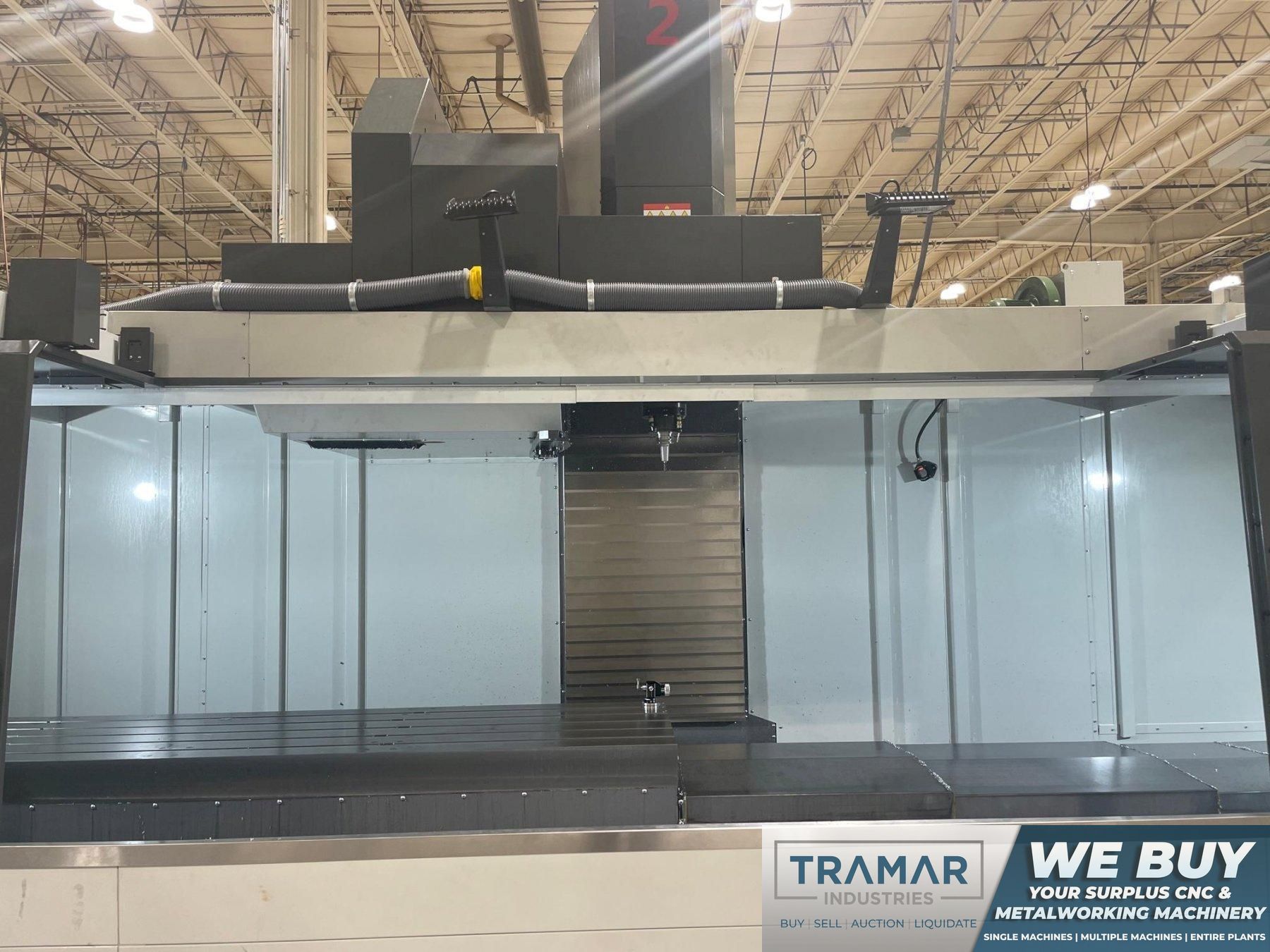

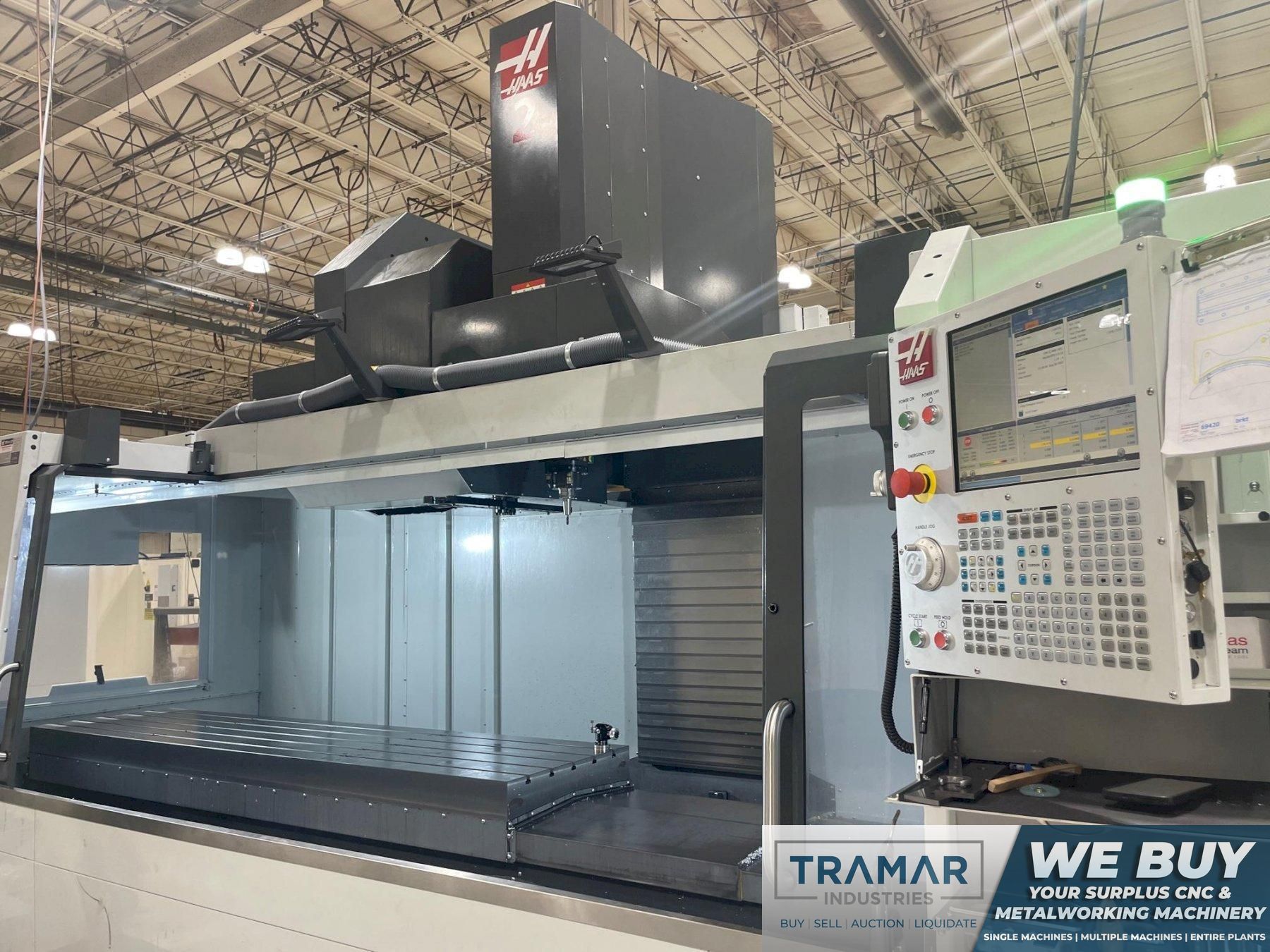

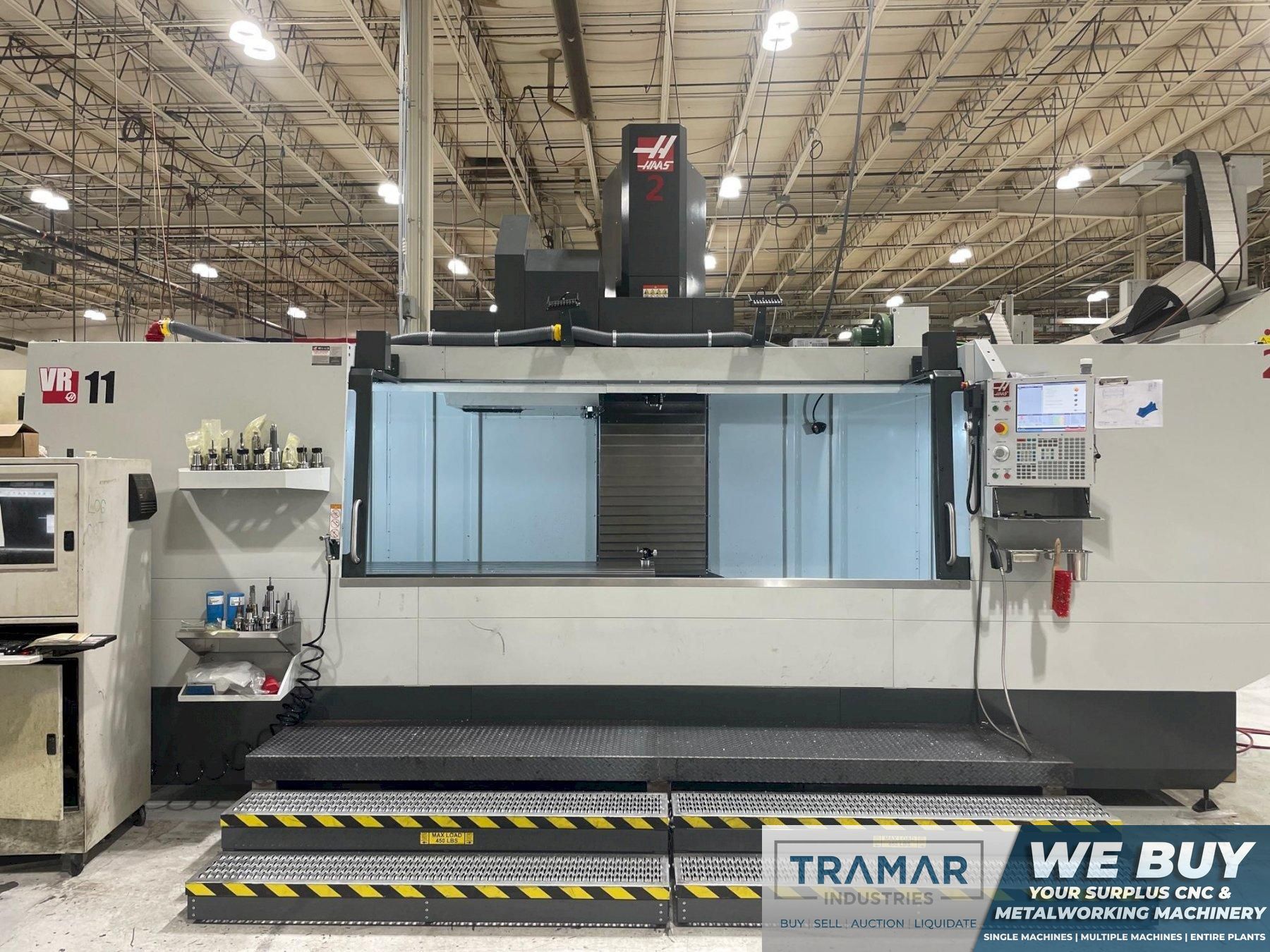

2022 Haas VR-11 | 5-axis CNC Vertical Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
5

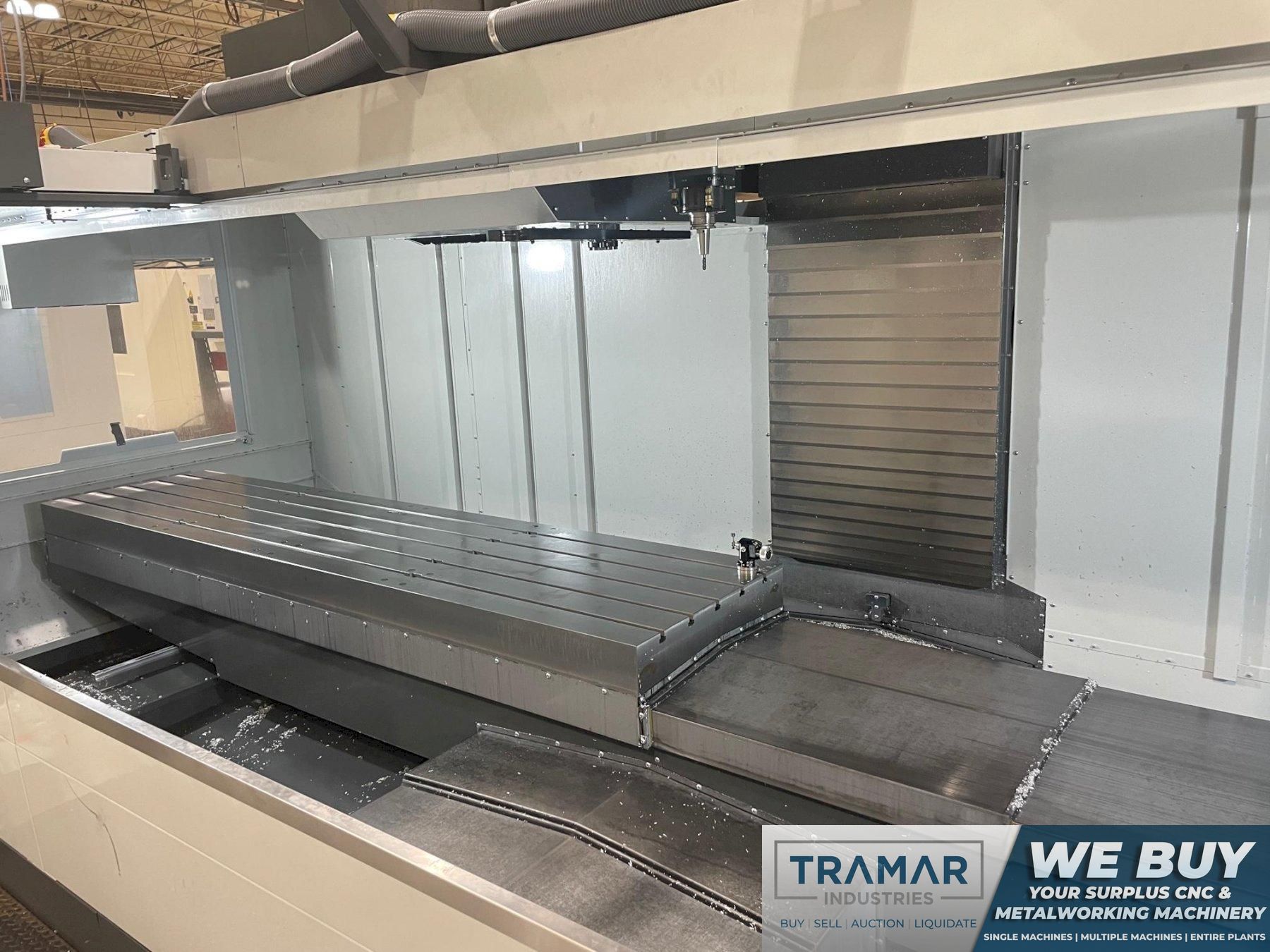

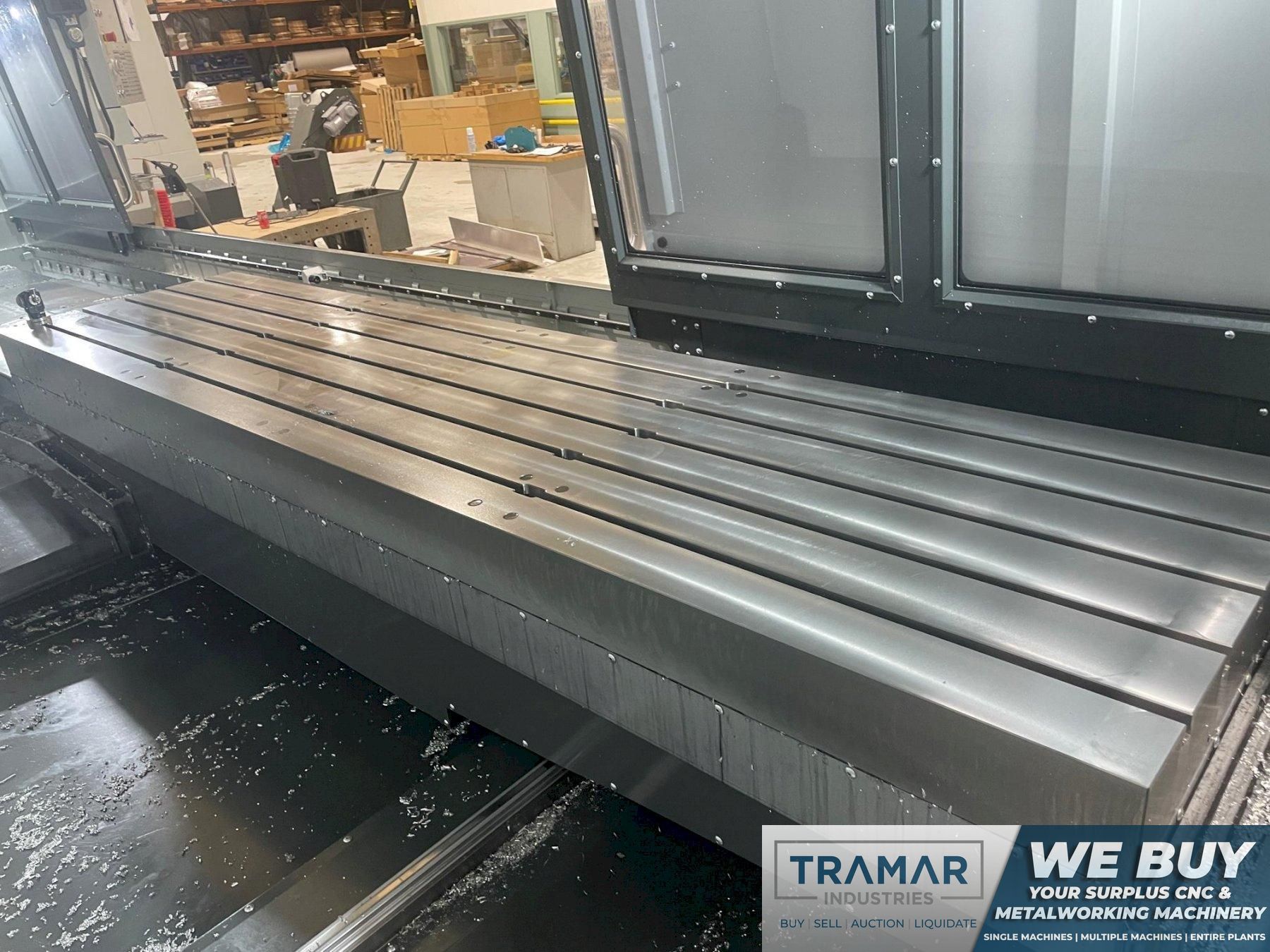

Table Size
120" x 28"
Max Table Load
4,000 pounds
X-Axis Travel
120"
Y-Axis Travel
40"
Z-Axis Travel
42"
B Axis Rotary
120° to -120°
C Axis Rotation
245° to -245°
Rapid Traverse Rate (X/Y/Z)
360/600/600 ipm
Spindle Taper
HSK-A63
Spindle Speed
20,000 rpm
Main Motor
24 hp
ATC Capacity
50
Coolant Thru Spindle
yes
Machine Dimensions
288" x 120" x 136"
Machine Weight
33,700 pounds

Equipped With:

- 5 Axis Capabilities (3+2 Machining)
- 95 Gallon Coolant Tank

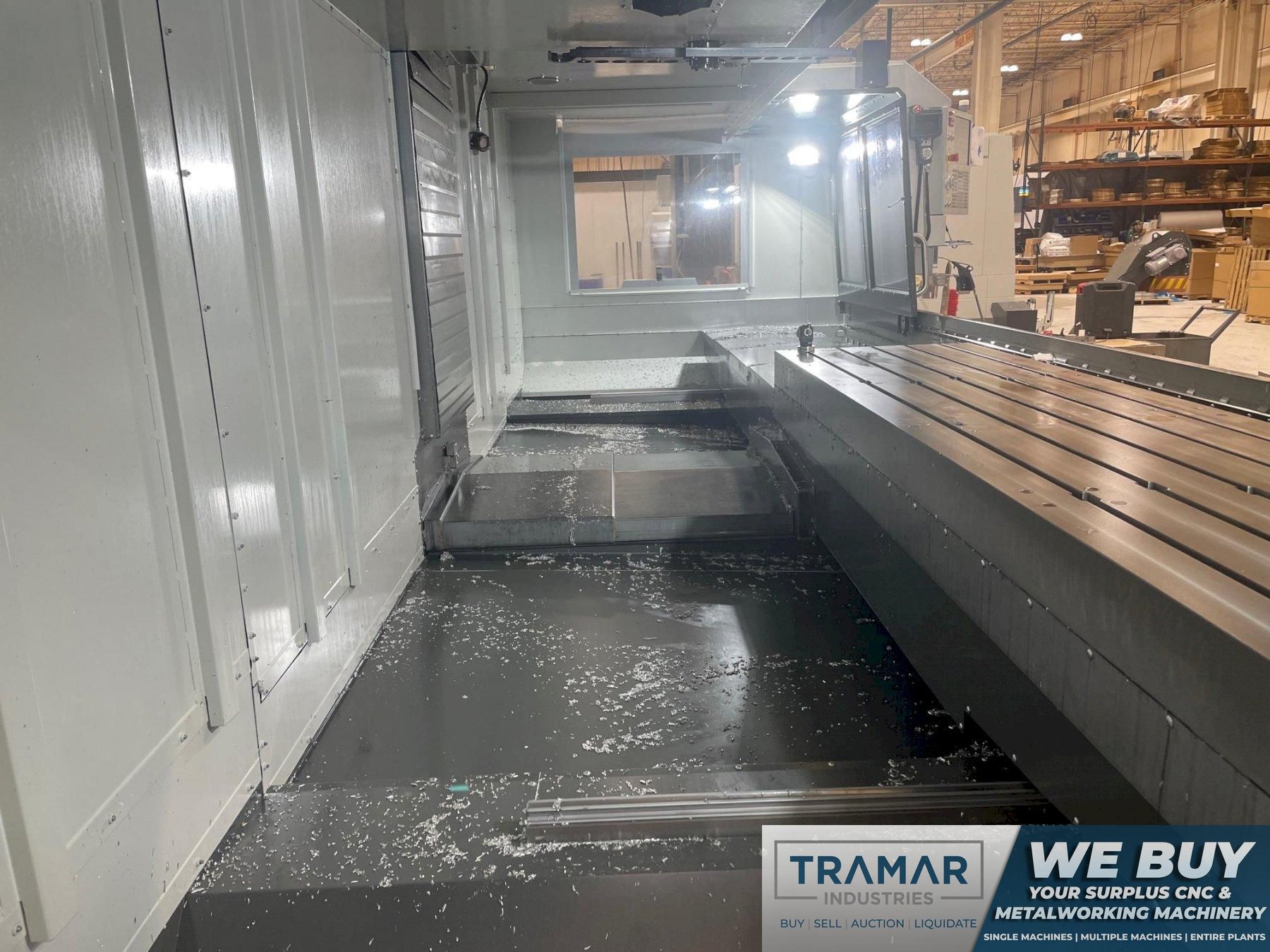

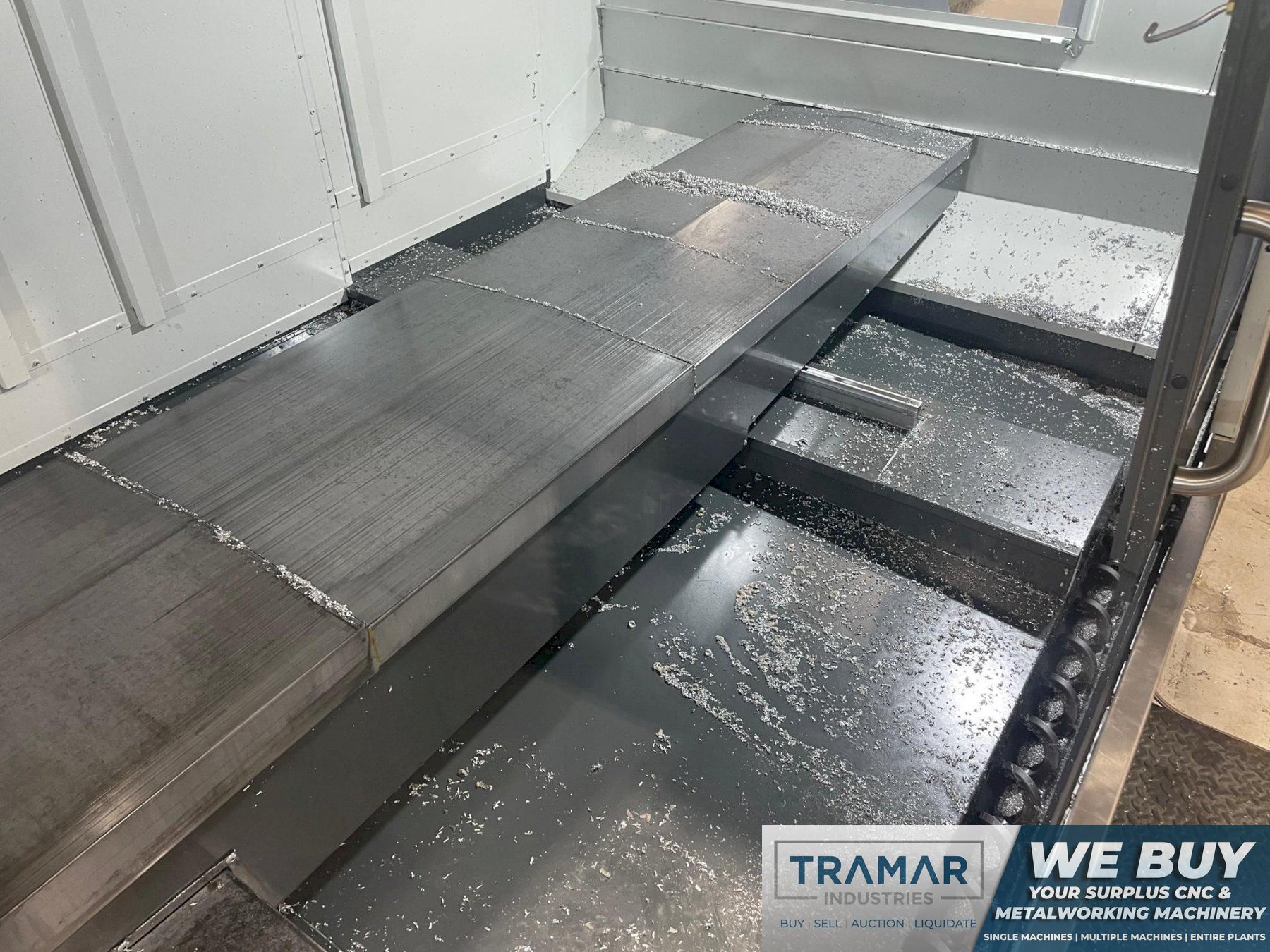

- Chip Auger
- 8" Extended Z Axis Clearance
- Large Remote Jog Handle w/Touchscreen Display
- Rigid Tapping

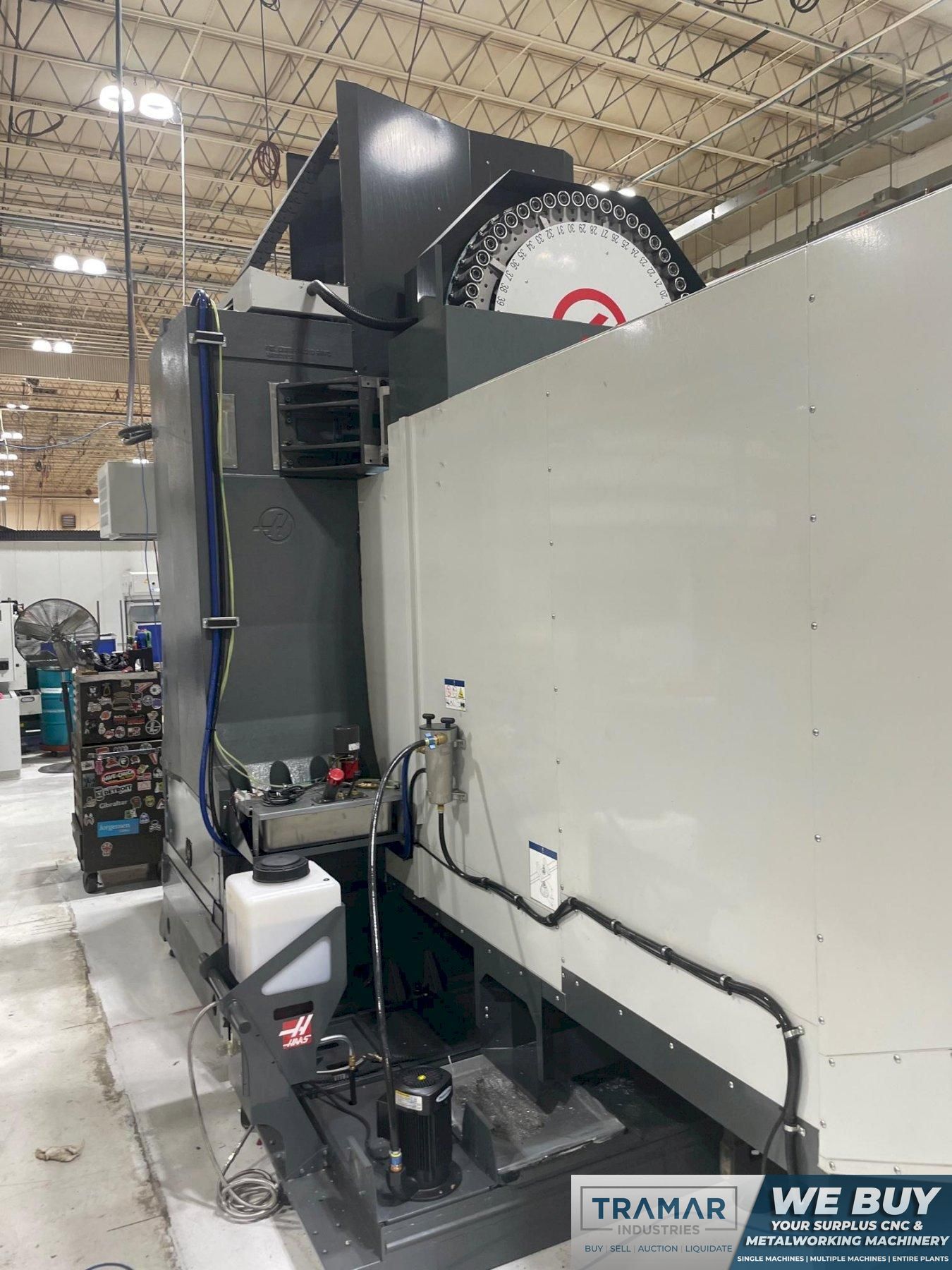

- 50+1 Sidemount Tool Changer HSK

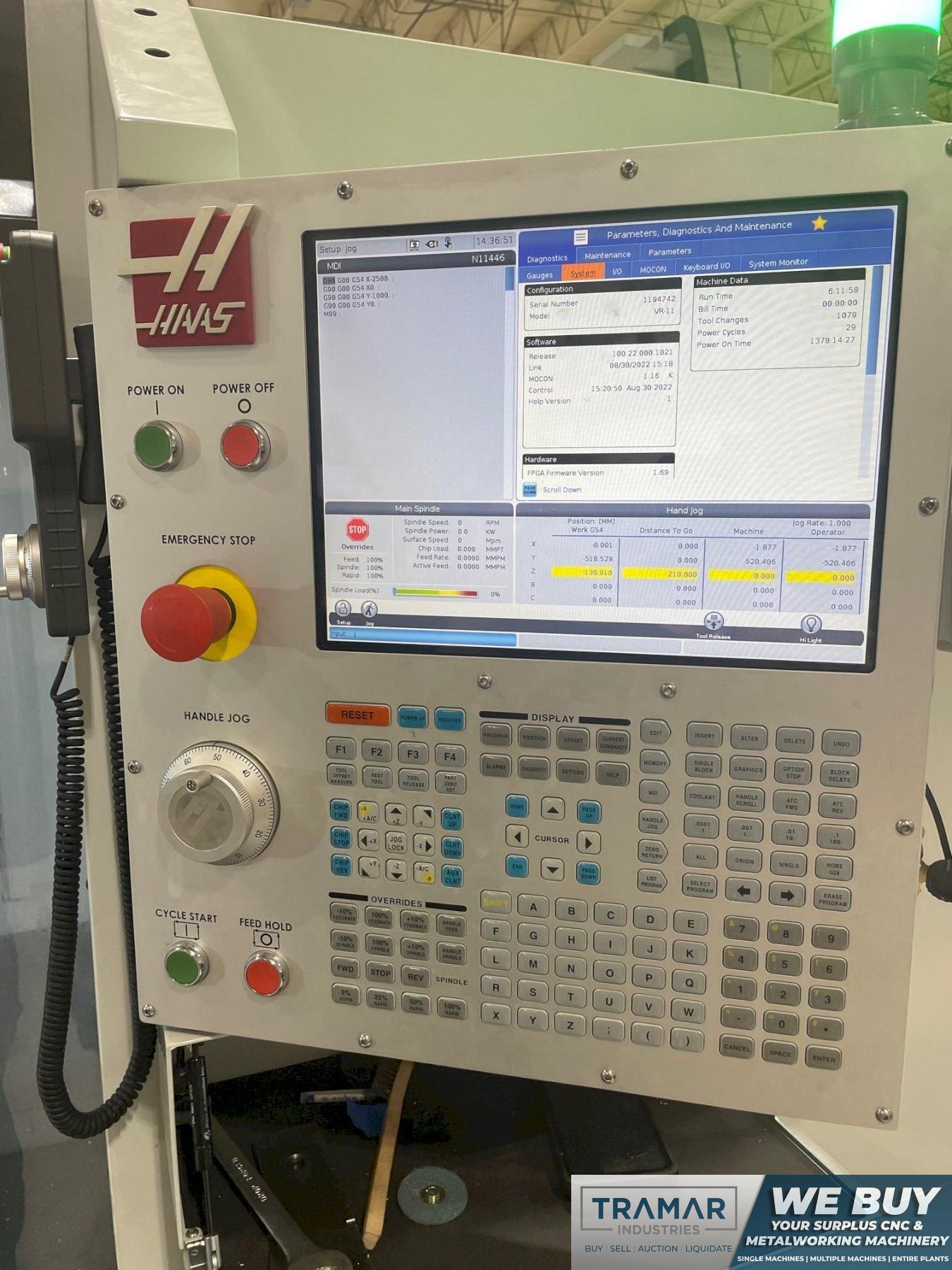

- Touchscreen Control
- X/Y Axis Linear Scales
- High Speed Machining
- Wireless Intuitive Probing System
- Auto Door For Mills
- High Intensity Lighting, 24v
- Variable Flow Coolant
- Machine Brand New 9/2022

The Haas VR-11 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
