Jones & Shipman Techmaster 634 Easy - Surface Grinders (Recip.)

Request Quote
Share Machine
Specifications Print Specs
Model: Techmaster 634 Easy
Year: 2013
Stock #: 13691
Highlights:
Touchscreen Control
Table Size: 23.62" x 11.81"
Braillon Magnetic Table EPEFINE2
Paper Filtration System PFA-60

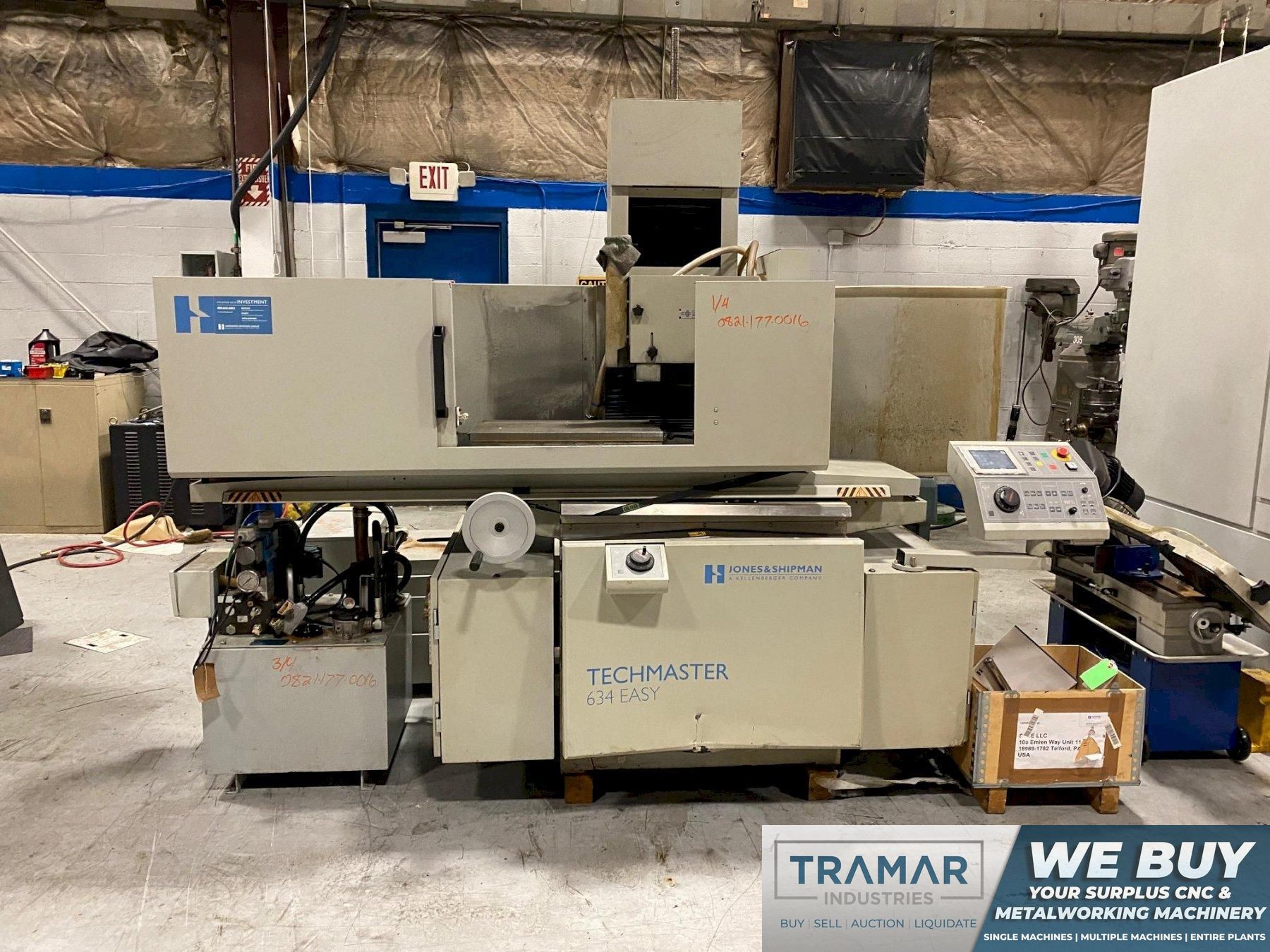

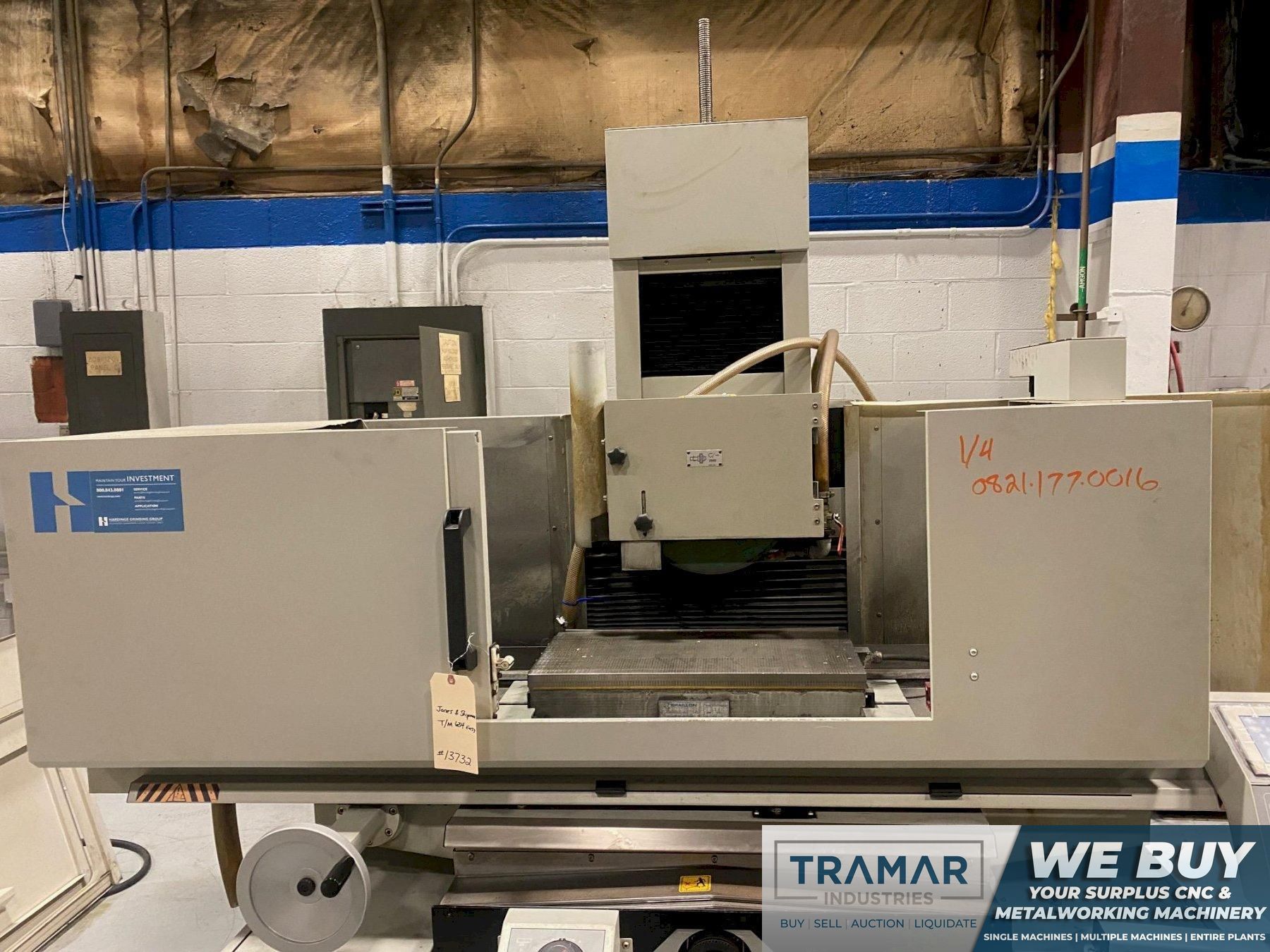

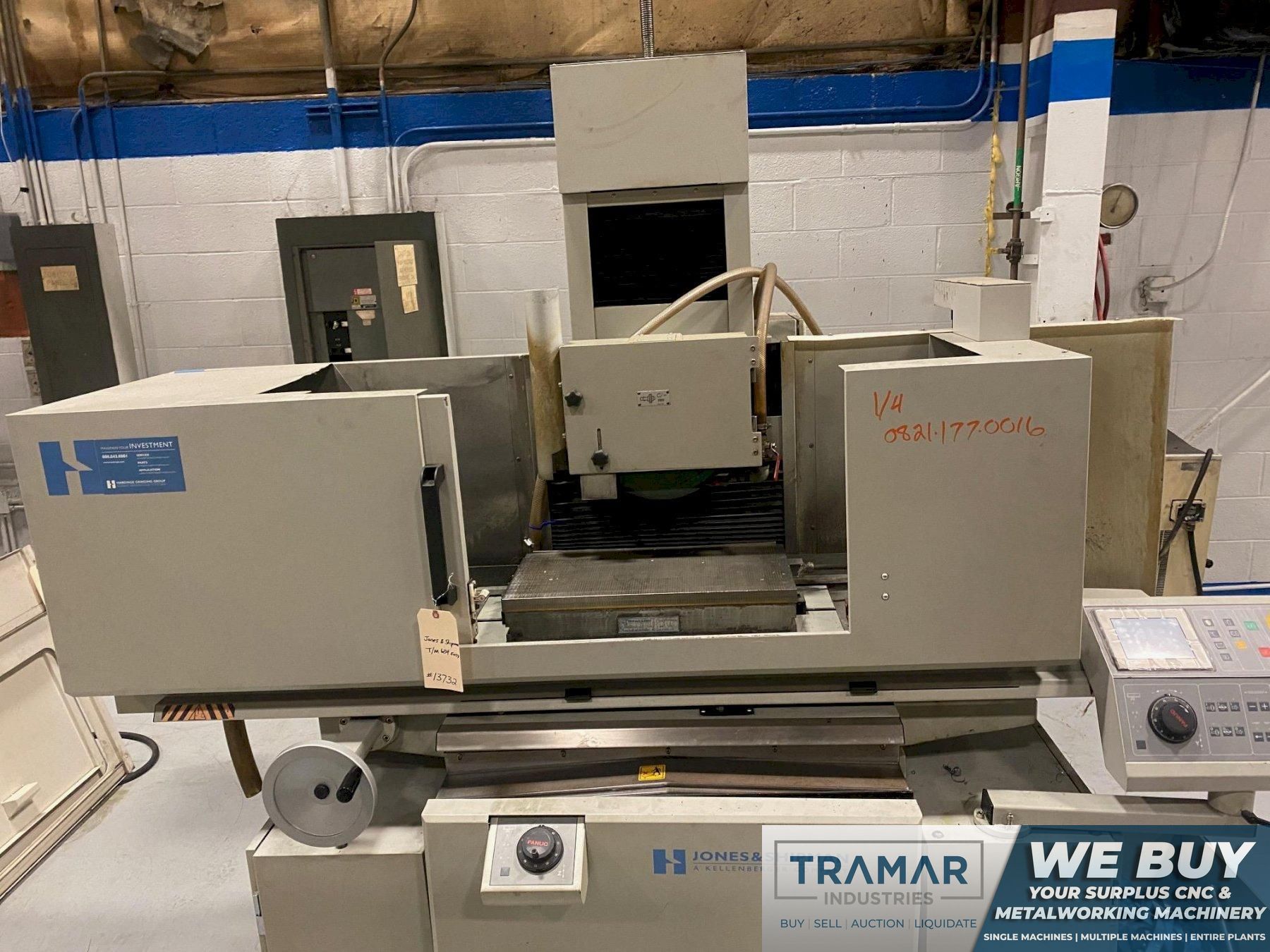

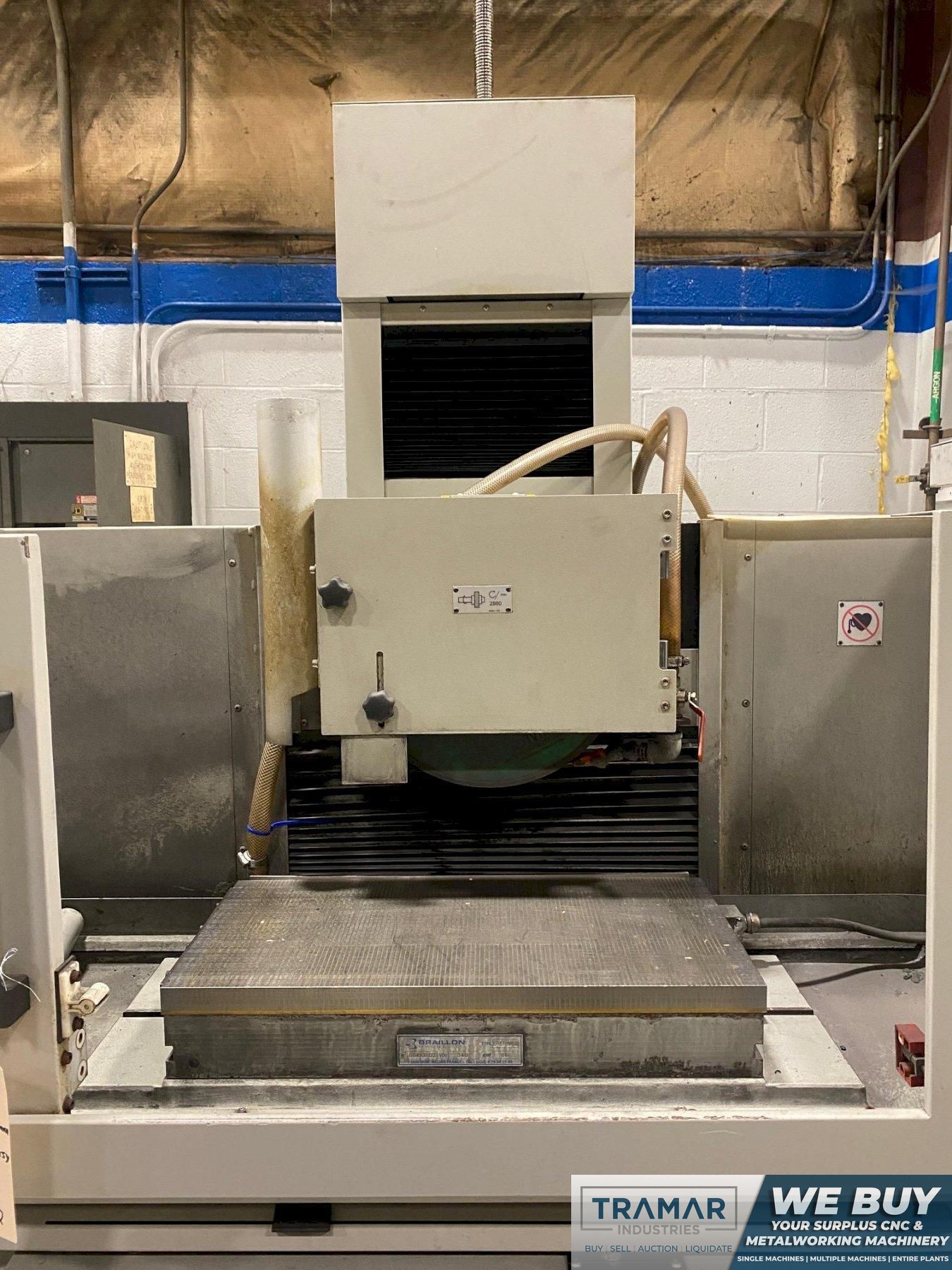

Jones & Shipman Techmaster 634 Easy Surface Grinder
Machine Specifications
Year
2013
Control Type
Fanuc Easy Touchscreen Control
Table-L
23.6"
Table-W
11.8"
Max Table Load
551 pounds
X-Axis Travel
25.59"
Y-Axis Travel
11.82"
Z-Axis Travel
14.17"
Grinding Wheel Dimensions
13.97" x 1.96" x 5"
Grinding Wheel Speed RPM
1,710 rpm
Grinding Wheel Spindle Motor
7.5 hp
Spindle (Horz/Vert)
vertical
Dimensions
117" x 84" x 102"
Weight
5,800 pounds

Equipped With:

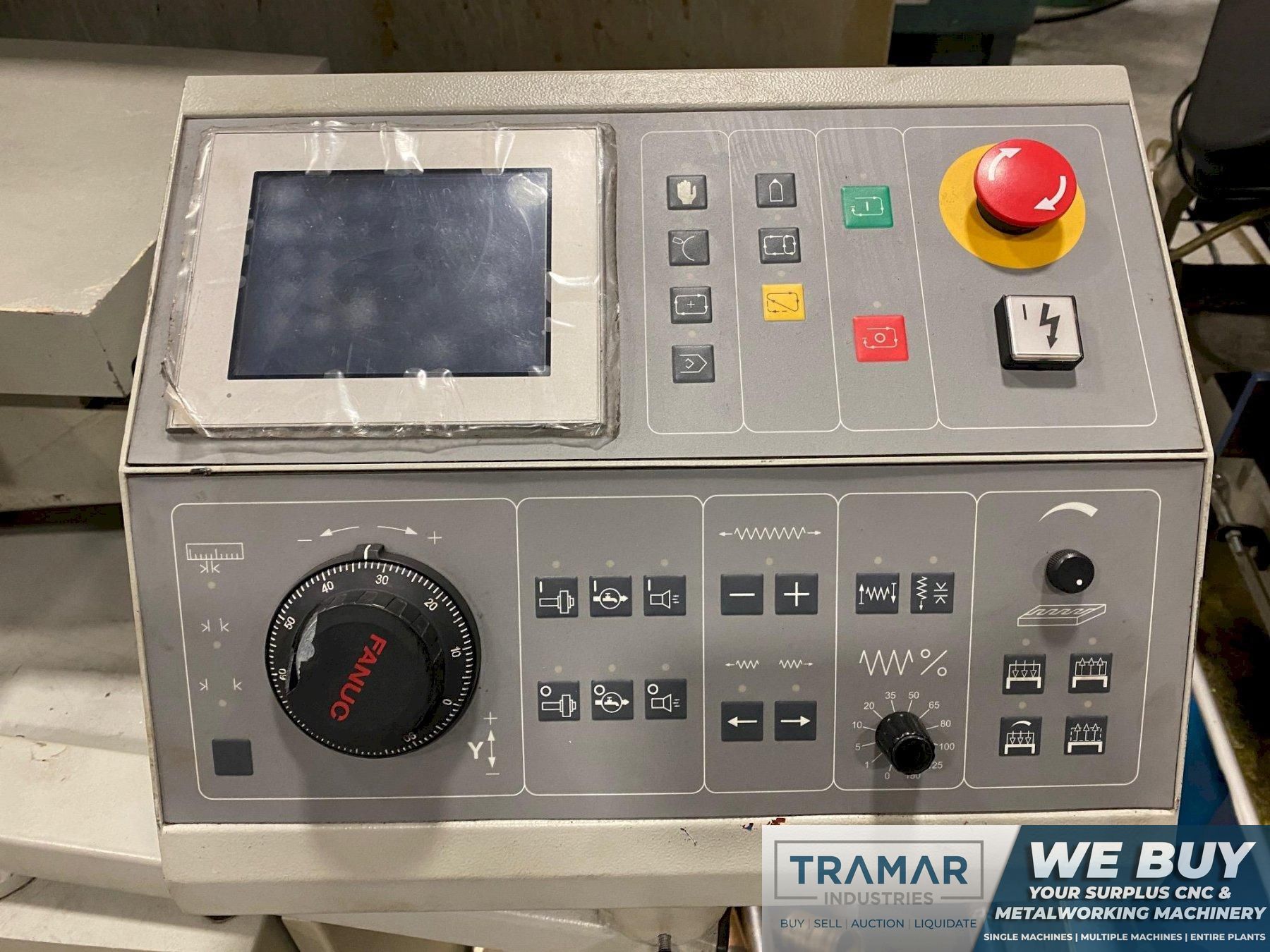

- Fanuc Easy Touchscreen Control

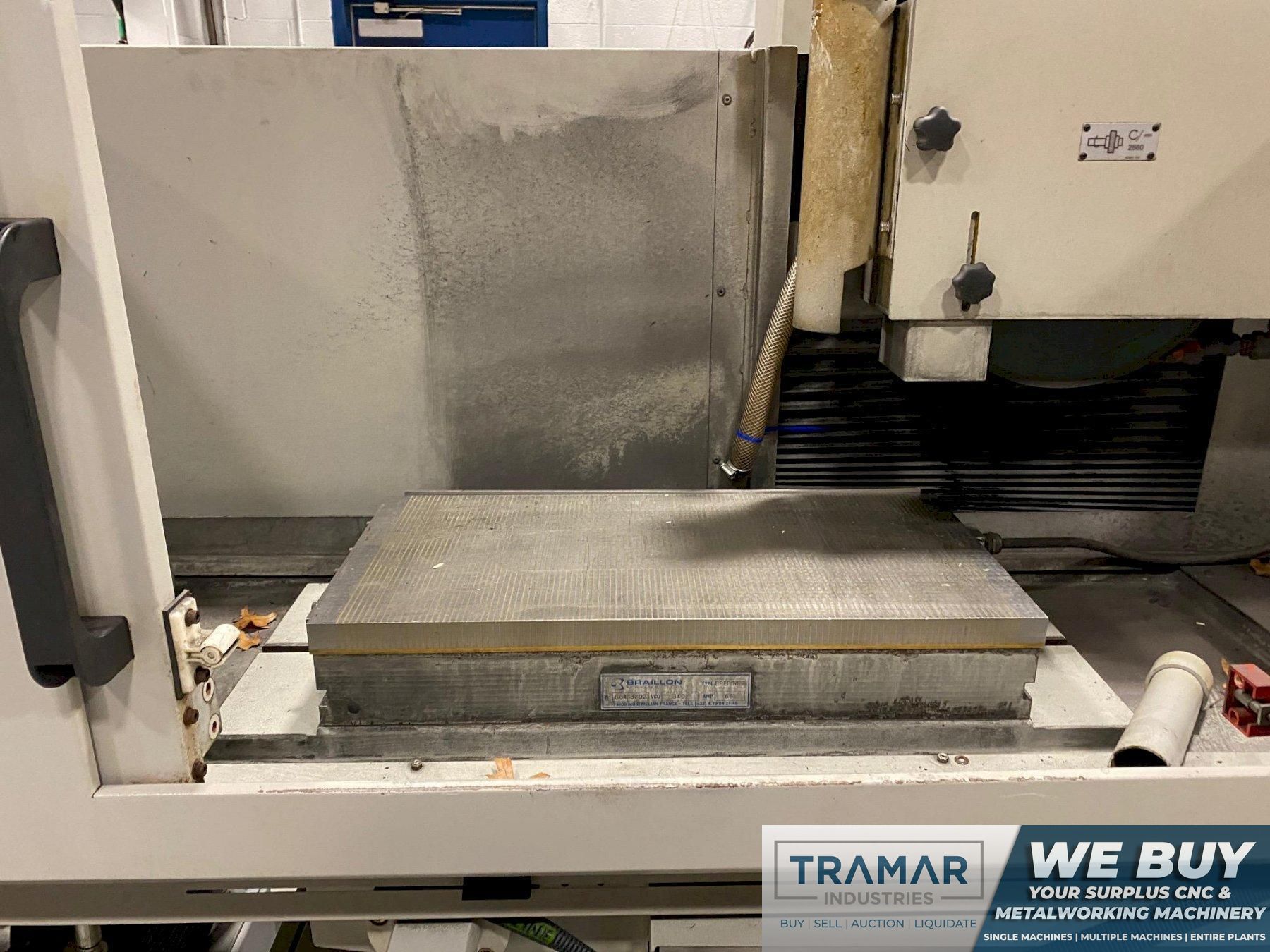

- Braillon Magnetic Table EPEFINE2

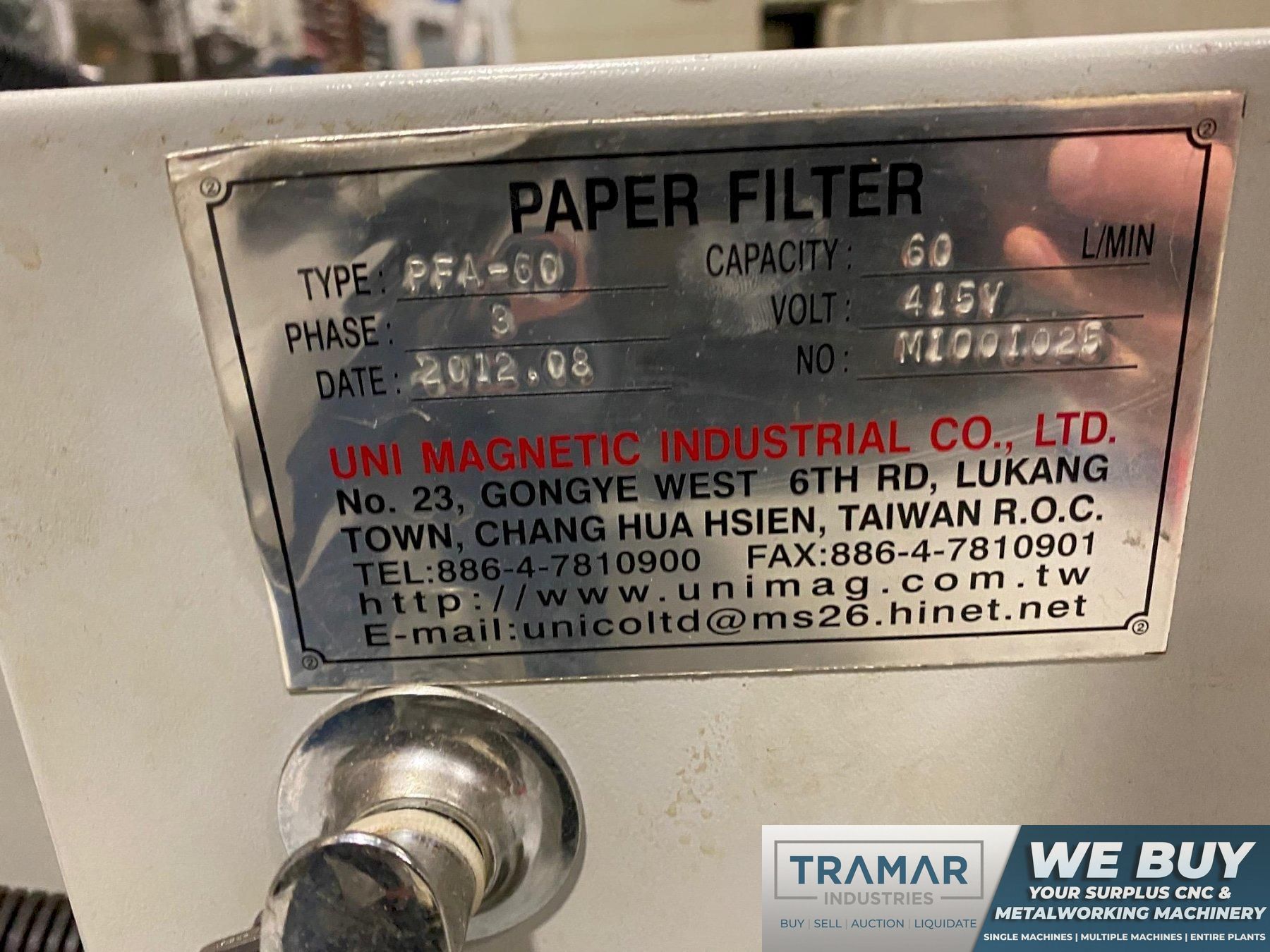

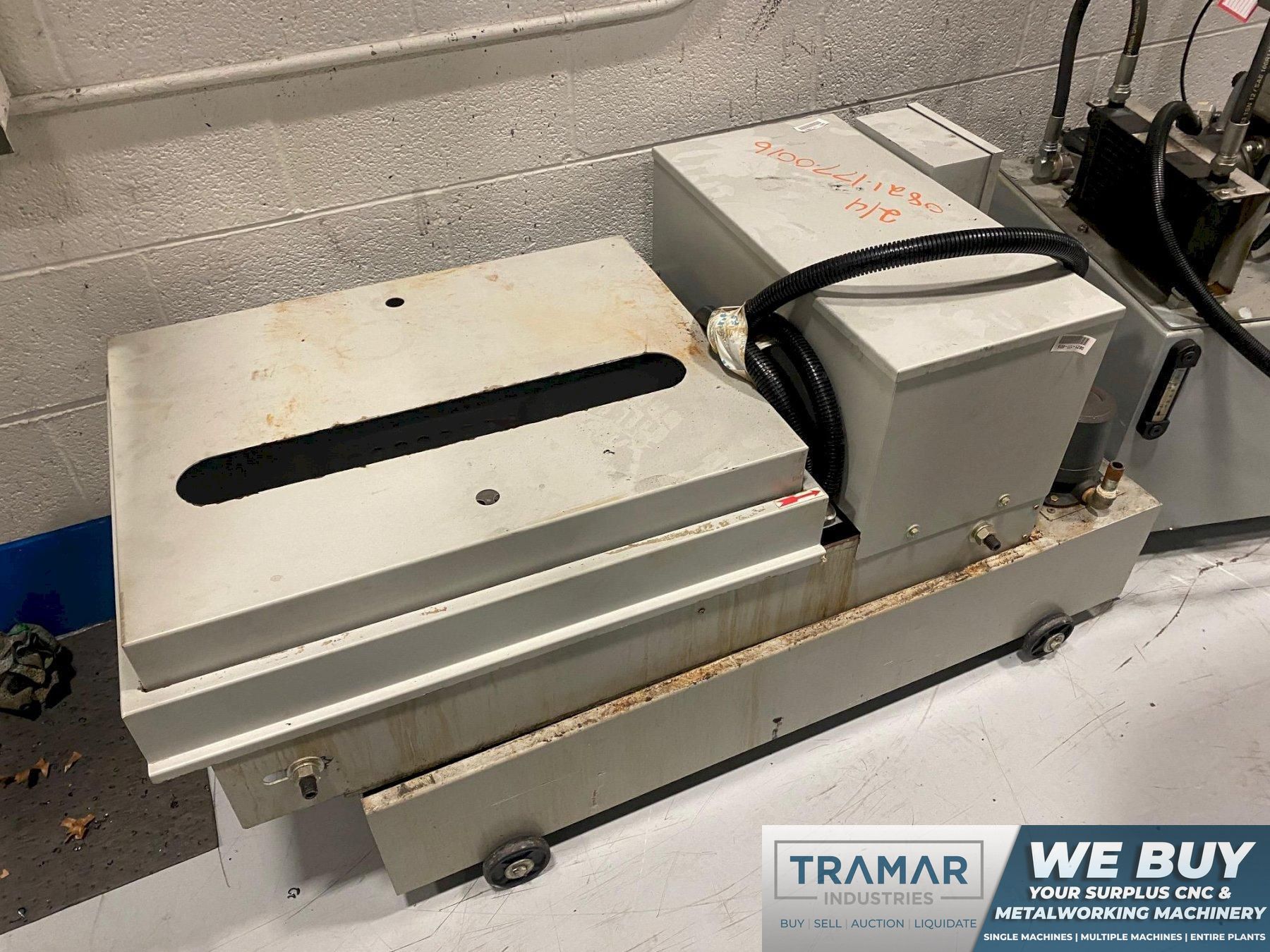

- Coolant Clarifier Unit with Paper Roll Filter PFA-60
- Full Table Mounted Open Top Interlock Sliding Splashguards
- Z Axis Linear Scale
- Both Y & Z Axes Controlled & Positioned by Fanuc Digital AC Servo Motors


The Jones & Shipman Techmaster 634 Easy is an exclusive part of our Surface Grinders (Recip.) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
