DMG Mori S-10 - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: S-10
Year: 2015
Stock #: 14040
Highlights:
Fanuc 31i-Model B CNC Control
Live Tooling & Y Axis on Both Turrets
Tailstock
(2) 10 Station Turrets

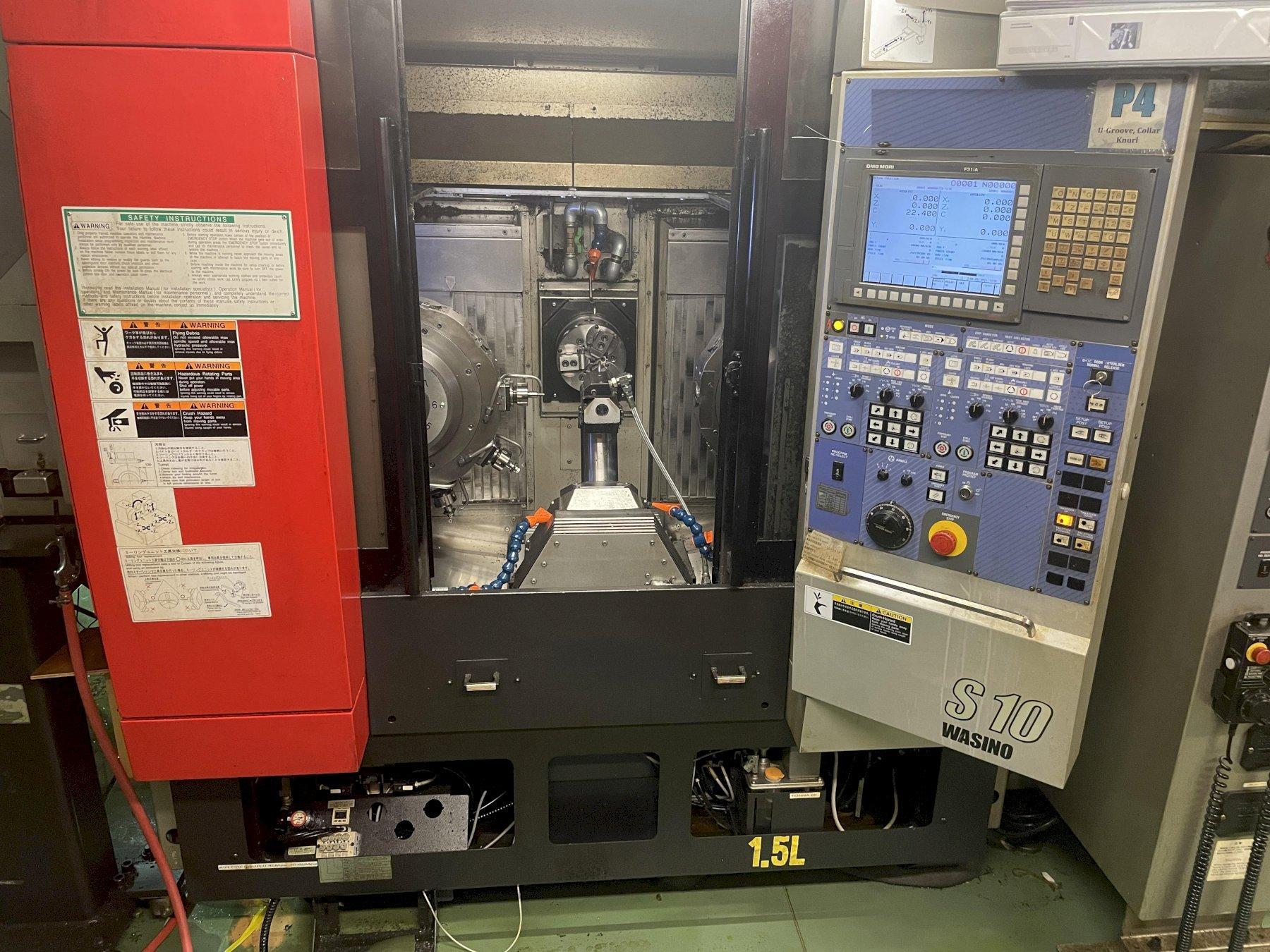

DMG Mori Amada Wasino S-10 Single-Spindle/Dual Turret CNC Lathe For Sale - 2015
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model B
# Axis
8
Swing
12.2"
Turning Diameter
10.24"
Center Distance
10.63"
Chuck Size
6"
X Axis Travel
5.91"
X2 Travel
5.91"
Z Axis Travel
13.39"
Z2 Travel
13.39"
C Axis Index
0.001°
Y-Axis Travel
Y Right Side: 4.92" | Y Left Side: 4.92"
Rapid Traverse (X/Z)
995/1,260 ipm
Spindle Speed
5,000 rpm
Main Motor
20 hp
Tailstock
yes
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
6 hp
Sub Spindle
no
Turret Capacity
10 + 10
Dimensions
66.9" x 78.7" x 80"
Weight
12,500 pounds

Equipped With:

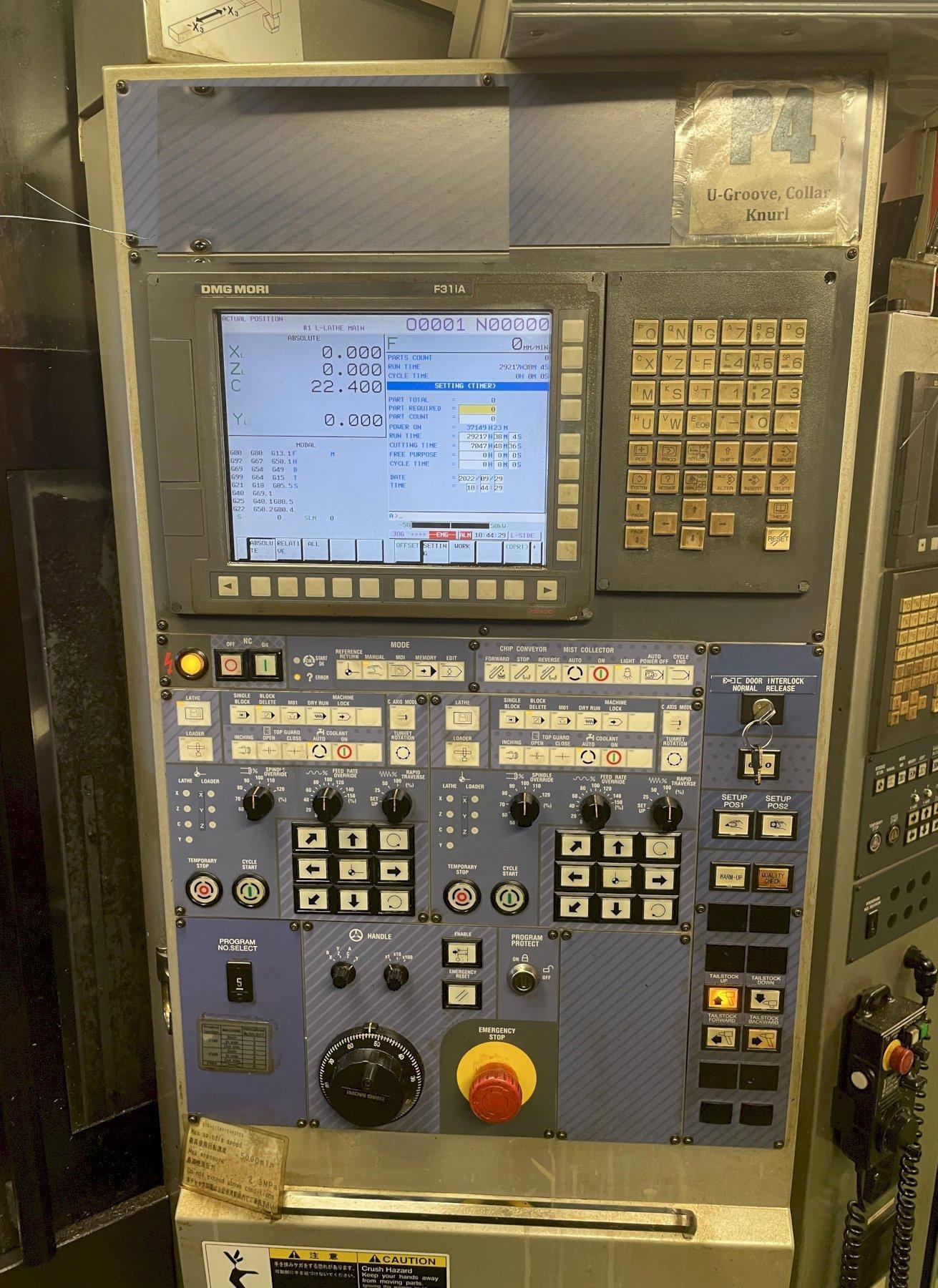

- Fanuc 31i-Model B CNC Control
- Gantry Loader System

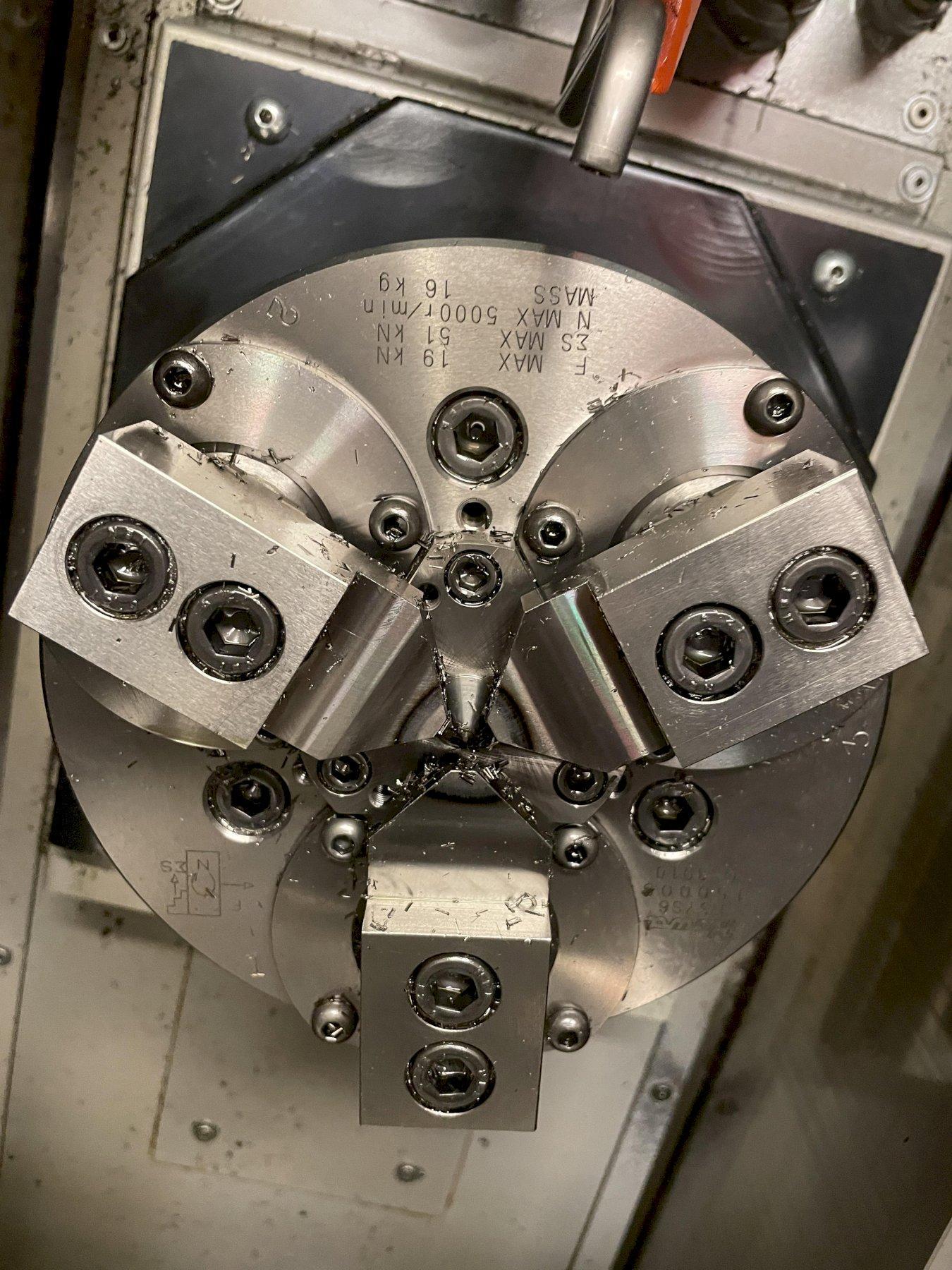

- Howa H3YS6 Sealed Compensating Power Chuck
- Remote Handwheel

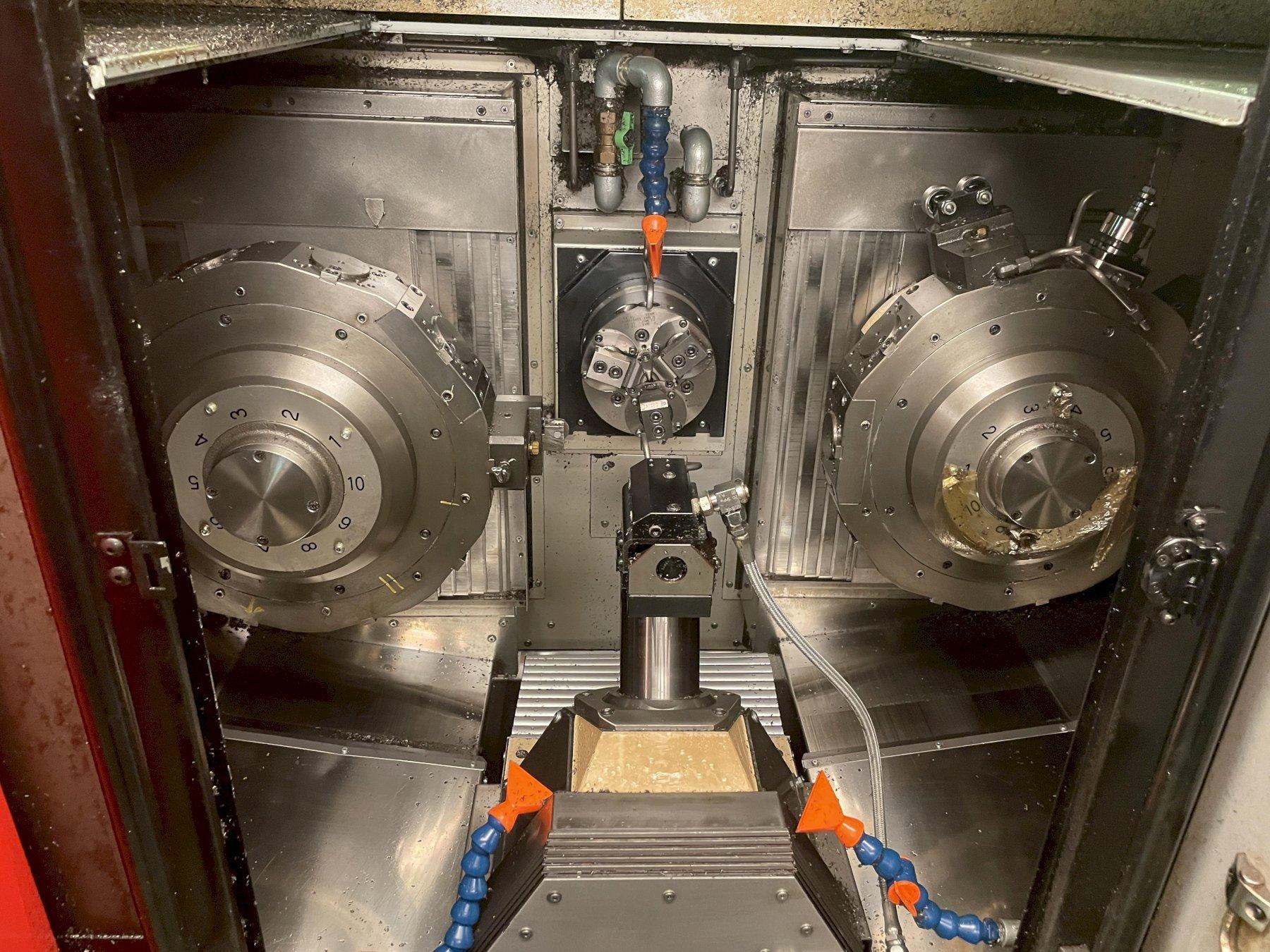

- (2) 10 Station Turrets
- Y Axis Both Turrets
- Live Tooling Both Turrets
- Tailstock

The DMG Mori S-10 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
