Daewoo PUMA 200C - Horizontal Lathes

Share Machine
Specifications Print Specs

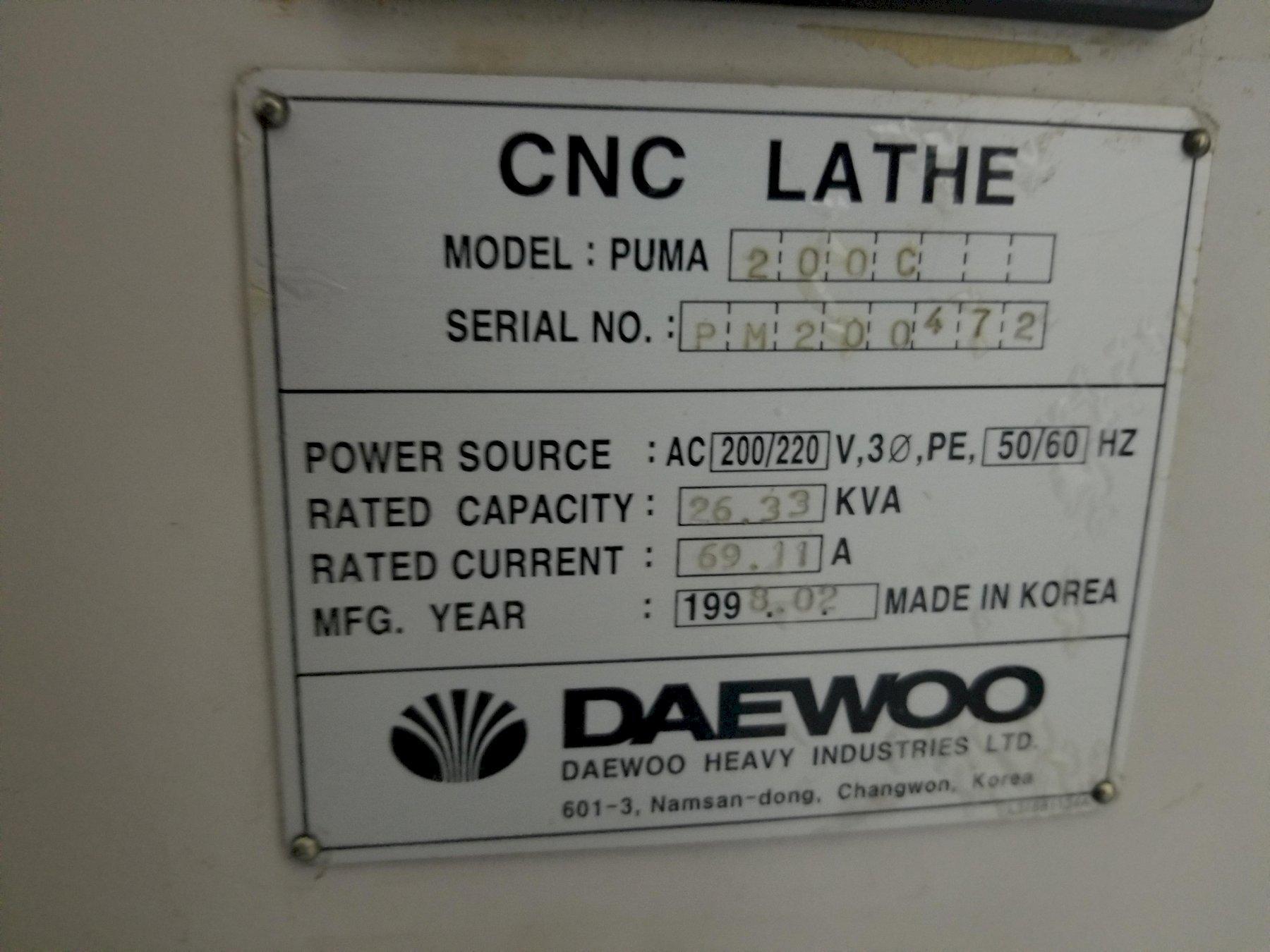

Model: PUMA 200C
Year: 1998
Stock #: 4034 Sold
Highlights:

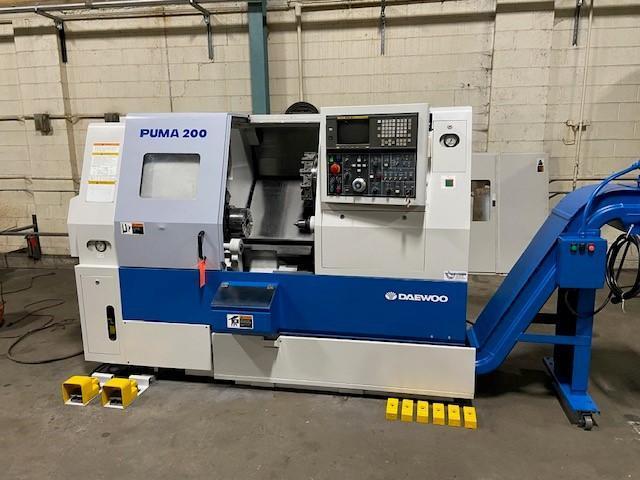

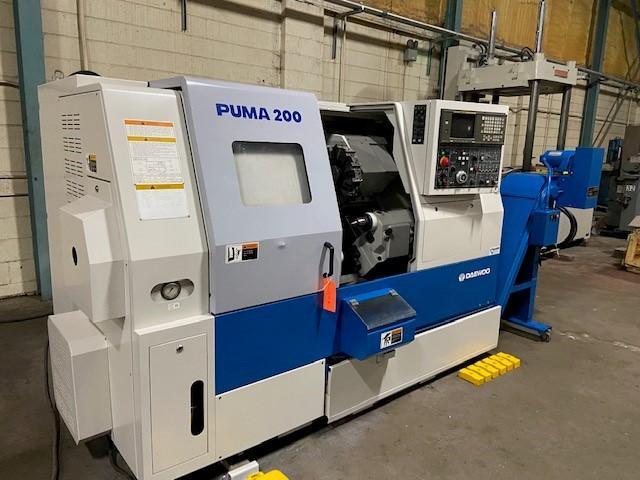

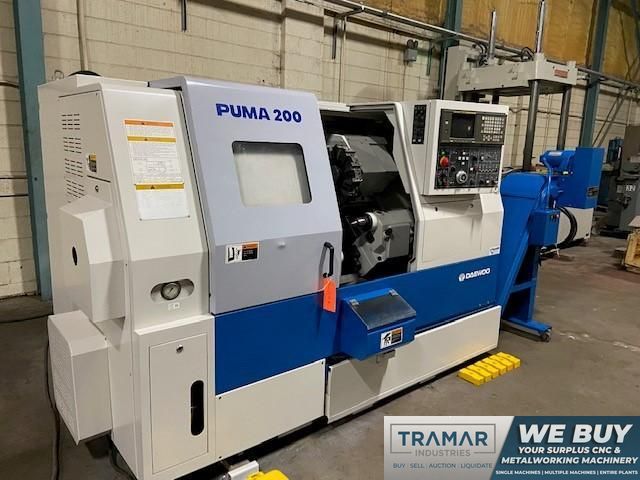

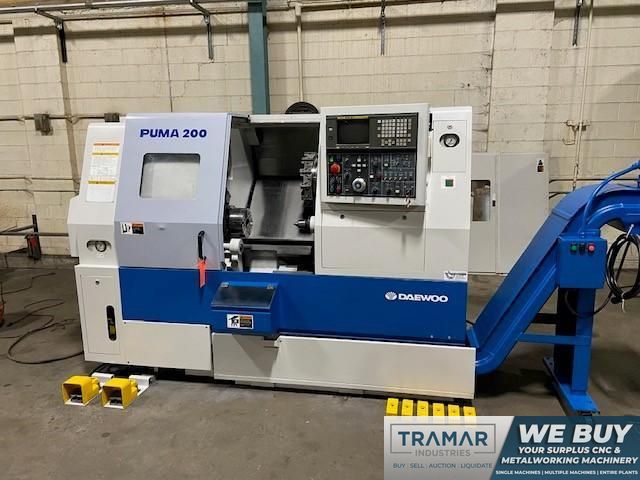

Daewoo Puma 200C CNC Lathe
Machine Specifications
# Axis
2

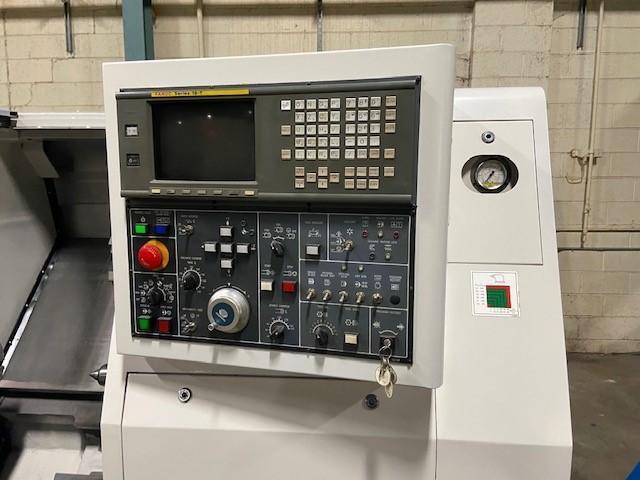

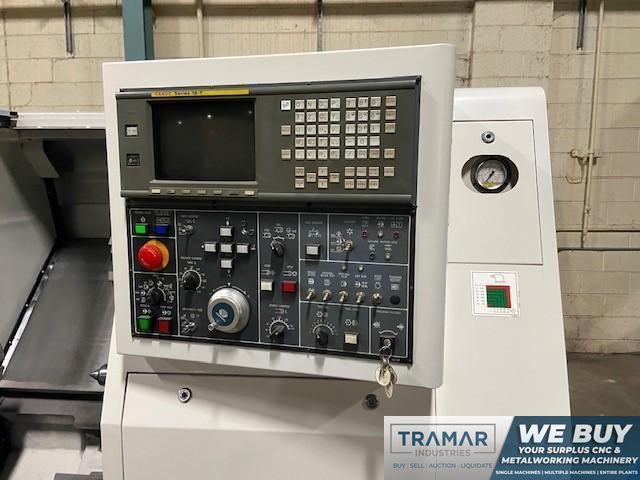

Control Type
Fanuc 18T

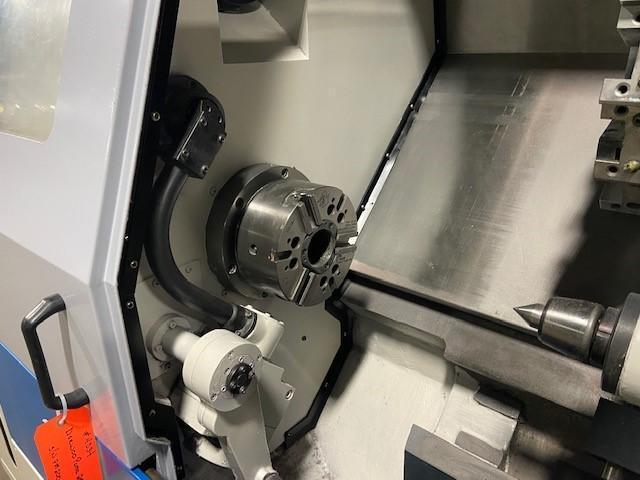

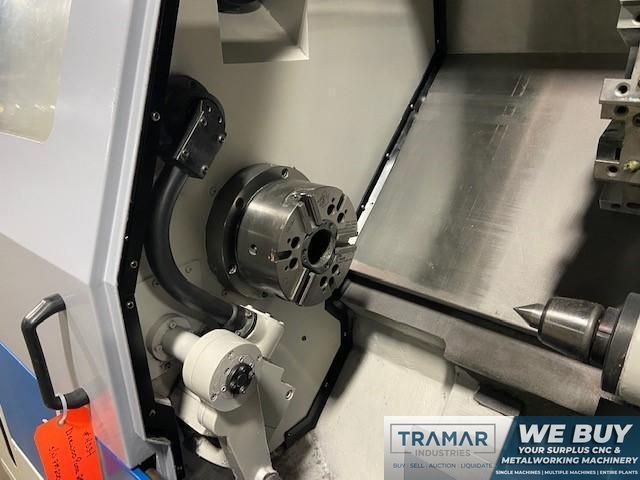

Chuck Size
8"
Spindle Nose
A2-6
Swing
20.08"
Turning Diameter
13.78"
Bar Capacity
2.62"
X Axis Travel
9.53"
Z Axis Travel
17.32"
X-Axis Rapid Traverse Rate
787 ipm
Z-Axis Rapid Traverse Rate
1,000 ipm
Spindle Speed (RPM)
4,000

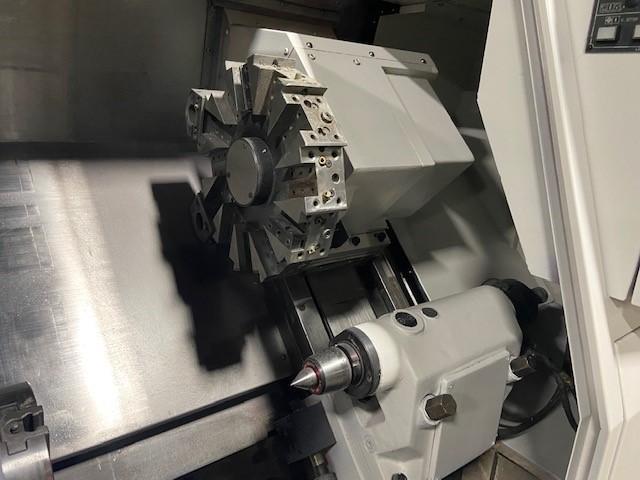

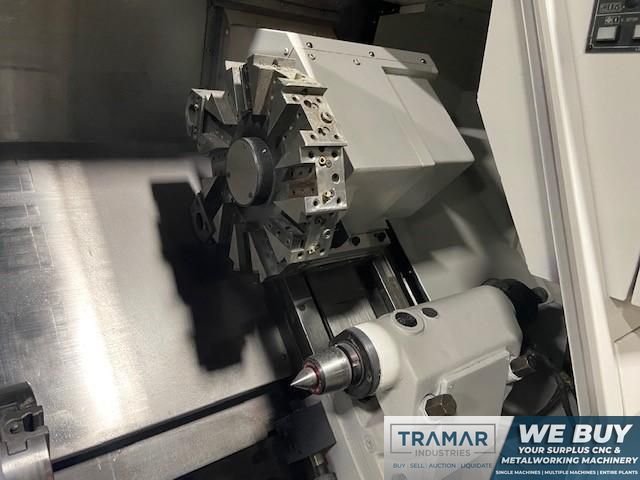

Turret Capacity
12 Station
Main Motor
22 HP
Tailstock
yes
Weight
8,800 pounds

Equipped With:

Chip Conveyor
Tool eye
Parts Catcher
Misc Toolholders
New Spindle Bearings in 2015
1 owner, 1 shift in Small Job shop

The Daewoo PUMA 200C is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
