Model: CTX beta 800 TC
Year: 2015
Stock #: 14510
Highlights:
- Sub Spindle
- Skiving Software

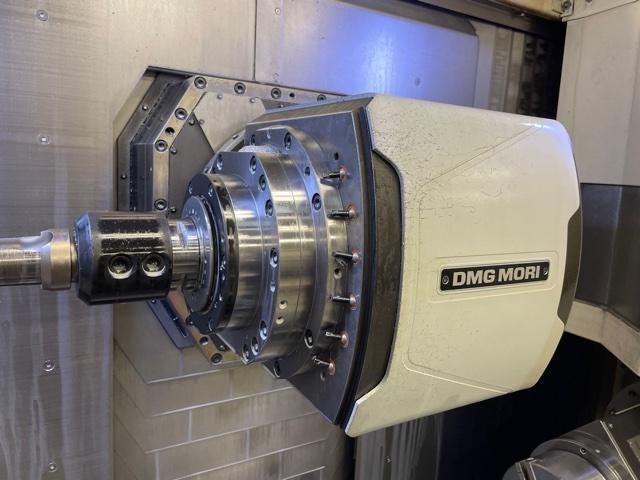

- Capto C6 Spindle (12,000 RPM)
- Coolant Through the Spindle
- 48 Station Tool Changer

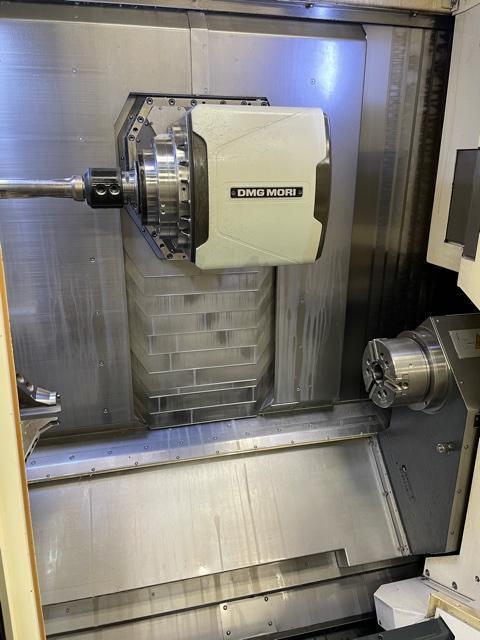

DMG Mori CTX beta 800TC CNC Turn Mill Lathe
Machine Specifications
Year
2015
Control Type
Celos ERGOline
# Axis
6
Chuck Size
8"
Swing
19.7"
Turning Diameter
19.7"
Center Distance
40.2"
Bar Capacity
2.0"
X Axis Travel
18.9"
Z Axis Travel
33.3"
Y Axis (Yes / No)
yes
Y Axis Travel
+/- 3.9"
B Axis Head Tilt
+/-110°
C1/C2 Axis Index
0.001°
Spindle Speed (RPM)
5,000 rpm
Main Motor
45.6 hp
Sub Spindle
yes
Sub Spindle Chuck Size
8"
Sub Spindle Speed
6,000 rpm
Sub Spindle Motor
36.2 hp
Live Milling (Yes / No)
yes
Live Tooling Spindle Taper
CAPTO C6
Live Tooling Speed
12,000 rpm
Live Tooling Motor
29.5 hp
Tailstock (Yes/No)
no
Tool Changer Capacity
48 stations
Weight
22,500 pounds

Equipped With:

- Celos ERGOline Control (Siemens 840D sl)
- Skiving Software

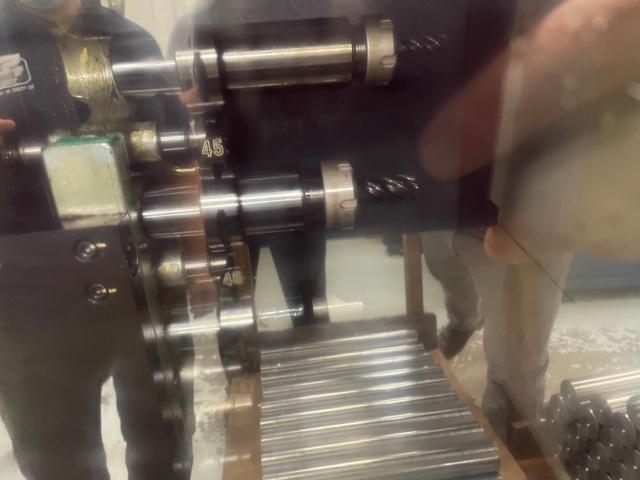

- 48 Station Tool Changer - CAPTO C6

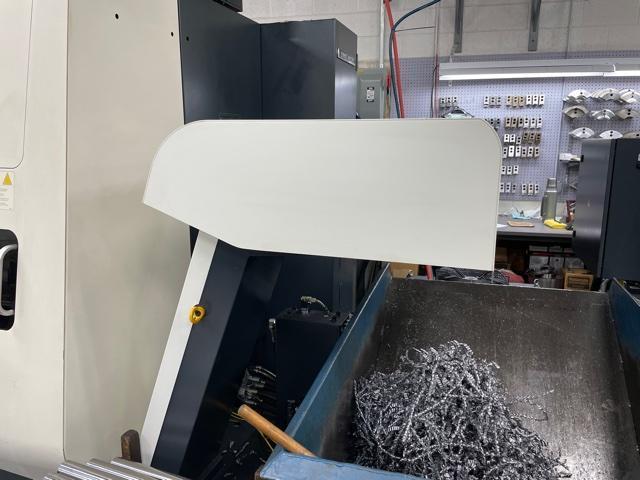

- Chip Conveyor

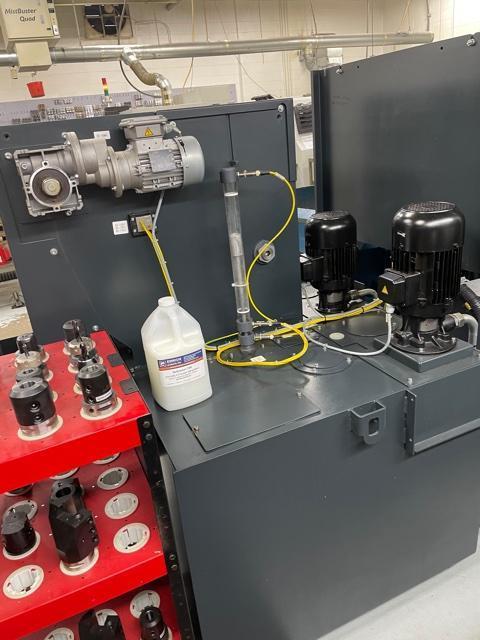

- Coolant Tank & Pumps
- Easy Tool Monitor
- Multi-Thread Cycle
- Coolant Thru Spindle
- Renishaw Probing
- Sub Spindle
- Excentric Turning & Milling Operation

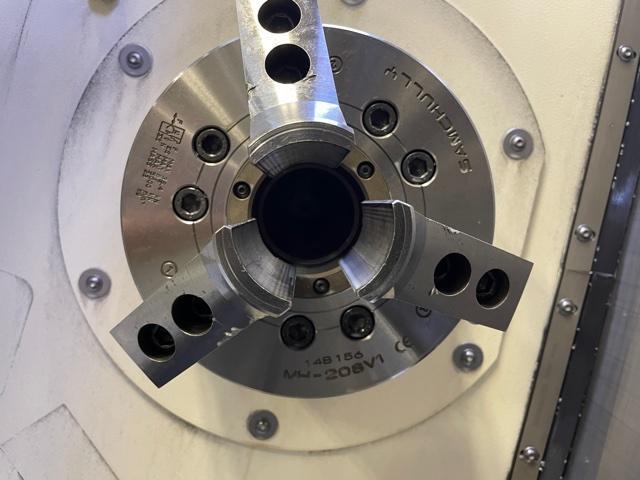

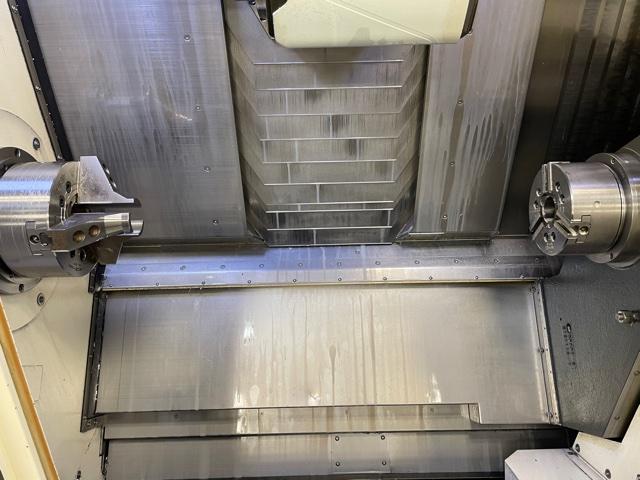

- Main Spindle Chuck
      * Rohm DURO-NC 215-52 | 3-Jaw Chuck

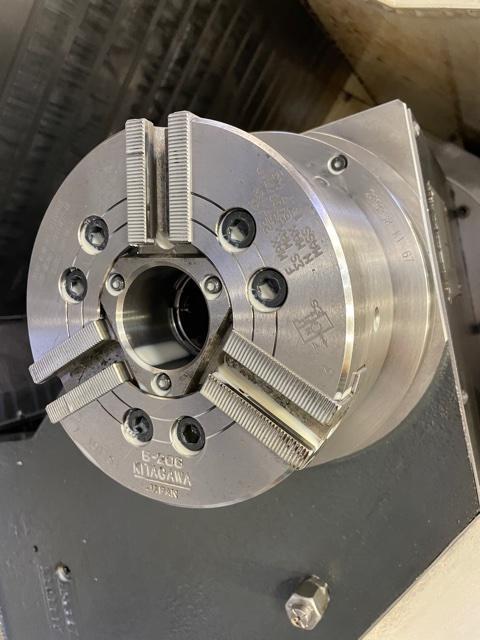

- Sub Spindle Chuck
      * Rohm DURO-NC 175-43 | 3-Jaw Chuck
- 5 Axis Simultaneous Machining

The DMG Mori CTX beta 800 TC is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
