DMG Mori NHX5000 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: NHX5000
Year: 2015
Stock #: 17003 Sold
Highlights:

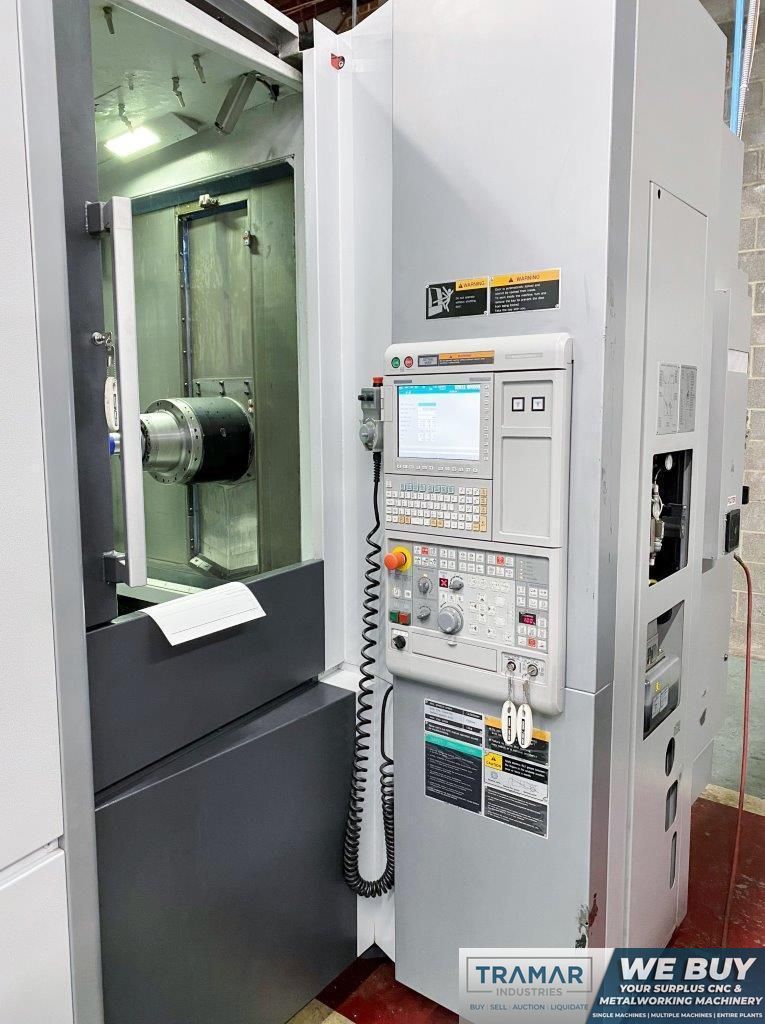

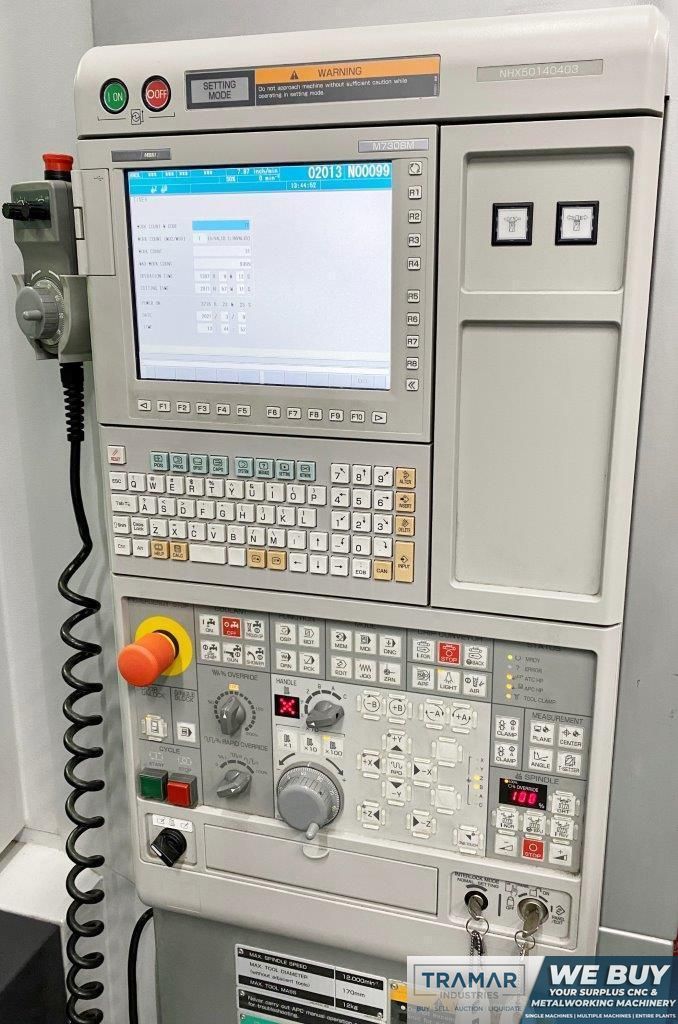

Mitsubishi M730BM Control
CAT 40 Big Plus | 12,000 rpm | 30 hp

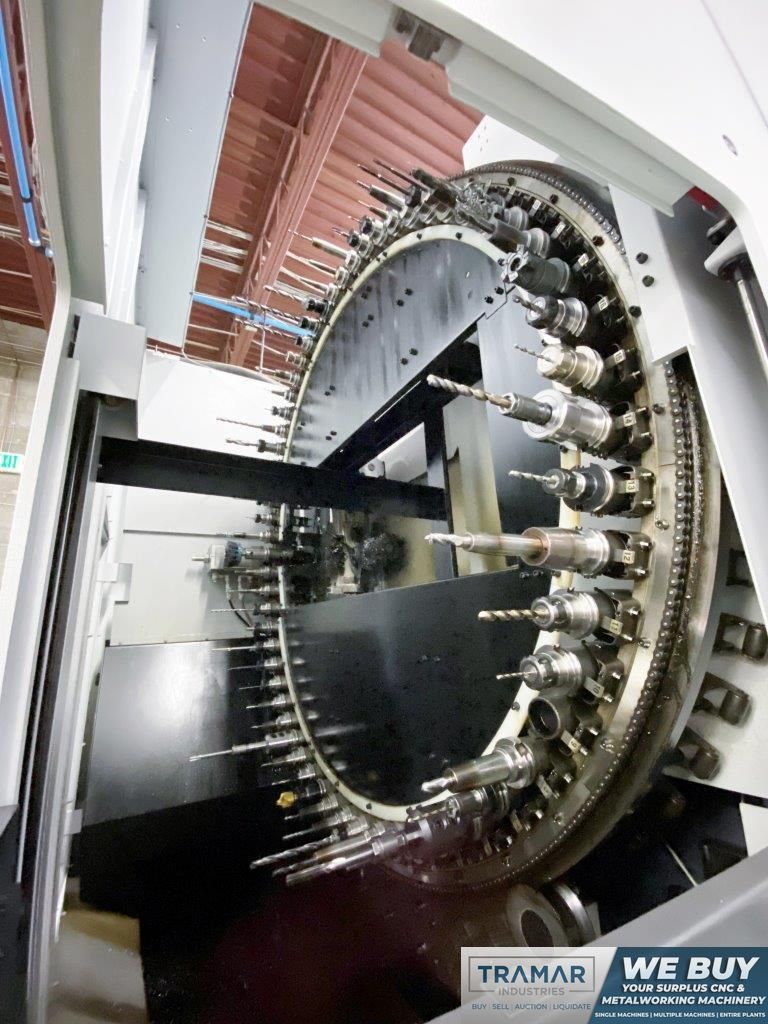

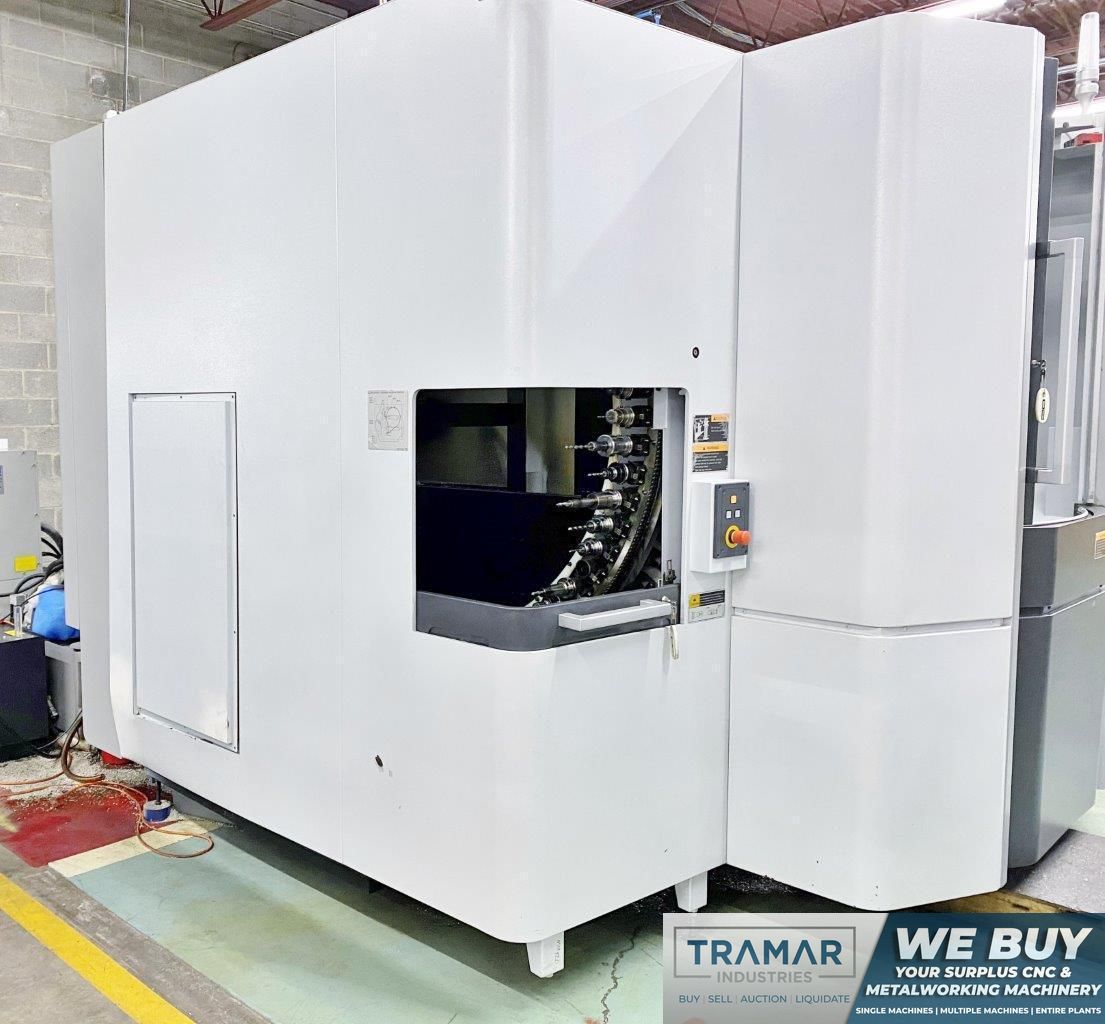

60 Station Tool Changer

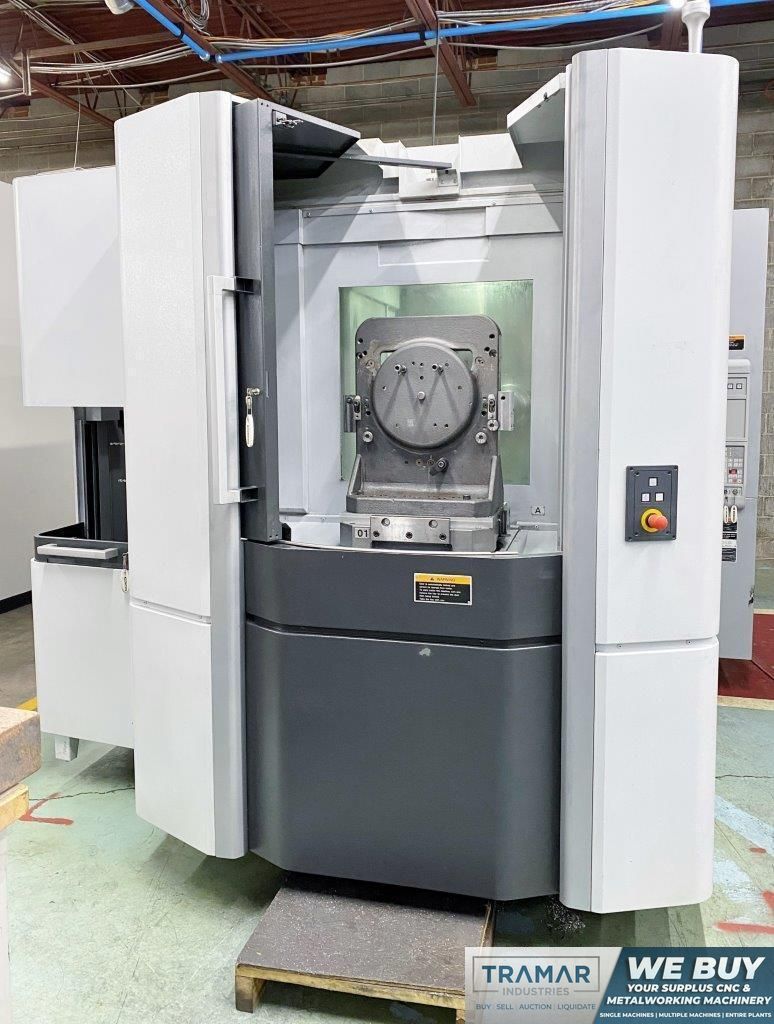

Pallet Size: 19.7" x 19.7" | 2,200lbs Max Table Load
Travels (X/Y/Z): 28.7"/28.7"/33.5"

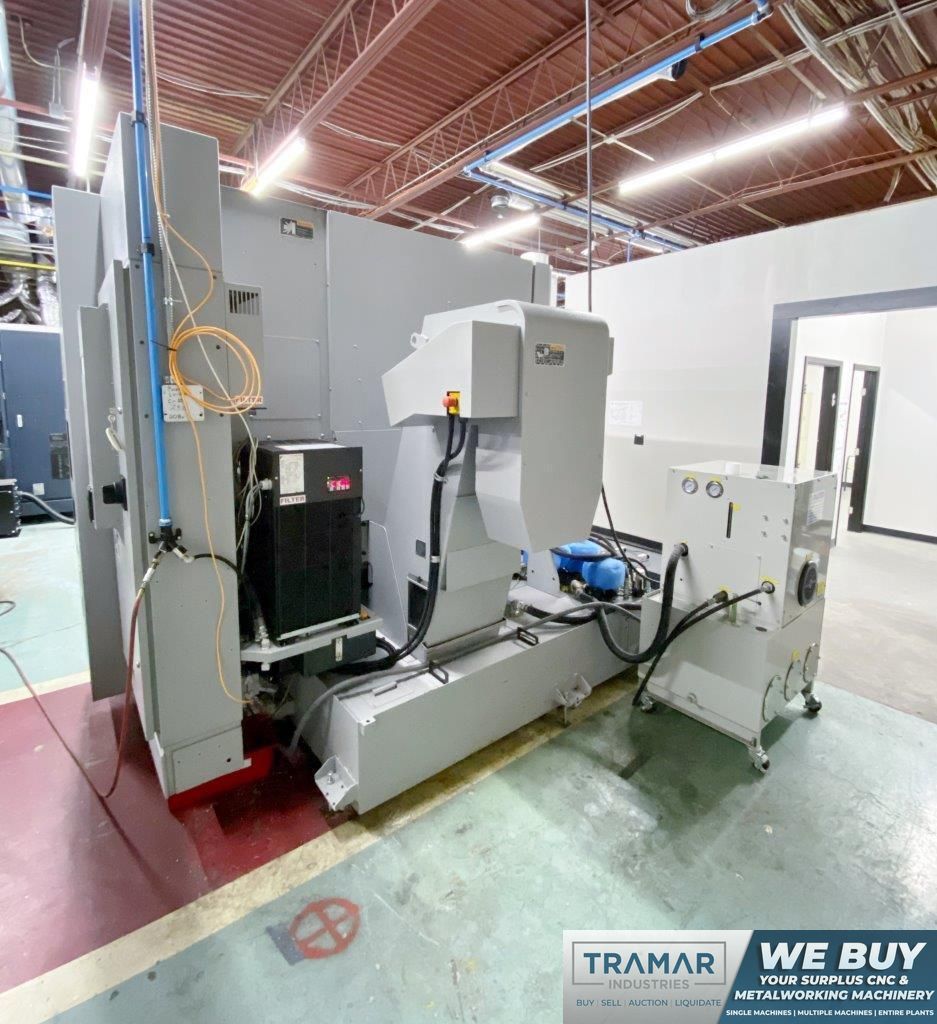

DMG Mori NHX5000 CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Mitsubishi M730BM
# Axis
4
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
2,200 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.7"
Y-Axis Travel
28.7"
Z-Axis Travel
33.5"
Rapid Traverse Rate (X/Y/Z)
1,968 ipm
Spindle Taper
CAT 40
Spindle Speed
12,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes

Equipped With:

- Mitsubishi M730BM Control
- Chip Blaster Hi-Pressure Coolant Thru Spindle
- Data Server
- Ethernet
- Chip Conveyor

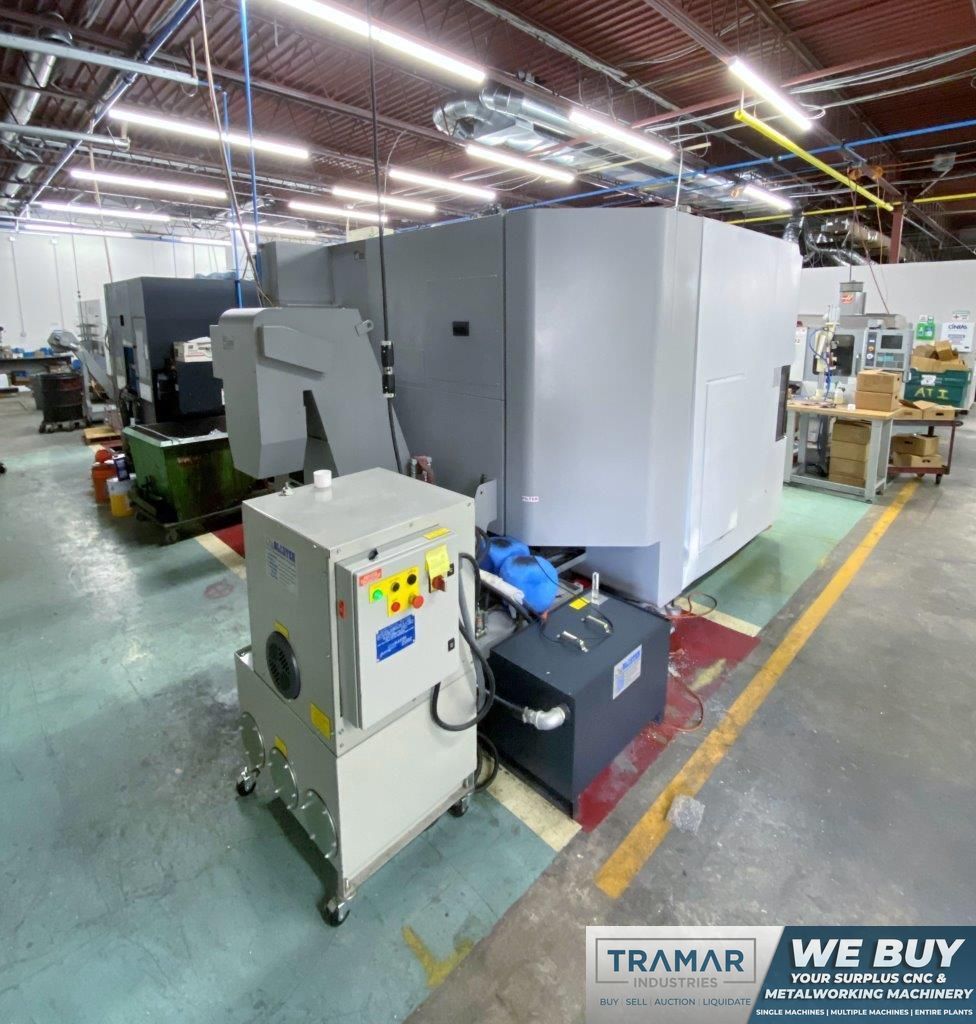

- Spindle Chiller

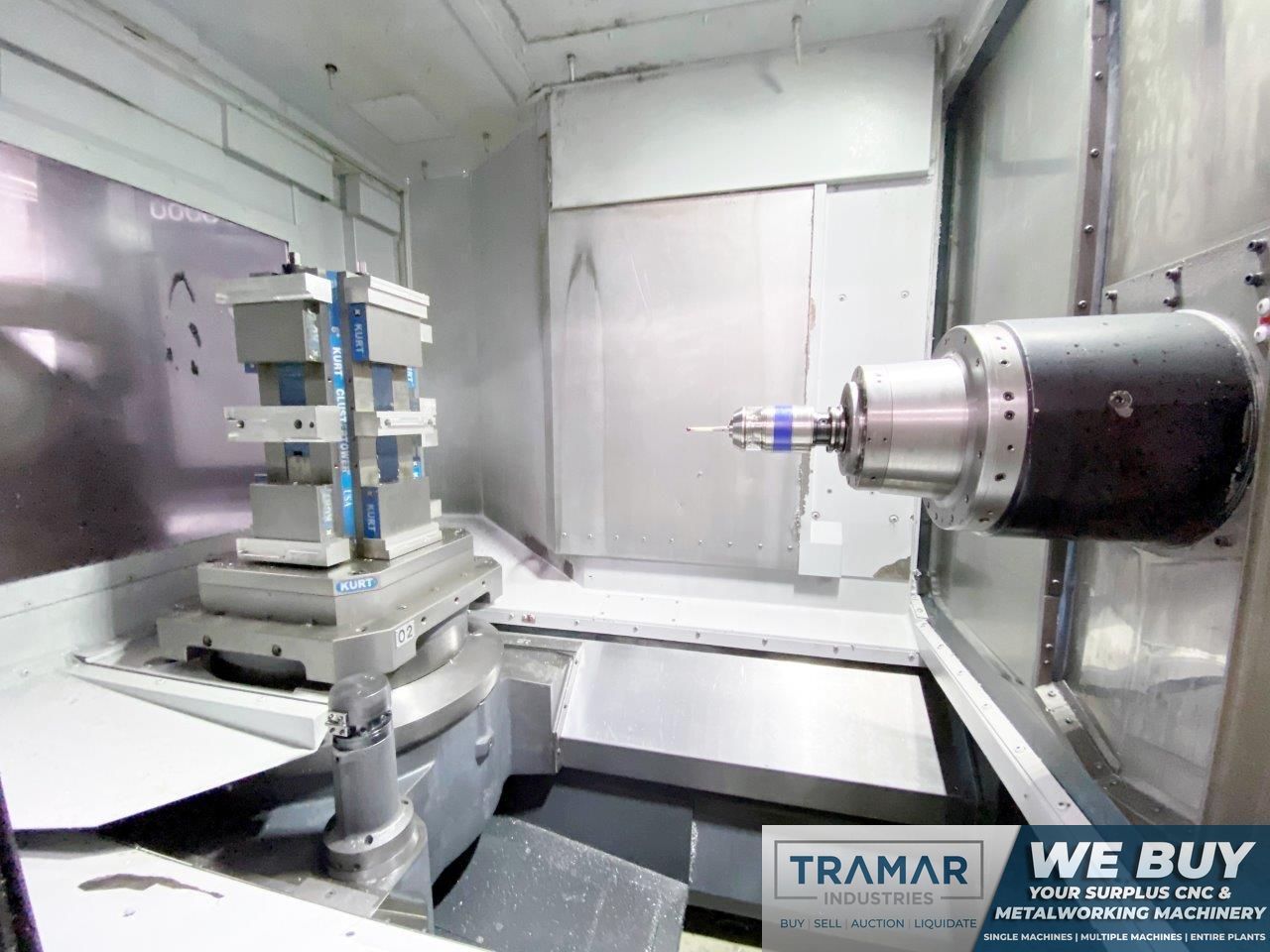

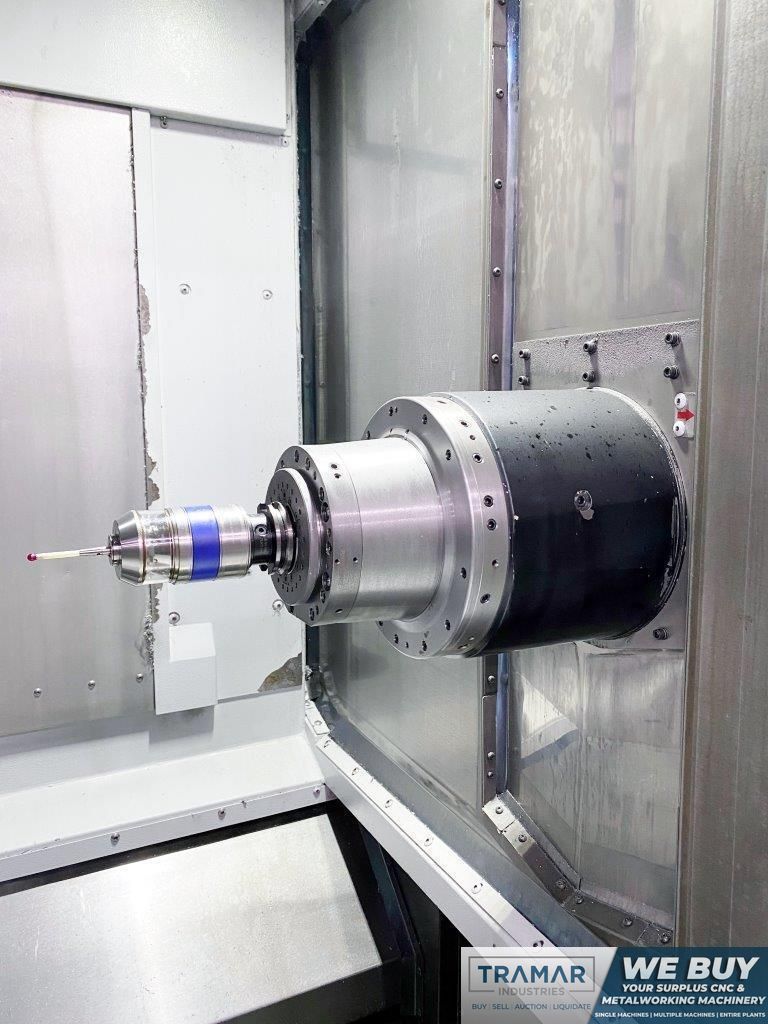

- Probing System
- CAT 40 Big Plus Spindle
- Machine Cut Aluminum Only

** Tombstones NOT INCLUDED **

The DMG Mori NHX5000 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
