Doosan Daewoo DMV-3016LD - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: DMV-3016LD
Year: 2005
Stock #: 13803
Highlights:
Fanuc 0i-MB CNC Control
Renishaw Probe Ready
Koma 4th Axis Rotary Table
Tailstock

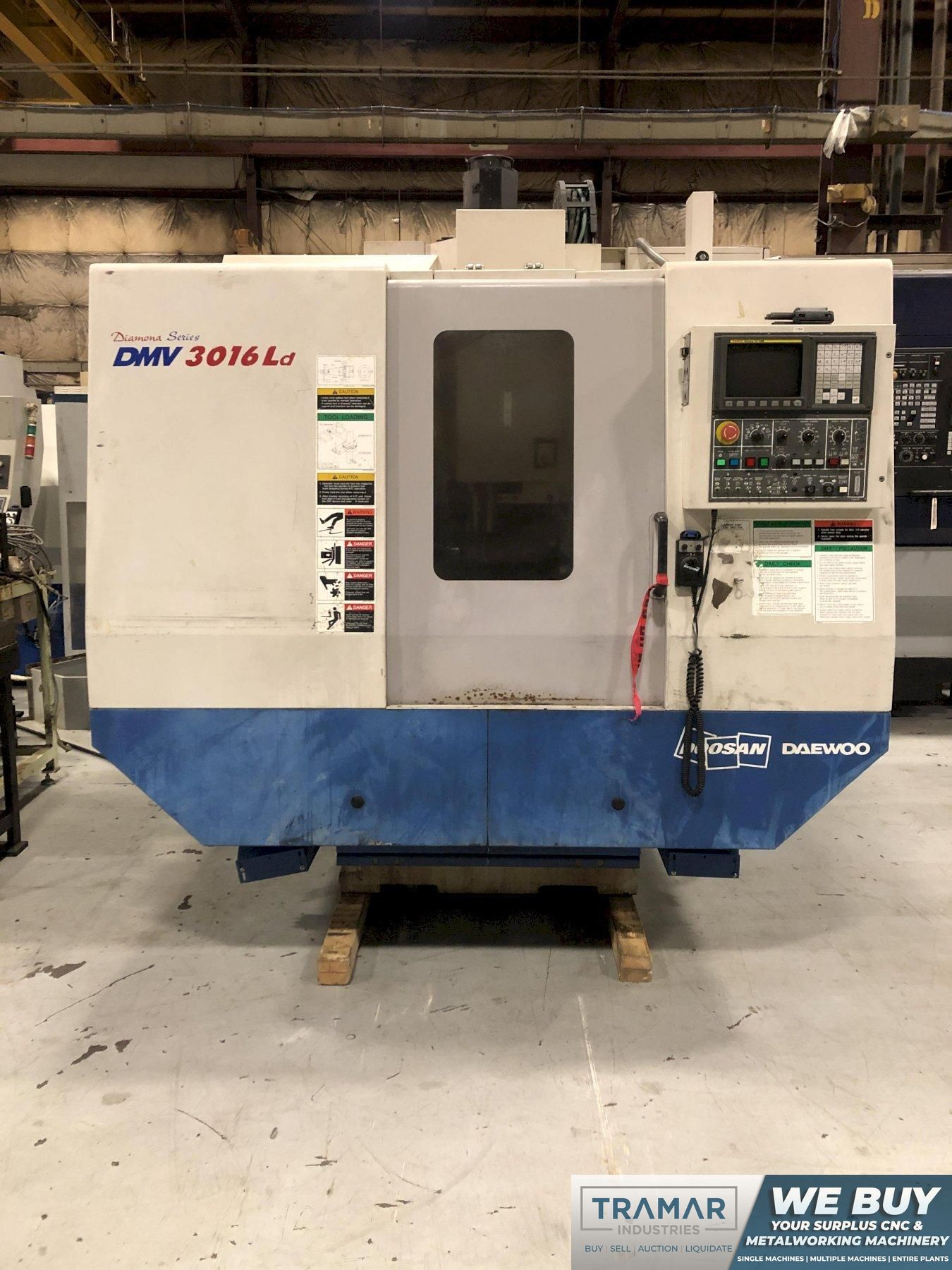

Doosan Daewoo DMV-3016LD Vertical Machining Center For Sale
Machine Specifications
Year
2005
Control Type
Fanuc 0i-MB
# Axis
4
Table Size
39.4" x 16.7"
Table Capacity
1,320 pounds
X-Axis Travel
32.2"
Y-Axis Travel
16.1"
Z-Axis Travel
20.1"
Rapid Traverse Rate (X/Y/Z)
945/708
Spindle Taper
CAT 40
Spindle Speed
8,000 rpm
Main Motor
15 hp
Tool Changer Capacity
24
Coolant Thru Spindle
yes
Machine Dimensions
116" x 94" x 108"
Machine Weight
12,500 pounds

Equipped With:

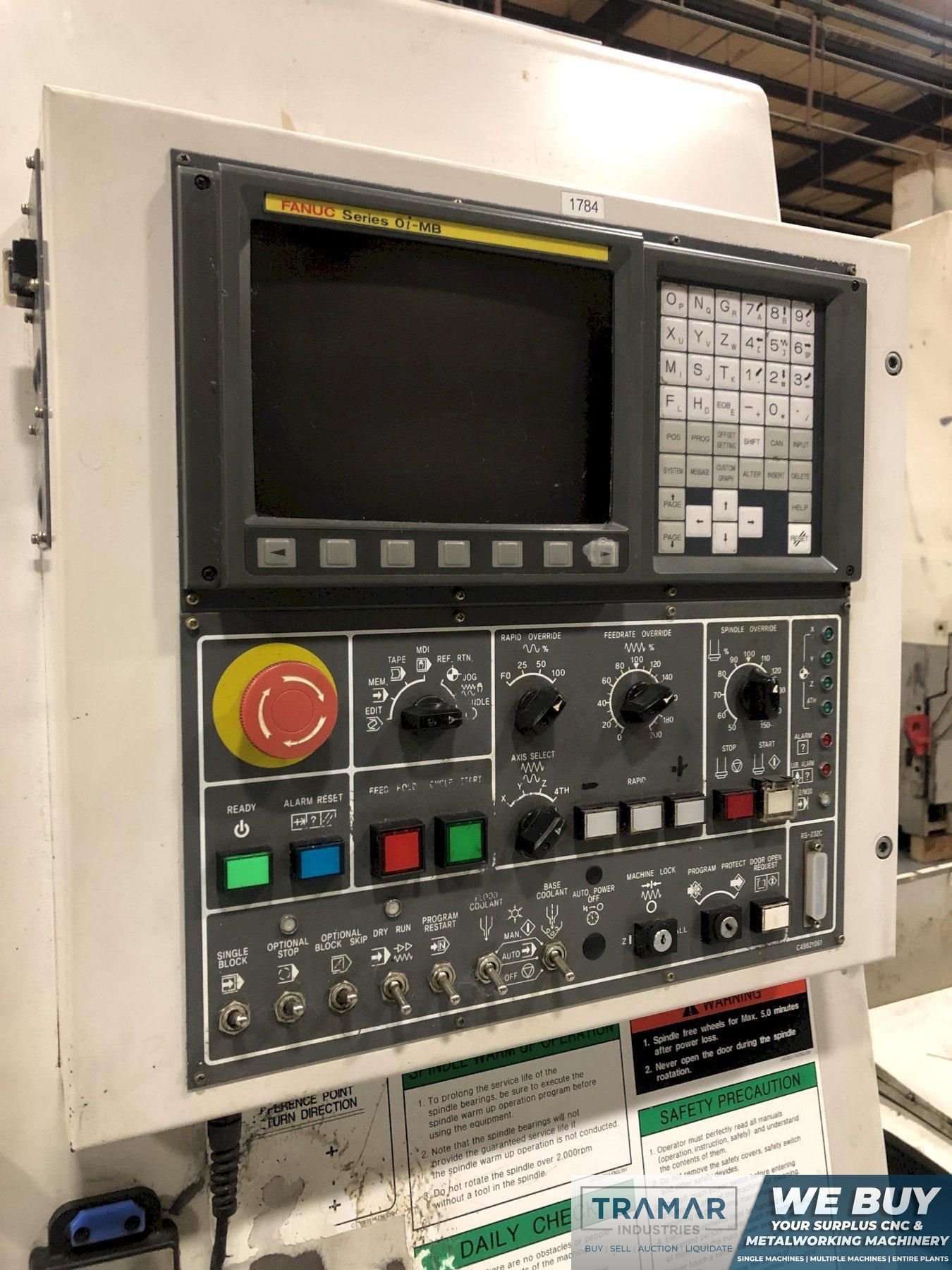

- Fanuc 0i-MB CNC Control
- Coolant Tank & Pumps

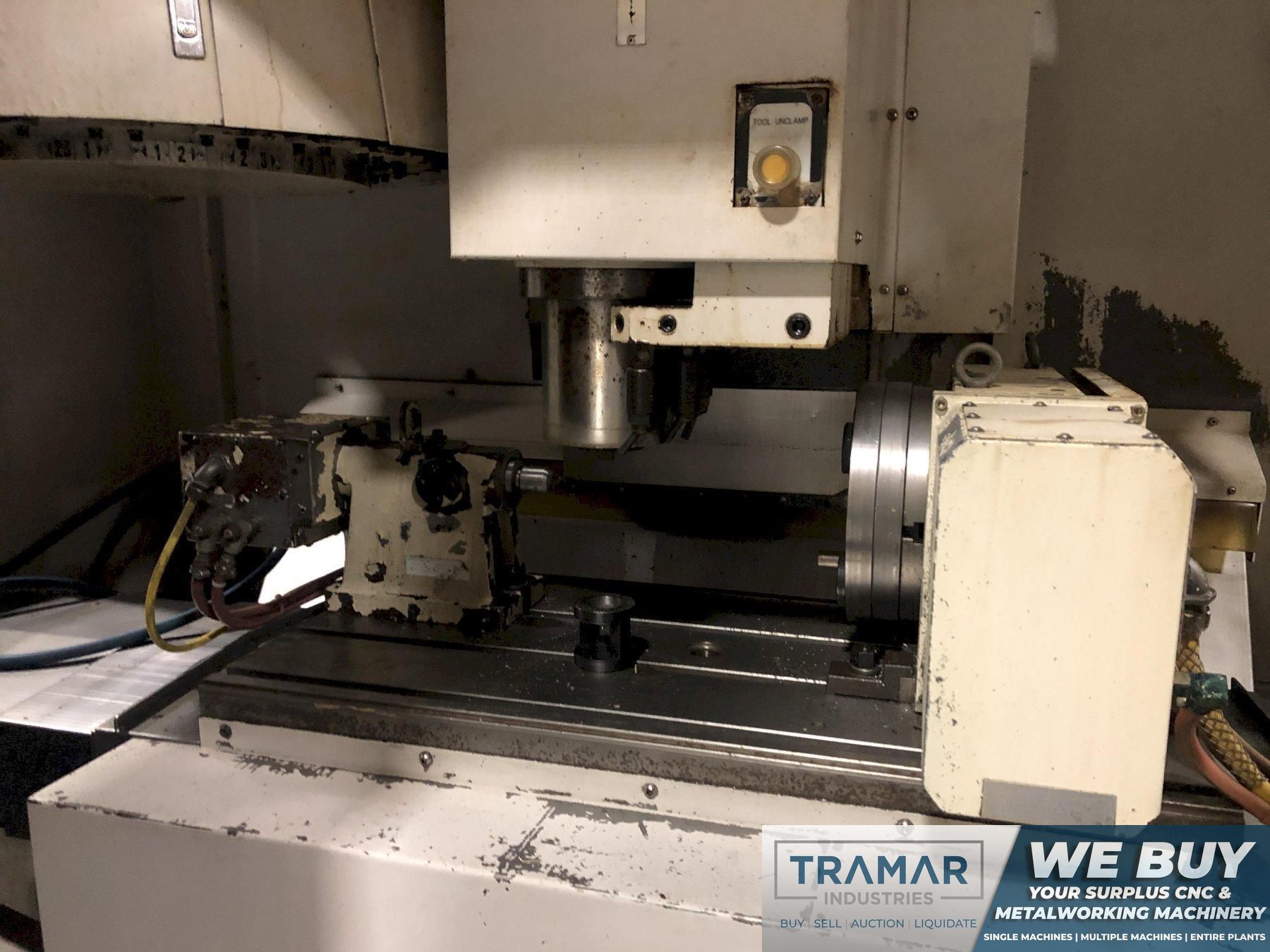

- Koma 4th Axis Rotary Table w/Tailstock
- Coolant Thru Spindle 290 psi (Cooljet System)
- Renishaw Probing (Receiver Only)

The Doosan Daewoo DMV-3016LD is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
