Doosan Daewoo DHP 5000 - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: DHP 5000
Year: 2006
Stock #: 13368
Highlights:

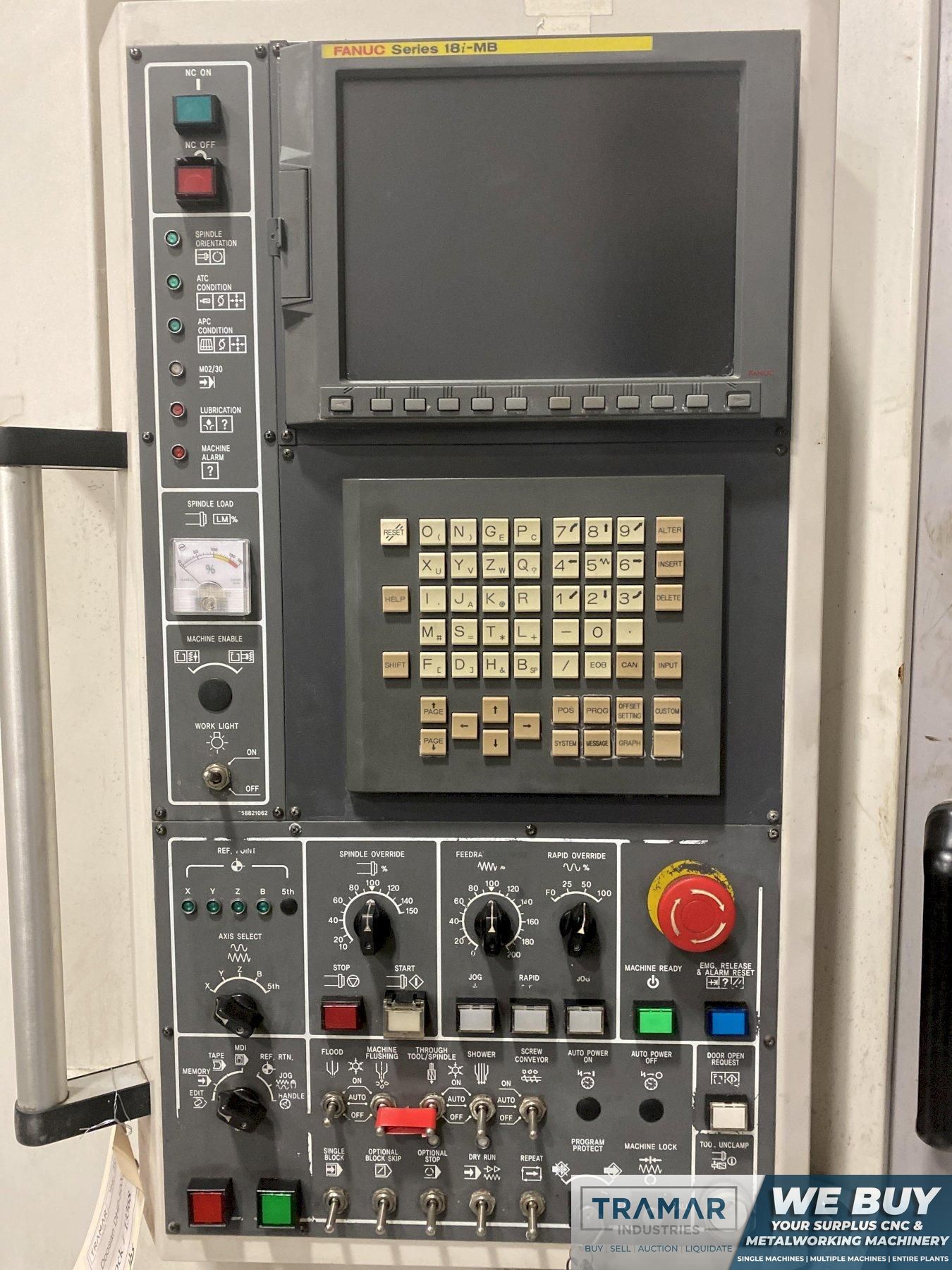

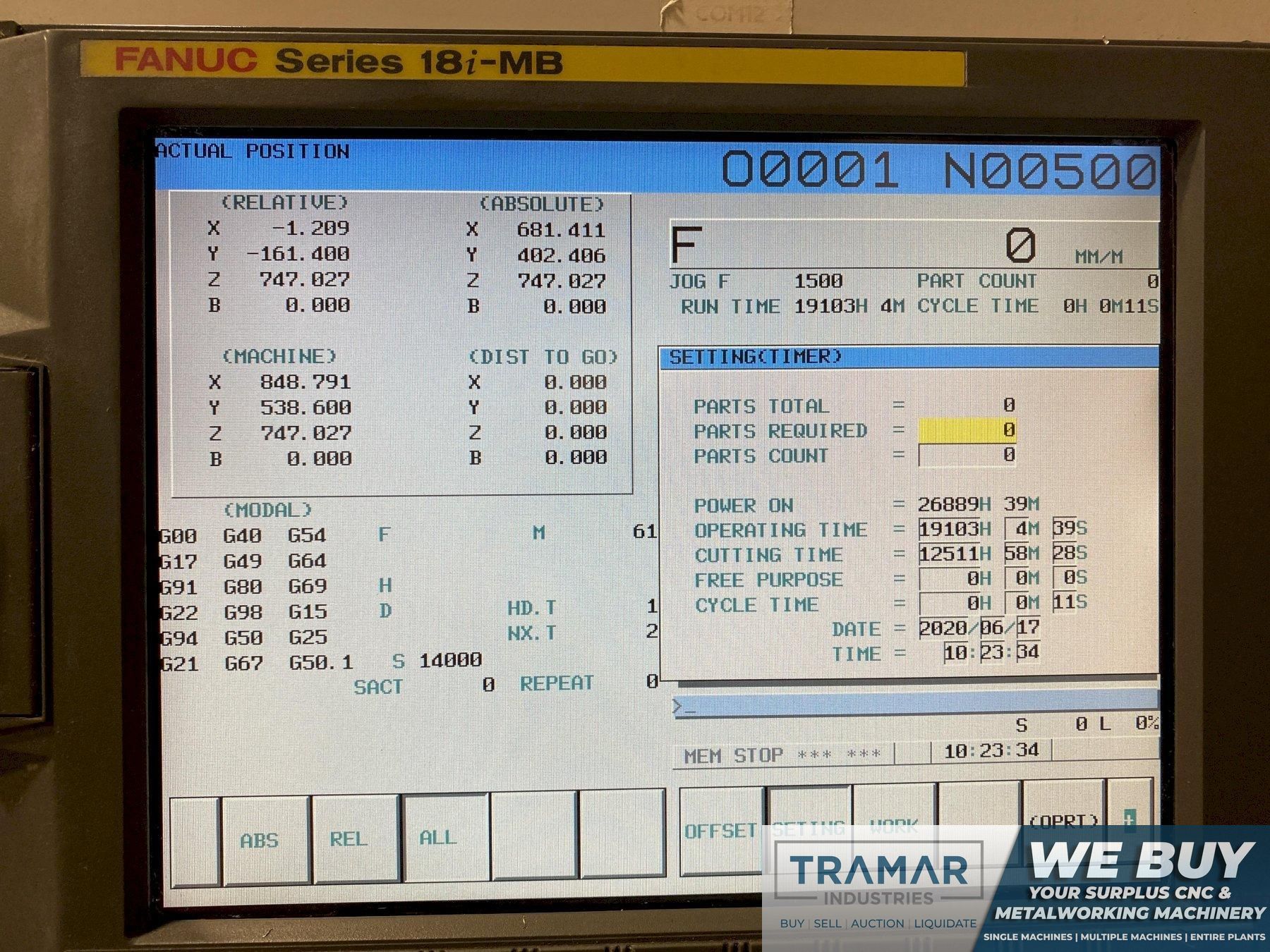

Fanuc 18i-MB Control
Pallets Size: 19.7"x 19.7"
Travels: (X/Y/Z): 33.4" / 27.5" / 29.5"
CAT 40 | 14k rpm | 60 Station ATC

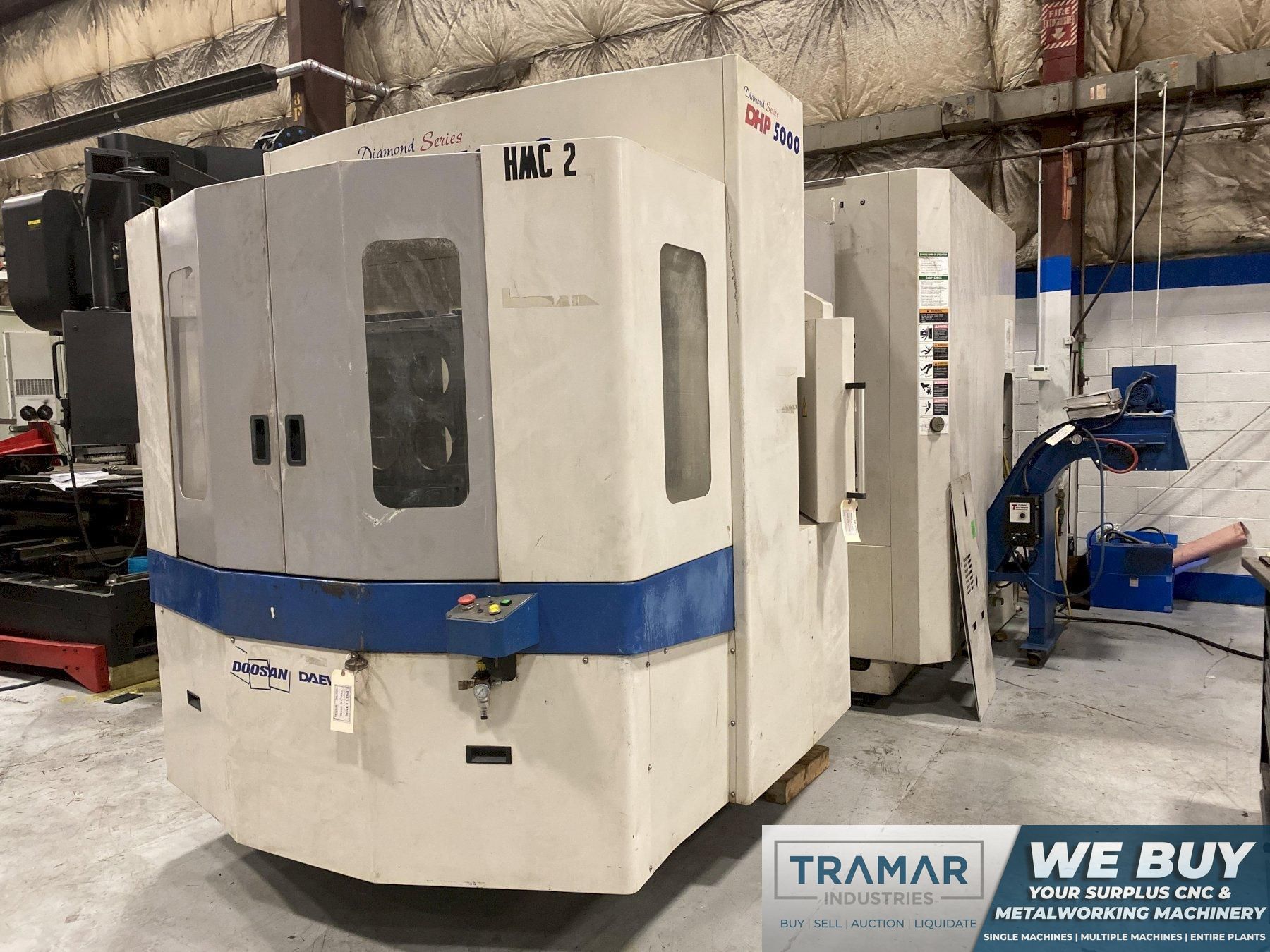

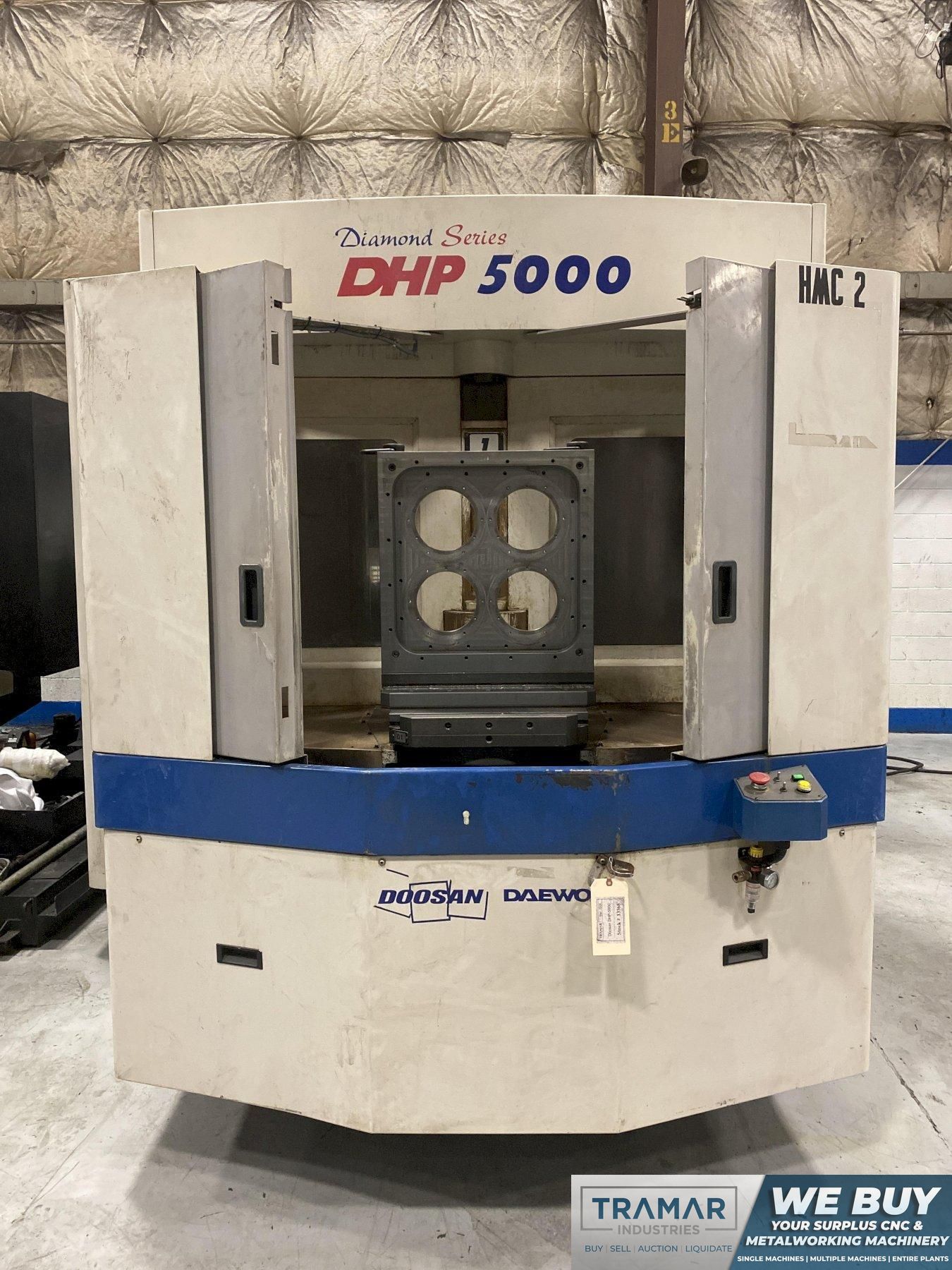

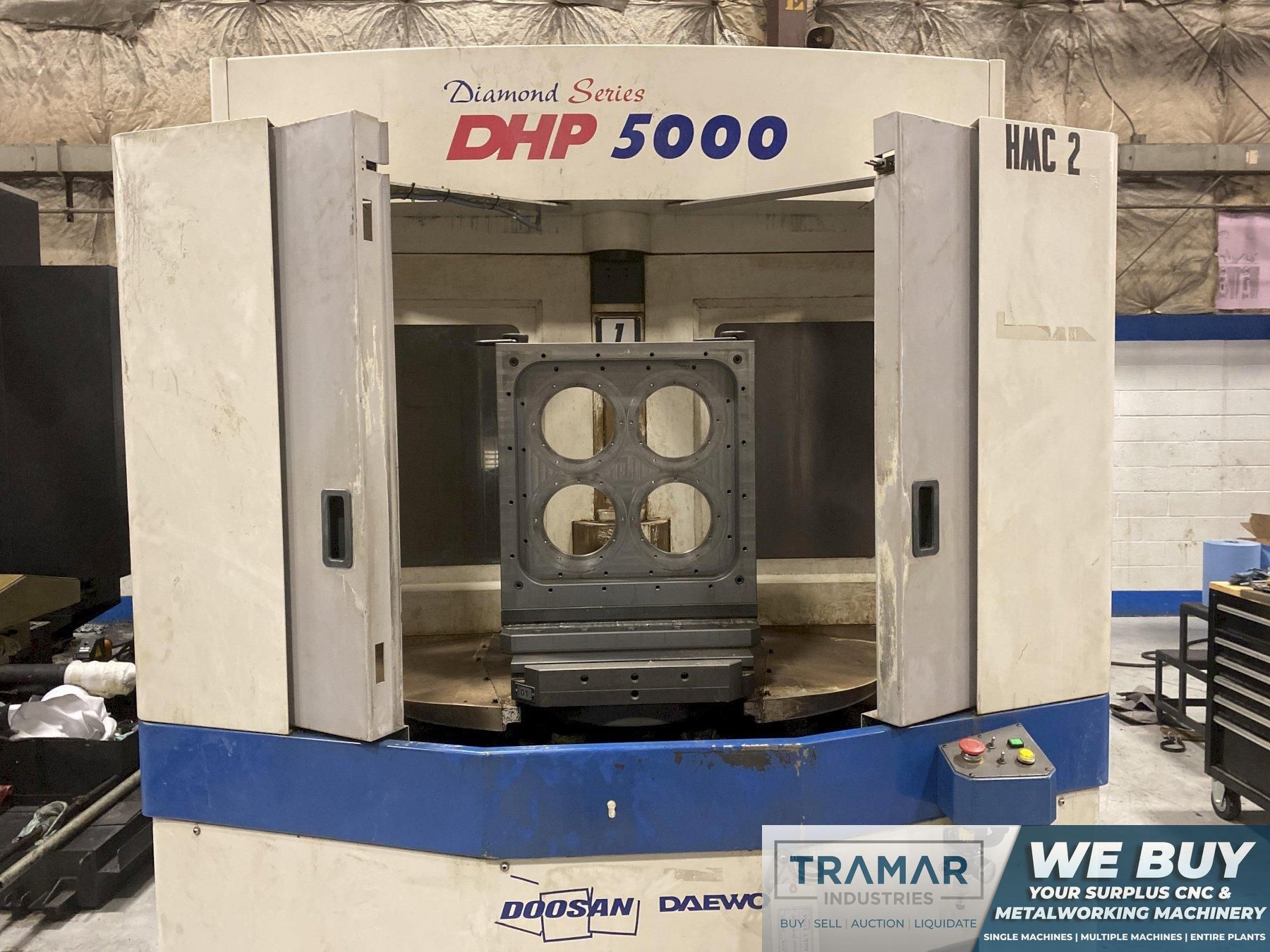

Doosan DHP 5000 CNC Horizontal Machining Center 2006
Machine Specifications
Year
2006
Control Type
Fanuc 18i-MB
# Axis
4

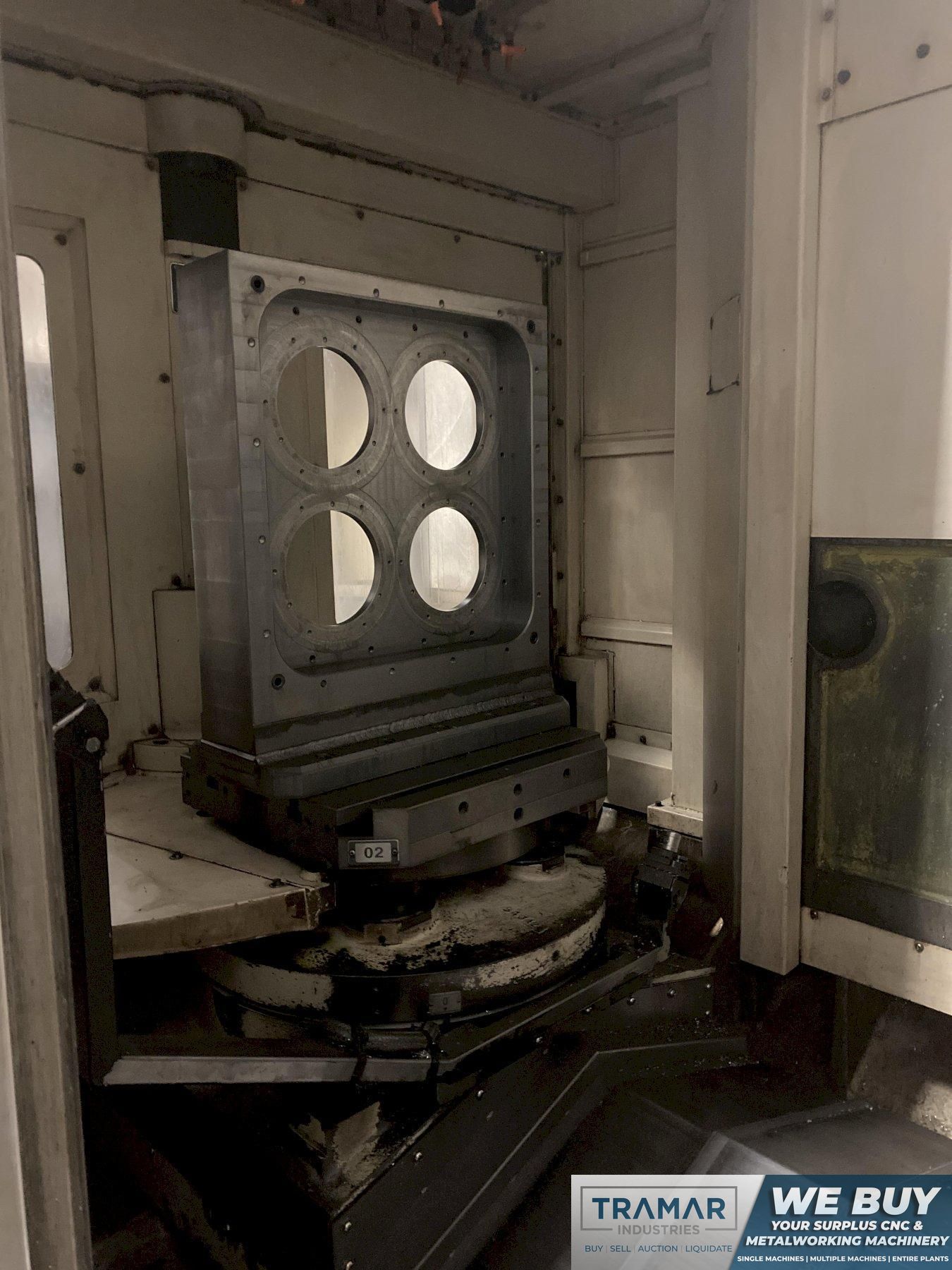

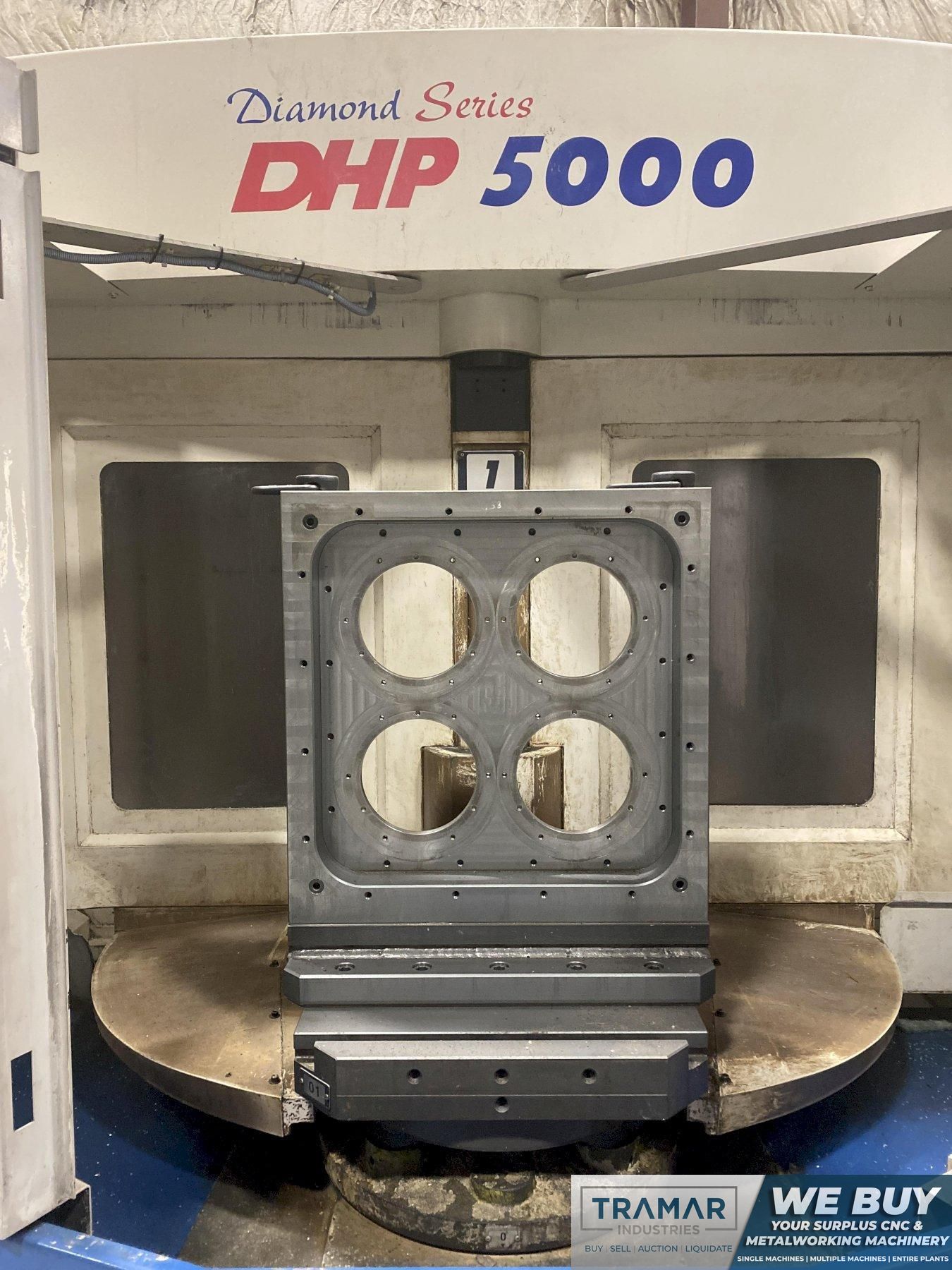

Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
1,102 pounds
Pallet Indexing (B-Axis)
X-Axis Travel
33.4"
Y-Axis Travel
27.5"
Z-Axis Travel
29.5"
Rapid Traverse Rate (X/Y/Z)
1,889 ipm
Spindle Taper
CAT 40
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Dimensions
137" x 208" x 118"
Machine Weight
28,000 pounds

Equipped With:

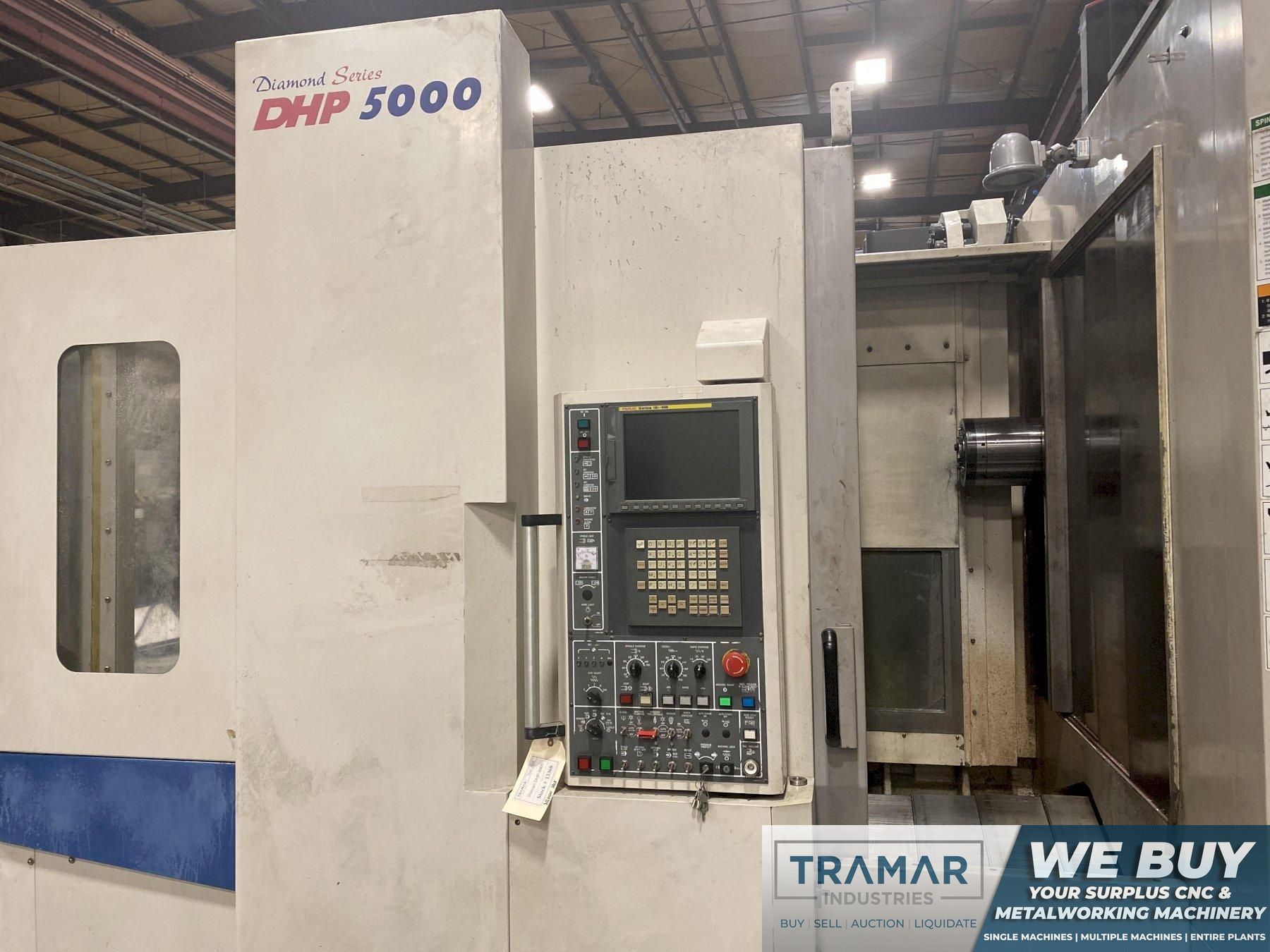

- Fanuc 18i-MB Control
- Look Ahead Control G08
- AICC (Artificial Intelligence Contour Control) G05.1
- Precision Level Selection (Velocity ---> Precision)
- 200 Tool Offset Pairs
- 45 Work Offsets
- Custom Macros
- Renishaw Non-Contacting Tool Setting System
    * Measure Length
    * Measure Diameter
    * Tool Breakage Detection

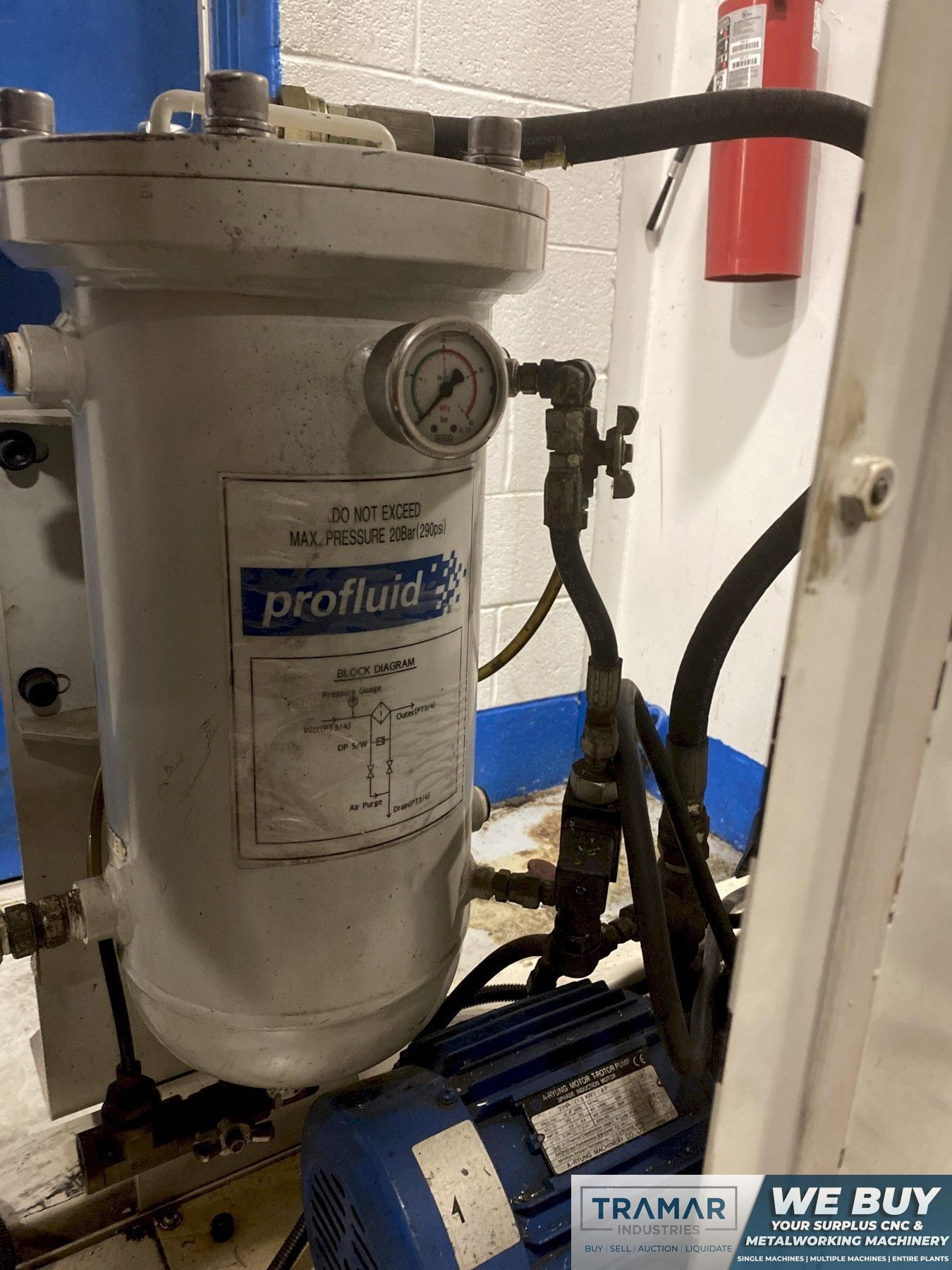

- Coolant Thru Spindle (290 psi)

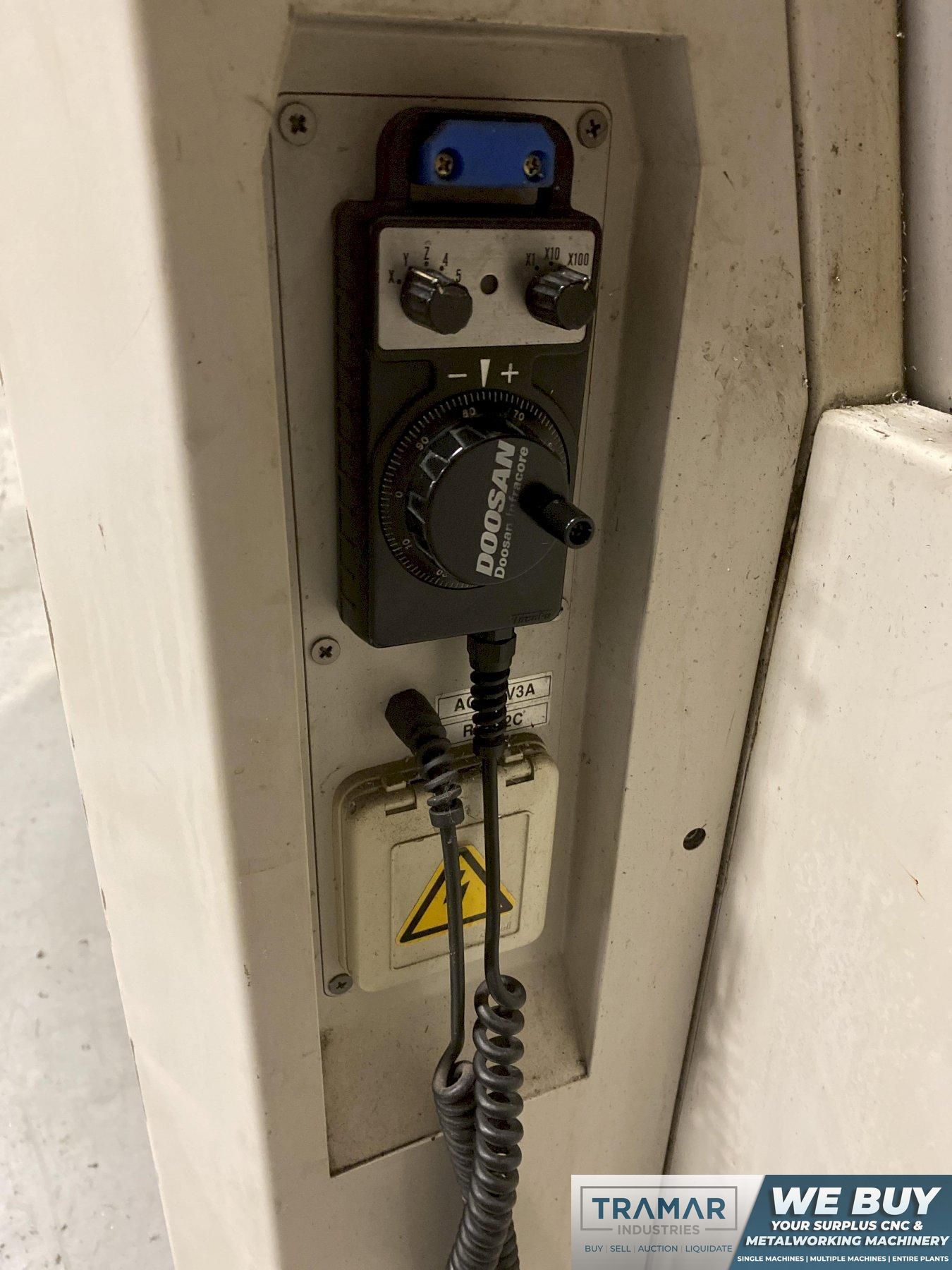

- Remote Hand Held MPG
- Available Manuals

The Doosan Daewoo DHP 5000 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
