Model: Puma GT3100L
Year: 2018
Stock #: 13654 Sold
Highlights:

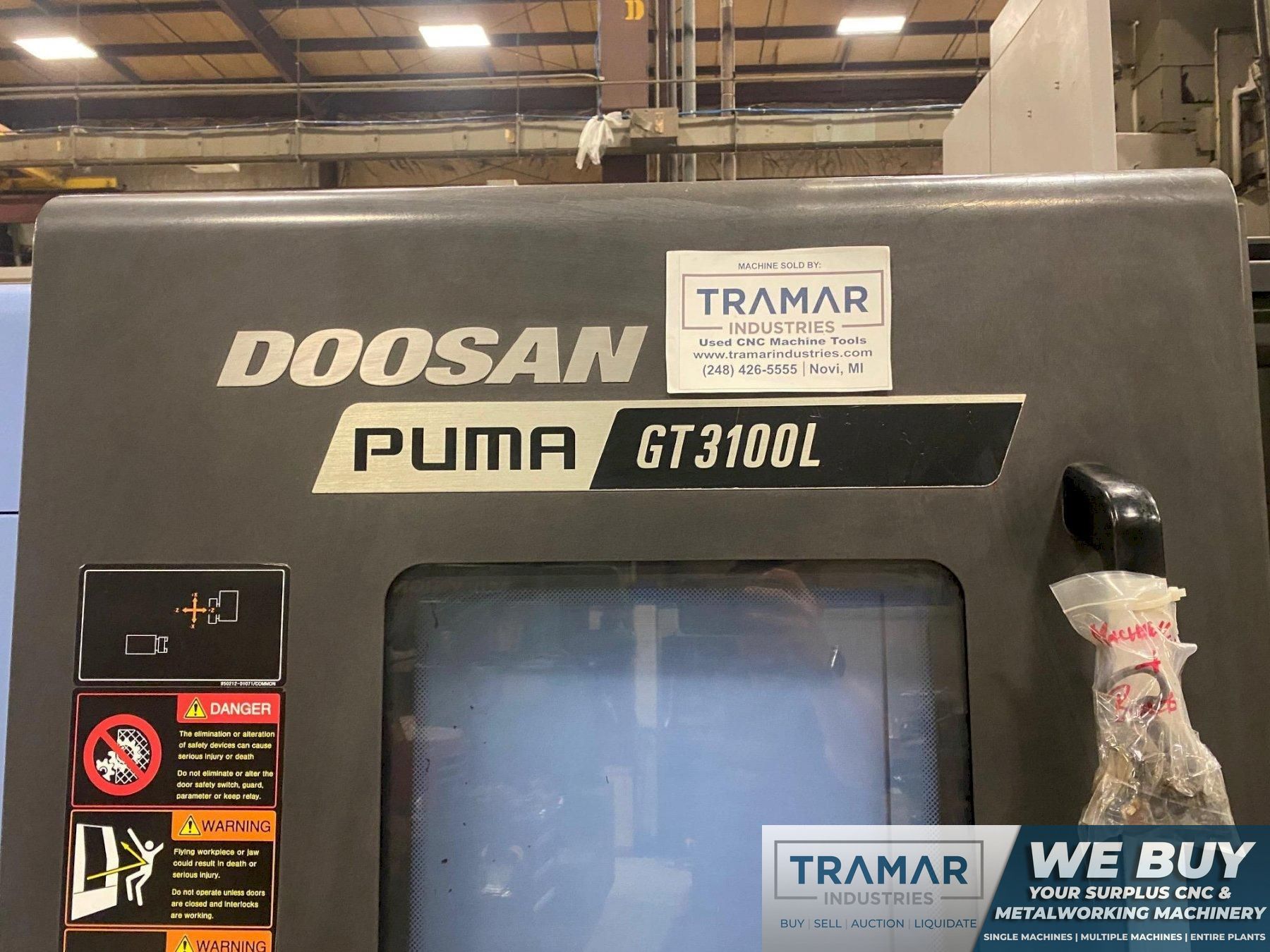

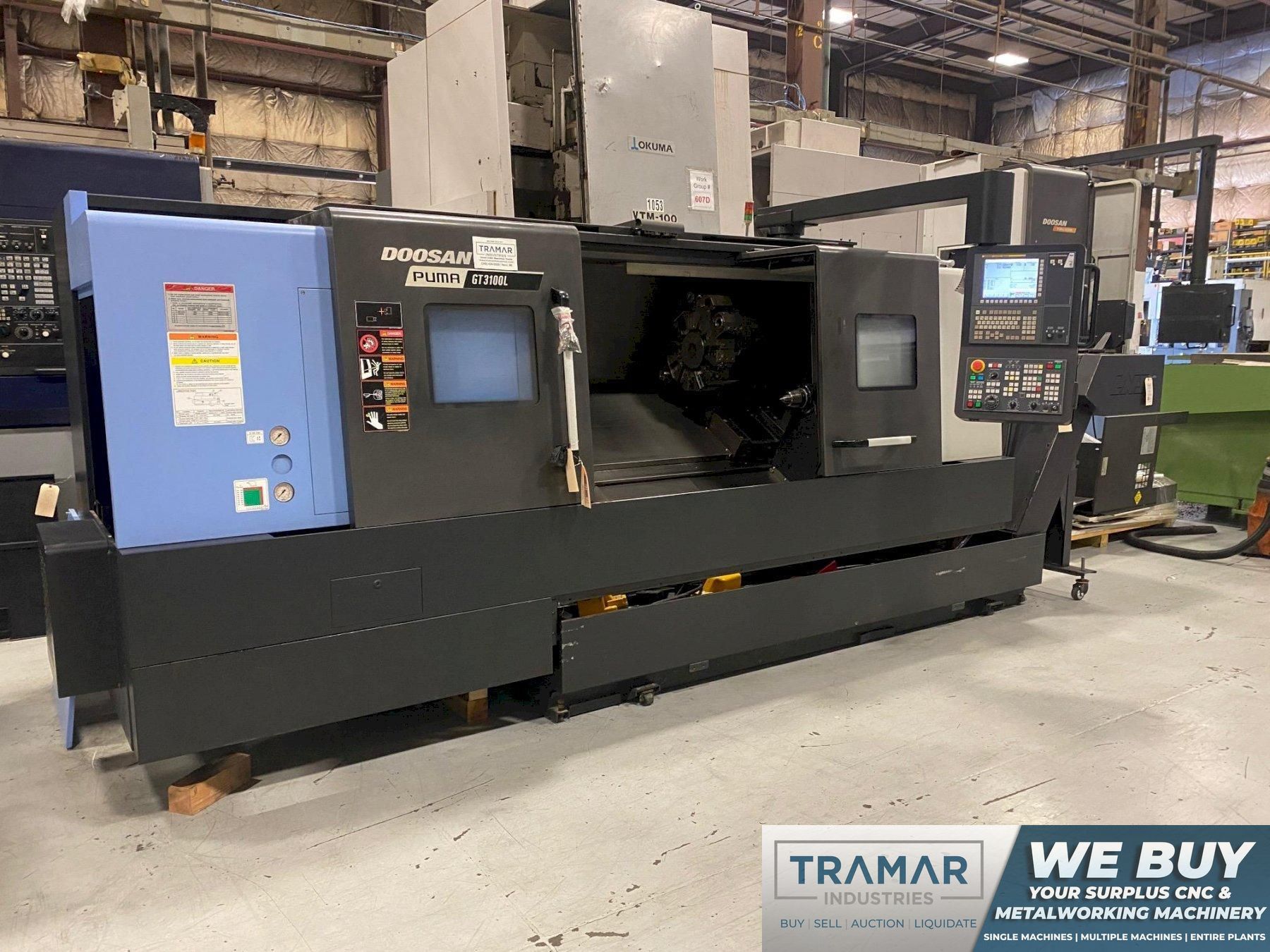

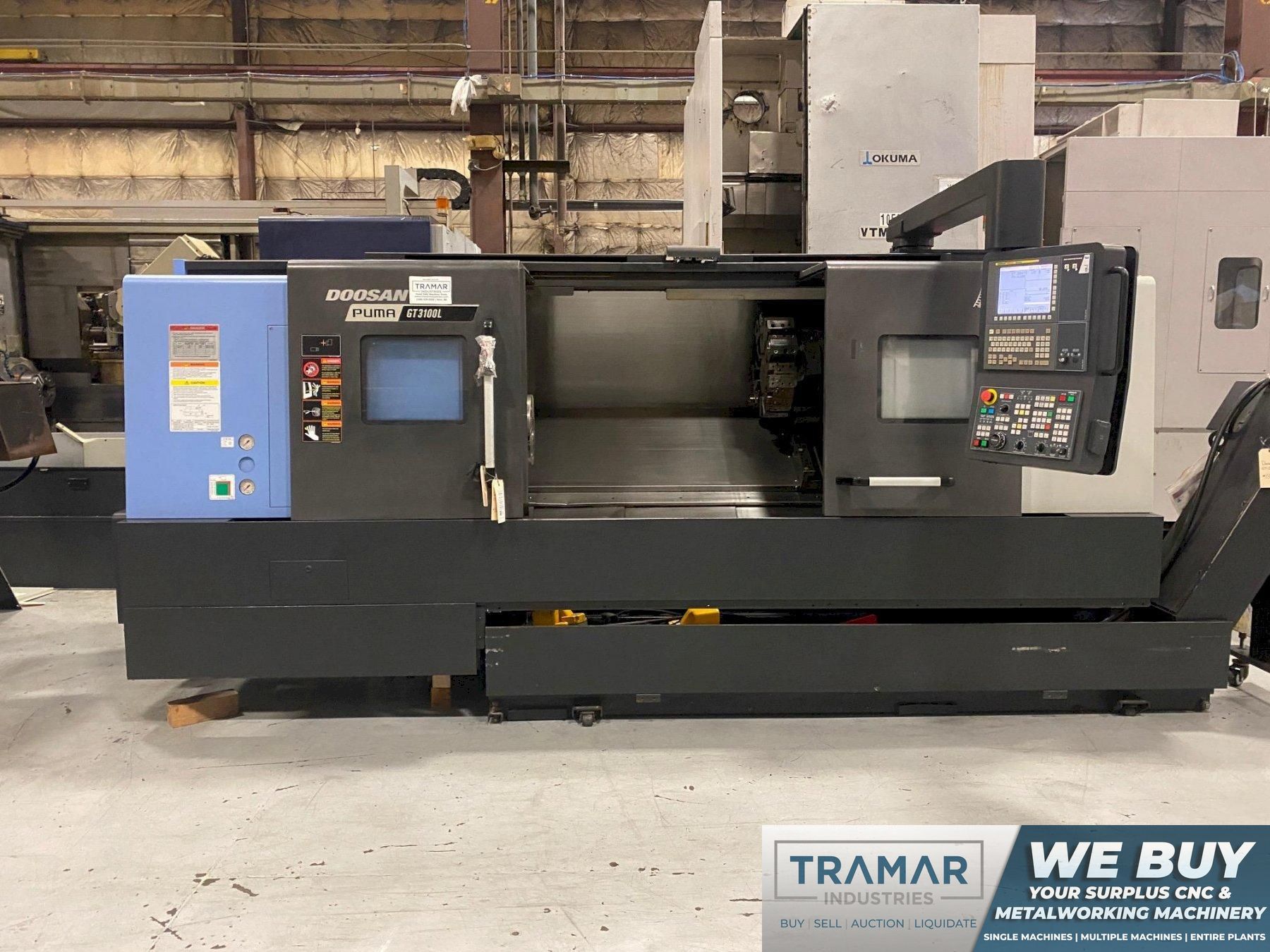

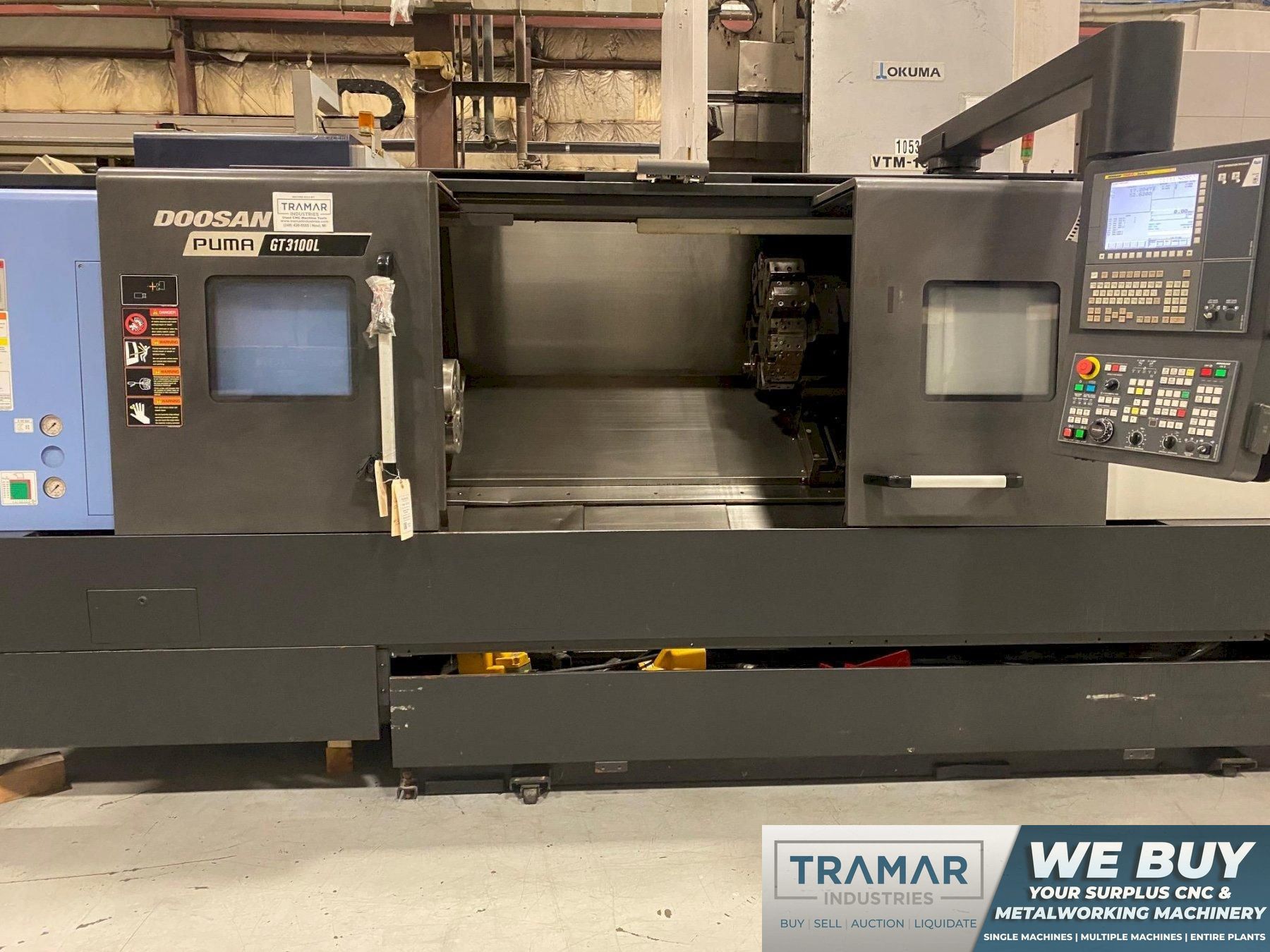

Doosan Puma GT3100L CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
CNC Control
Fanuc i Series
# Axis
2
Swing
28.3"
Turning Diameter
18.9"
Center Distance
50.2"
Chuck Size
12"
Bar Capacity
4"
X Axis Travel
10.2"
Z Axis Travel
53.1"
Rapid Traverse (X/Z)
945/1,181 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
45 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Gear Box
yes

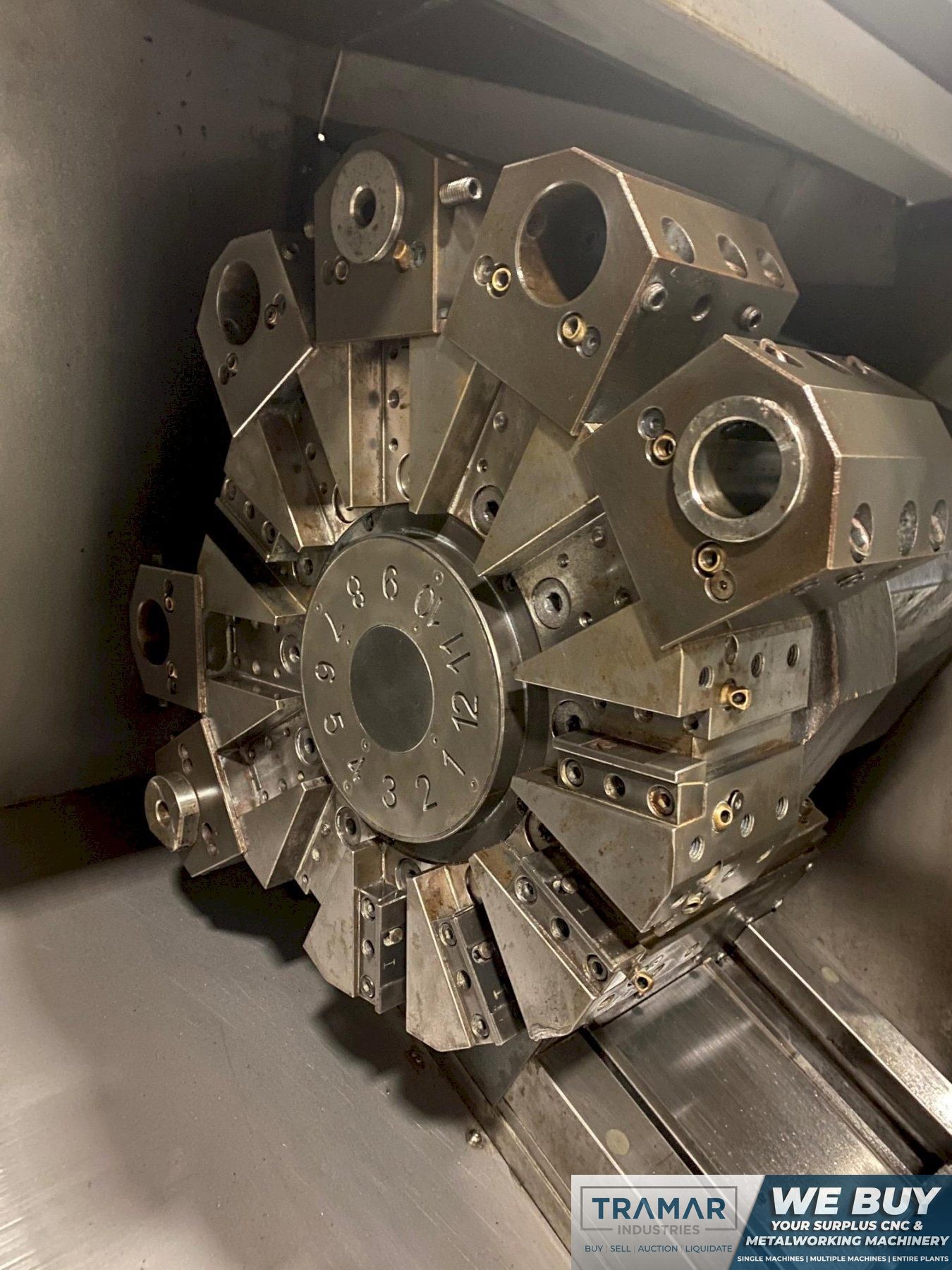

Turret Capacity
12
Machine Dimensions
183" x 92" x 84"
Machine Weight
15,000 pounds

Equipped With:

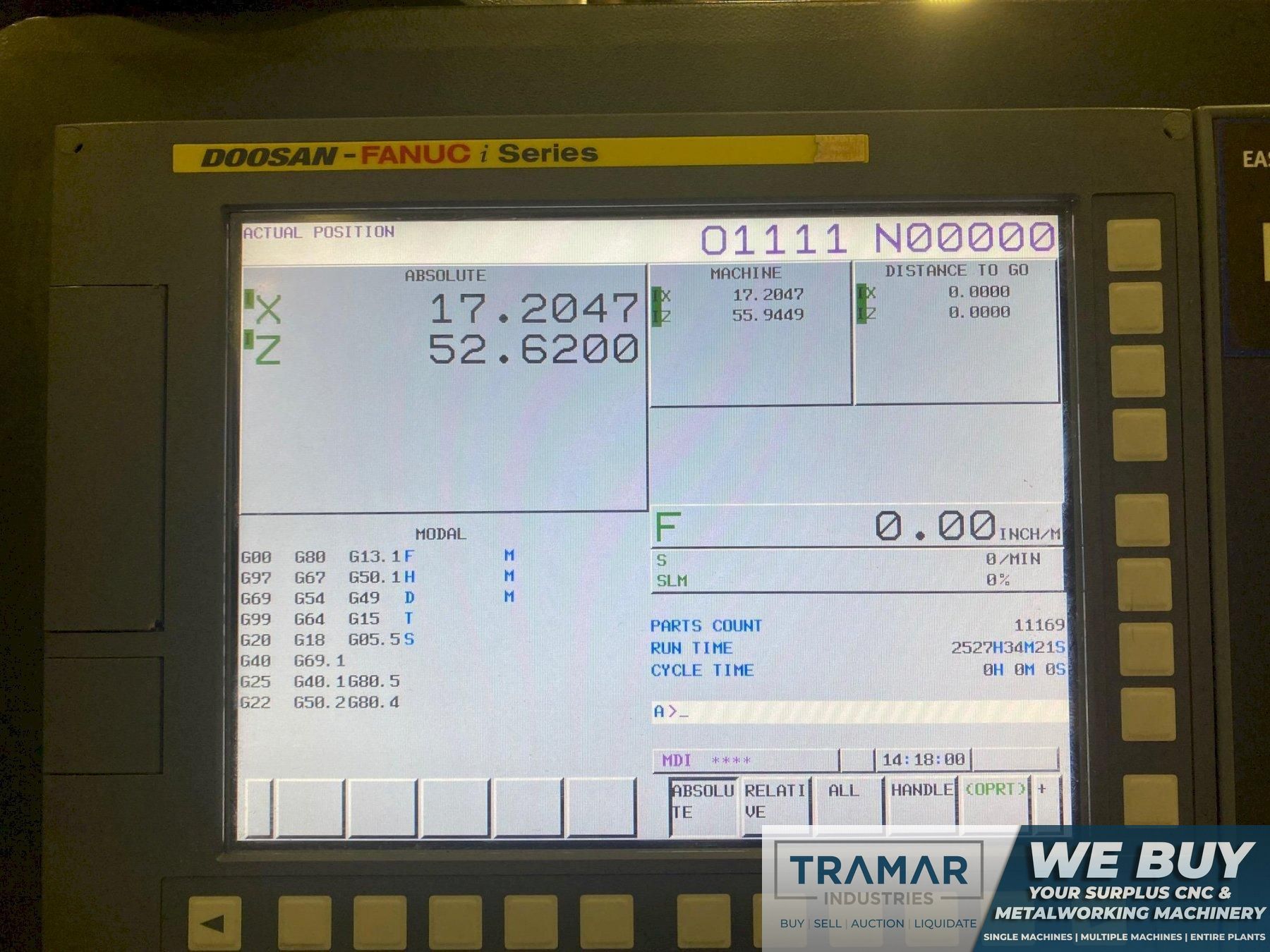

- Fanuc i Series Control
- Long Bed option (50" Centers)

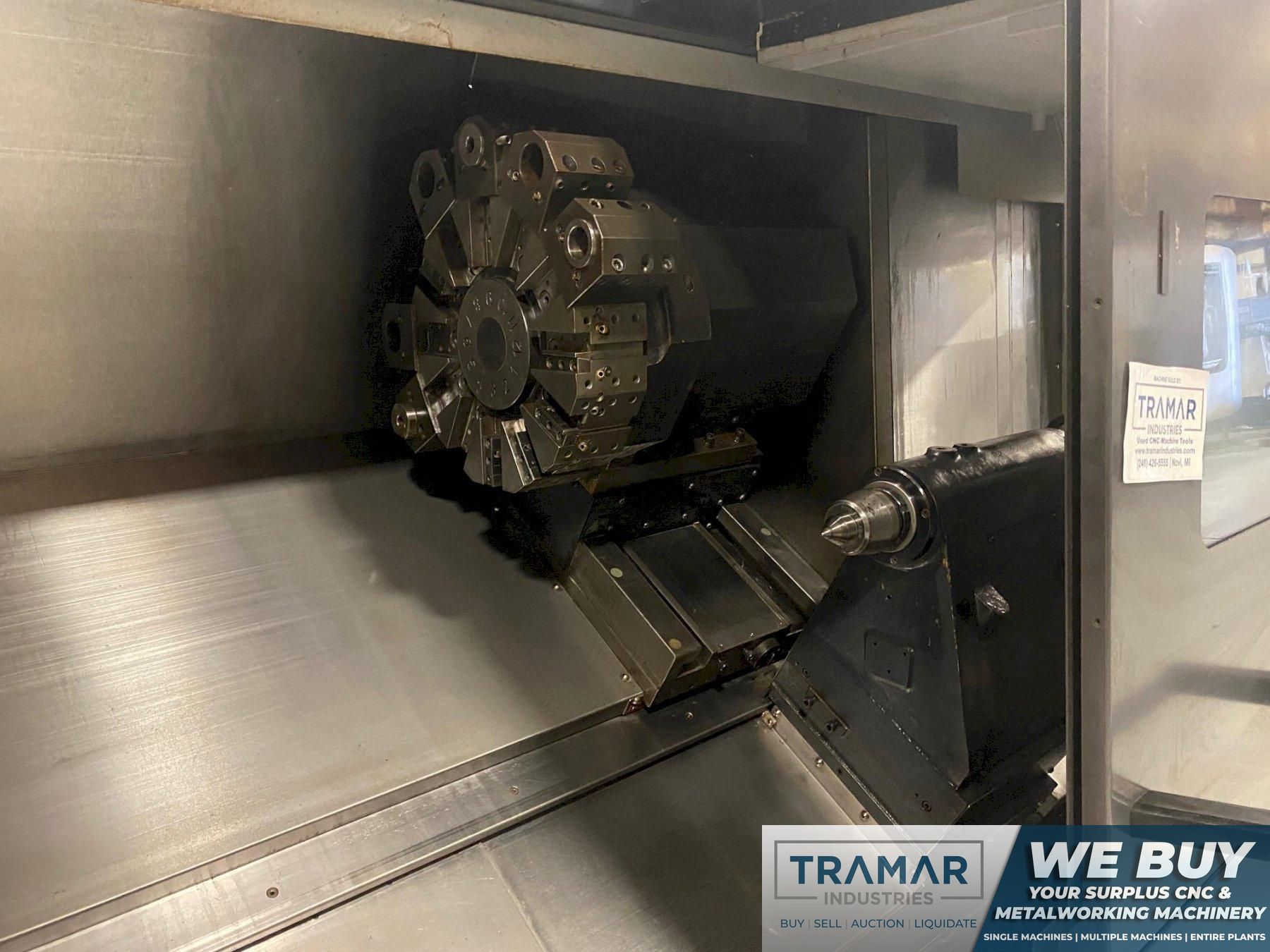

- Tailstock
- Tool Presetter
- Chip Conveyor

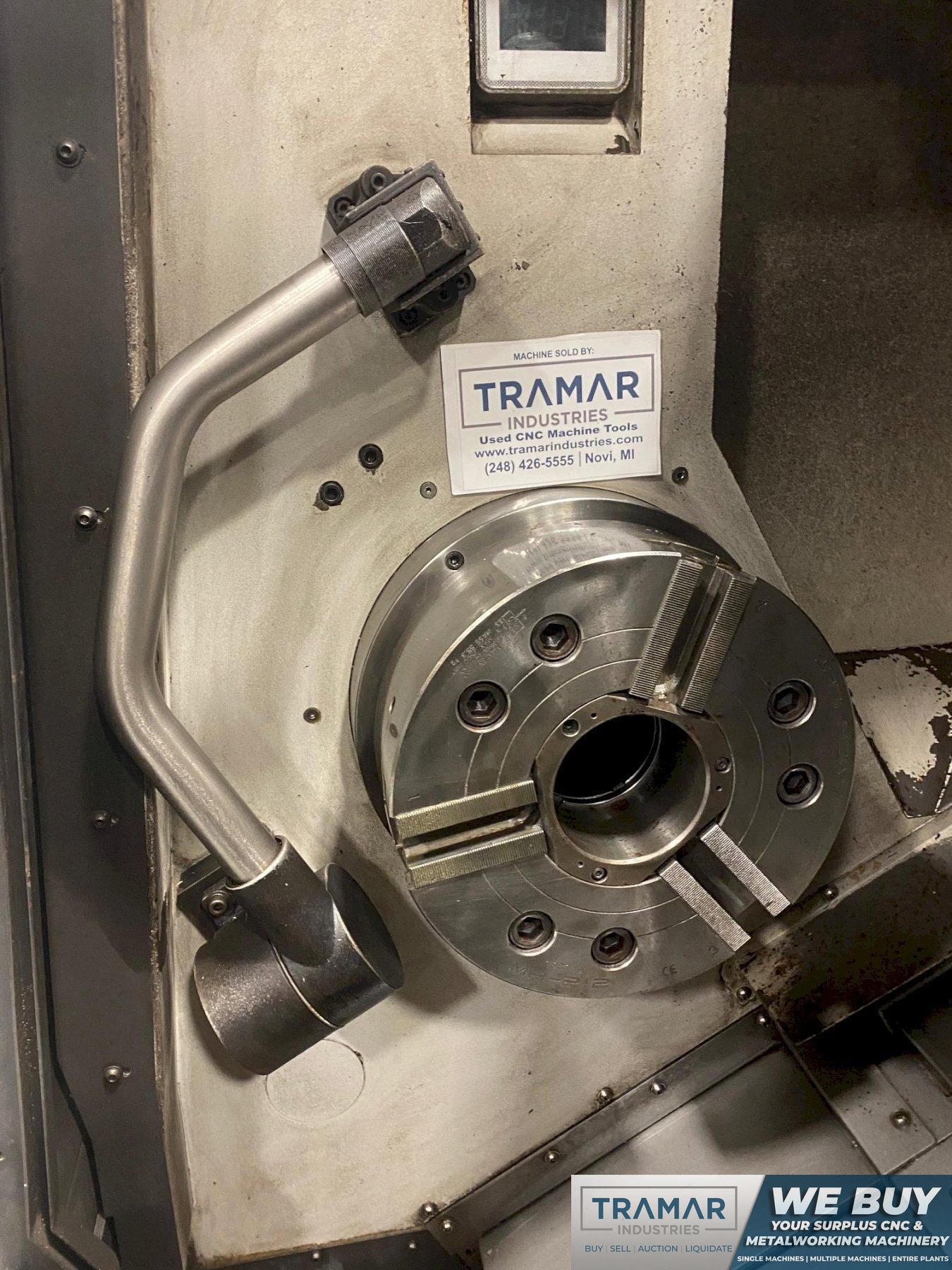

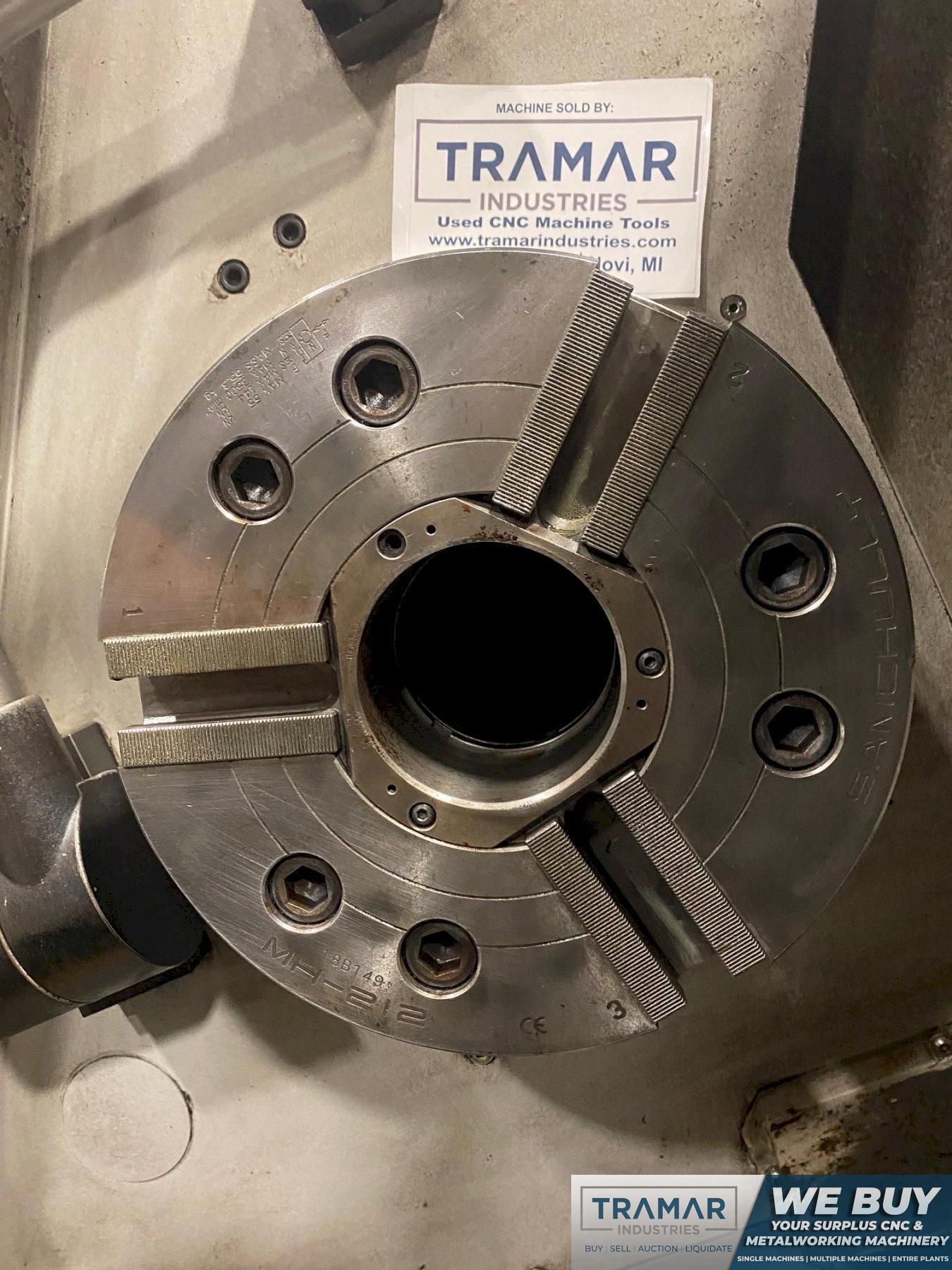

- 12" Samchully Hydraulic Chuck MH-212
- Gear Box
- Box Ways
- Misc. Tooling Available

The Doosan Puma GT3100L is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
