Doosan Puma V550 - Vertical Lathes

Share Machine
Specifications Print Specs
Model: Puma V550
Year: 2011
Stock #: 13509 Sold
Highlights:

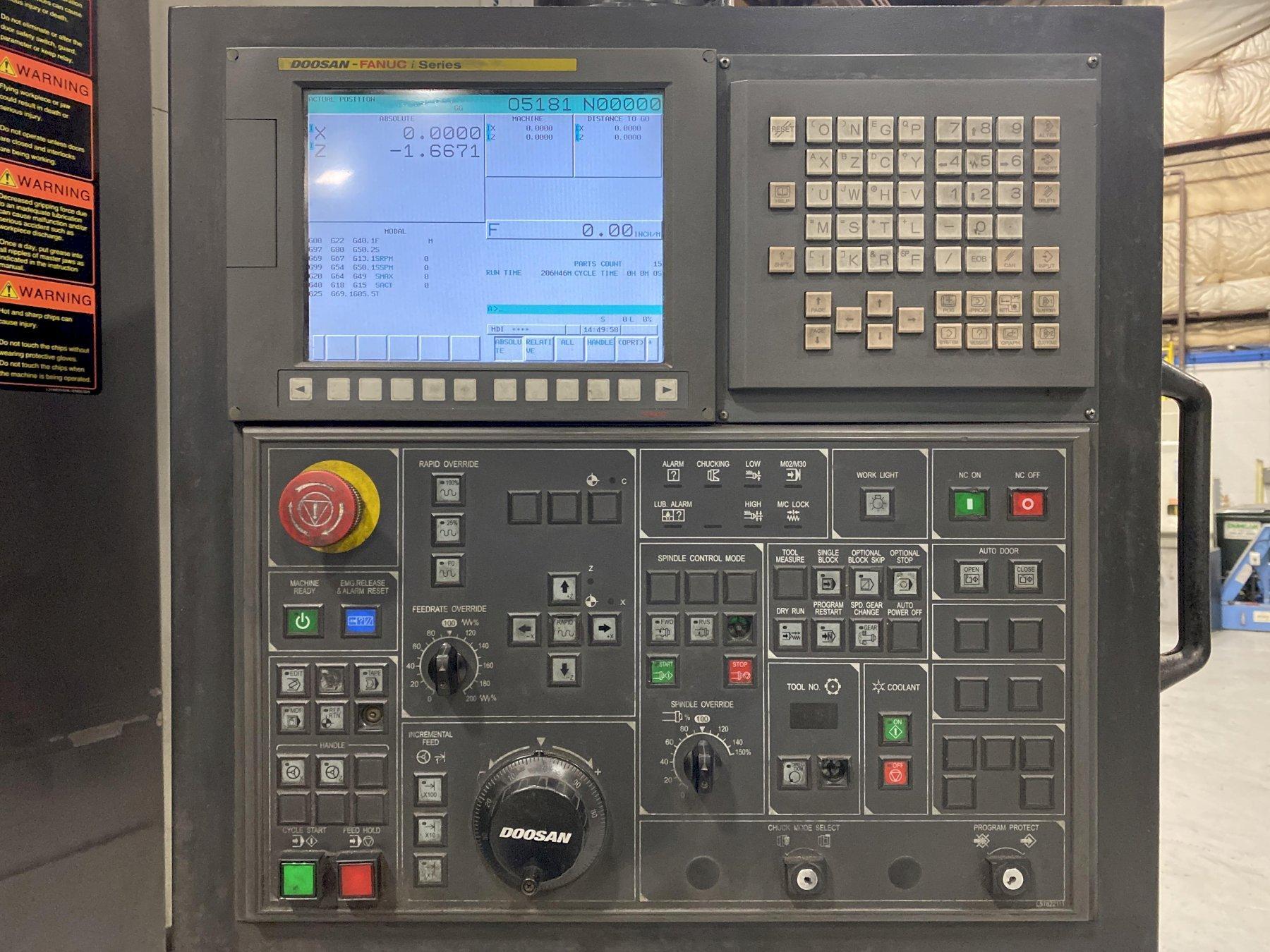

Fanuc 0i-TD Control
Manual Guide i
Misc. Tooling Available

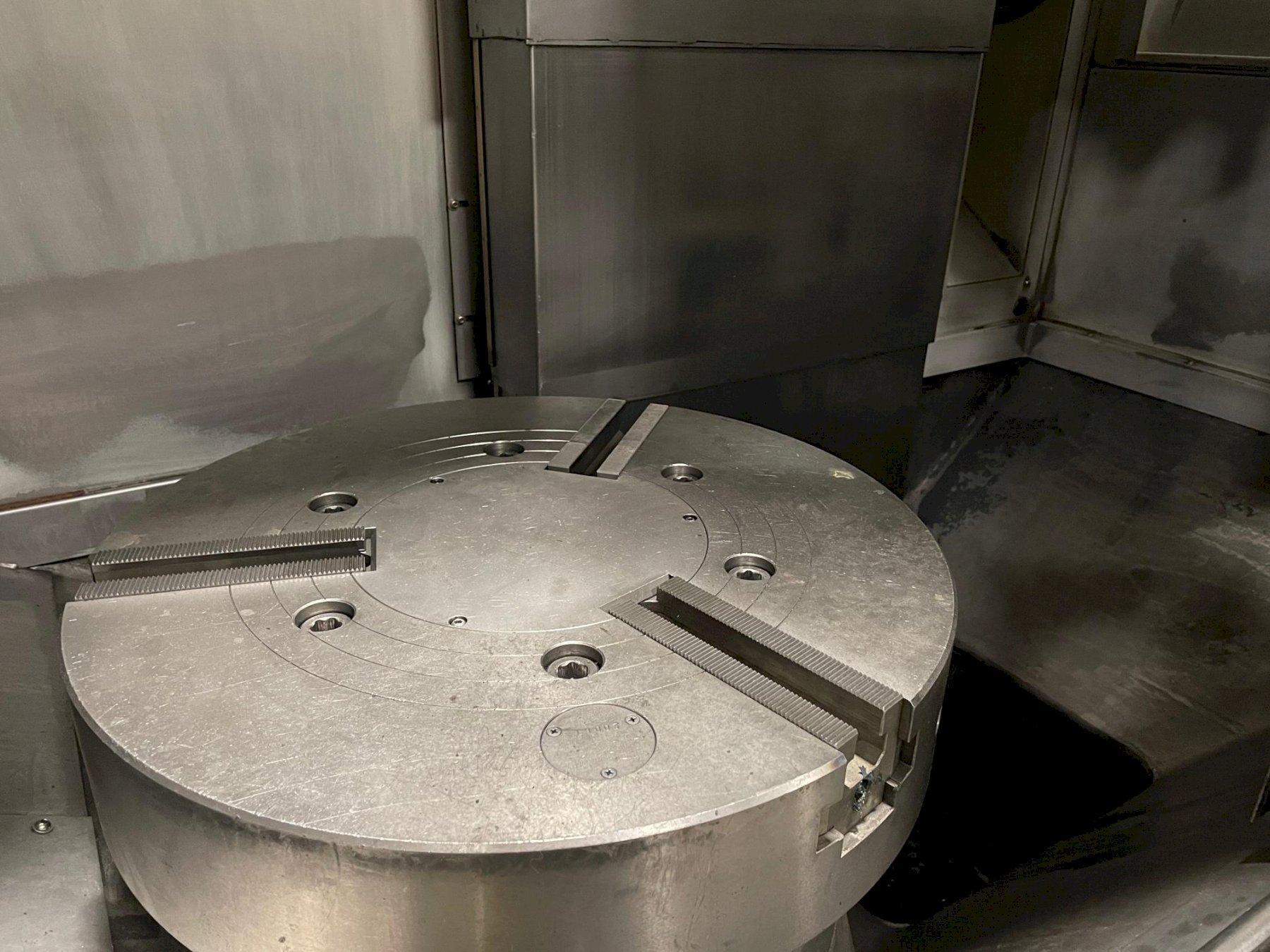

24" Kitagawa Chuck
2-Speed Gear Box

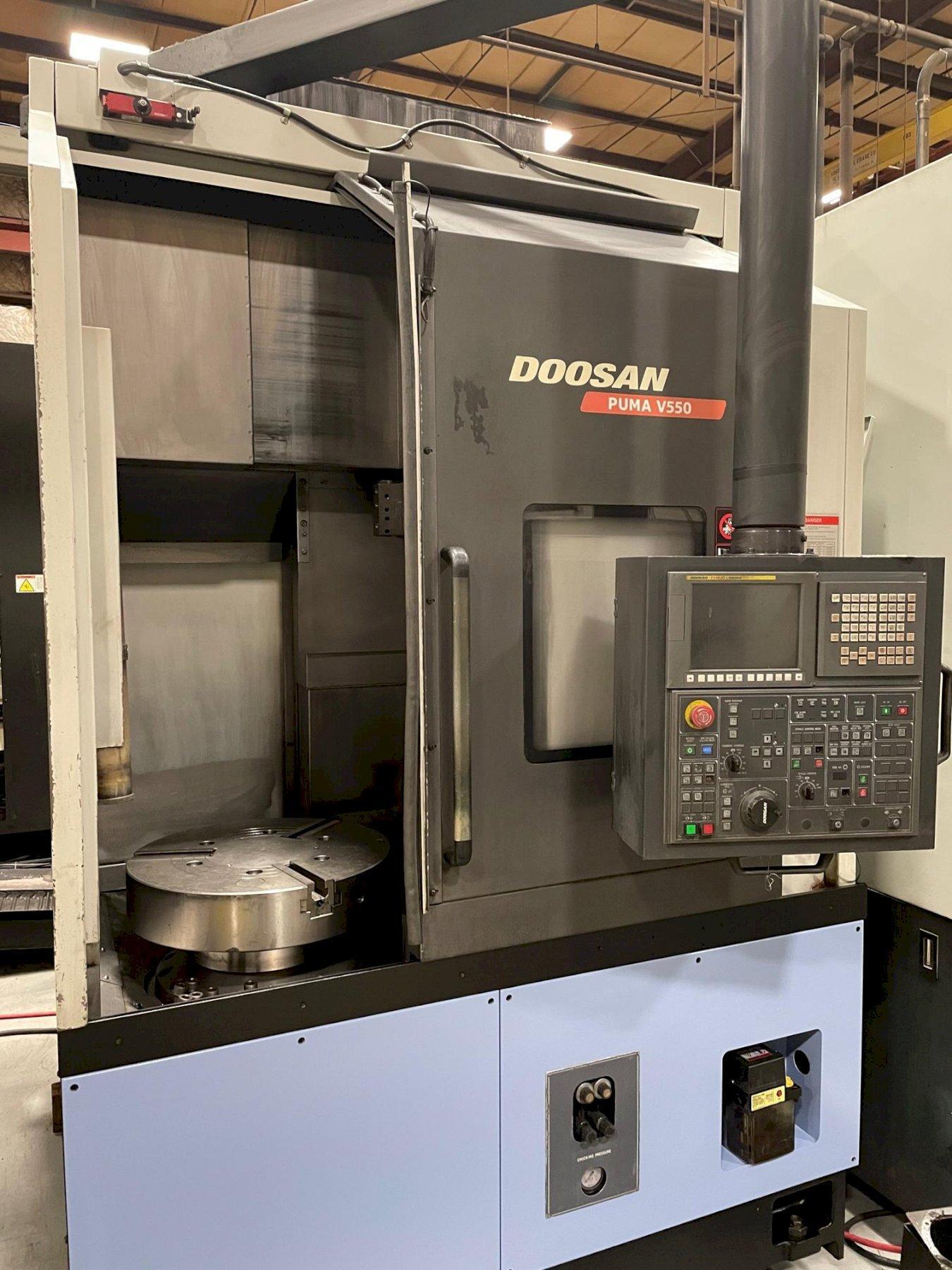

Doosan Puma V550 CNC Vertical Turret Lathe
Machine Specifications
Year
2011
Control Type
Fanuc 0i-TD Series
Table Diameter
24"
Swing
31.5"
Turning Diameter
28.74"
Max Turning Length
29.5"
Chuck Size
24"
X-Axis Travel
15.3"
Z-Axis Travel
30.7"
Rapid Traverse (X/Z)
472/630 ipm
Spindle Speed (RPM)
2,000 rpm
Spindle Nose
A2-11
Spindle Motor (HP)
50 horsepower
Live Tooling
no
Turret Capacity
12
Machine Dimensions
75" x 107" x 129
Weight
20,000 pounds

Equipped With:

- Fanuc 0i-TD Series Control
- Chip Conveyor
- Coolant Tank & Pump
- 2 Speed Gear Box
- Manual Guide i

The Doosan Puma V550 is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
