Doosan Puma V550m - Vertical Lathes

Share Machine
Specifications Print Specs
Model: Puma V550m
Year: 2008
Stock #: 13510 Sold
Highlights:
Fanuc i Series Control

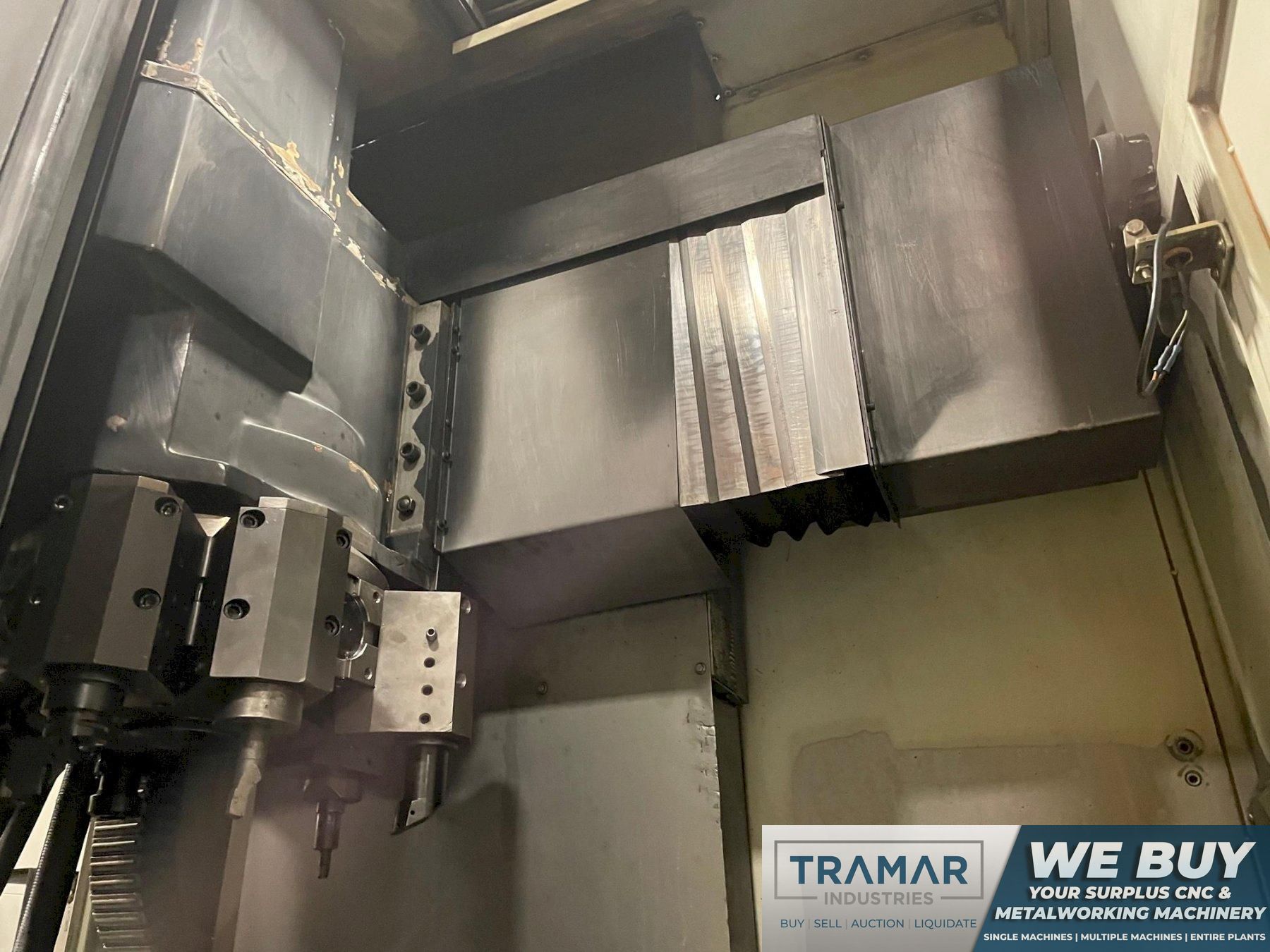

Live Tooling

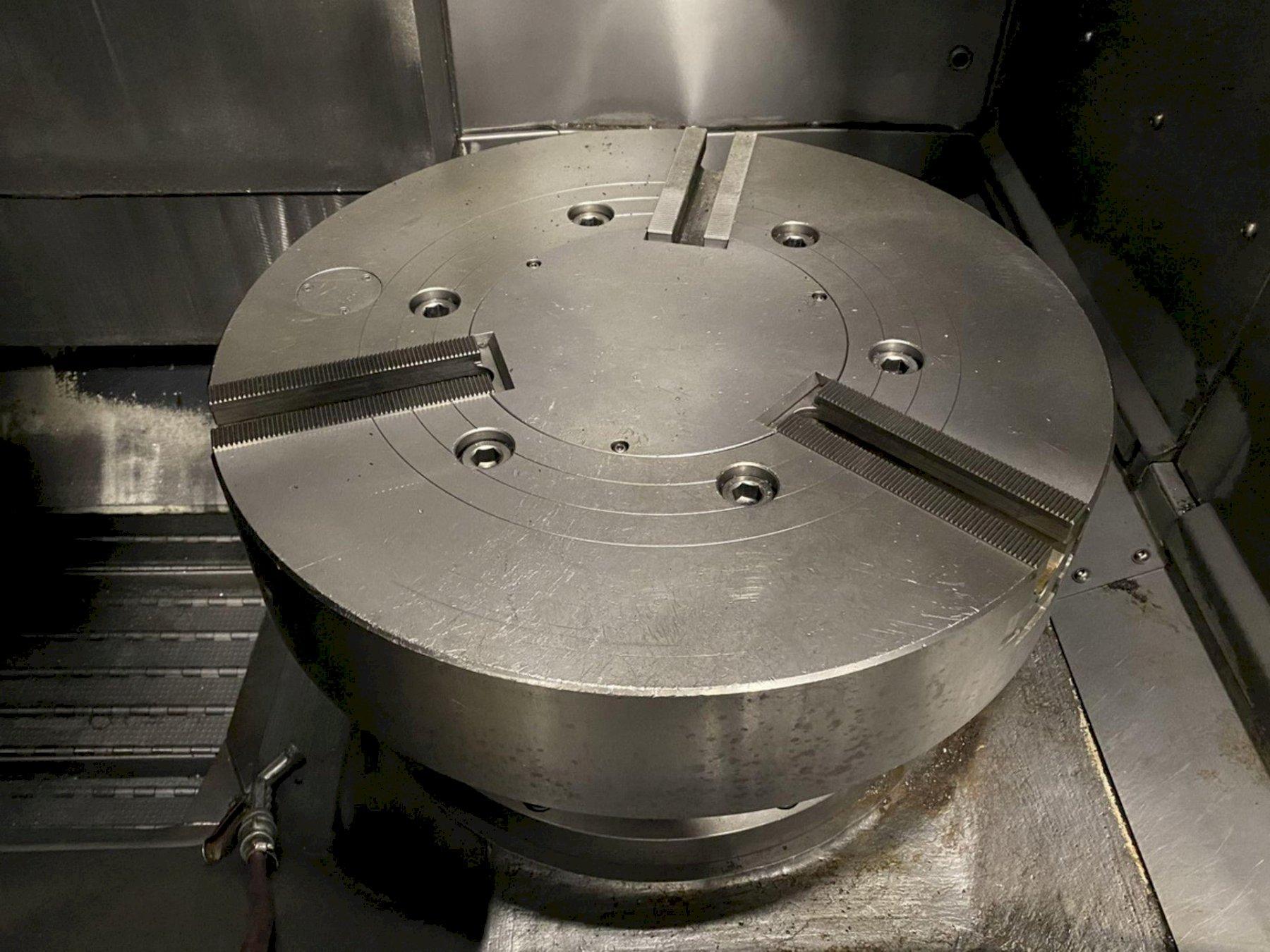

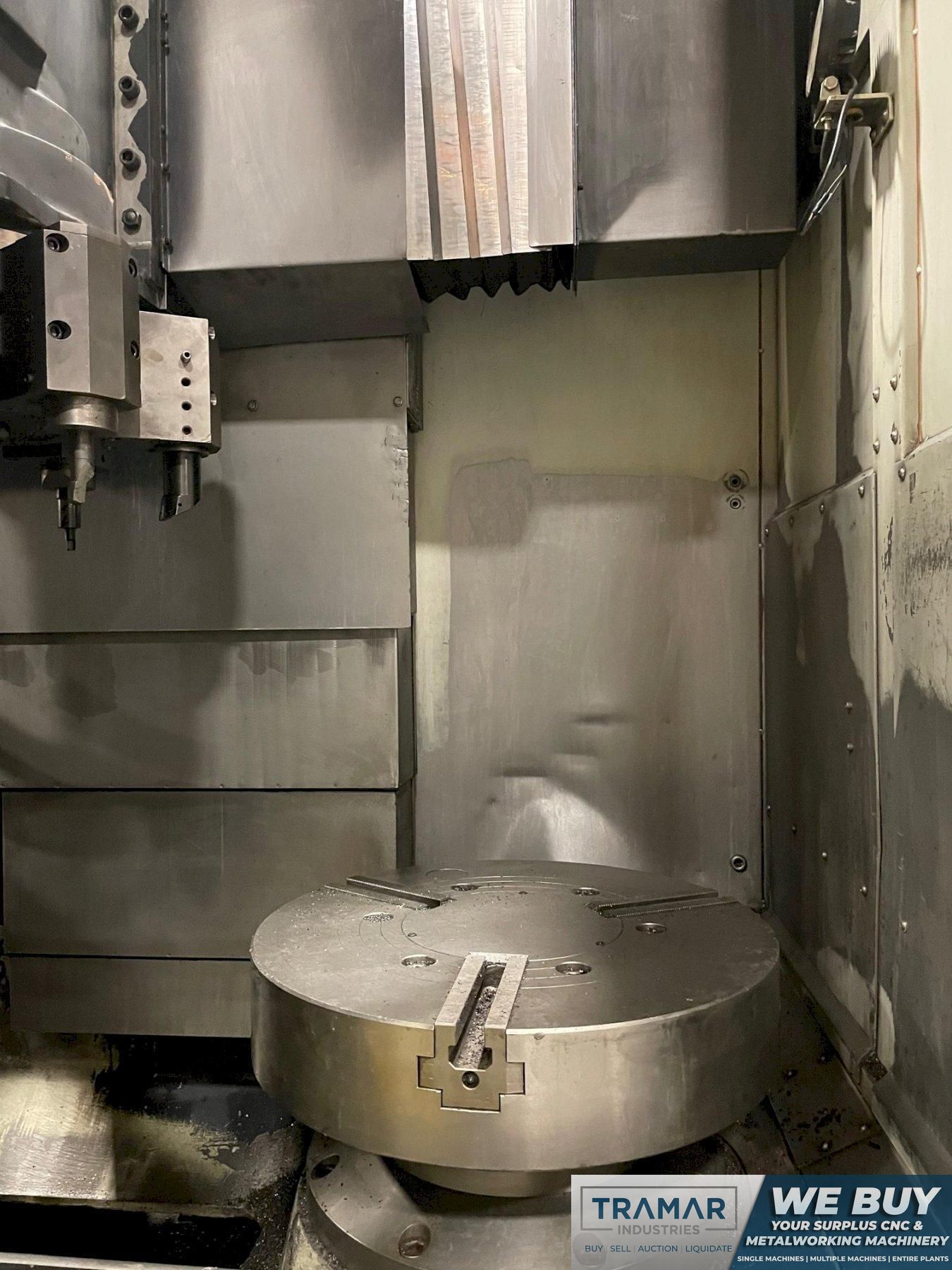

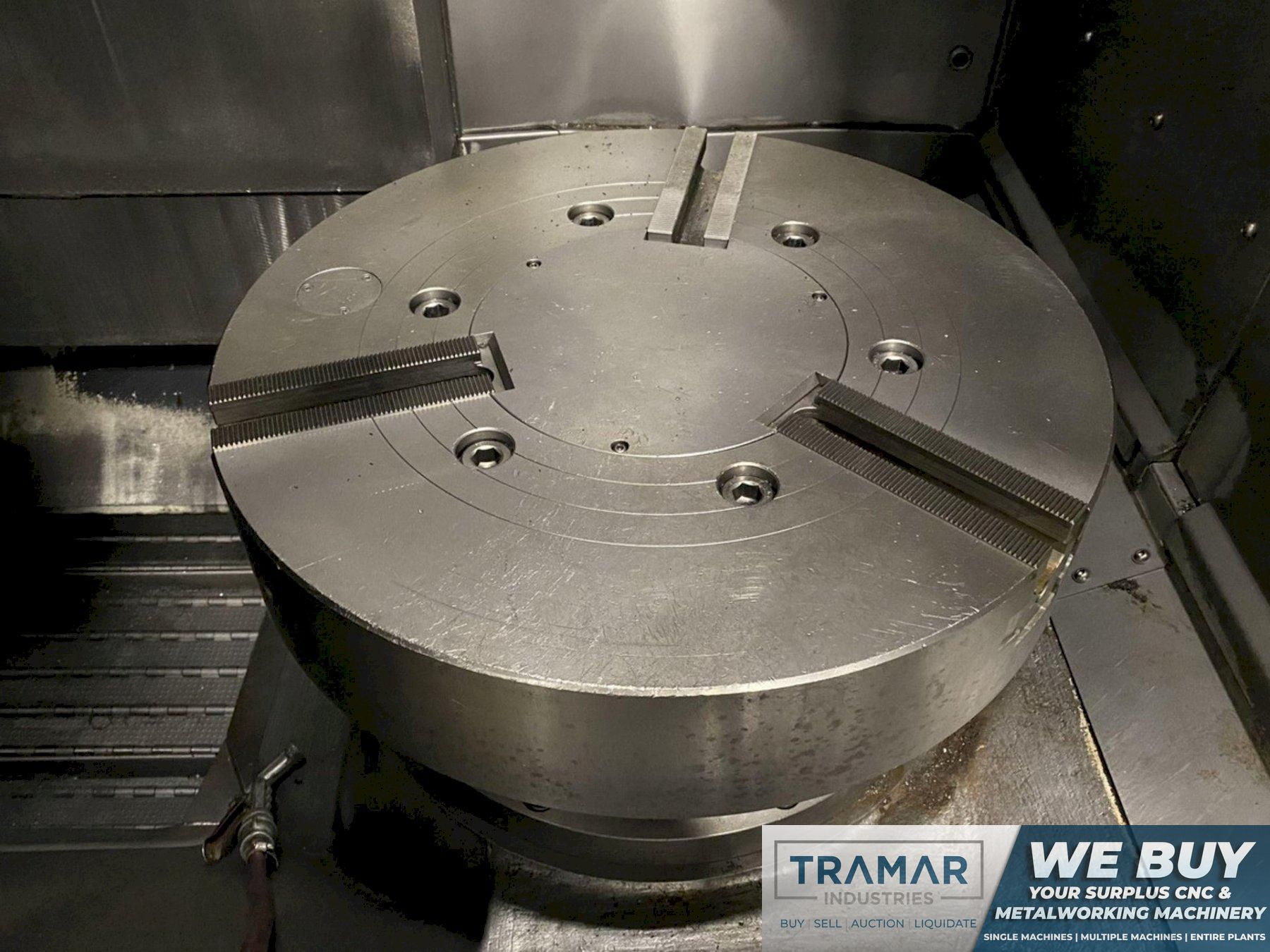

24" Kitagawa Chuck
2-Speed Gear Box

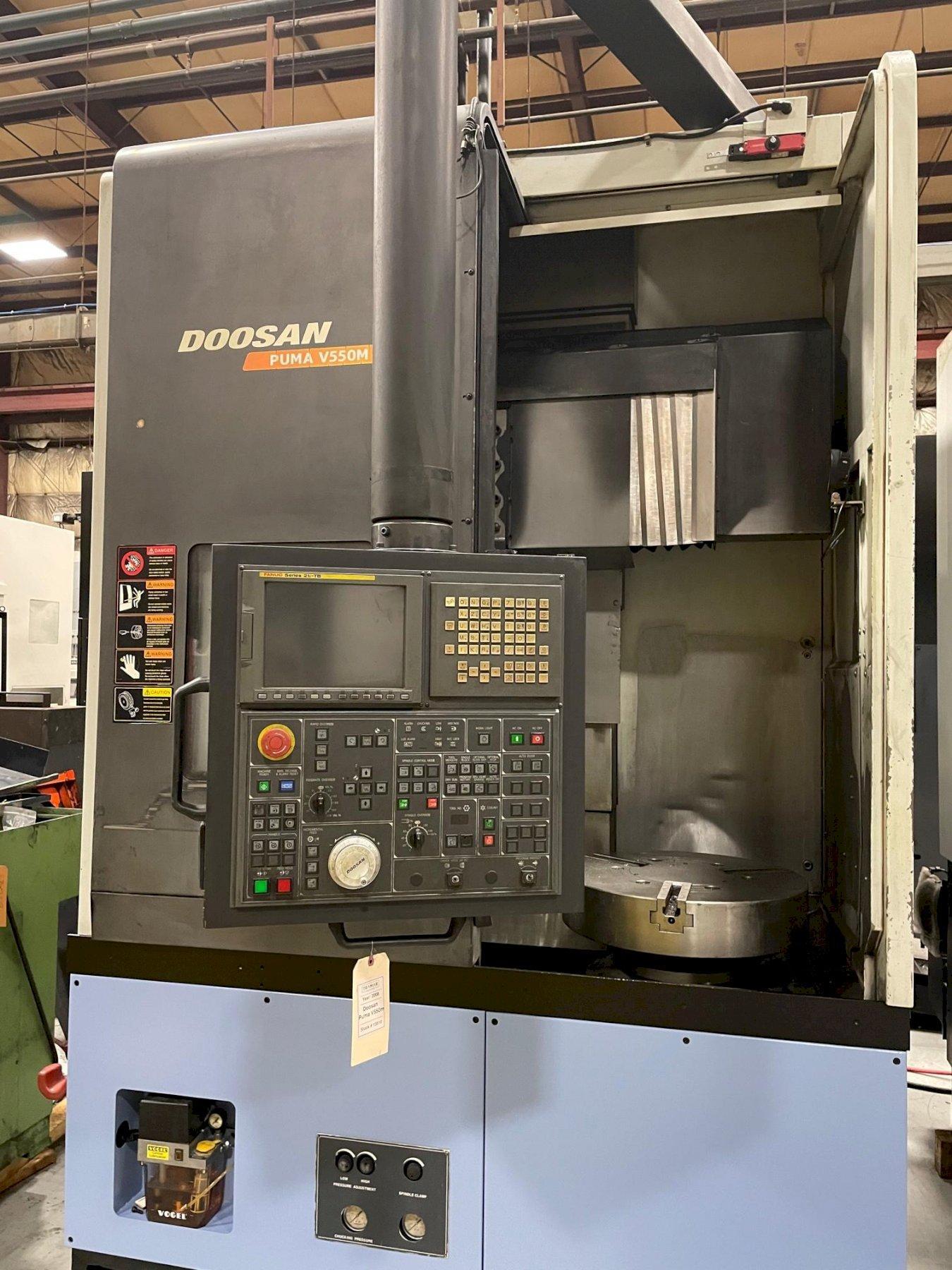

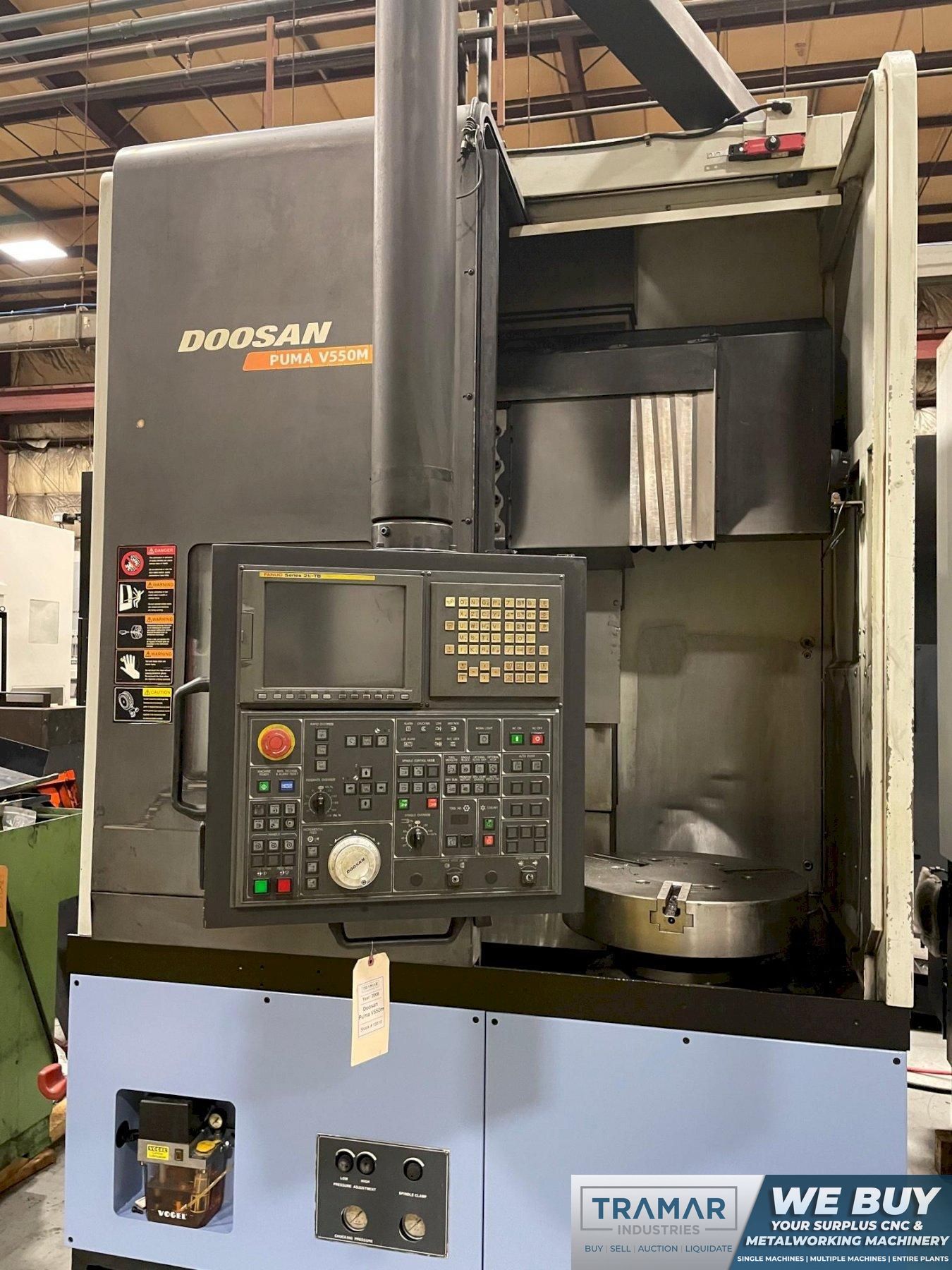

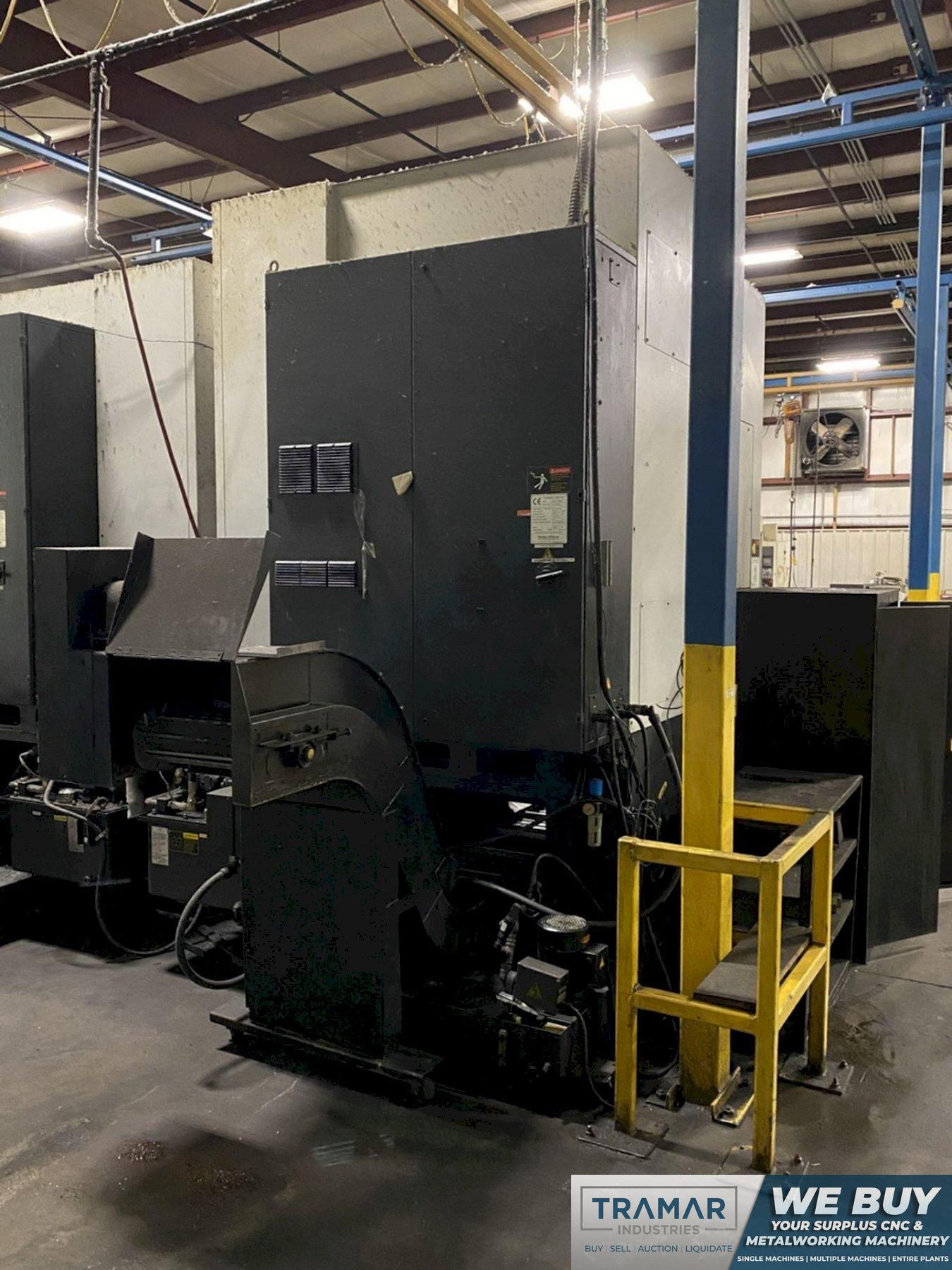

Doosan Puma V550m CNC Vertical Turret Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 21i-TB

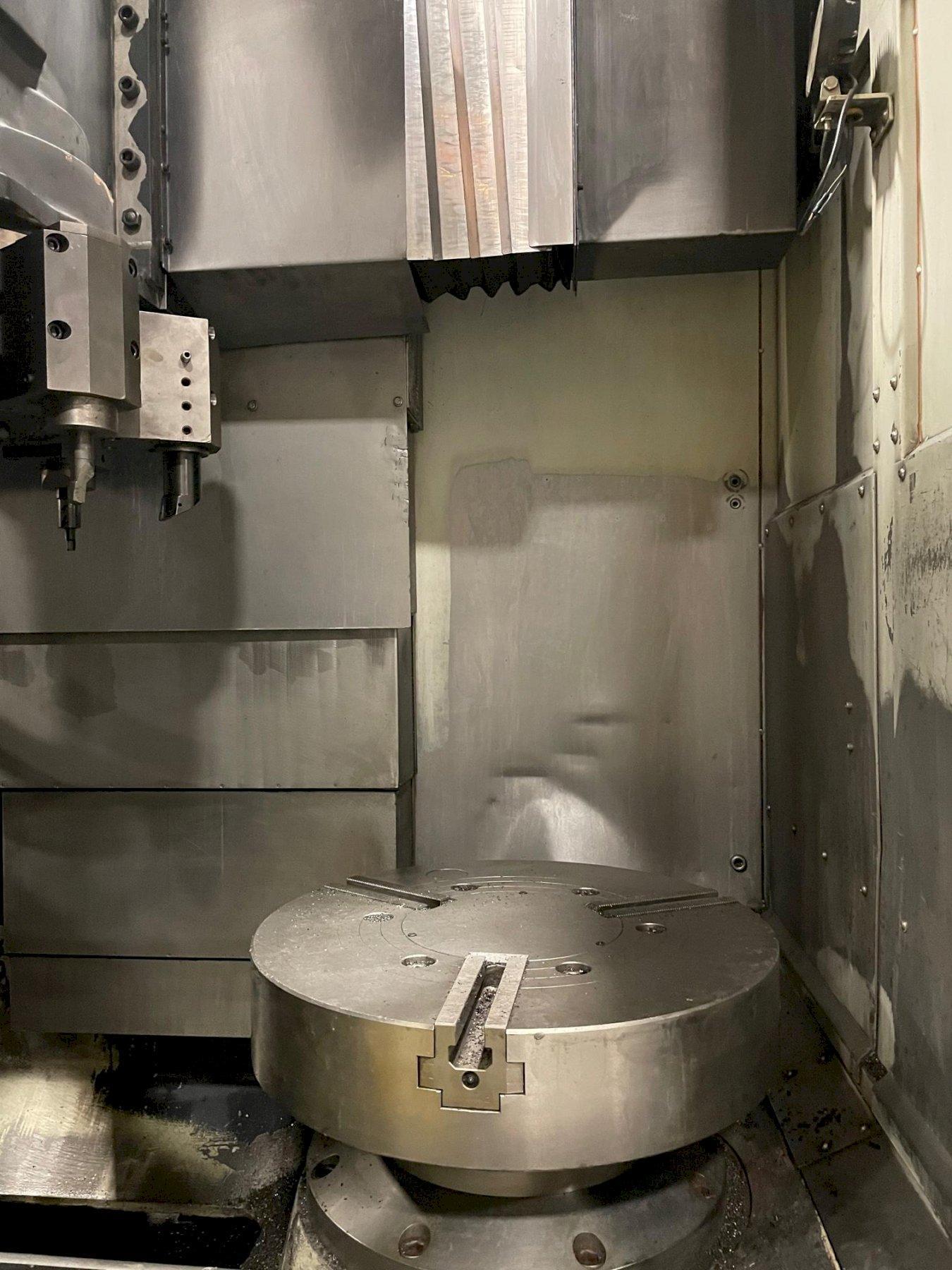

Table Diameter
24"
Swing
31.5"
Turning Diameter
28.74"
Max Turning Length
29.5"
Chuck Size
24"
X-Axis Travel
15.3"
Z-Axis Travel
30.7"
Rapid Traverse (X/Z)
472/630 ipm
Spindle Speed (RPM)
2,000 rpm
Spindle Nose
A2-11
Spindle Speed (RPM)
2,000
Spindle Motor (HP)
50 horsepower
Milling
yes

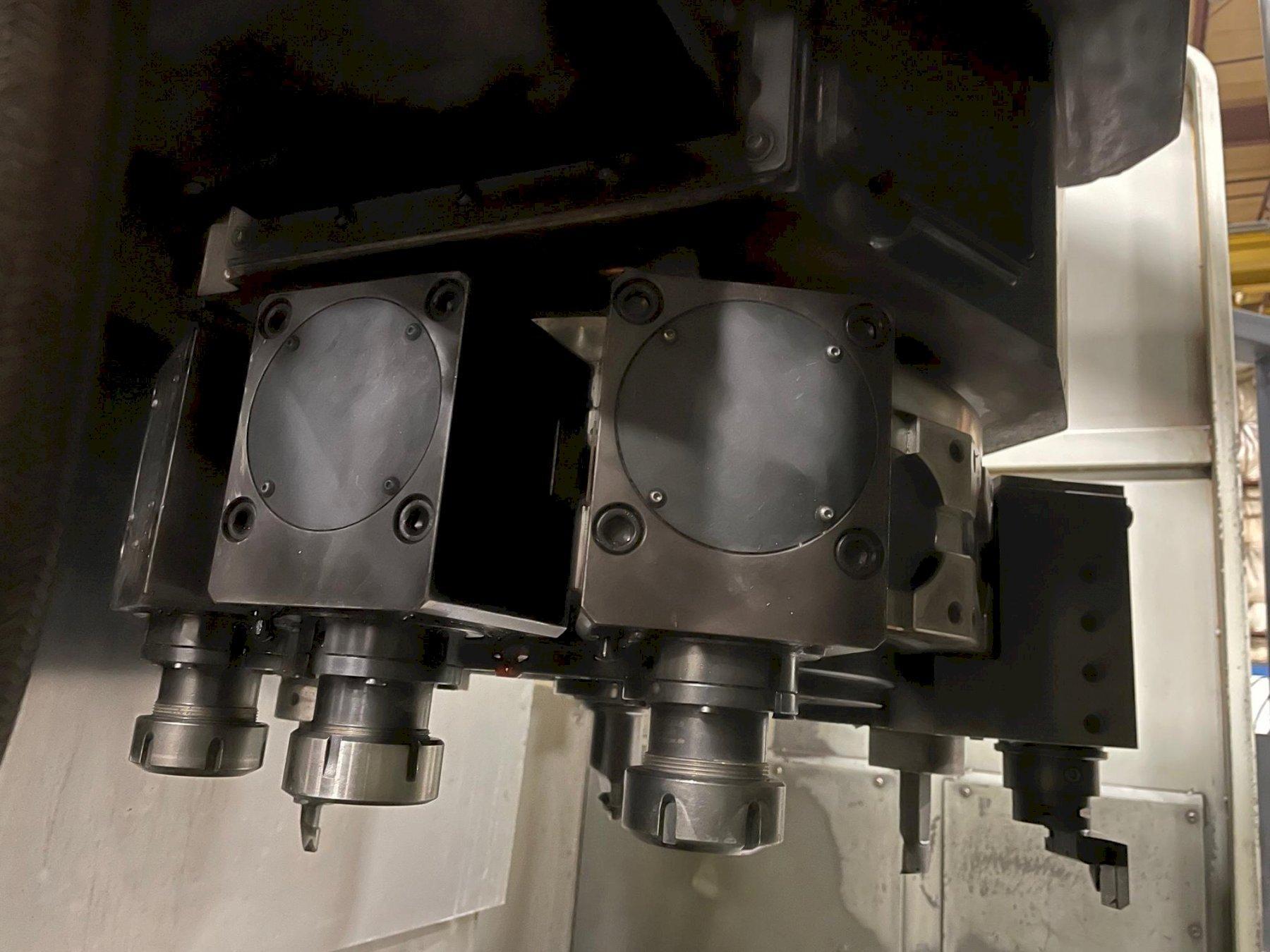

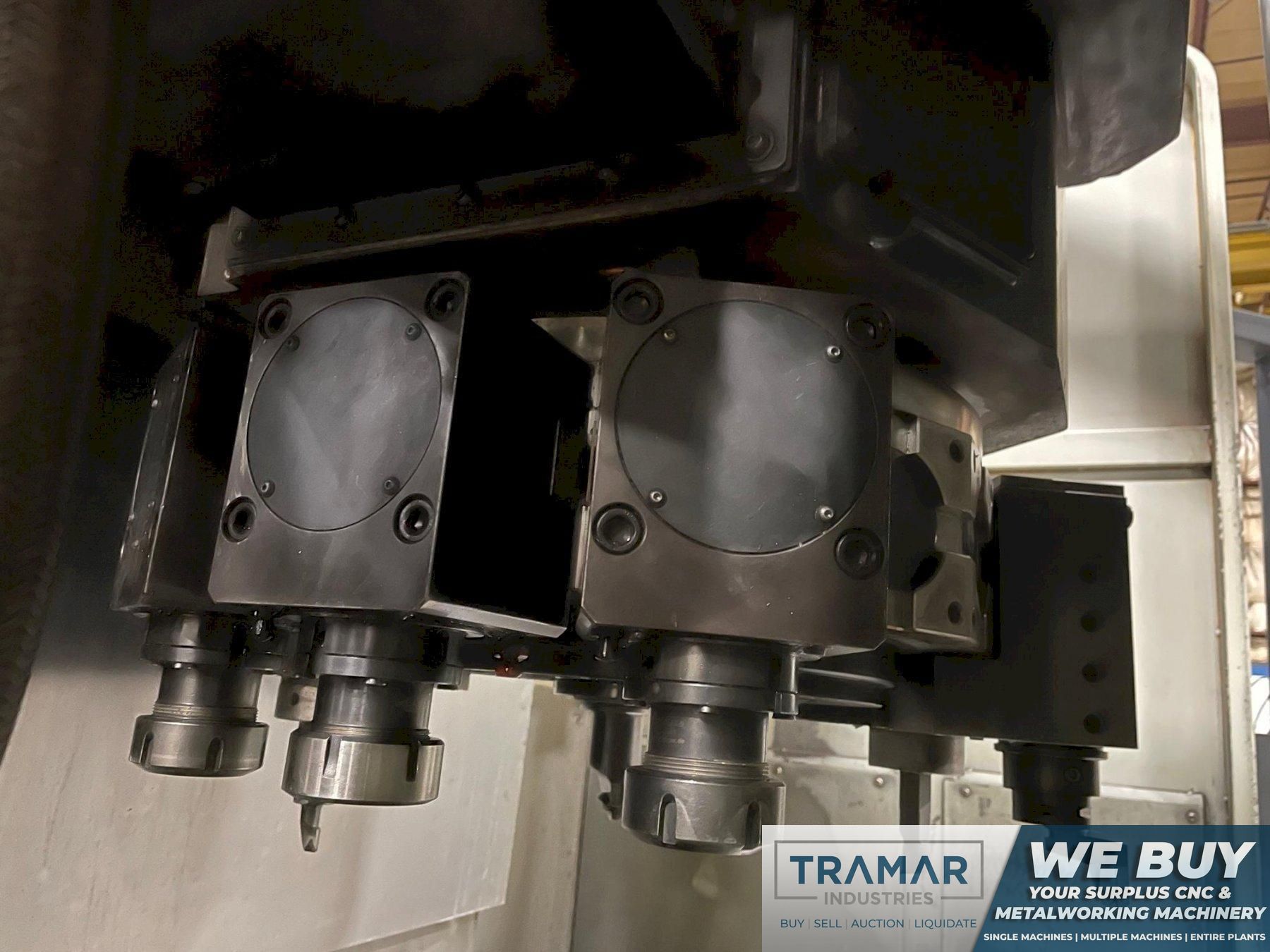

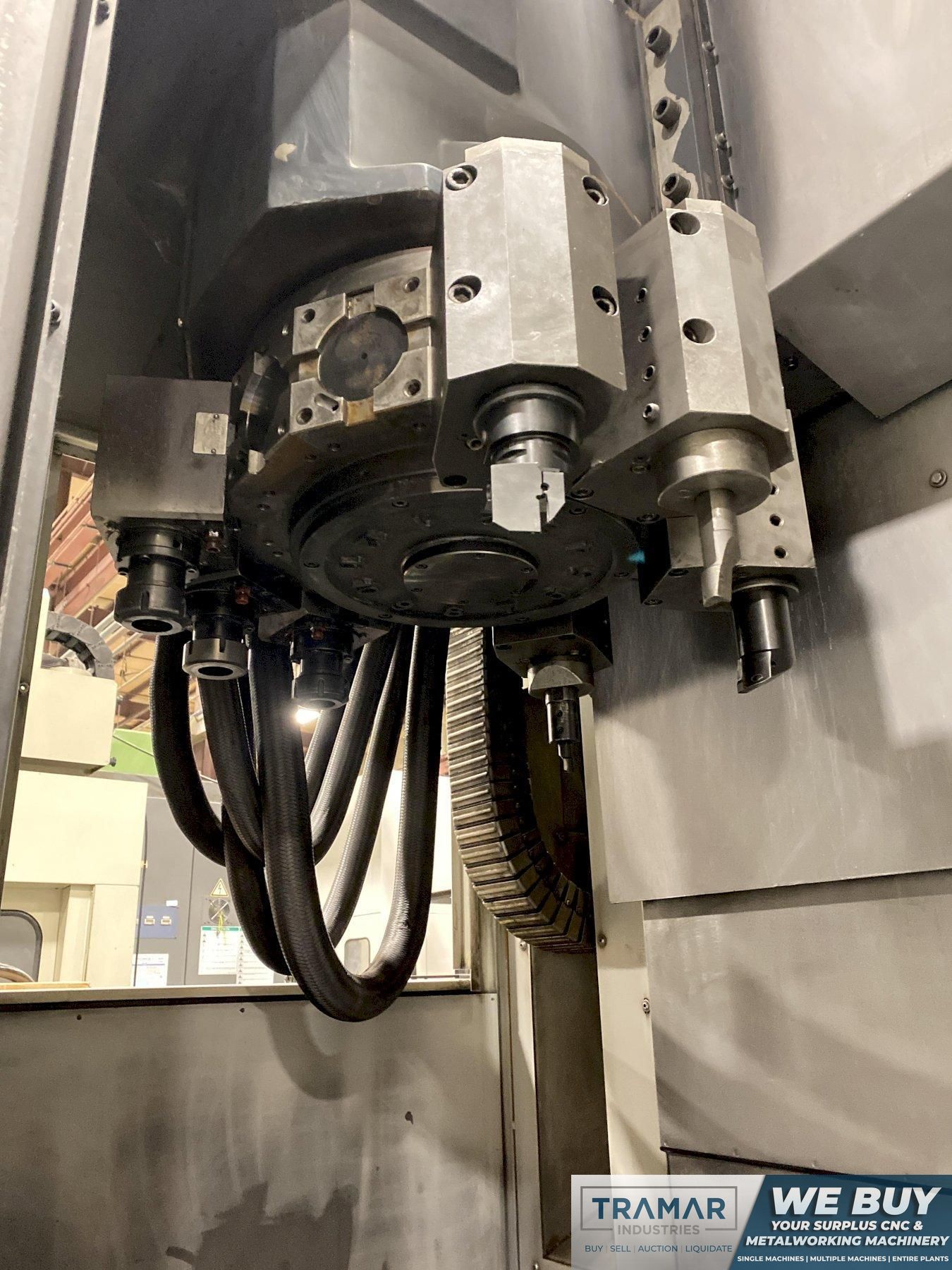

Live Tooling
yes
Live Tooling Speed
3,000 rpm
Live Tooling Motor
7.5 hp

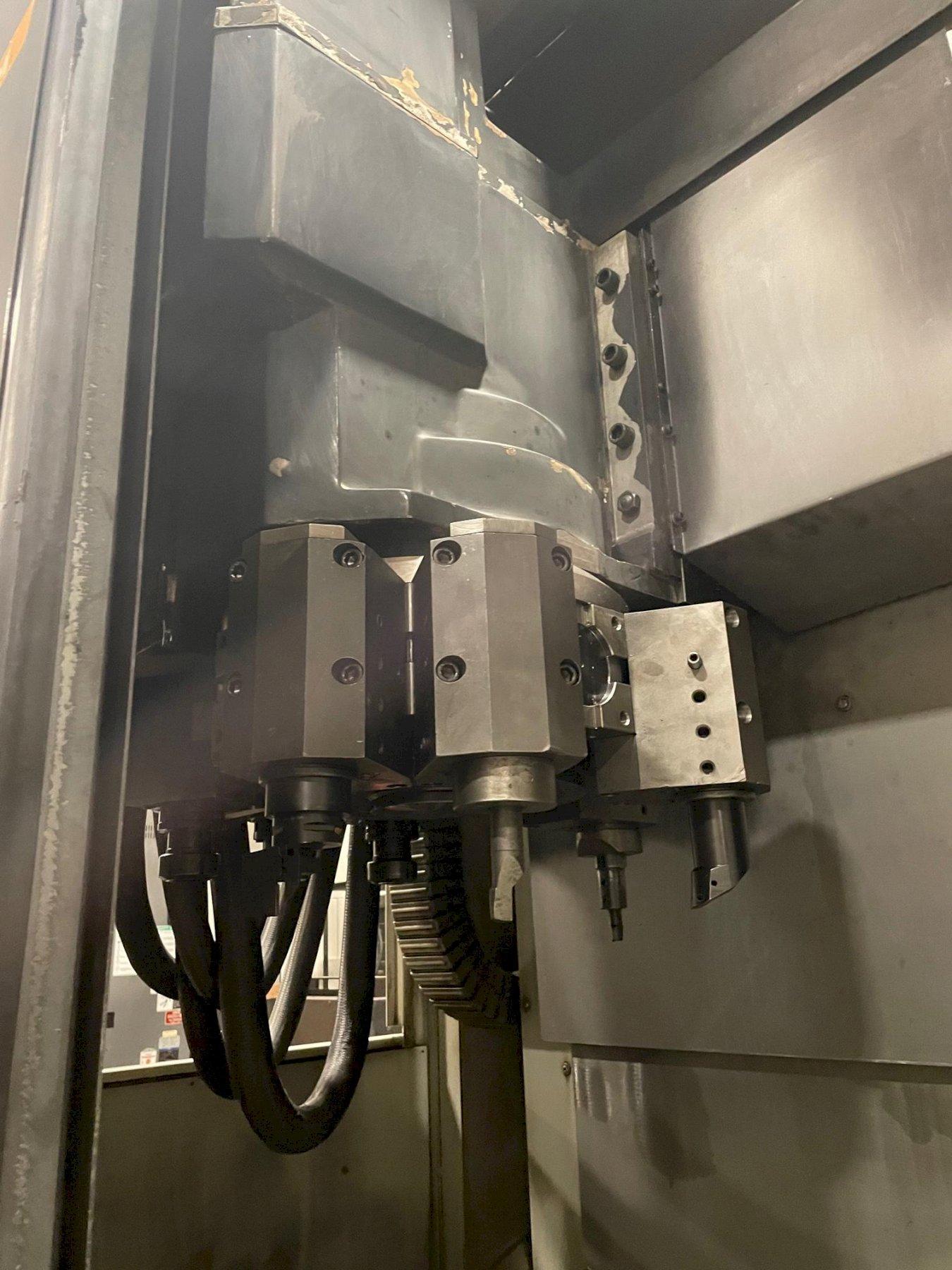

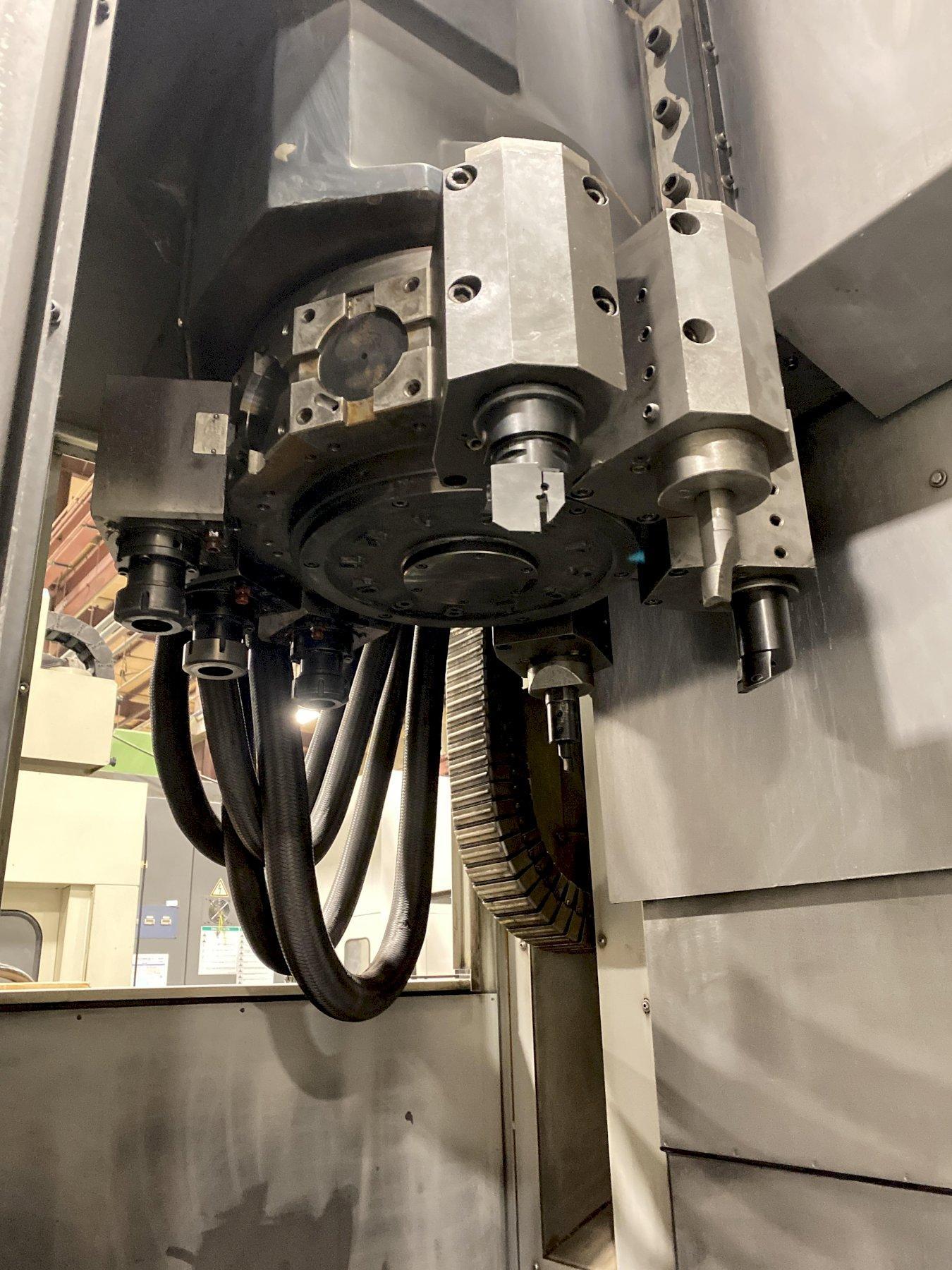

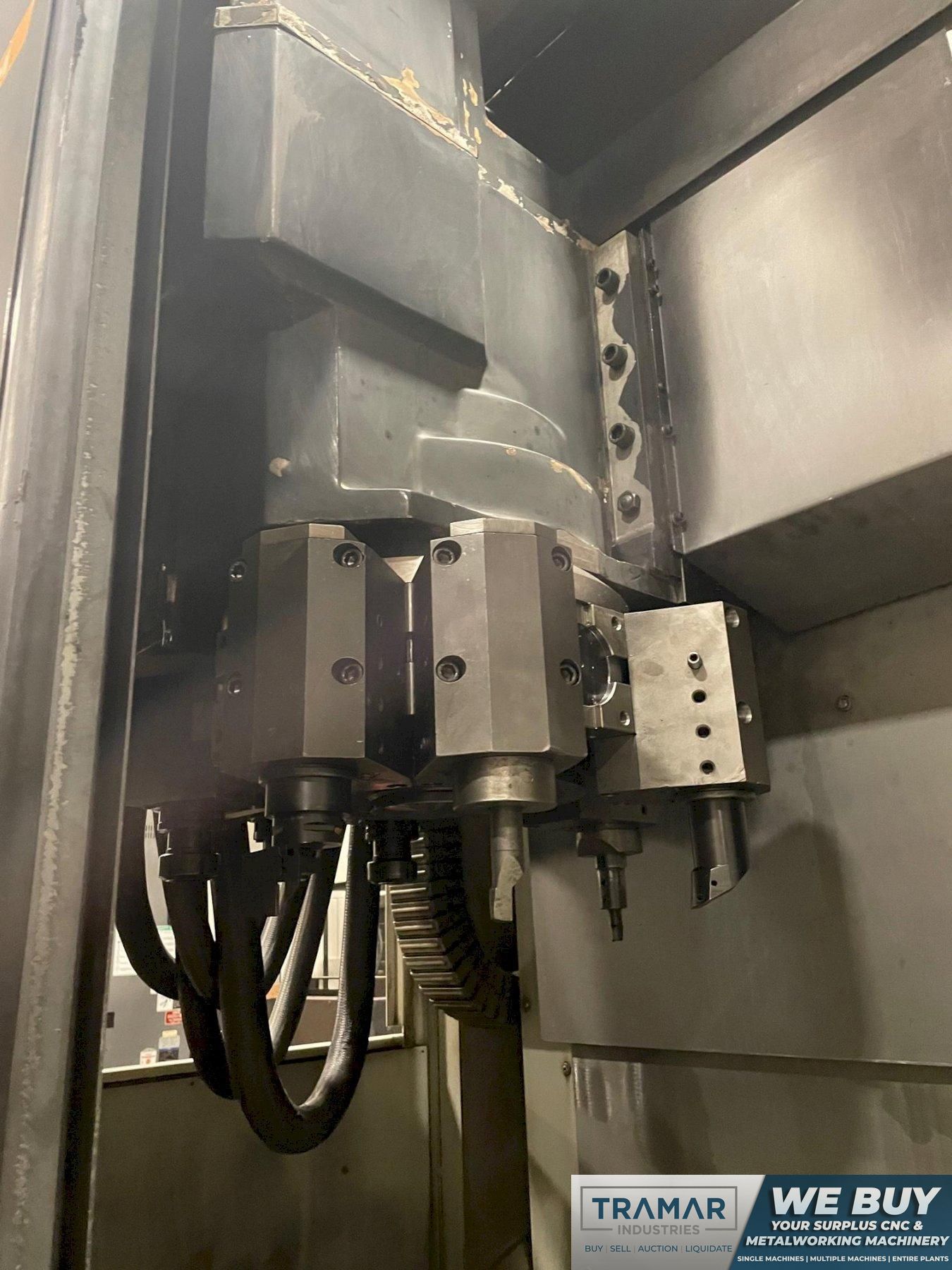

Turret Capacity
12

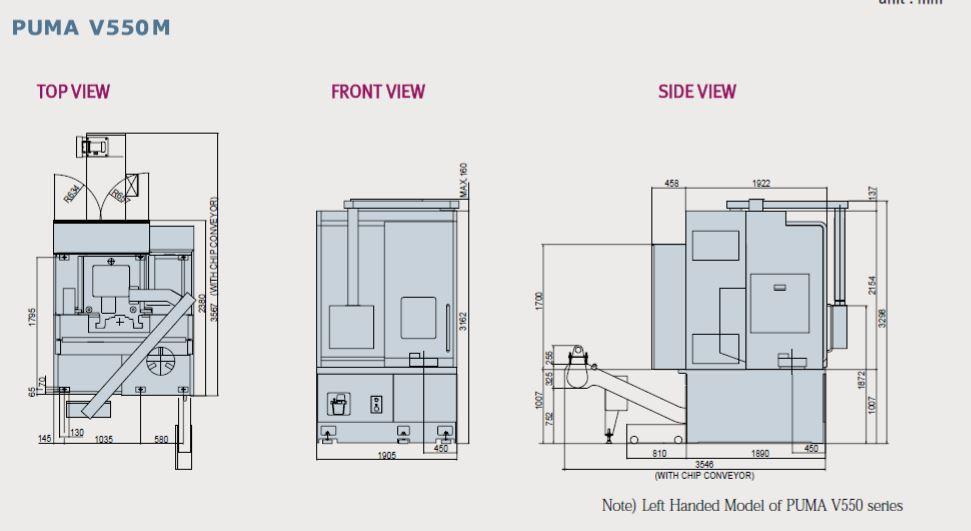

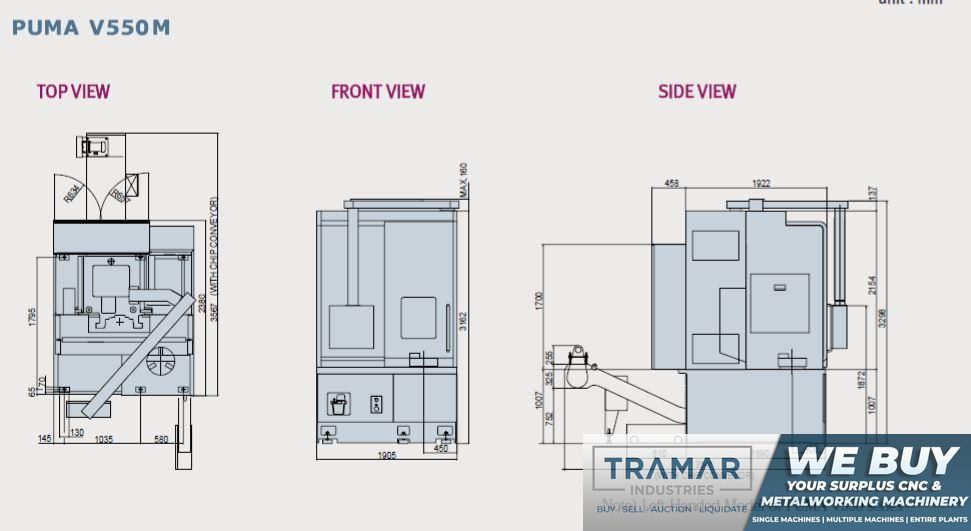

Machine Dimensions
75" x 107" x 129
Weight
20,000 pounds

Equipped With:

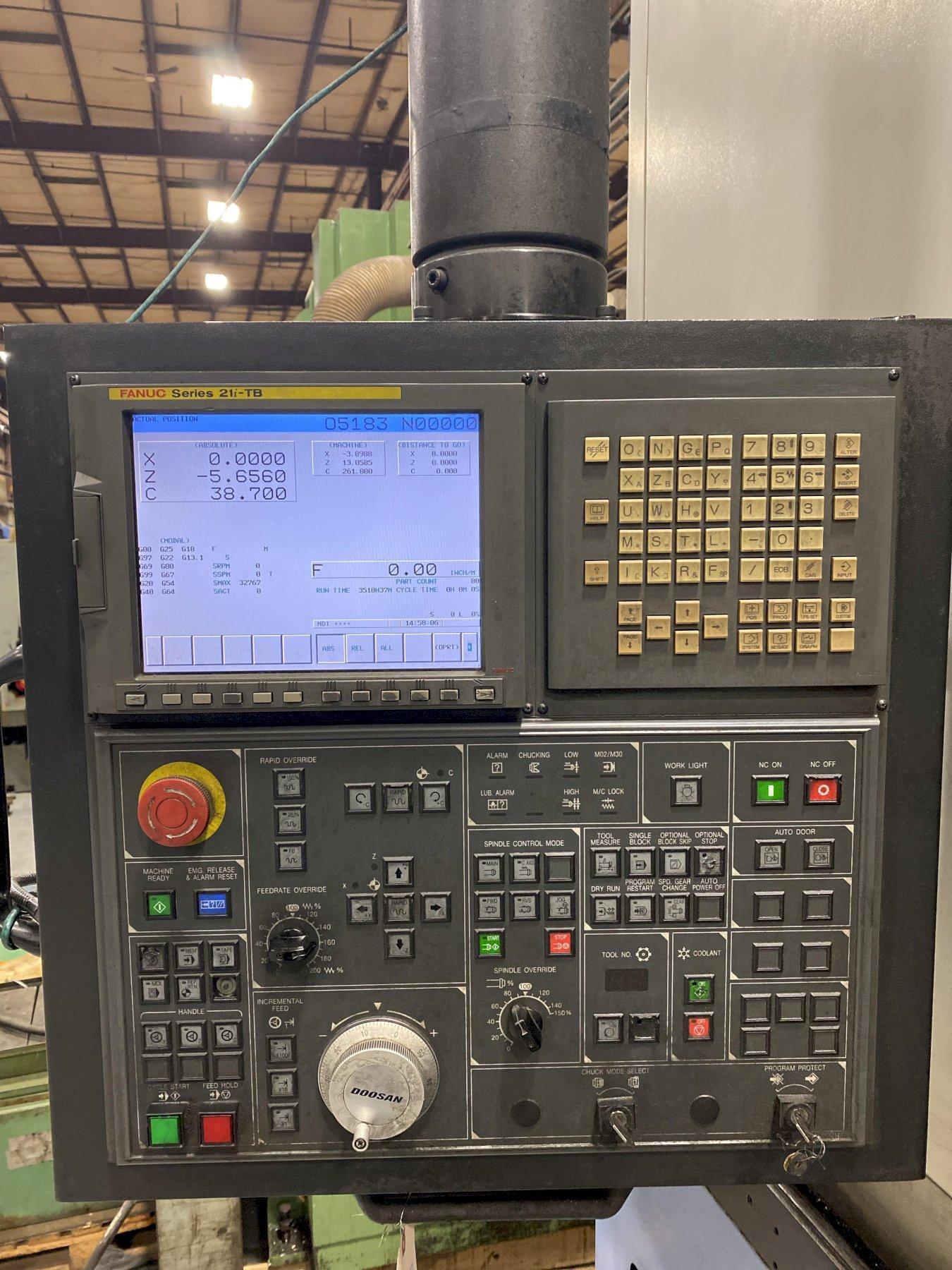

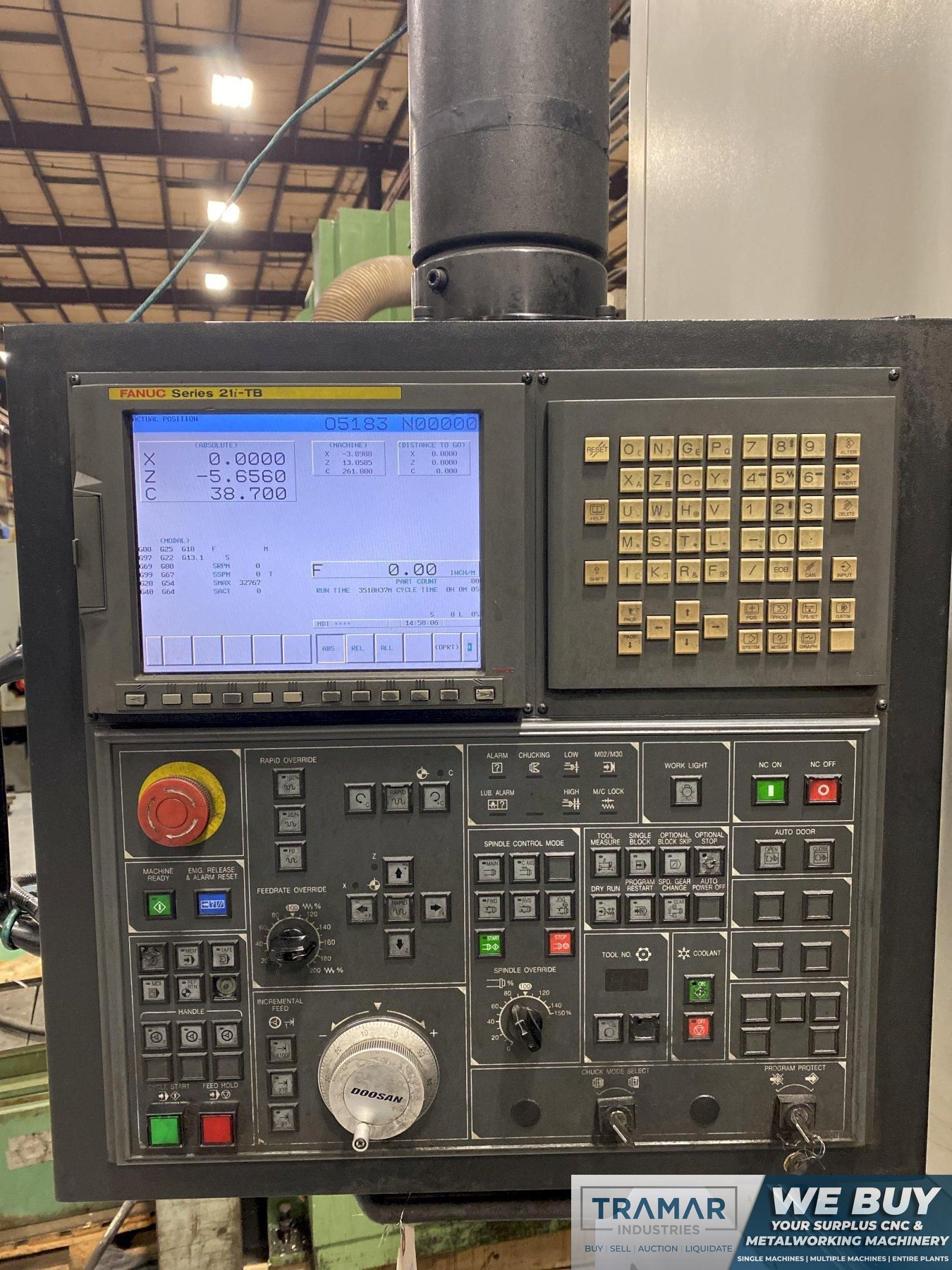

- Fanuc 21i-TB Control
- Chip Conveyor
- Coolant Tank & Pump
- 2 Speed Gear Box
- Graphic Function
- Embedded Ethernet
- Manual Guide i
- Custom Macro B
- Tool Geometry/Wear Offset
- Registered Programs (200 programs)
- Tool Offset Pairs (64 pairs)

The Doosan Puma V550m is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
