Haas ST-20 - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: ST-20
Year: 2019
Stock #: MC17073
Yes
Highlights:
Tailstock
Chip Conveyor
Tool Presetter
Parts Catcher

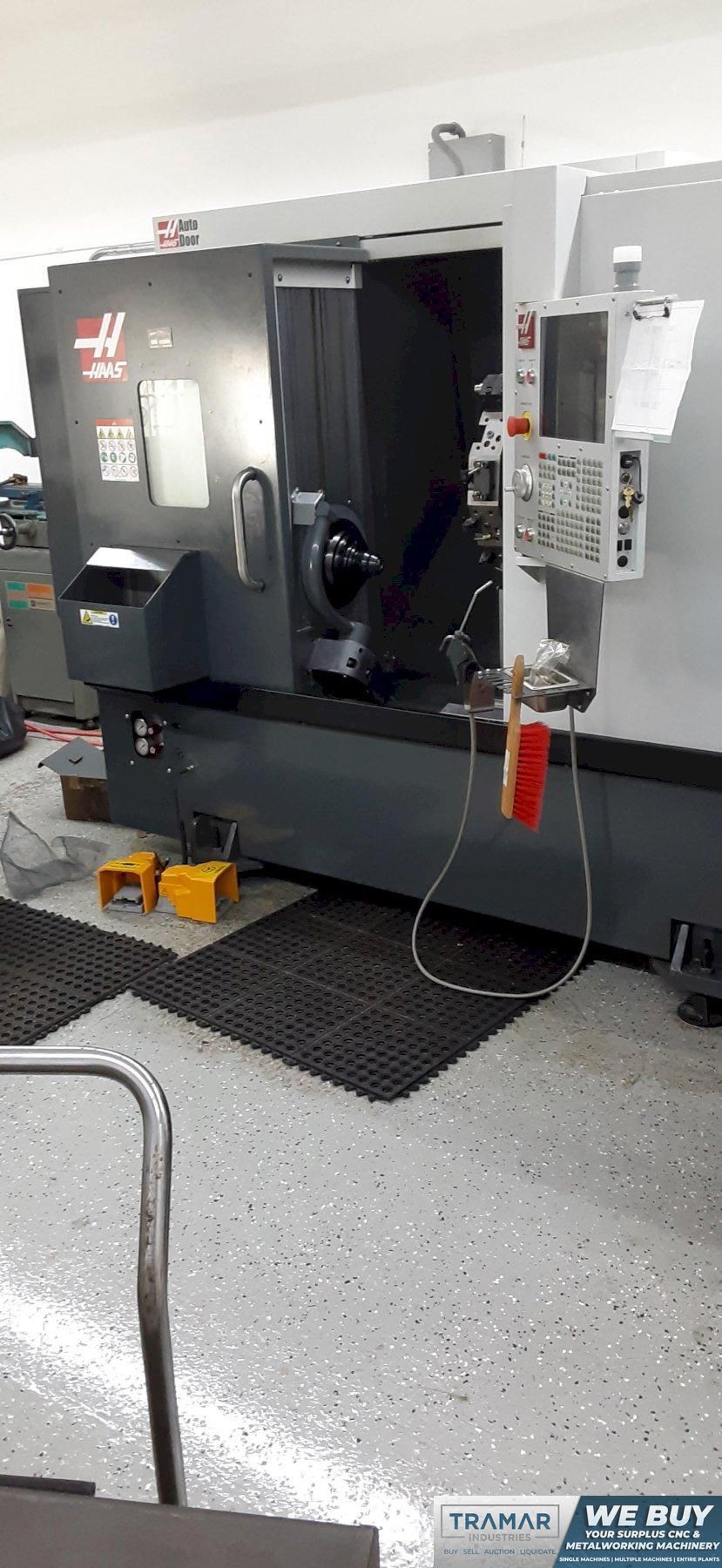

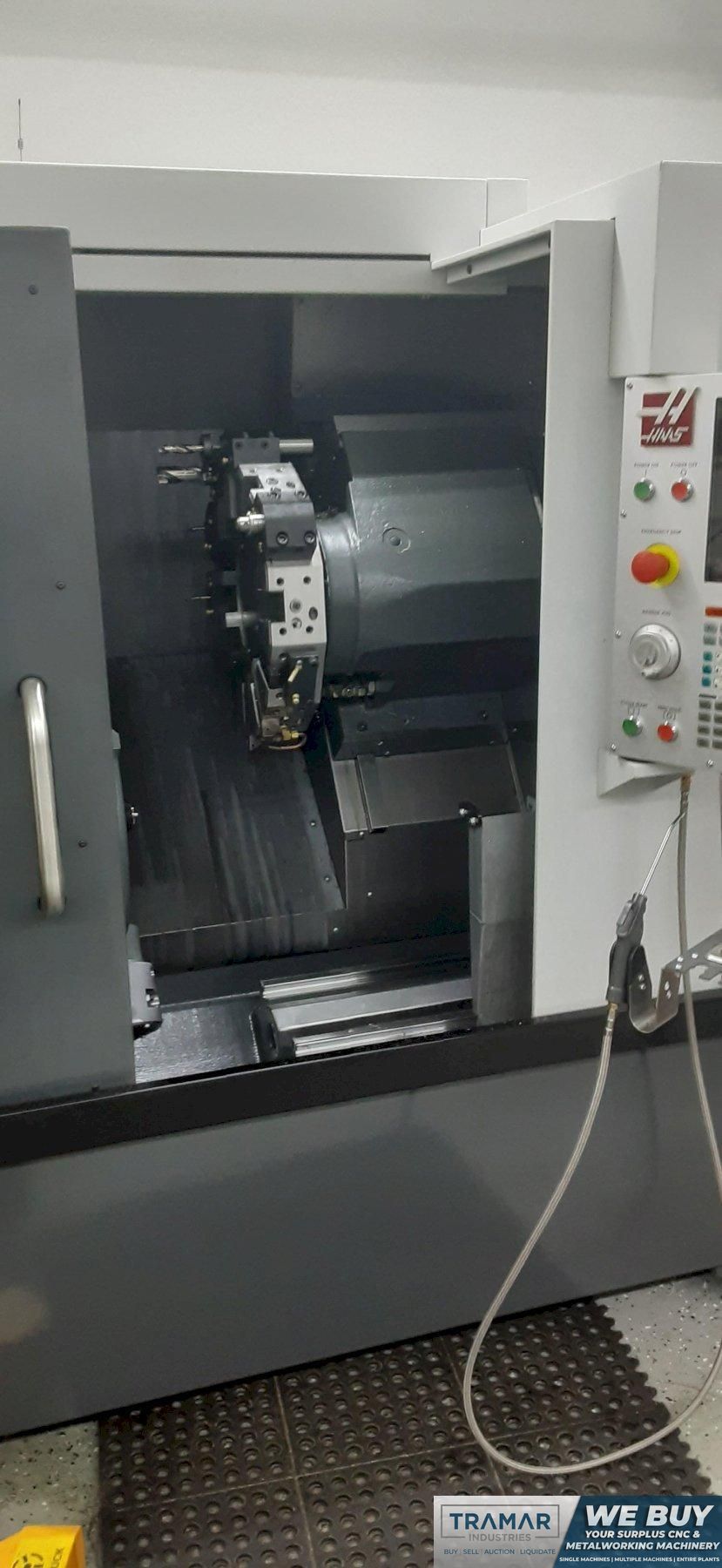

Haas ST-20 CNC Lathe For Sale - 2019
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
2
Swing
21"
Center Distance
22.5"
Chuck Size
10"
Bar Capacity
2.5"
X Axis Travel
8.4"
Z Axis Travel
22.5"
Rapid Traverse (X/Z)
945 ipm
Spindle Nose
A2-6
Spindle Speed
4,000 rpm
Main Motor
20 hp
Tailstock
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no

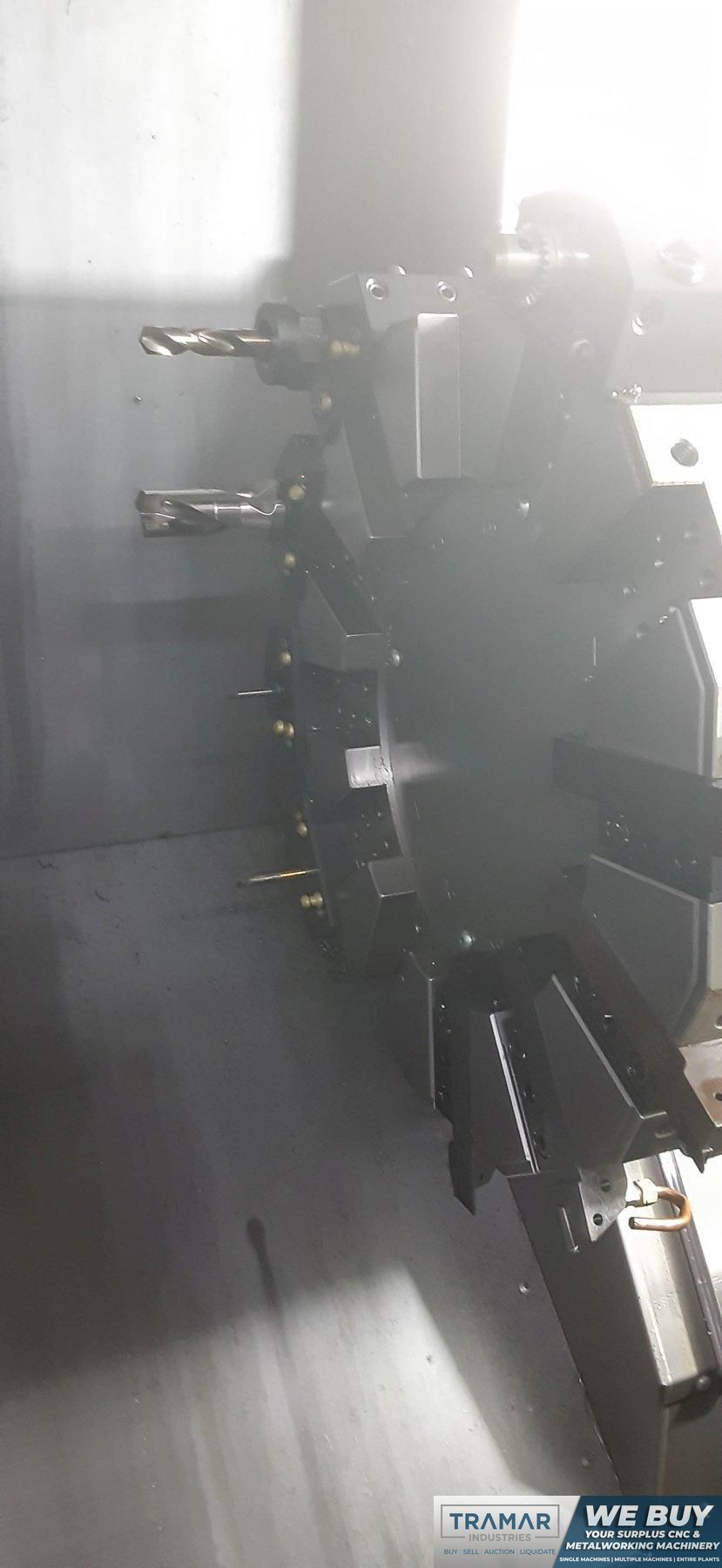

Turret Capacity
12
Dimensions
143" x 90" x 87"
Weight
8,820 pounds

Equipped With:

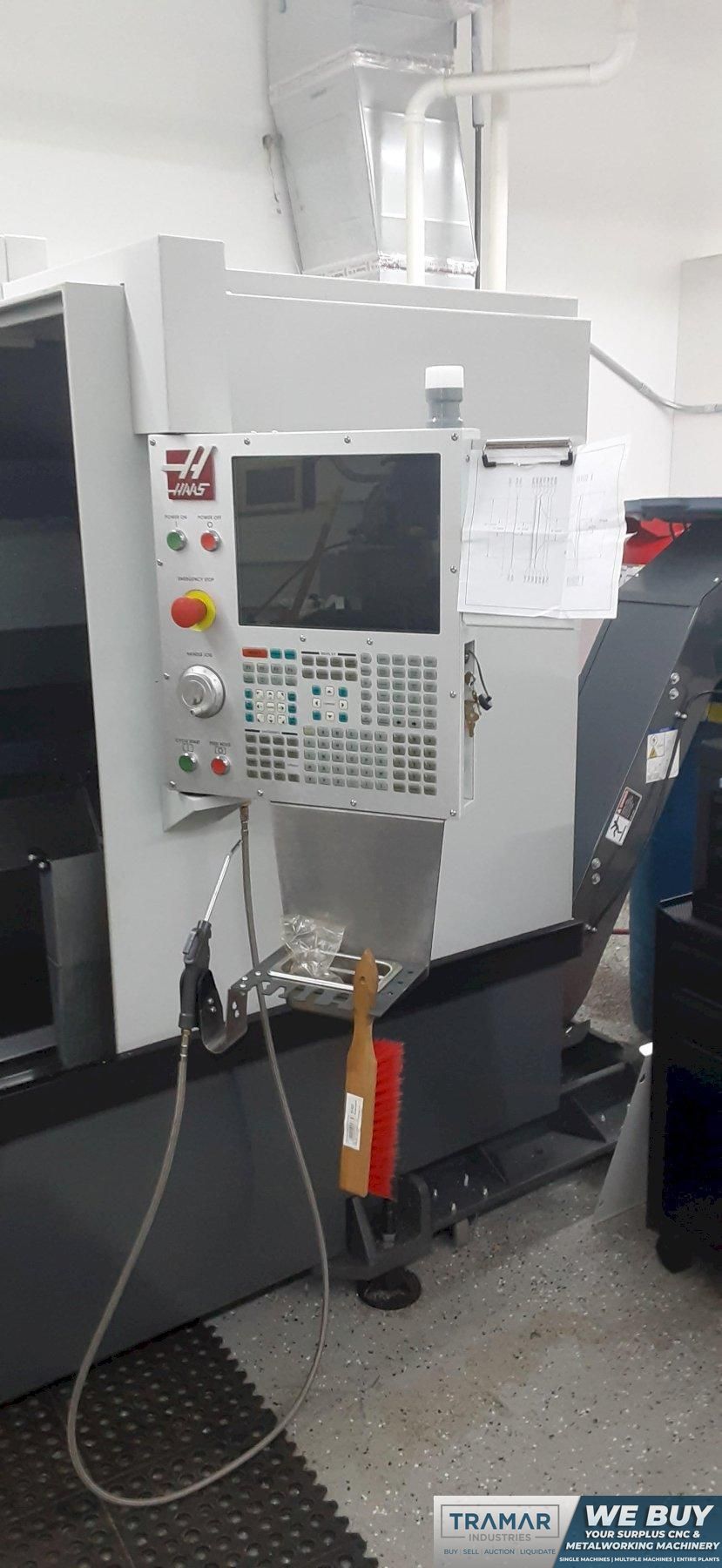

- Haas CNC Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter

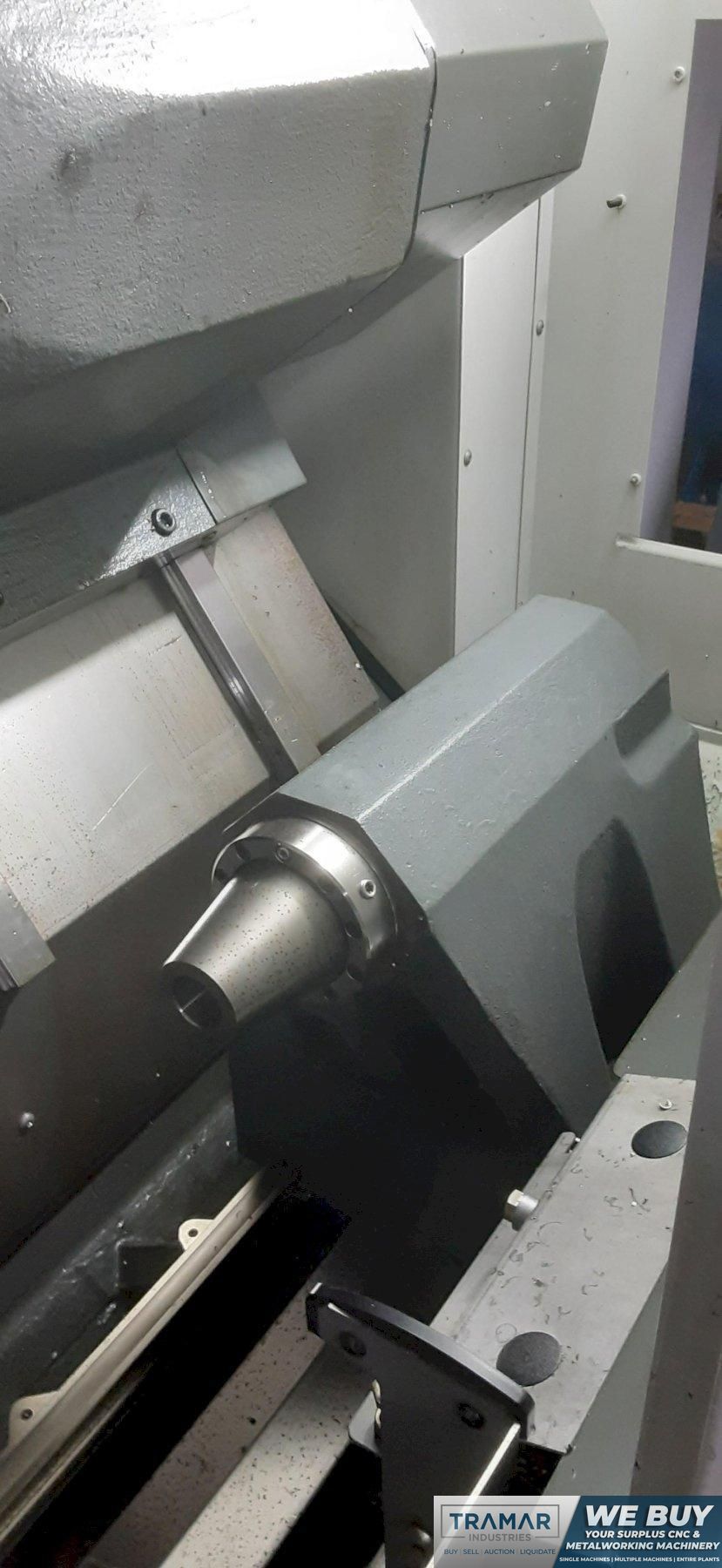

- Programmable Tailstock
- Parts Catcher

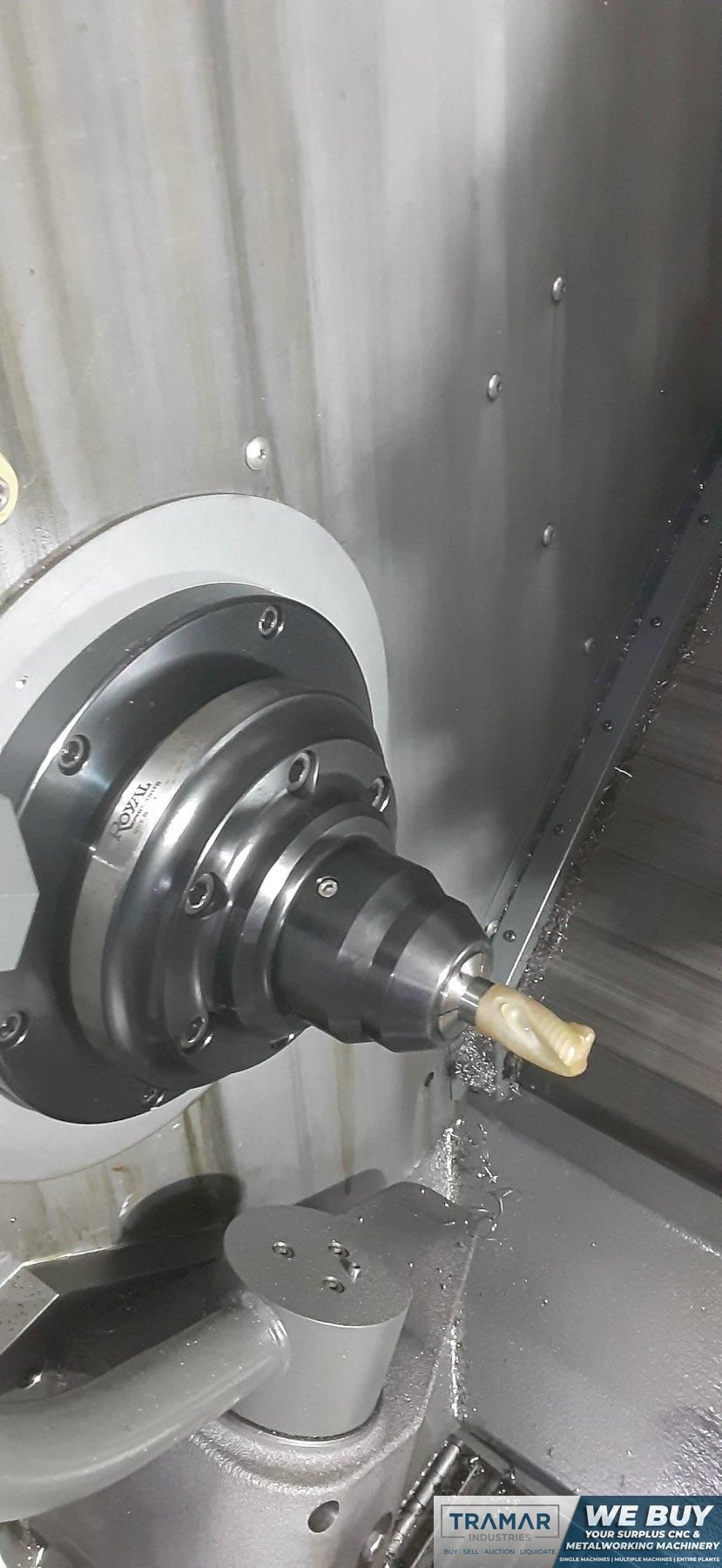

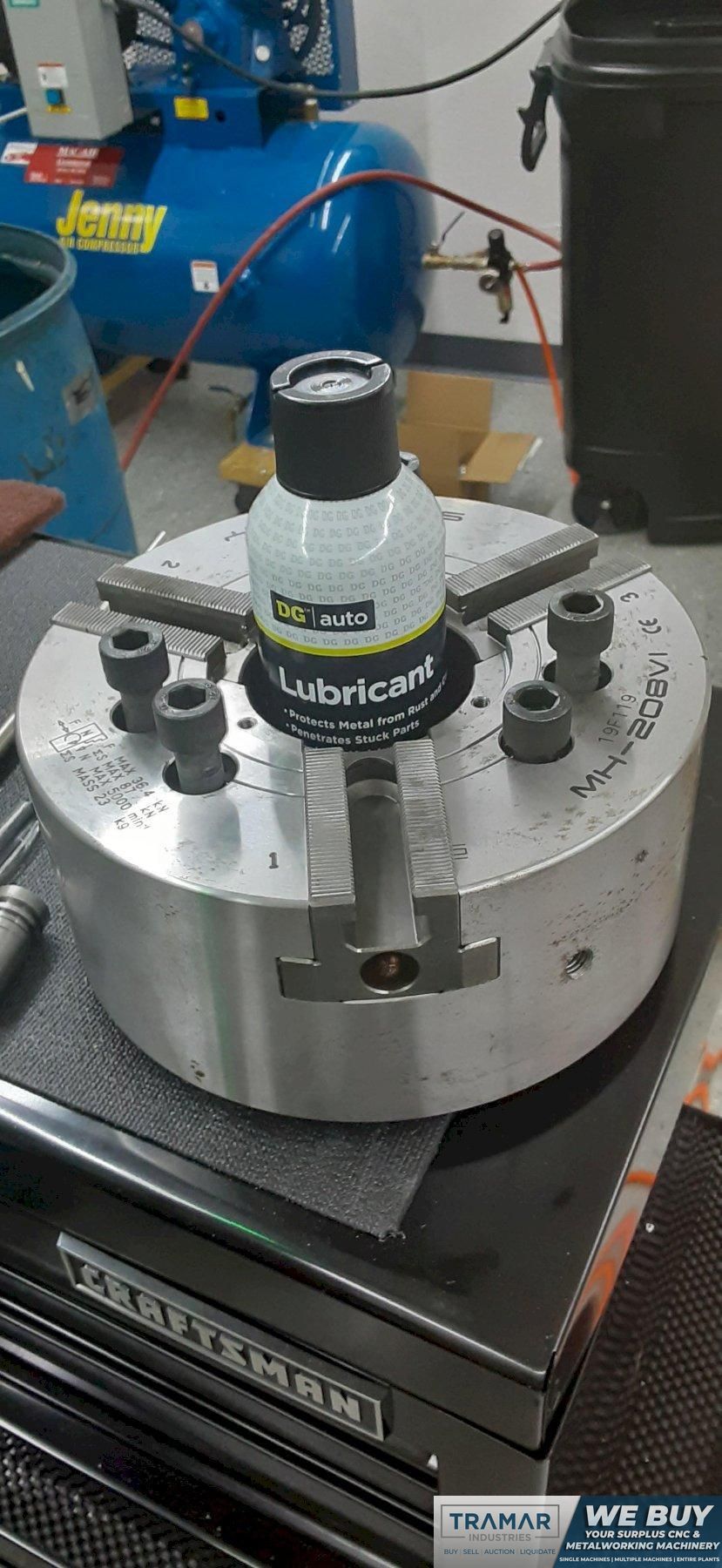

- 8" 3 Jaw Chuck
- 5c Collet Closer

The Haas ST-20 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
