Haas TL-2 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: TL-2
Year: 2012
Stock #: 13896 Sold
Highlights:
Haas Tool Room Lathe

Haas TL-2 CNC Toolroom Lathe For Sale - 2012
Machine Specifications

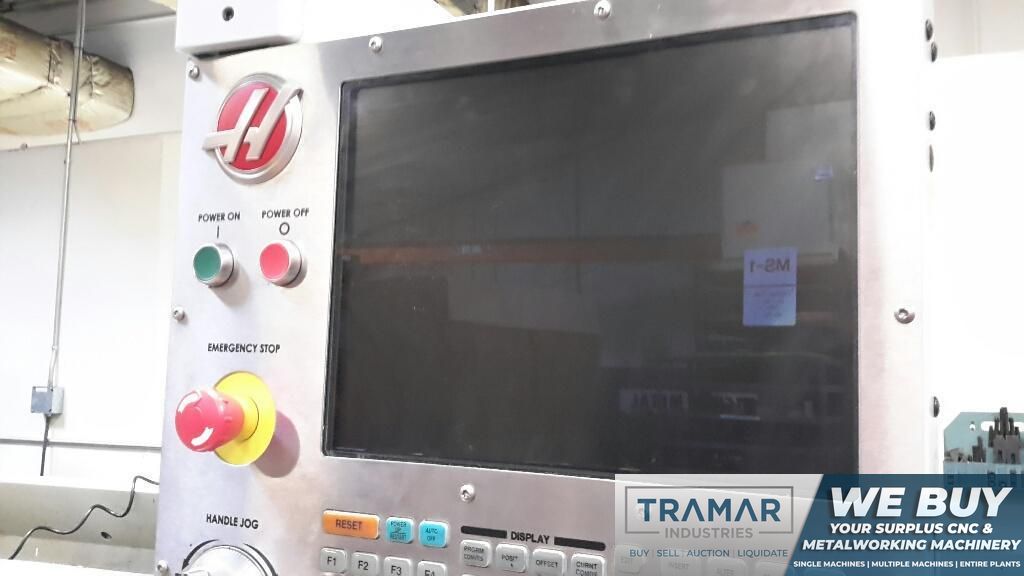

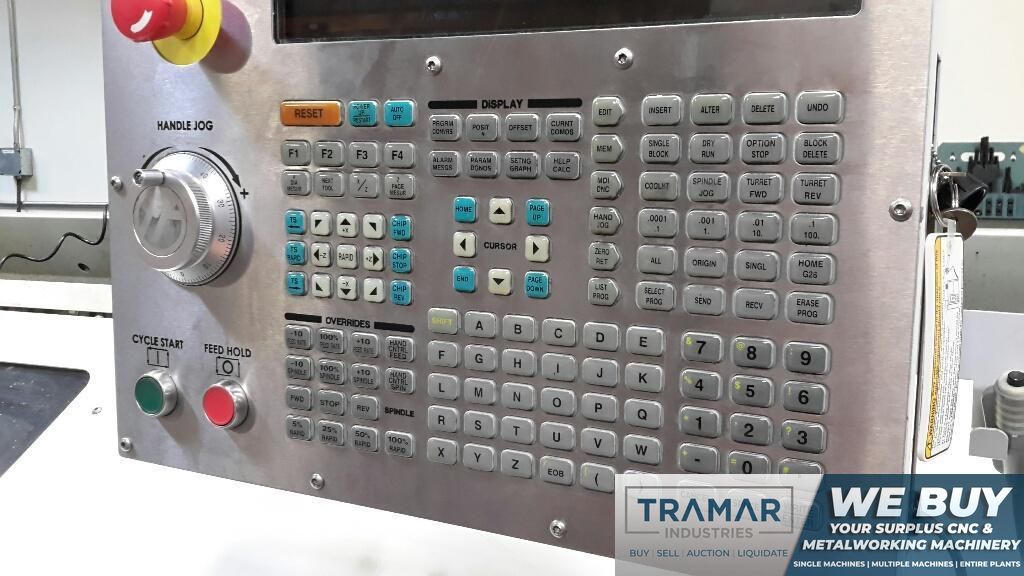

CNC Control
yes
CNC Control
Haas
# Axis
2
Swing
20"
Turning Diameter
16"
Center Distance
48"
Chuck Size
8"
Bar Capacity
2.3"
X Axis Travel
8"
Z Axis Travel
48"
Rapid Traverse (X/Z)
450 ipm
Spindle Nose
A2-5
Spindle Speed
1,800 rpm
Main Motor
10
Live Tooling
no

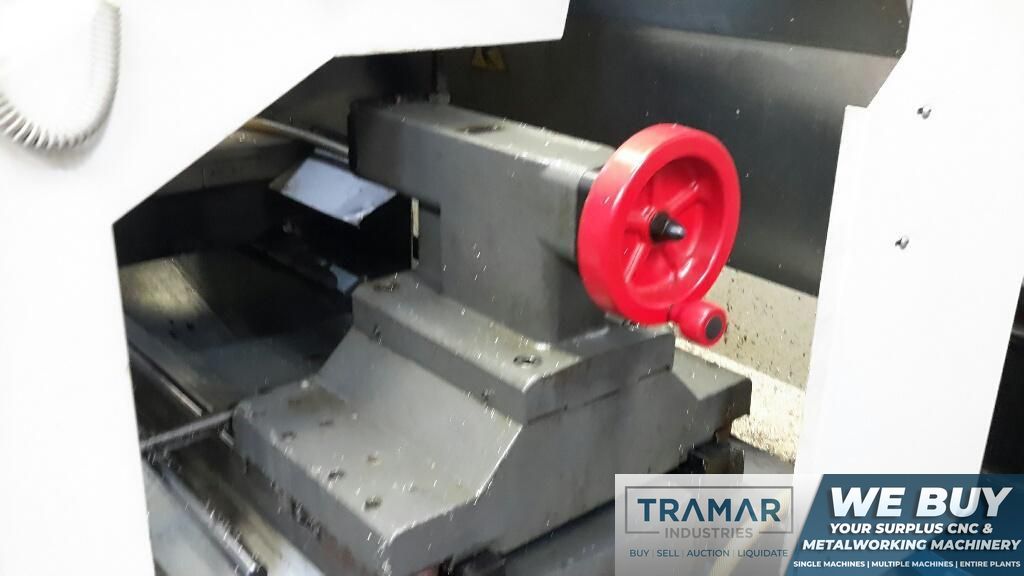

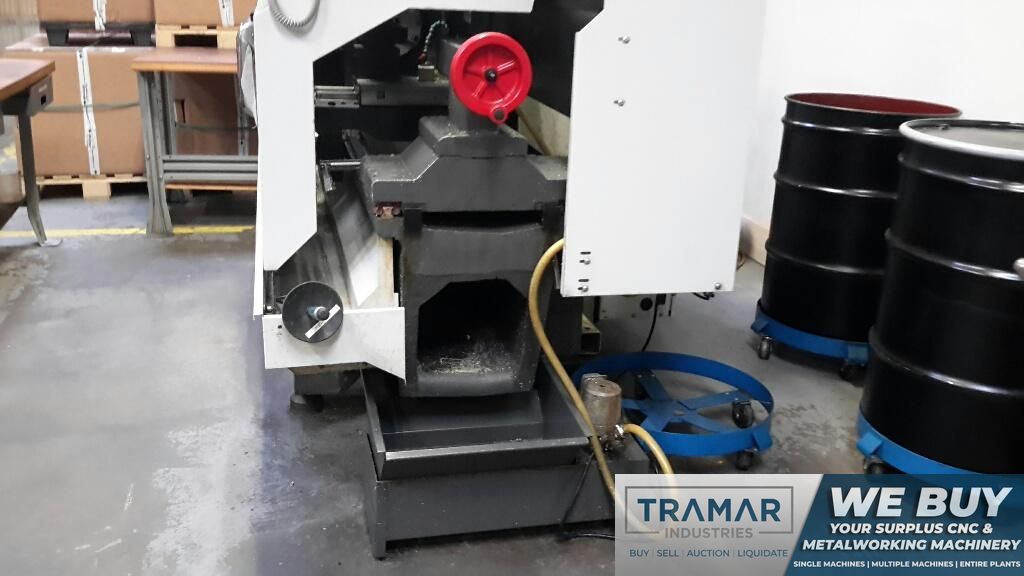

Tailstock
yes
Y Axis
no
Sub Spindle
no
Machine Weight
5,000 pounds

Equipped With:

- Haas CNC Control

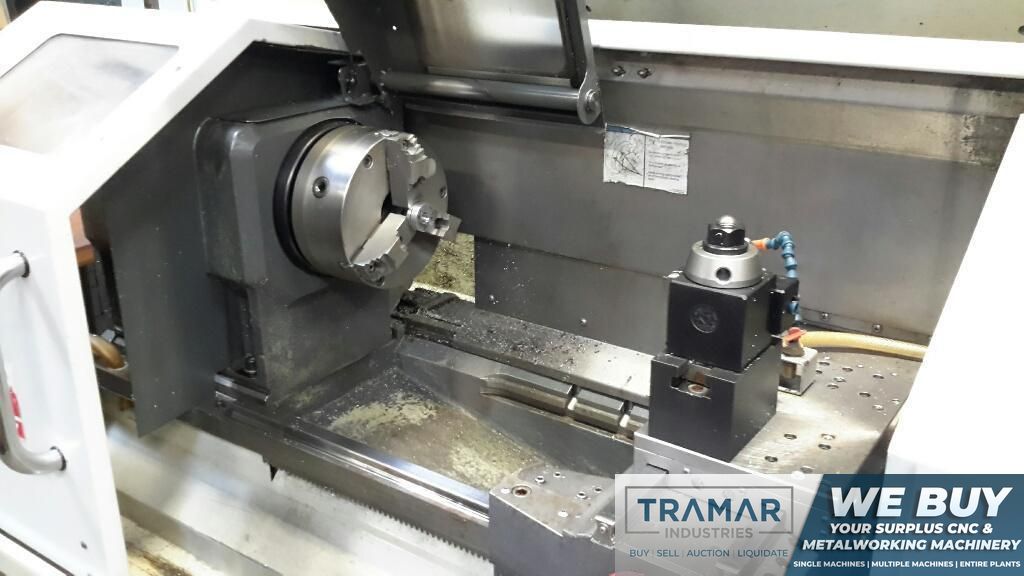

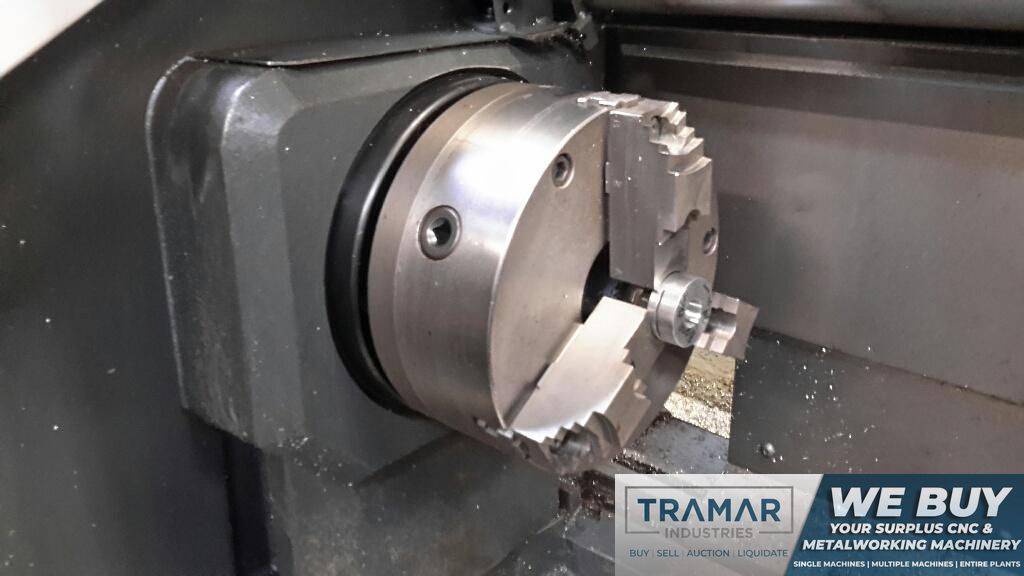

- 8" Chuck

The Haas TL-2 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
