Haas VF-3BYT - Machining Centers, Vertical, (5-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: VF-3BYT
Year: 2007
Stock #:
Highlights:
Haas TR-160 5-Axis Trunnion Table
Renishaw Probing
40 Station Sidemount Tool Changer
Coolant Thru Spindle
2-Speed Gear Box

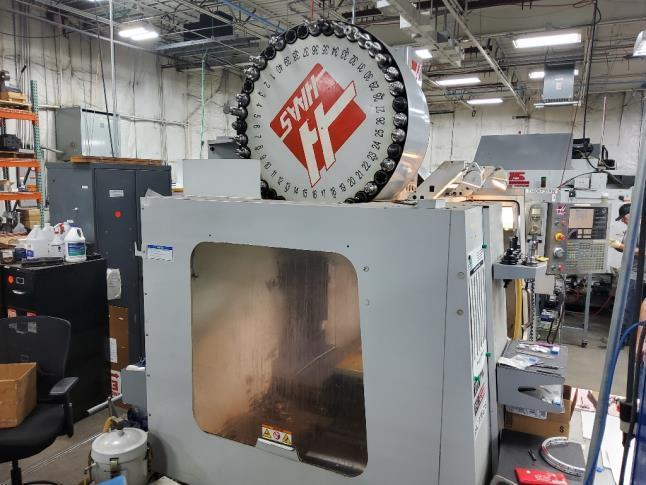

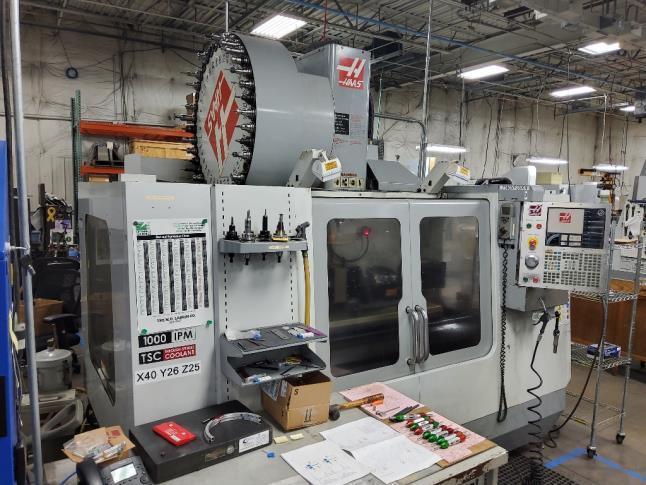

Haas VF-3BYT CNC Vertical Machining Center with Trunnion For Sale - 2007
Machine Specifications
Year
2007
Control Type
Haas
# Axis
5
Table Size
54" x 24"
Max Table Load
3,500 pounds
X-Axis Travel
40"
Y-Axis Travel
26"
Z-Axis Travel
25"
B Axis Rotary
0.001 degrees
A Axis Travel
+/- 120 degrees
Rapid Traverse Rate (X/Y/Z)
710 ipm
Spindle Speed
10,000 rpm
Main Motor
30 horsepower
Spindle Taper
CAT 40
ATC Capacity
30
Coolant Thru Spindle
yes
Dimensions
156" x 102" x 109"
Weight
12,560 pounds

Equipped With:

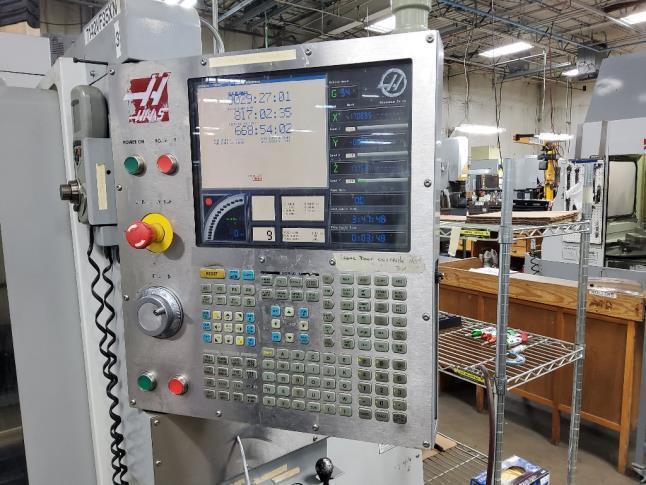

- Haas CNC Control

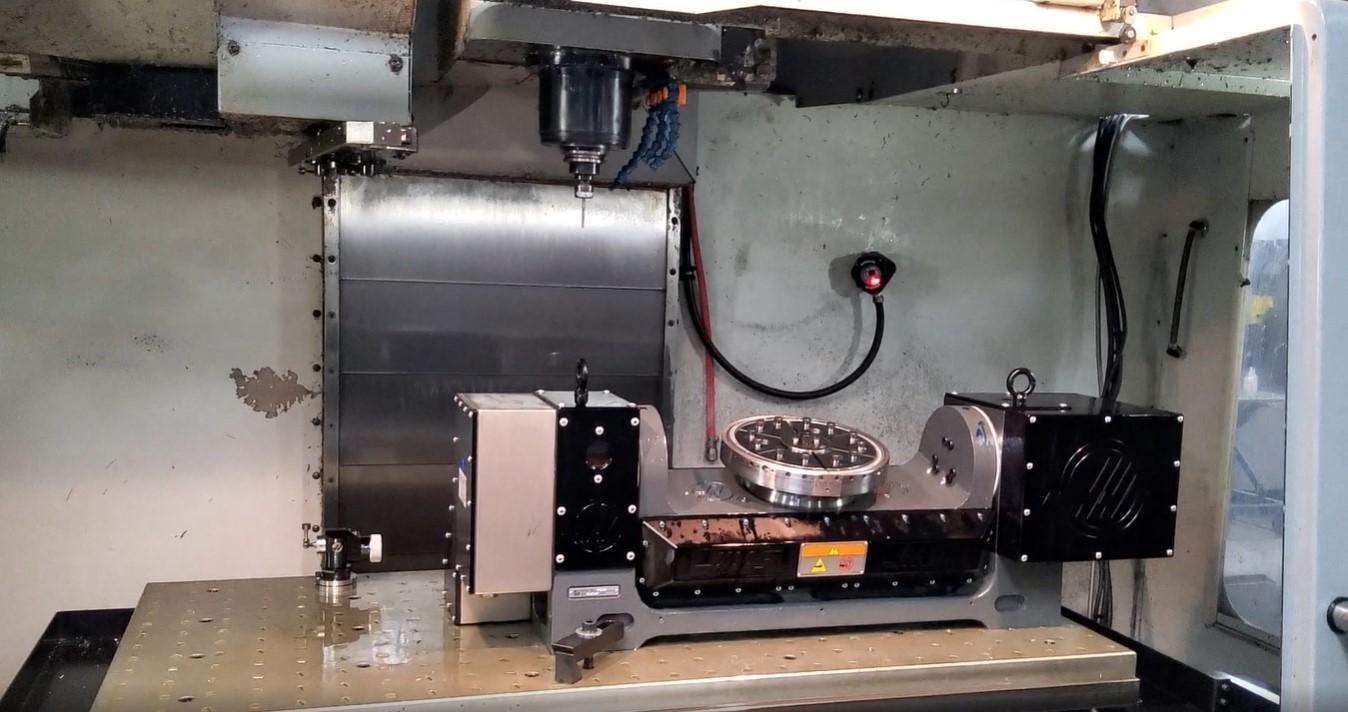

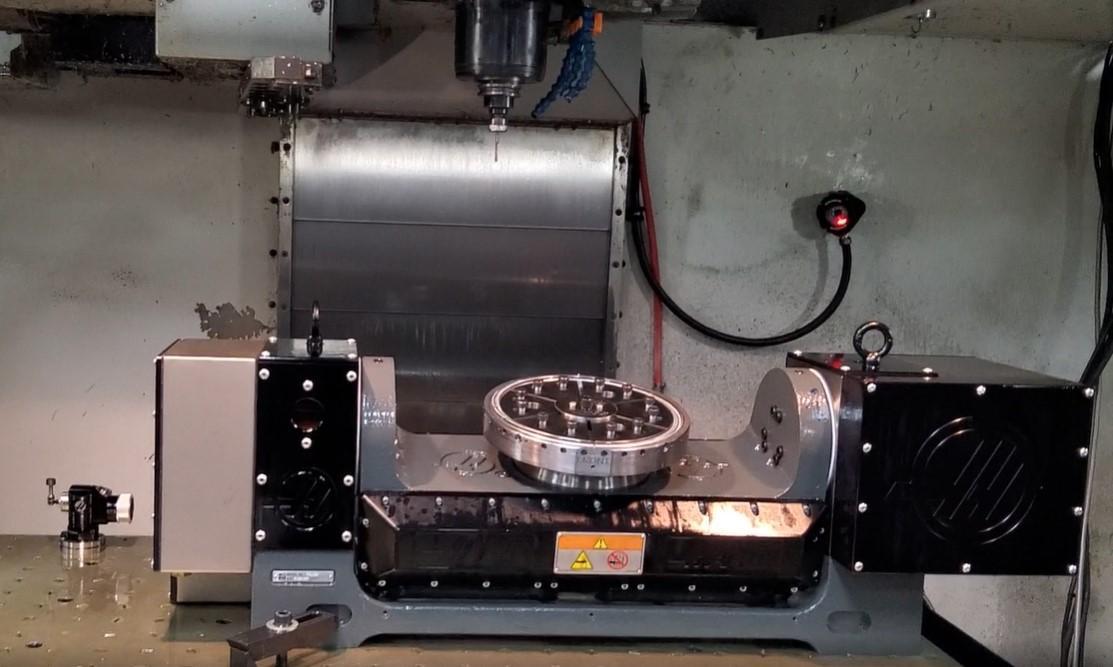

- Haas TR160 4th/5th Axis Trunnion Table
- 40 Station Sidemount ATC
- Coolant Thru Spindle
- Renishaw Probing
- Tool Touch Setter
- Handheld MPG
- 2 Speed Gear Box
- Extended Y Axis Travel
- Chip Auger
- Coolant Tank & Pump


The Haas VF-3BYT is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
