Haas VF-5 - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: VF-5
Year: 2015
Stock #: 31126
Highlights:
Programmable Coolant Nozzle
Wireless Intuitive Probing System (WIPS Renishaw)
Table Size: 54" x 24" | 4,000 lbs
Travels: (X/Y/Z): 50" / 26" / 25"
CAT 40 | 15,000 rpm | 40 hp | 24 Station ATC

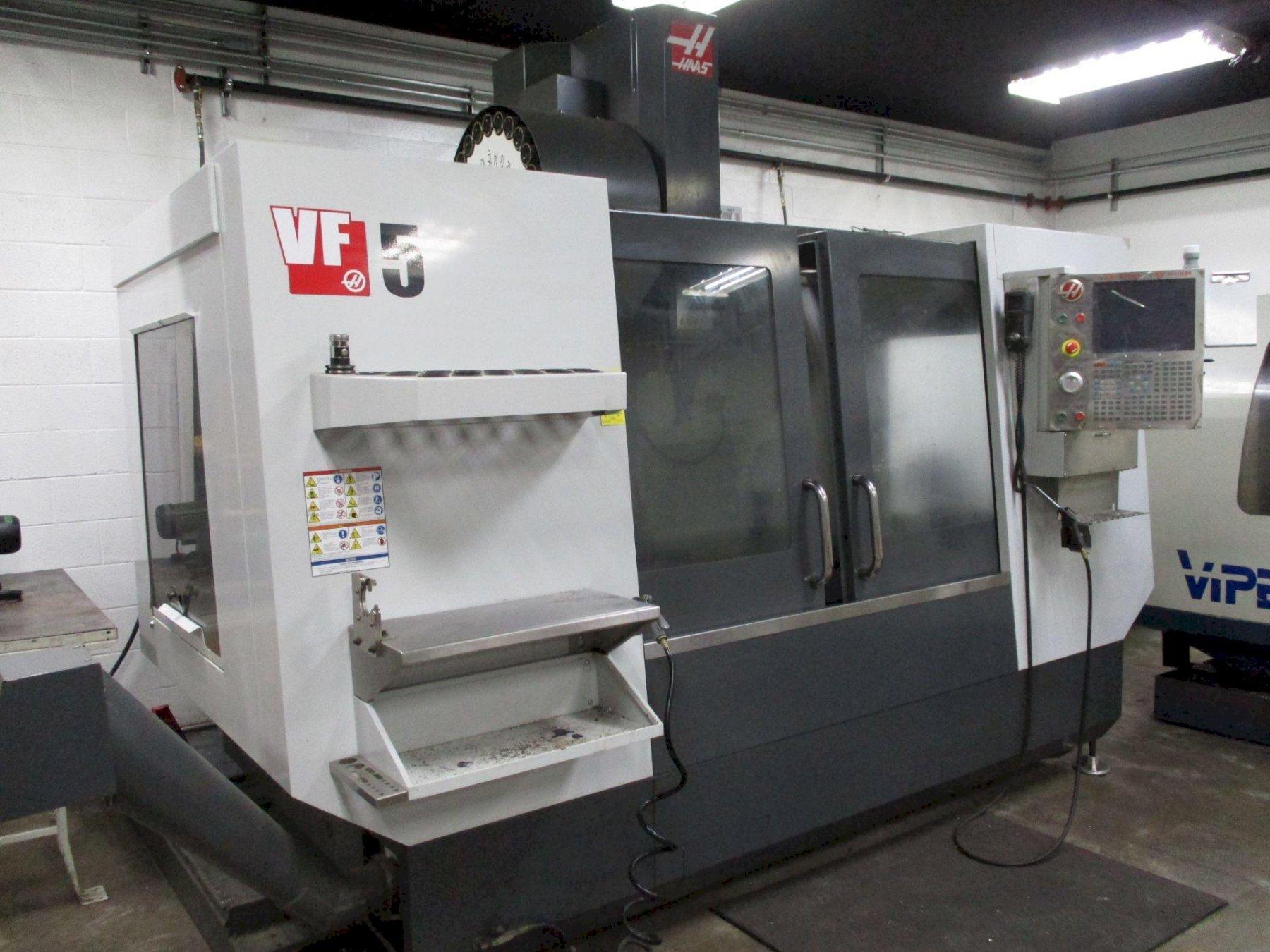

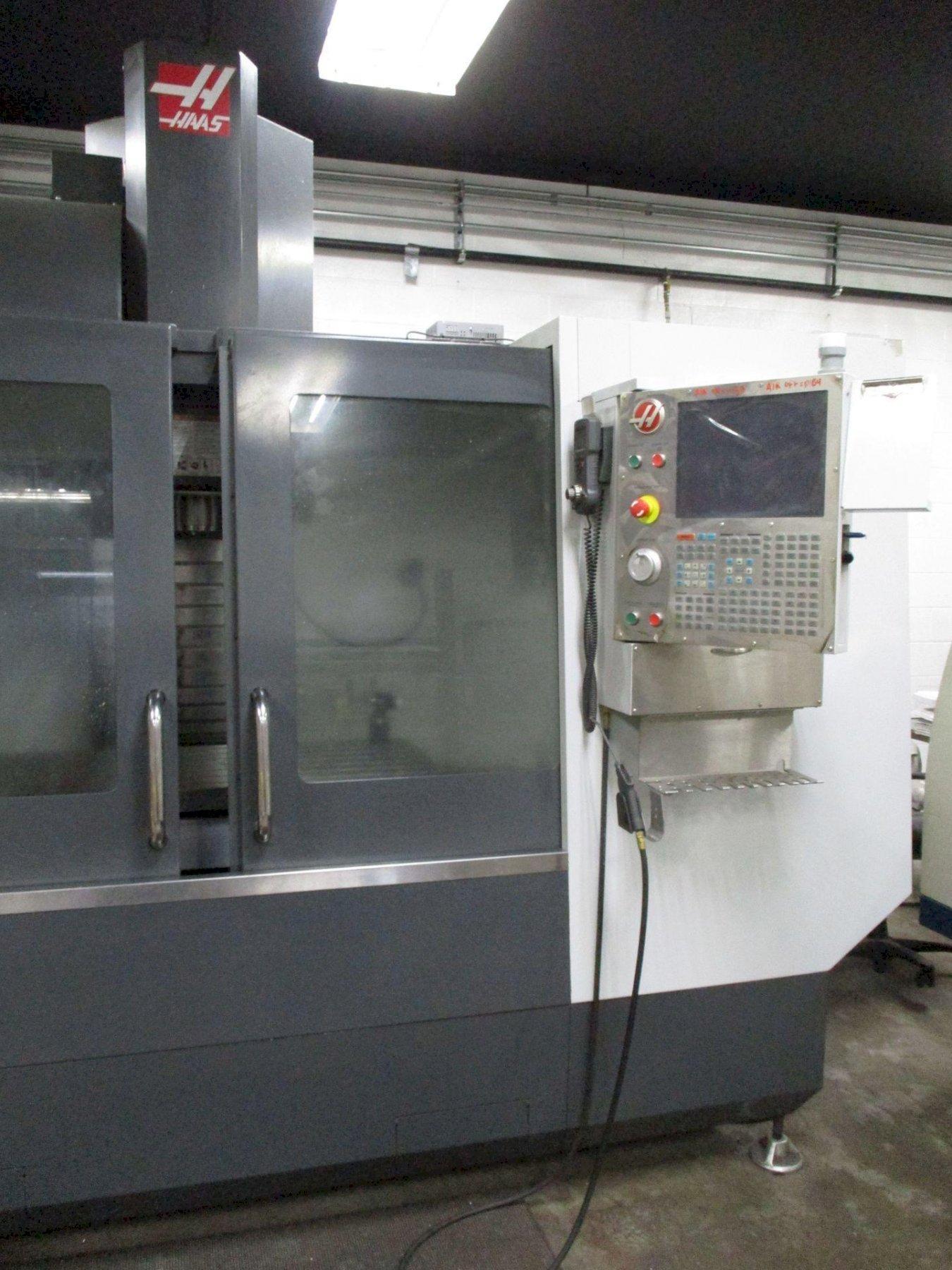

Haas VF-5 Vertical Machining Center 2015
Machine Specifications
Year
2015

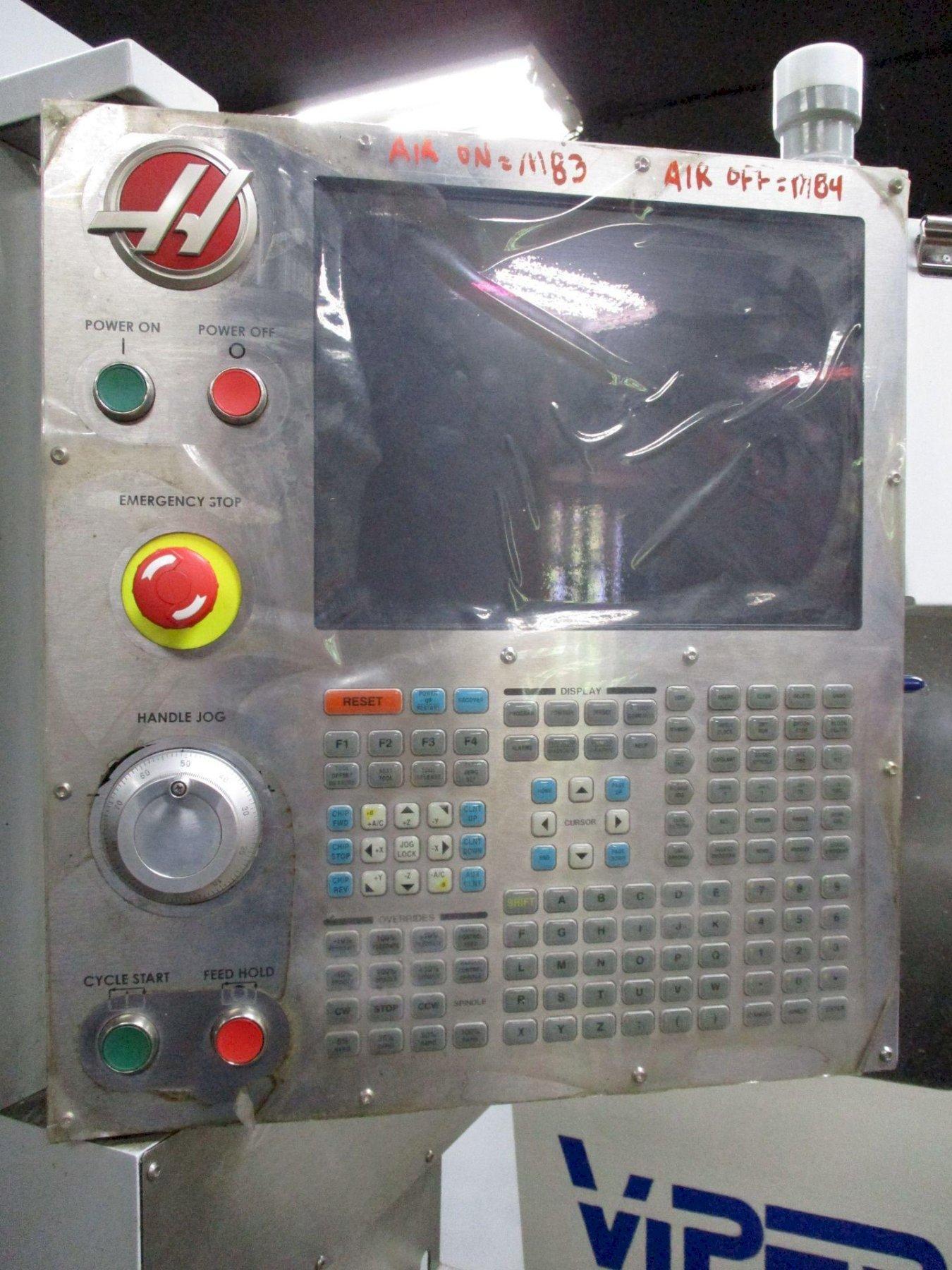

Control Type
Haas
# Axis
3

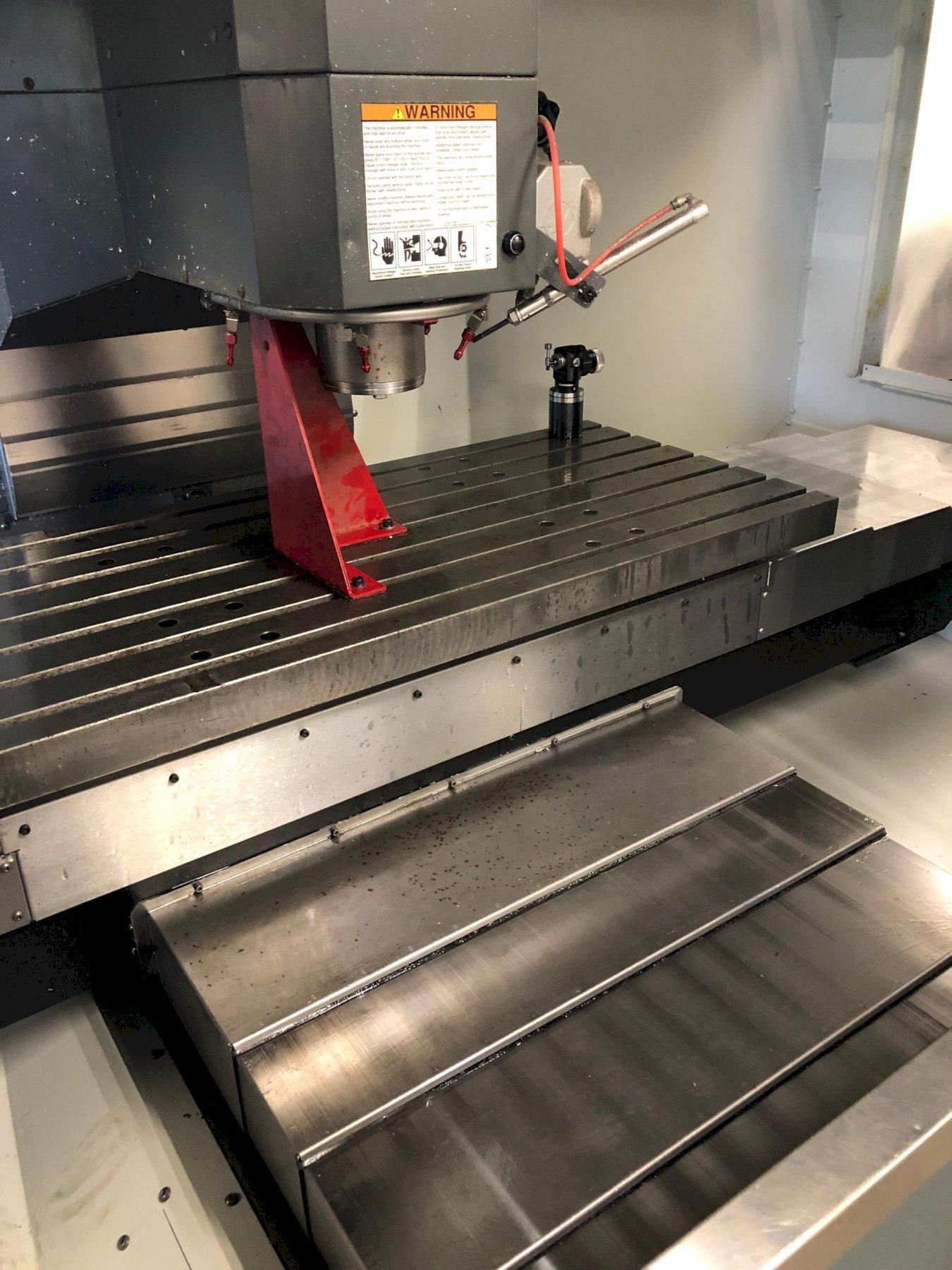

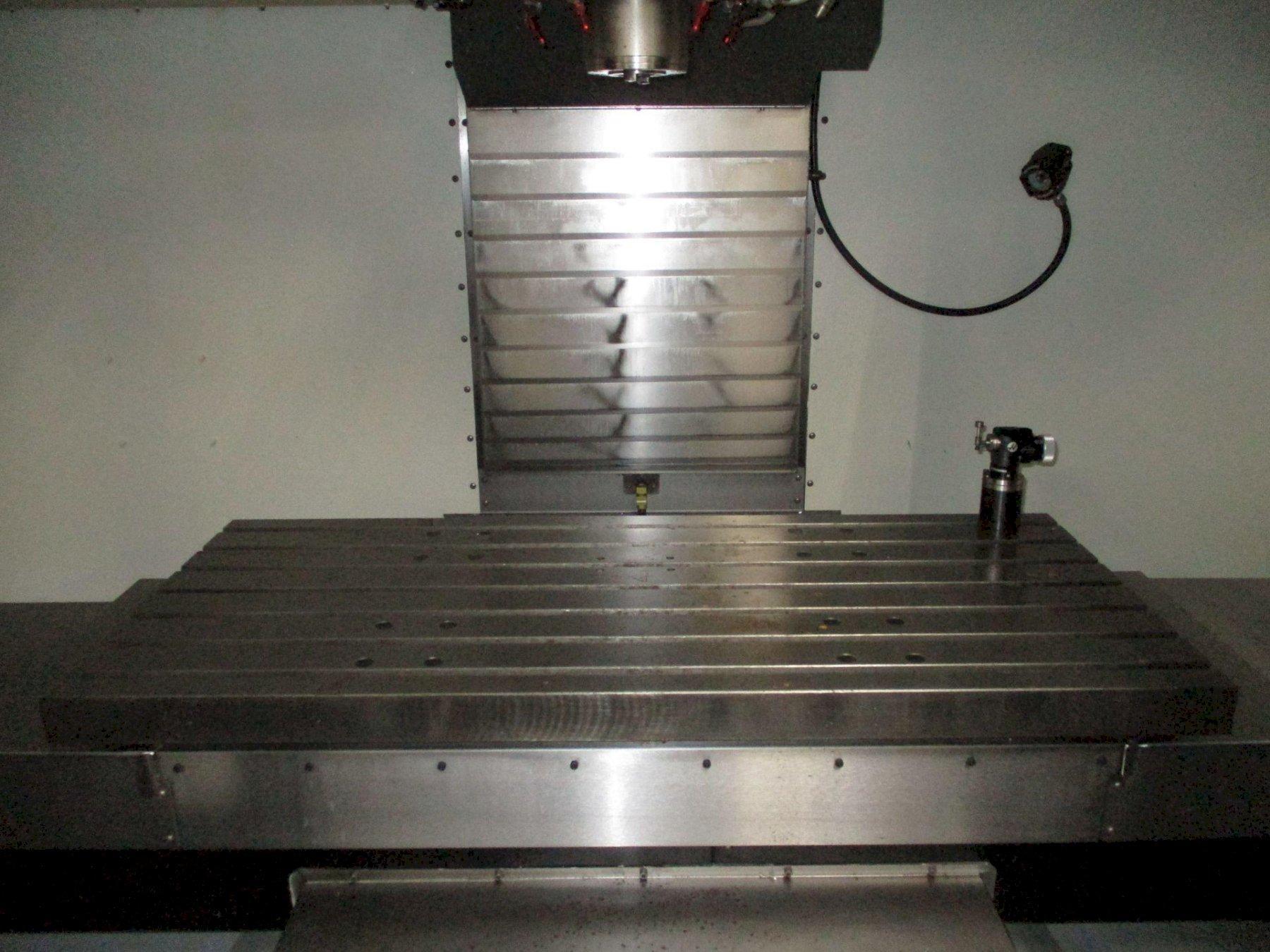

Table Size
54" x 24"
Table Capacity
4,000 pounds
X-Axis Travel
50"
Y-Axis Travel
26"
Z-Axis Travel
25"
Rapid Traverse Rate (X/Y/Z)
1,000 ipm
Spindle Taper
CAT 40
Spindle Speed
15,000 rpm
Main Motor
40 hp
Tool Changer Capacity
24
Machine Dimensions
144" x 110" x 120
Machine Weight
15,000 pounds

Equipped With:

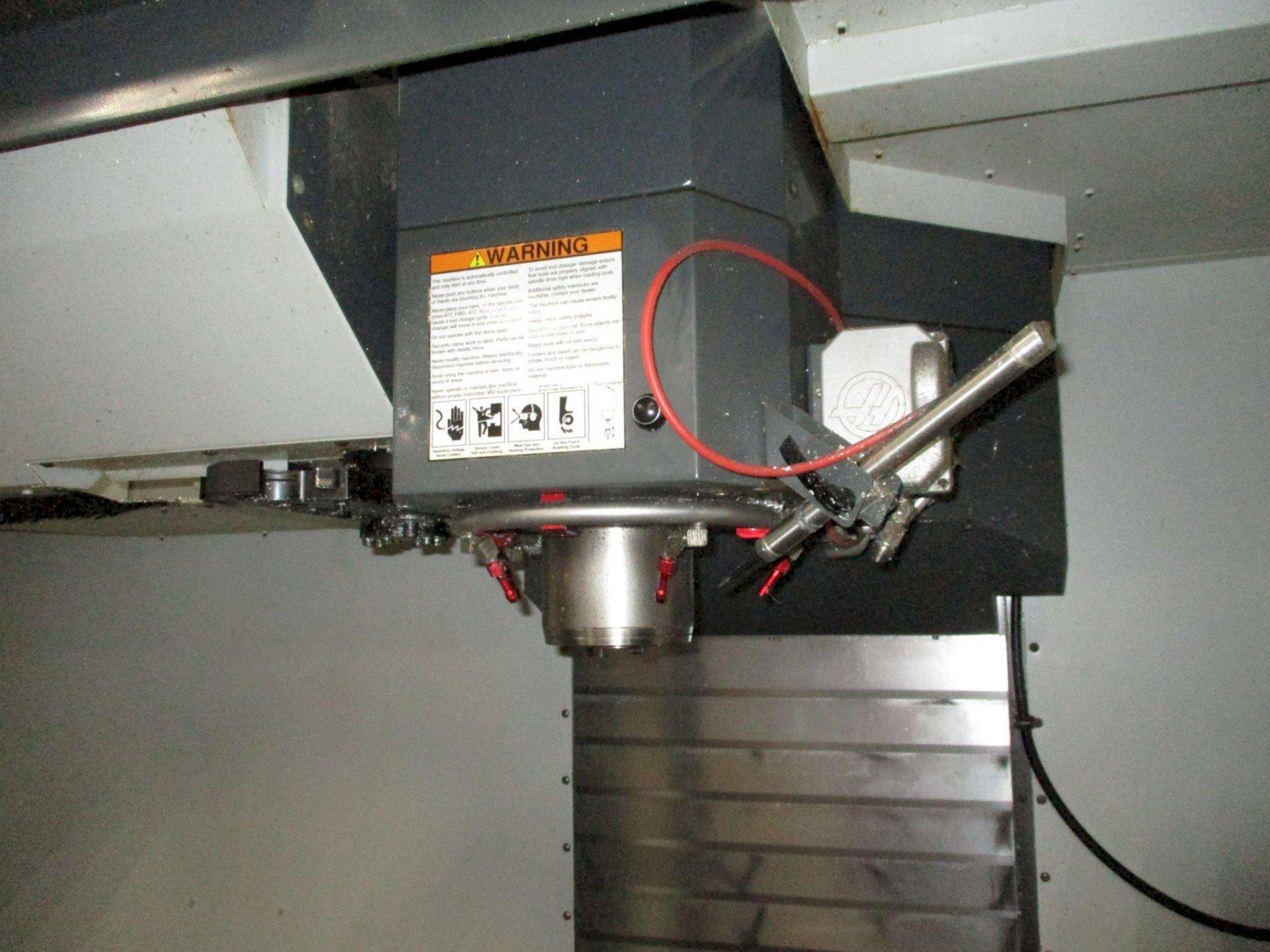

- Programmable Coolant Nozzle
- Side Mount 24 Station Tool Changer

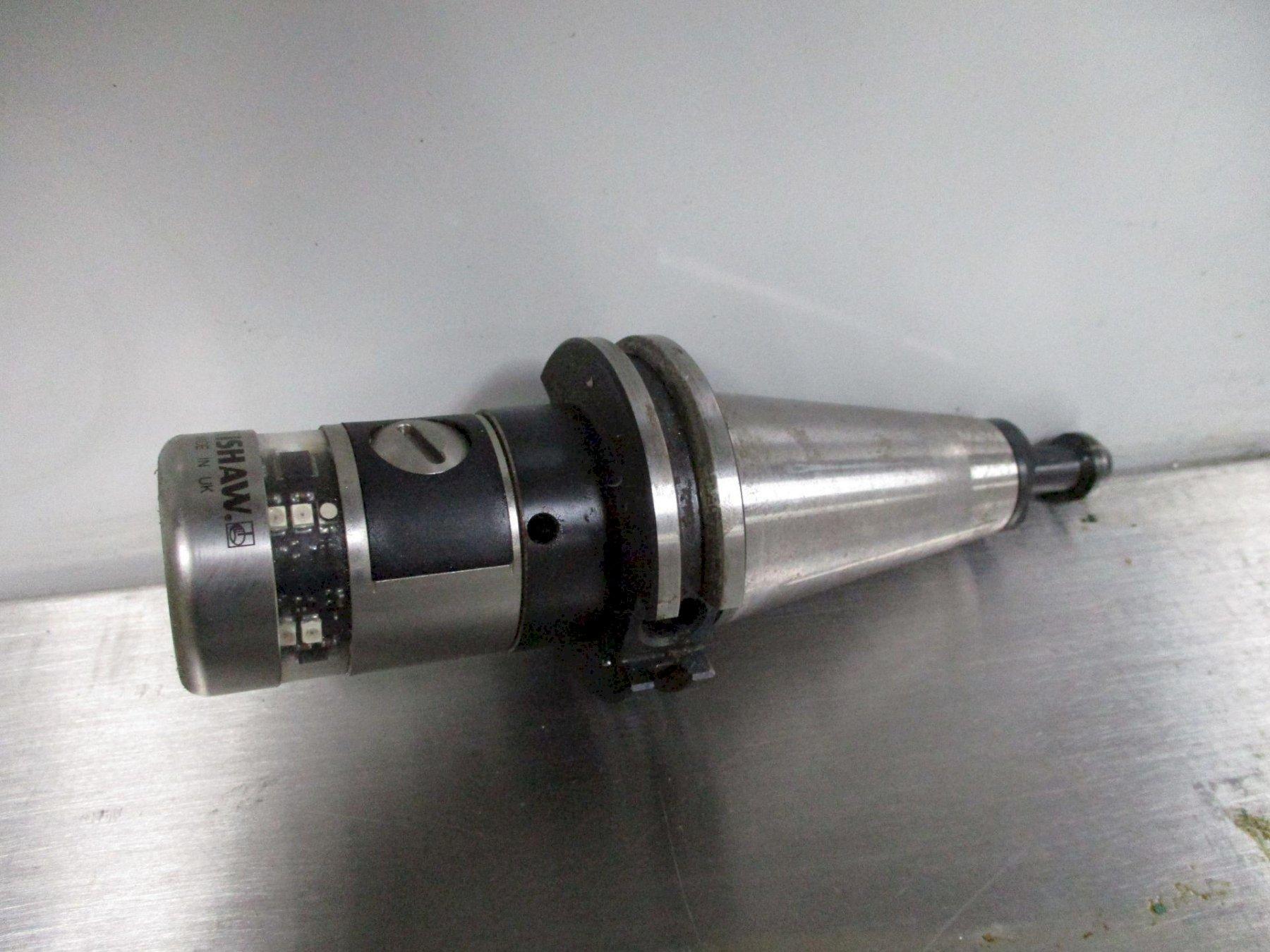

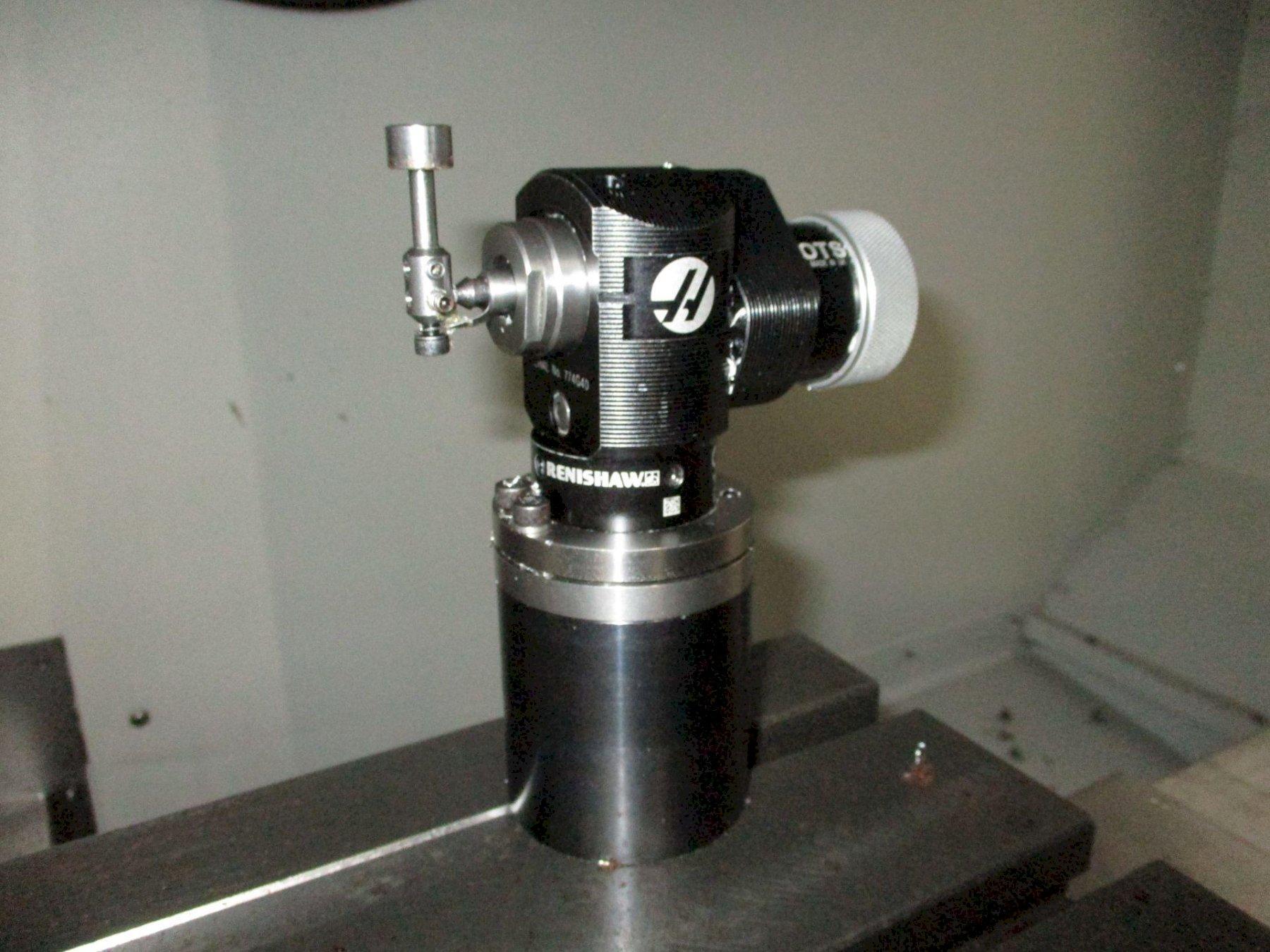

- Wireless Intuitive Probing System
- Macros
- Rotation & Scaling
- Rigid Tapping

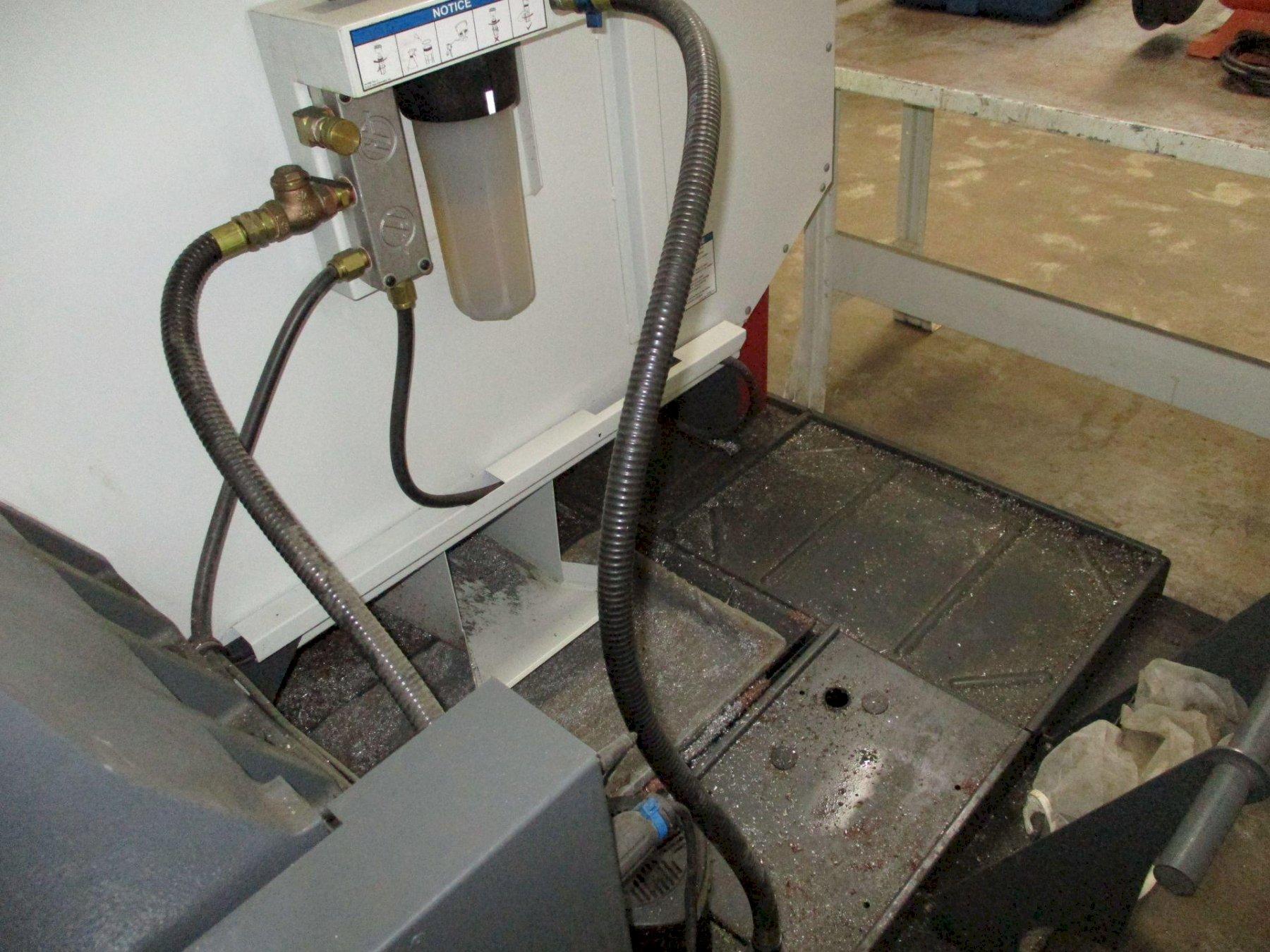

- Chip Auger
- High Speed Machining
- Expanded Memory - 750mb
- 15,000 rpm Spindle Upgrade
- Only 2,270 Cutting Hours

The Haas VF-5 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
