Model: VF-6/40
Year: 2010
Stock #: 13875
Highlights:

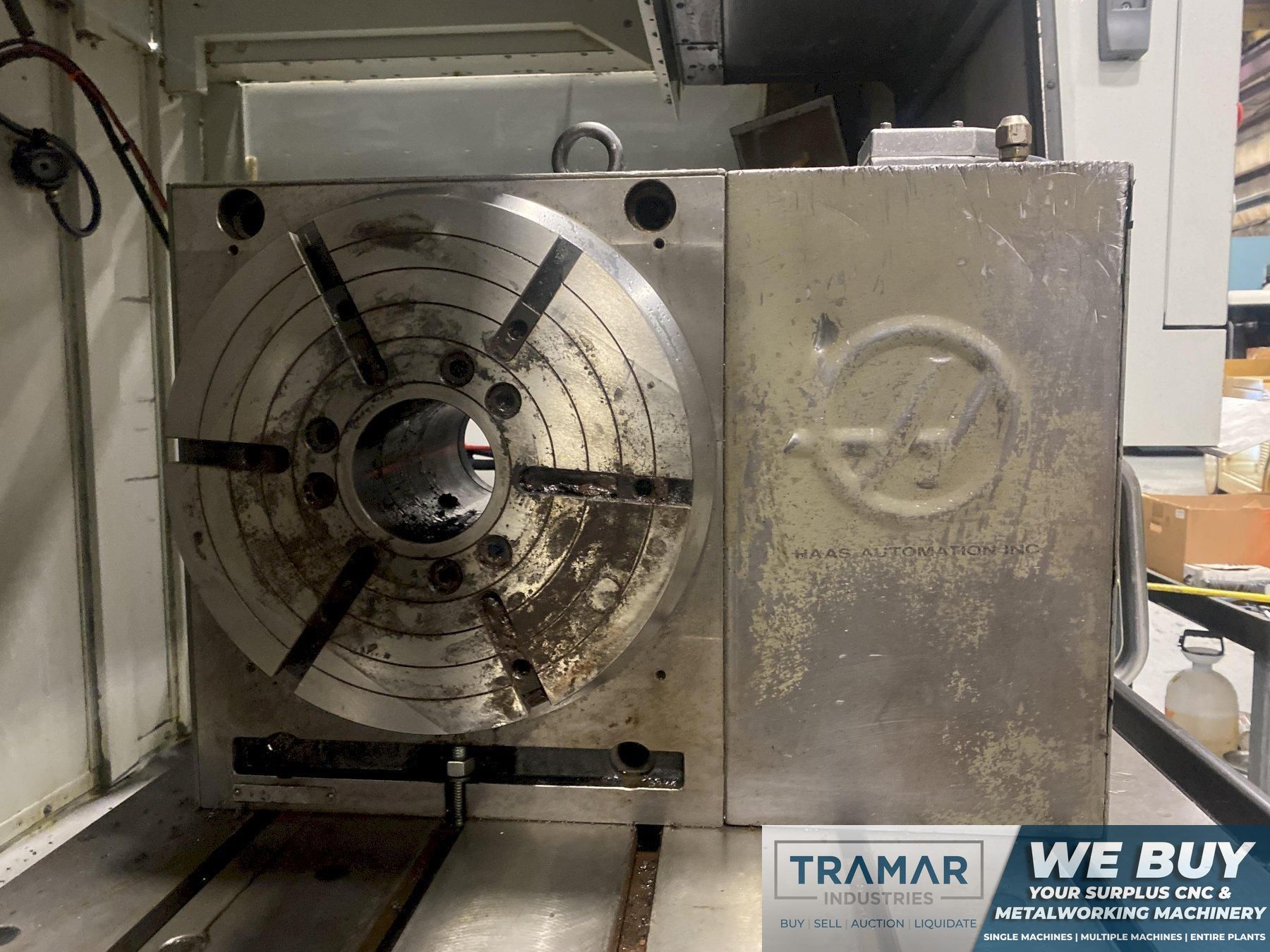

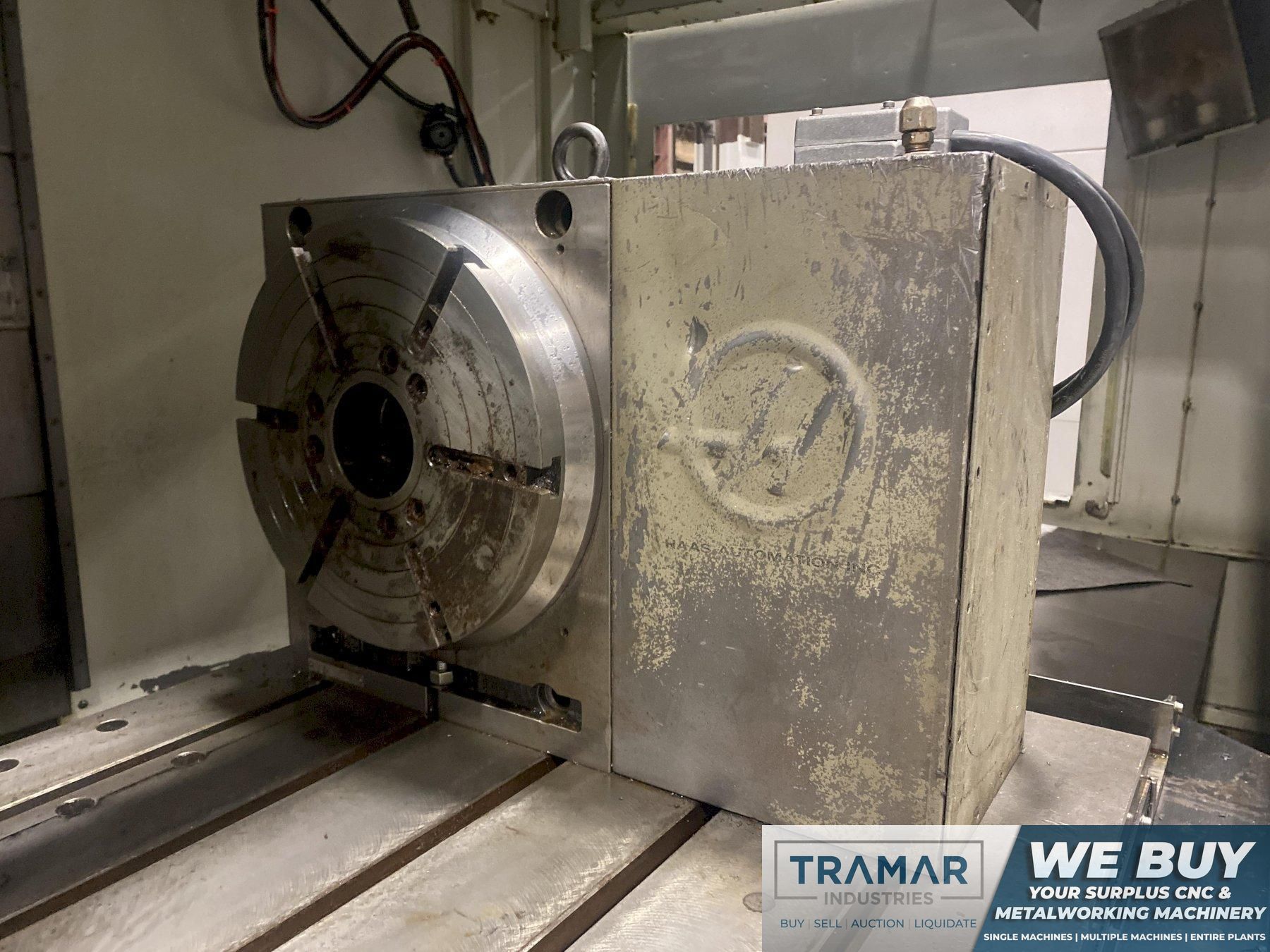

4th Axis Rotary Table
Wireless Intuitive Programming System

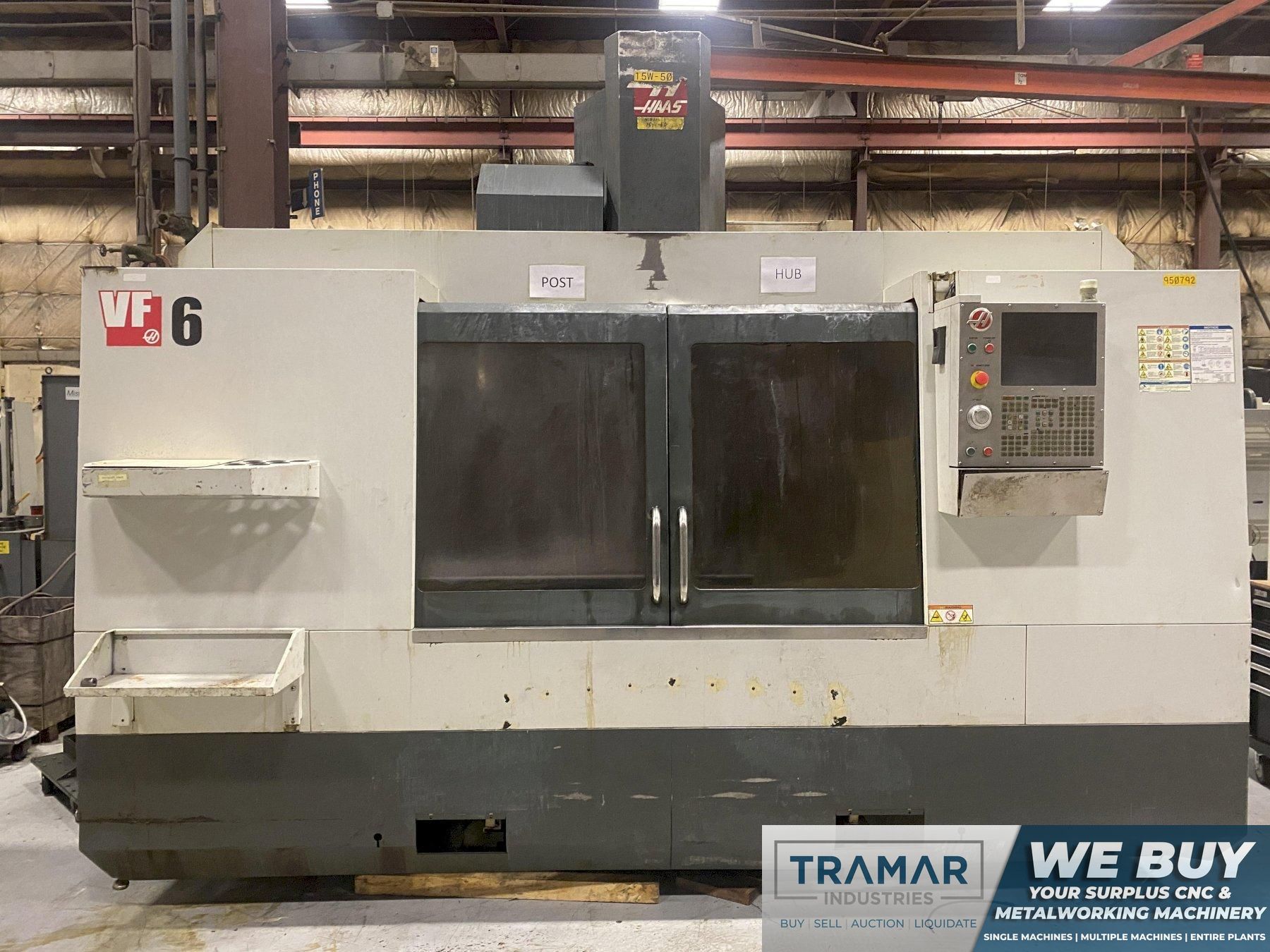

Haas VF-6/40 CNC Vertical Machining Center For Sale Used 2010
Machine Specifications
Year
2010
Control Type
Haas
# Axis
3

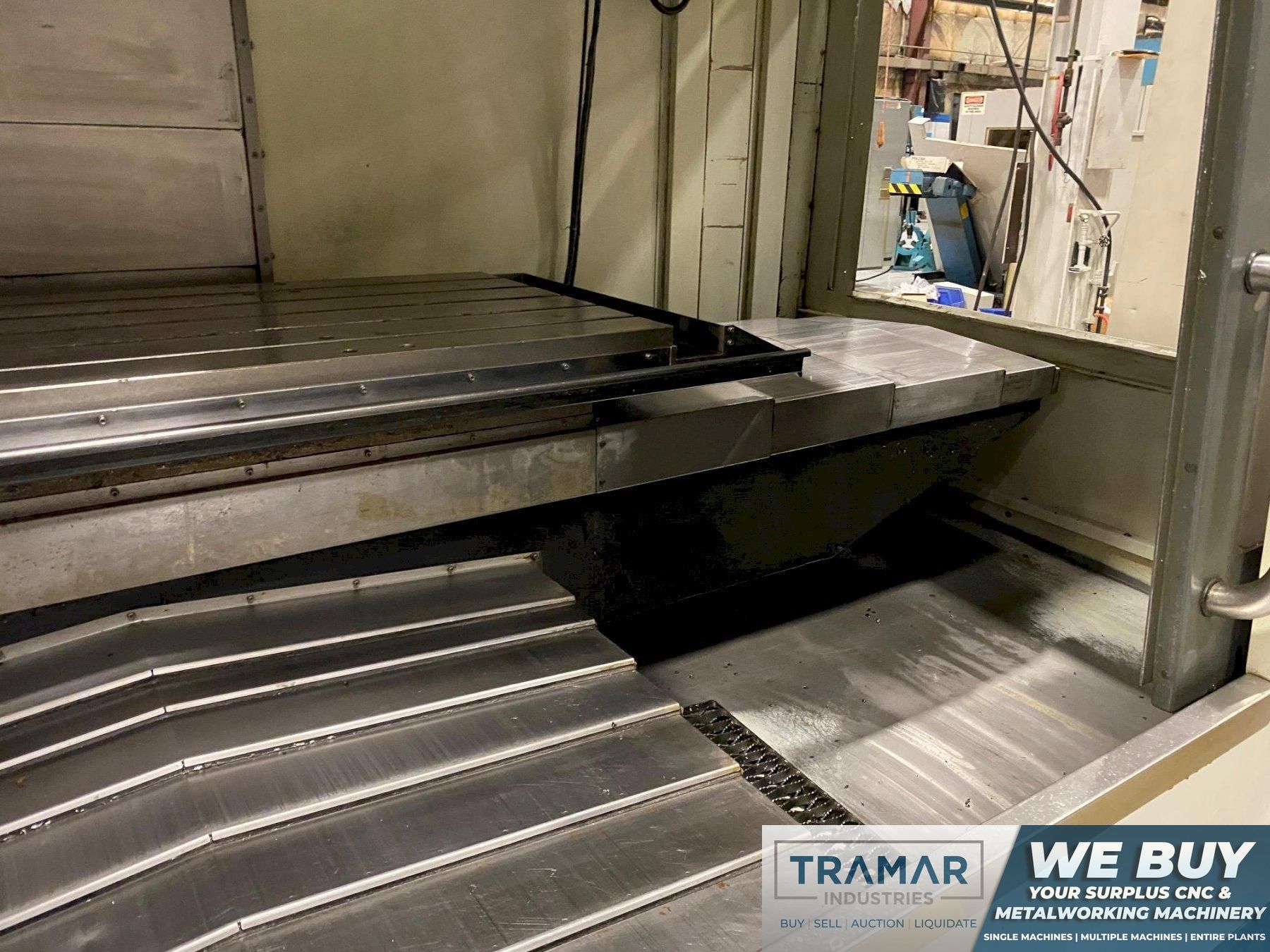

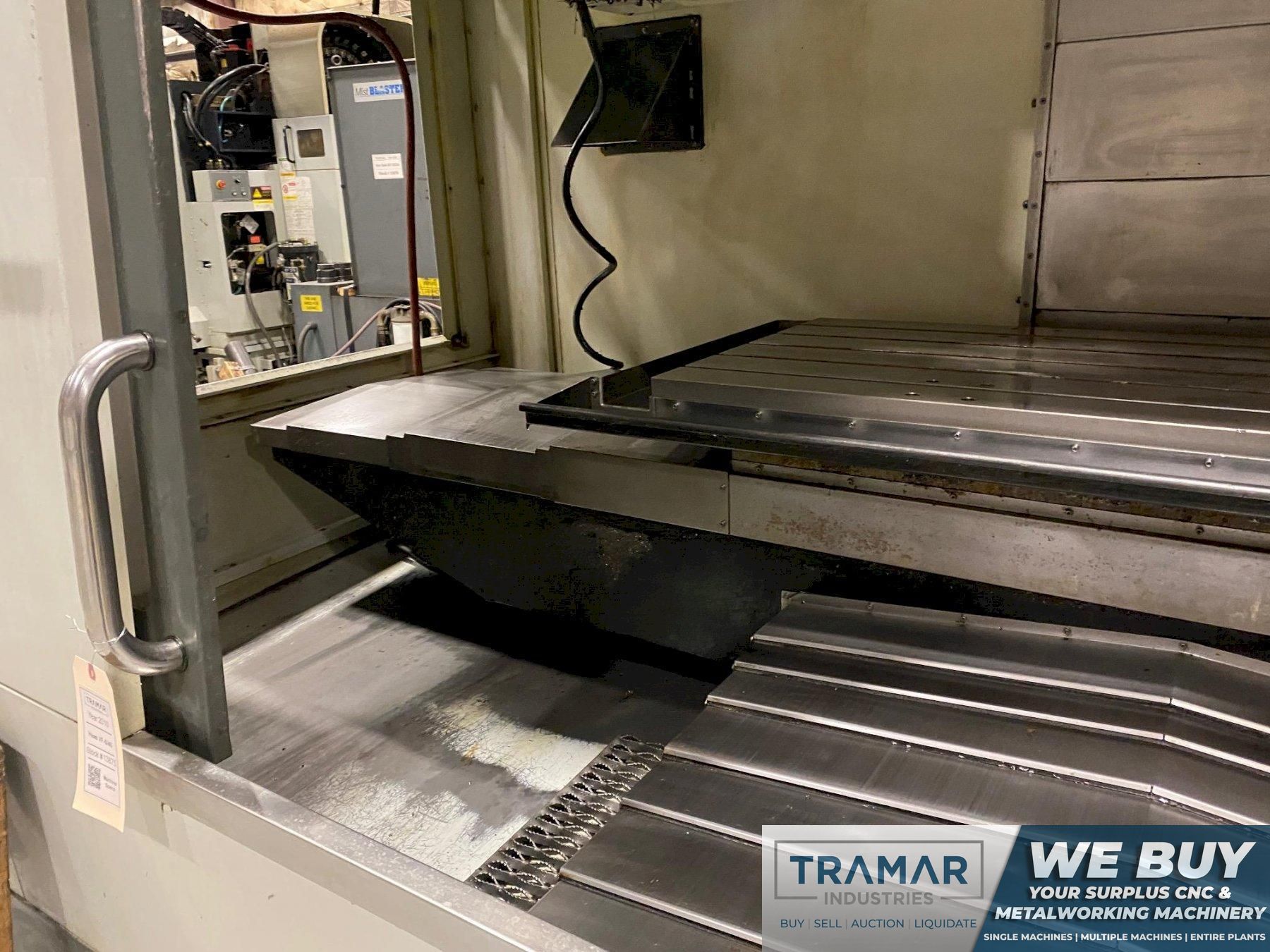

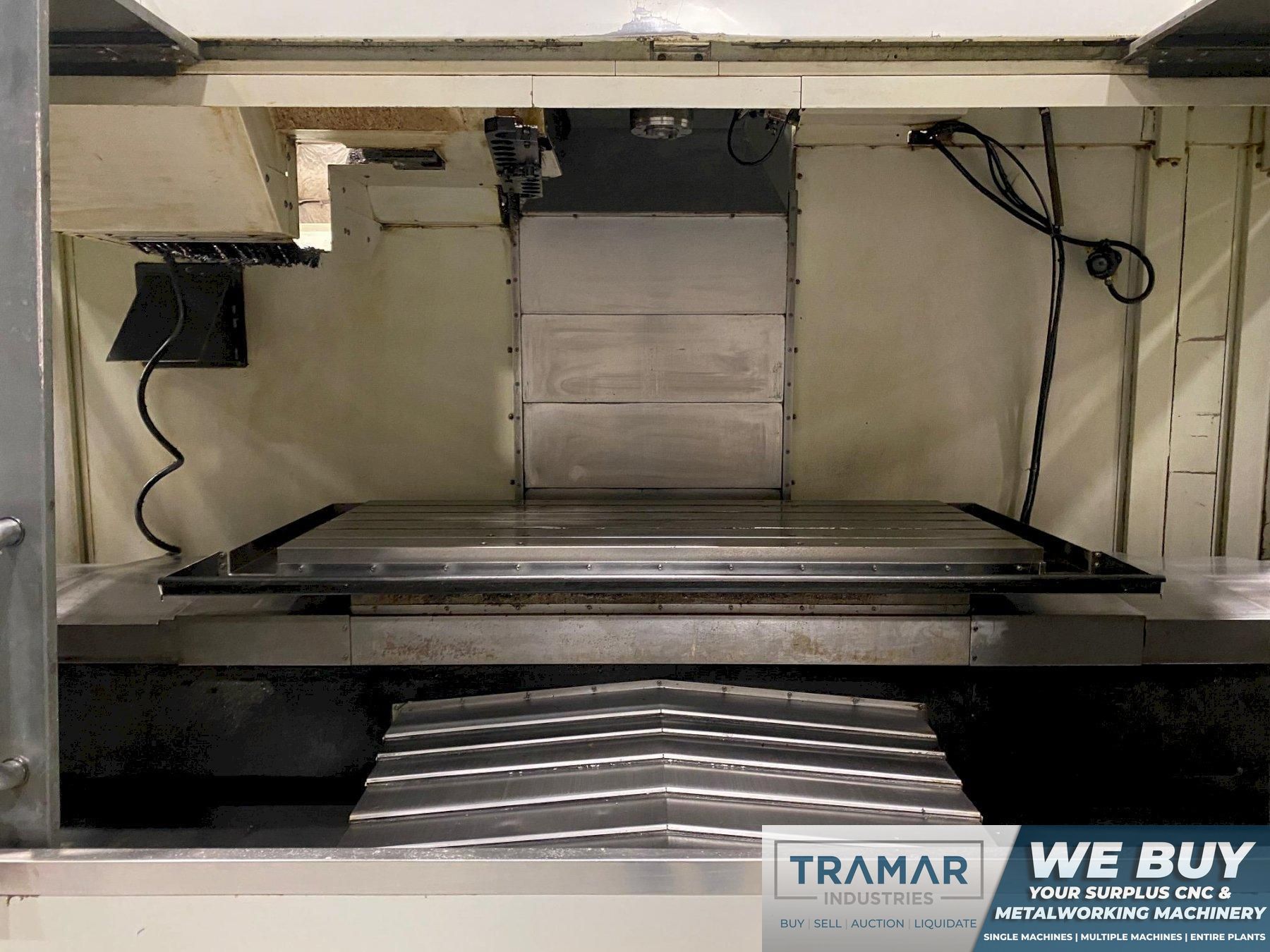

Table Size
64" x 28"
Table Capacity
4,000 pounds
X-Axis Travel
64"
Y-Axis Travel
32"
Z-Axis Travel
30"
Rapid Traverse Rate (X/Y/Z)
600 ipm

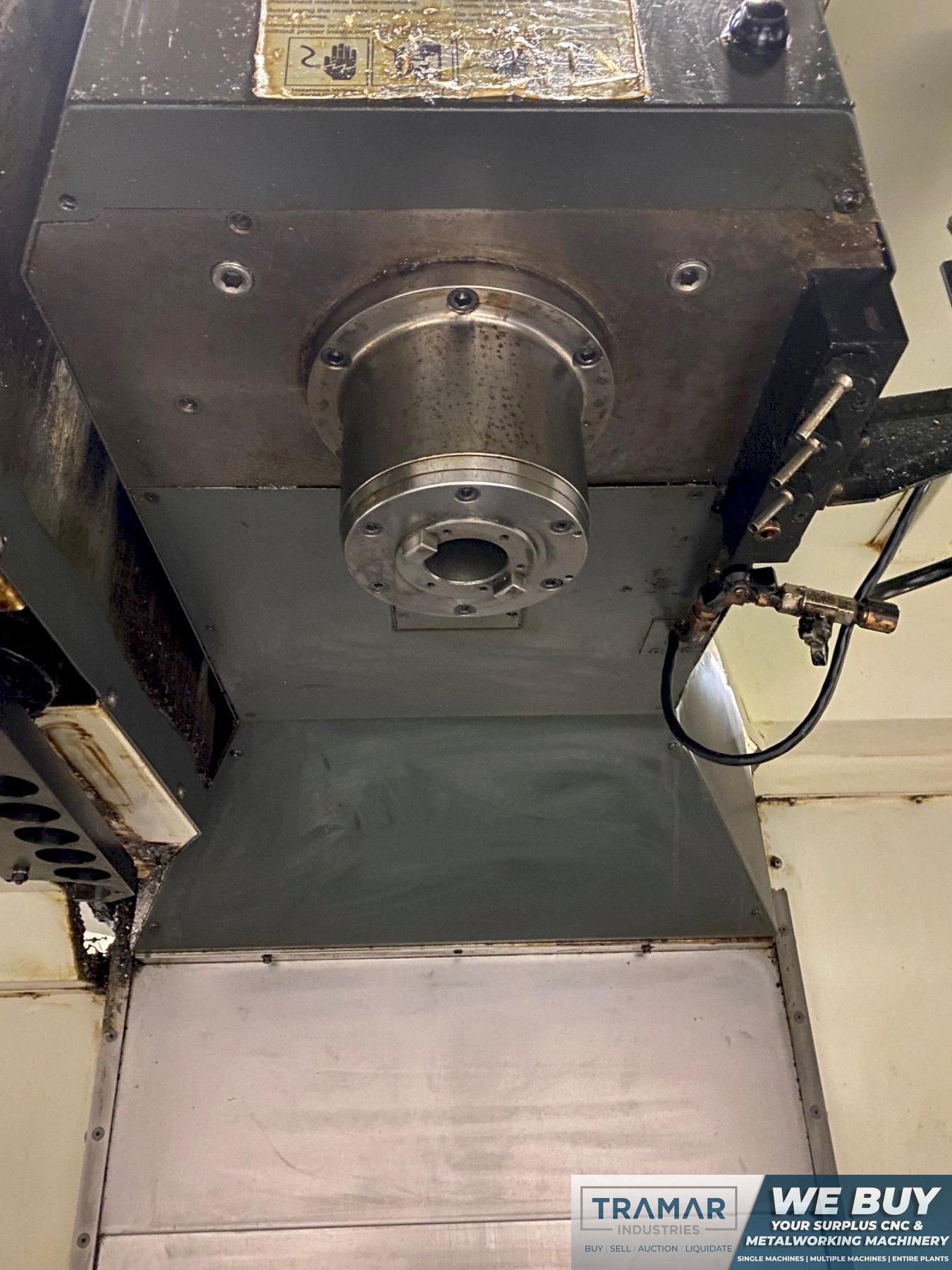

Spindle Taper
CAT 40
Spindle Speed
7,500 rpm
Main Motor
30 hp

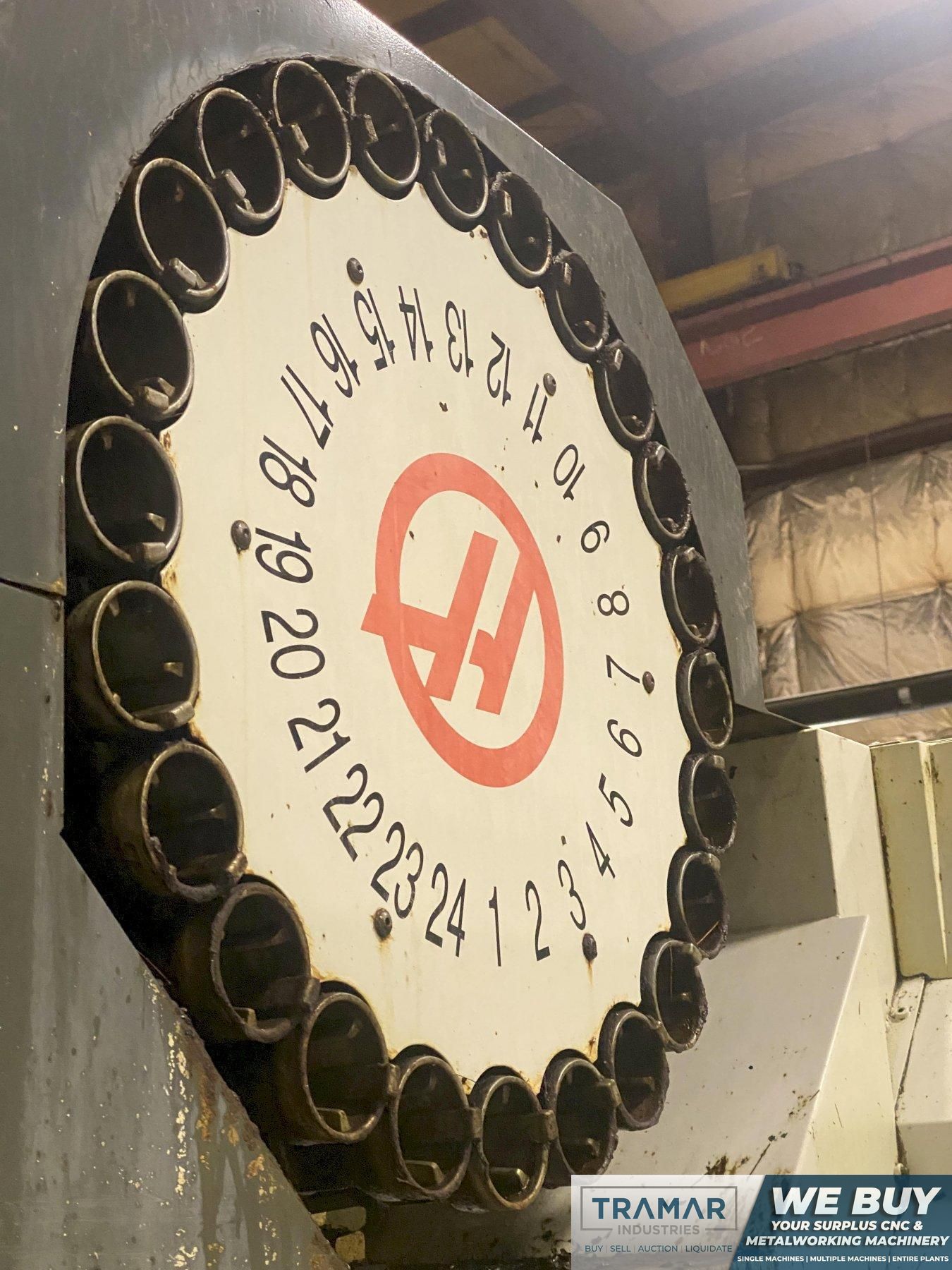

Tool Changer Capacity
24
Coolant Thru Spindle
yes
Machine Weight
22,600 pounds

Equipped With:

- Haas Control
- 4th Axis Drive
- Wireless Intuitive Probing System (WIPS)
- Programmable Coolant Nozzle
- Coolant Thru Spindle
- 95 Gallon Coolant Tank
- Chip Auger
- Rigid  Tapping
- Coordinate Rotation & Scaling
- Marcos

The Haas VF-6/40 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
