Haas VF-6/50 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: VF-6/50
Year: 2013
Stock #: 14201
Highlights:
Wireless Intuitive Probing System
Probe Riser Block
Programmable Coolant Nozzle
Coolant Thru Spindle (300 psi)
8" Extended Z-Axis Clearance

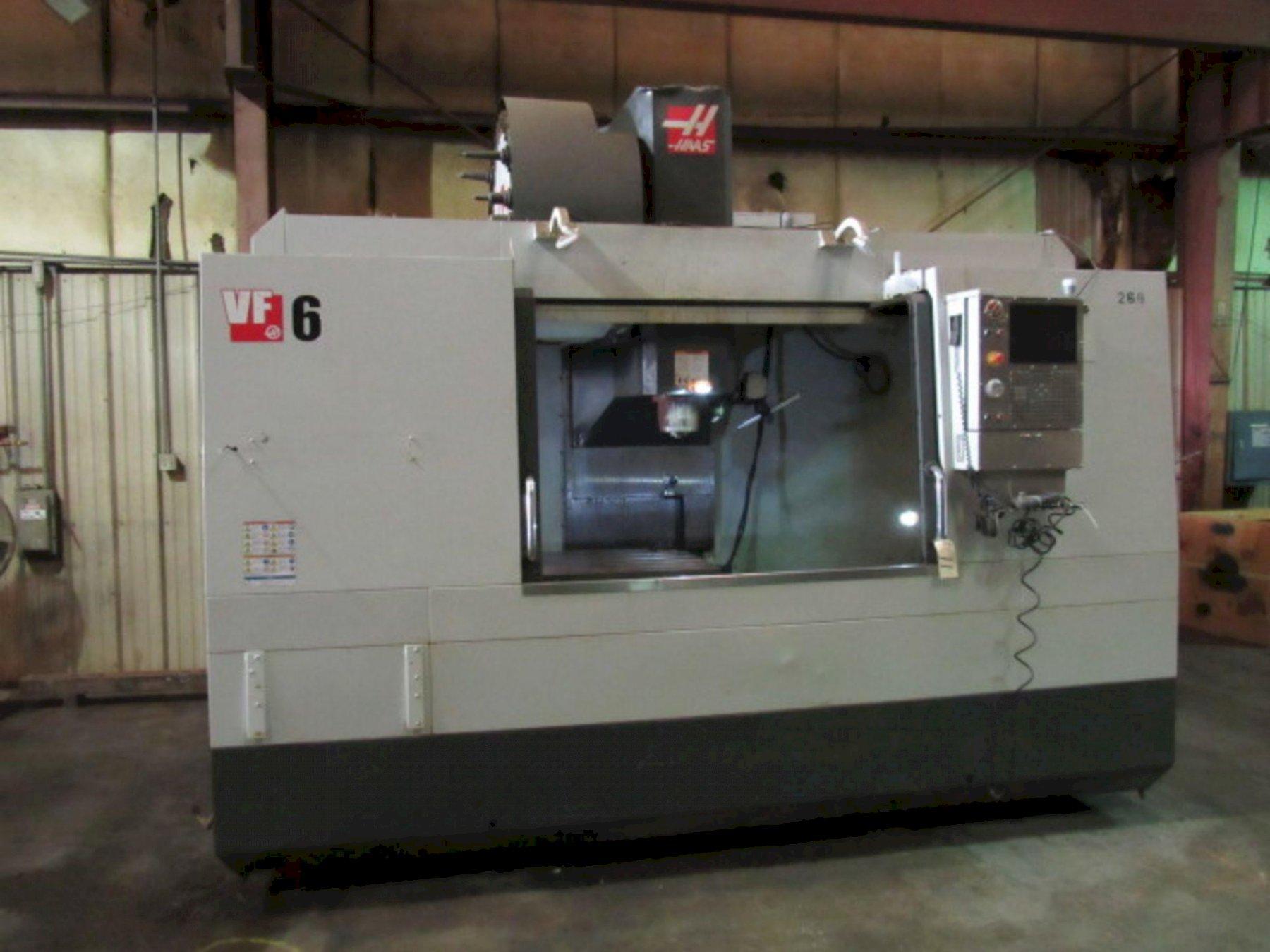

Haas VF-6/50 CNC Vertical Machining Center For Sale - 2013
Machine Specifications

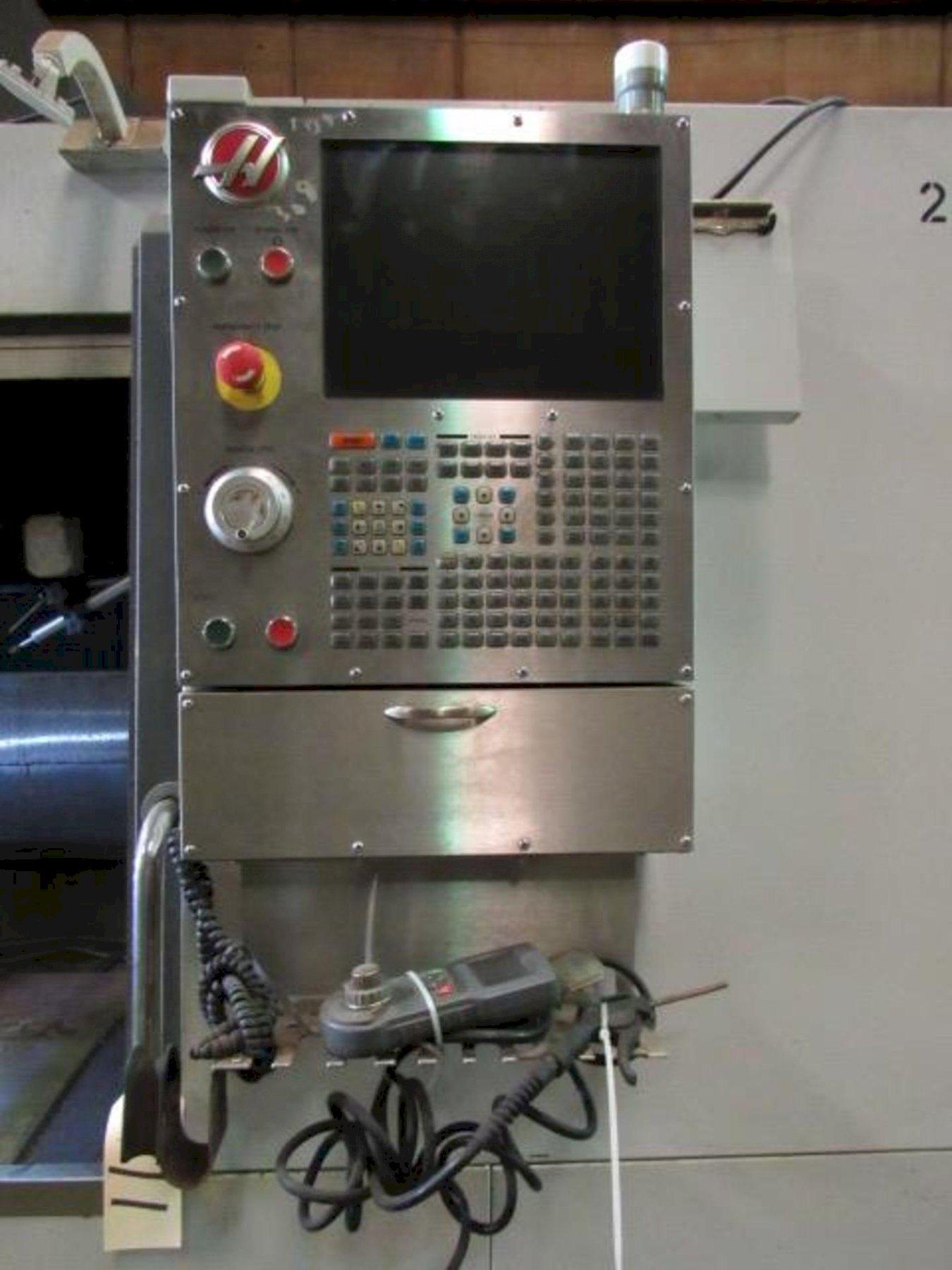

CNC Control
yes
Control Type
Haas
# Axis
4
Table Size
64" x 28"
Table Capacity
4,000 pounds
X-Axis Travel
64"
Y-Axis Travel
32"
Z-Axis Travel
38"
Rapid Traverse Rate (X/Y/Z)
600 ipm
Spindle Taper
CAT 50
Spindle Speed
7,500 rpm
Main Motor
30 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Gear Box
yes
Machine Dimensions
195" x 102" x 139"
Machine Weight
26,000 pounds

Equipped With:

- 4th Axis Ready

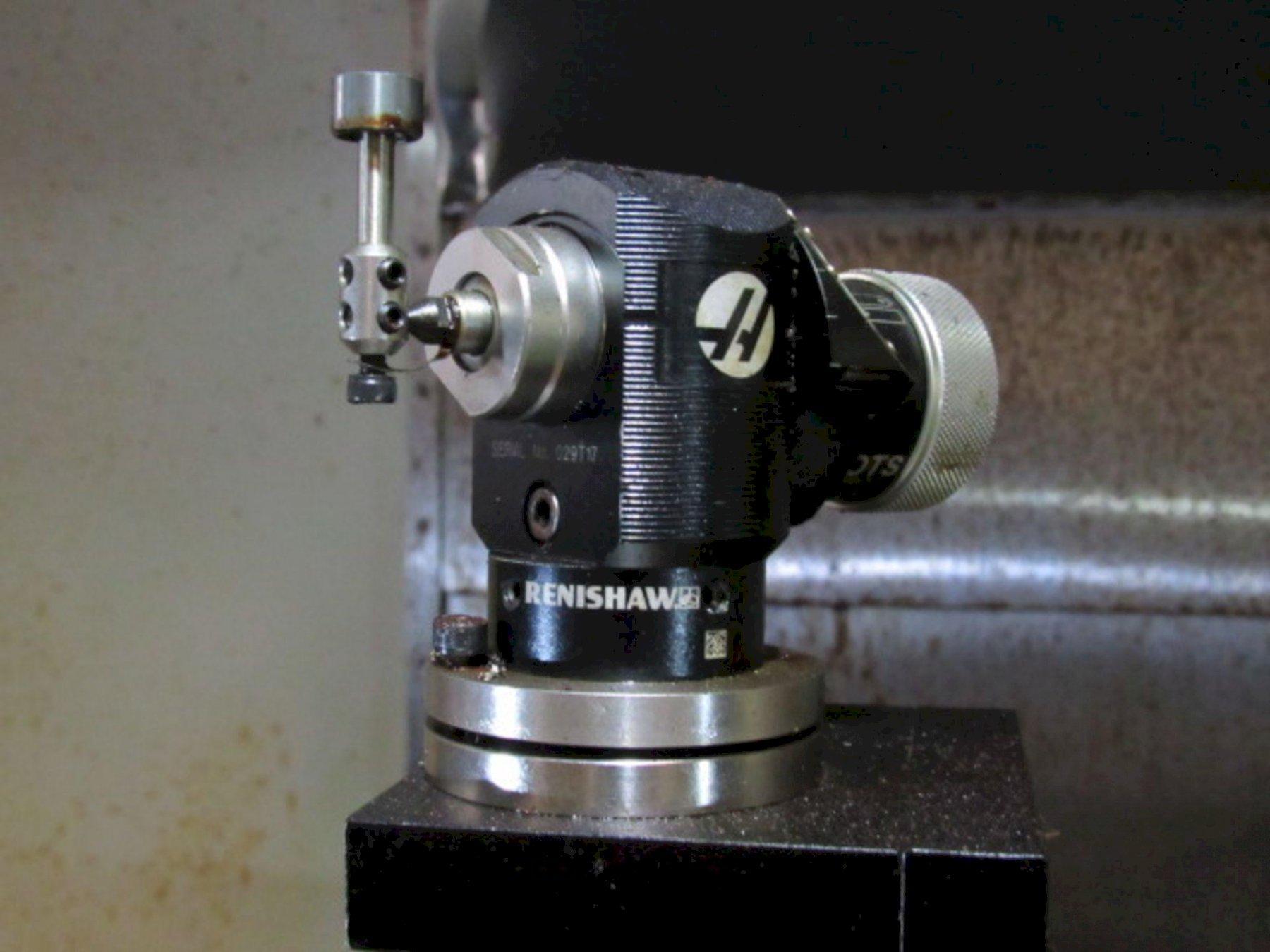

- Wireless Intuitive Probing System
- Probe Riser Block
- Programmable Coolant Nozzle
- Coolant Thru Spindle (300 psi)
- 8" Extended Z-Axis Clearance
- Chip Auger
- Rotation & Scaling
- 32GB Expanded Memory
- 95 Gallon Coolant Tank
- Automatic Air Gun
- Programmable Coolant Nozzle
- 2-Speed Gearbox

The Haas VF-6/50 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
