Haas VF2SS - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VF2SS
Year: 2019
Stock #: 3967 Sold
Highlights:

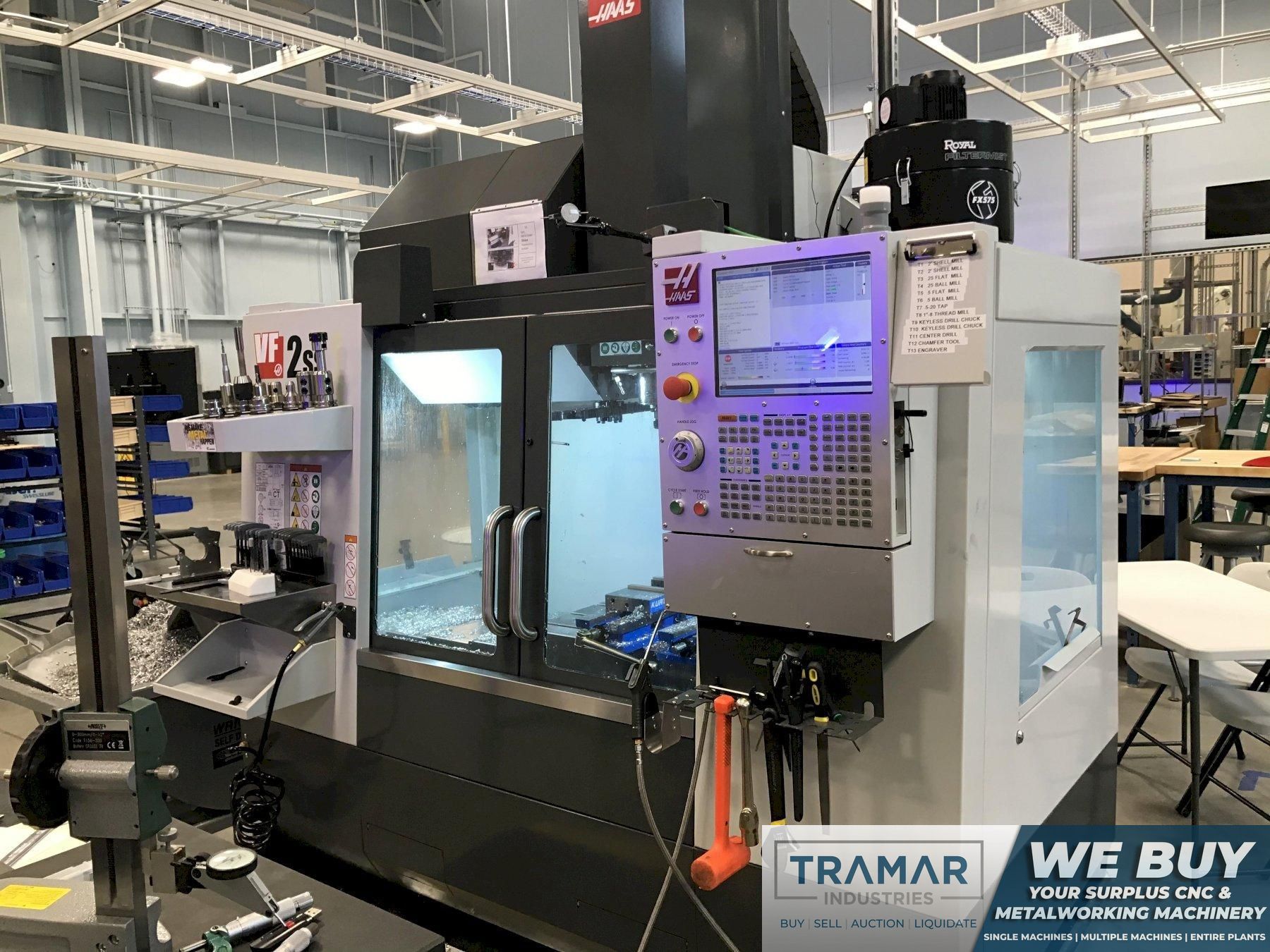

Haas VF2SS CNC Vertical Machining Center, 12K Spindle, 30
Machine Specifications
X-Axis Travel
30"
Y-Axis Travel
16"
Z-Axis Travel
20"
Max Distance Spindle To Table Top
24"
Spindle Speed
12,000
Spindle Taper
Cat 40
Main Motor
30 HP
X-Axis Rapid Traverse Rate
1,400 ipm
Y-Axis Rapid Traverse Rate
1,400 ipm
Z-Axis Rapid Traverse Rate
1,400 ipm
Weight
7,800 pounds
Control Type
Haas
# Axis
4
Table Size
36" x 14"
Table Capacity
1,500 pounds
Power-On Hours
4,496
Cutting Hours
291

Equipped With:

Visual Part Programming
User Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
Wifi
1 GB Program Memory
USB Port
4th Axis Drive
Wireless Intuitive Probing system
Chip Auger
High Speed Machining
Internal High Voltage Transformer (380v-480v)
Ethernet
Rigid Tapping
Mist Collector
Haas HA5C Indexer Available for extra cost

The Haas VF2SS is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
