Kitamura MyCenter 3XiF - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: MyCenter 3XiF
Year:
Stock #: 13408
Highlights:

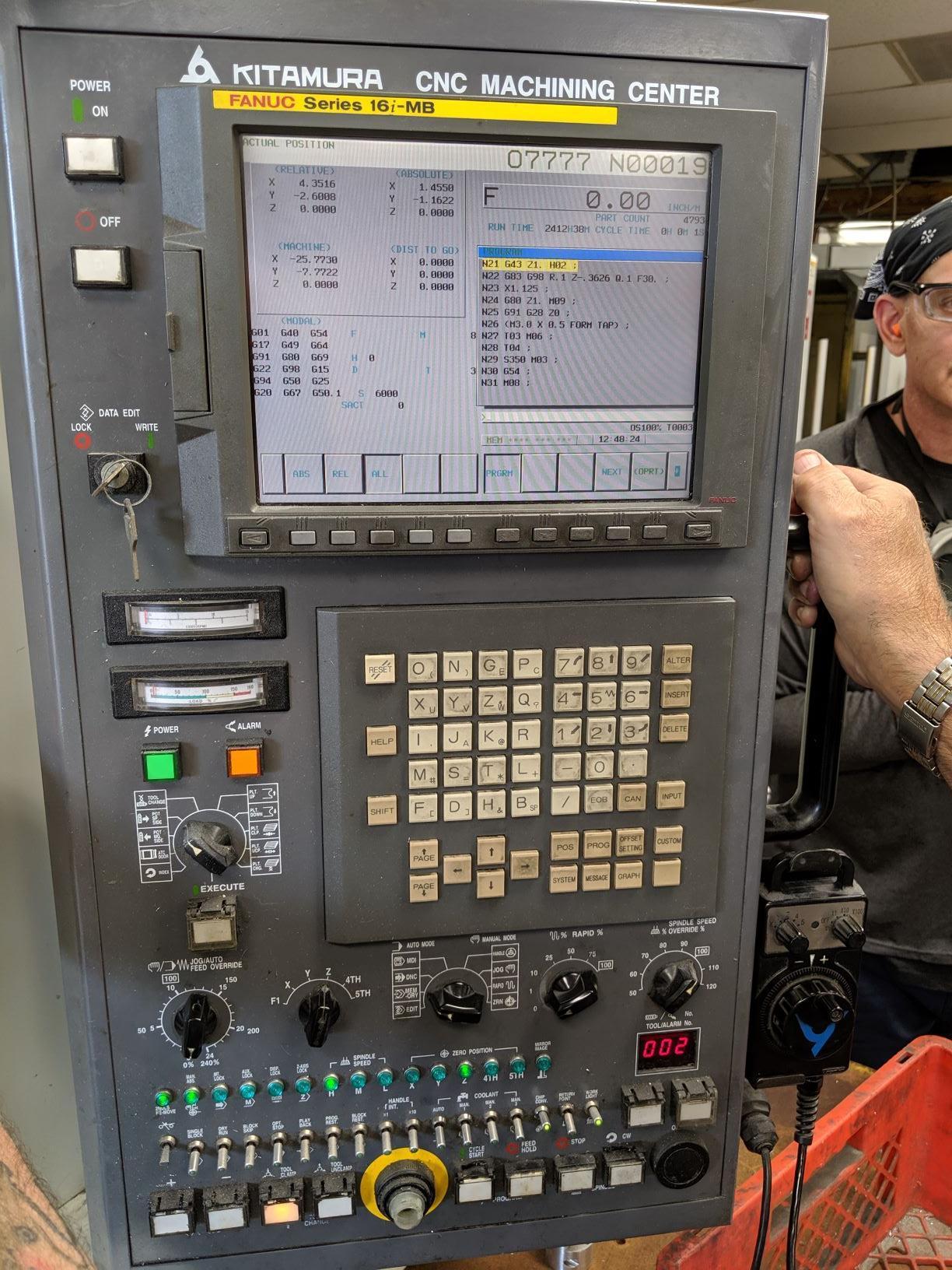

Fanuc 16i-MB Control
Table Size: 35.4" x 16.1
Travels (X/Y/Z): 30"/17.9"/18.1"
CAT 40 | 10,000 rpm | 20 hp
30 Station Tool Changer

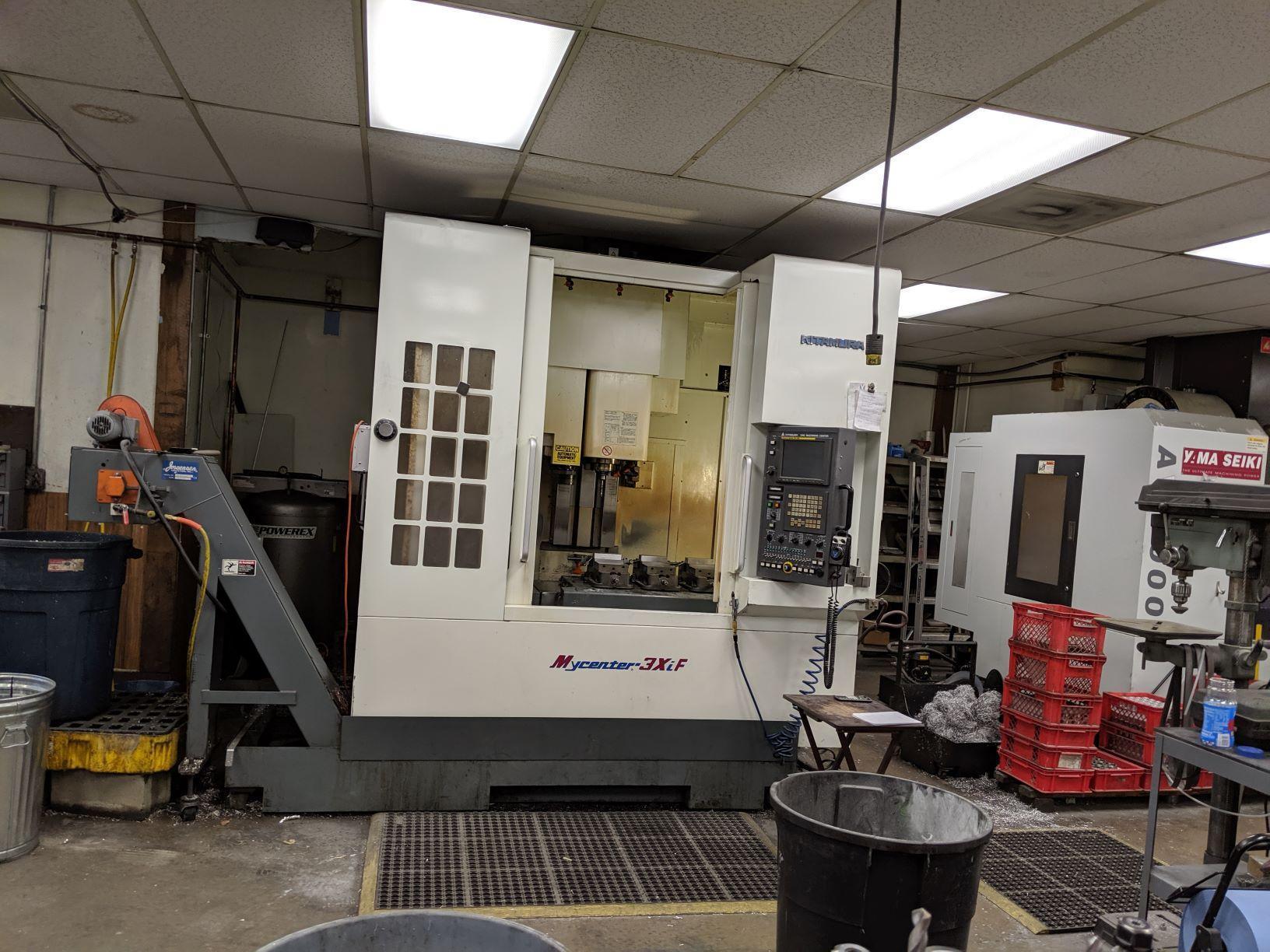

Kitamura MyCenter 3XiF Vertical Machining Center
Machine Specifications
Year
Control Type
Fanuc 16i-MB
# Axis
3
Table Size
35.4" x 16.1
Table Capacity
1,100 pounds
X-Axis Travel
30"
Y-Axis Travel
17.9"
Z-Axis Travel
18.1"
Rapid Traverse Rate (X/Y/Z)
1,969/1,969/1,417 ipm
Spindle Taper
CAT 40
Spindle Speed
10,000 rpm
Main Motor
20 hp
Tool Changer Capacity
30
Machine Dimensions
106" x 98" x 119"
Machine Weight
1,500 pounds

Equipped With:

- Fanuc 16i-MB Control
- Coolant Tank & Pump
- Remote Hand Held MPG
- Chip Conveyor

*** PRICE IS PRIOR TO REMOVAL ***

The Kitamura MyCenter 3XiF is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
