Kitamura MyCenter HX400iF - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: MyCenter HX400iF
Year: 2006
Stock #: 13459
Highlights:

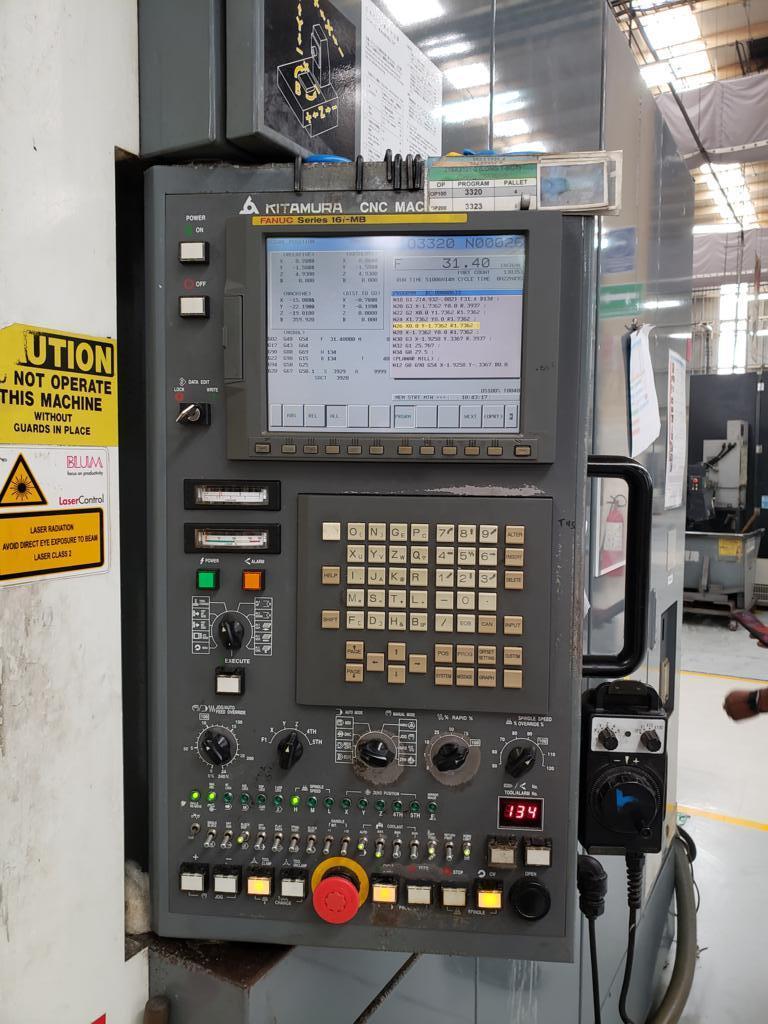

Fanuc 16i-MB Control
Pallet Size: 15.7" x 15.7" | Full B Axis 0.001°
Travels (X/Y/Z): 28.9" | 24" | 24"
BT 40 Big Plus | 13,000 rpm | 150 Station ATC
High Pressure Coolant Thru Spindle

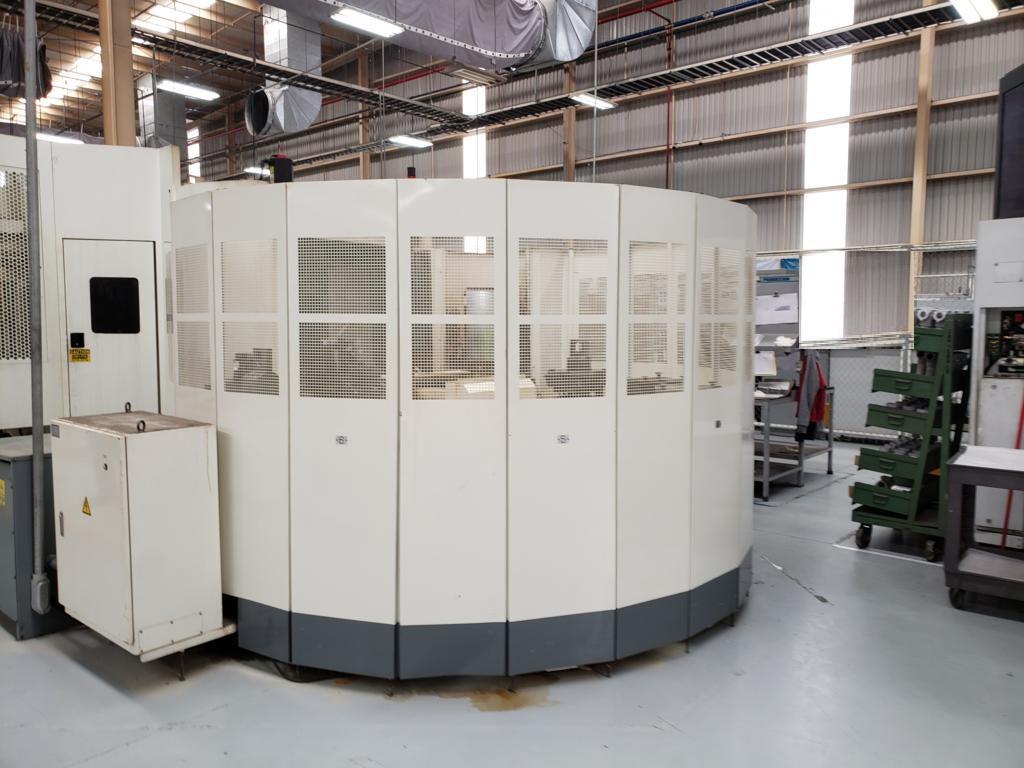

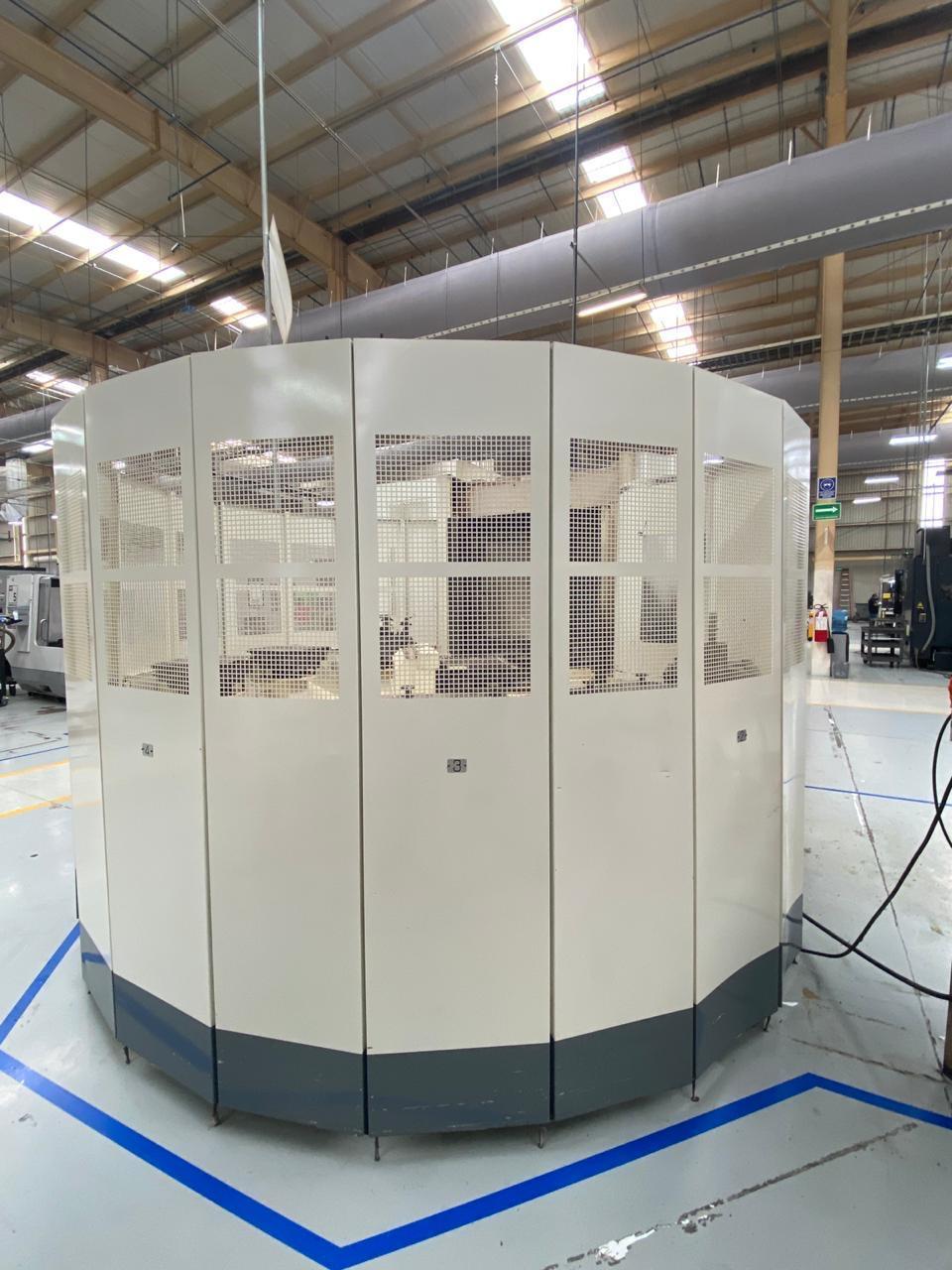

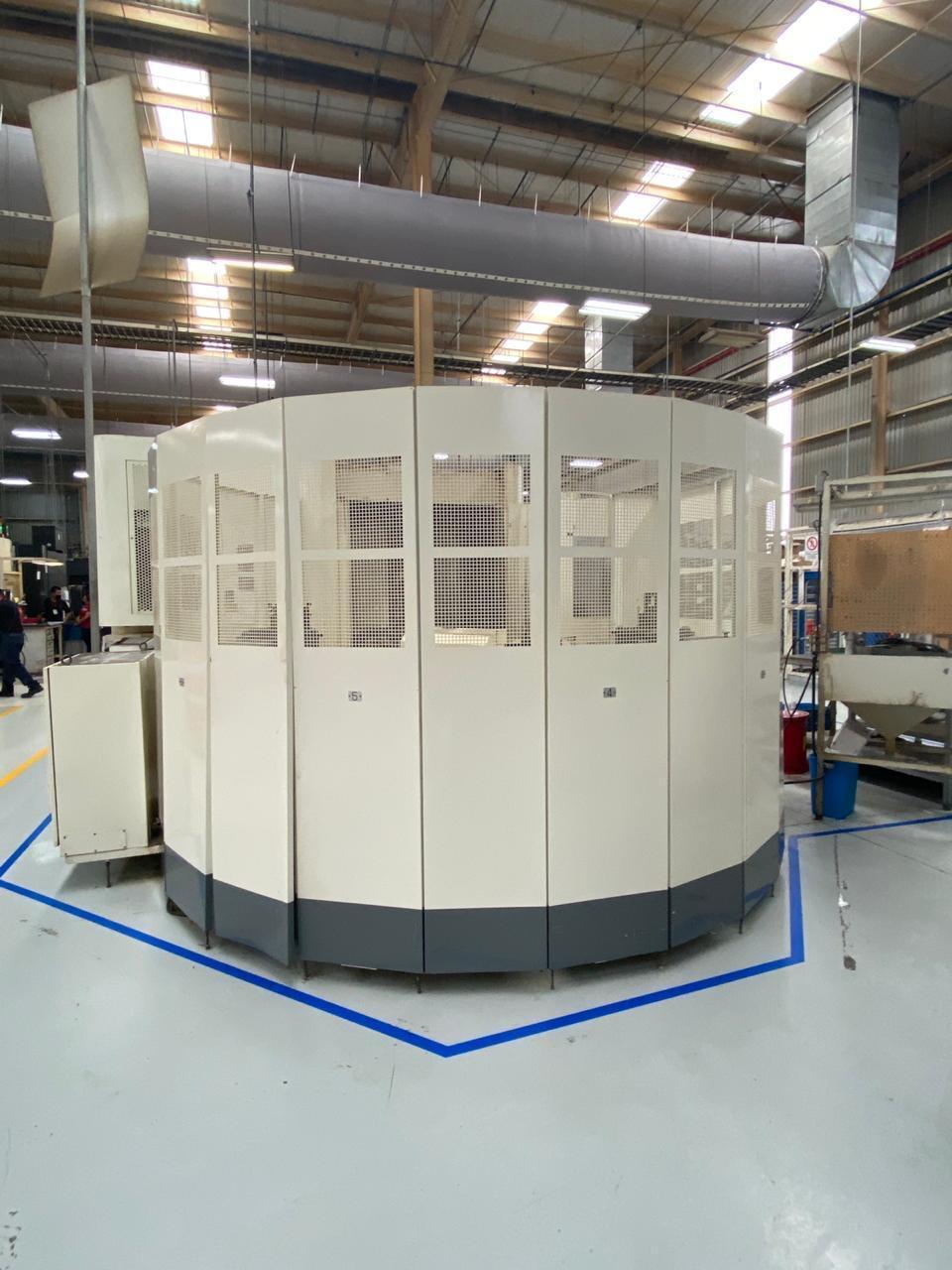

8 Station Pallet Pool

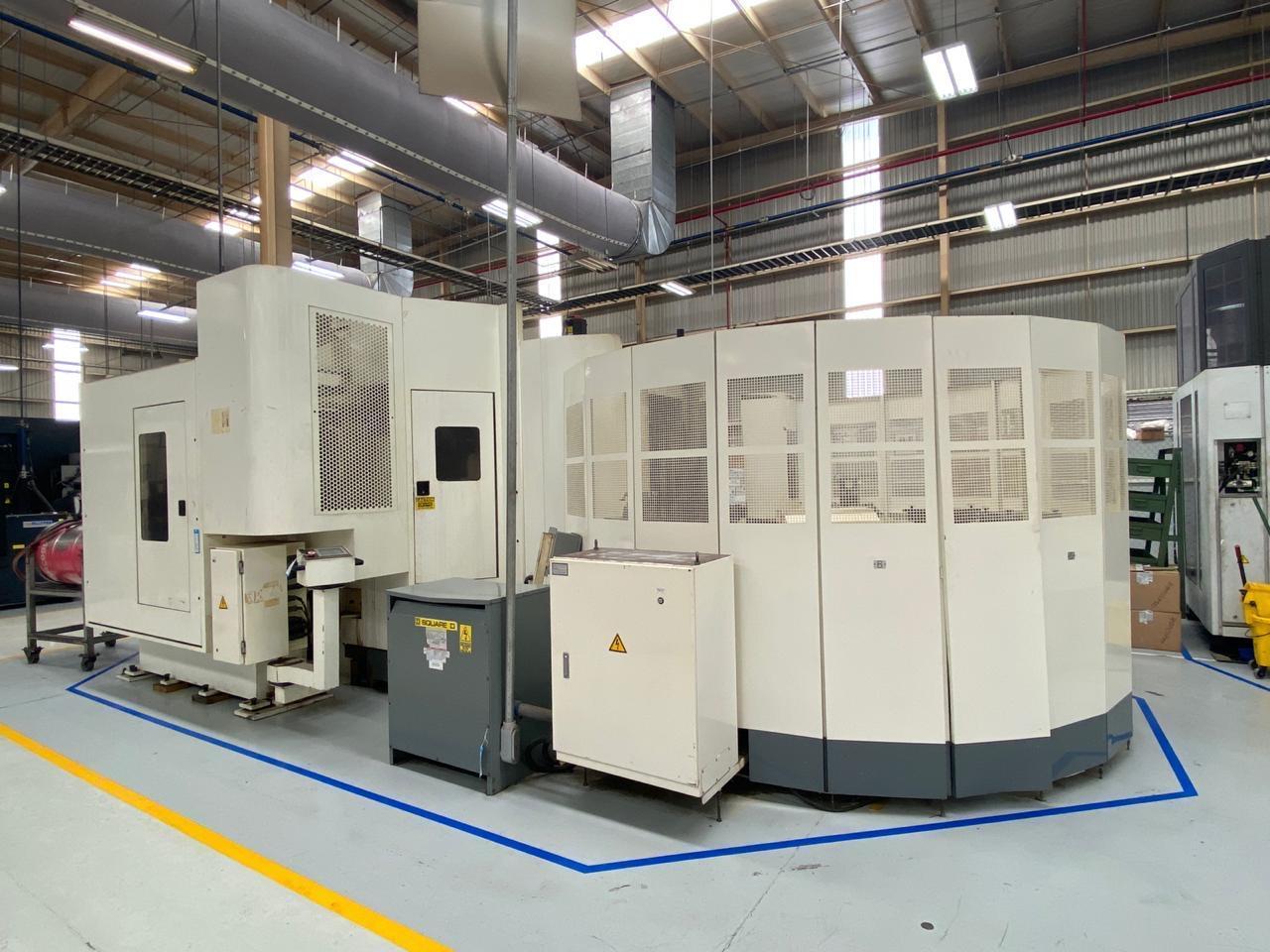

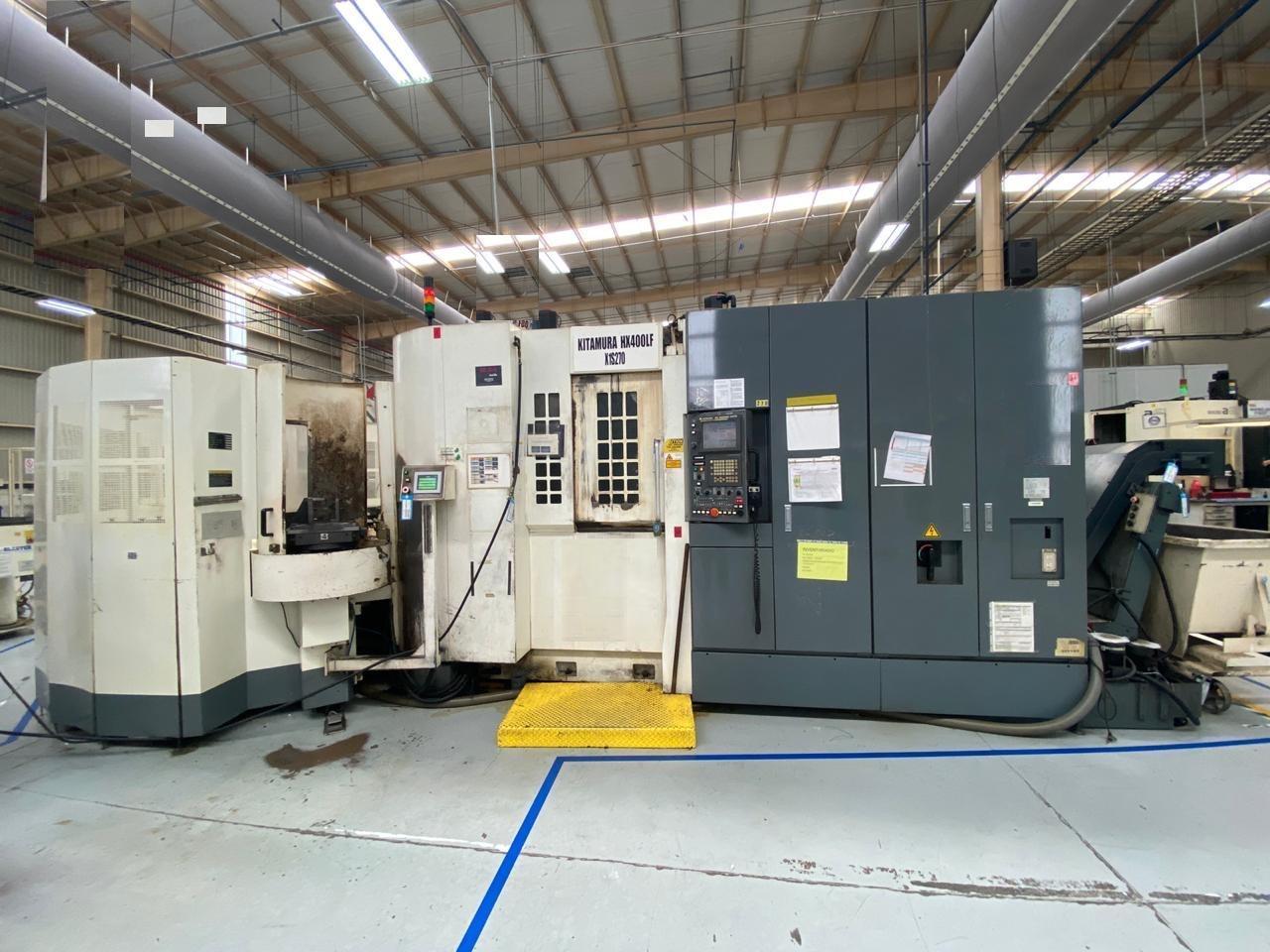

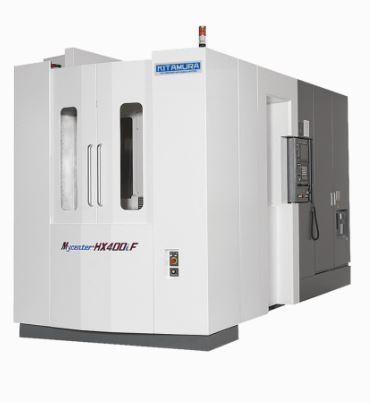

Kitamura MyCenter HX400iF CNC Horizontal Machining Center
Machine Specifications
Year
2006
Control Type
Fanuc 16i-MB
# Axis
4
Pallet Length
15.7"
Pallet Width
15.7"
Pallet Capacity
880 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.9"
Y-Axis Travel
24"
Z-Axis Travel
24"
Rapid Traverse Rate (X/Y/Z)
1,969 ipm
Spindle Taper
BT 40 Big Plus
Spindle Speed
13,000 rpm
Spindle Motor (HP)
20 hp

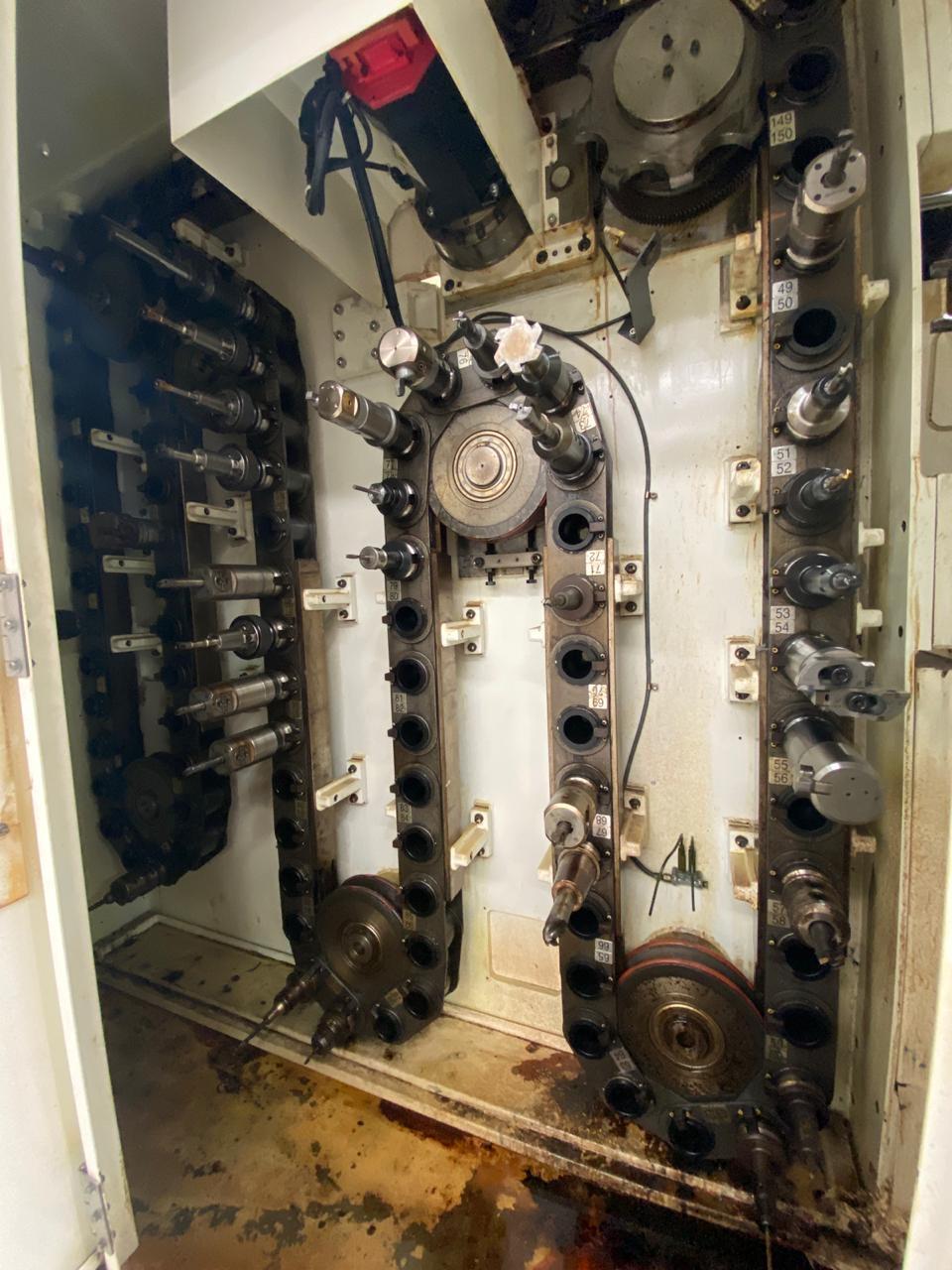

Tool Changer Capacity
150
Coolant Through Spindle
yes
Machine Dimensions
160" x 120" x 108"
Machine Weight
22,000 pounds

Equipped With:

- Fanuc 16i-MB Control
- Chip Conveyor
- Coolant Tank & Pumps
- Cooljet High Pressure Coolant Thru Spindle
- 8 Station Pallet Pool

The Kitamura MyCenter HX400iF is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
