Kitamura MyCenter HX630i - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: MyCenter HX630i
Year: 2008
Stock #: 13463
Highlights:

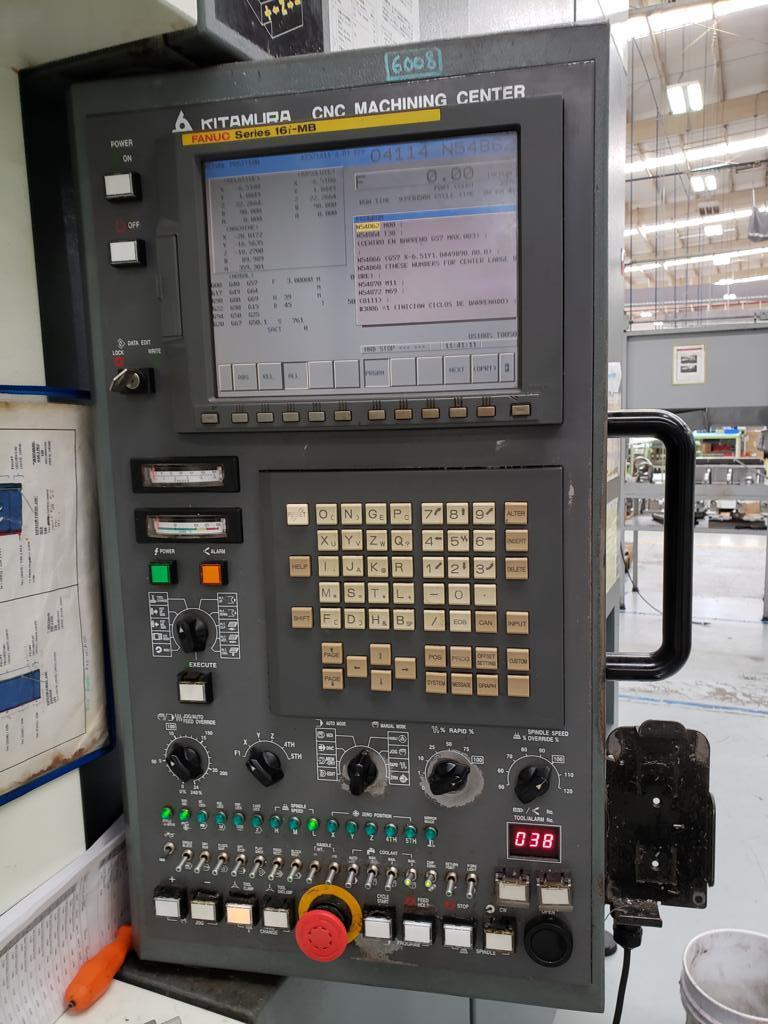

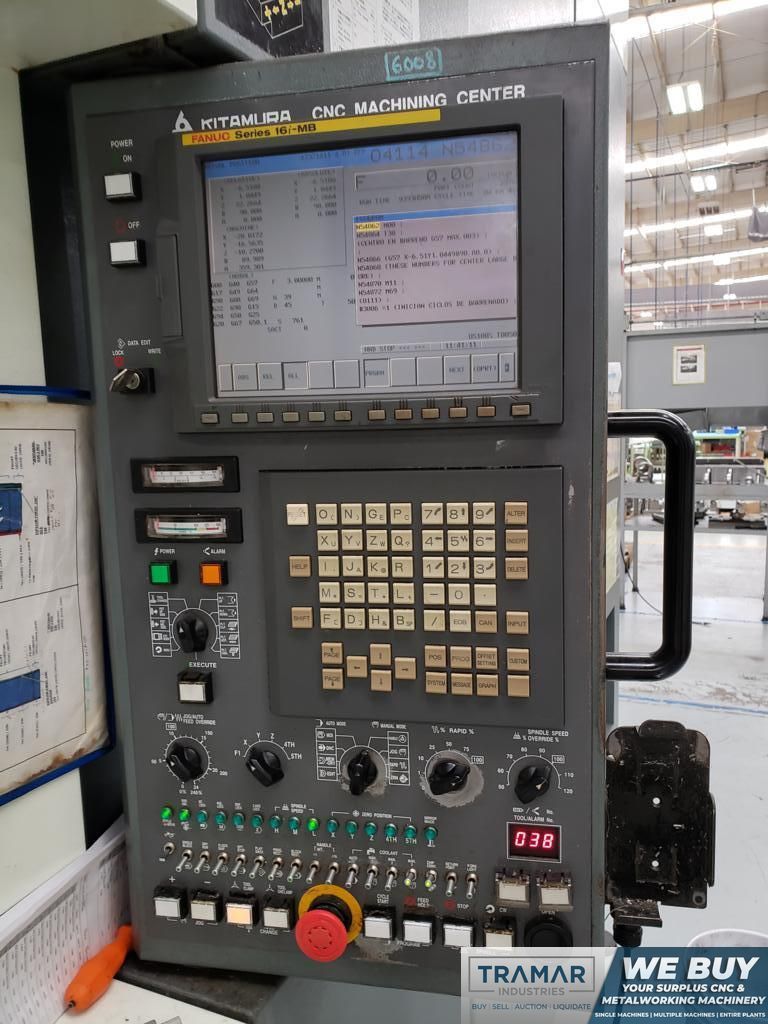

Fanuc 16i-MB Control
Pallet Size: 24.8" x 24.8" | Full B Axis 0.001°
Travels (X/Y/Z): 43.3" | 36.2" | 41.3"
CAT 50 | 5,000 rpm | 53 hp | 50 Station ATC
High Pressure Coolant Thru Spindle

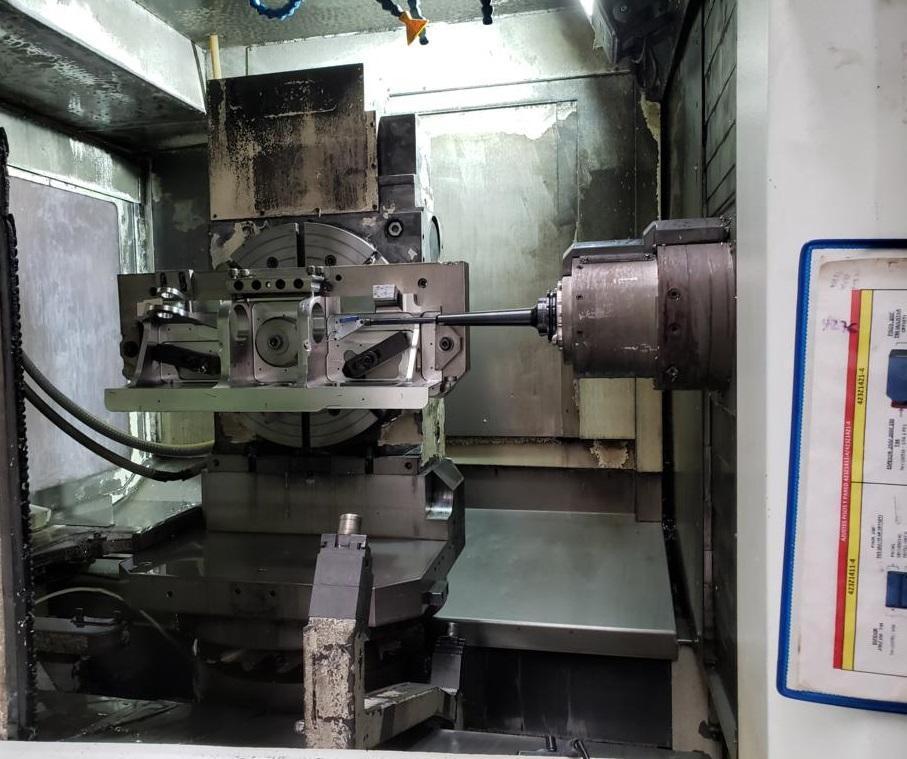

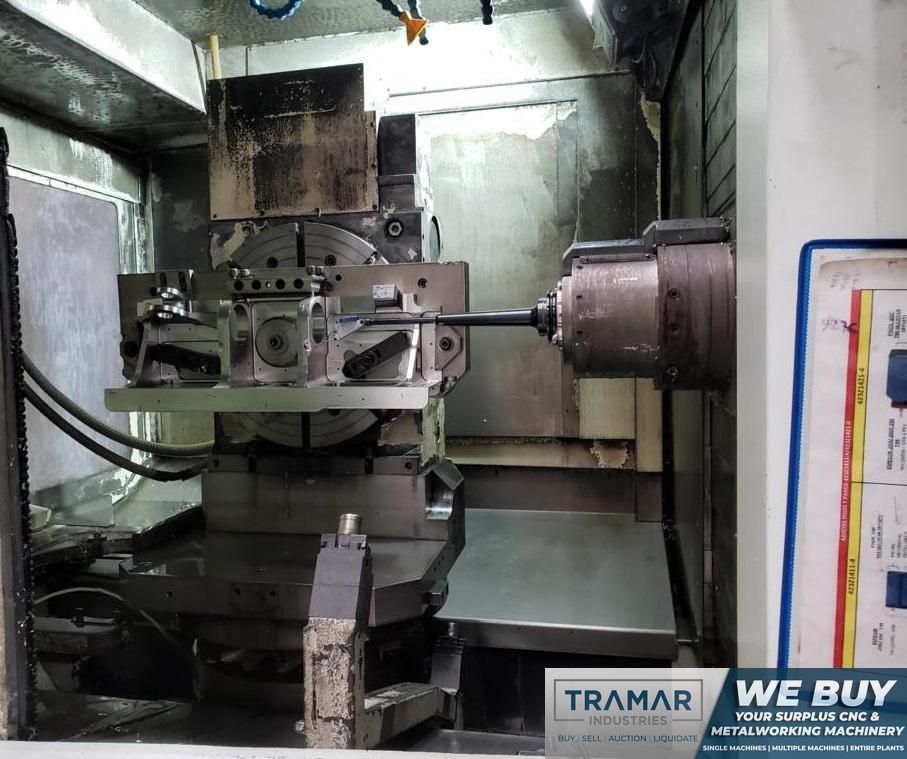

Tsudakoma RB500K Rotary Table

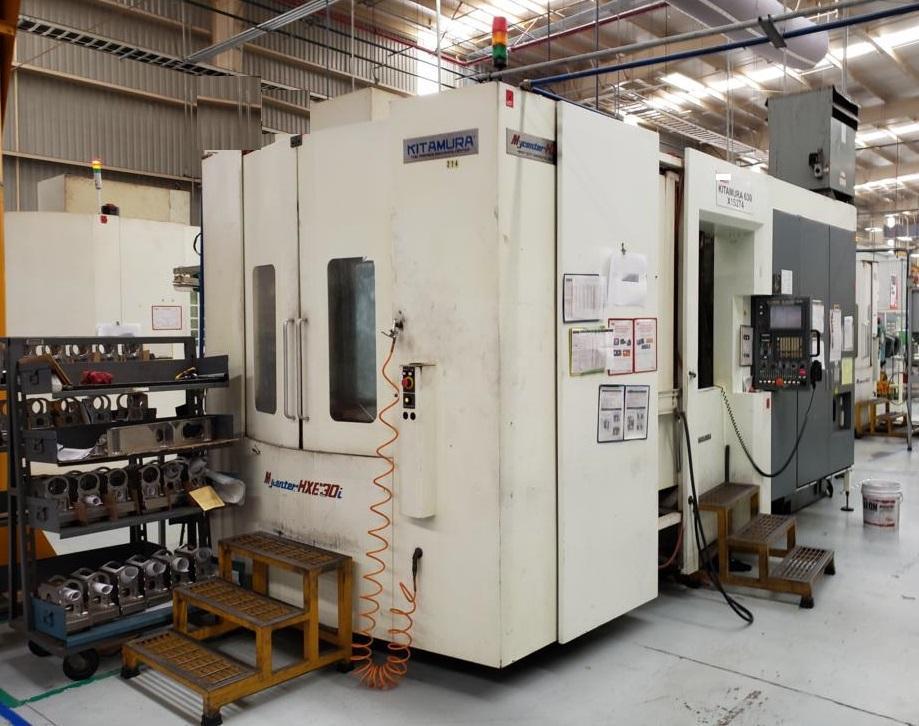

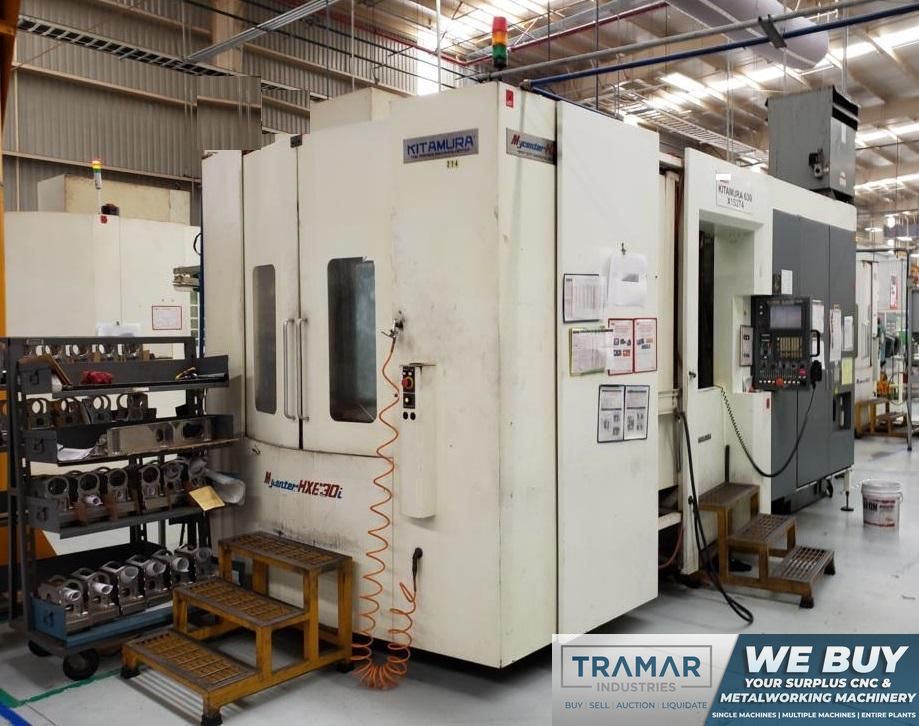

Kitamura MyCenter HX630i CNC Horizontal Machining Center
Machine Specifications
Year
2008
Control Type
Fanuc 16i
# Axis
5
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Capacity
3,300 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
43.3"
Y-Axis Travel
36.2"
Z-Axis Travel
41.3"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 50
Spindle Speed
5,000 rpm
Spindle Motor (HP)
53 hp
Tool Changer Capacity
50
Coolant Through Spindle
yes
Machine Dimensions
227" x 161" x 139"
Machine Weight
46,200 pounds

Equipped With:

- Fanuc 16i-Model B Control

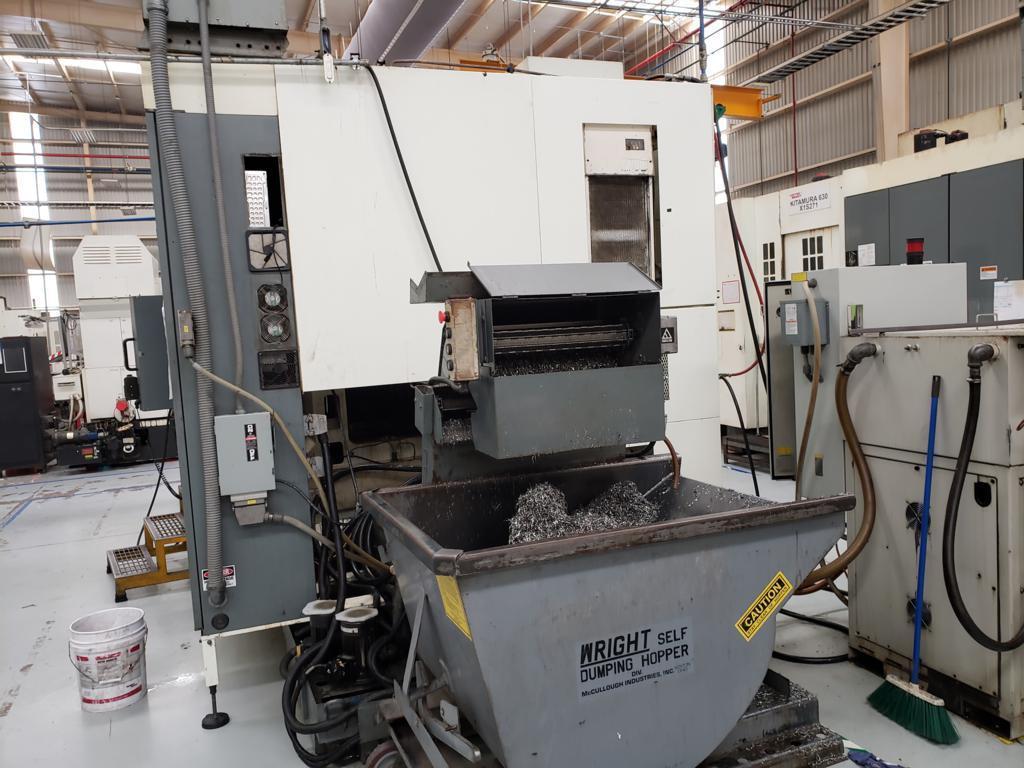

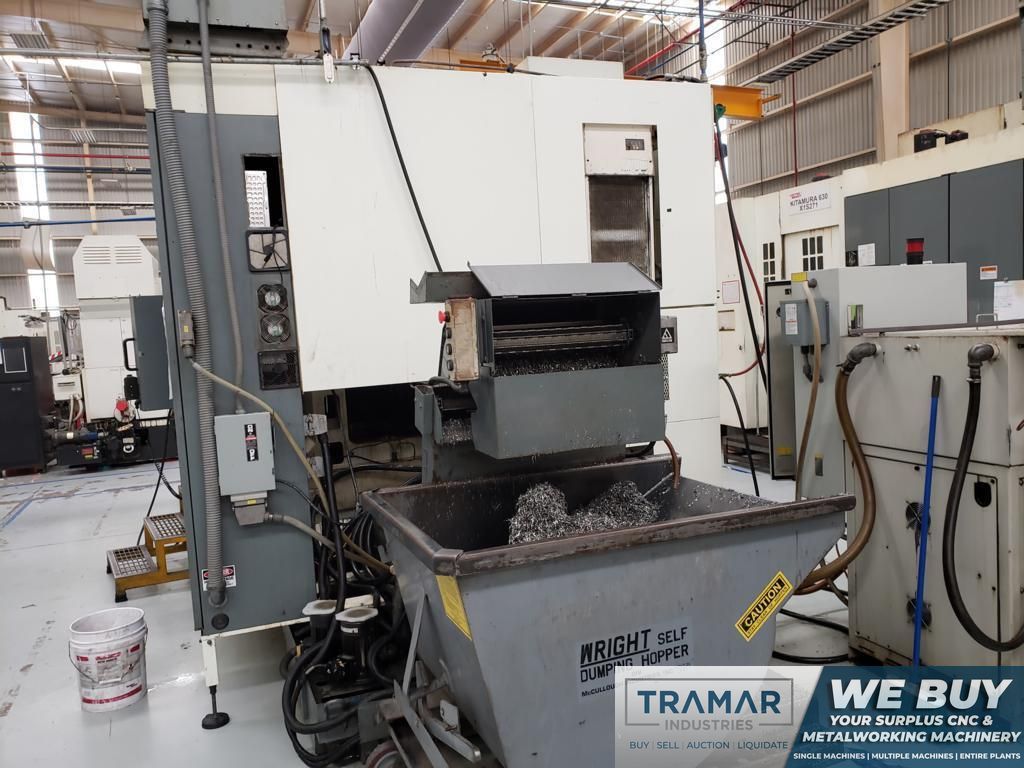

- Chip Conveyor
- Coolant Tank & Pumps

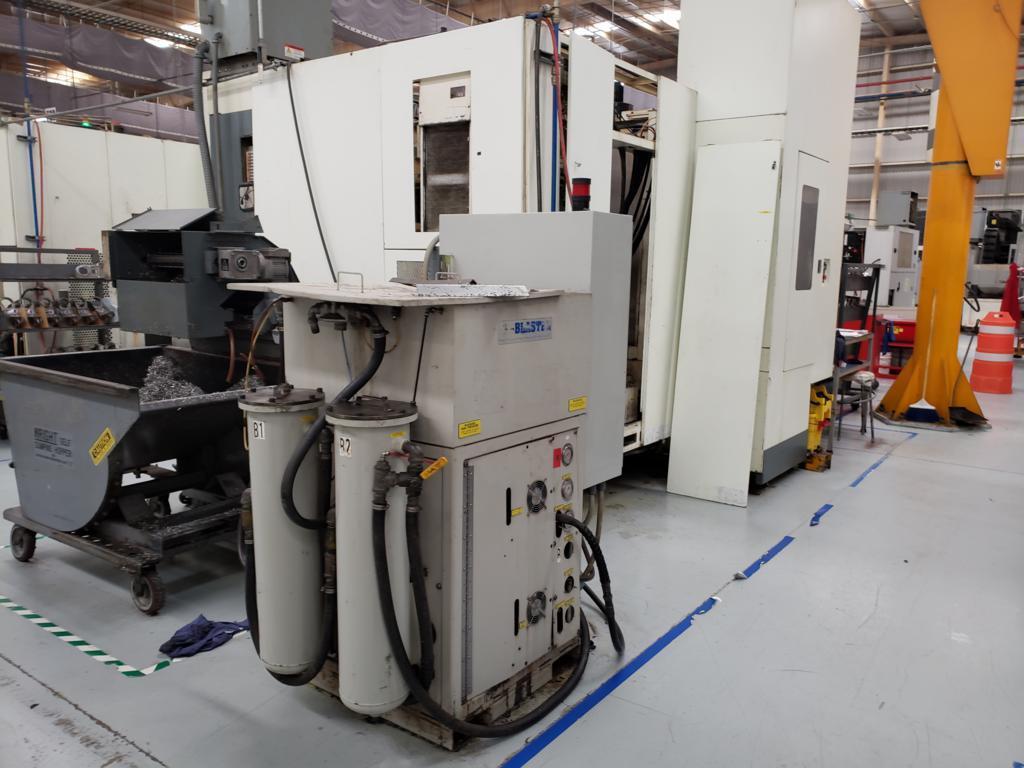

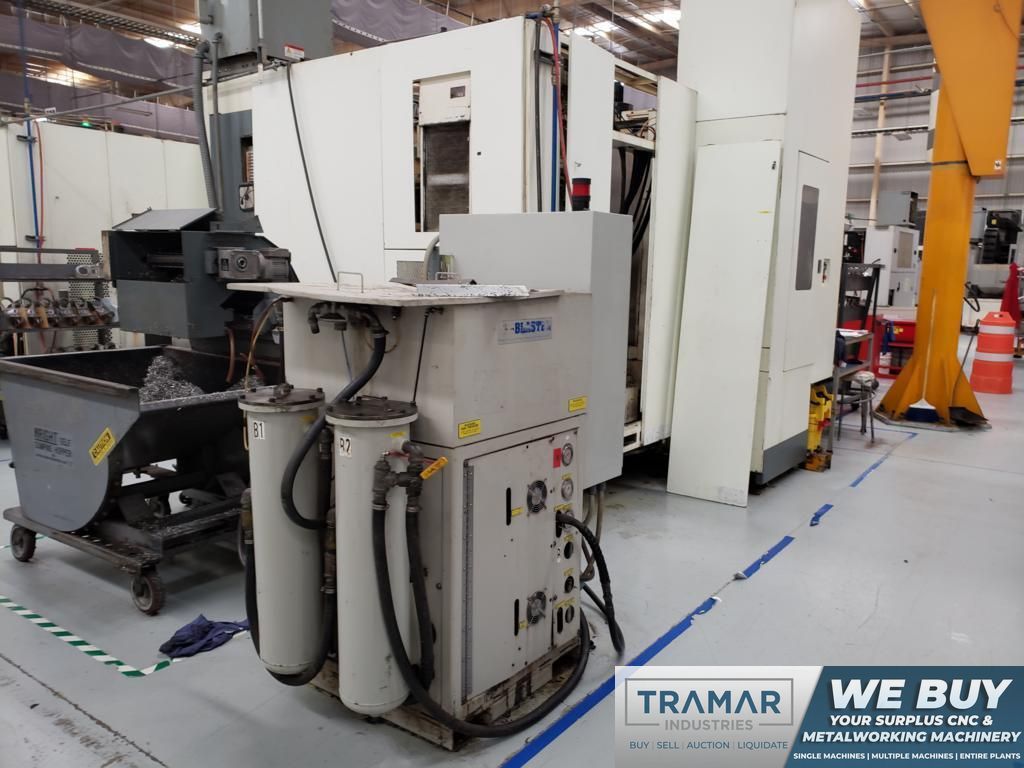

- Cooljet High Pressure Coolant Thru Spindle
- Tsudakoma RB500K Rotary Table
- Renishaw Probing

The Kitamura MyCenter HX630i is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
