Kitamura MyCenter HX630iTGA - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: MyCenter HX630iTGA
Year: 2013
Stock #: 13457
Highlights:
Fanuc 30i-Model B Control
Pallet Size: 24.8" x 24.8" | Full B Axis 0.001°
Travels (X/Y/Z): 43.3" | 36.2" | 41.3"
CAT 50 | 8,000 rpm | 53 hp | 50 Station ATC
High Pressure Coolant Thru Spindle

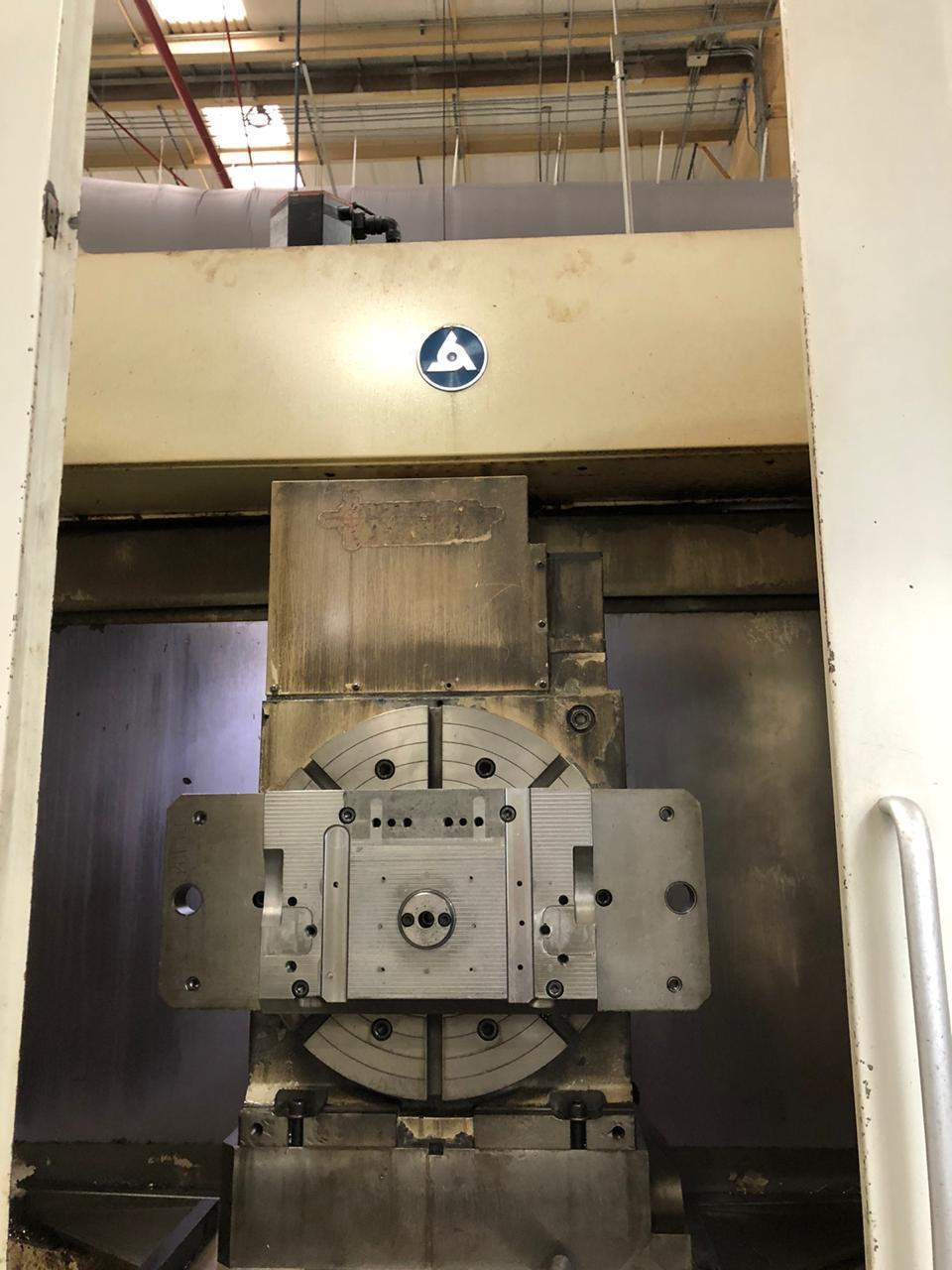

Tsudakoma RB500K Rotary Table

Kitamura MyCenter HX630i TGA CNC Horizontal Machining Center
Machine Specifications
Year
2013
Control Type
Fanuc 30i
# Axis
5
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Capacity
3,300 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
43.3"
Y-Axis Travel
36.2"
Z-Axis Travel
41.3"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Spindle Motor (HP)
53 hp
Tool Changer Capacity
50
Coolant Through Spindle
yes
Machine Dimensions
227" x 161" x 139"
Machine Weight
46,200 pounds

Equipped With:

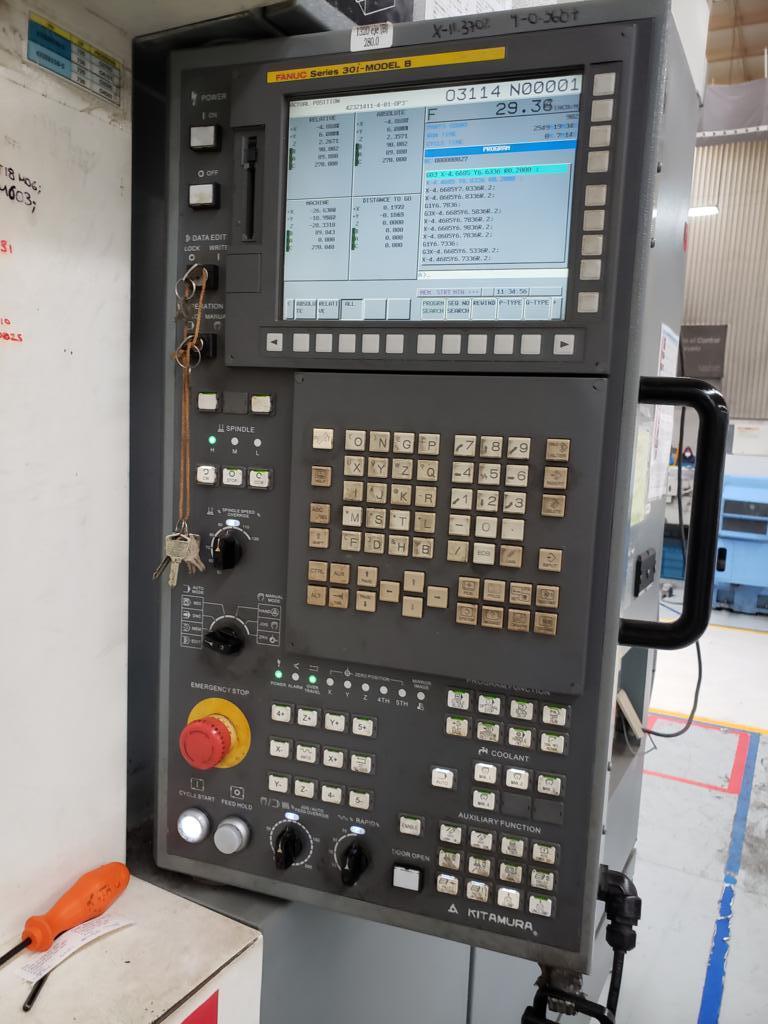

- Fanuc 30i-Model B Control
- Chip Conveyor
- Coolant Tank & Pumps

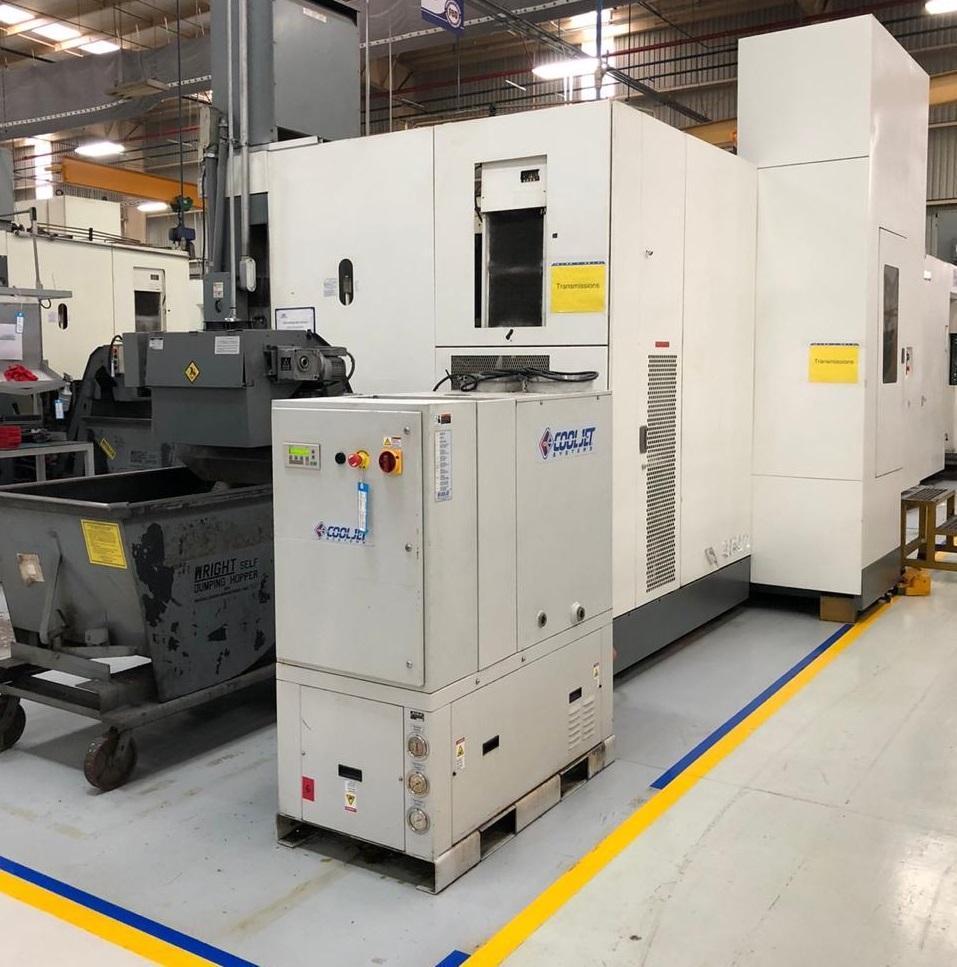

- Cooljet High Pressure Coolant Thru Spindle
- Tsudakoma RB500K Rotary Table
- Renishaw Probing

The Kitamura MyCenter HX630iTGA is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
