Kuraki AKB-13 - Horizontal Boring Mills (Table)

Request Quote
Specifications Print Specs
Model: AKB-13
Year: 2019
Stock #: 36583
Highlights:
Fanuc 0i-MF Control
5.12" Spindle Size
Table Size: 78.74" x 70.87" | Full B Axis 0.001°
Travels (X/Y/Z/W): 157.4"/78.7"/63"/27.5"
CAT 50 Big Plus | 3,000 rpm | 35 hp | 60 Station ATC

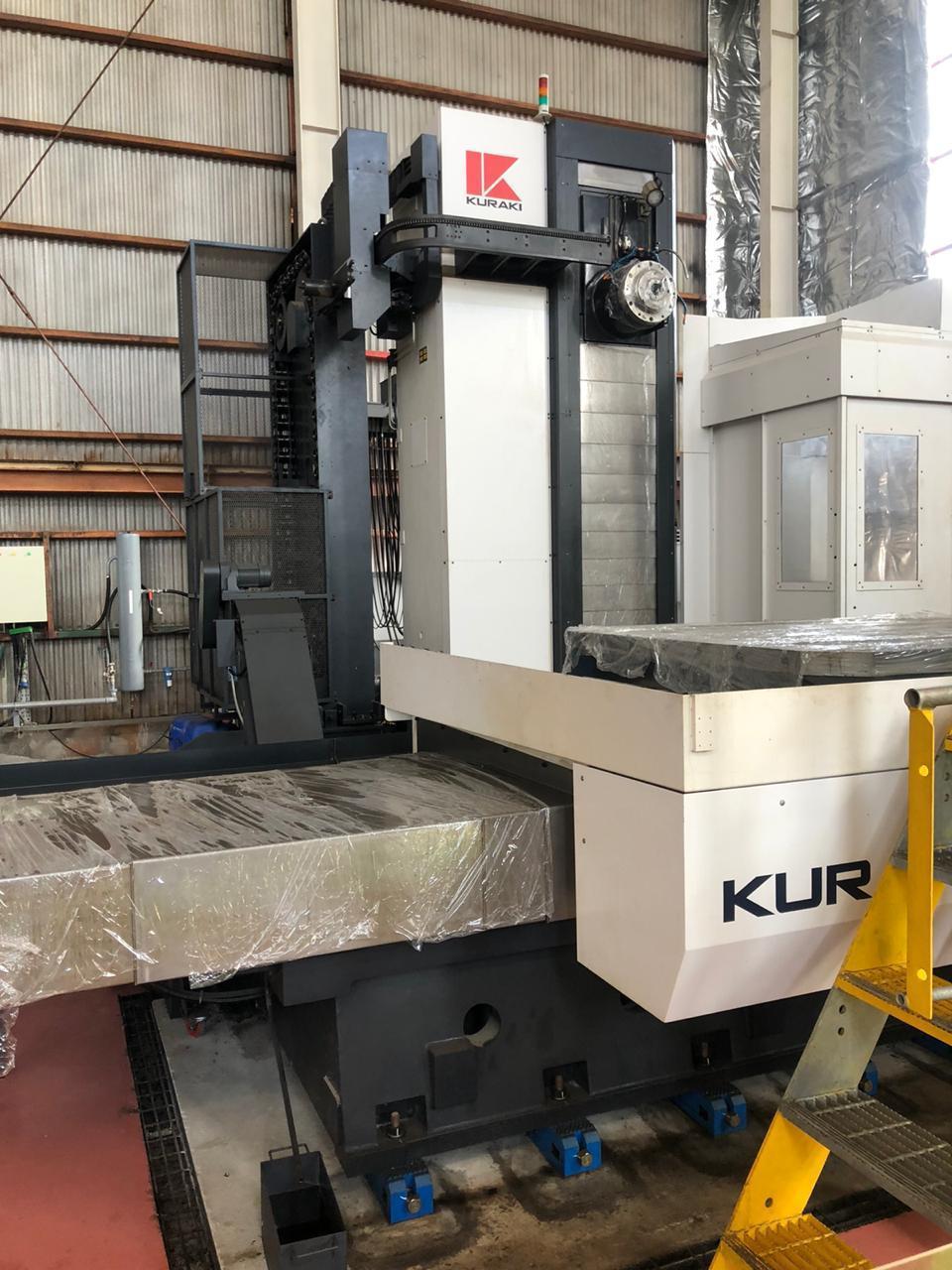

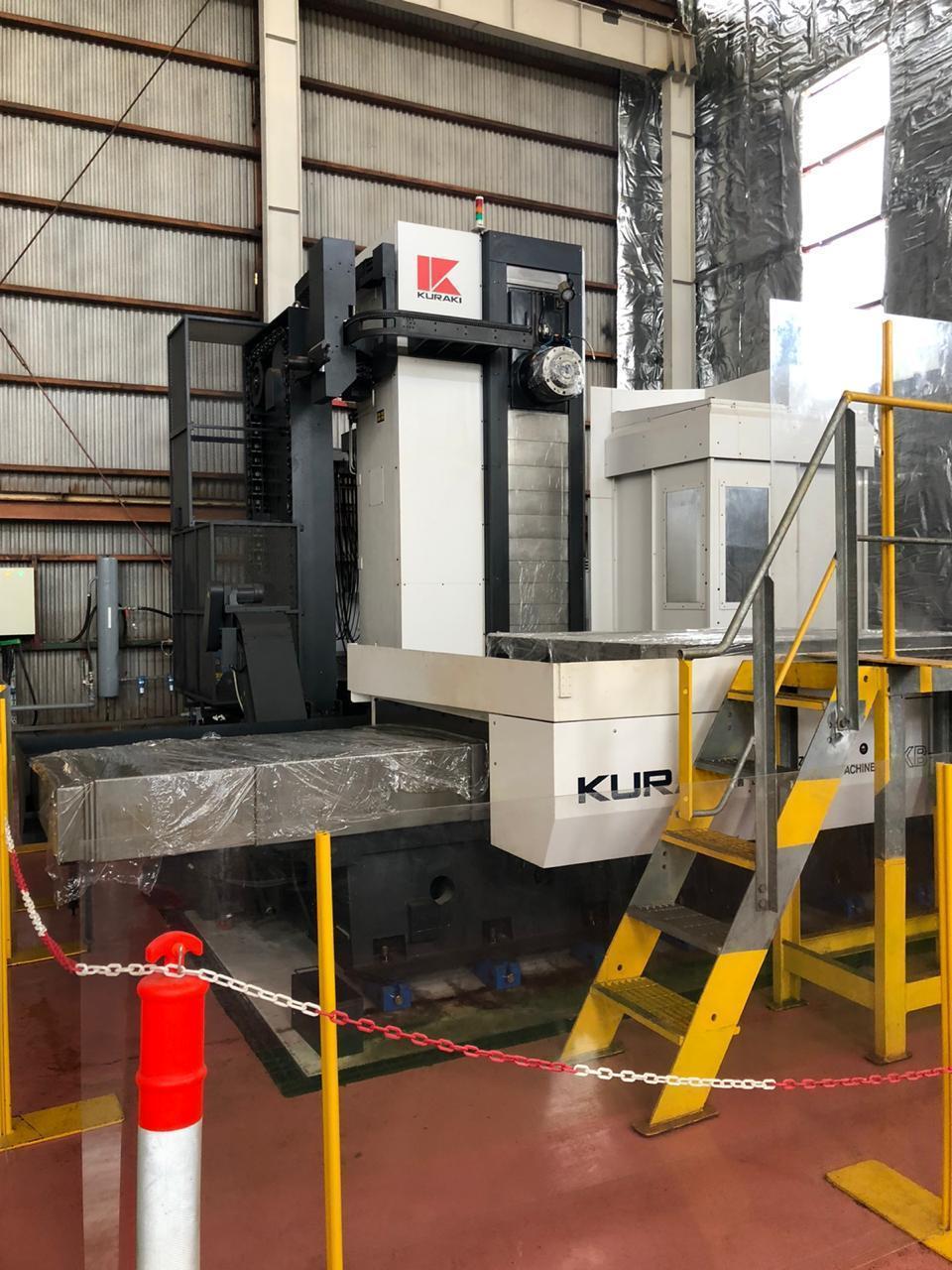

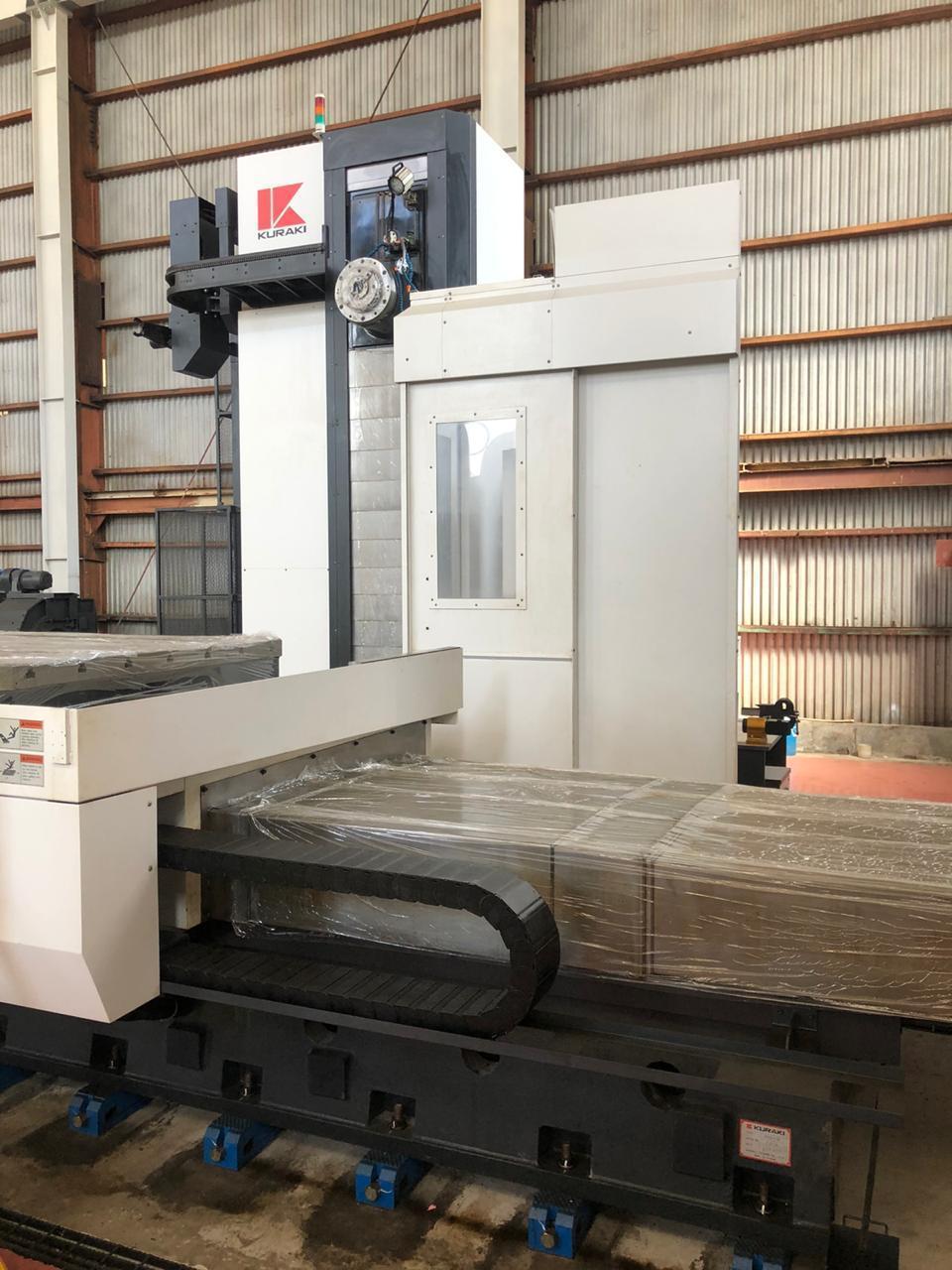

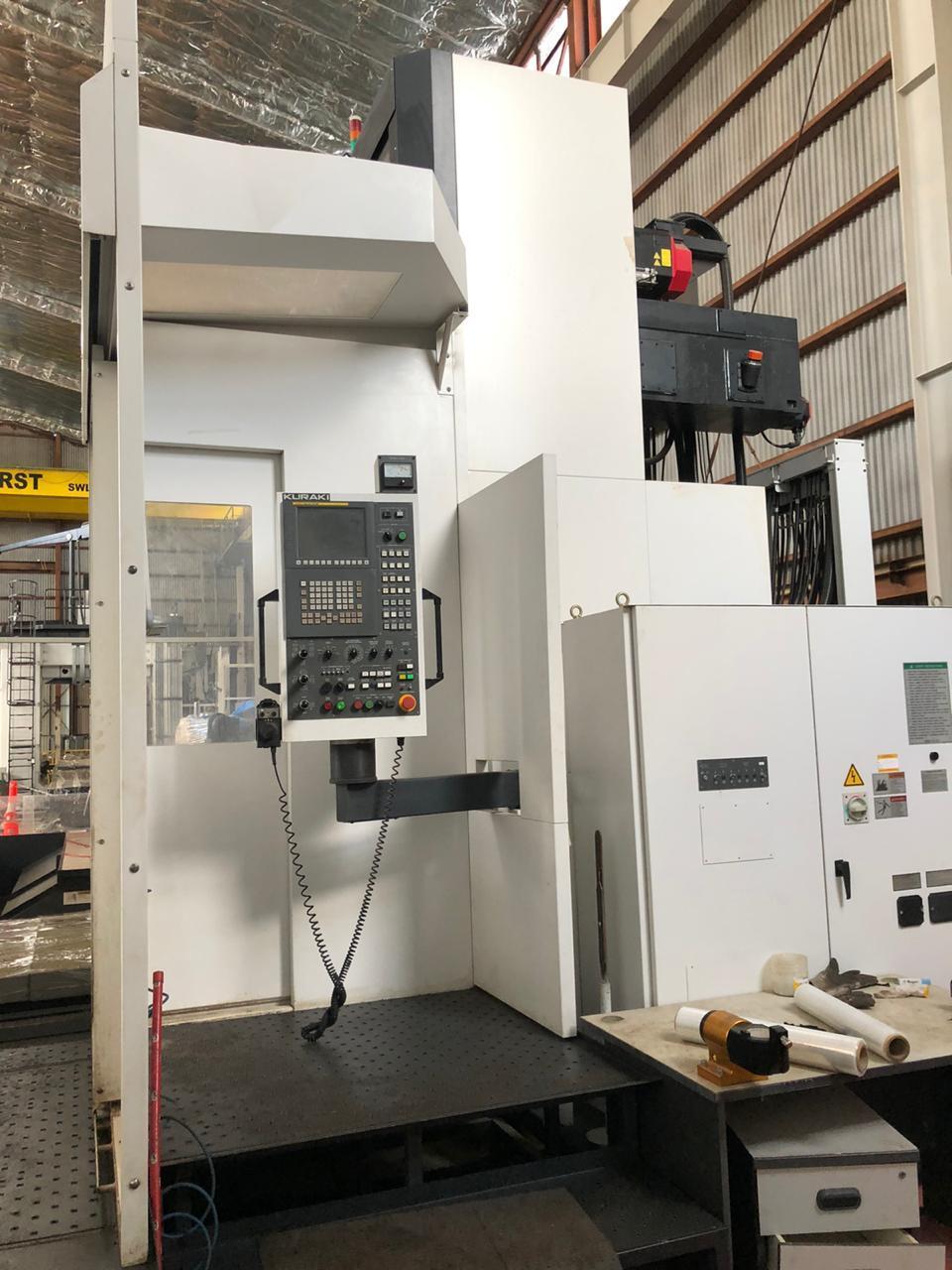

Kuraki AKB-13 CNC Horizontal Boring Mill
Machine Videos
Machine Specifications
Year
2019
Control Type
Fanuc 0i-MF
Spindle Size
5.12"
Table Size
78.74" x 70.87
Max Weight On Table
26,400 pounds
X-Horiz Tvl of Table
157.48"
Y-Vert Tvl of Head
78.74"
Z-Axis Travel
62.99"
W-Axis Travel (Quill)
27.55"
B-Axis (Pallet Indexing)
0.001°
Rapid Traverse Rate (X/Y/Z/W)
394/394/394/394 ipm
Spindle Speed
3,000 rpm
Spindle Motor
35 hp
Spindle Taper
CAT 50
Tool Changer Capacity
60
Coolant Thru Spindle
yes
Dimensions
281" x 278" x 190"
Weight
79,400 pounds

Equipped With:

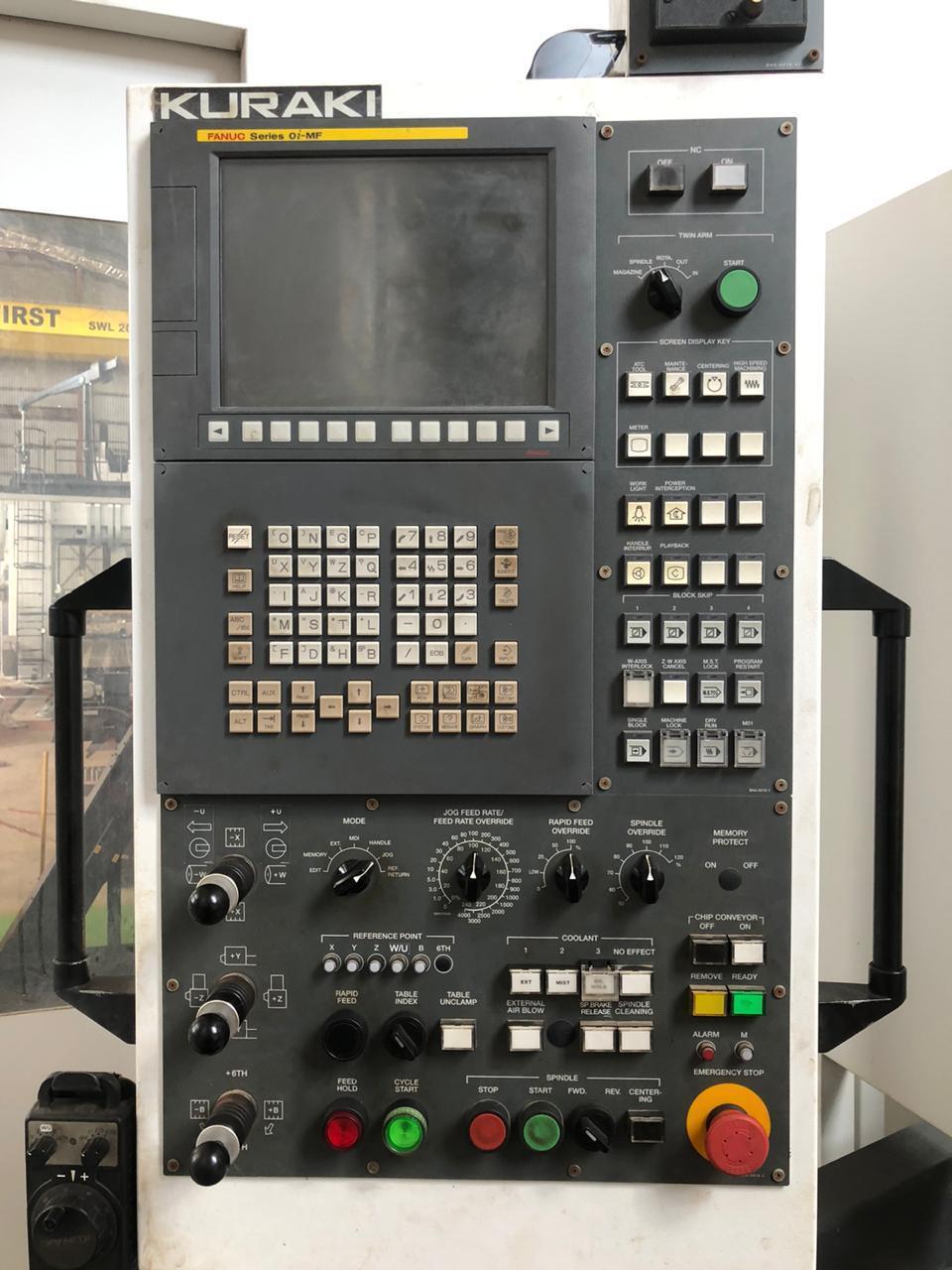

- Fanuc 0i-MF CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Full 4th Axis Contouring
- Coolant Thru Spindle
- Remote Handheld MPG
- Rigid Tapping
- Scale Feedback (X,Y,Z,B)
- Right Angle Head Attachment
- Extended X Axis Travel (157.48")
- Custom Macros (1,000 pcs)

** Video - Click Here **




The Kuraki AKB-13 is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
