Makino A51NX - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: A51NX
Year: 2015
Stock #: 19003
Highlights:

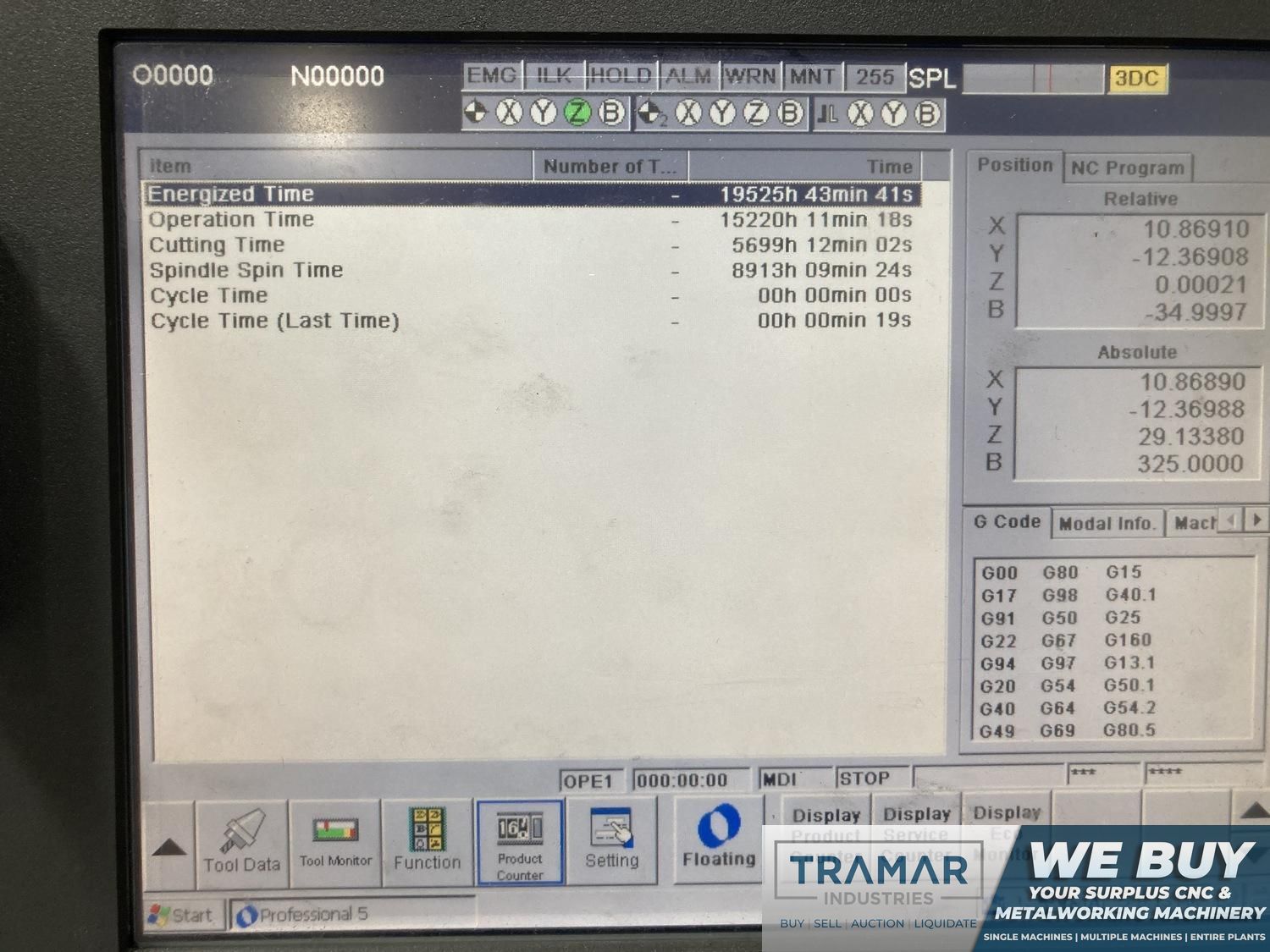

Pro 5 Control (Fanuc)
CAT 40 | 14,000 rpm | 60 Station ATC
300 psi Coolant Thru Spindle

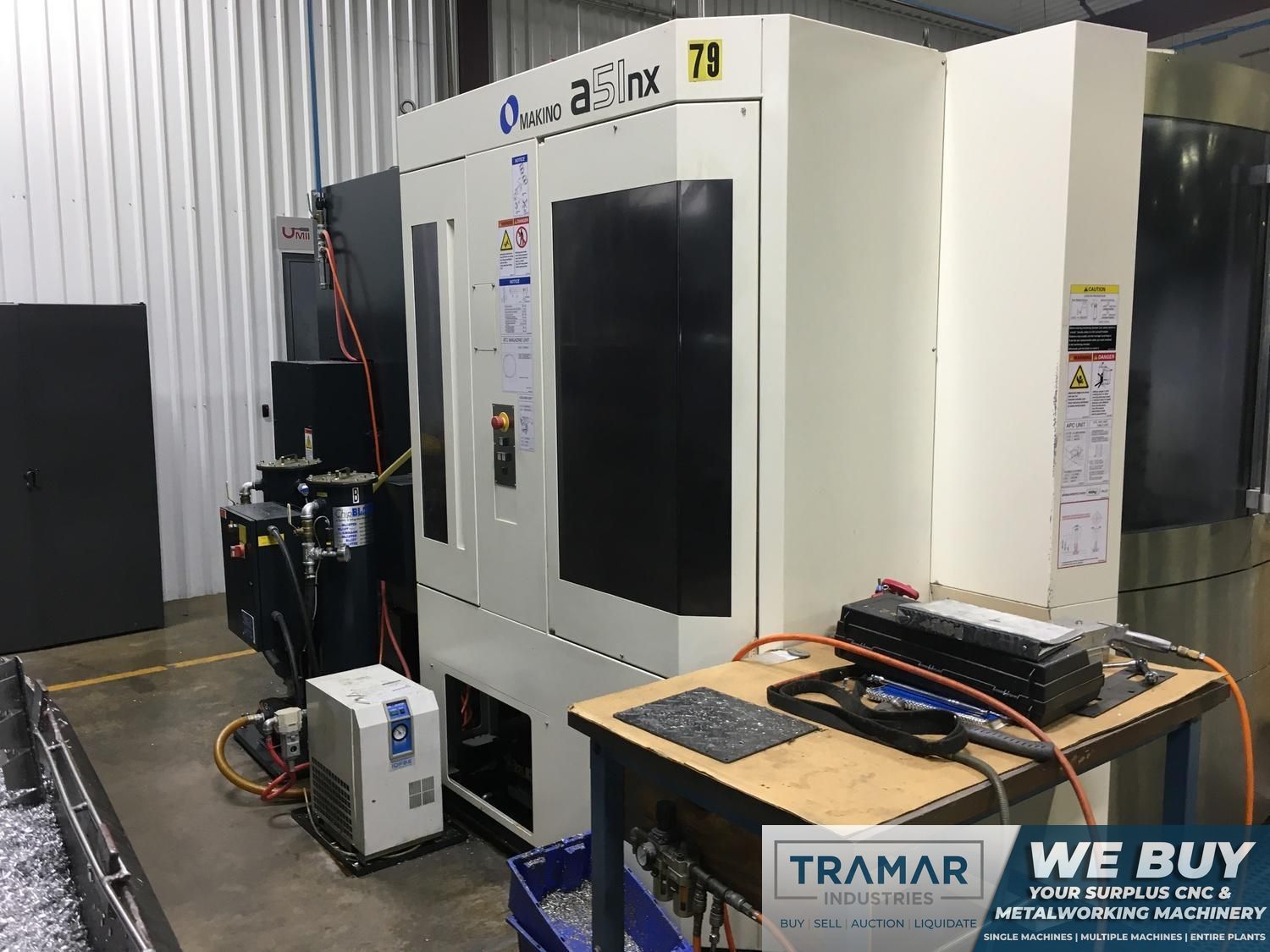

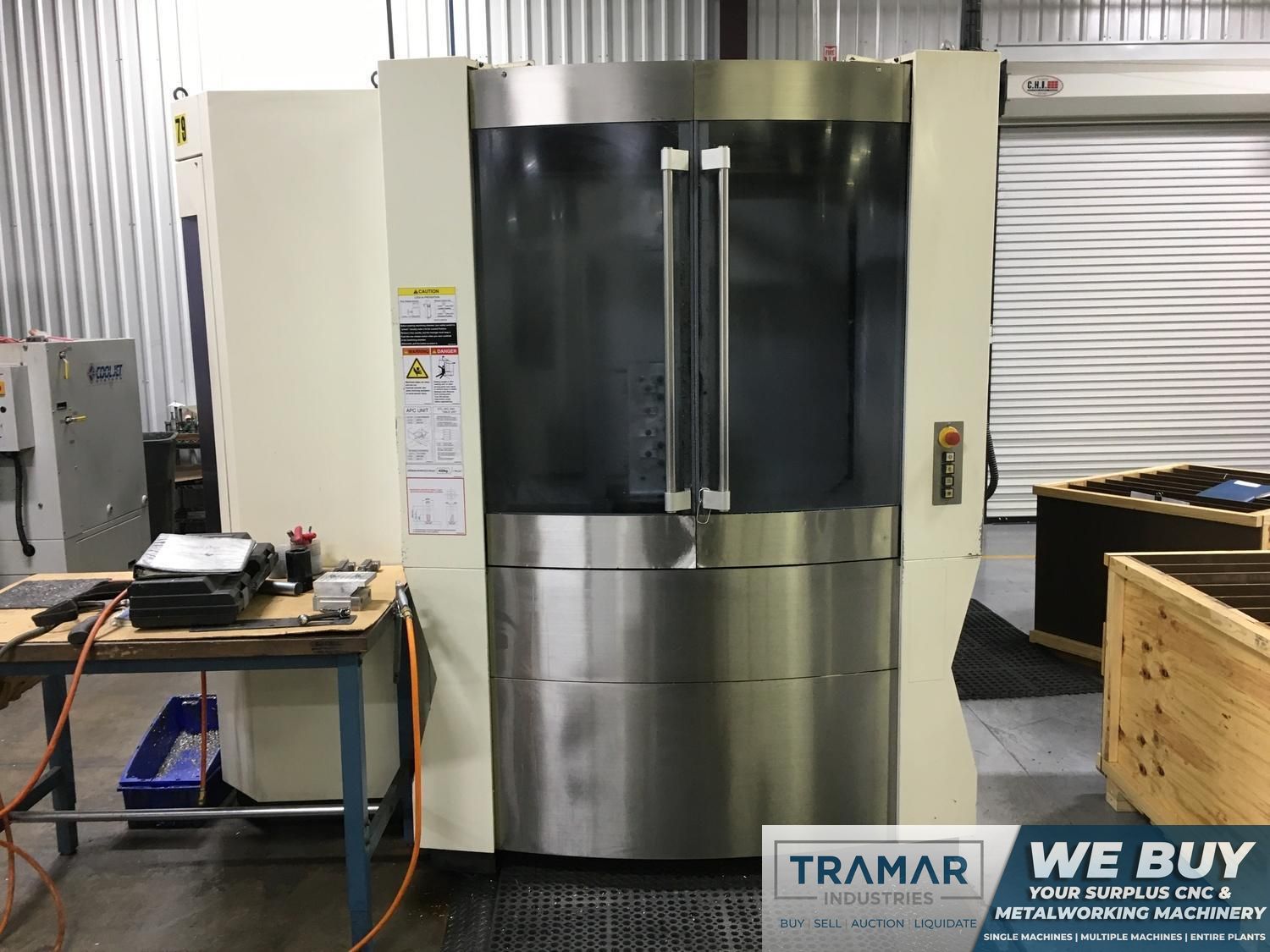

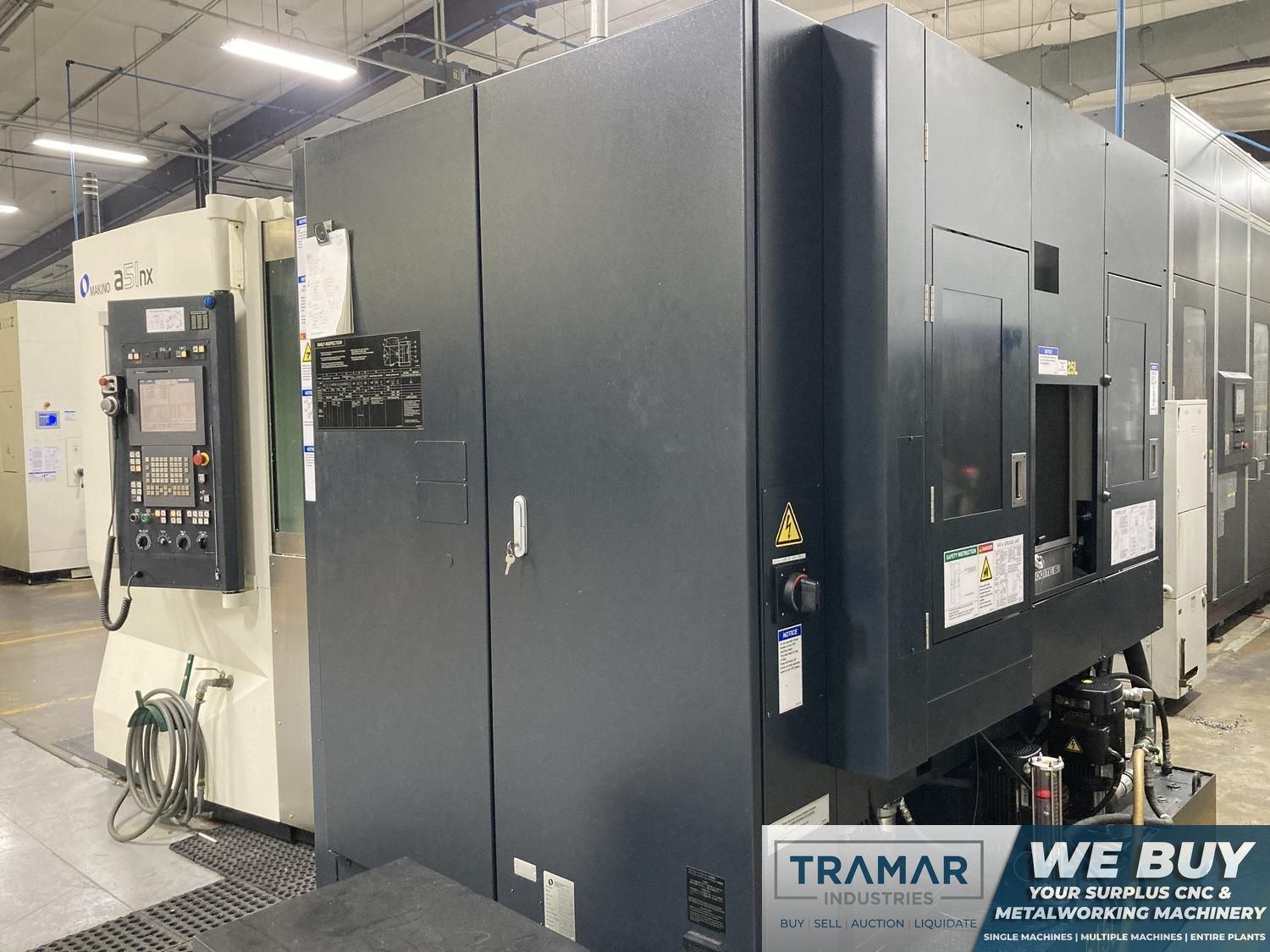

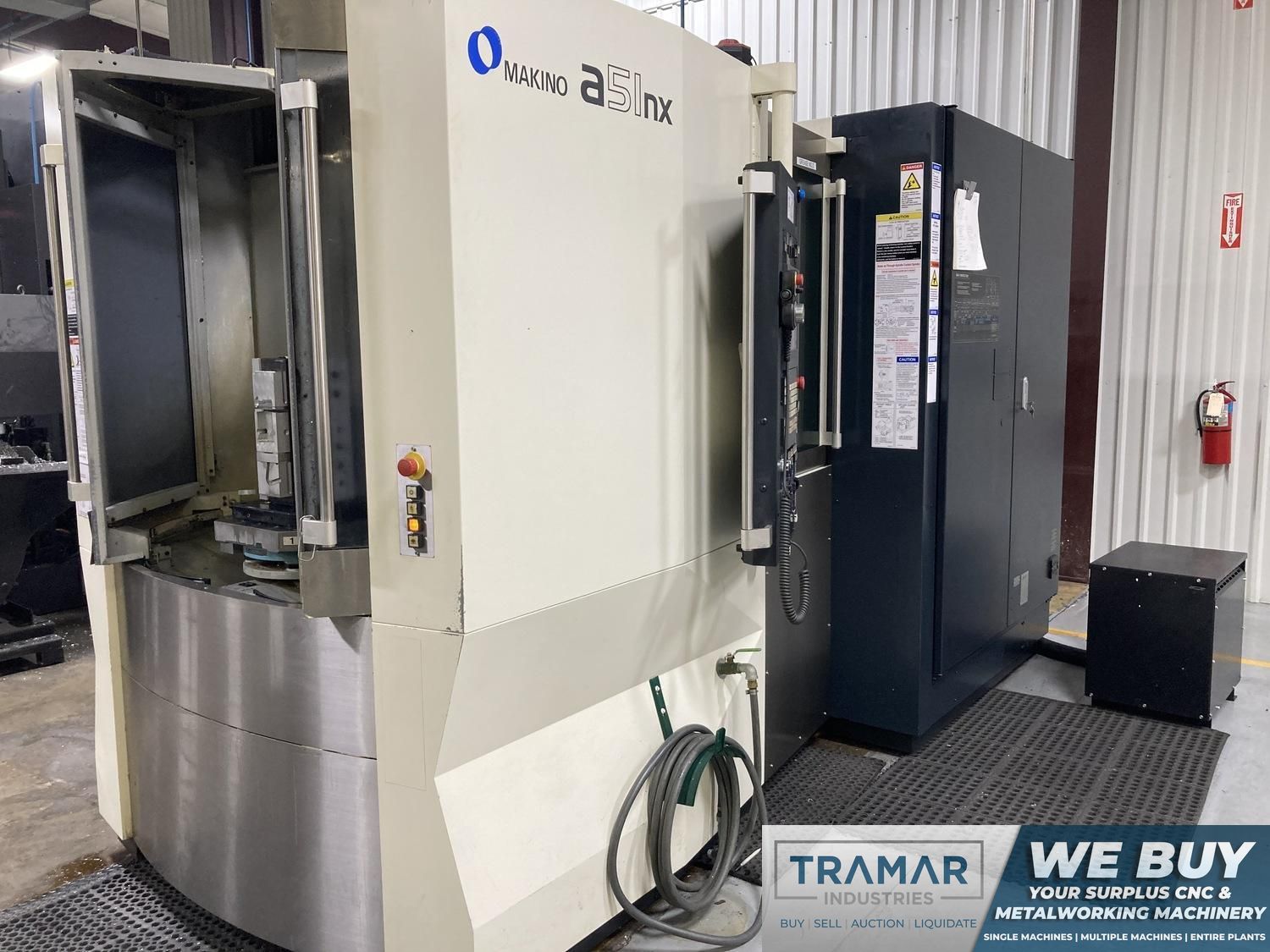

2015 Makino a51nx Horizontal Machining Center
Machine Specifications
Year
2015
Control Type
Professional 5
# Axis
4
Pallet Length
15.75"
Pallet Width
15.75"
Pallet Load Capacity
880 pounds
Pallet Indexing (B-Axis)
0.001°- Full 4th
X-Axis Travel
22"
Y-Axis Travel
25.2"
Z-Axis Travel
25.2"
Rapid Traverse Rate (X/Y/Z)
2,360 ipm
Spindle Taper
CAT 40
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Weight
26,000 pounds

Equipped With:

- Professional 5 Control
- Chip Blaster
- Coolant Thru Spindle
- Air Dryer
- Chip Conveyor

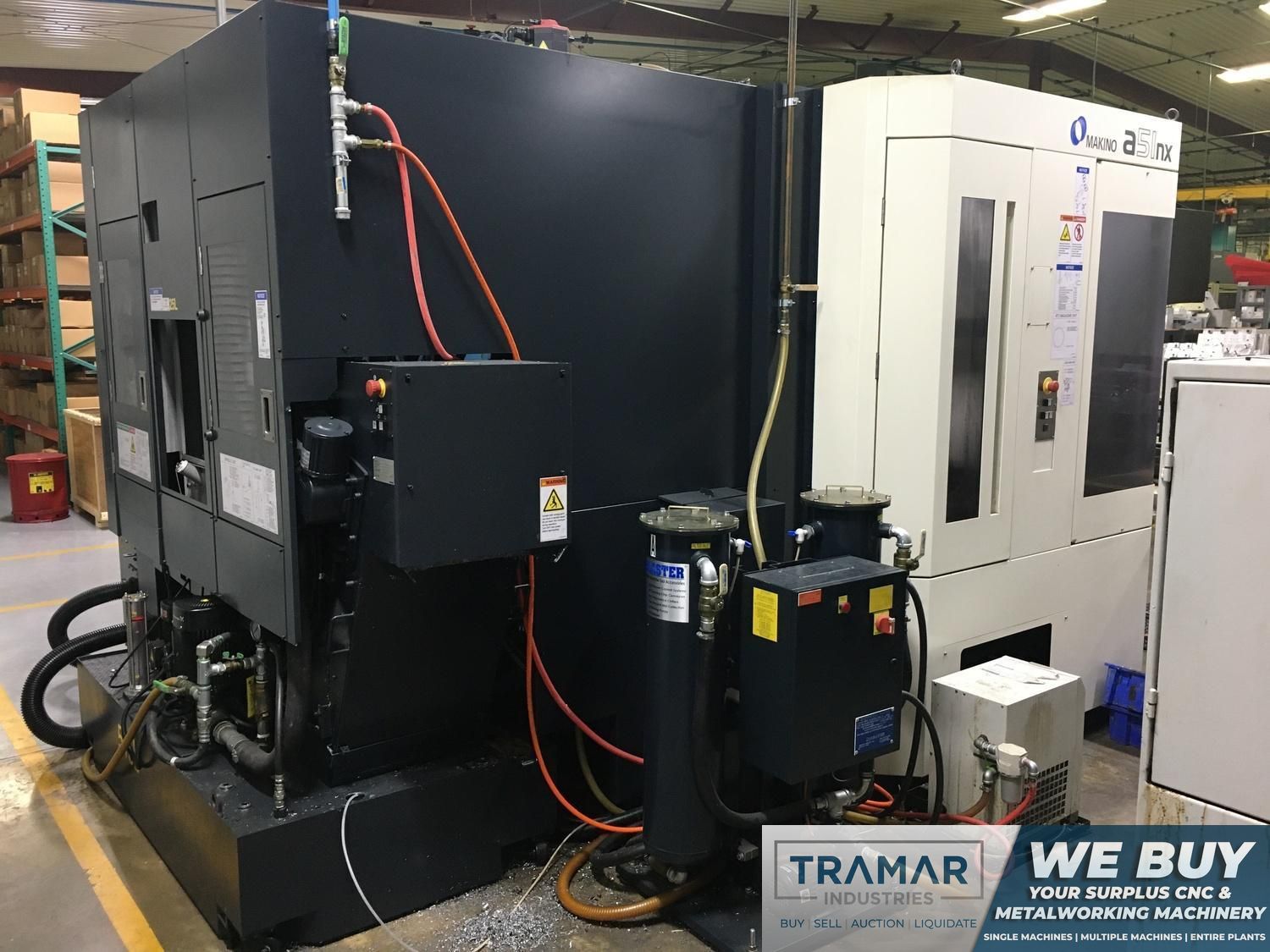

- Coolant Tank & Pumps

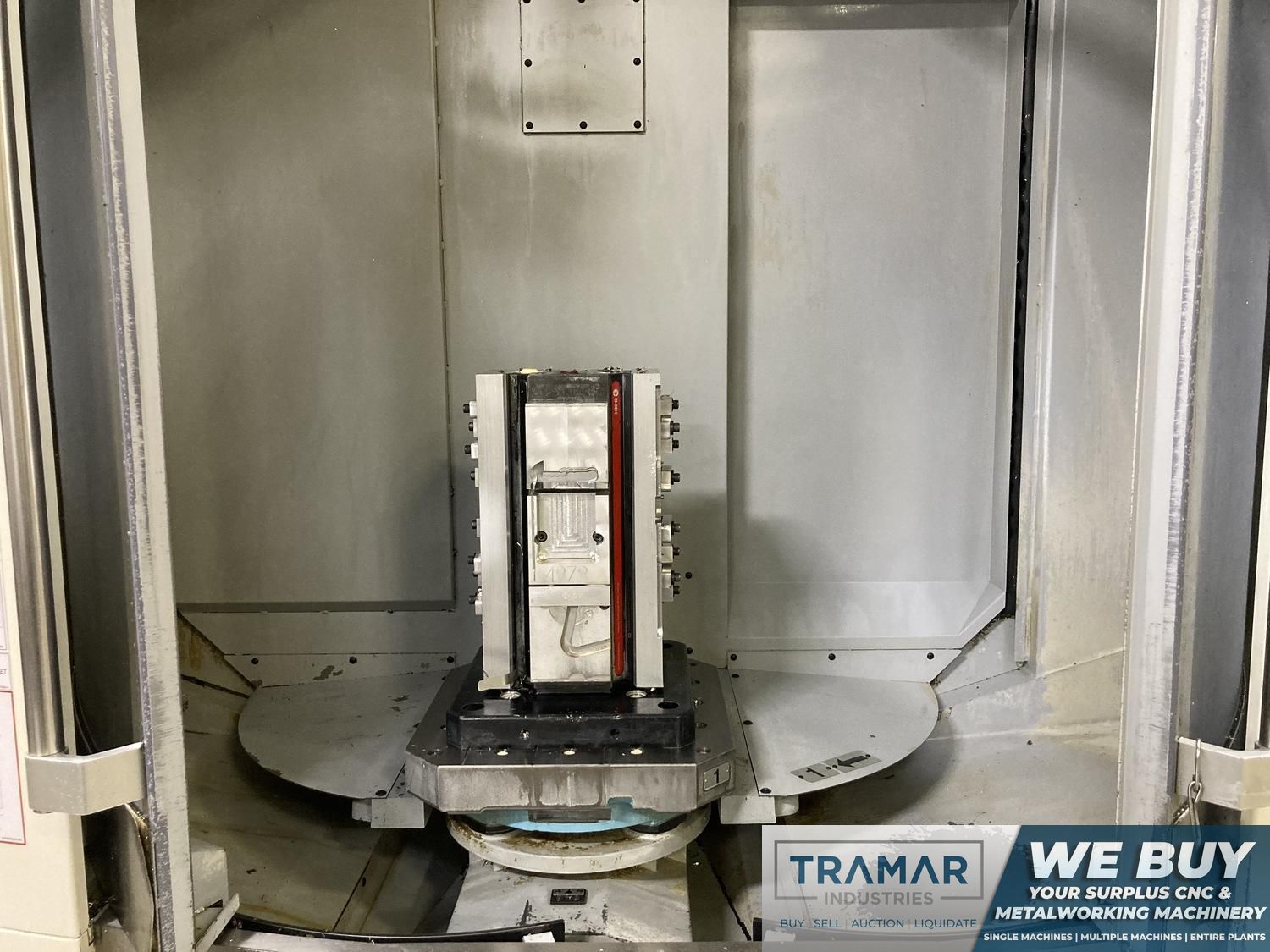

- Full 4th Axis 0.001° B Axis Indexing

The Makino A51NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
