Makino a81 - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: a81
Year: 2012
Stock #: 13466
Highlights:

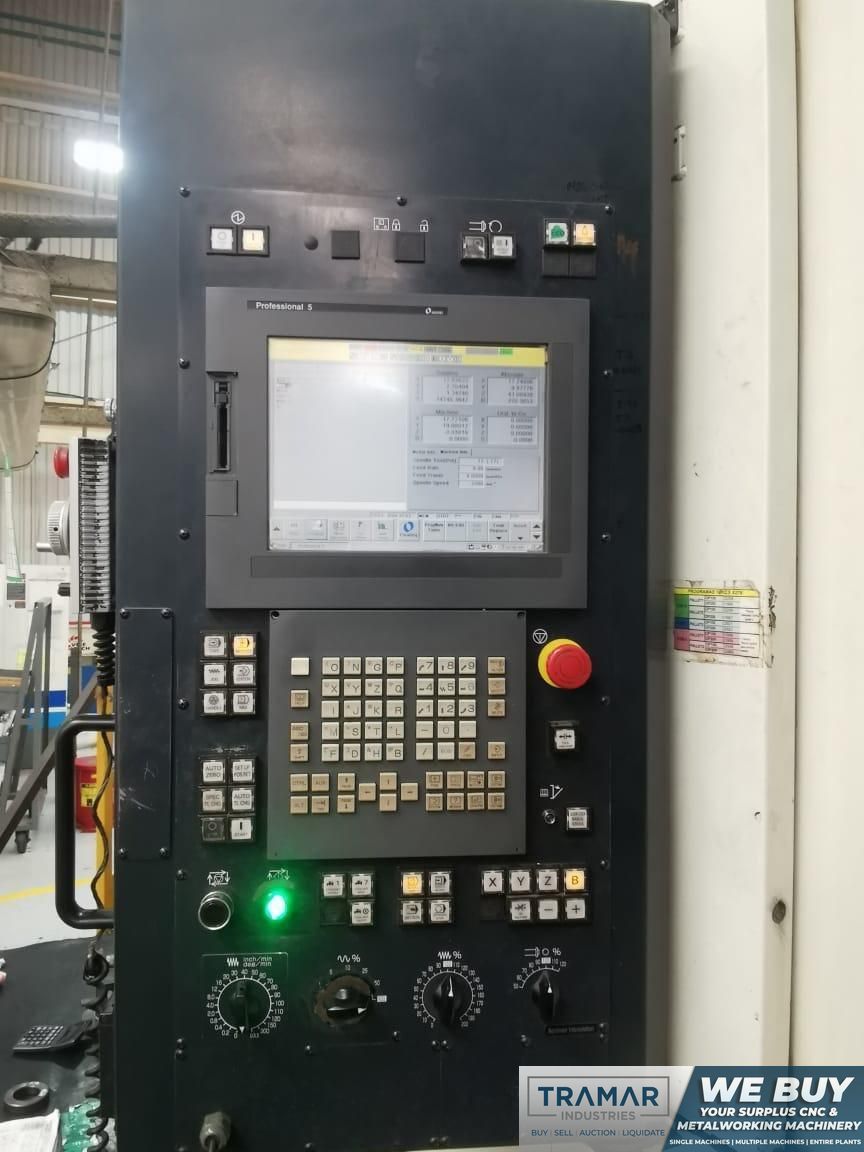

Professional 5 Control (Fanuc 31i)
High Pressure Coolant Thru Spindle - Chip Blaster

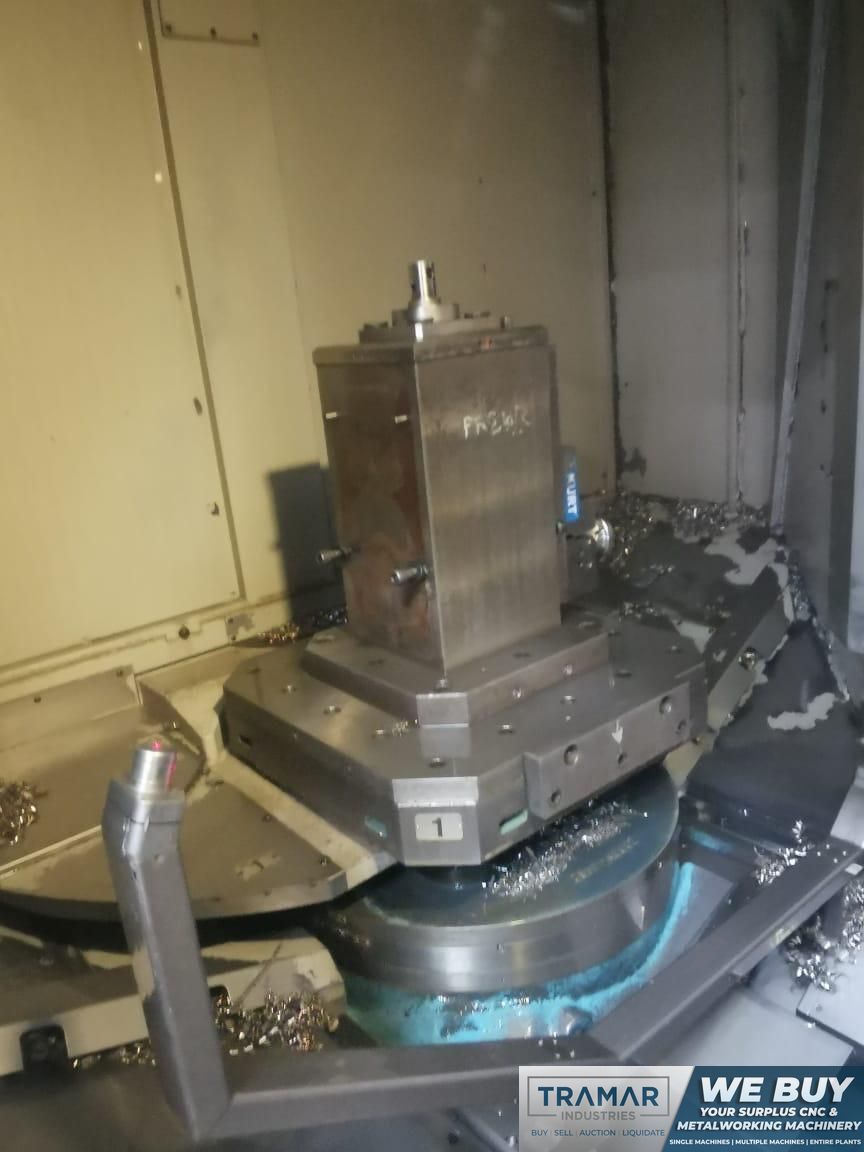

Pallet Size: 24.8" x 24.8" | Max Load: 2,640 lbs
Travels (X/Y/Z): 35.4" / 31.5" / 40.1" | Full B Axis
CAT 50 | 10,000 rpm | 33.5 hp | 60 Station ATC

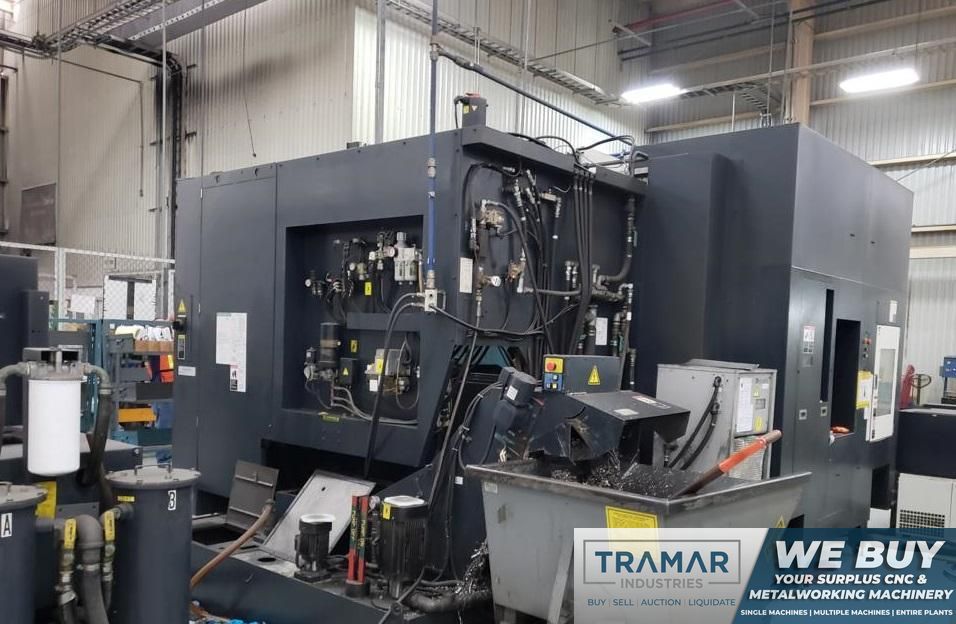

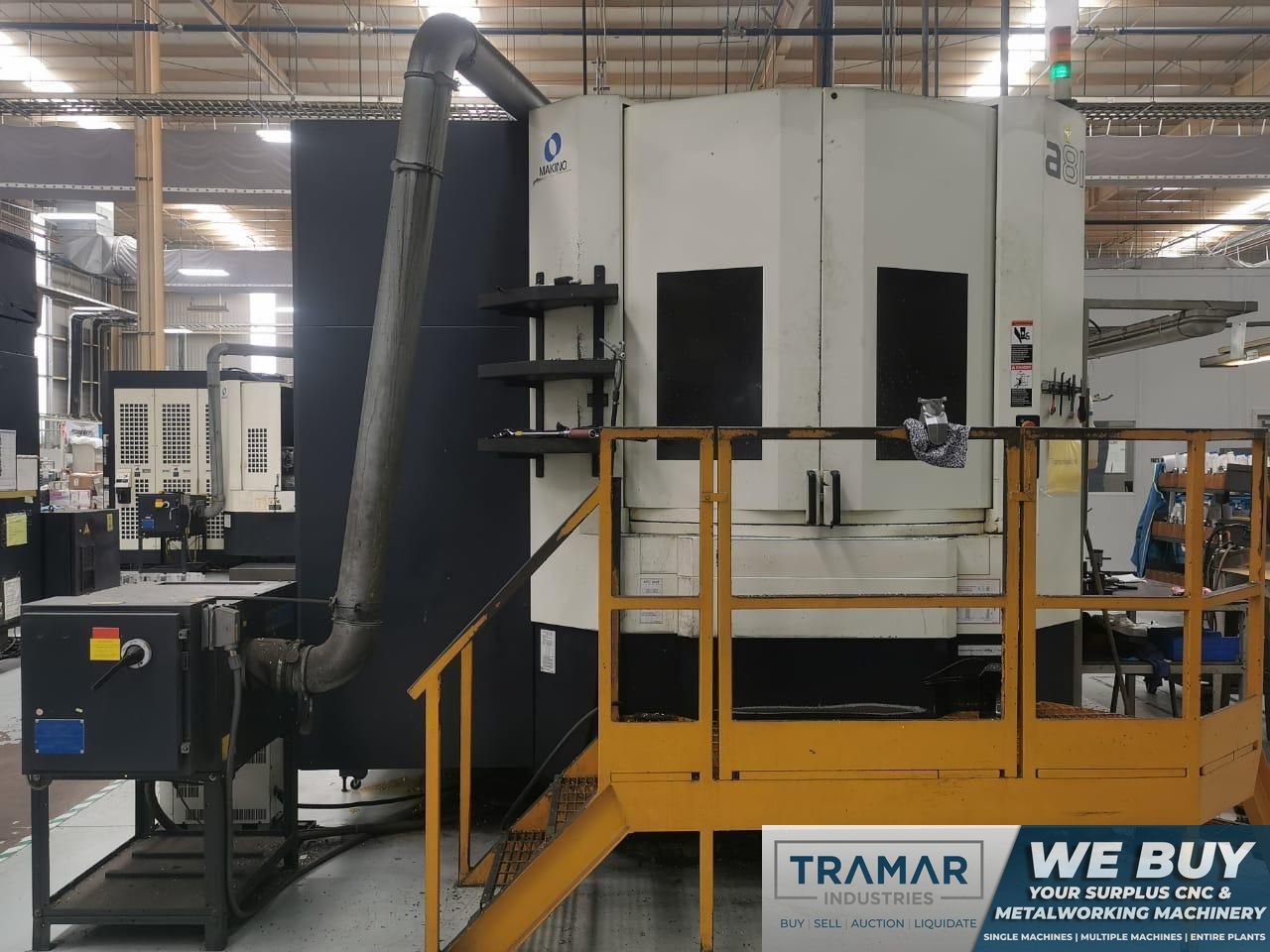

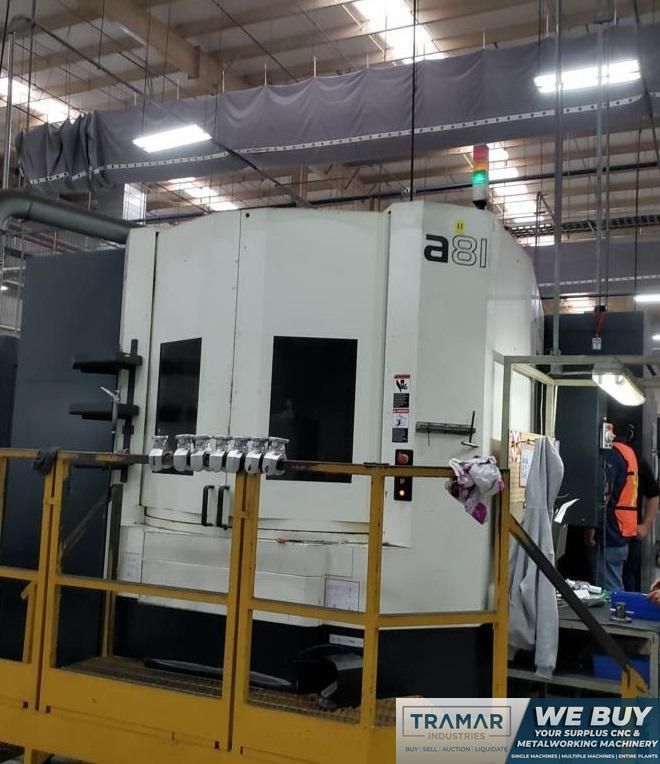

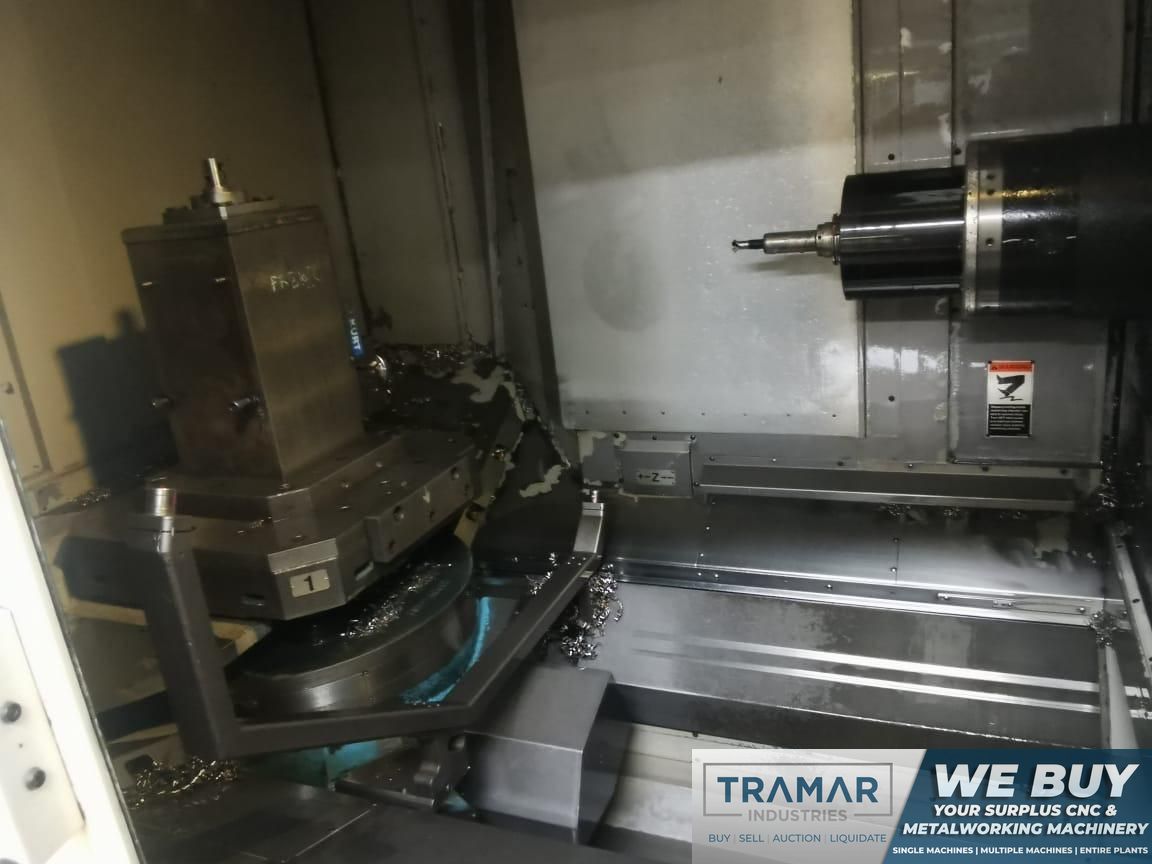

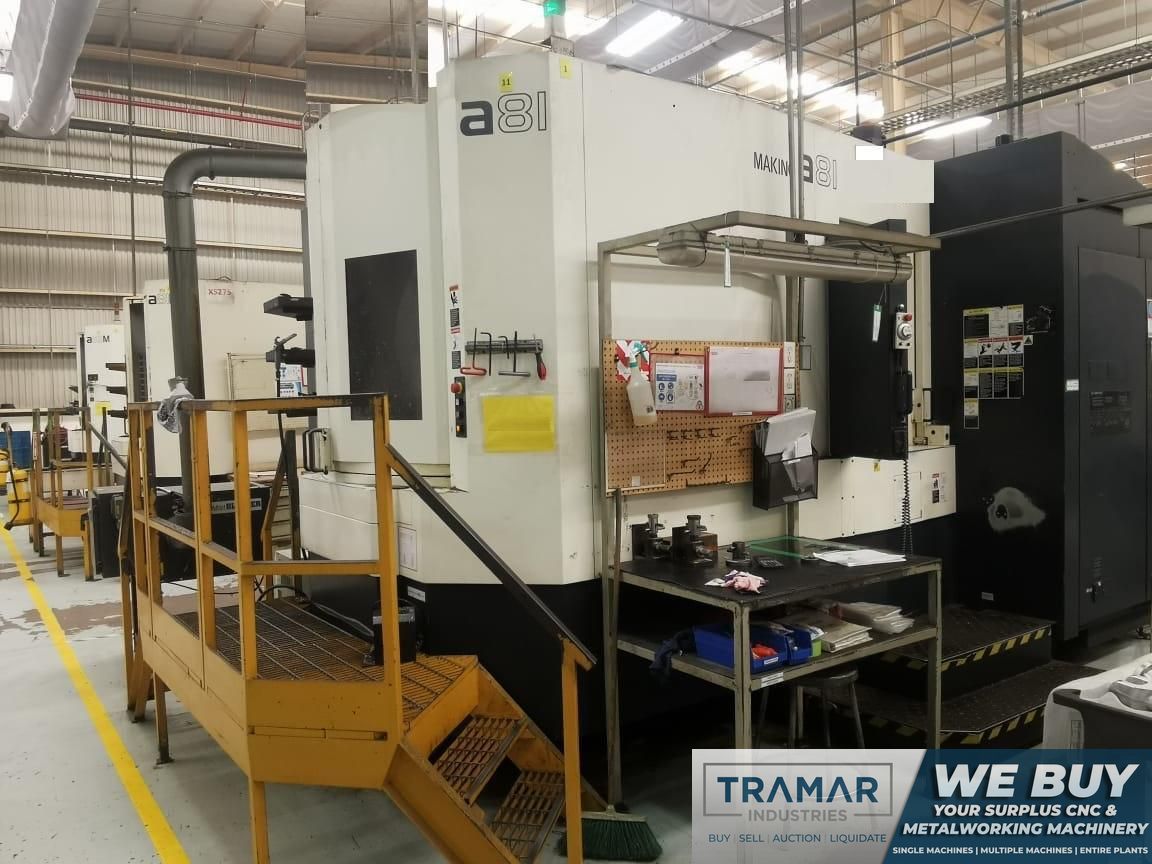

Makino a81 CNC Horizontal Machining Center
Machine Specifications
Year
2012
Control Type
Professional 5
# Axis
4

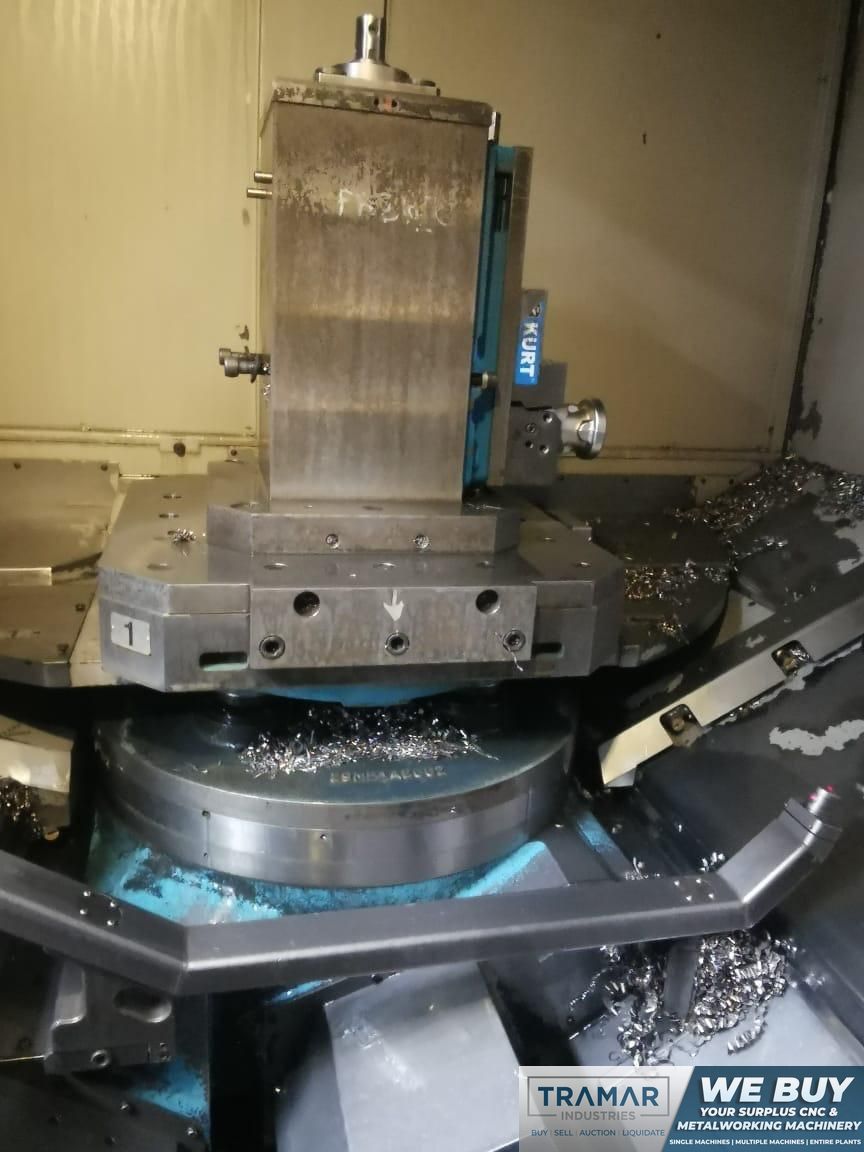

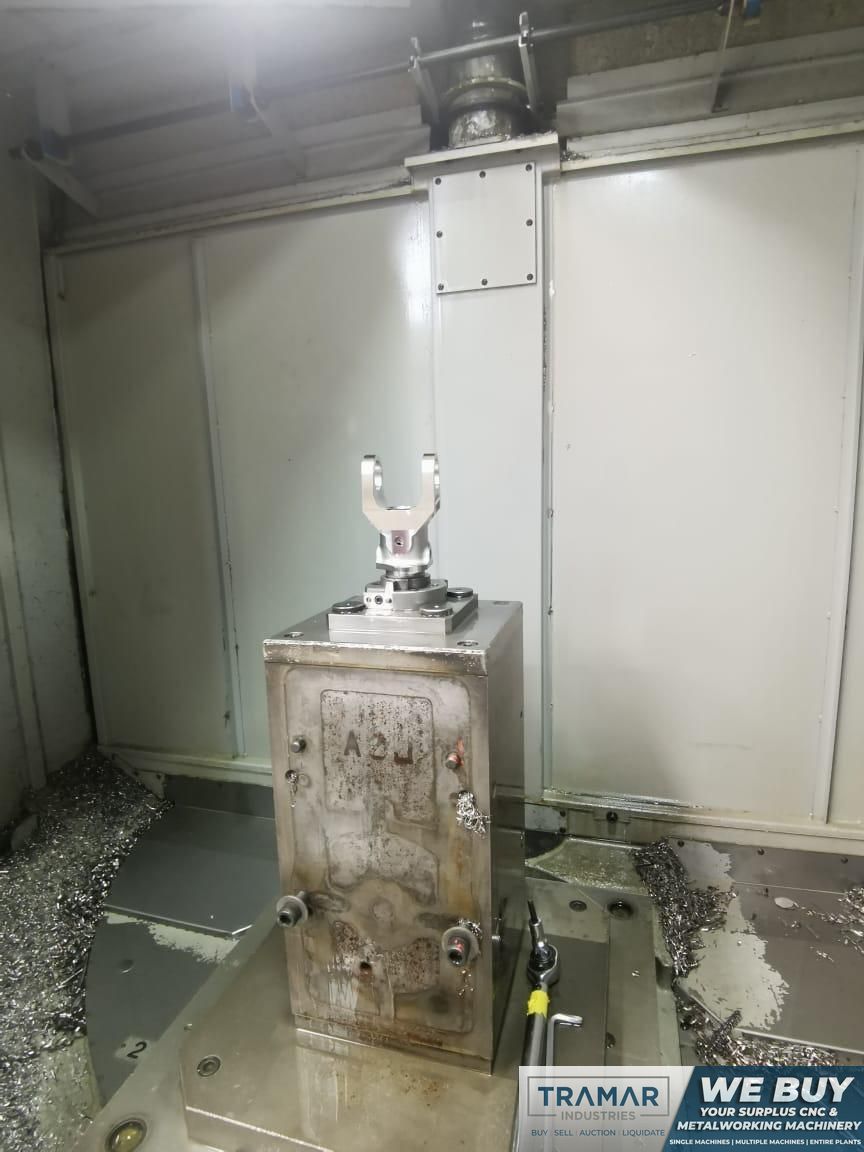

Pallet Length
24.8"
Pallet Width
24.8"
Pallet Capacity
2,640 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
35.4"
Y-Axis Travel
31.5"
Z-Axis Travel
40.1"
Rapid Traverse Rate (X/Y/Z)
1,916 ipm

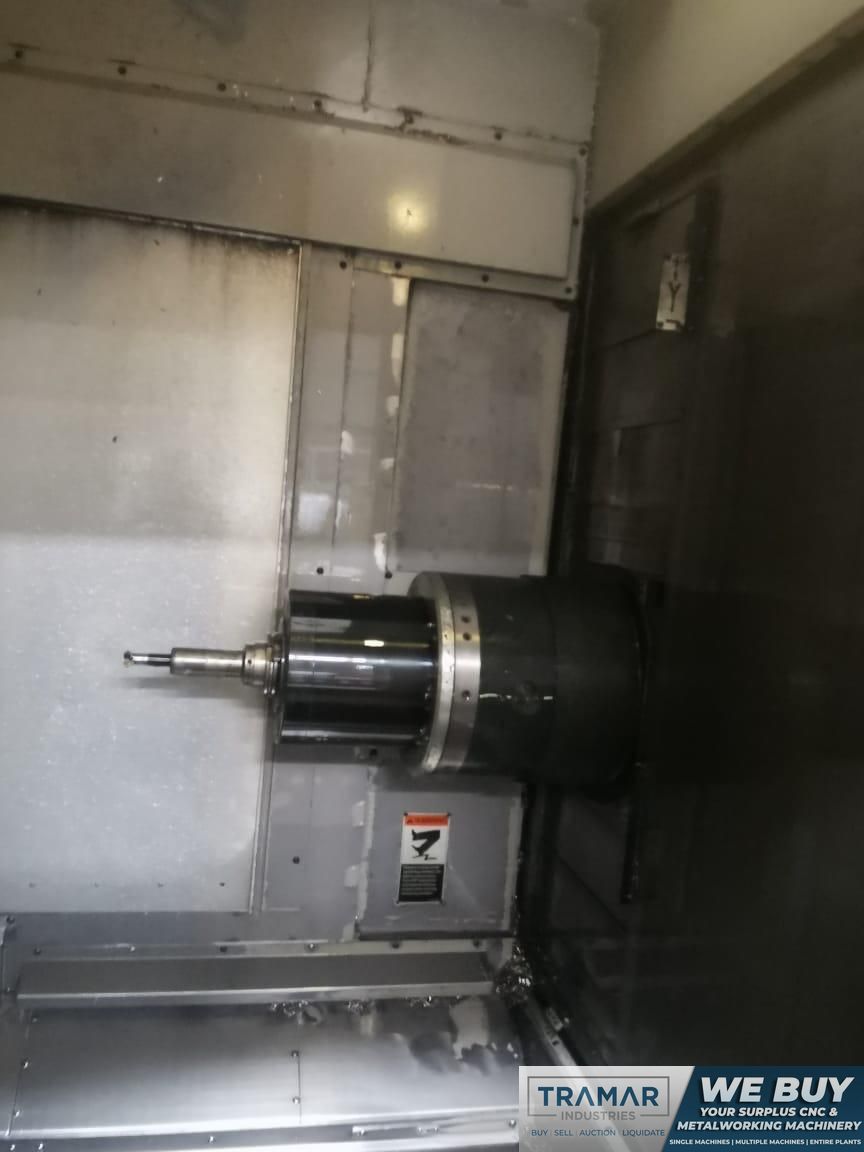

Spindle Taper
CAT 50
Spindle Speed
10,000 rpm
Spindle Motor (HP)
47/33.5 hp

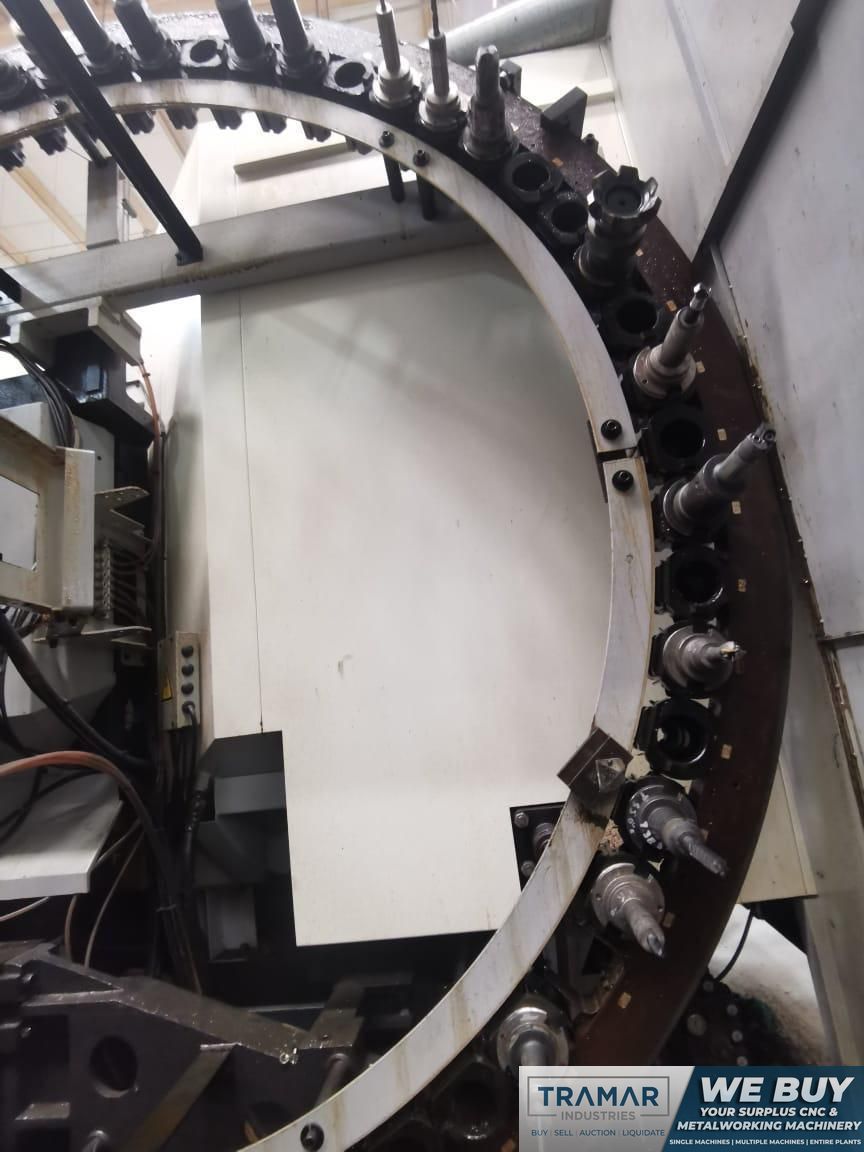

Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Dimensions
215" x 126" x 119"
Machine Weight
41,000 pounds

Equipped With:

- Professional 5 Control (Fanuc 31i)
- High Pressure Coolant Thru Spindle
- Chip Conveyor
- Coolant Tank & Pumps

The Makino a81 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
