Makino DUO43 - EDM, Wire

Request Quote

Share Machine

Specifications Print Specs

Model: DUO43

Year: 2010

Stock #: 13835

Type: EDM, Wire

Manufacturer: Used Makino Machines

Highlights:

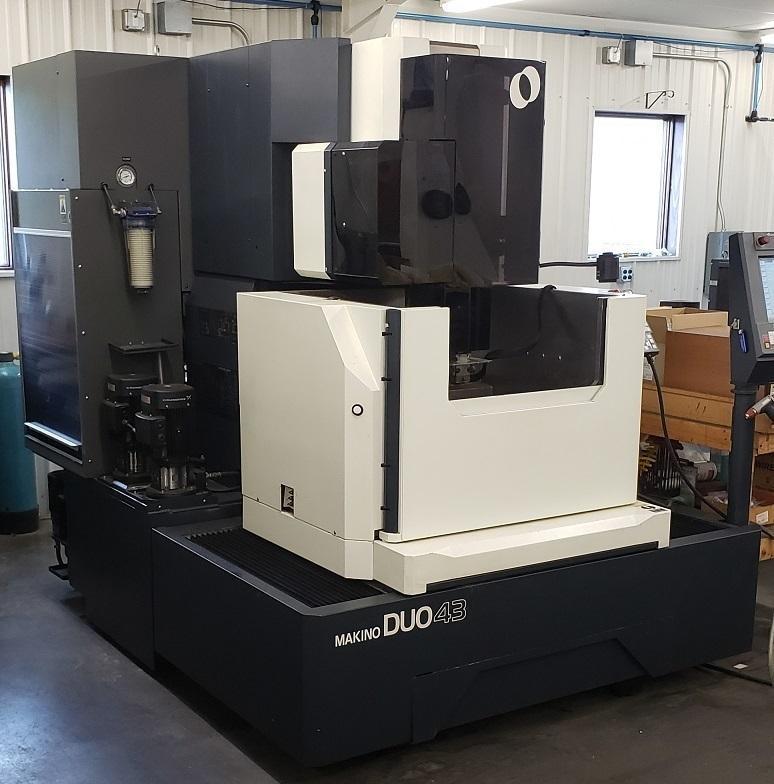

Makino Duo 43 CNC Wire EDM For Sale - 2010

Equipped With:

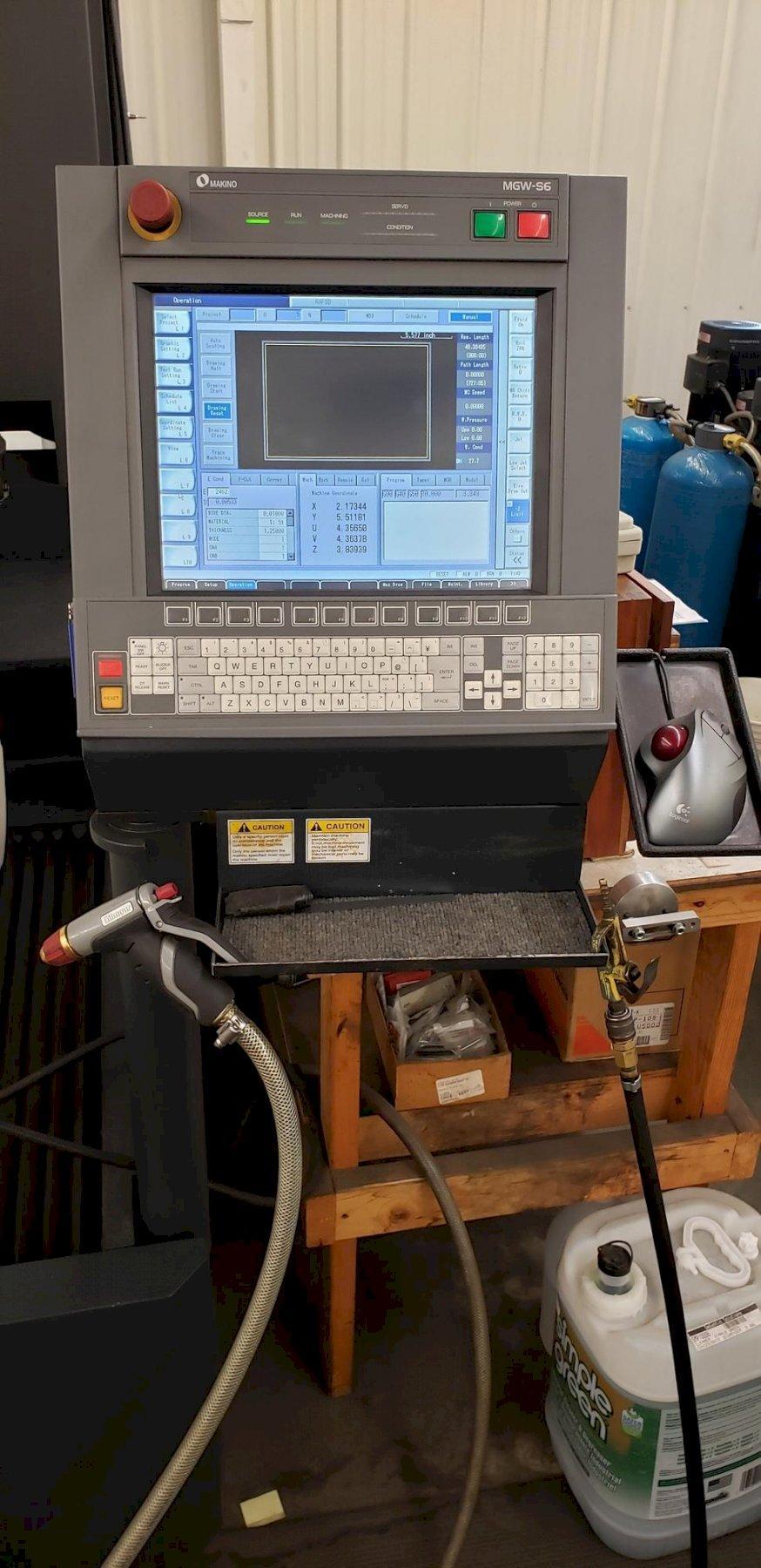

- Makino MGW S-6 CNC Control
- Keyboard, USB, and Ethernet Inputs
- 14" Display

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Makino MGW S-6

Max Workpiece Dimensions

28" x 22" x 11.8"

Max Workpiece Weight

1,760 pounds

X-Axis Travel

17.7"

Y-Axis Travel

11.8"

Z-Axis Travel

12.6"

U/V Travel

+/- 3.97"

Taper Height

15°

Taper Height

Auto Threading (Yes/No)

yes

Submerged (Yes/No)

yes

Dimensions

111" x 75" x 89"

Weight

11,500 pounds

Equipped With:

- Makino MGW S-6 CNC Control
- Keyboard, USB, and Ethernet Inputs
- 14" Display

The Makino DUO43 is an exclusive part of our EDM, Wire inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
