Makino MCC 2013 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: MCC 2013
Year: 2002
Stock #: BR15970 Sold
Yes
Highlights:

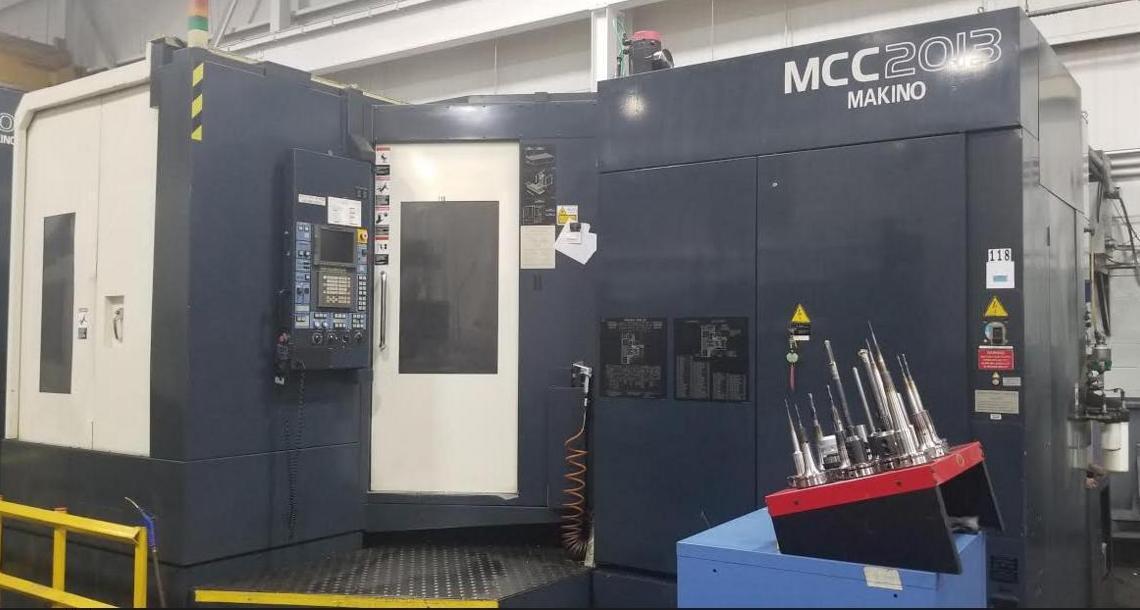

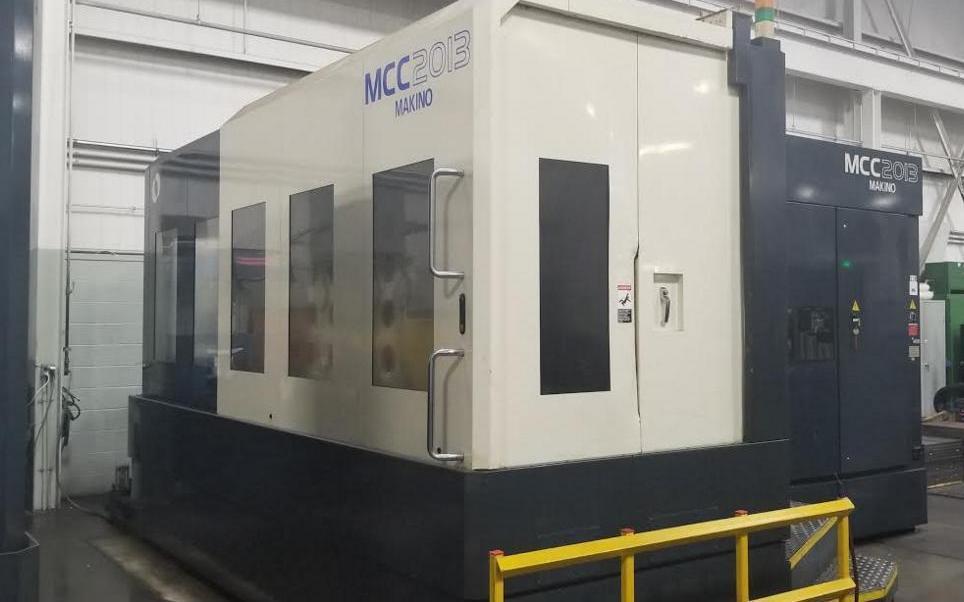

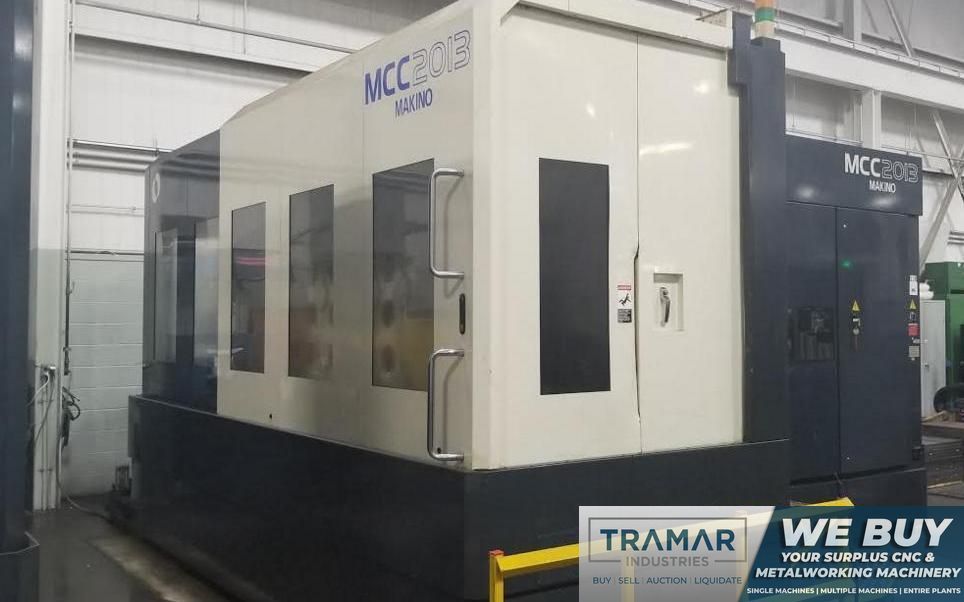

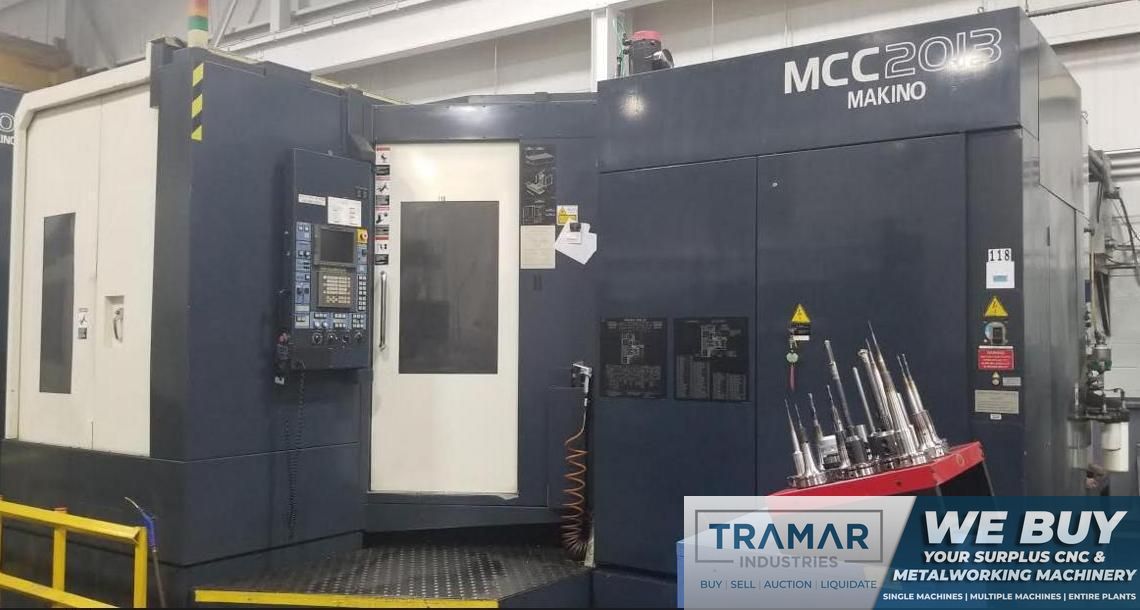

Makino MCC2013 CNC Horizontal Machining Center, Pro 3, 79
Machine Specifications
Control Type
Makino Pro 3
# Axis
3
Pallet-W
47"
Pallet-L
60"
X
78.7"
Y
53.1"
Z
39.4"
X-Axis Rapid Feedrate
630 ipm
Y-Axis Rapid Feedrate
630 ipm
Z-Axis Rapid Feedrate
630 ipm
Main Motor
40 HP
Spindle Taper
HSK A100
Spindle Speed
15,000
Coolant Through Spindle
yes
Tool Changer Capacity
30

Equipped With:

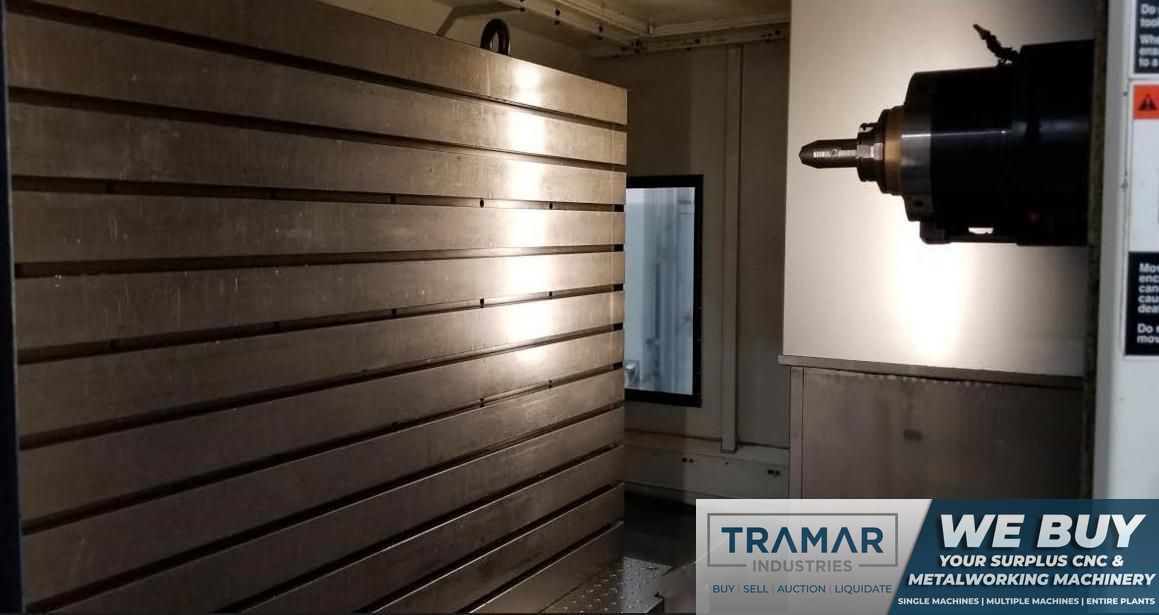

47" x 60" Rotary Table
Helical Interpolation
High Speed skip
Coordinate System Rotation
Rigid Tap
SGI4
Auto Measuring System (Renishaw MP700)
Monlon Secondary Filtration Unit
Tool Life Management
Hardened and Ground Ways
Auto Lube
Chip Conveyor
Spindle Replaced a Few Years Ago (9775 Hours on Current Spindle)
********** Motivated  Seller, Make Offer ************

The Makino MCC 2013 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
