Mazak Integrex 300Y - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Integrex 300Y
Year: 2001
Yes
Highlights:

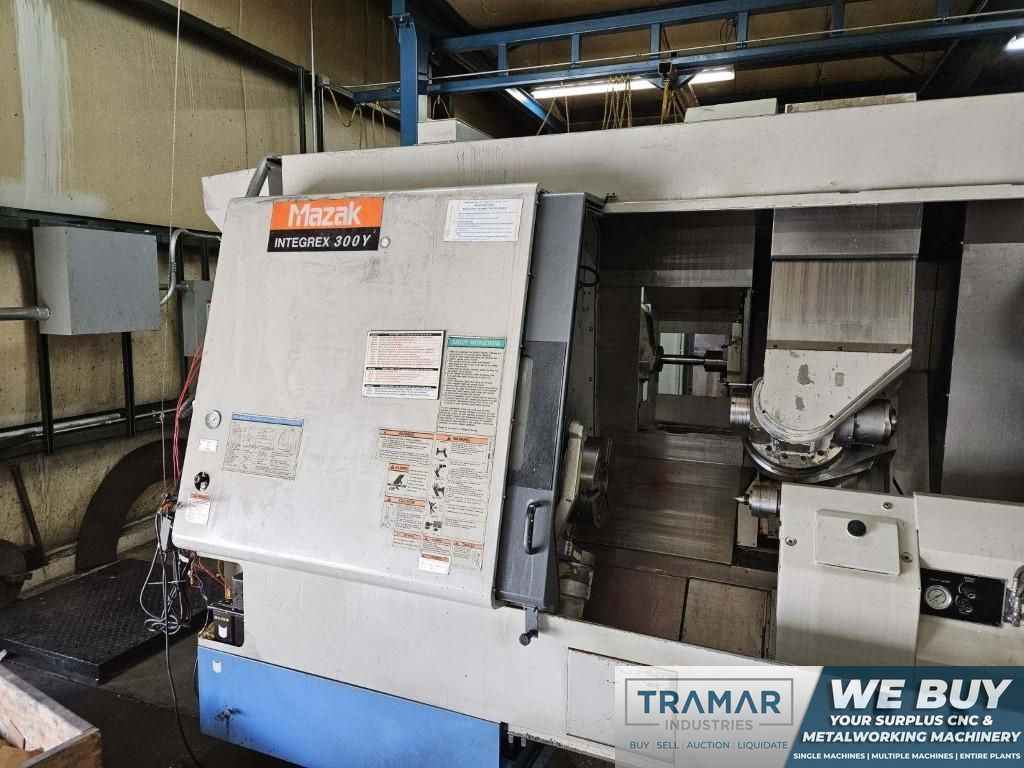

Mazak Integrex 300Y Used CNC Lathe For Sale - 2001
Machine Specifications

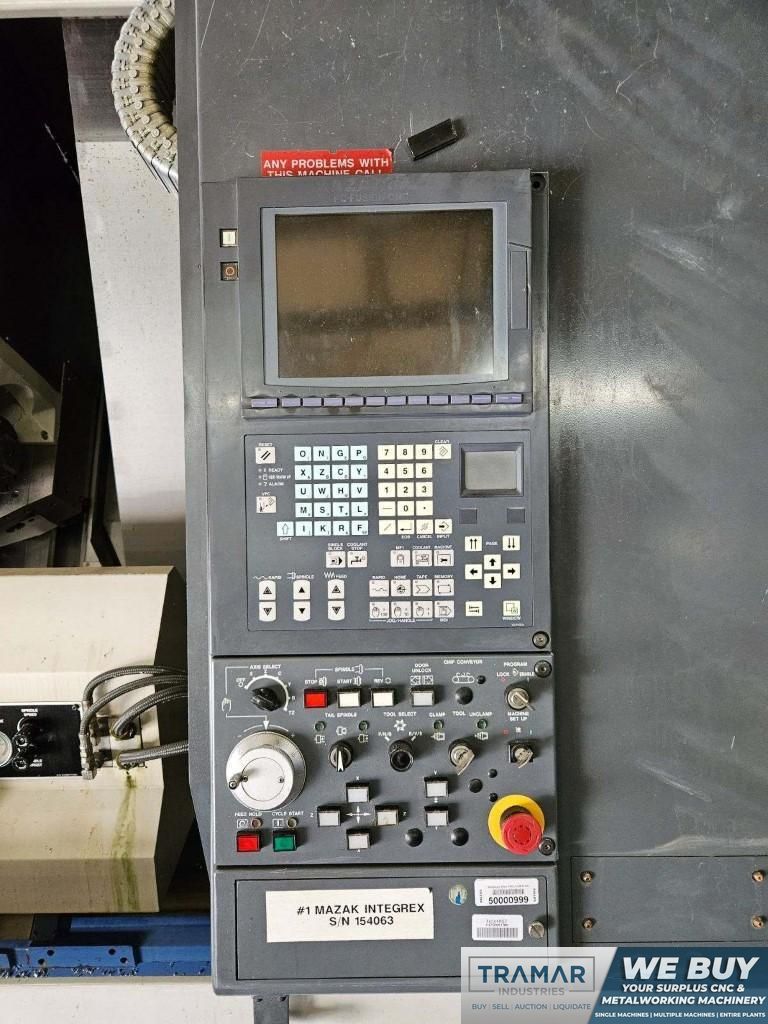

CNC Control
yes
Control Type
Mazatrol Fusion 640
# Axis
5
Swing
24.01"
Turning Diameter
15.35"
Center Distance
60"
Chuck Size
12"
Bar Capacity
3"
X Axis Travel
22.83"
Y Axis Travel
4.13"
Z Axis Travel
60"
B-Axis Travel
225°
Rapid Traverse (X/Y/Z)
1,181/590/1,181 ipm
Spindle Nose
A2-8
Spindle Speed
3,500 rpm
Main Motor
35 hp
Tailstock
yes
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
20 hp

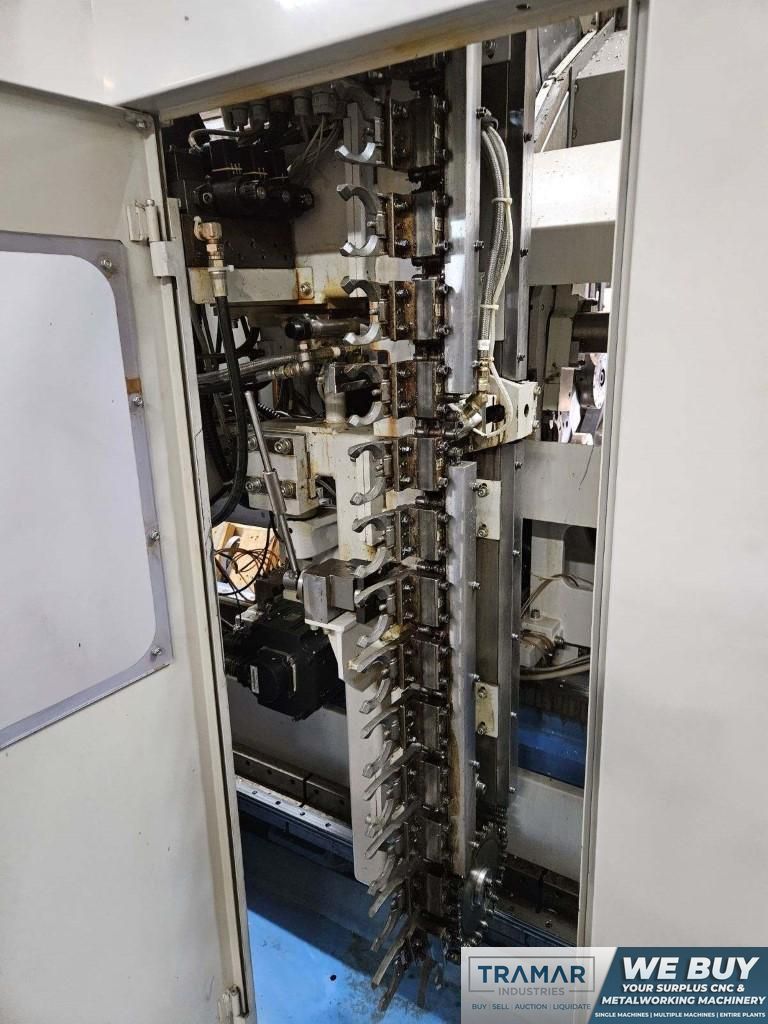

# ATC
40
Machine Dimensions
143" x 89" x 106"
Machine Weight
19,000 pounds

Equipped With:

- Mazatrol Fusion 640 CNC Control
- Chip Conveyor
- 12" Hydraulic Chuck

The Mazak Integrex 300Y is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
