Mazak Integrex 400-III - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: Integrex 400-III
Year: 2005
Stock #: BR15988 Sold
Yes
Highlights:

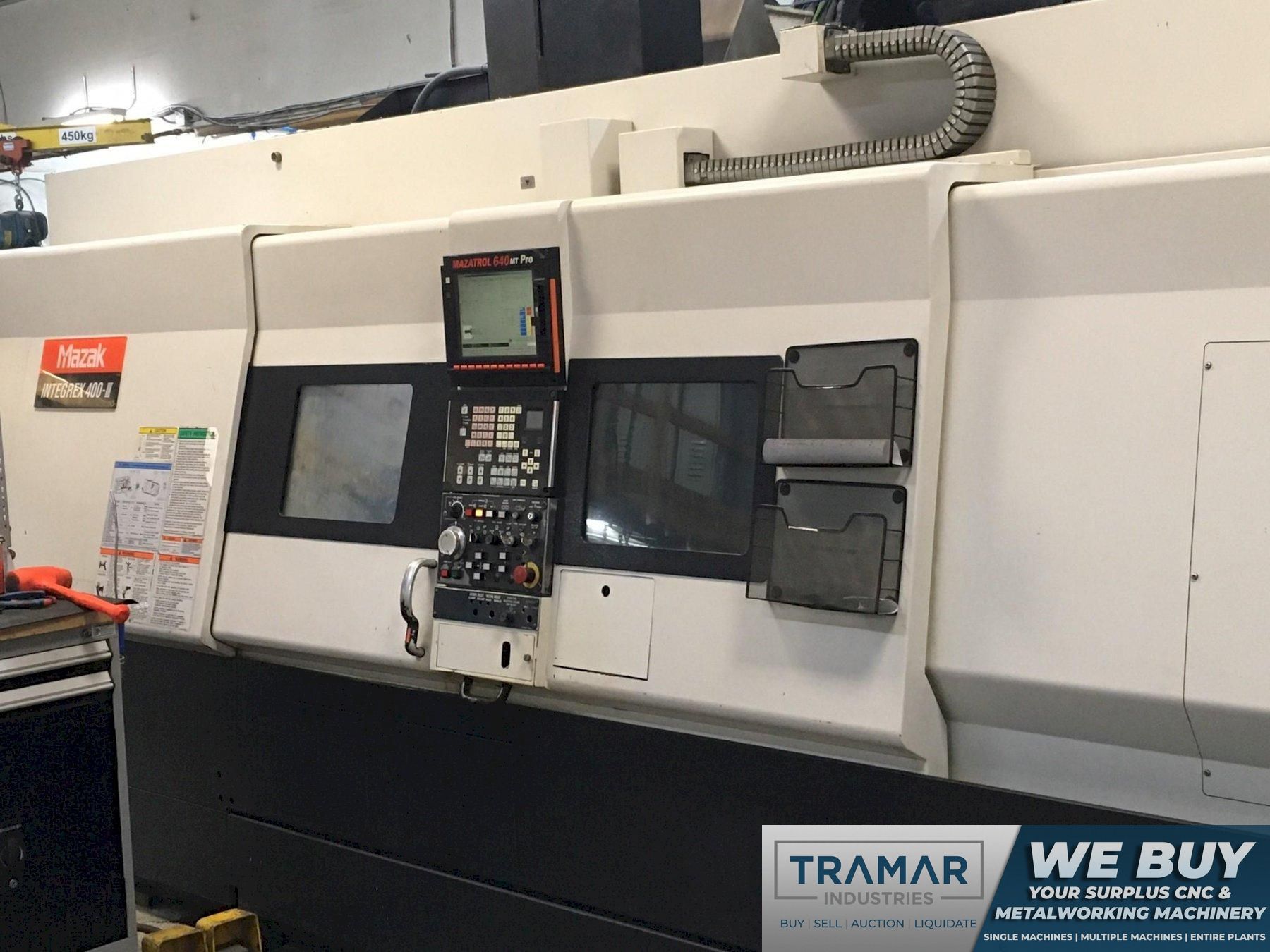

Mazak Integrex 400-III CNC Turn/Mill Center with Y Axis
Machine Specifications

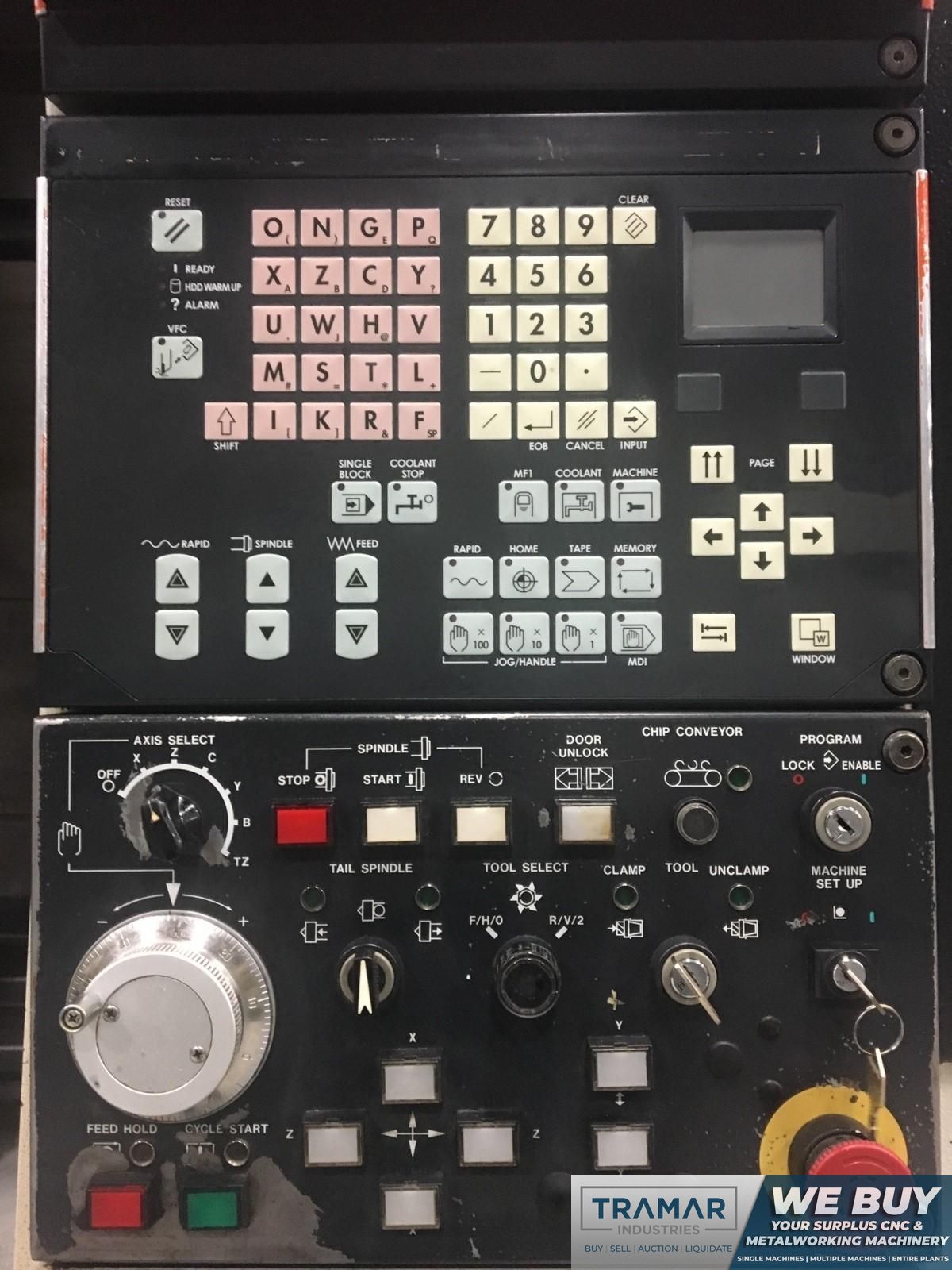

Control Type

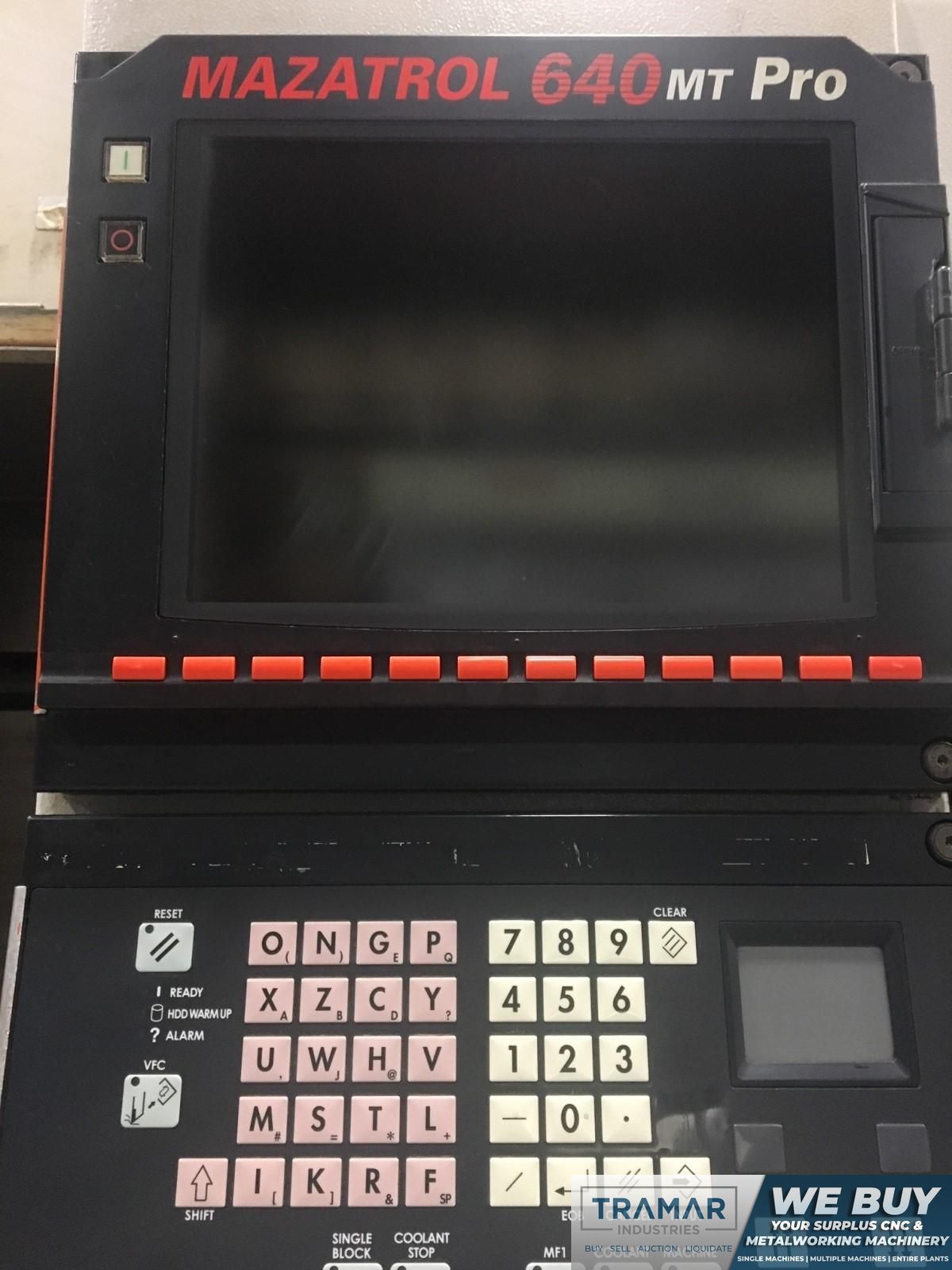

Mazatrol Fusion 640 MT Pro

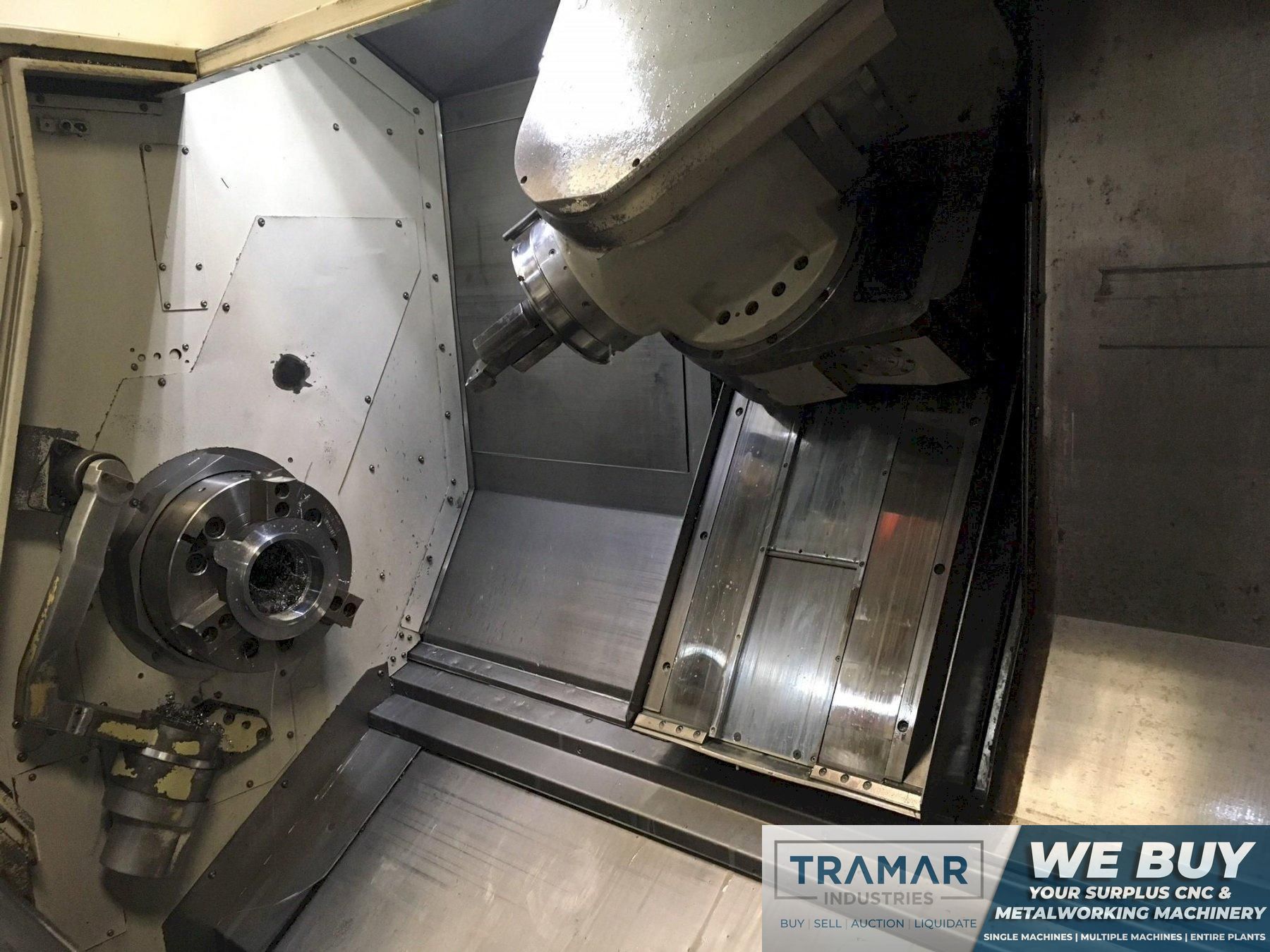

Chuck Size
12"
Swing
25.91"
Turning Diameter
25.91"
Center Distance
60"
Bar Capacity
4.0"
C-Axis
yes
X Axis Travel
24.8"
Z Axis Travel
62.41"
Tool Changer Capacity
40
Live Milling (Yes / No)
yes
Live Milling Speed (RPM)
12,000
Tailstock (Yes/No)
yes
B Axis Indexing Range
225 deg

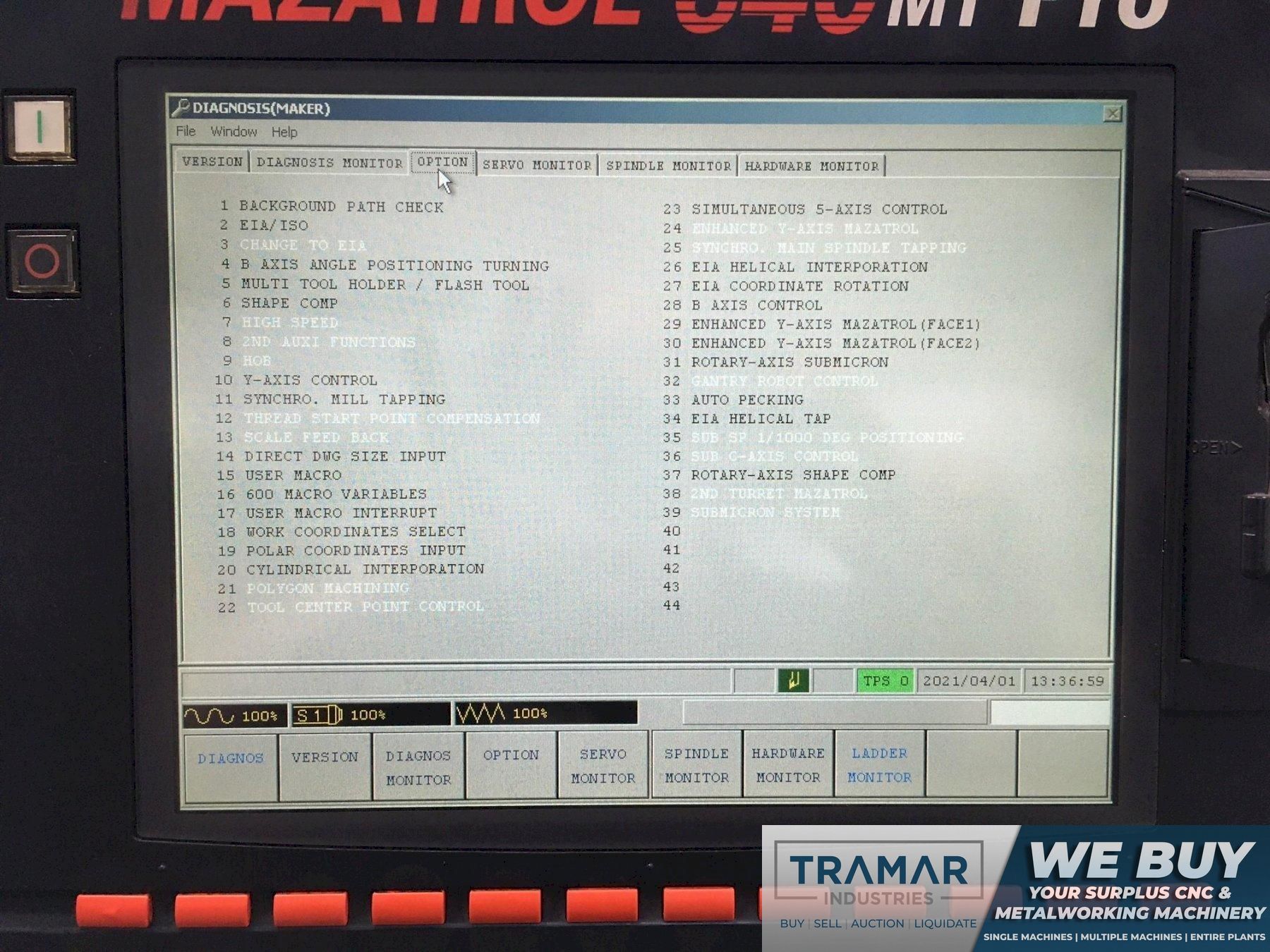

Equipped With:

Y Axis
Programmable Tailstock
Capto C6 Tooling
Milling Spindle Replaced Recently (800 Hours since)
Through Spindle Coolant (213 psi)
B Axis Positioning turning
EIA
Shape Compensation
User Macros
600 Macro variables
Cylindrical Interpolation
Rotary Axis Shape Compensation

The Mazak Integrex 400-III is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
