Mazak Variaxis 500-5x II - Machining Centers, Vertical, (5-Axis or More)

Share Machine
Specifications Print Specs
Model: Variaxis 500-5x II
Year: 2007
Stock #: 13897 Sold
Highlights:
Simultaneous 5 Axis Machining
Mazatrol Matrix CNC Control
High Pressure Coolant Thru Spindle

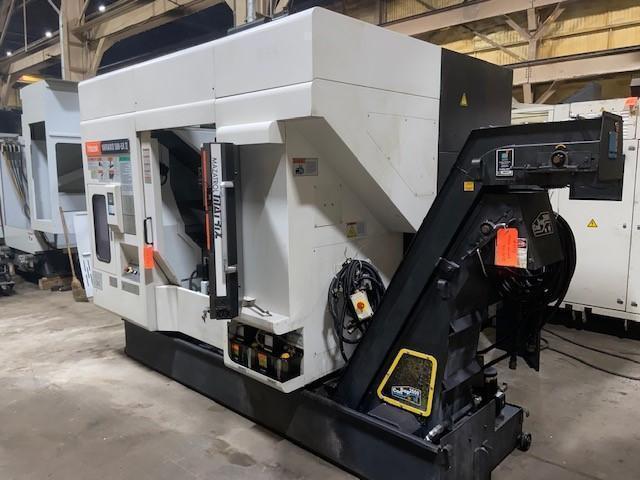

Mazak Variaxis 500-5X II CNC Vertical Machining Center 5-Axis For Sale 2007
Machine Videos
Machine Specifications

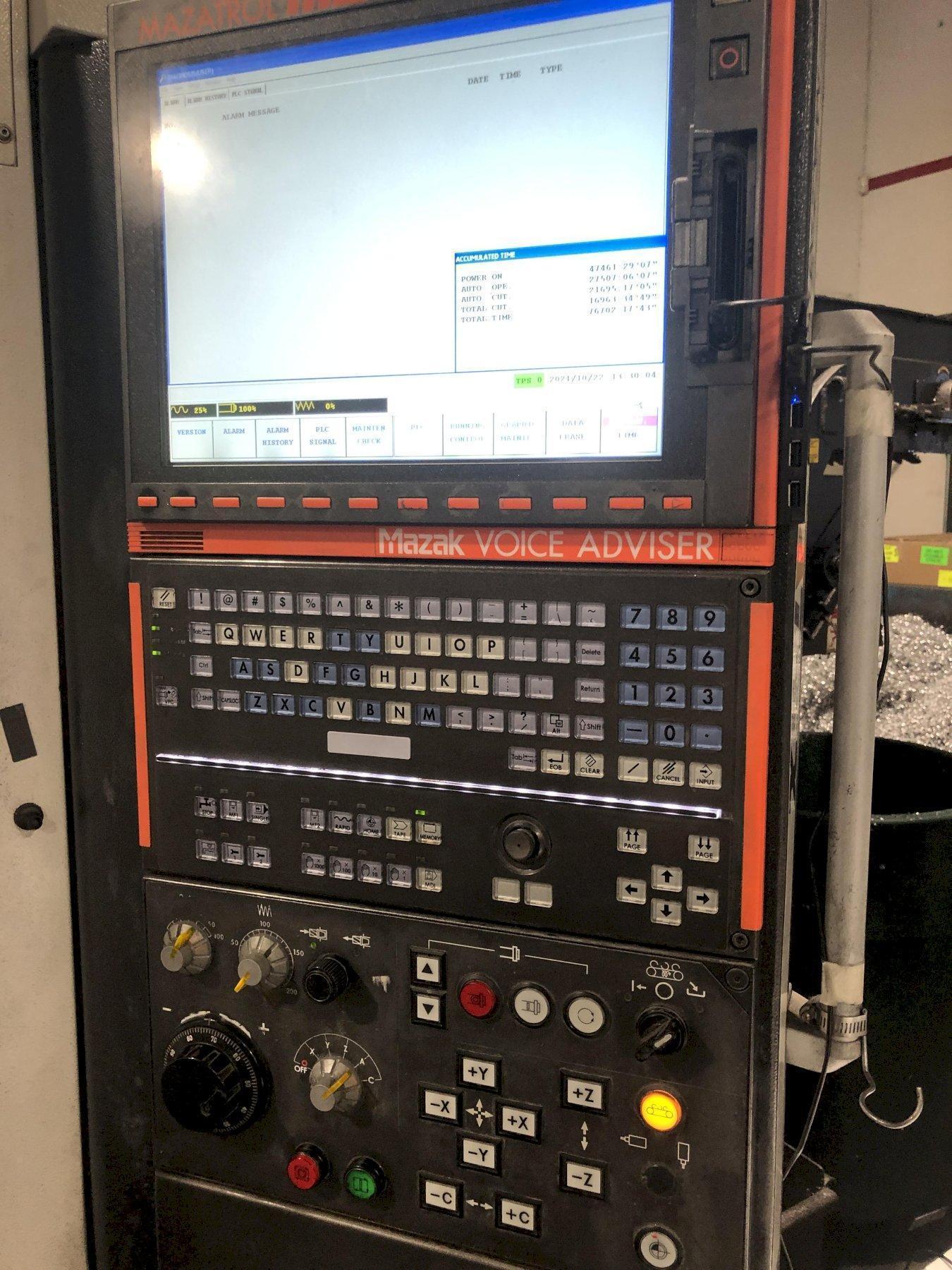

CNC Control
yes
Control Type
Mazatrol Matrix
# Axis
5
Table Size
19" x 15"
Max Table Load
661 pounds
X-Axis Travel
20"
Y-Axis Travel
20"
Z-Axis Travel
18"

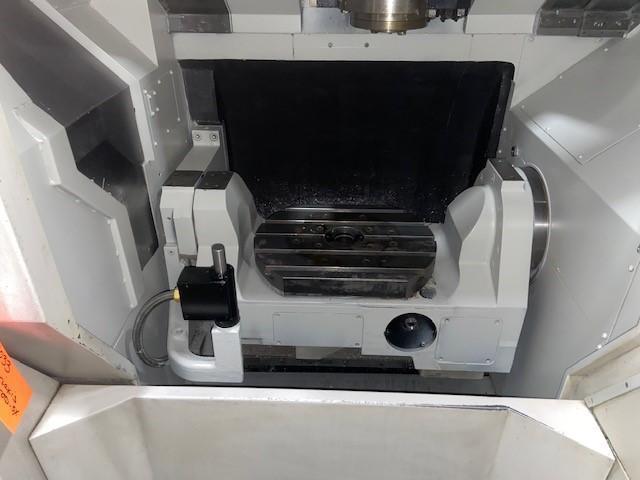

B Axis Rotary
0.001°
A Axis Rotation
+/- 150° (-120° to +30°)
Spindle Taper
CAT 40
Spindle Speed
12,000 rpm
Main Motor
30 hp
ATC Capacity
40
Coolant Thru Spindle
yes
Machine Dimensions
110" x 115" x 109"
Machine Weight
15,500 pounds

Equipped With:

- EIA/ISO Function
- Simultaneous 5 Axis Machining
- Coolant Thru Spindle

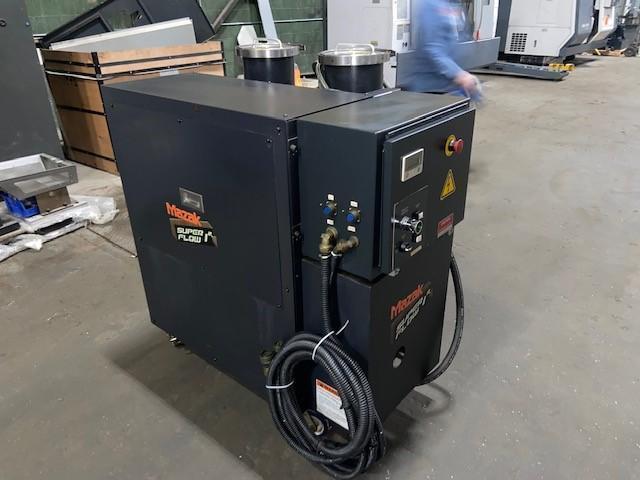

- Super Flow High Pressure Coolant Unit
- Syncho Tapping
- Shape Compensation
- High Smoothing Control
- USB and LAN Ports
- 8 MB Program Size
- G0 Slope Constant
- EIA Dynamic Compensation
- Cylindrical Interpolation
- Tool Tip Point control touch off
- Probing (no probe)
- Chiller

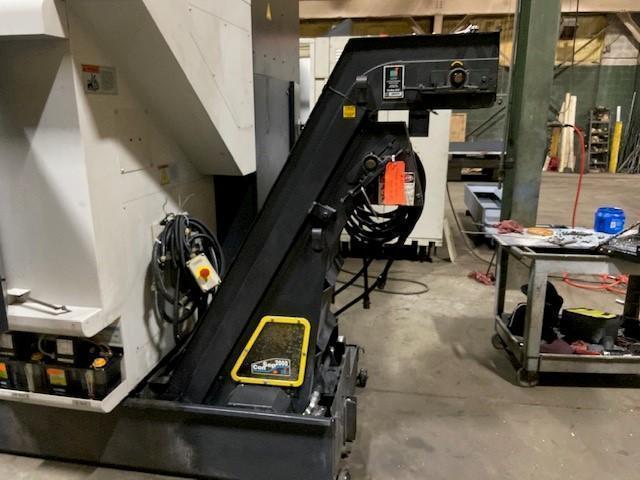

- ConSep 2,000 Chip Conveyor

The Mazak Variaxis 500-5x II is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
