Mikron HSM 800 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HSM 800
Year: 2003
Stock #: 13929
Highlights:
Heidenhain iTNC 530 CNC Control

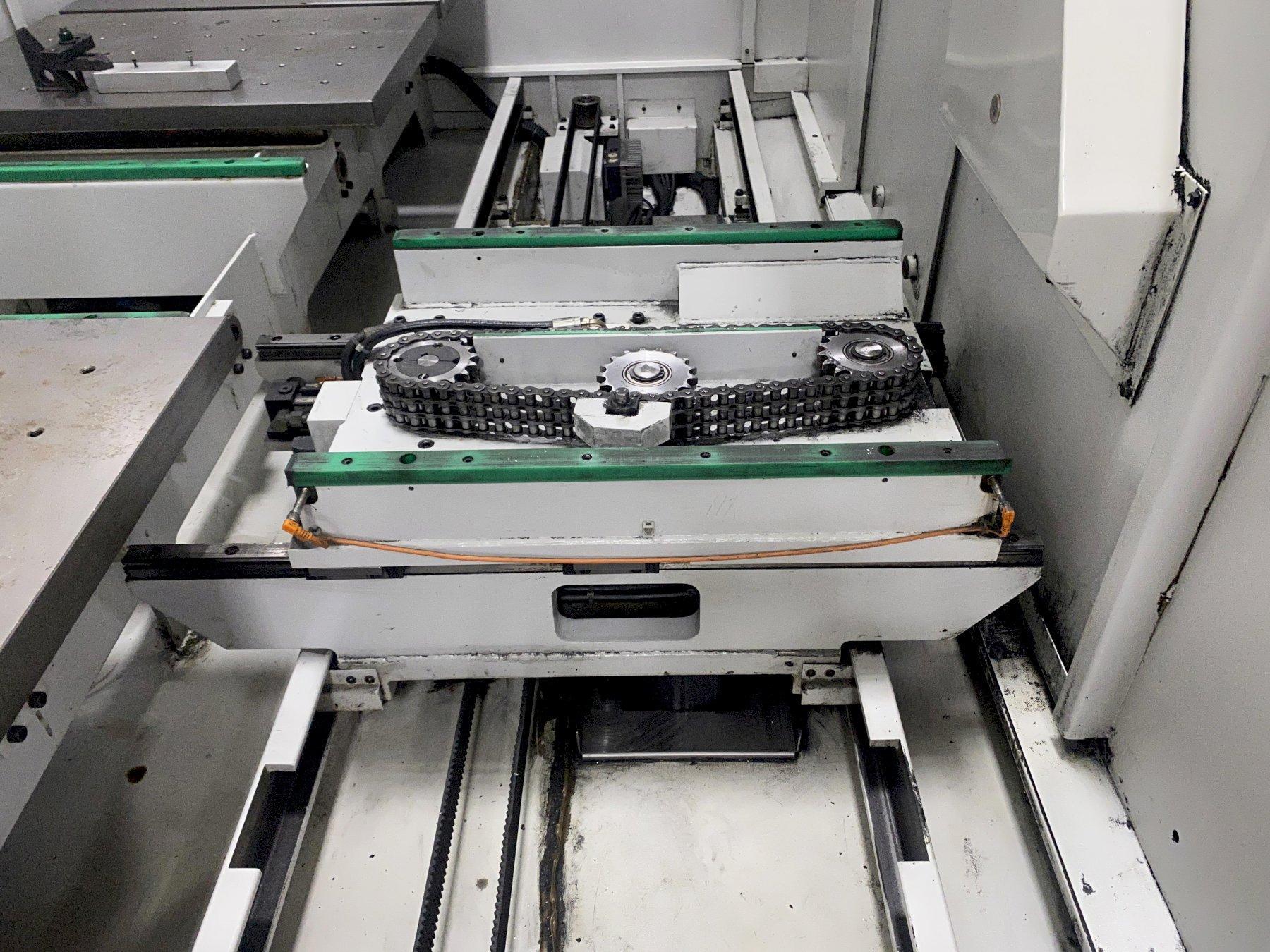

Pallet Changer w/4 Pallets/Stations
Paper Filtration Unit

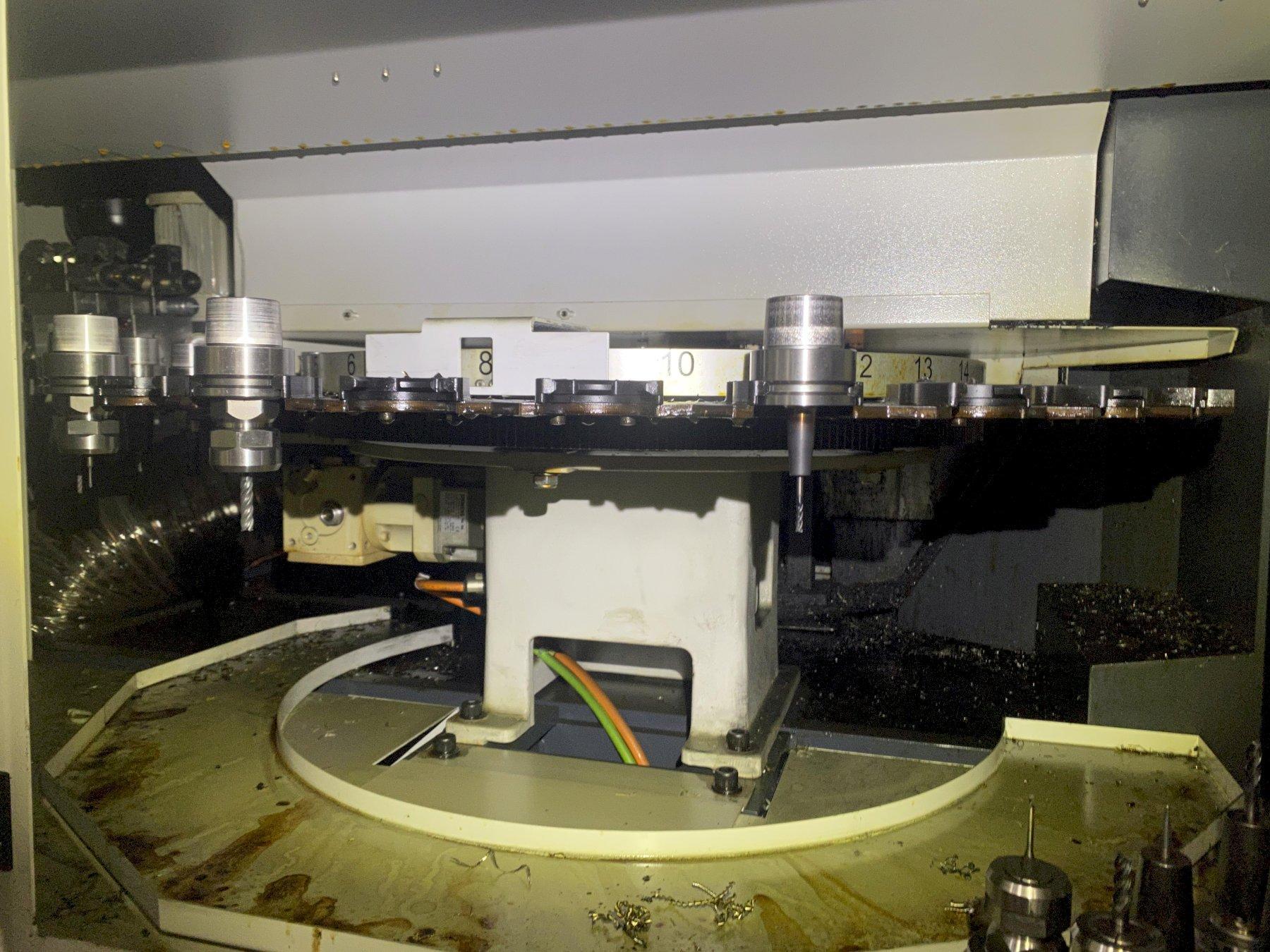

HSK 50 | 36,000 RPM | 30 Station ATC
Lehmann 4th Axis Rotary Table w/Tailstock

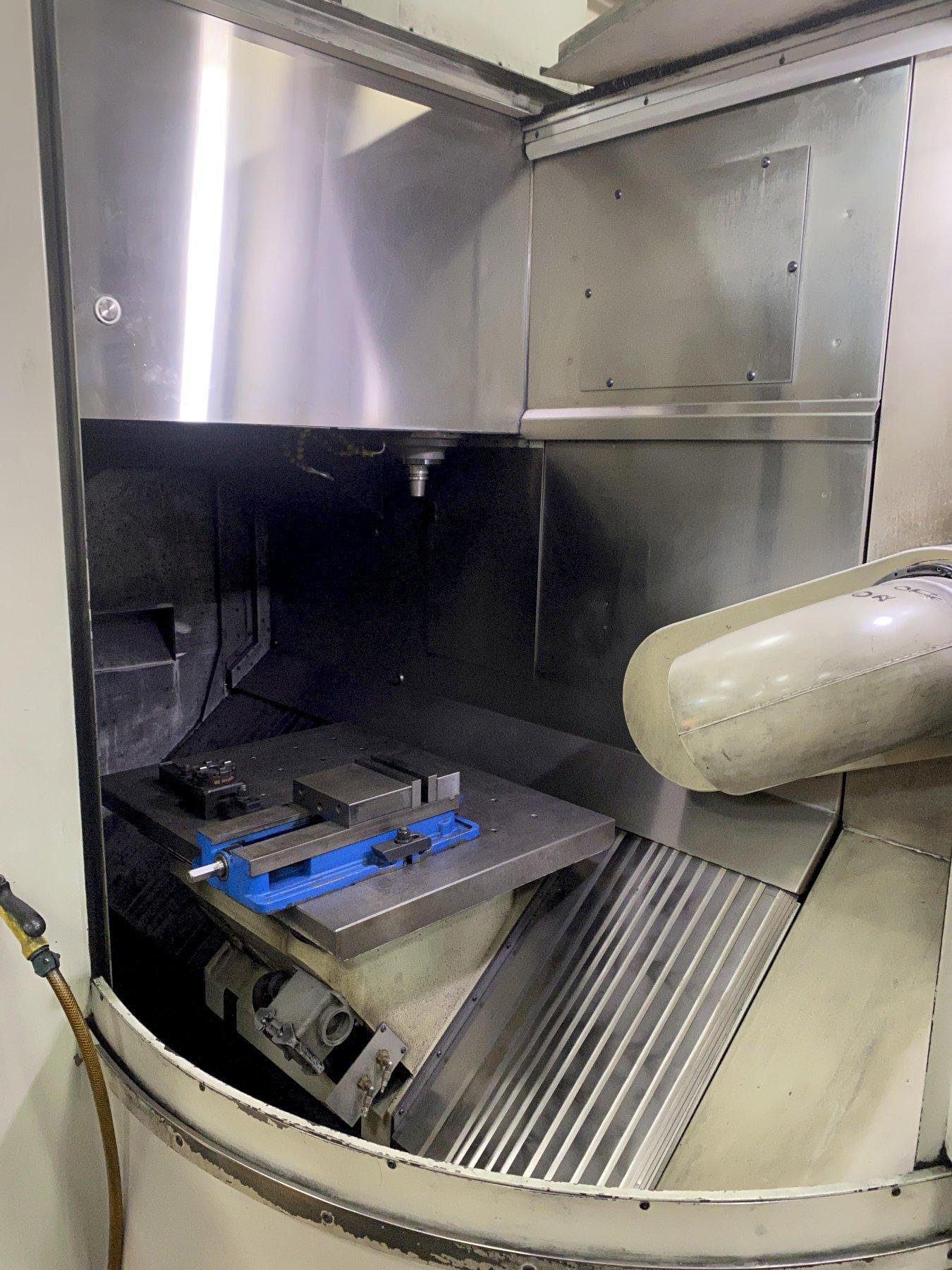

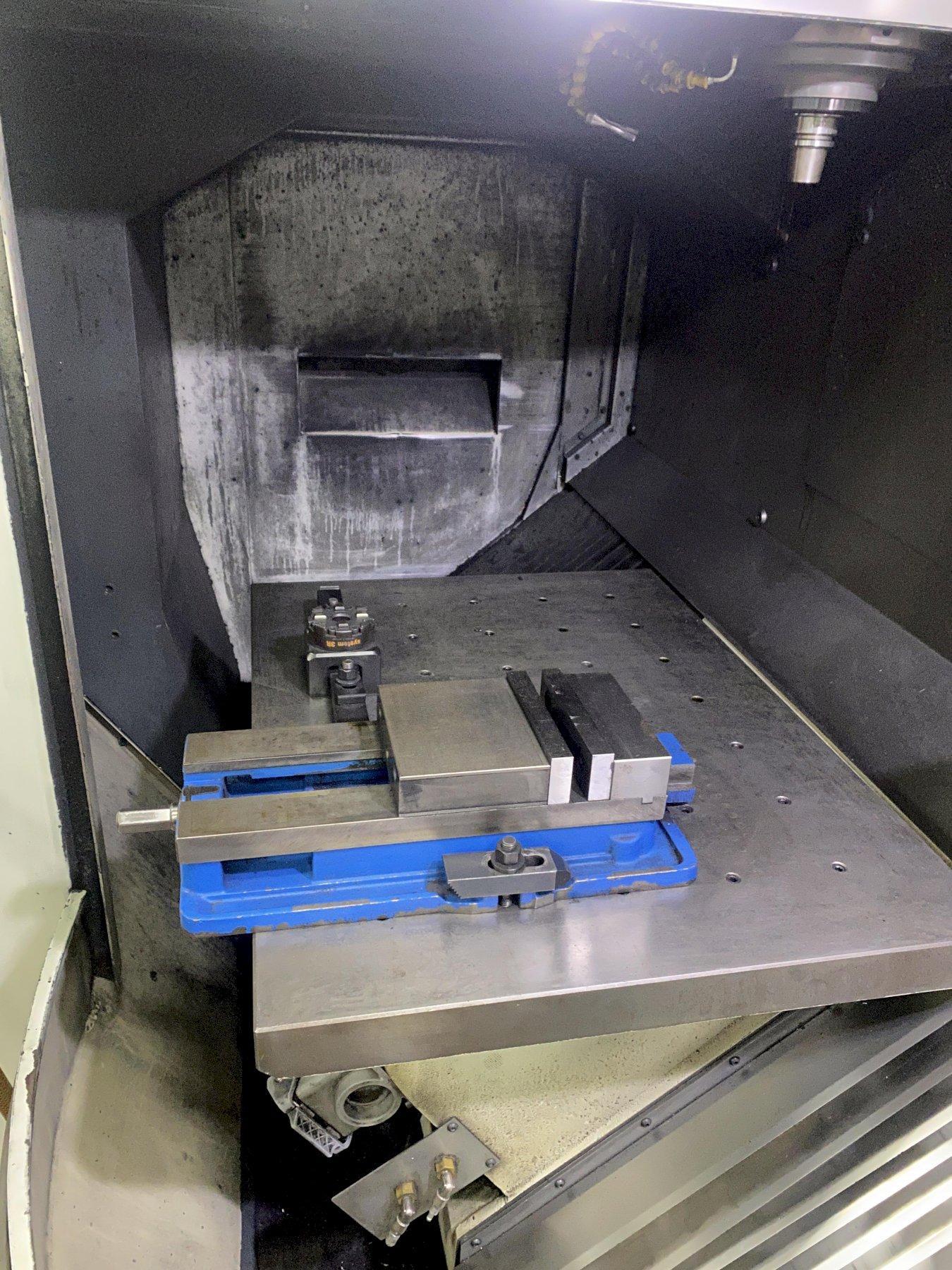

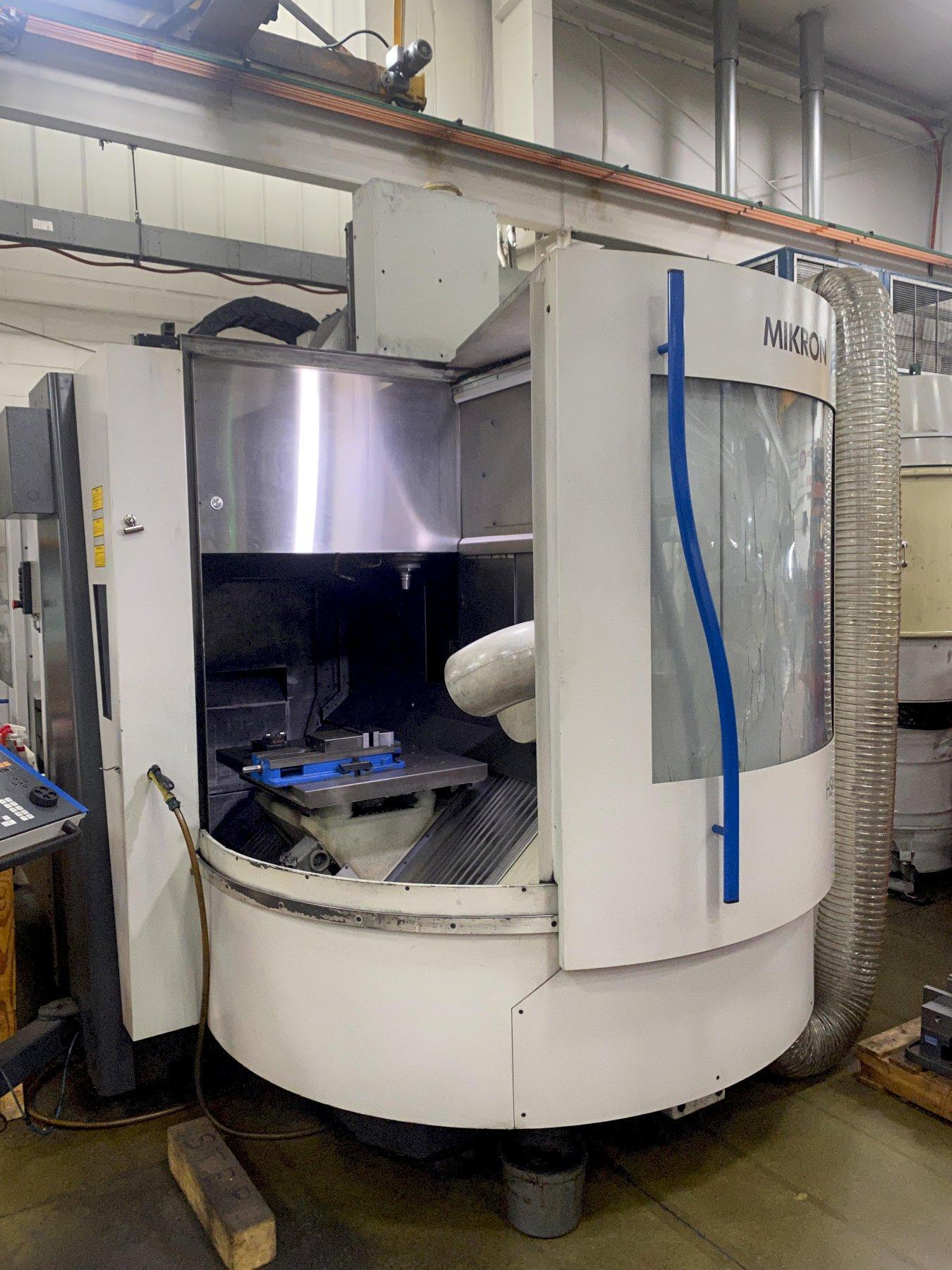

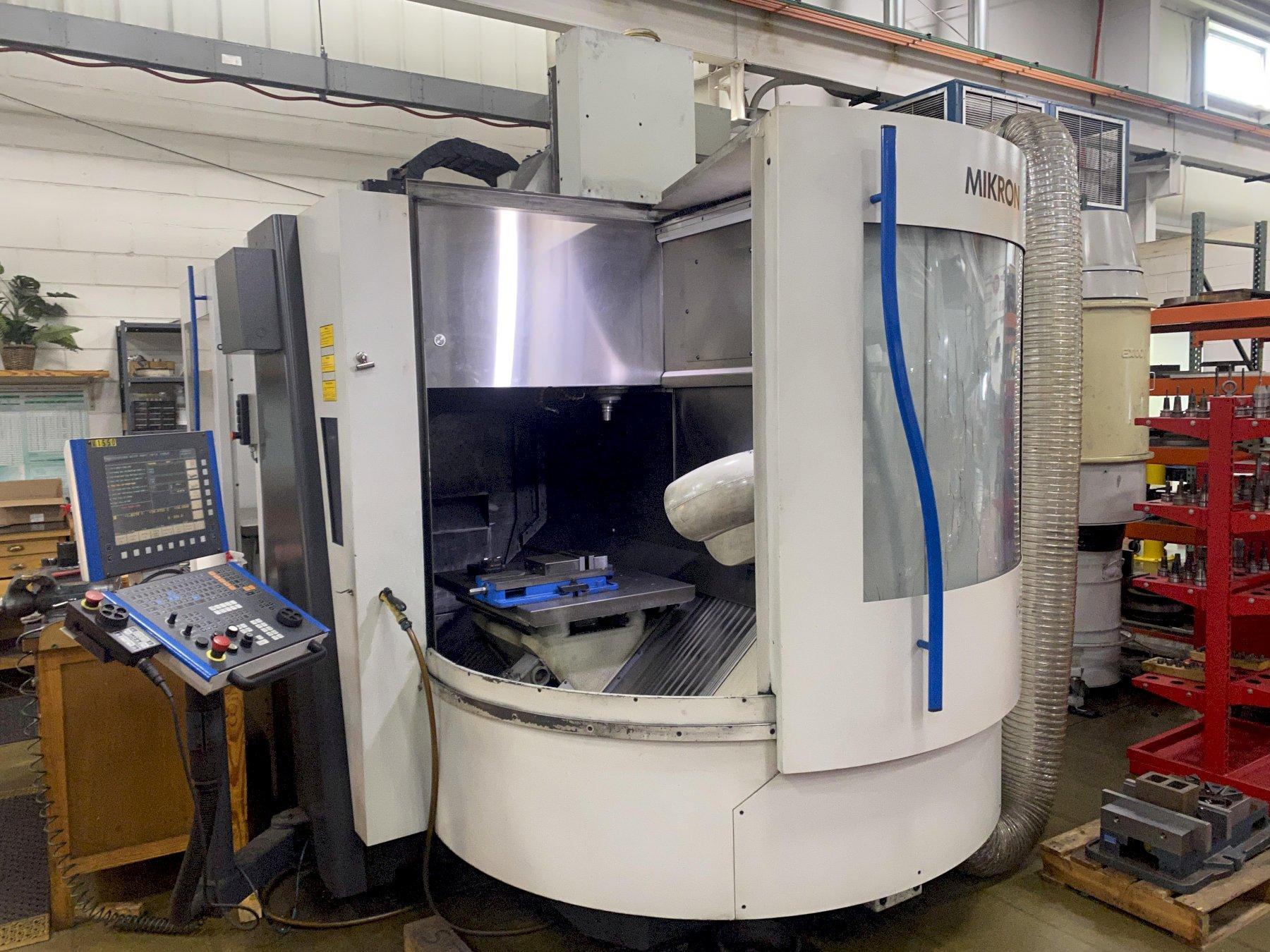

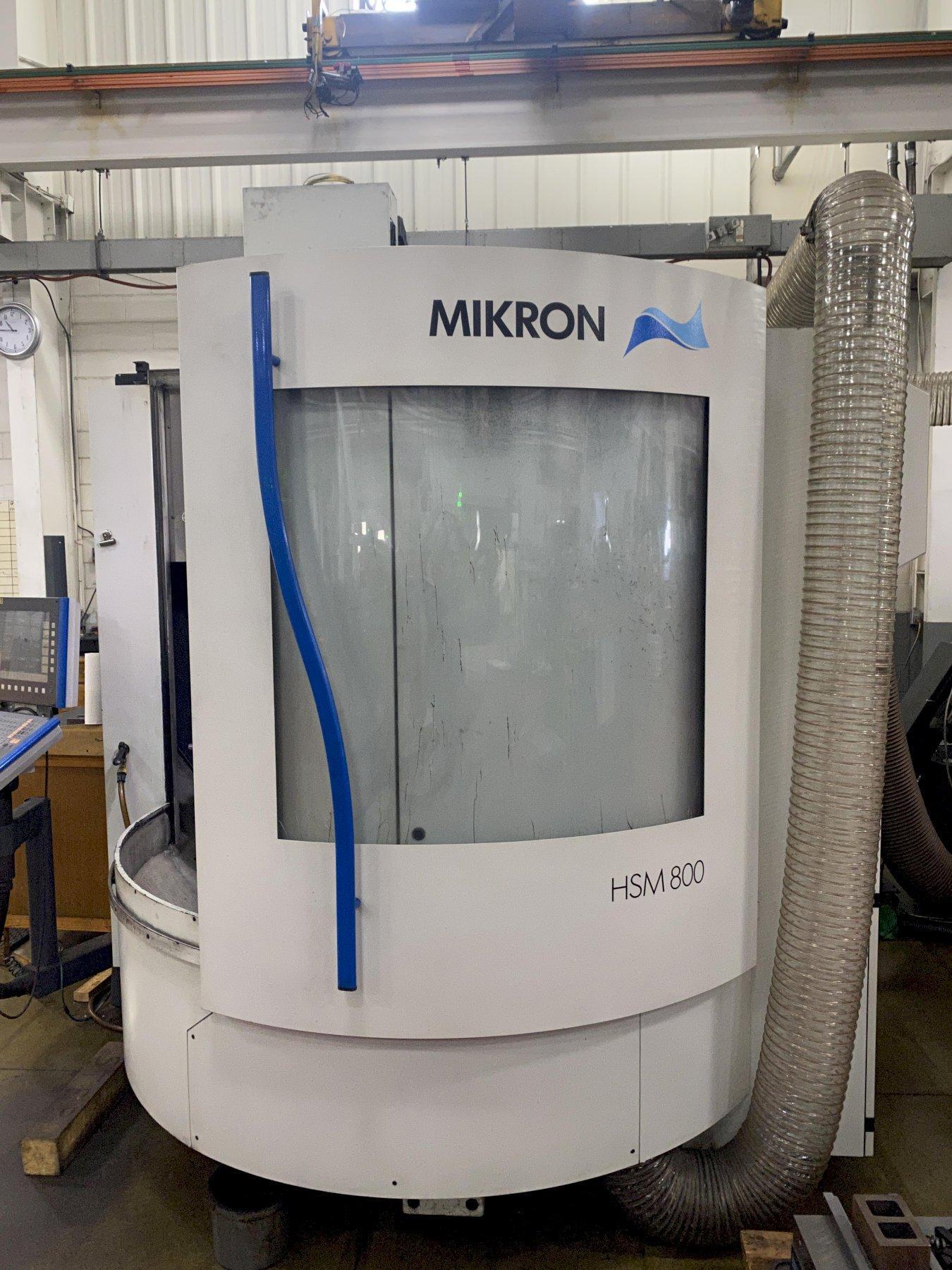

Mikron HSM 800 High Speed CNC Vertical Machining Center with Pallet Changer For Sale 2003
Machine Specifications
CNC Control
yes
Control Type
Heidenhain iTNC 530
# Axis
4
Table Size
31.49" x 23.6"
Table Capacity
2,200 pounds
X-Axis Travel
31.49"
Y-Axis Travel
23.6"
Z-Axis Travel
19.68"
Rapid Traverse Rate (X/Y/Z)
1,572 ipm

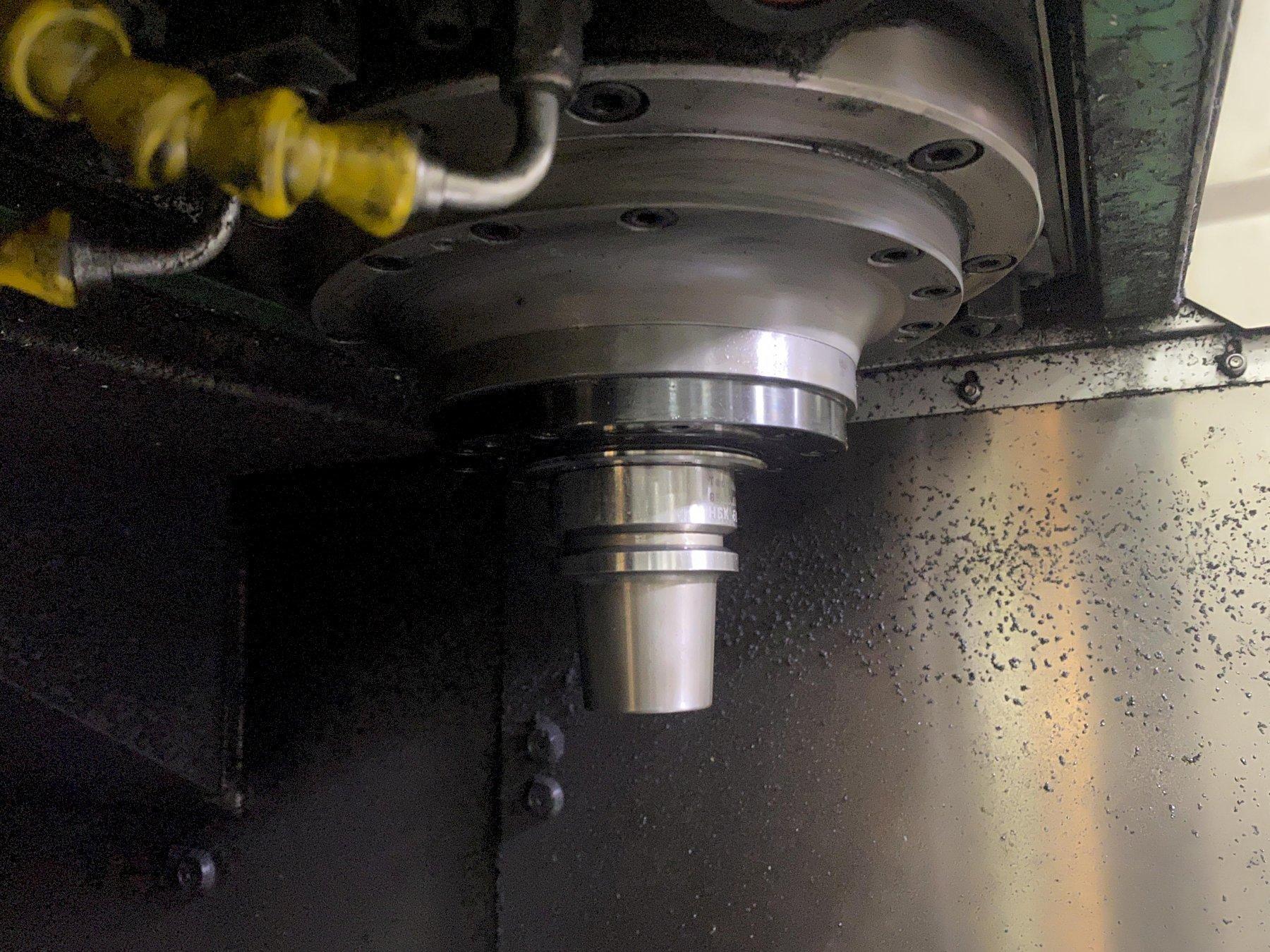

Spindle Taper
HSK 50
Spindle Speed
36,000 rpm
Main Motor
41 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Machine Dimensions
153" x 101" x 98" Approx.
Machine Weight
24,000 pounds

Equipped With:

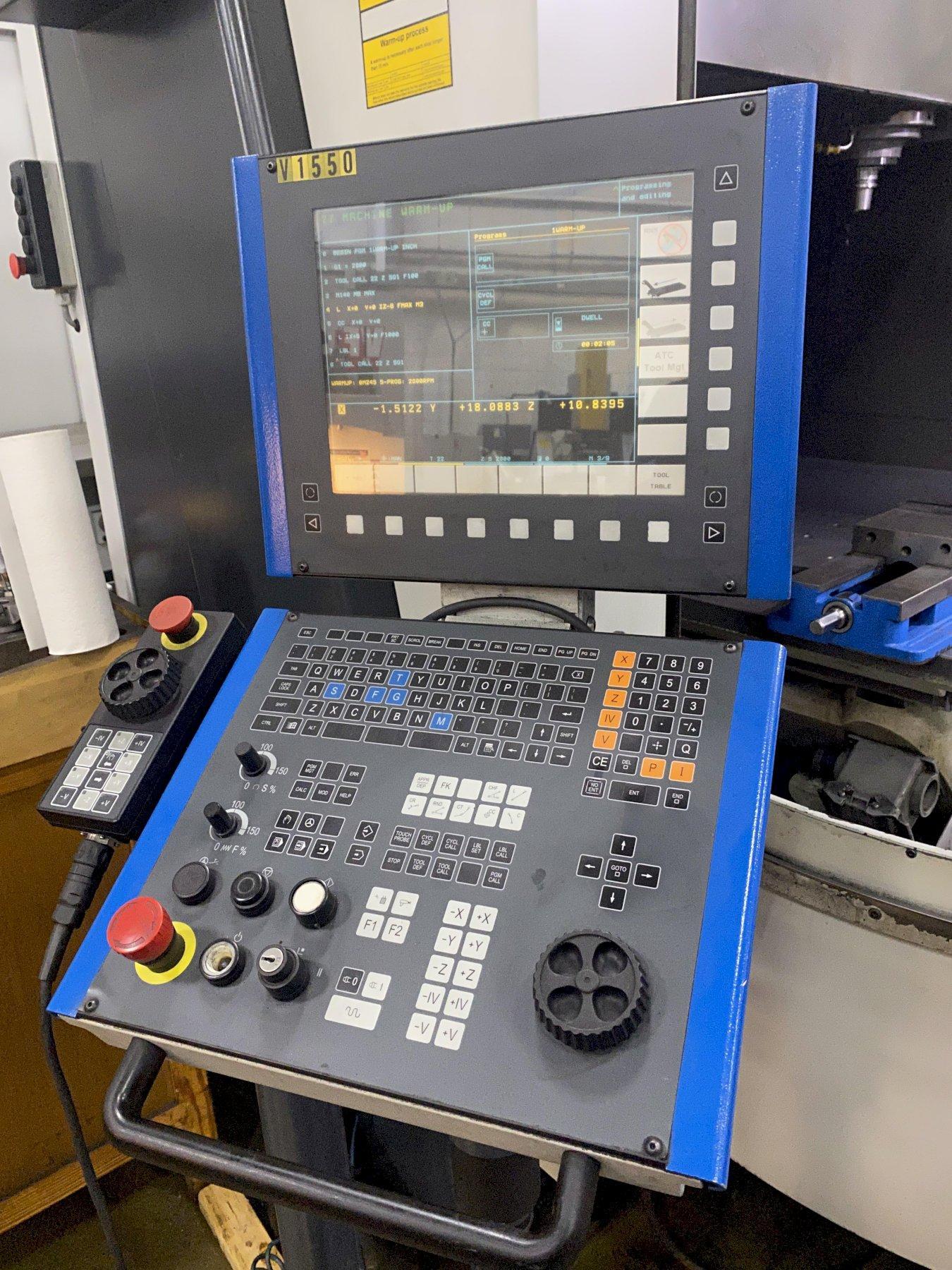

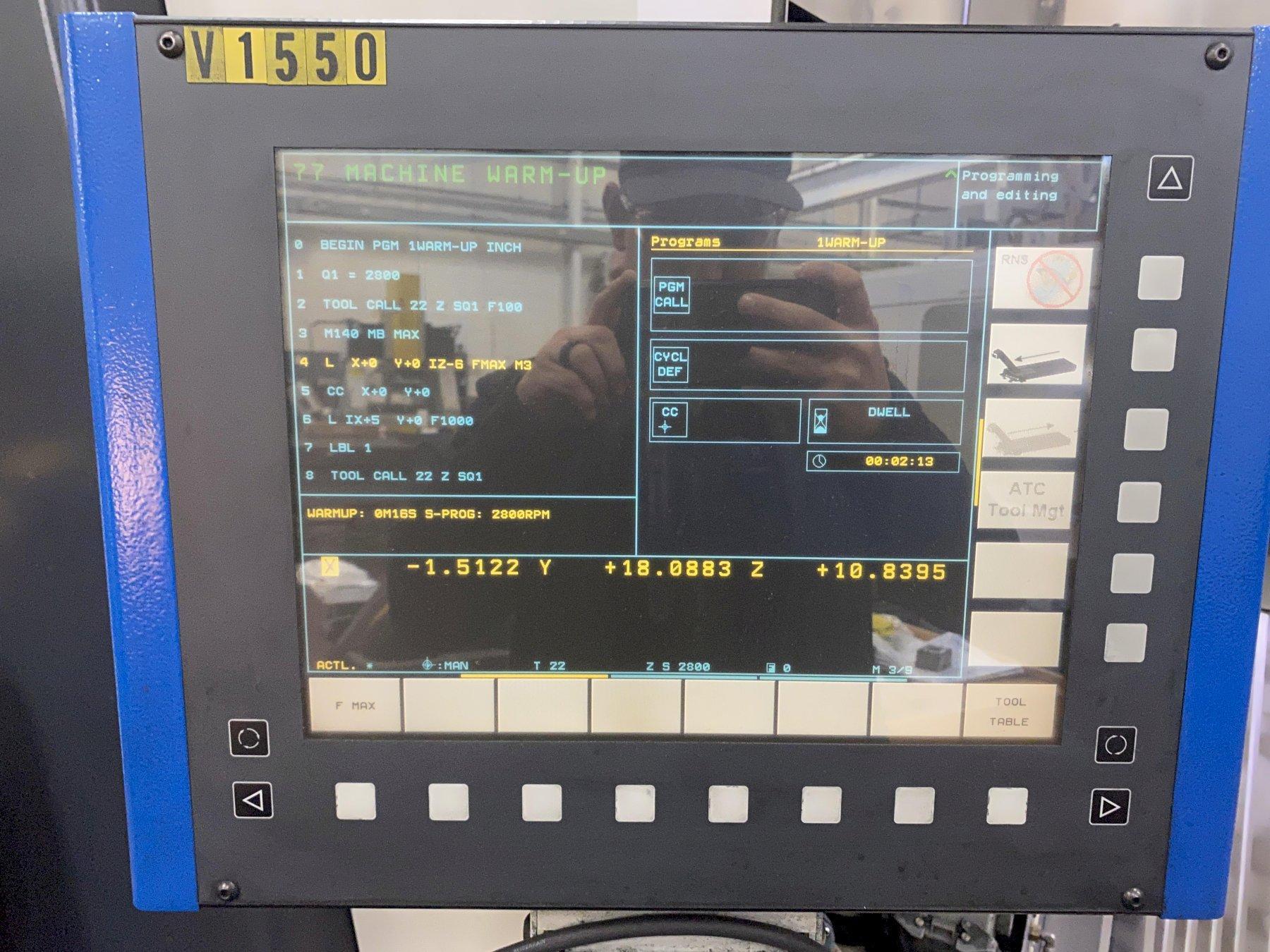

- Heidenhain iTNC 530 CNC Control
- Mikron High Speed Machining Center

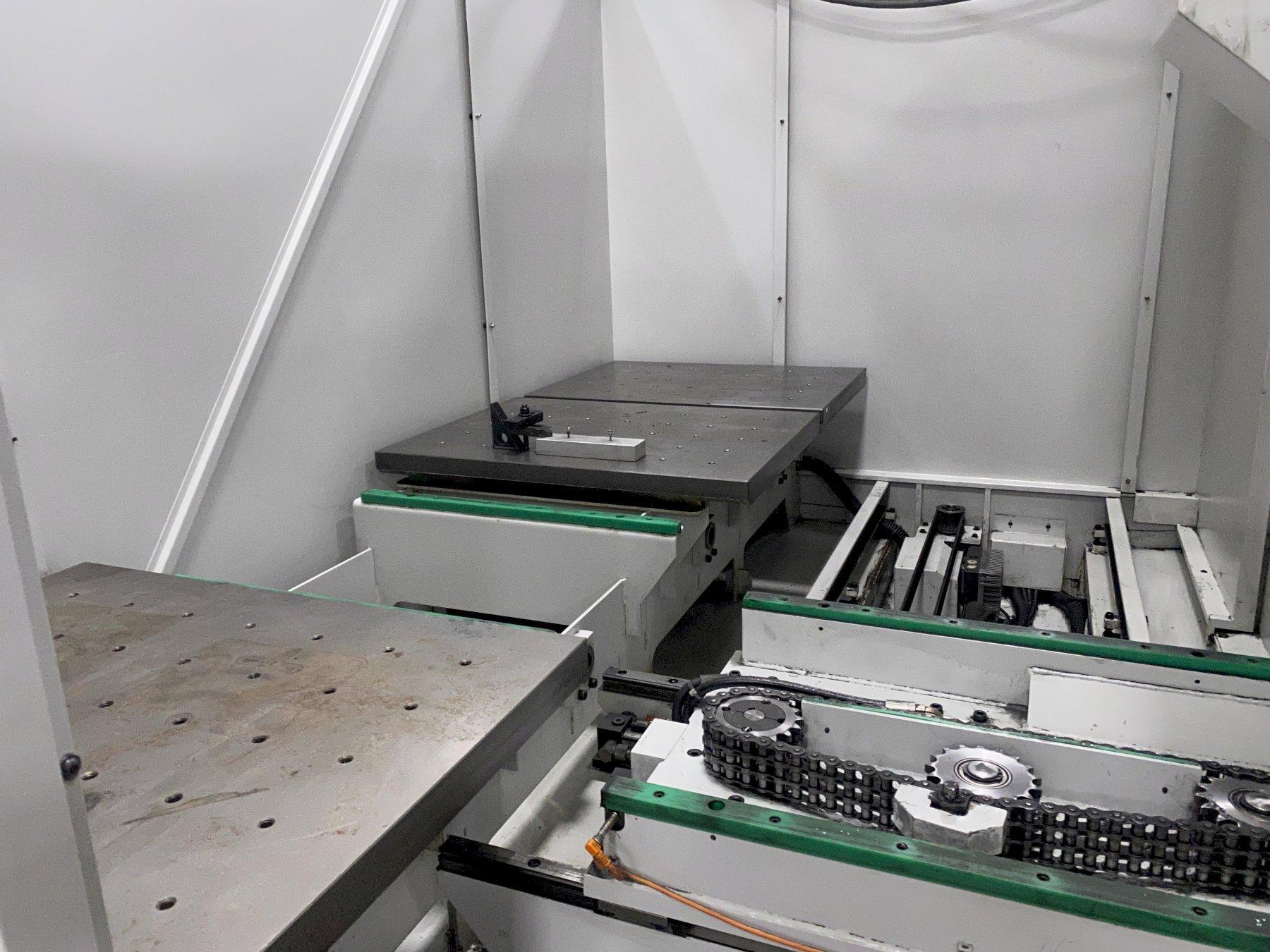

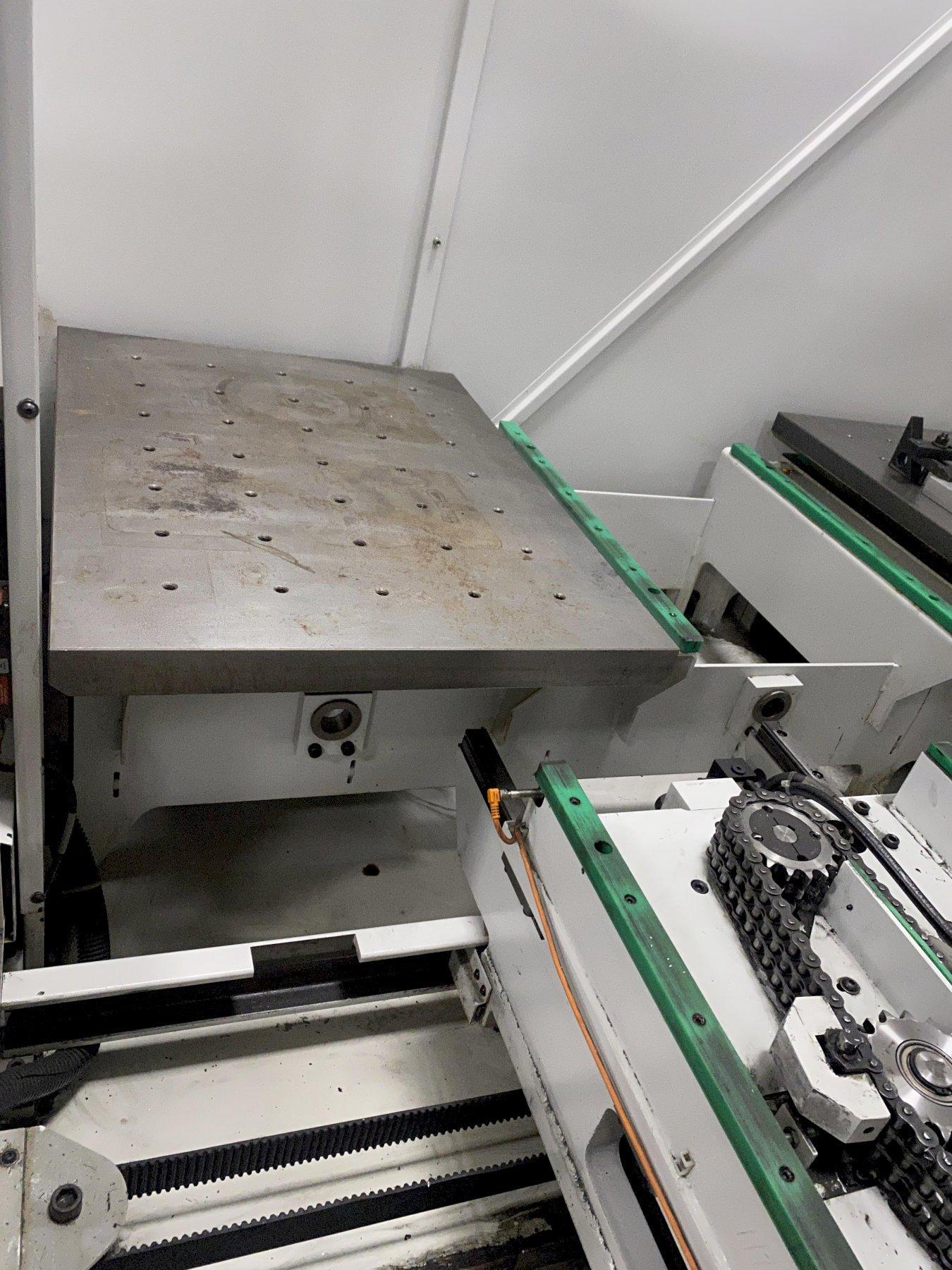

- Pallet Changer - 4 Stations
- 18 Bar Coolant

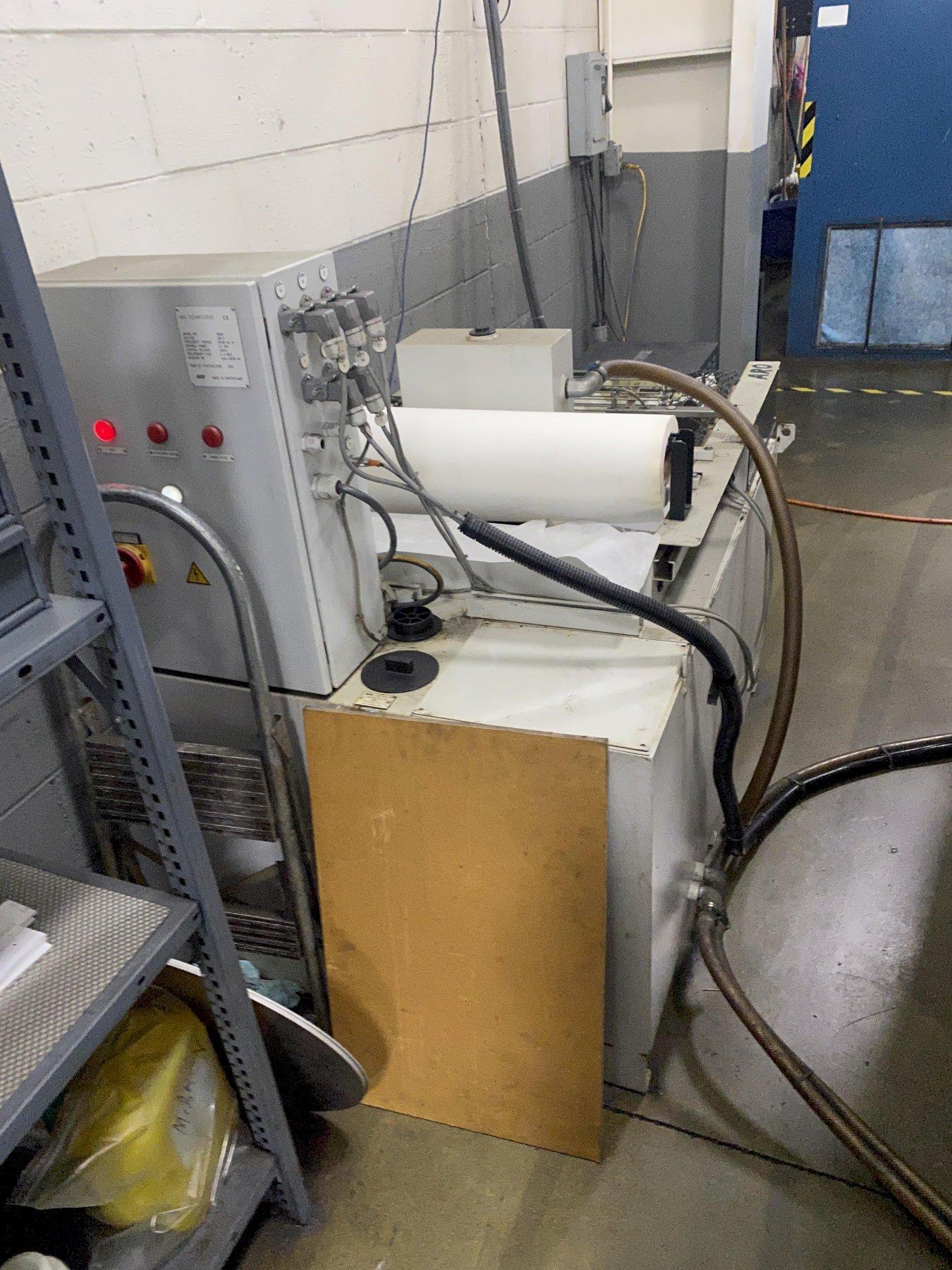

- ARO Coolant Filtration Unit

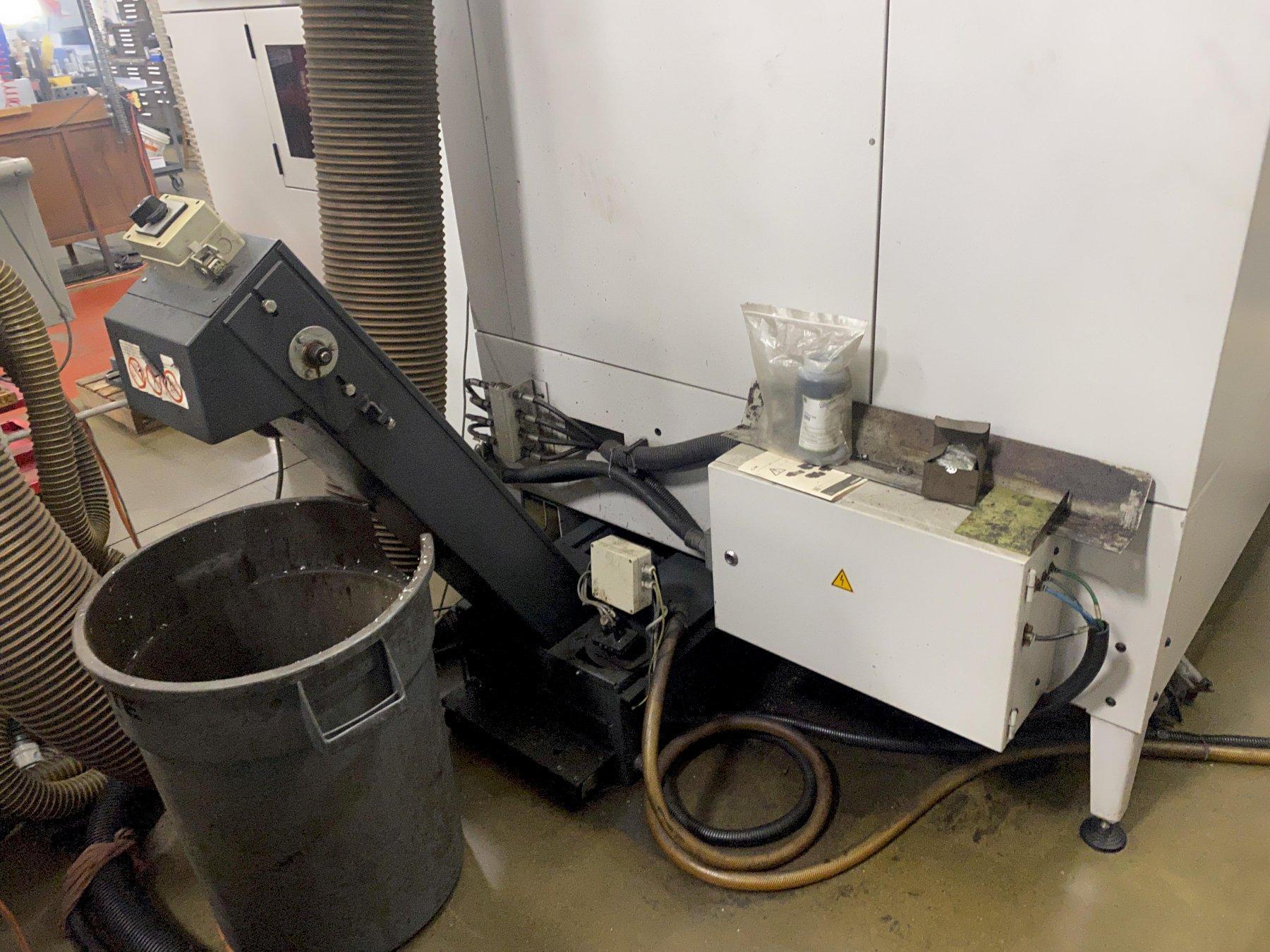

- Chip Conveyor

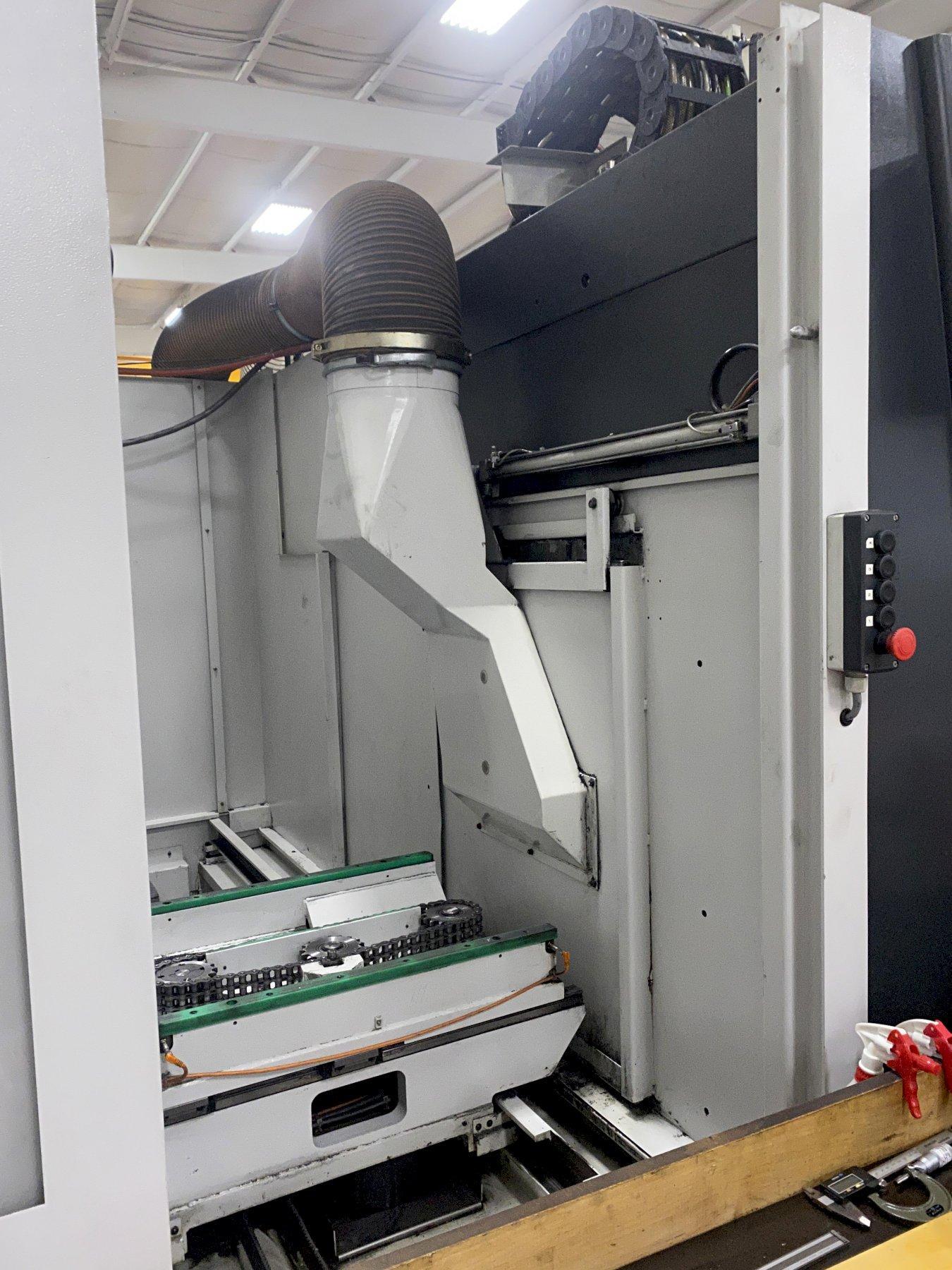

- Extor Dust Removal Unit Model 3500-3s MP IP

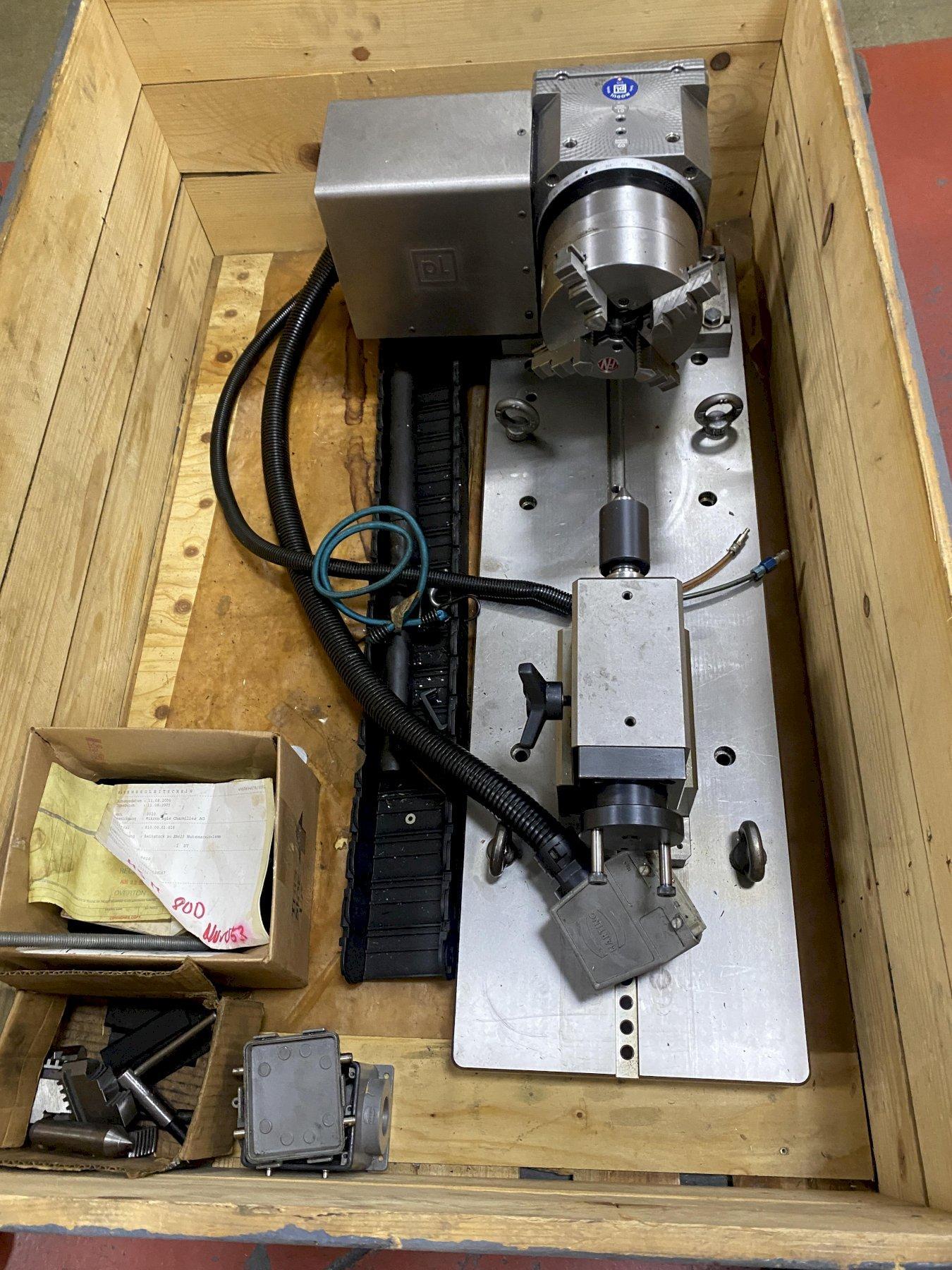

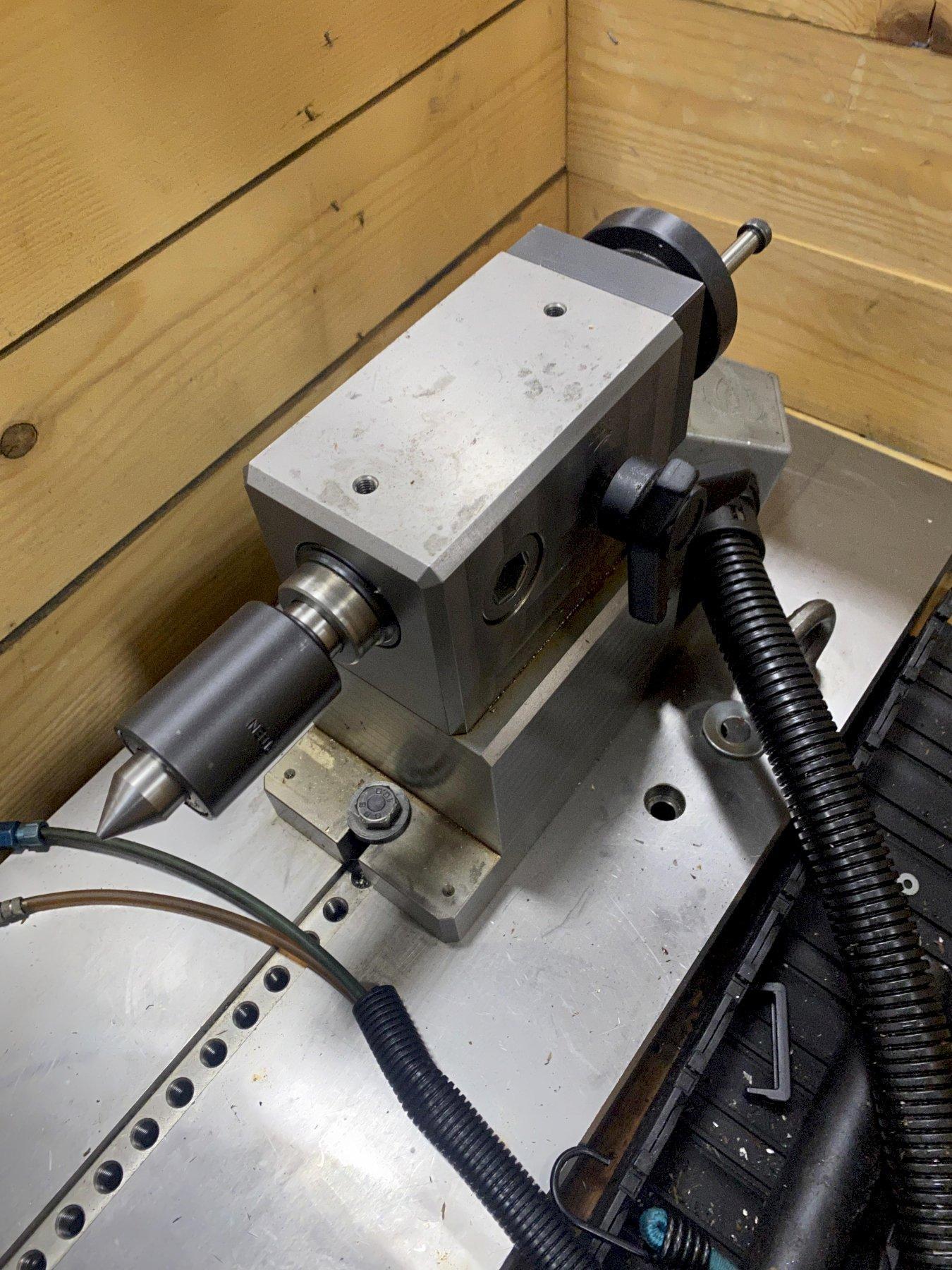

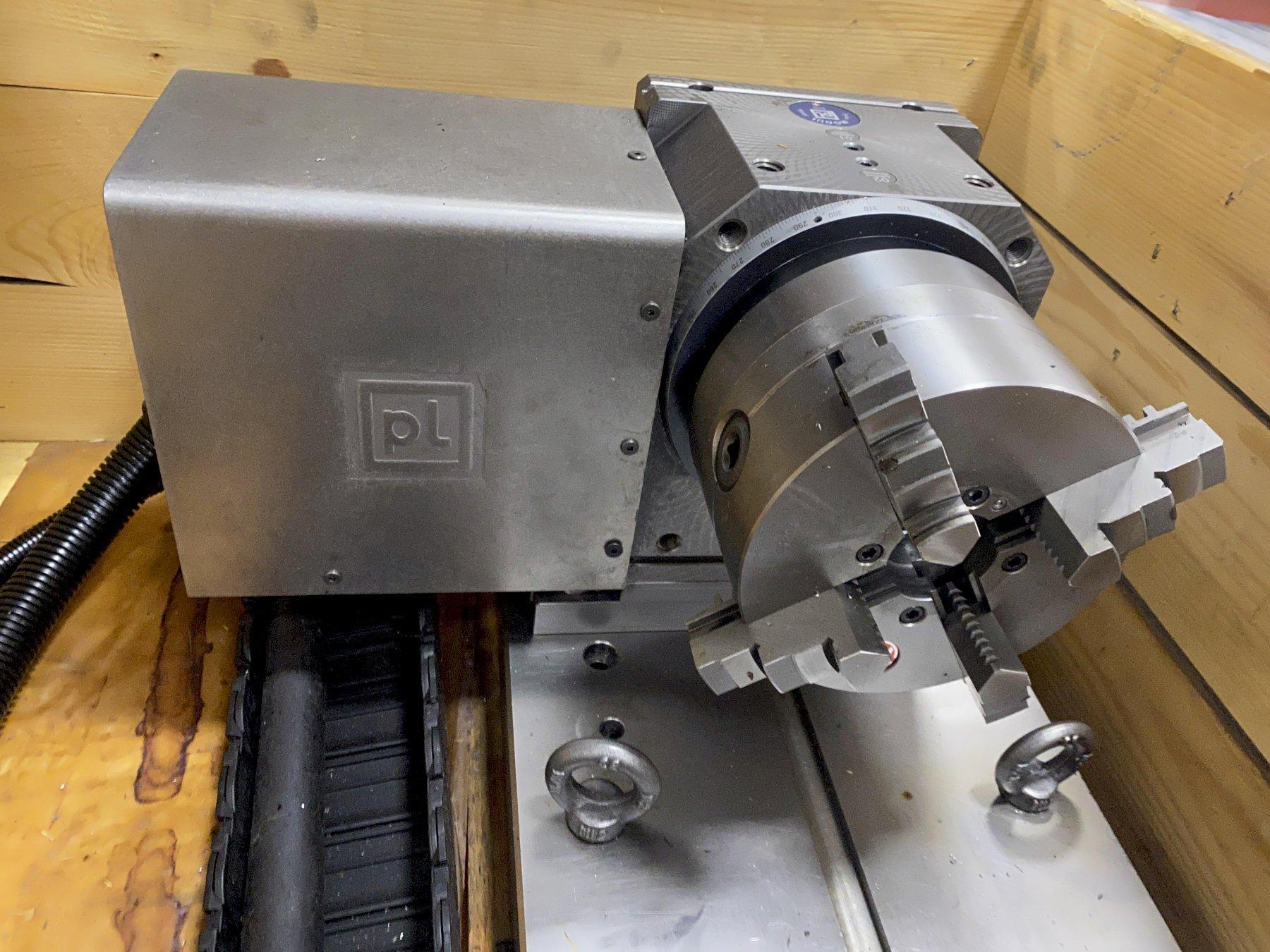

- Lehmann 4th Axis Rotary Table w/Tailstock
      * Model EA-420.2A

The Mikron HSM 800 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
