Mori Seiki NMV5000 DCG - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: NMV5000 DCG
Year: 2011
Stock #: 13421
Highlights:

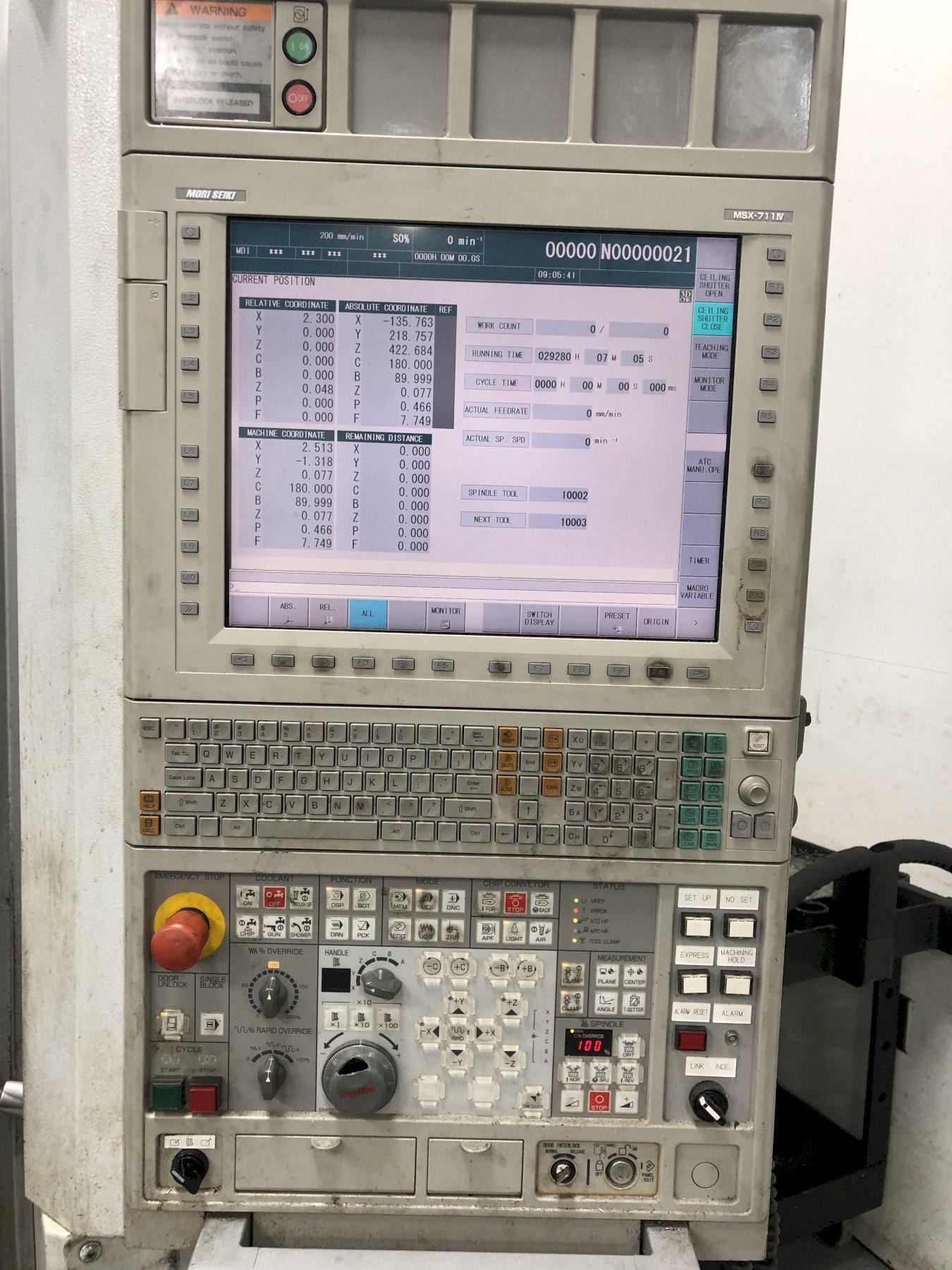

MSX-711 IV (Fanuc 31i-A5) Control
Renishaw Probing | Data Server
HSK 63 | 12,000 rpm | 181 Station ATC

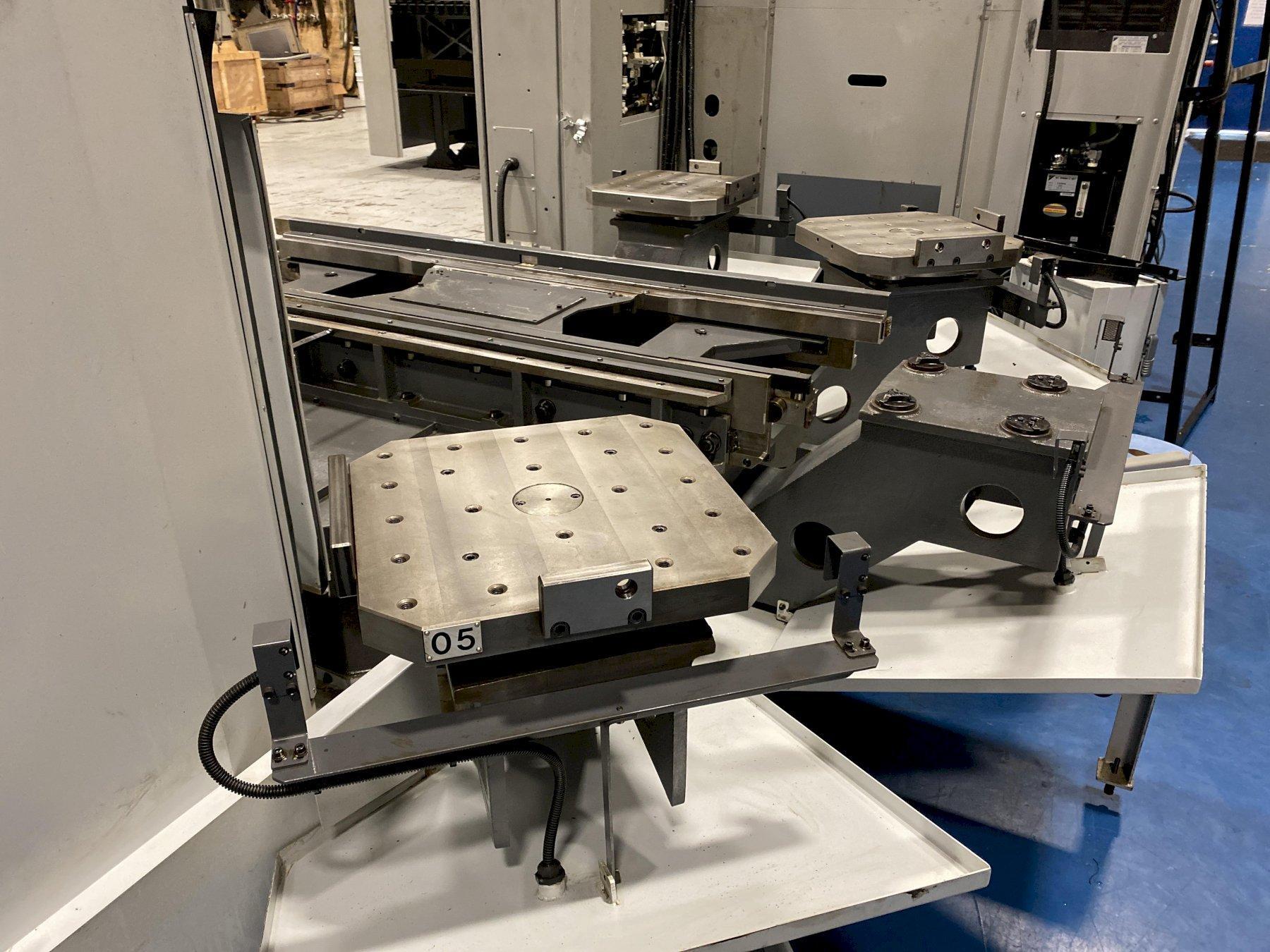

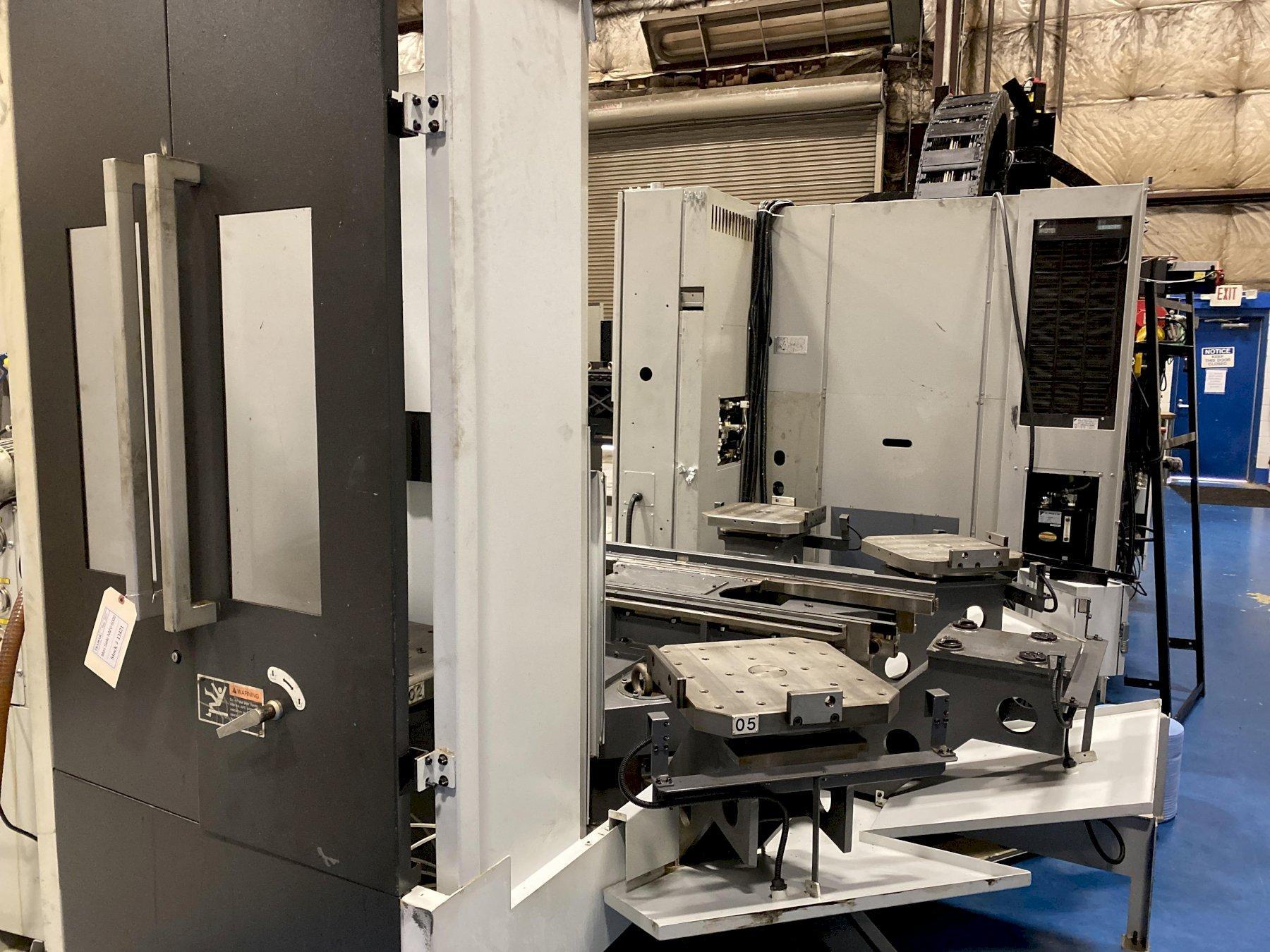

5 Station Pallet Changer (Optional)

Mori Seiki NMV5000 DCG Vertical Machining Center
Machine Specifications
Year
2011
Control Type
MSX-711 IV (Fanuc 31i-A5)
# Axis
5
Table Size
19.7" round
Table Capacity
660 pounds
X-Axis Travel
28.7"
Y-Axis Travel
20.1"
Z-Axis Travel
20.1"

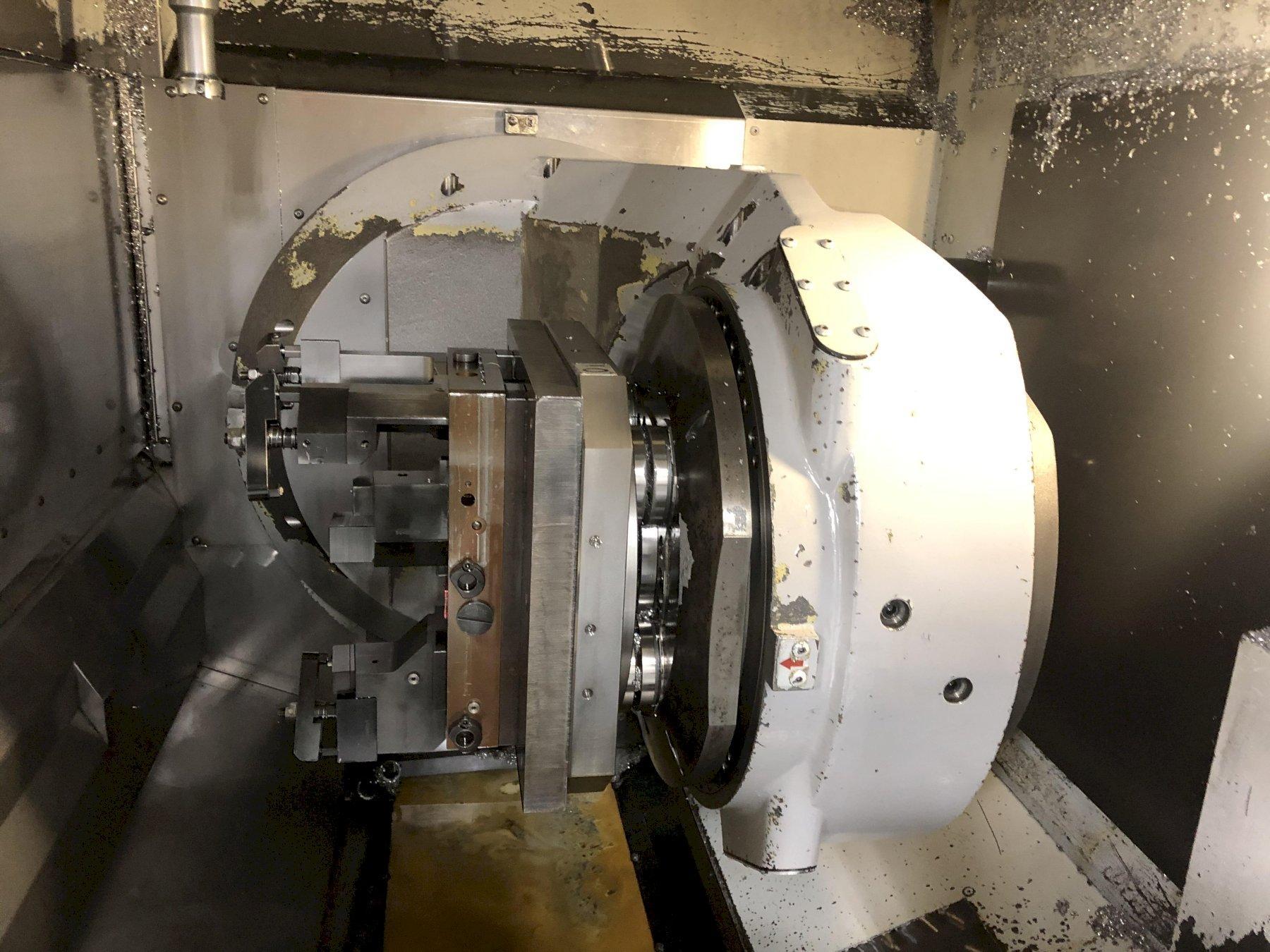

B Axis Head Tilt
+160° to -180°
C Axis Index
360°
Rapid Traverse Rate (X/Y/Z)
1,968/1,968/1,574
Spindle Taper
HSK 63
Spindle Speed
12,000 rpm
Main Motor
25 hp

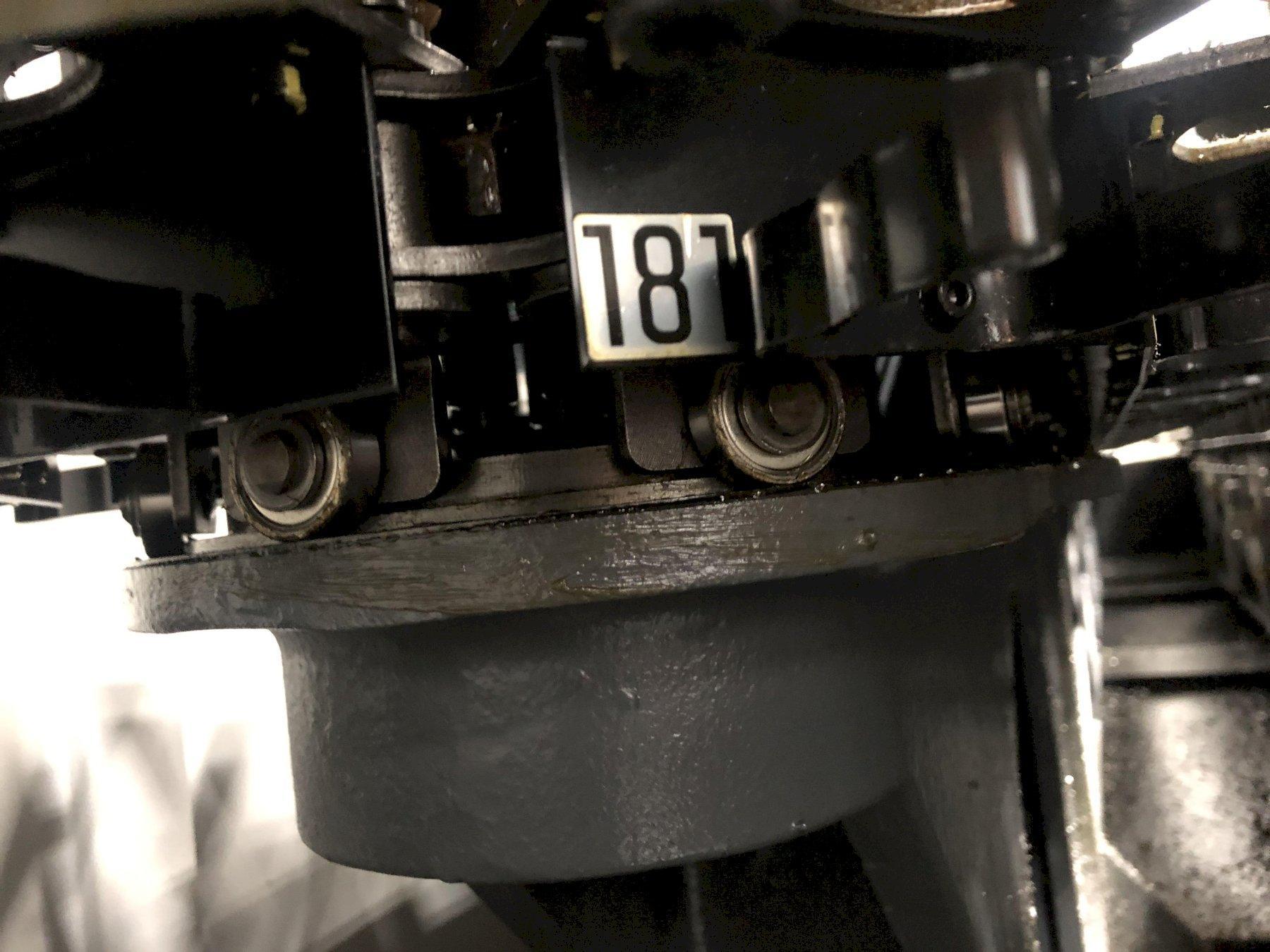

Tool Changer Capacity
181
Coolant Thru Spindle
yes
Machine Dimensions
156" x 110" x 122
Machine Weight
27,280 pounds

Equipped With:

- MSX-711 IV Control (Fanuc 31i-A5)
- Coolant Tank & Pump

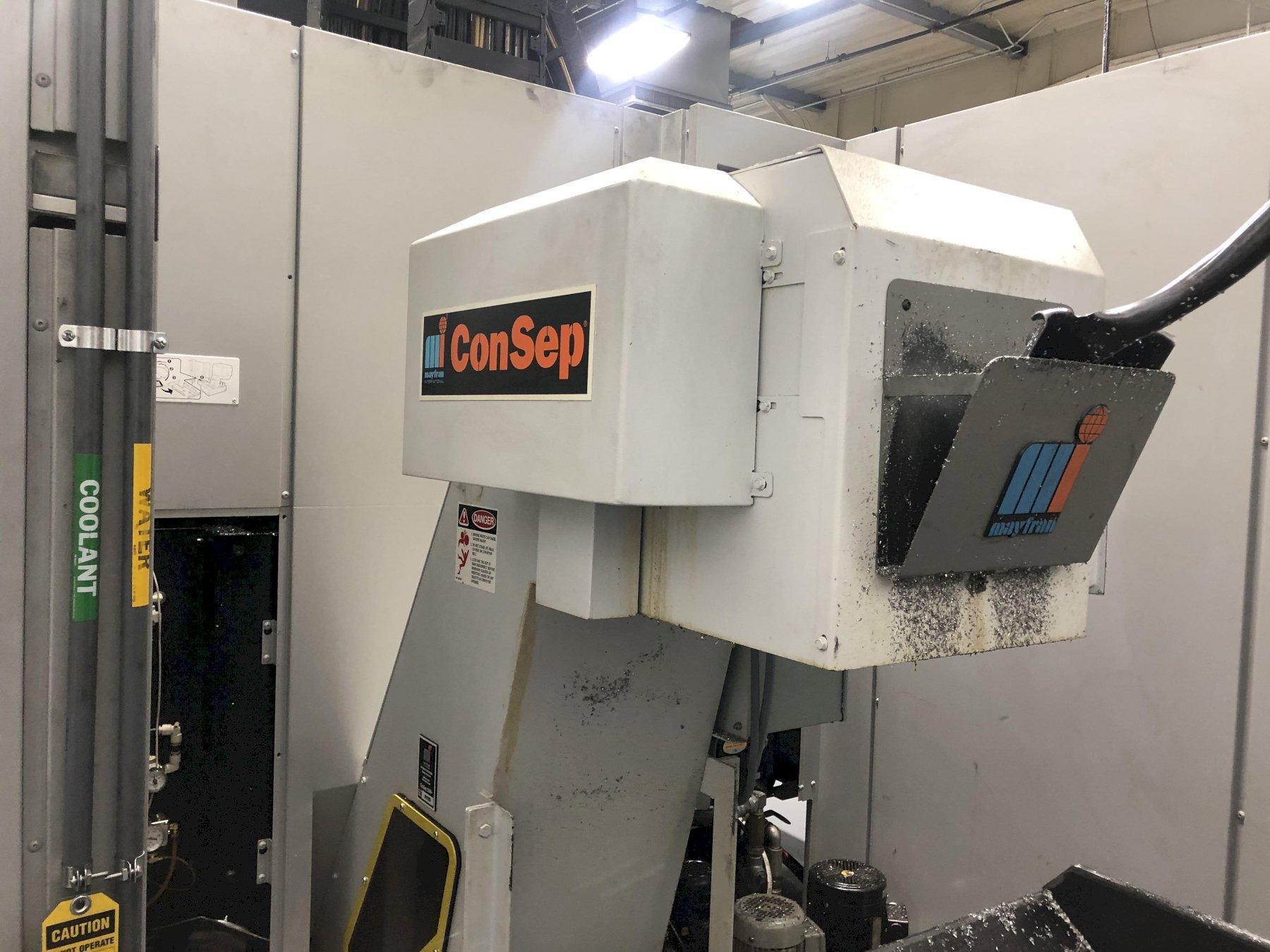

- Chip Conveyor

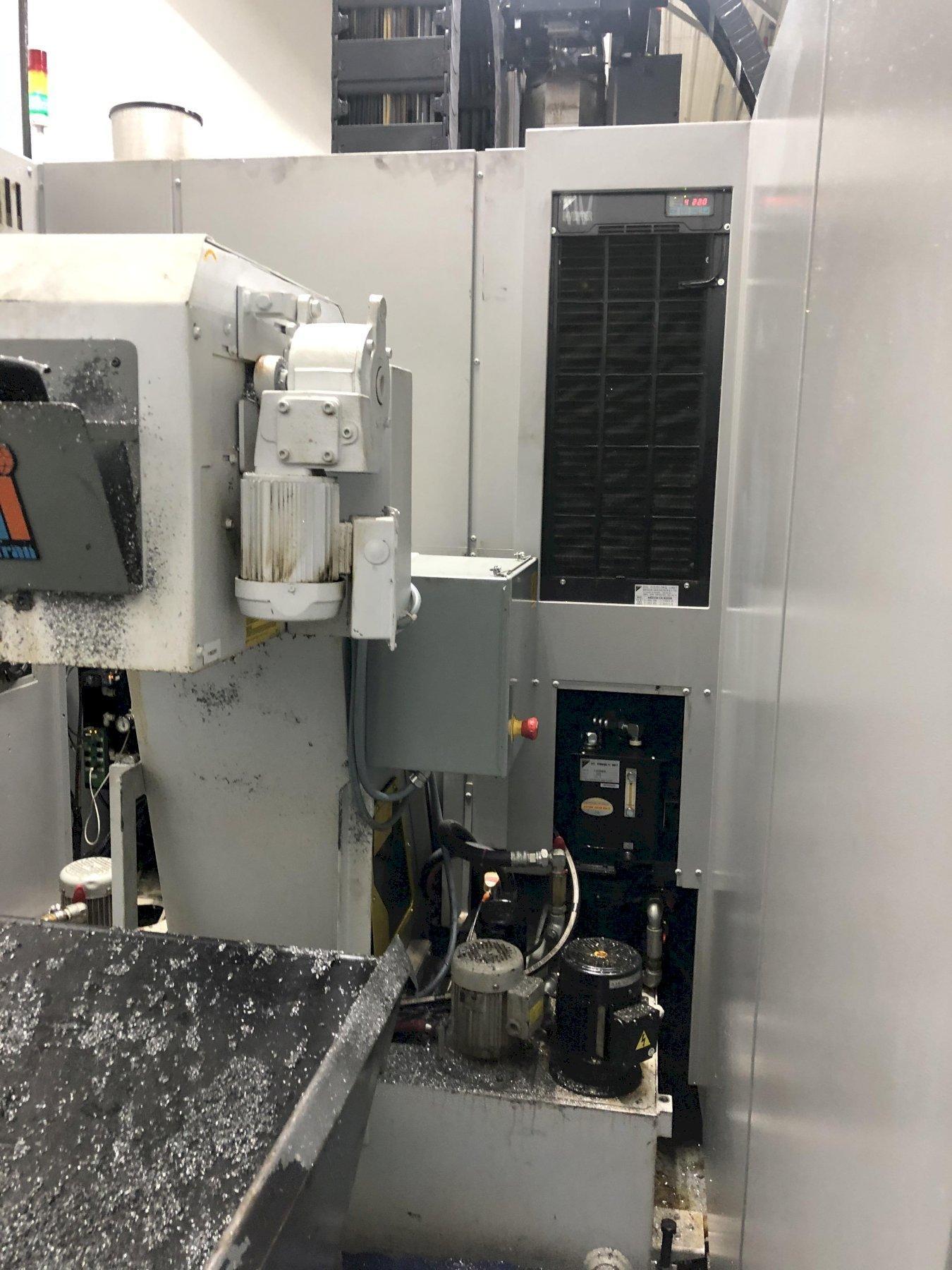

- Spindle Chiller
- High Pressure Coolant Thru Spindle
- Chip Blaster Model JV40
- MAPPS IV

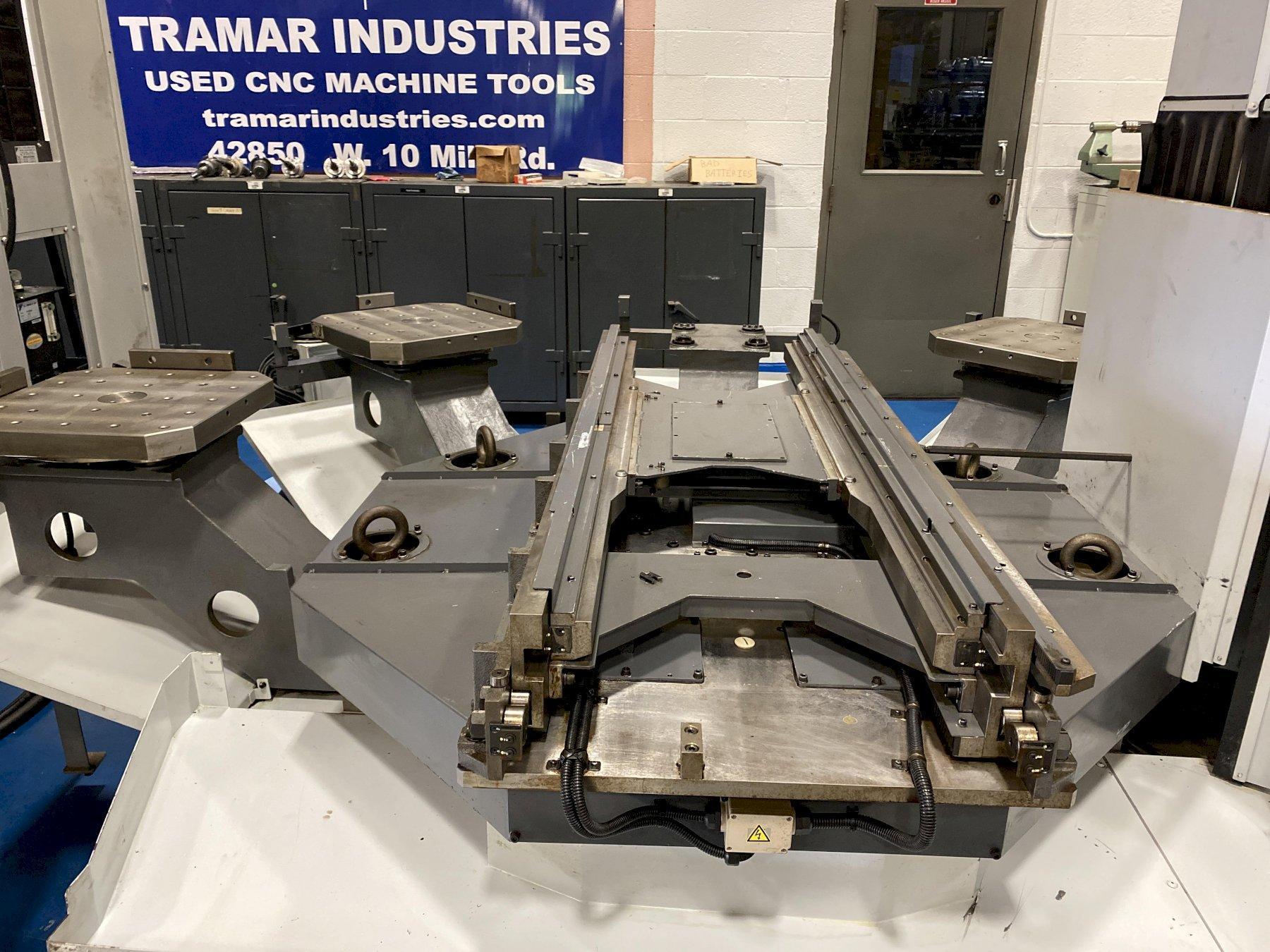

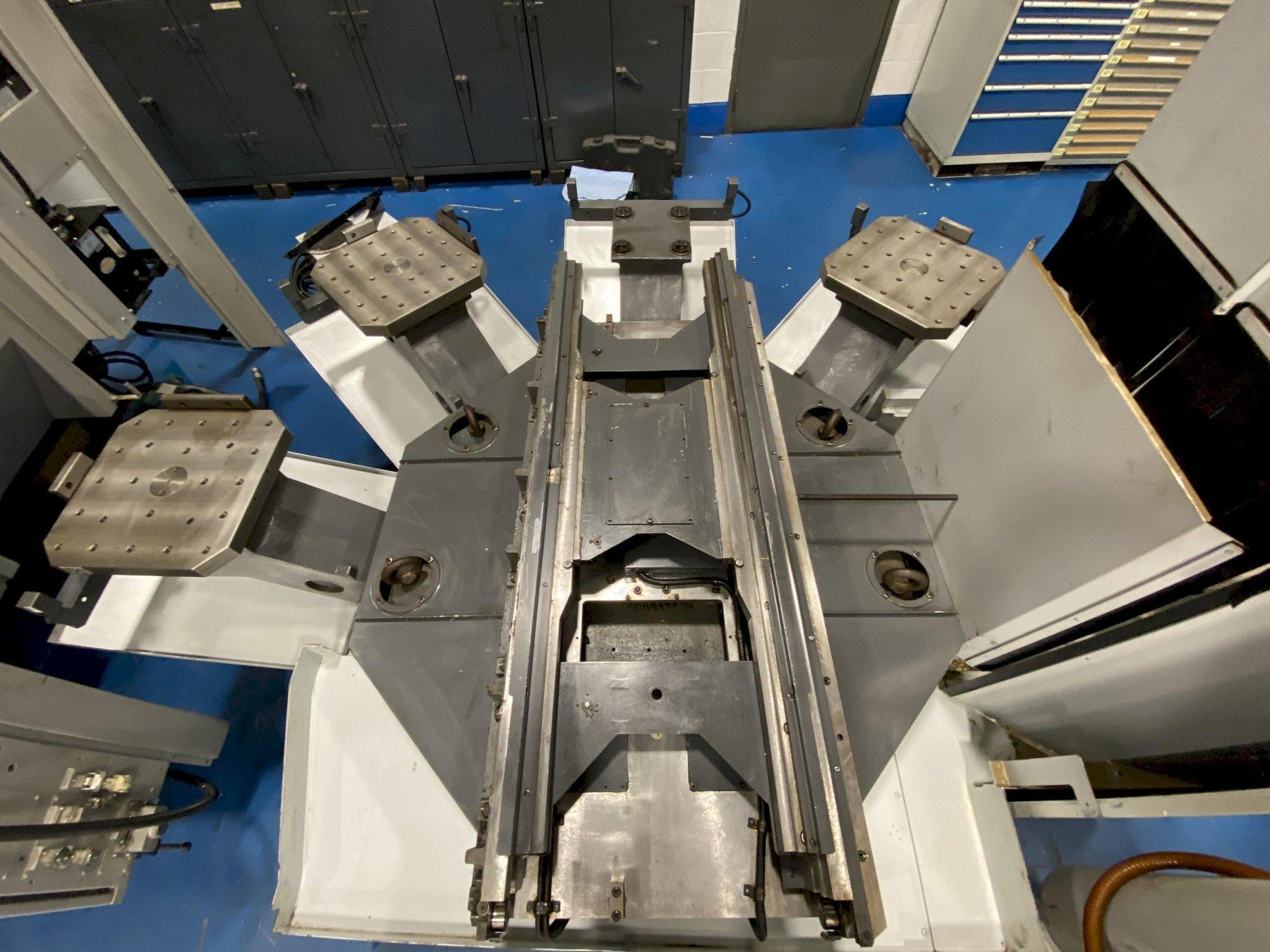

- 5 Station Pallet Pool (Optional)
- Data Server
- 200 Tool Offset Pairs

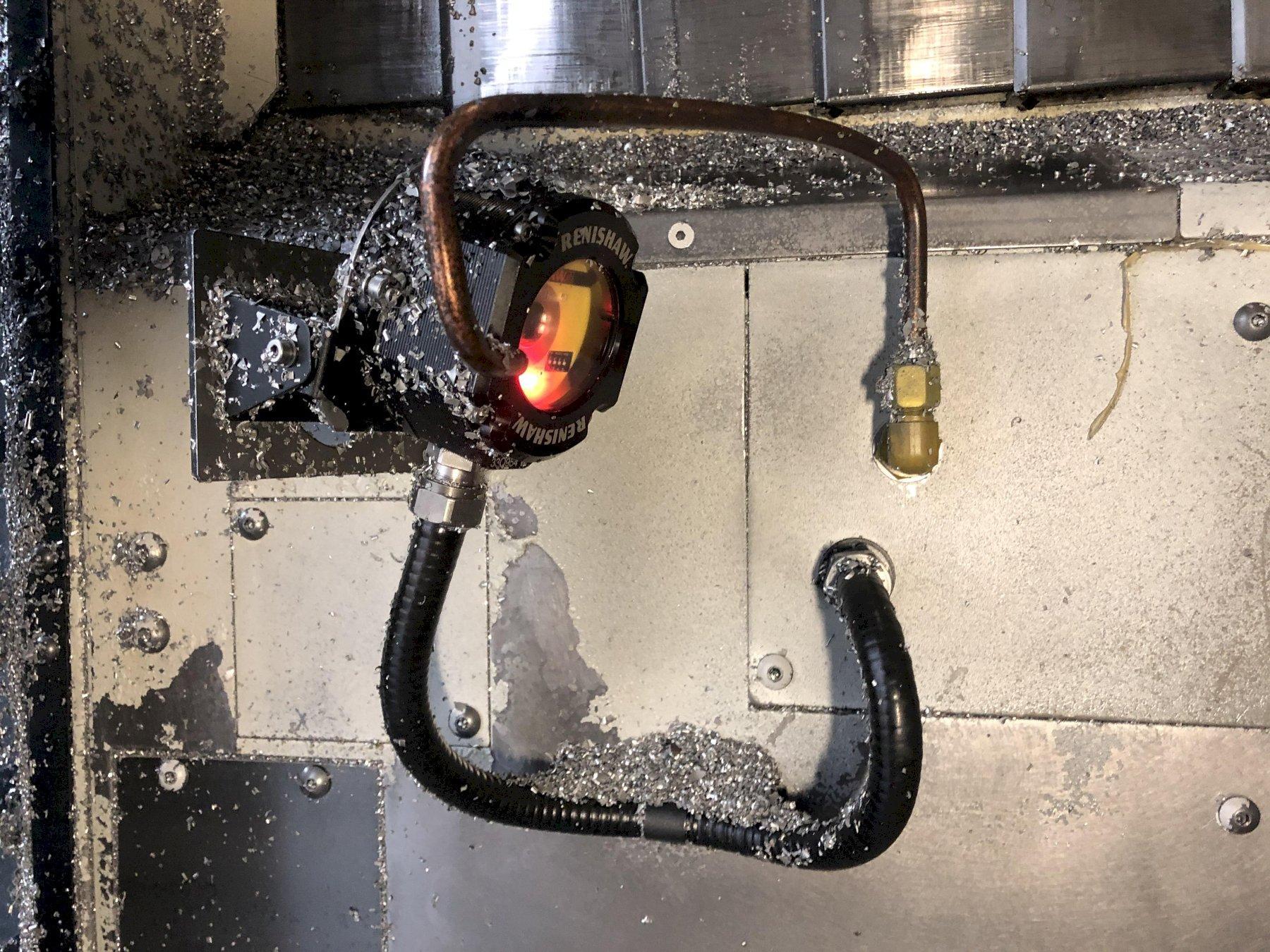

- Renishaw Probing
- Glass Scales on B & C Axes
- Work Offset (300 pairs)
- Custom Macros
- Program Simulation
- Mist Collector
- Remote MPG
- Cutting Mode Selection (Speed Priority ---> Accuracy Priority)
- Simultaneous 5-Axis Machining

The Mori Seiki NMV5000 DCG is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
