Niigata HN100D - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HN100D
Year: 2011
Stock #: 42467
Highlights:

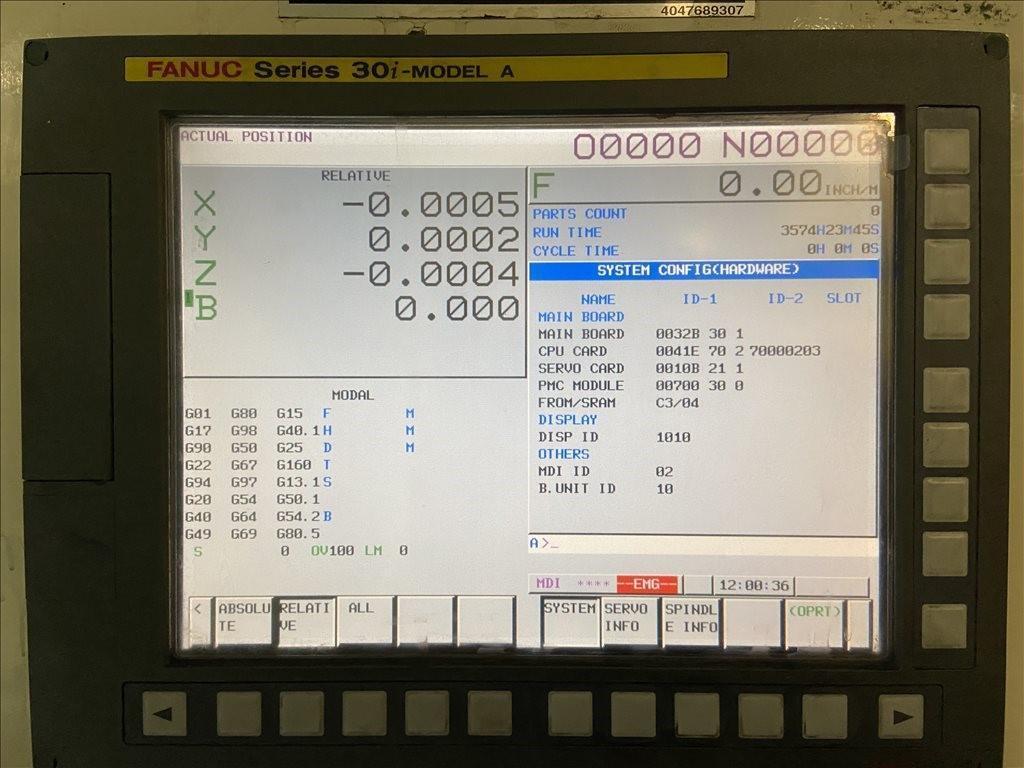

Fanuc 30i-MA Control

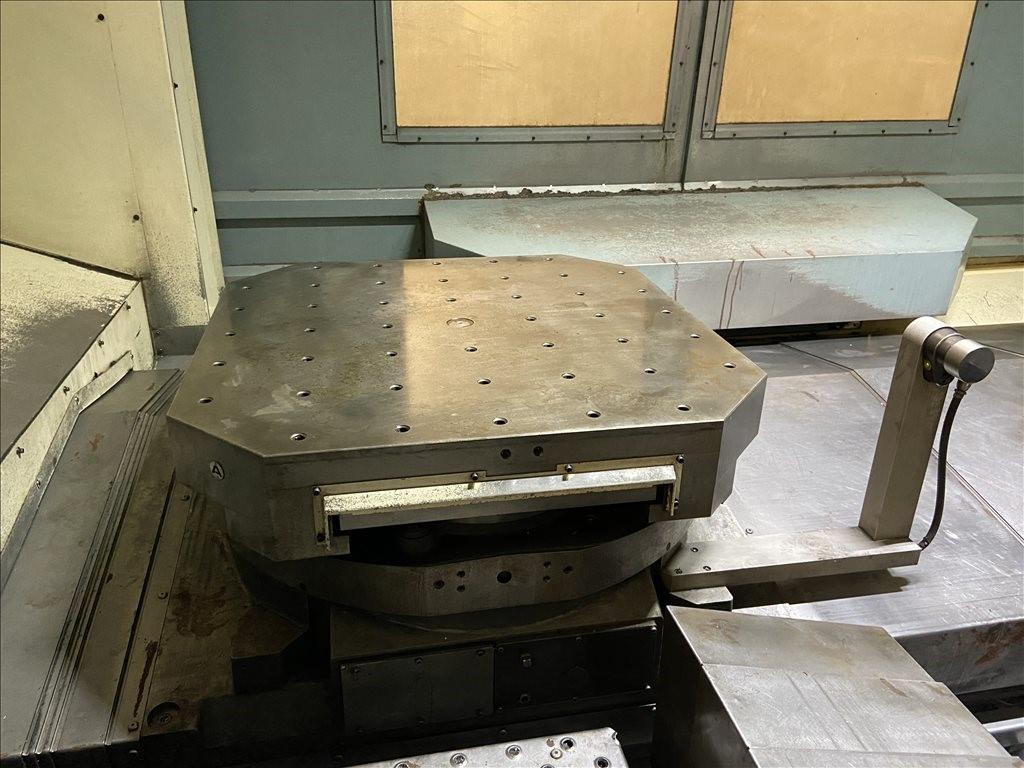

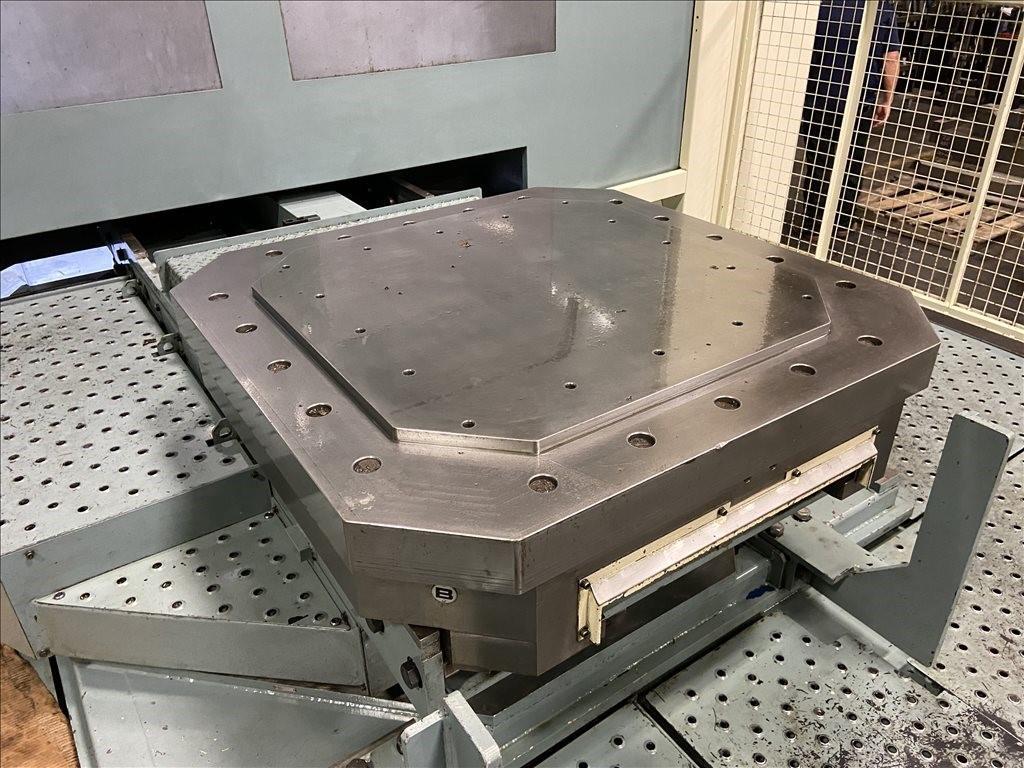

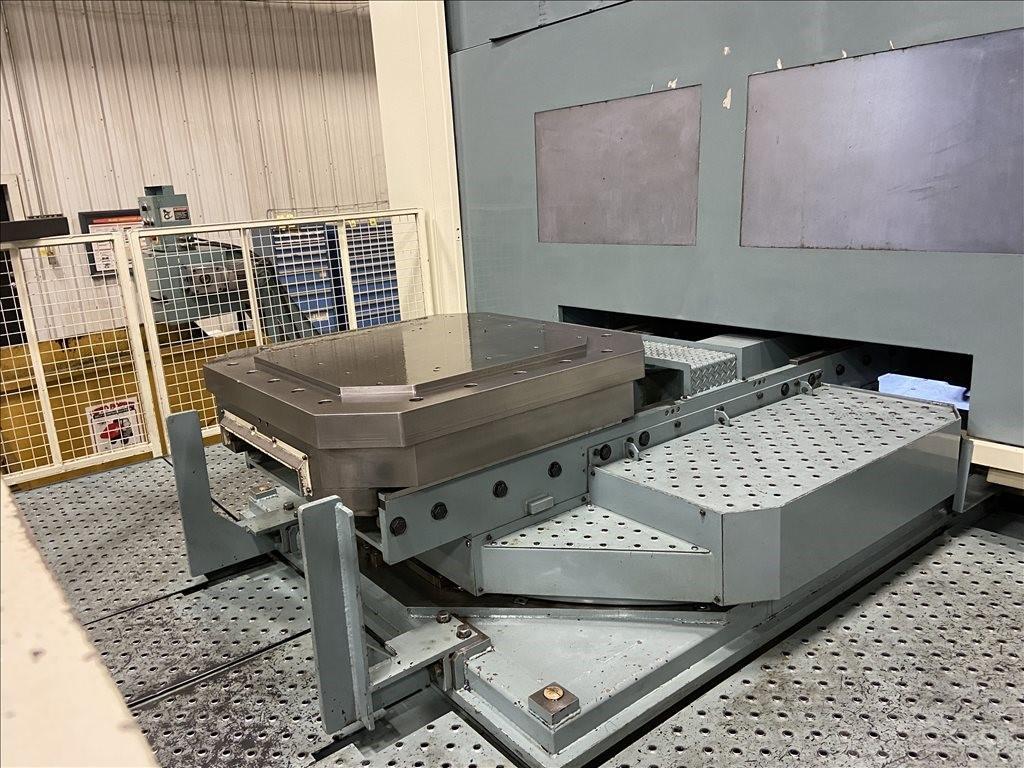

Pallet Size: 39.4" x 39.4" | Full B Axis
Travels: X/Y/Z: 80"/65"/47"
6,000 RPM | CAT 50 | 35 hp
Coolant Thru Spindle 1,000 psi

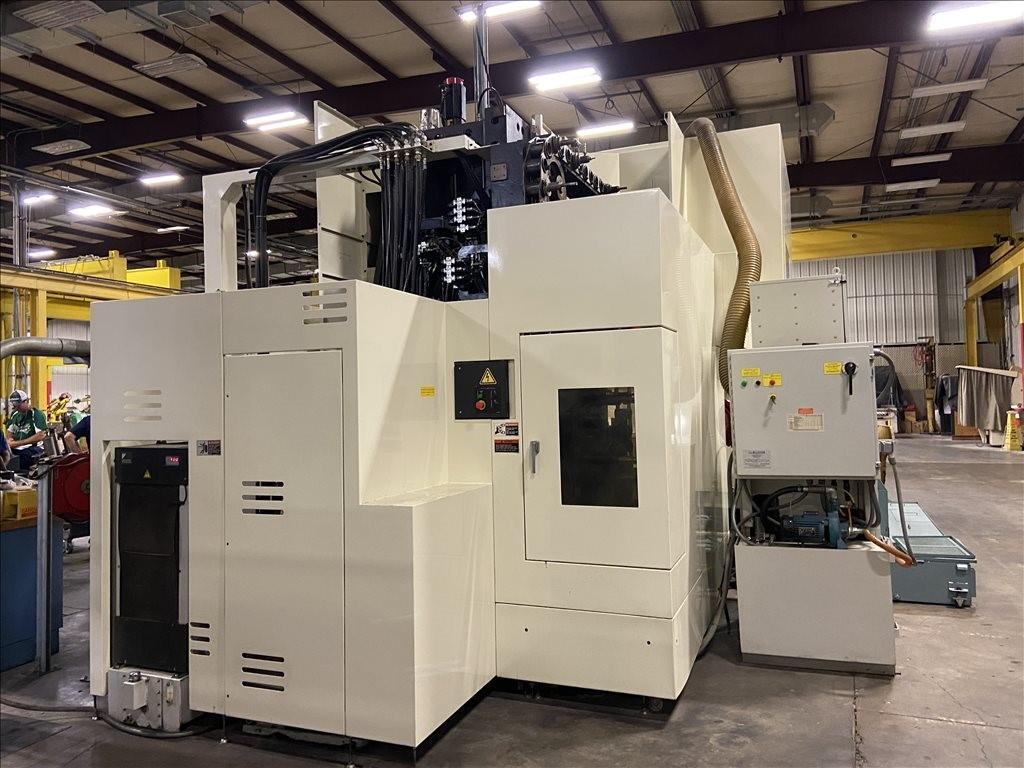

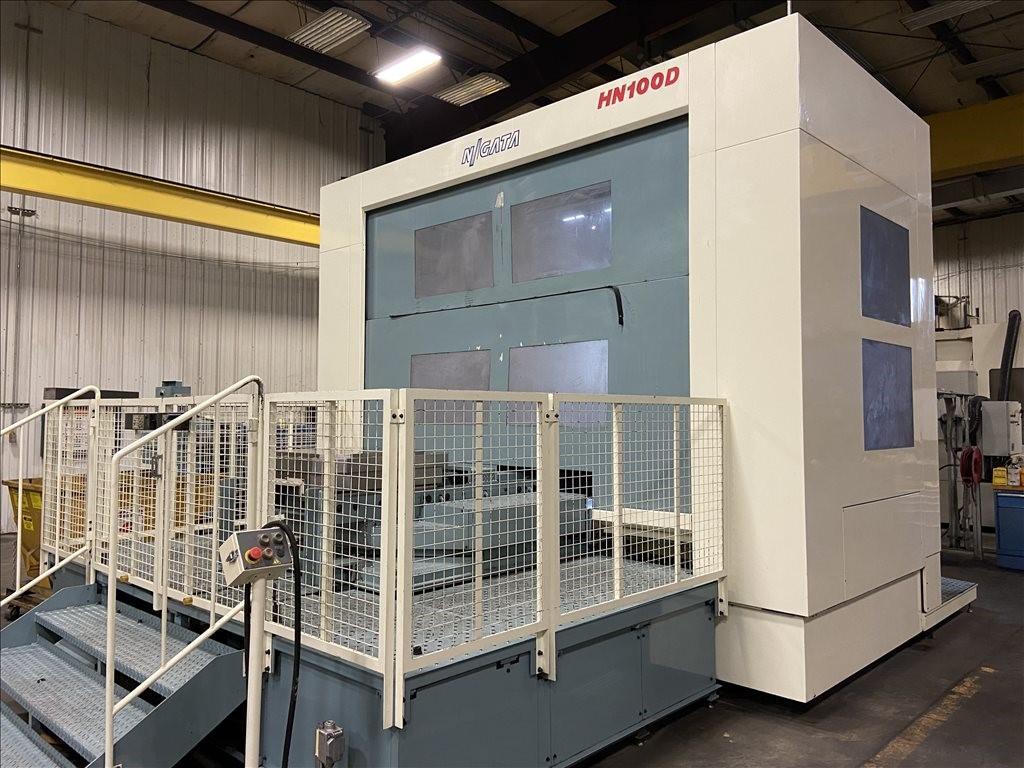

Niigata HN100D CNC Horizontal Machining Center
Machine Specifications
Year
2011
Control Type
Fanuc 30i-MA
# Axis
4
Pallet Length
39.37"
Pallet Width
39.37"
Pallet Capacity
11,023 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
79.9"
Y-Axis Travel
64.9"
Z-Axis Travel
47.2"

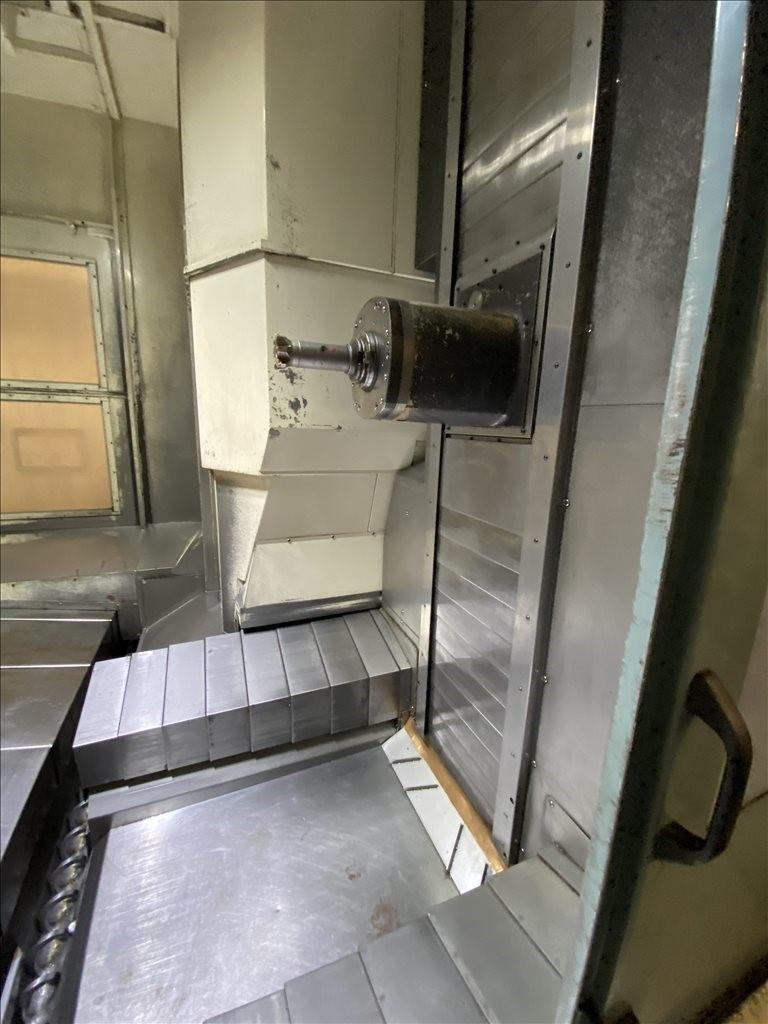

Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Spindle Motor (HP)
35 hp

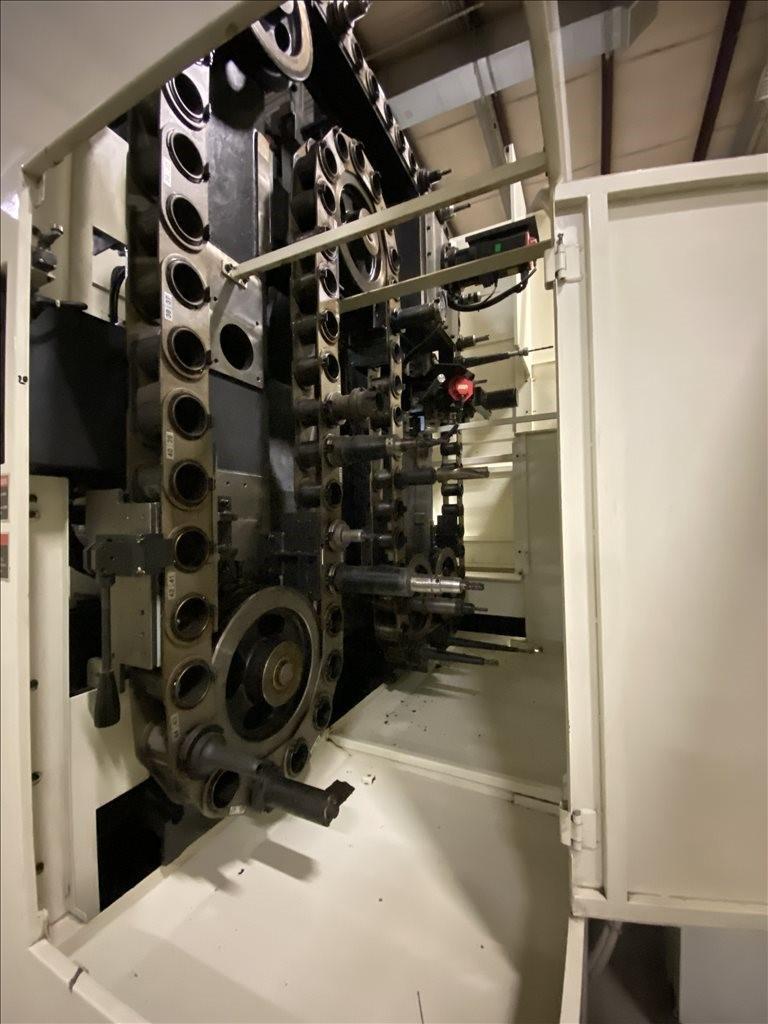

Tool Changer Capacity
90
Coolant Through Spindle
yes
Machine Dimensions
235" x 393" x 191" - Floor Space
Machine Weight
68,078 pounds

Equipped With:

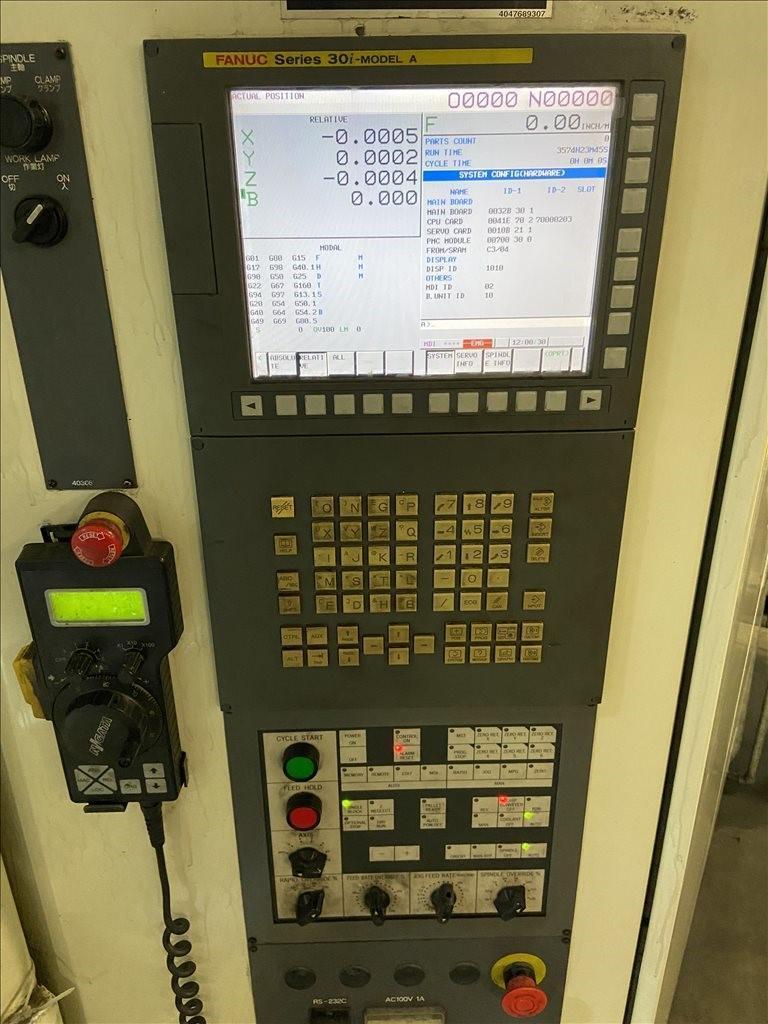

- Fanuc 30i-MA Control
- Tool Length Measurement Probe

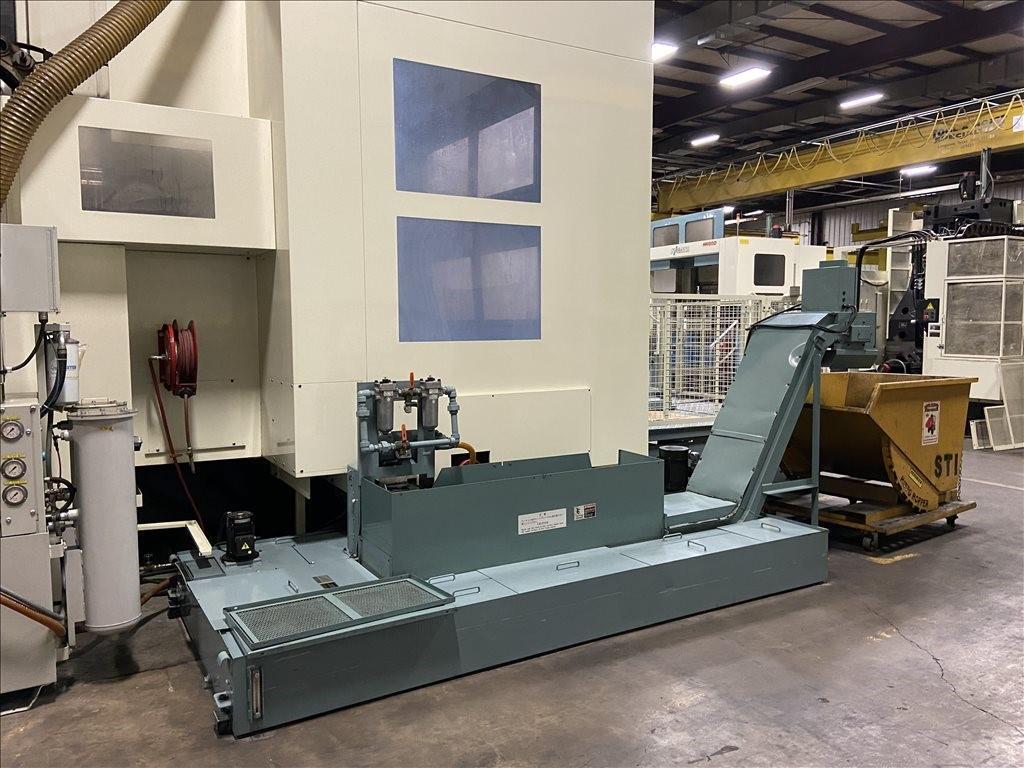

- Chip Conveyor
- Mist Collector

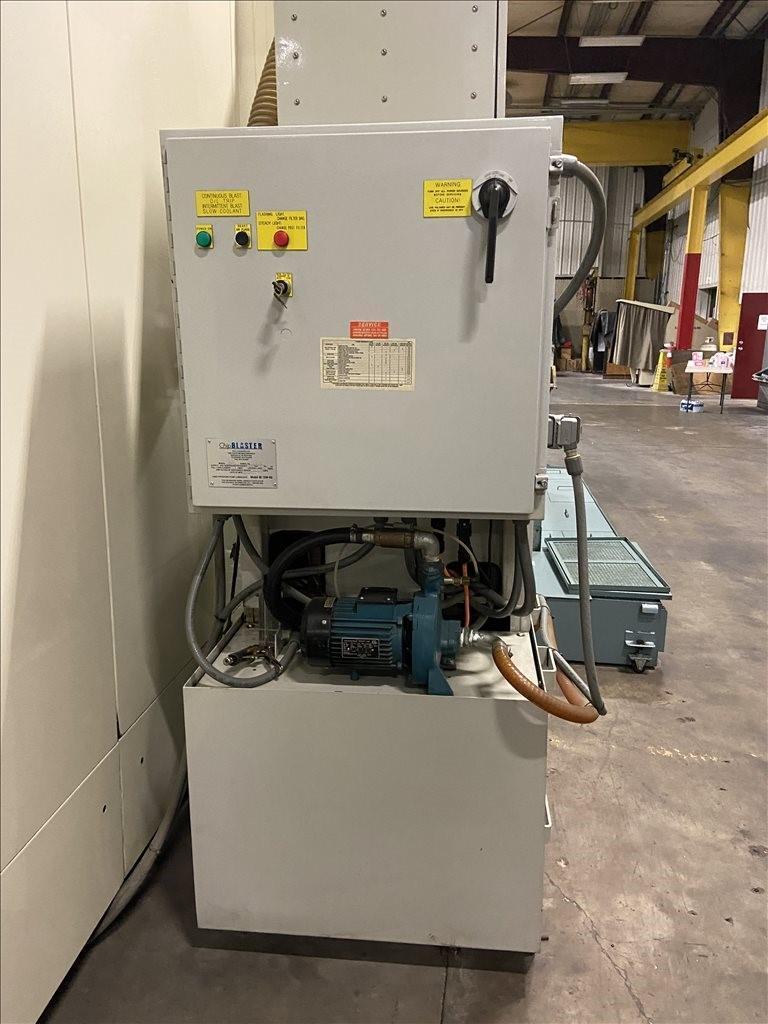

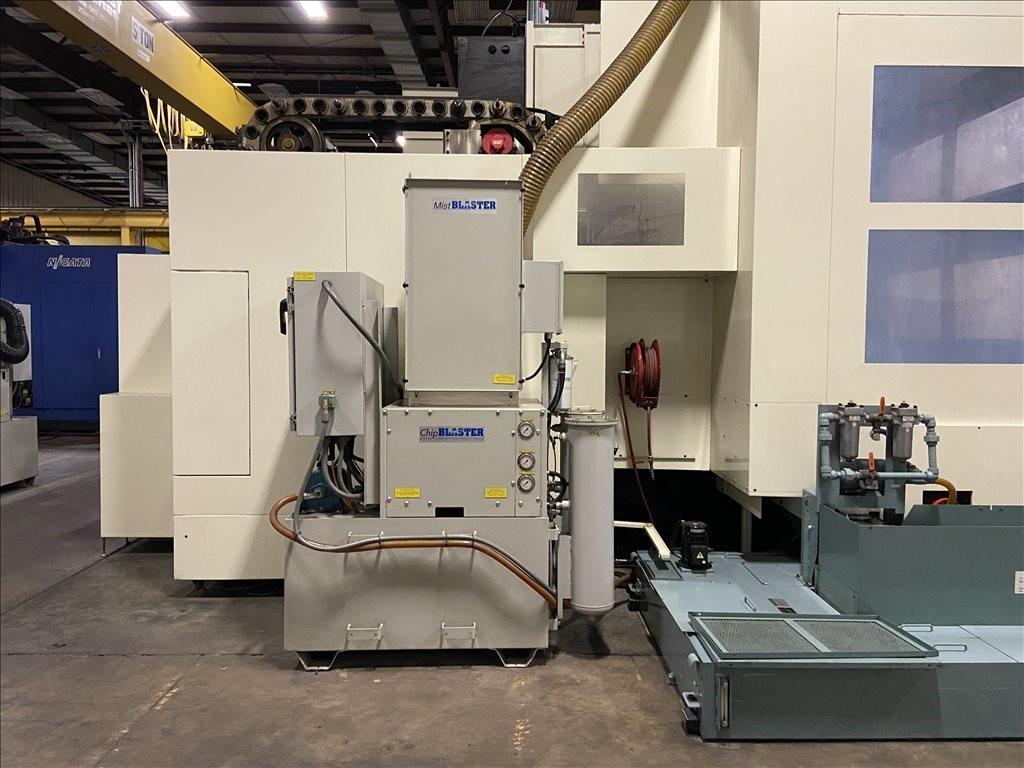

- Chip Blaster - 1,000 psi
- Coolant Thru Spindle

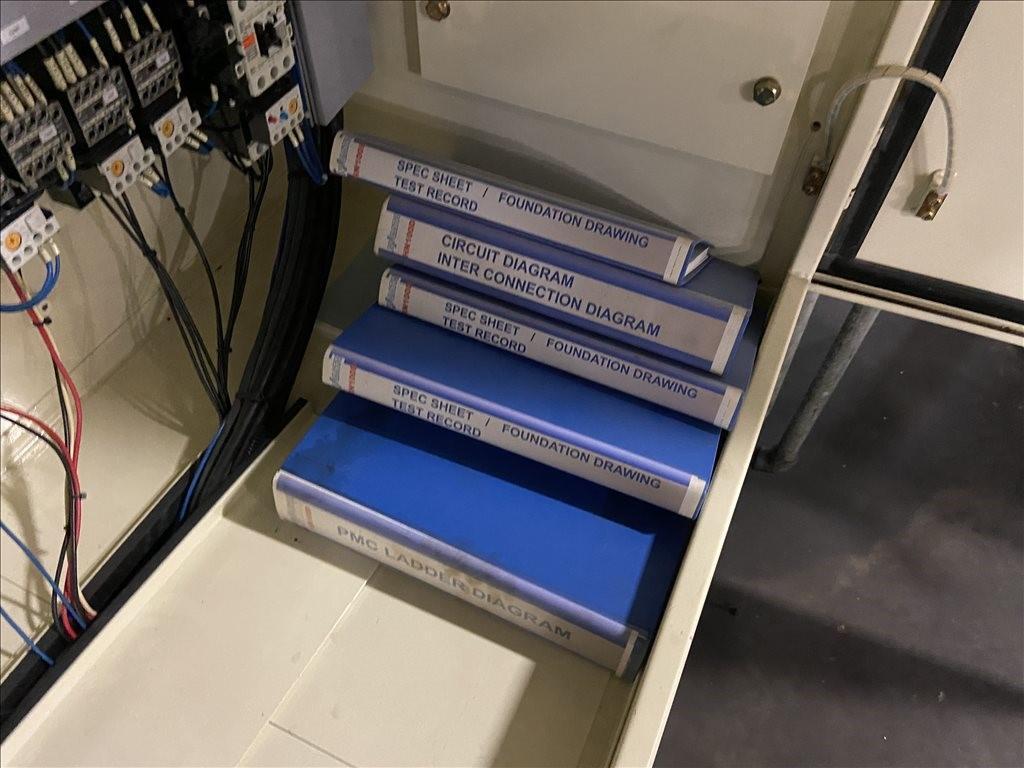

- Available Manuals

The Niigata HN100D is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
