Okamoto ACC 20-24DX - Surface Grinders (Recip.)

Request Quote
Specifications Print Specs
Model: ACC 20-24DX
Year:
Stock #: 065244
Yes
Highlights:
DX Controller w/LED Display
Extra Grinding Wheel

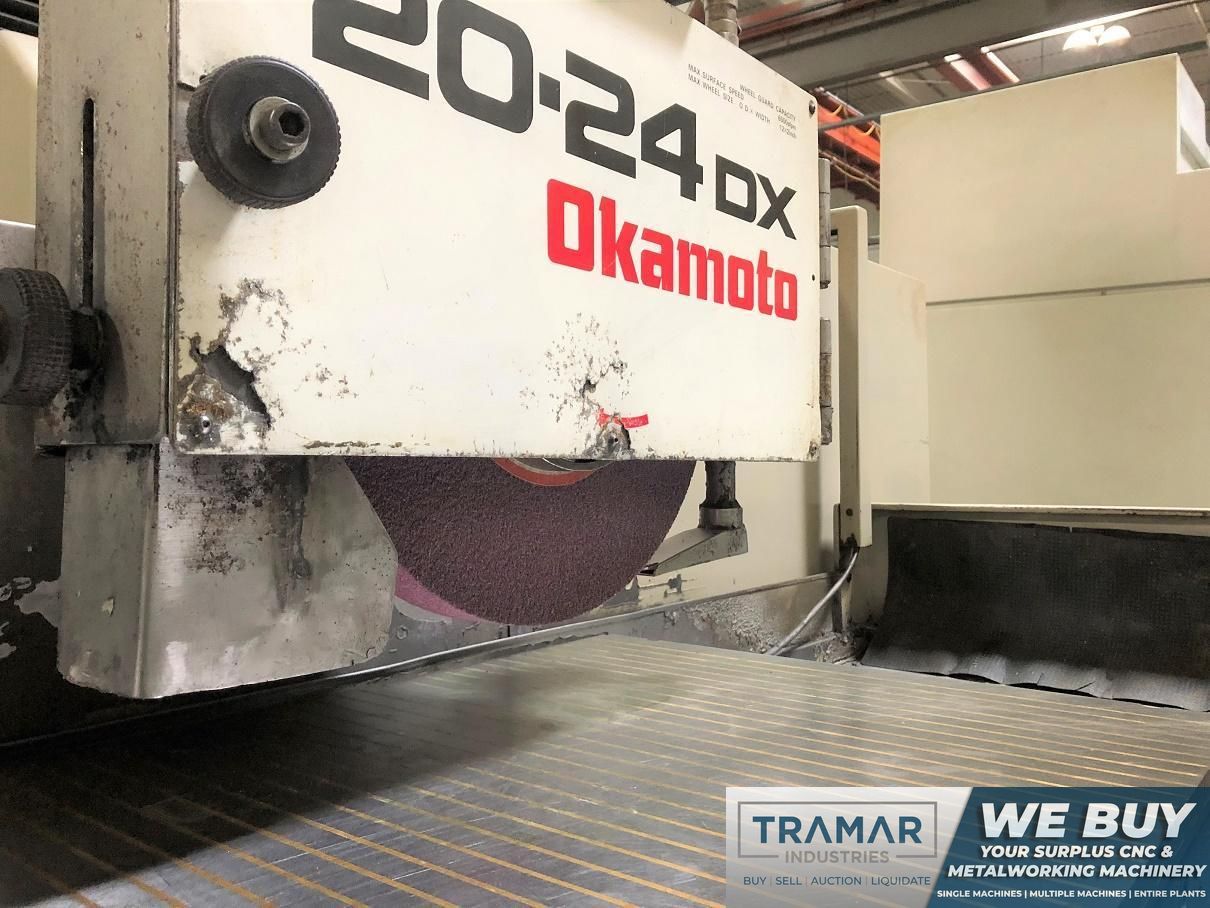

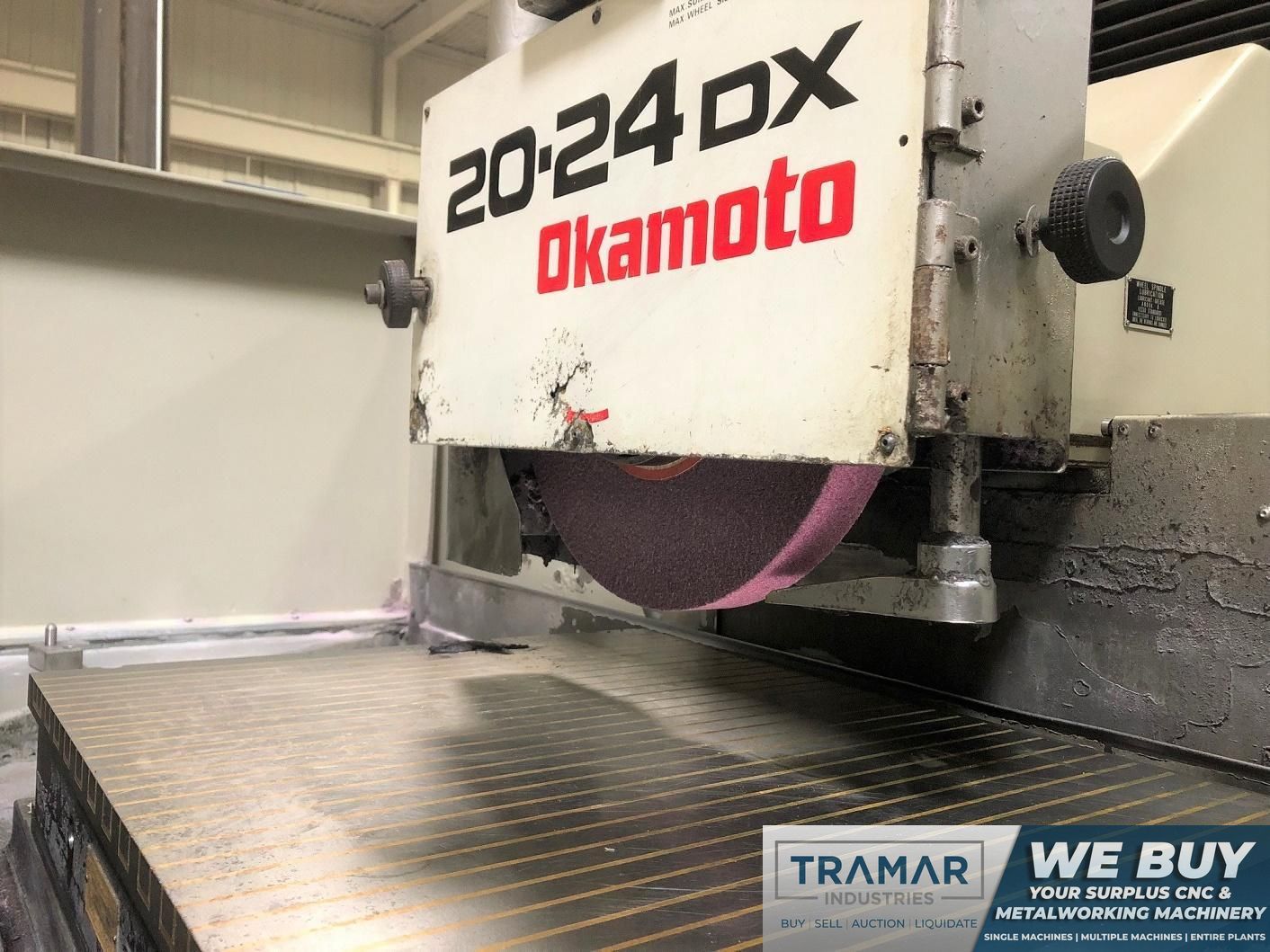

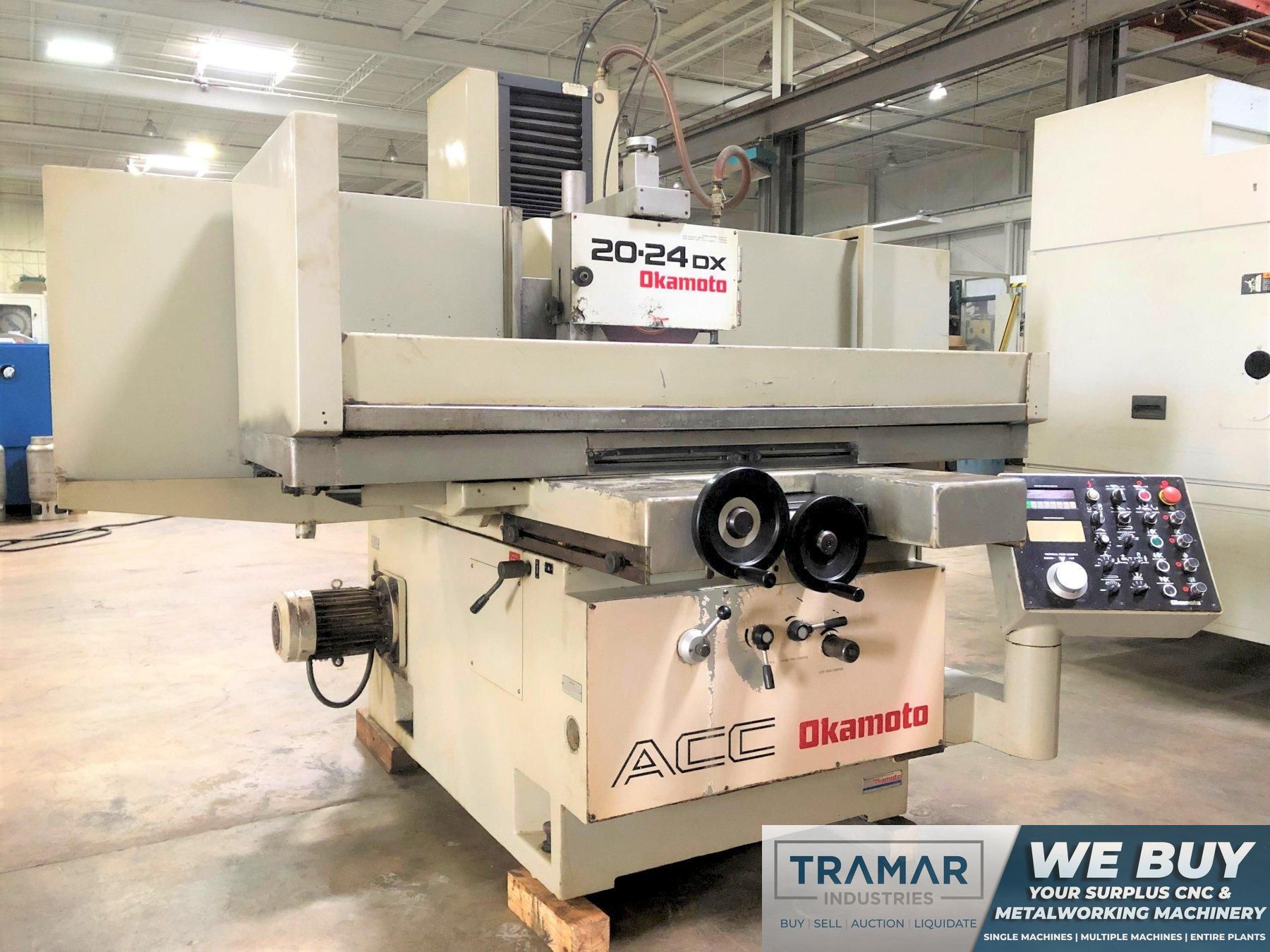

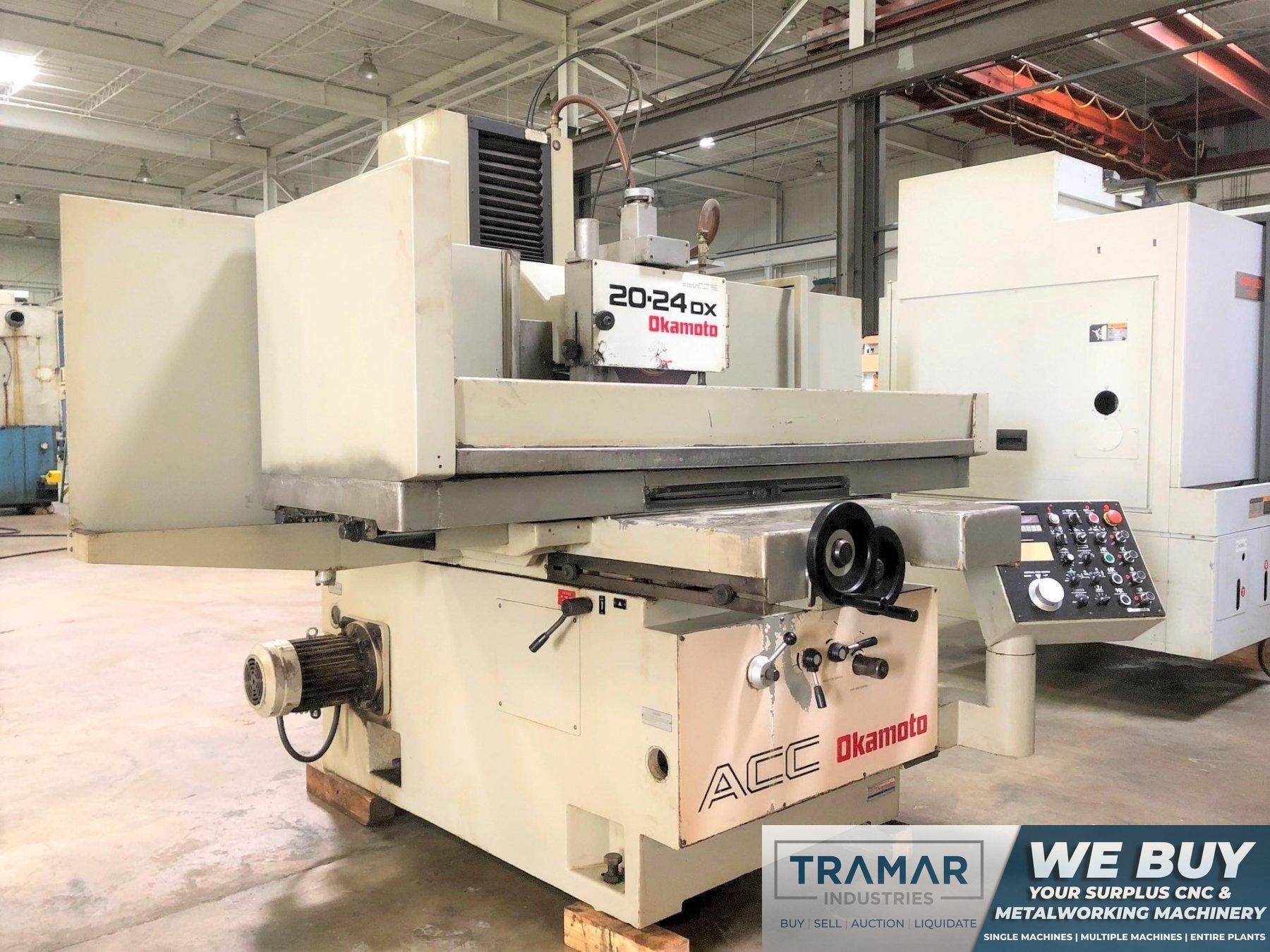

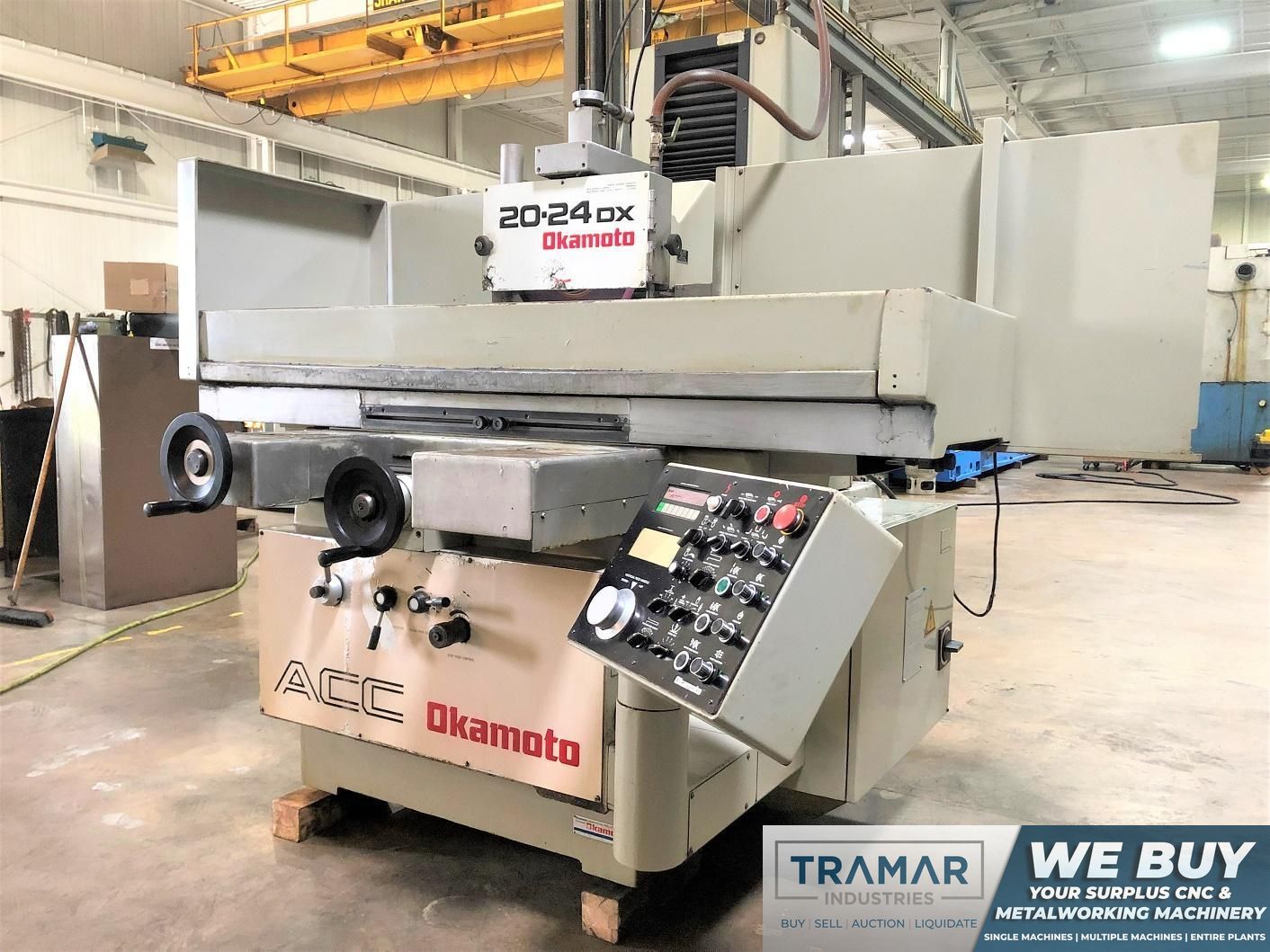

Okamoto ACC 20-24DX Surface Grinder
Machine Specifications
Year
Control Type
DX Controller
Incremental Downfeed
yes
Table-L
24"
Table-W
20"
Max Table Load
1,540 ounces
Grinding Wheel Dimensions
12" x 1.5" x 5"
Longitudinal Travel
24"
Cross Travel
20"
Grinding Wheel Speed RPM
1,800
Grinding Wheel Spindle Motor
5 horsepower
Spindle (Horz/Vert)
horizontal
Dimensions
108" x 96" x 80"
Weight
7,100 pounds

Equipped With:

- Column Type Machine
- Dressing Compensation
-  20" x 24" Electromagnetic Chuck
- DX Controller with LED Display
- Ballscrew on Vertical Axis
- Over The Wheel Hydraulic Dresser
- Spark Out
- Rough/Finish Grind cycle
- Plunge Grind Cycle
- Coolant Tank, Pump & Magnetic Separator Filter
- Extra New Wheel and Arbor Included.


The Okamoto ACC 20-24DX is an exclusive part of our Surface Grinders (Recip.) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
