OKK HM-1250s - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: HM-1250s
Year: 2007
Stock #: 298508
Highlights:

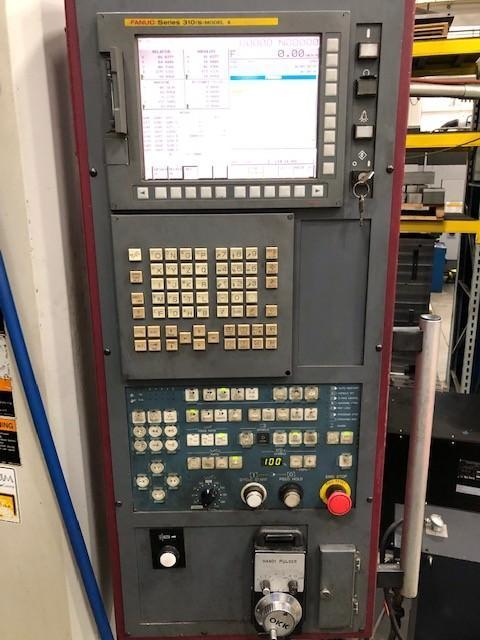

Fanuc 310iS-Model A Control
Pallet Size: 49.2" x 49.2" | 6,600# Max Load
Travels: 66.93" / 55.12" / 48.82" / Full B Axis 0.001°
CAT 50 | 8,000 rpm | 35 hp | 60 Station ATC
High Pressure Coolant Thru Spindle

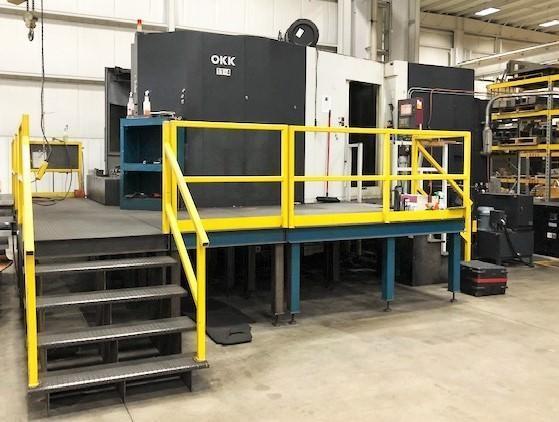

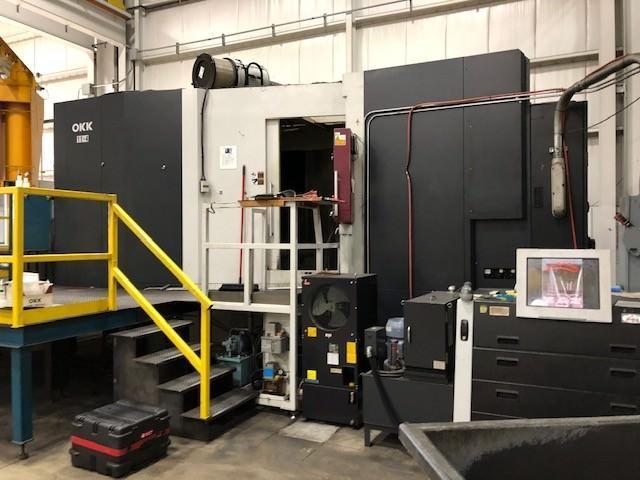

OKK HM 1250s CNC Horizontal Machining Center
Machine Specifications
Year
2007
Control Type
Fanuc 310iS-Model A
# Axis
4
Pallet Length
49.21"
Pallet Width
49.21"
Pallet Capacity
6,600 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
66.93"
Y-Axis Travel
55.15"
Z-Axis Travel
48.82"
Rapid Traverse Rate (X/Y/Z)
1,889 ipm

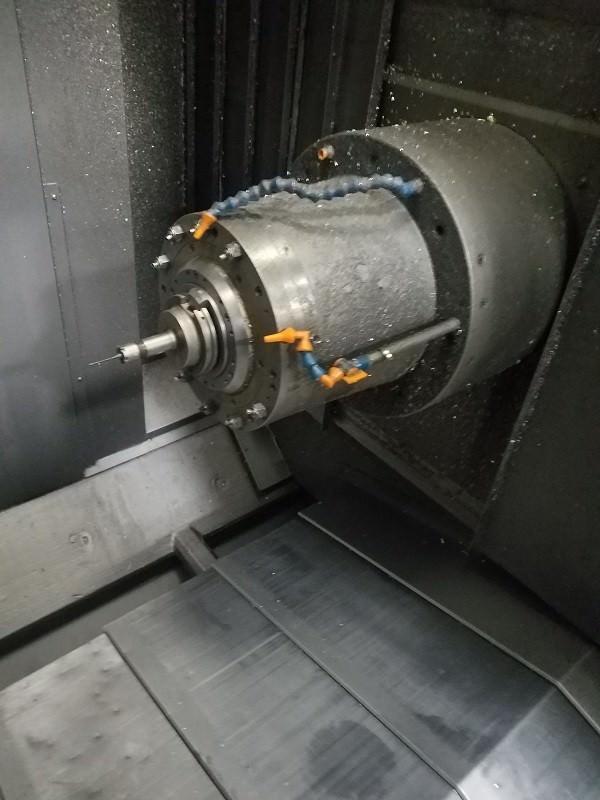

Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Spindle Motor (HP)
35 hp
Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Weight
72,000 pounds

Equipped With:

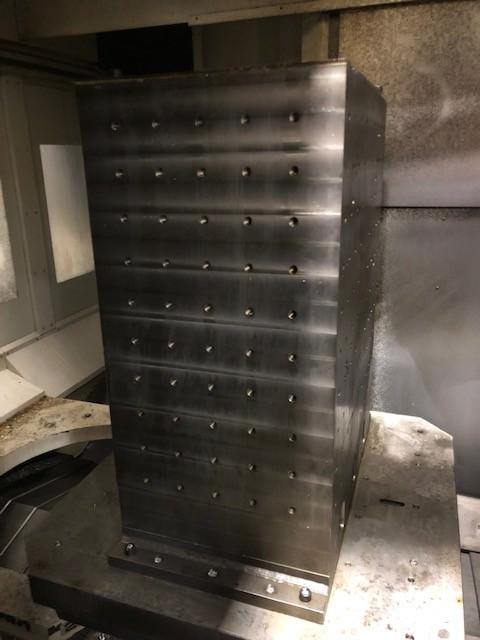

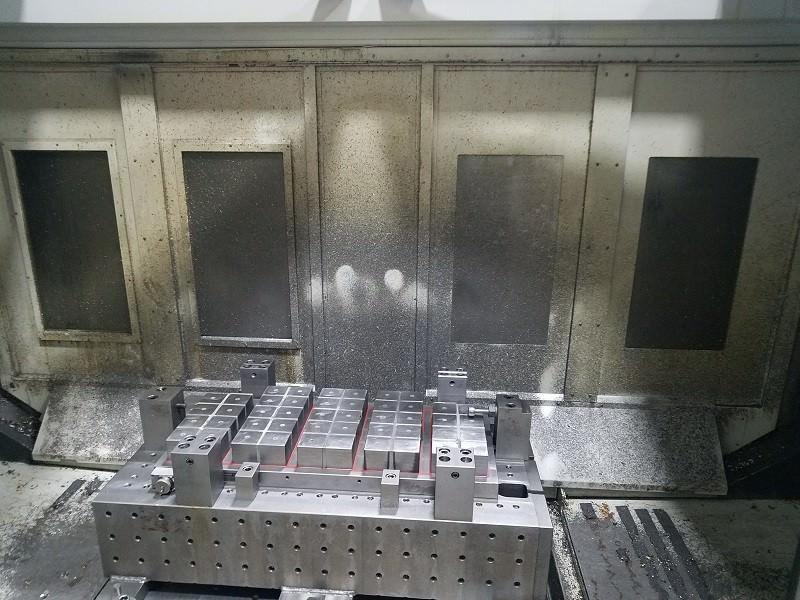

- (2) 49.21" X 49.21" Pallets
- Full B-axis Pallet Contouring/Rotation

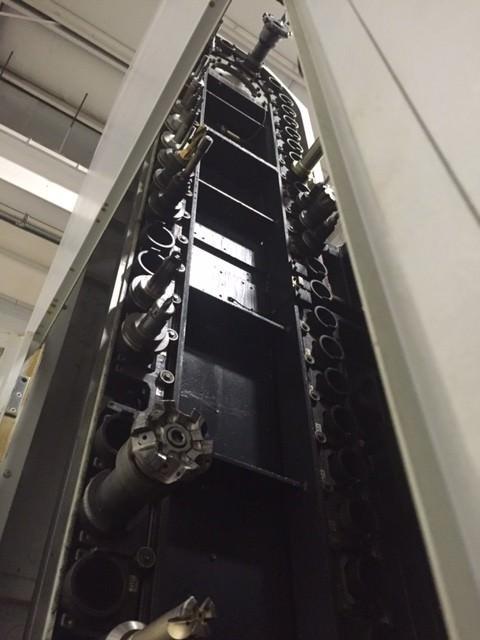

- 60-position Automatic Tool Changer
- Through Spindle Coolant (1000 Psi)

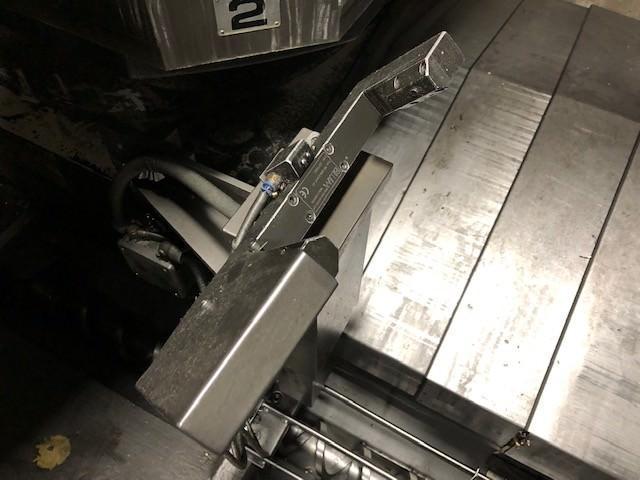

- Blum Laser Auto Tool Length Measurement & Tool Breakage Detection
- Rigid Tapping
- Renishaw Touch Probe
- Manual Pulse Generator
- Dual Chip Augers

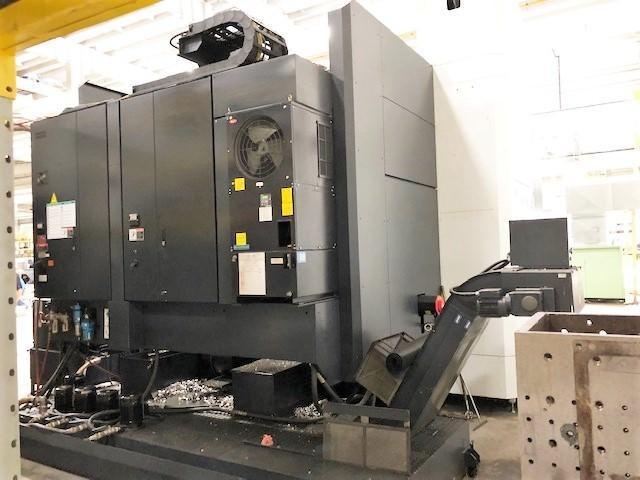

- Hakusan Chip Conveyor (Left Rear Exit)

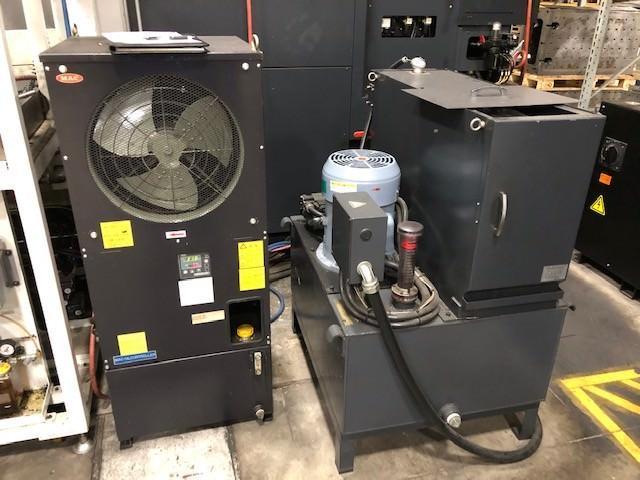

- Spindle Chiller Unit
- Multi-tap Transformer
- B-axis Linear Scales
- Dual Position Feedback

Machine Hours:
- 18,850 Power on Time
- 3,628 Run Time
- 10,469 Cutting Time
- Installed March 2008

The OKK HM-1250s is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
