OKK HM1000S - Horizontal Machining Centers

Share Machine
Specifications Print Specs

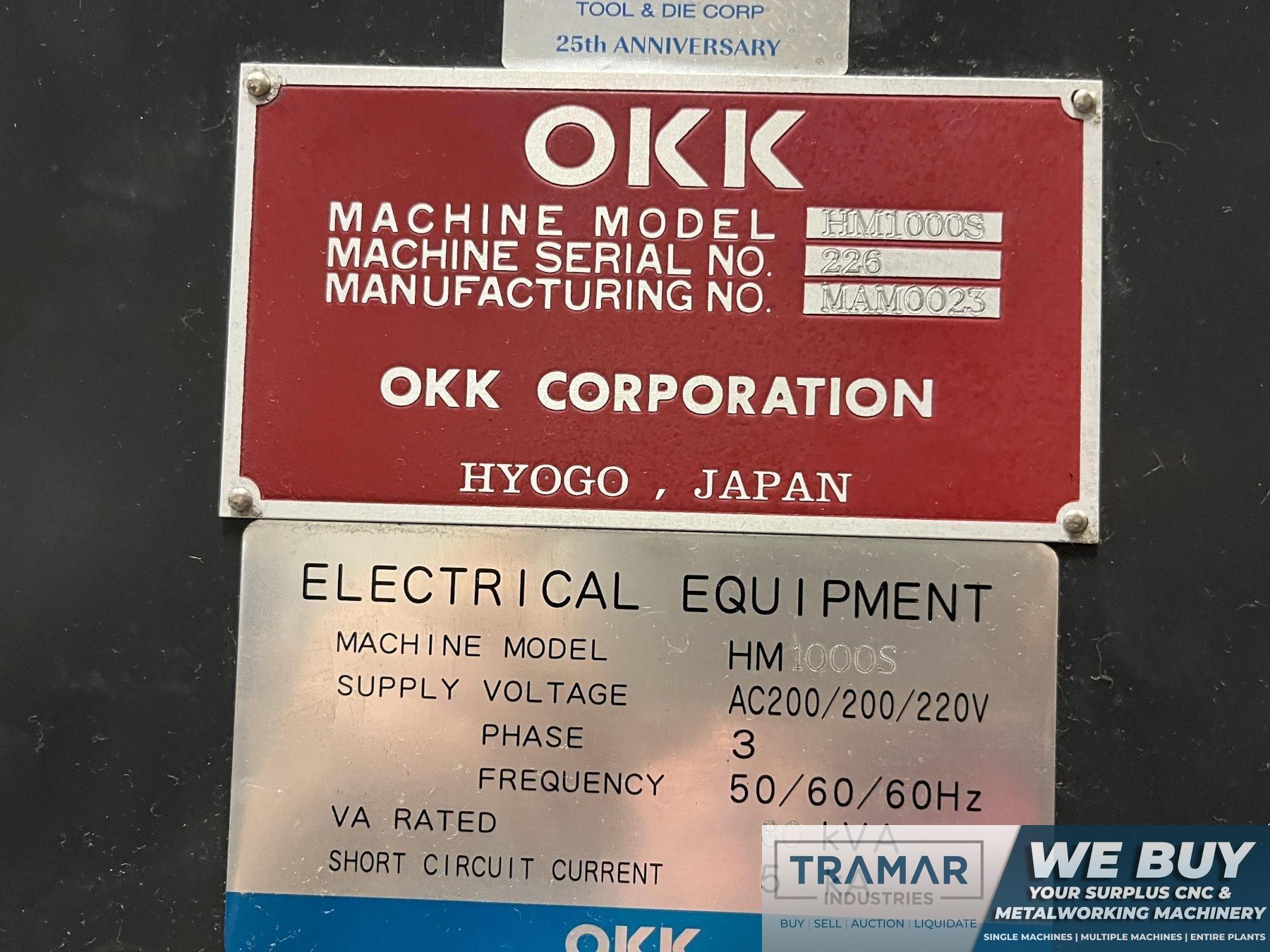

Model: HM1000S
Year: 2011
Stock #: 14029 Sold
Highlights:
Fanuc 31i-Model A5 Control
Full 4th Axis - 0.001°
Renishaw Probing
12,000 rpm | CAT 50 | 60 ATC
Coolant Thru Spindle

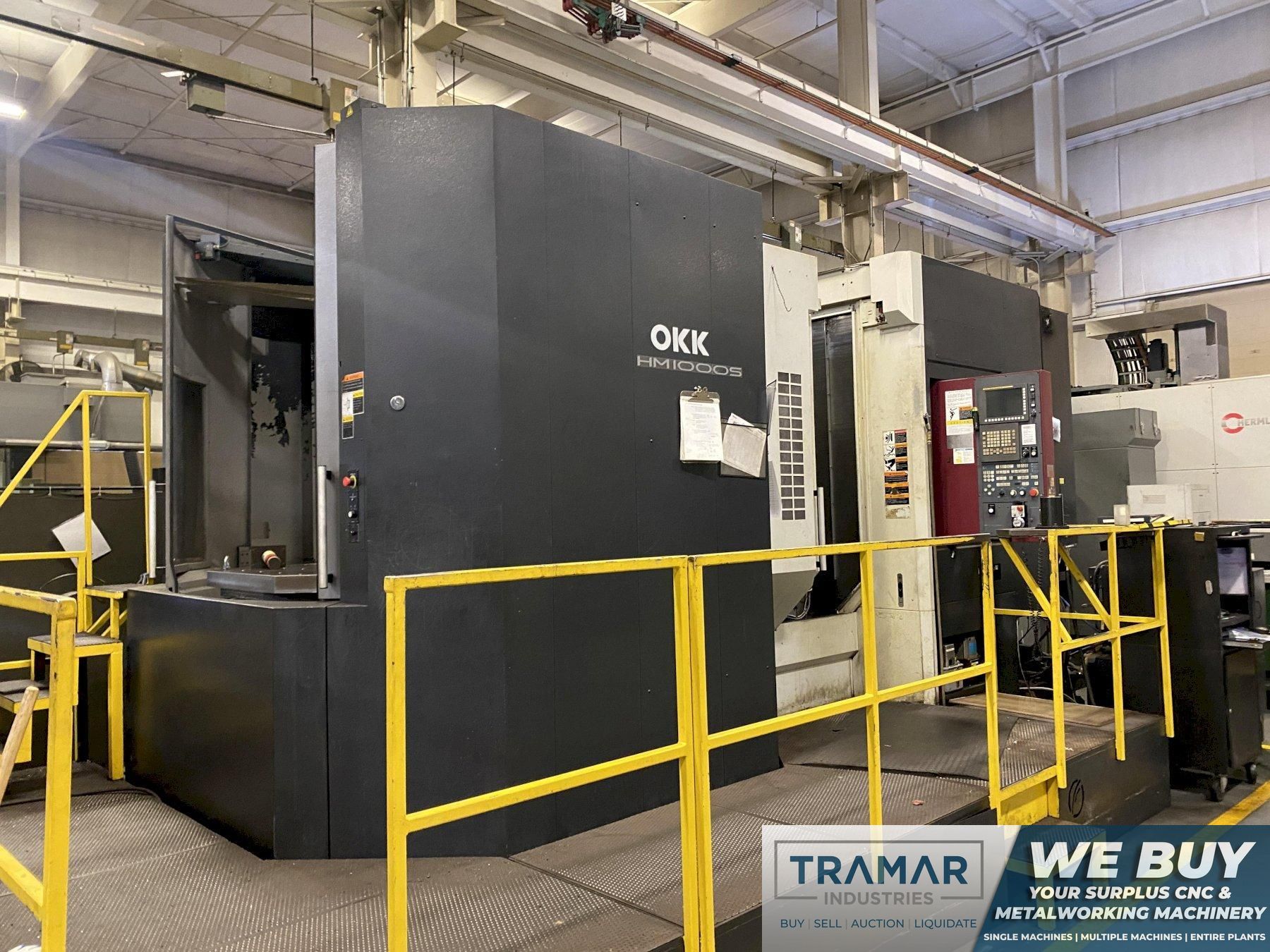

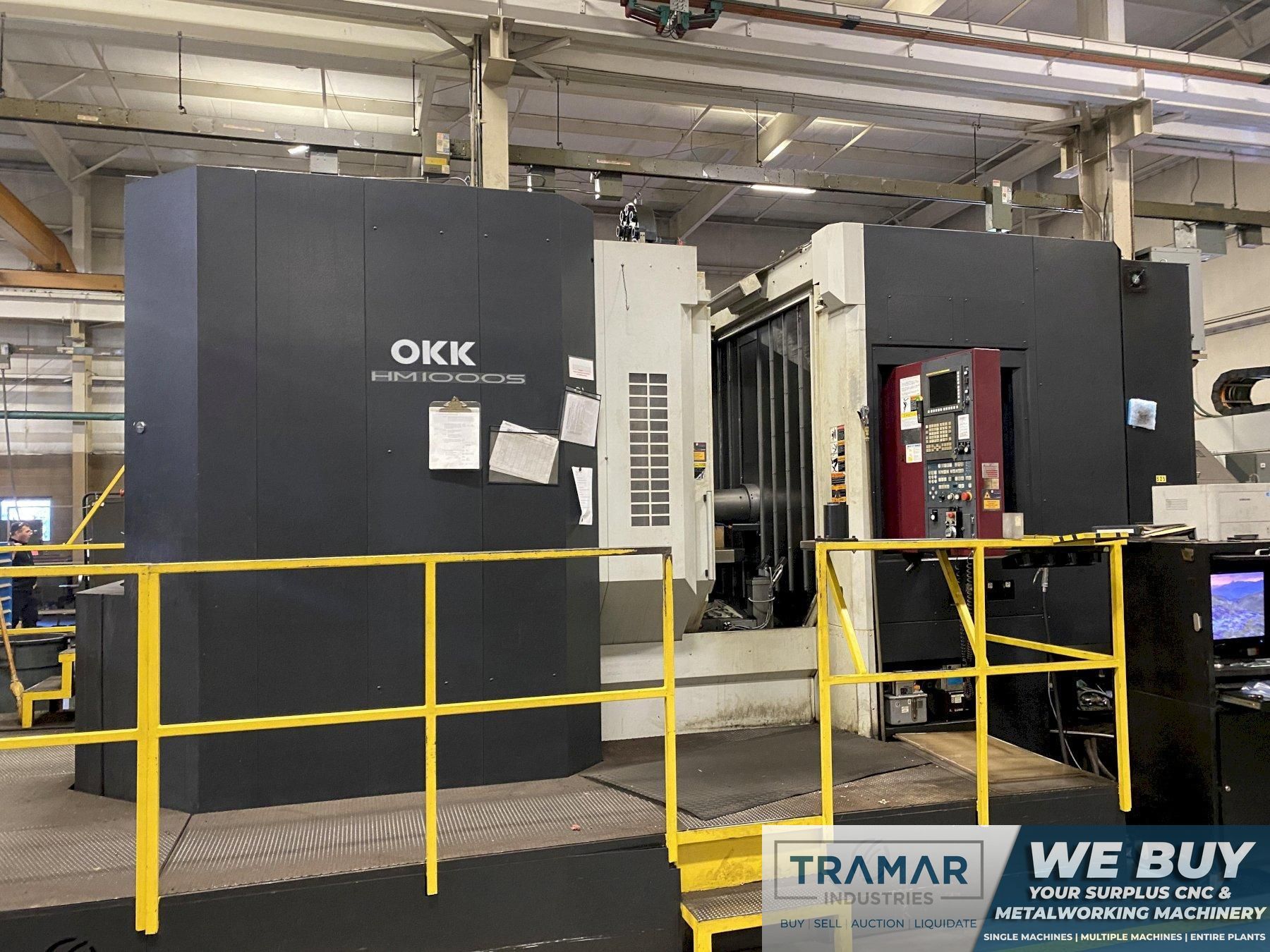

OKK HM1000S Used CNC Horizontal Machining Center For Sale - 2011
Machine Specifications
CNC Control
yes

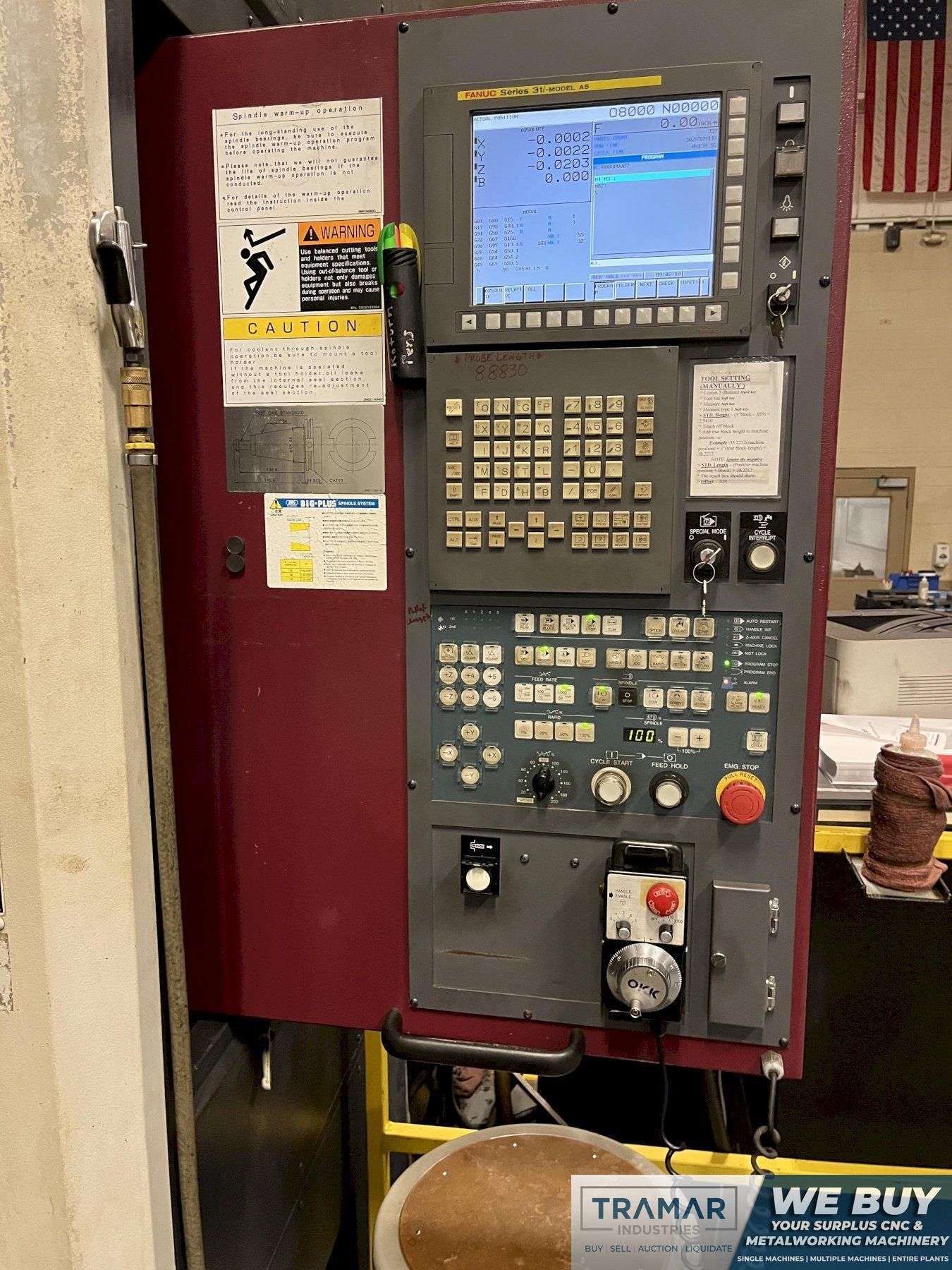

Control Type
Fanuc 31i Model A5
# Axis
4

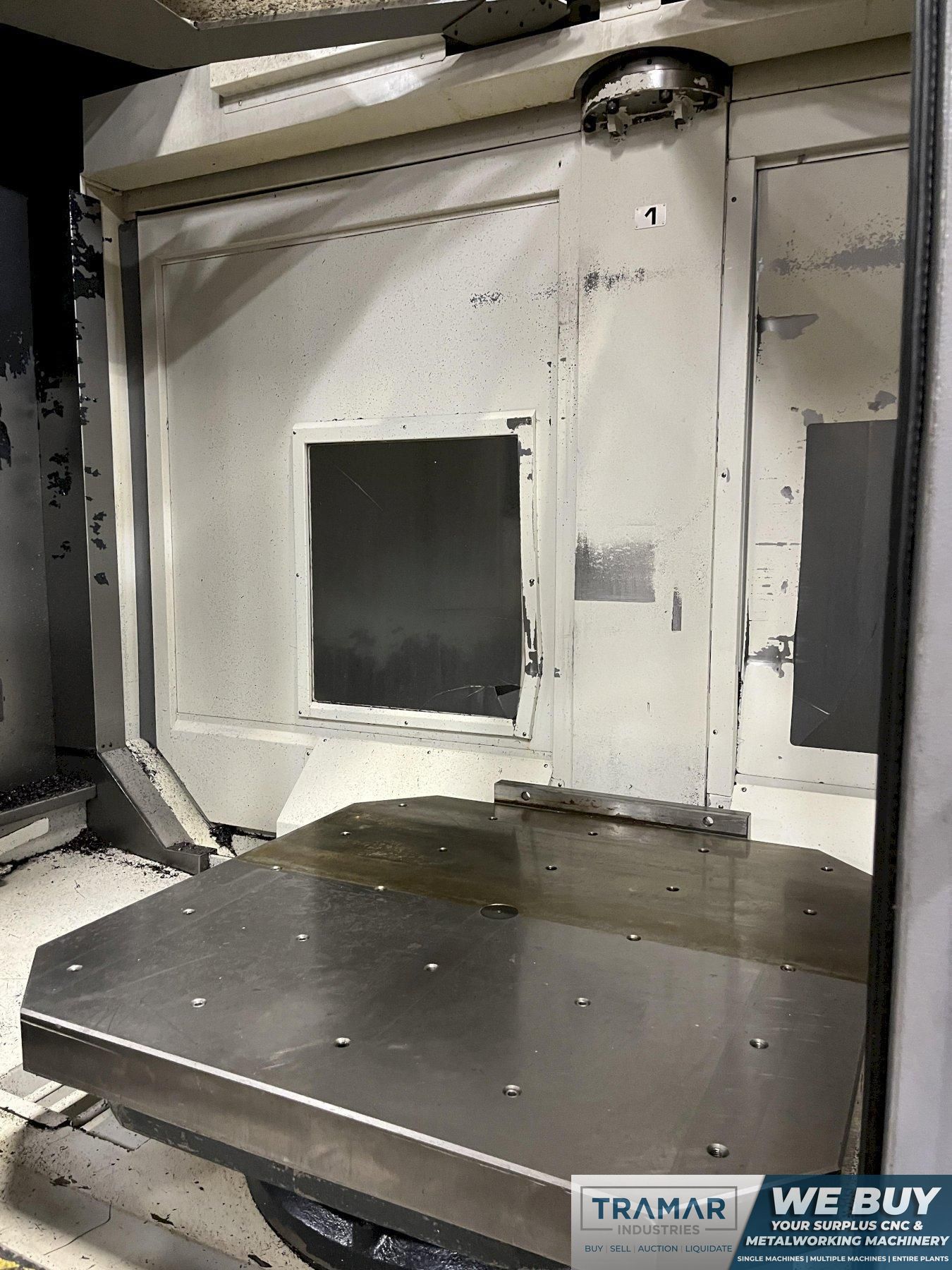

Pallet Length
39.4"
Pallet Width
39.4"

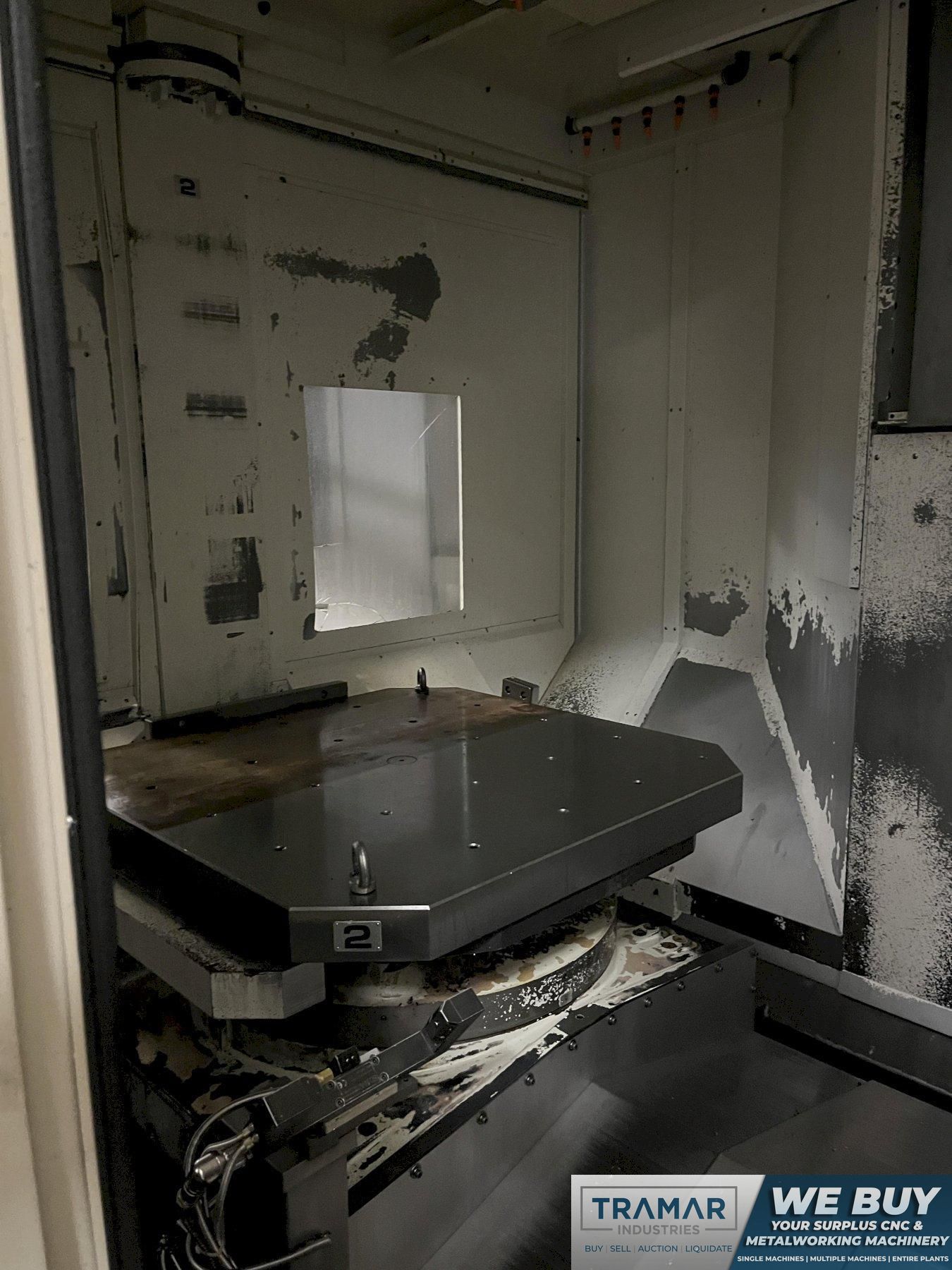

Pallet Indexing (B-Axis)
0.001°
Pallet Load Capacity
5,500 pounds
X-Axis Travel
55.2"
Y-Axis Travel
43.3"
Z-Axis Travel
39.4"
Rapid Traverse Rate (X/Y/Z)
1,889 ipm

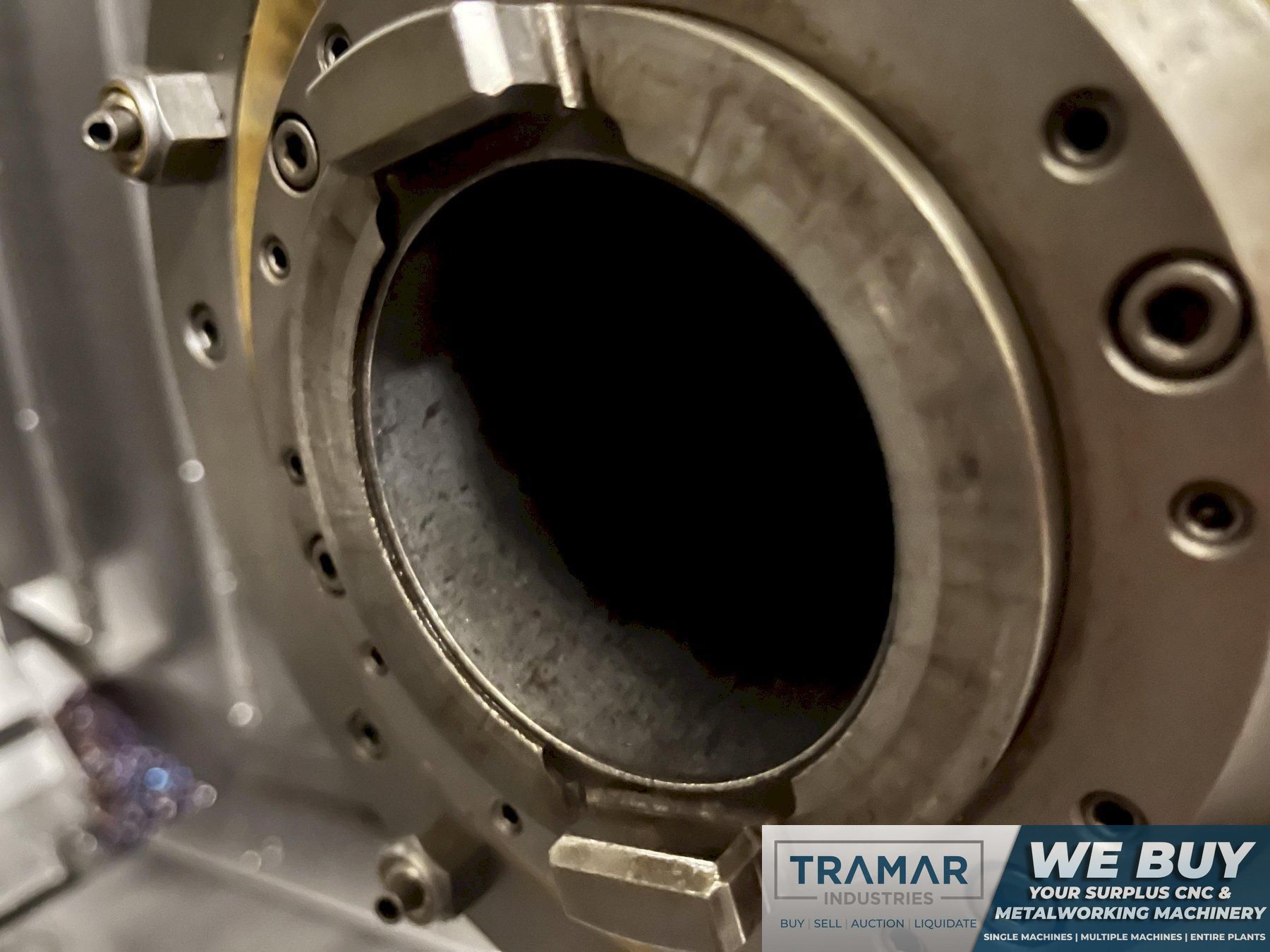

Spindle Taper
CAT 50
Spindle Speed
12,000 rpm
Spindle Motor (HP)
60 hp

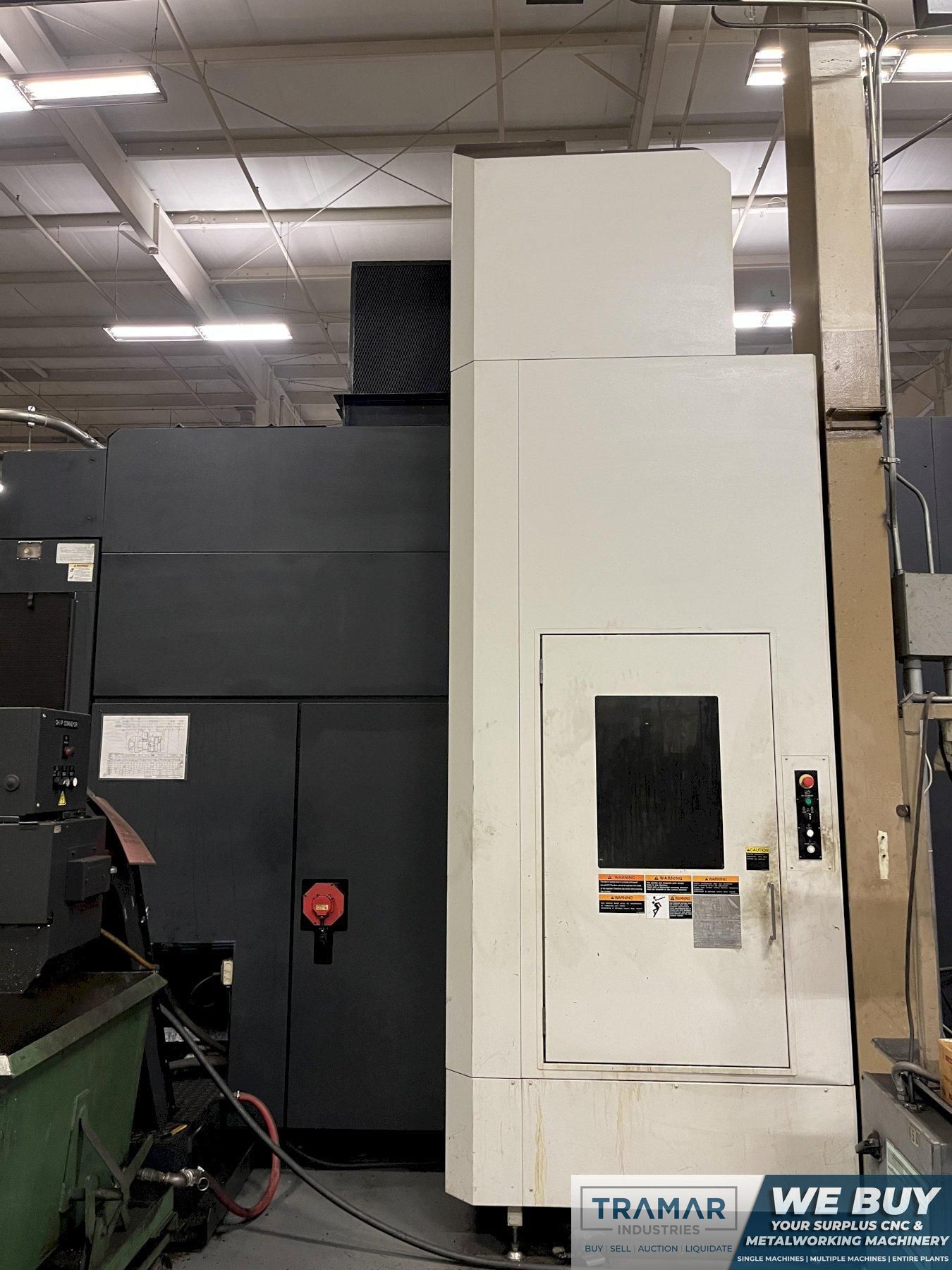

Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Weight
55,000 pounds

Equipped With:

- Fanuc 31i Model A5 CNC Control
- Full 4th Axis - 0.001°
- Automatic Tool Length Measurement
- Renishaw Probing I/F
- 120 Registered Programs
- Manual Guide I (Conversational Programming)

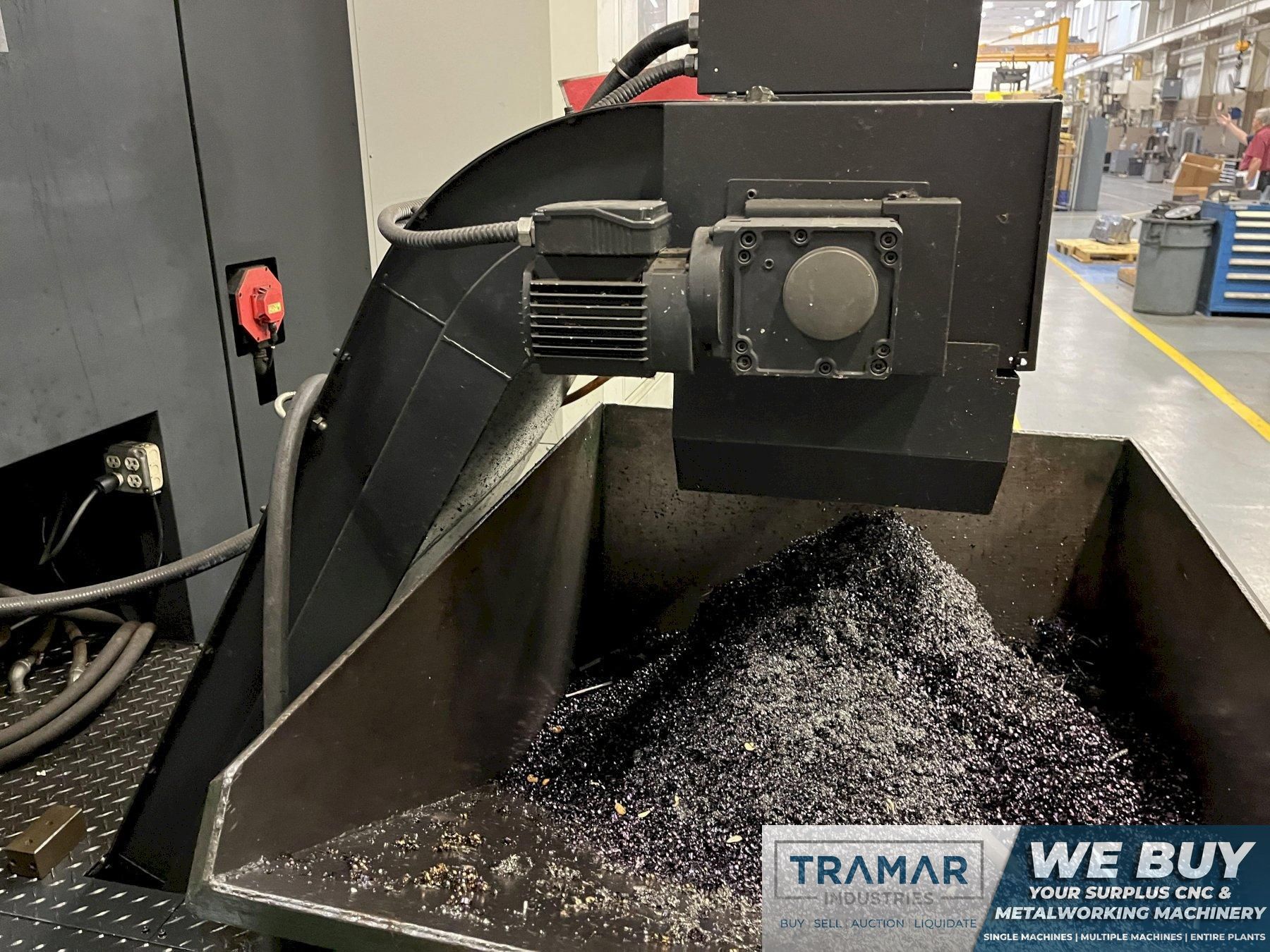

- Chip Conveyor
- Coolant Tank & Pumps

The OKK HM1000S is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
