OKK VM-7 III - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VM-7 III
Year: 2012
Stock #: 14224 Sold
Highlights:

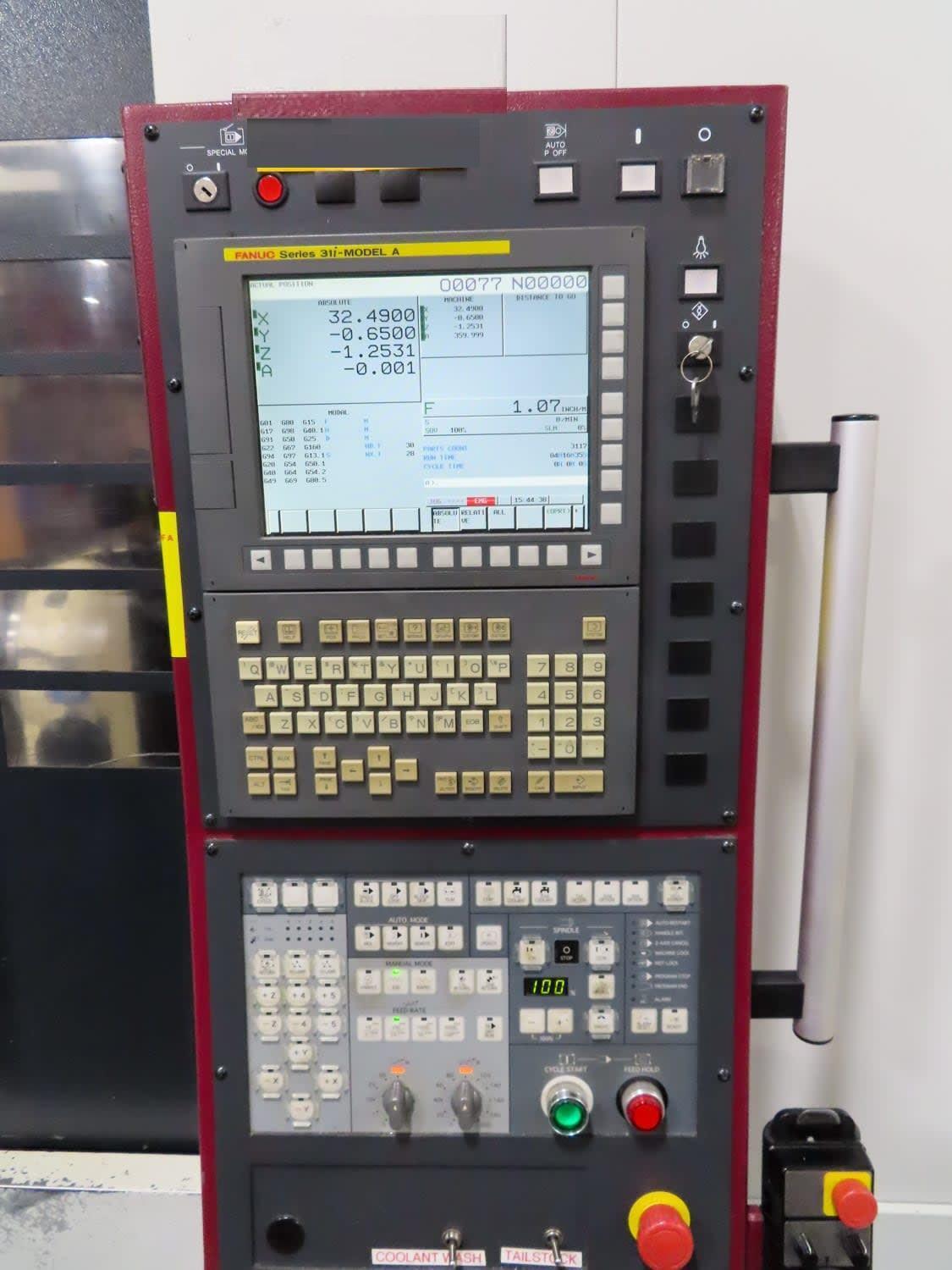

Fanuc 31i-Model A CNC Control

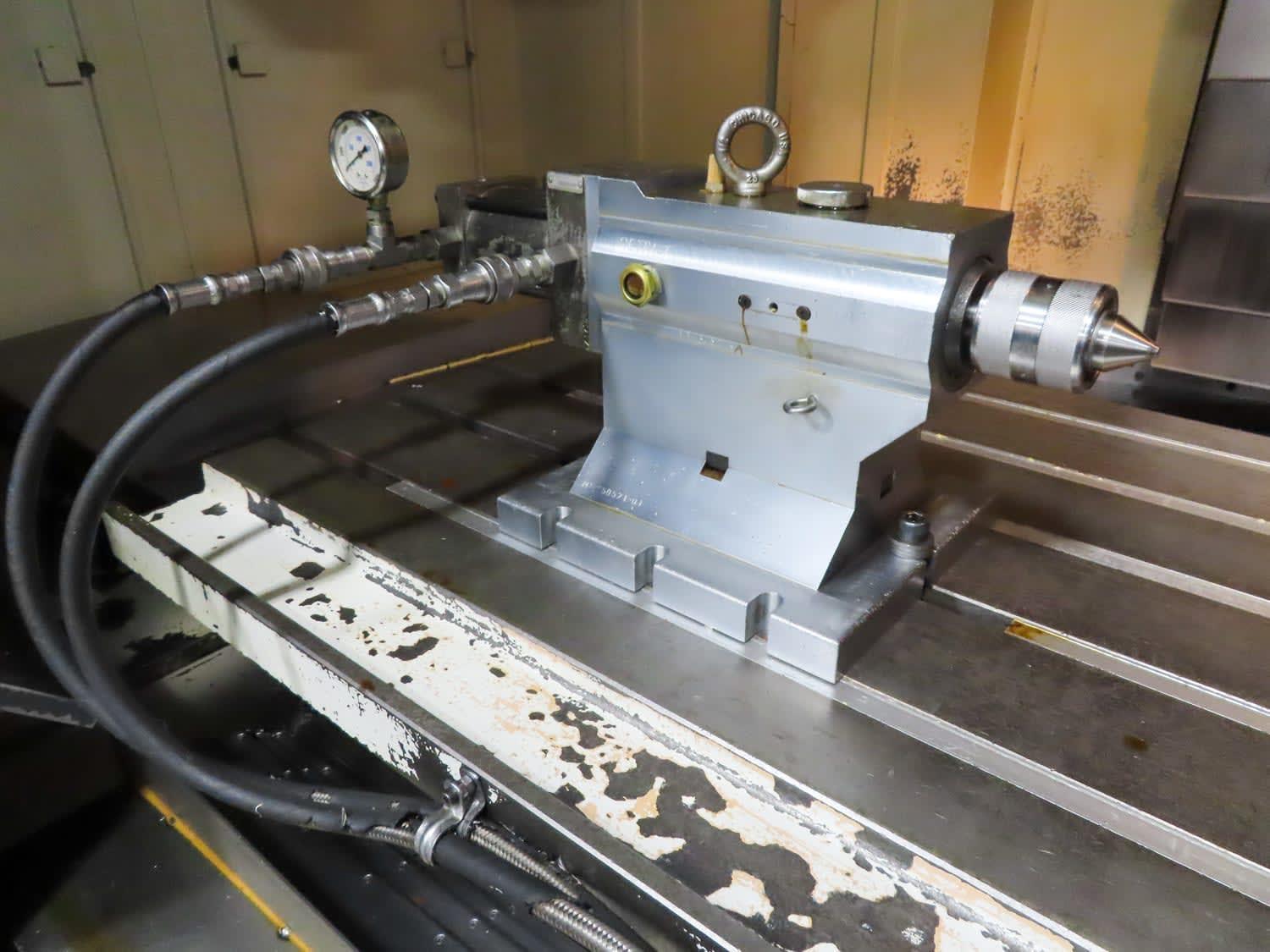

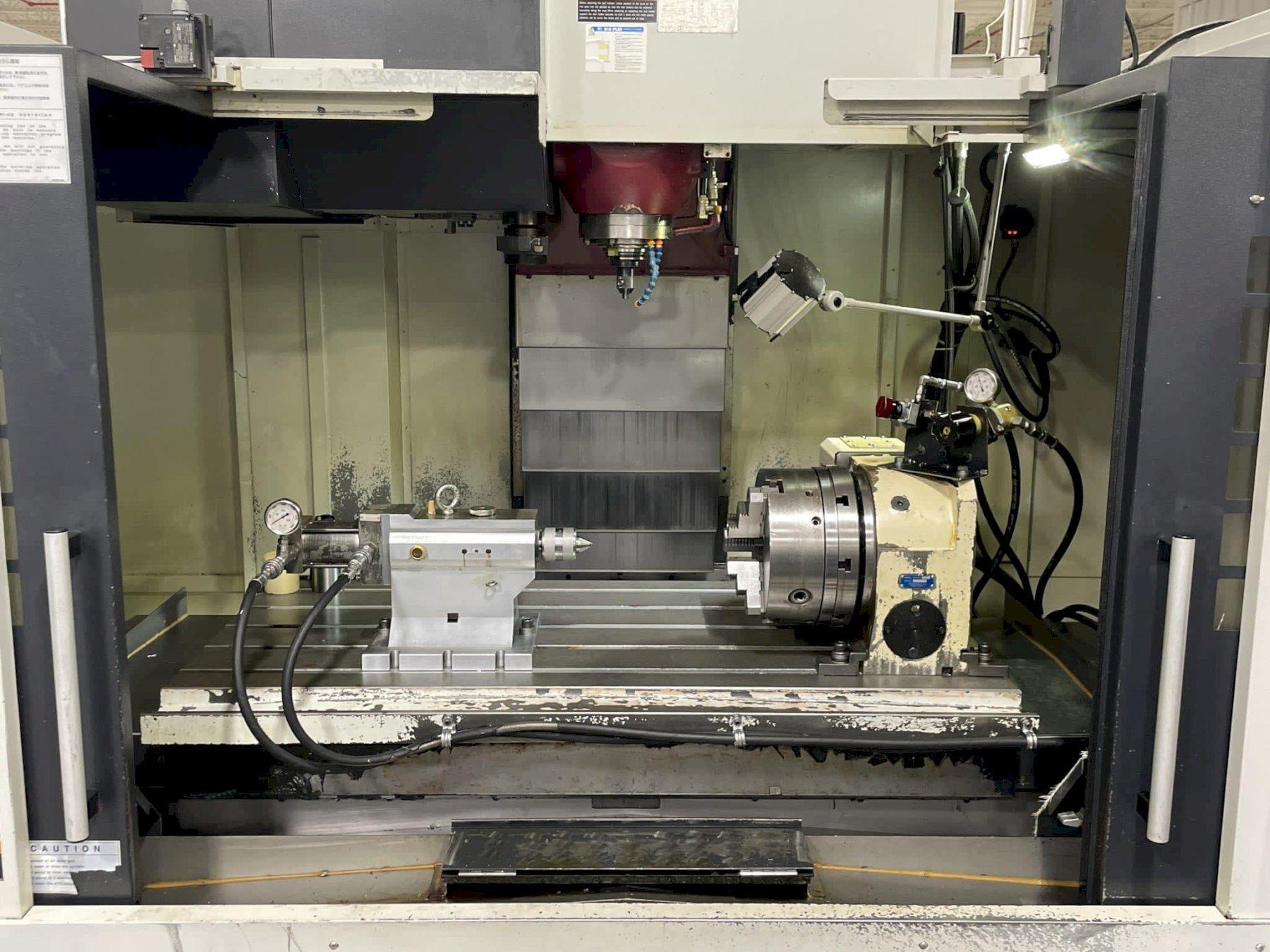

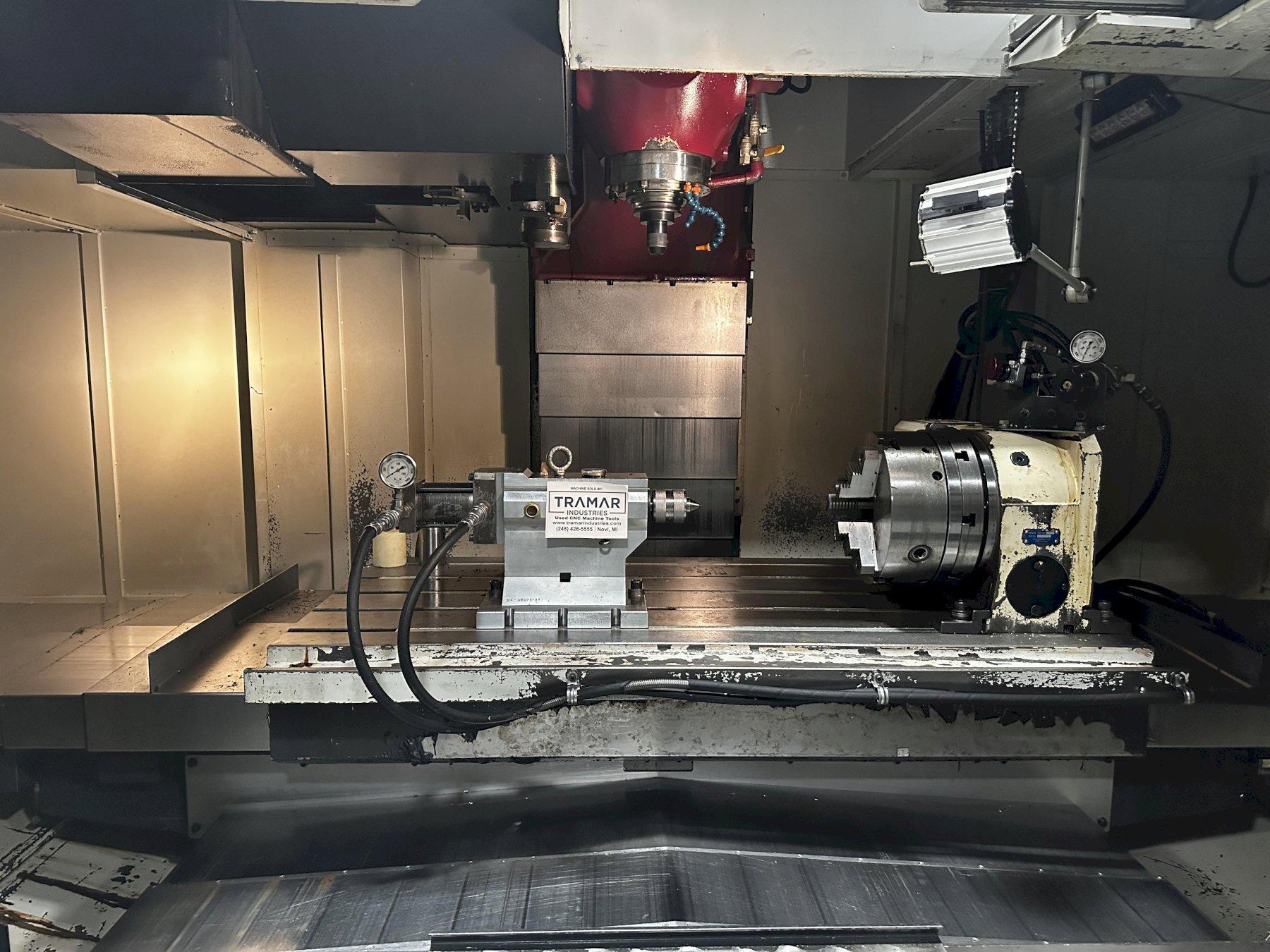

Tsudakoma RNA-320L 4th Axis w/Tailstock

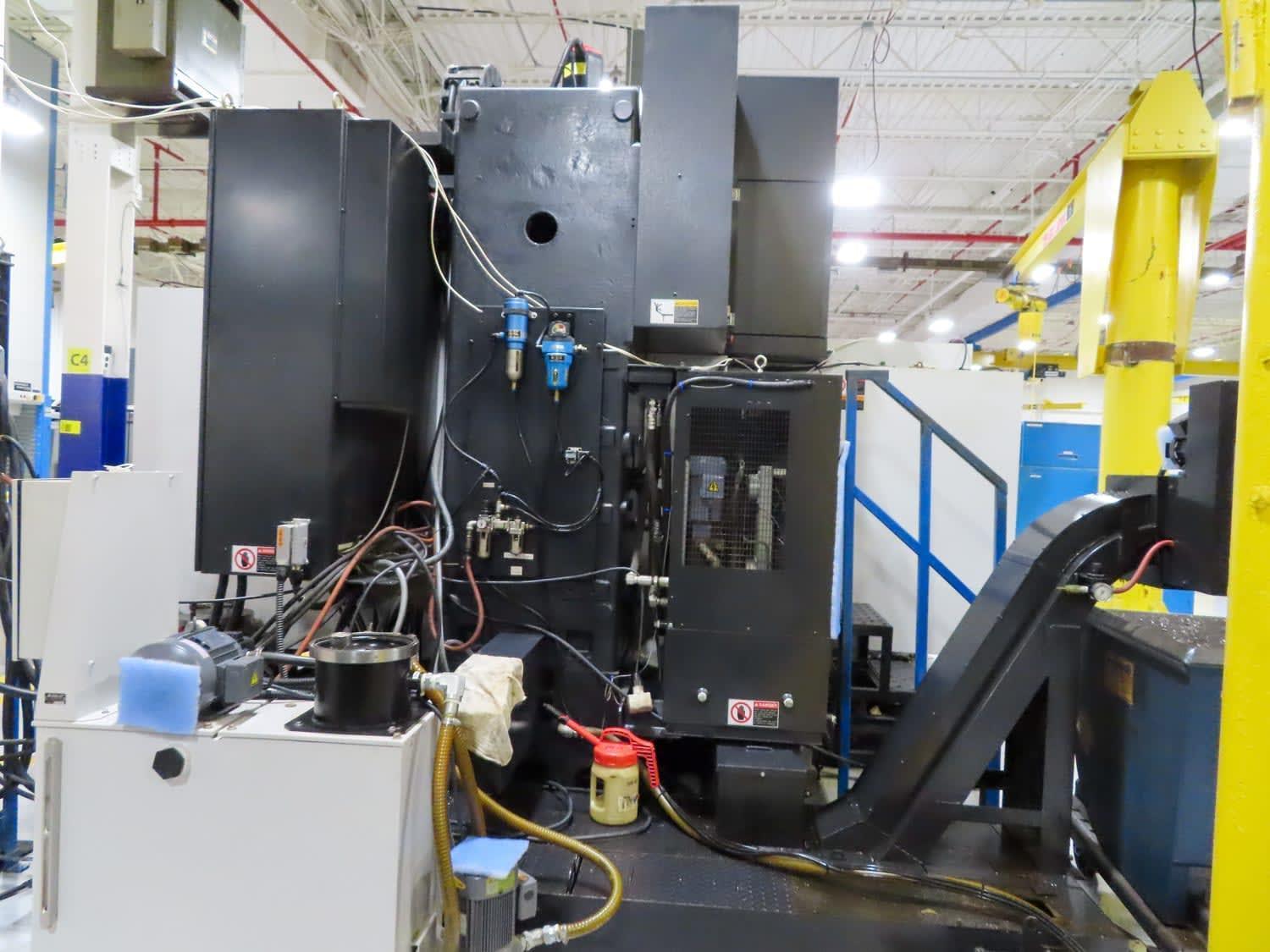

Chip Conveyor/Coolant Tank & Pumps

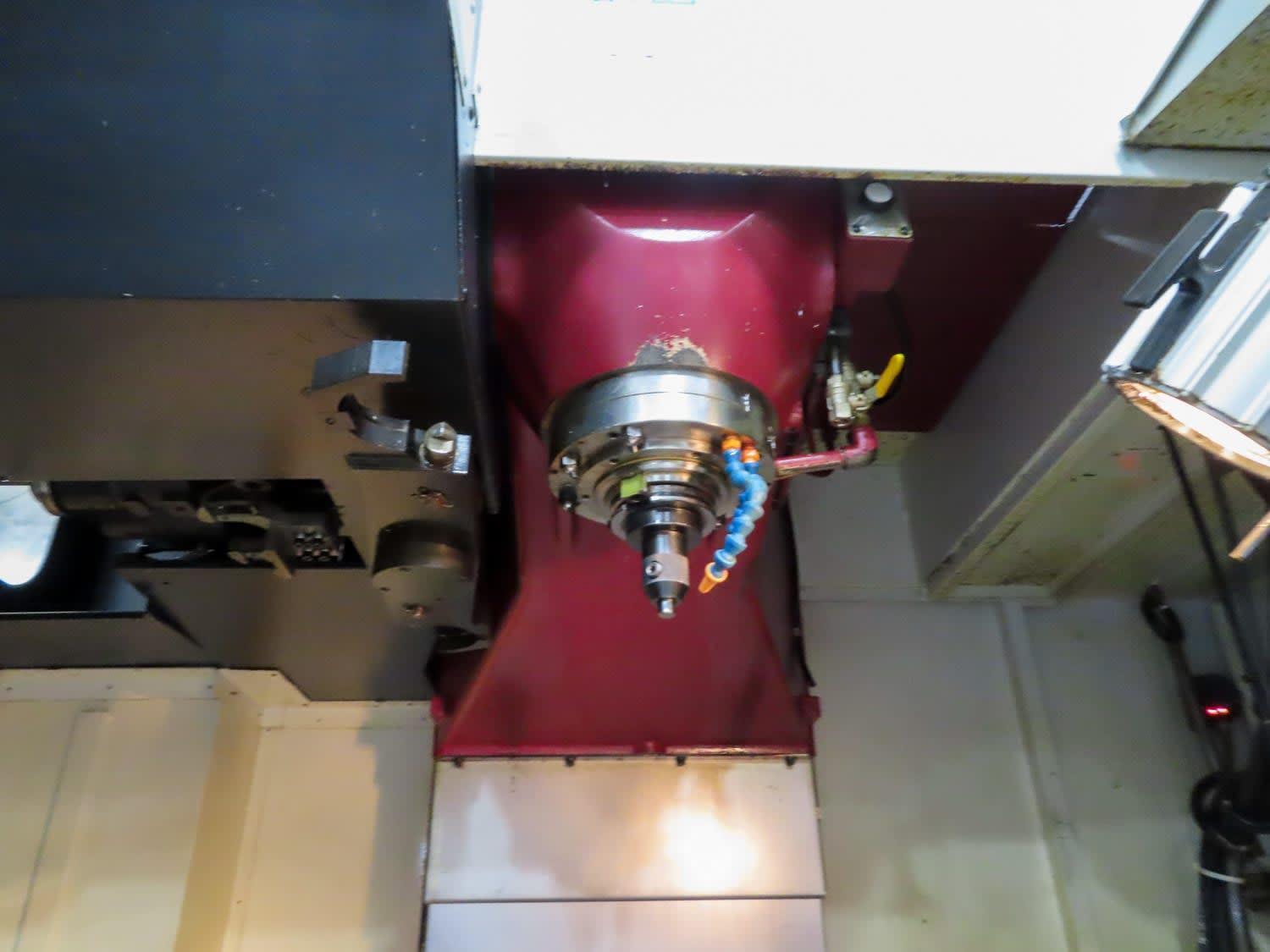

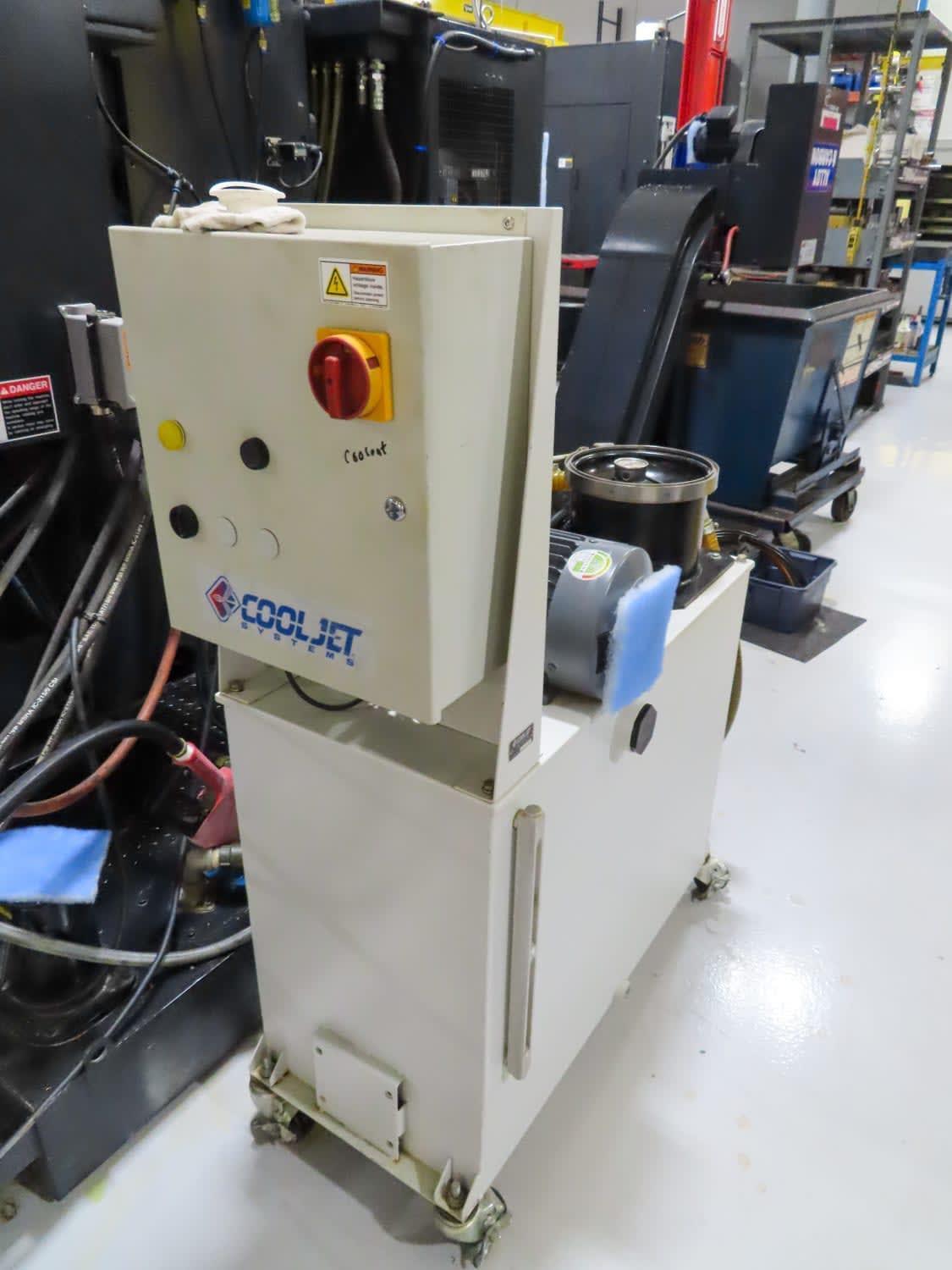

CoolJet Unit - Coolant Thru Spindle

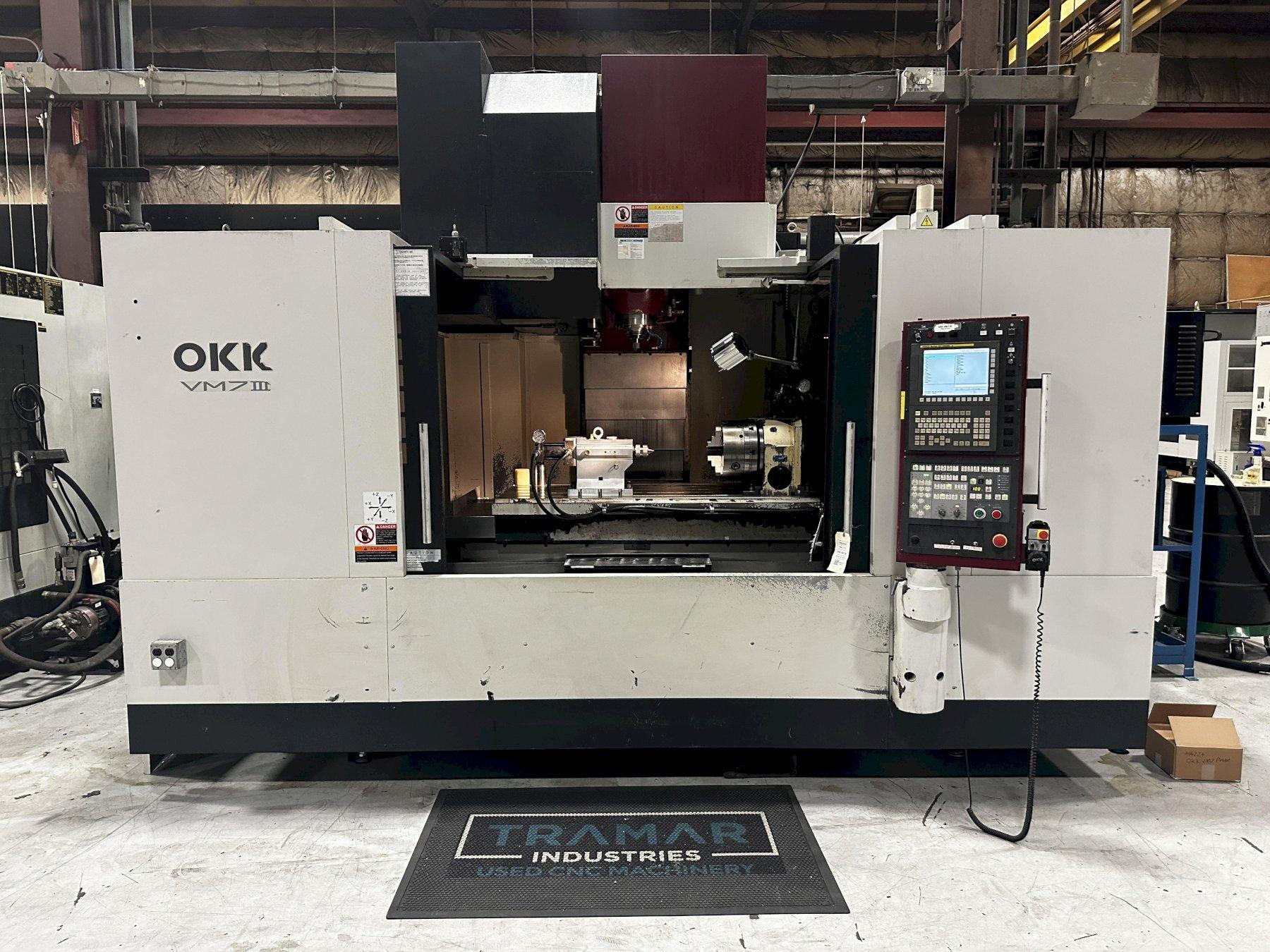

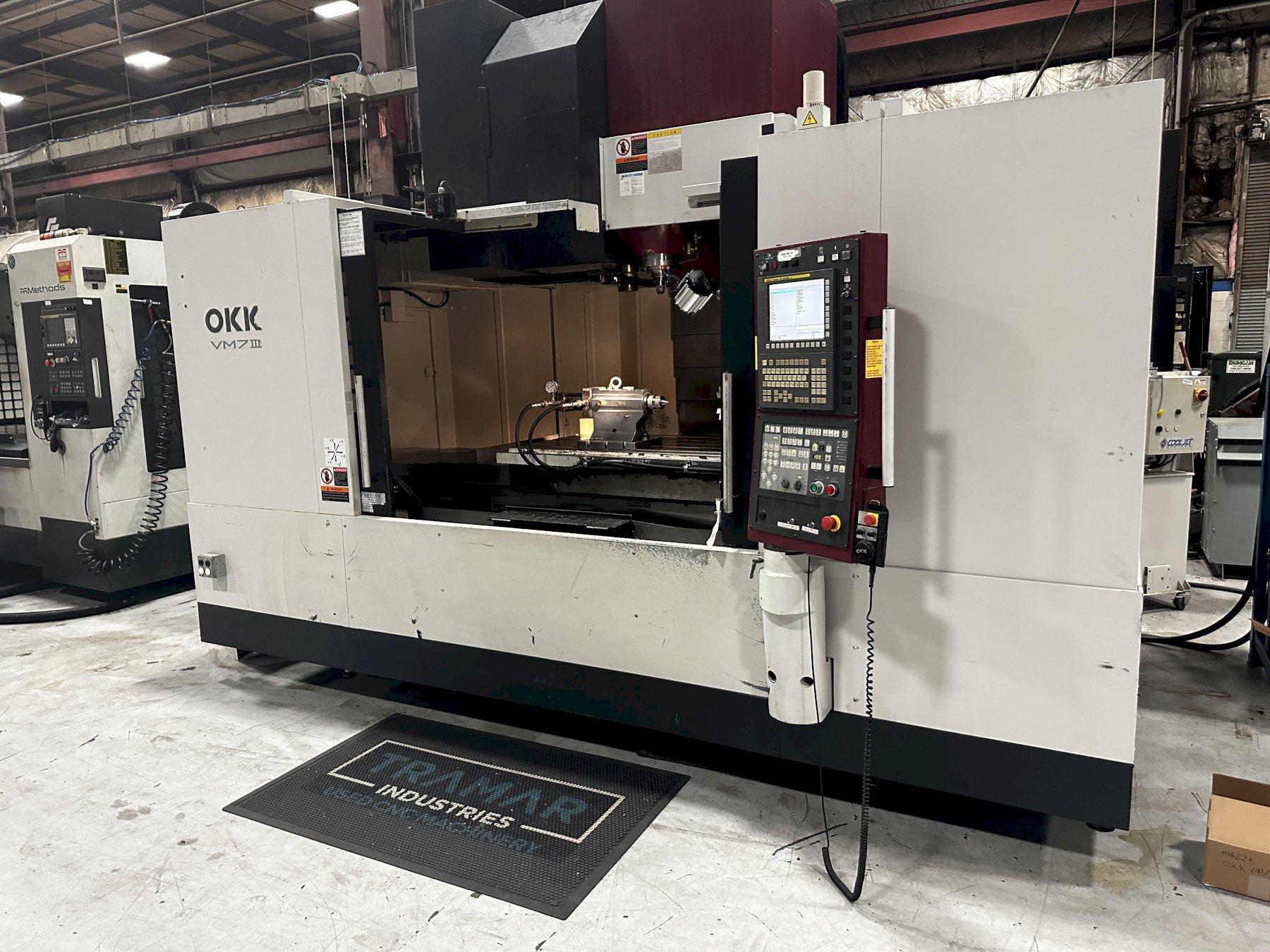

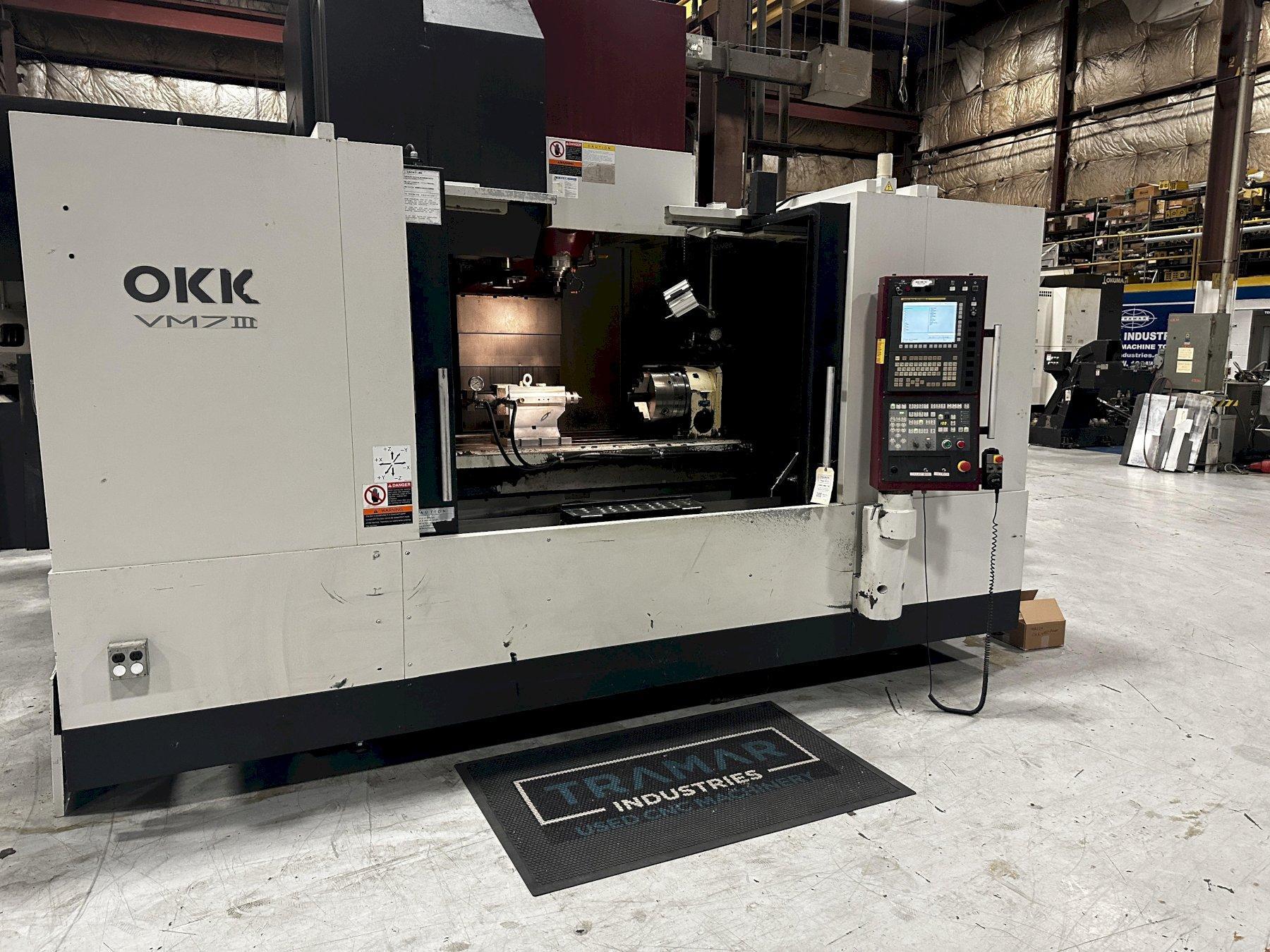

OKK VM7 III CNC Vertical Machining Center with 4th Axis For Sale - 2012
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model A
# Axis
4
Table Size
61.02" x 29.13"
Table Capacity
3,300 pounds
Max Distance Spindle To Table Top
31.89"
X-Axis Travel
60.24"
Y-Axis Travel
29.13"
Z-Axis Travel
25.98"
Rapid Traverse Rate (X/Y/Z)
945/945/787 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Main Motor
25 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Machine Dimensions
157" x 152" x 128"
Machine Weight
24,500 pounds

Equipped With:

** Video - Click Here **

- Fanuc 31i-Model A CNC Control

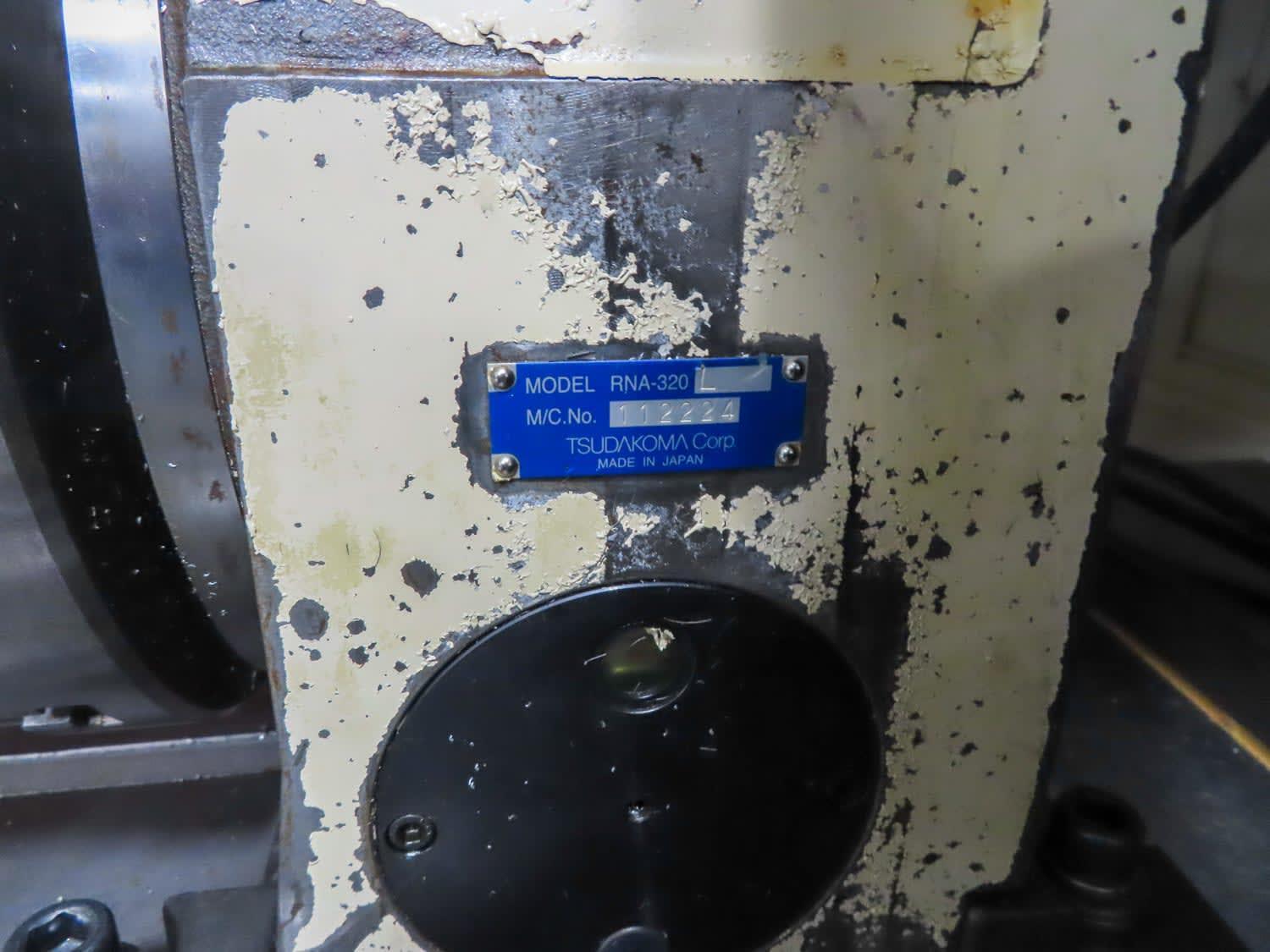

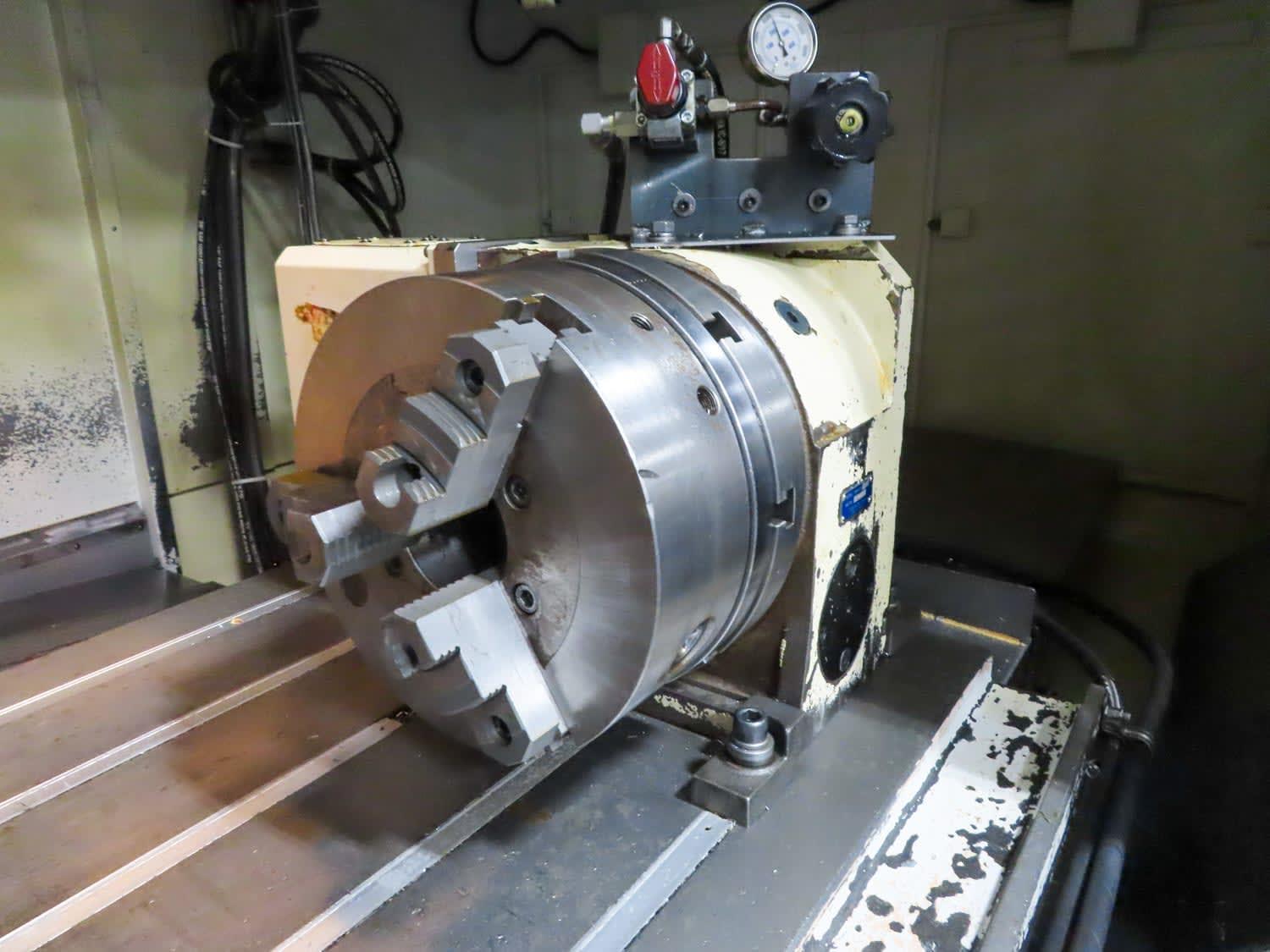

- Tsudakoma RNA-320L 4th Axis Rotary Table
- CoolJet Coolant Thru Spindle
- Big Plus Spindle
- 200 Tool Offsets
- 50 Work Offsets
- Custom Macro
- Tool Life
- Manual Guide i
- 2 Speed Gearbox
- Chip Conveyor
- Coolant Tank
- Renishaw Probing RMP60

The OKK VM-7 III is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
