Okuma Spaceturn LB3000EX-MYW 800 - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Spaceturn LB3000EX-MYW 800
Year: 2014
Stock #: 13724
Highlights:
OSP P300L Control
Live Tooling
Y Axis
Sub Spindle

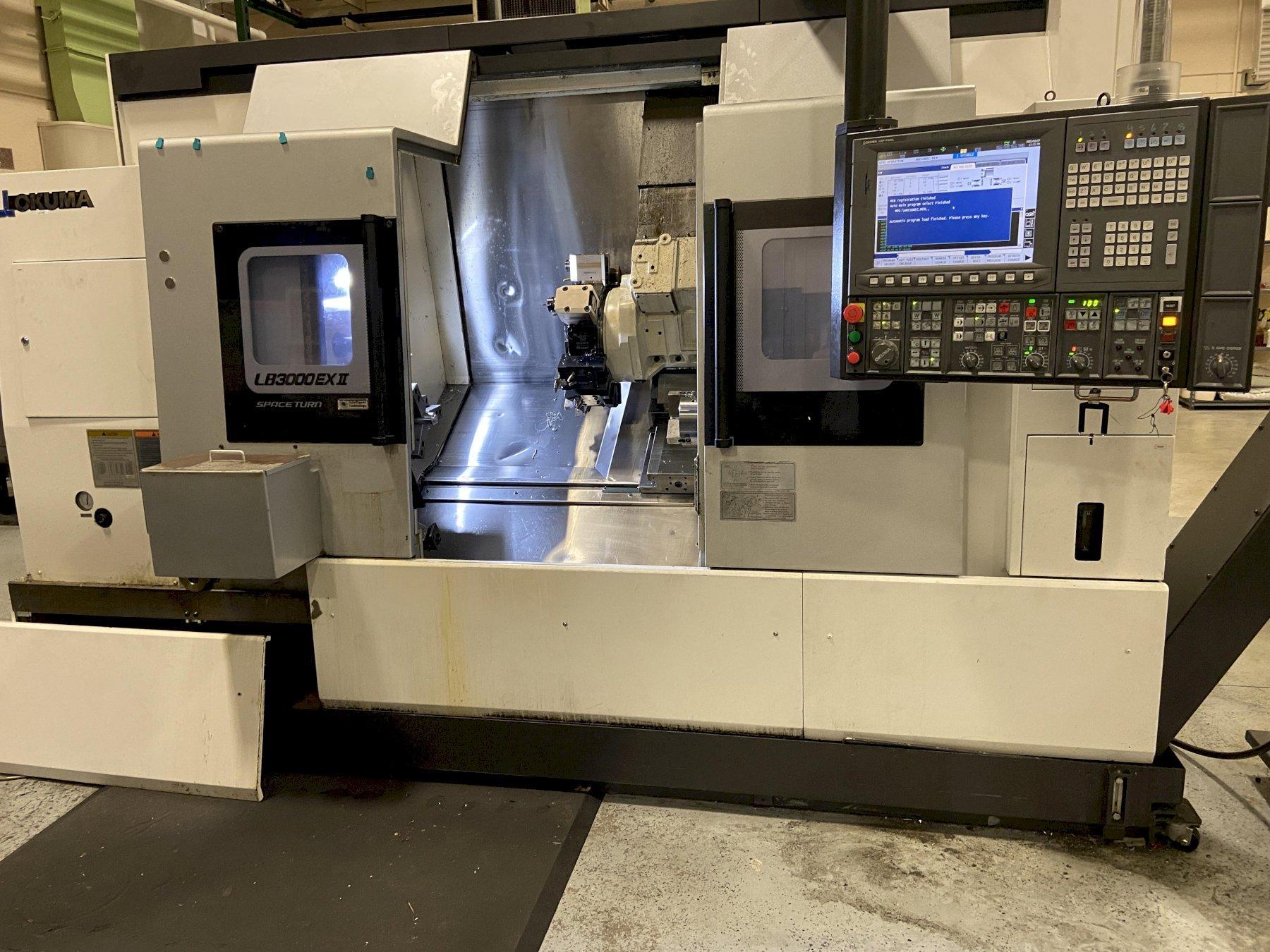

Okuma Spaceturn LB3000EX-MYW Horizontal CNC Lathe
Machine Specifications
Year
2014
Control Type
OSP P300L
# Axis
6
Swing
22.83"
Turning Diameter
13.39"
Center Distance
38.19"
Chuck Size
10"
Bar Capacity
3.25"
Bar Capacity
3.15"
X Axis Travel
10.24"
Y Axis Travel
4.73"
Z Axis Travel
39.76"
W Axis Travel
35.4"
C Axis Index
0.001°
Rapid Traverse (X/Z)
984/1,181 ipm
Spindle Nose
A2-8
Spindle Speed
4,200 rpm
Main Motor
30 hp
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
9.5 hp
Sub Spindle
yes
Sub Spindle Speed
6,000 rpm
Sub Spindle Motor (HP)
15 hp
Tailstock
no
Y Axis
yes
Turret Capacity
12
Dimensions
151" x 80" x 97"
Weight
14,520 pounds

Equipped With:

- Okuma OSP P300L Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Live Tooling
- Y Axis
- Sub Spindle
- High Pressure Coolant
- Bar Feed Interface
- Auto One Touch IGF (Conversational Programming)
- Parts Catcher
- Big Bore Option

The Okuma Spaceturn LB3000EX-MYW 800 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
