Parpas Diamond - Machining Centers, Vertical, (5-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Diamond
Year: 2011
Stock #: M2556
Highlights:

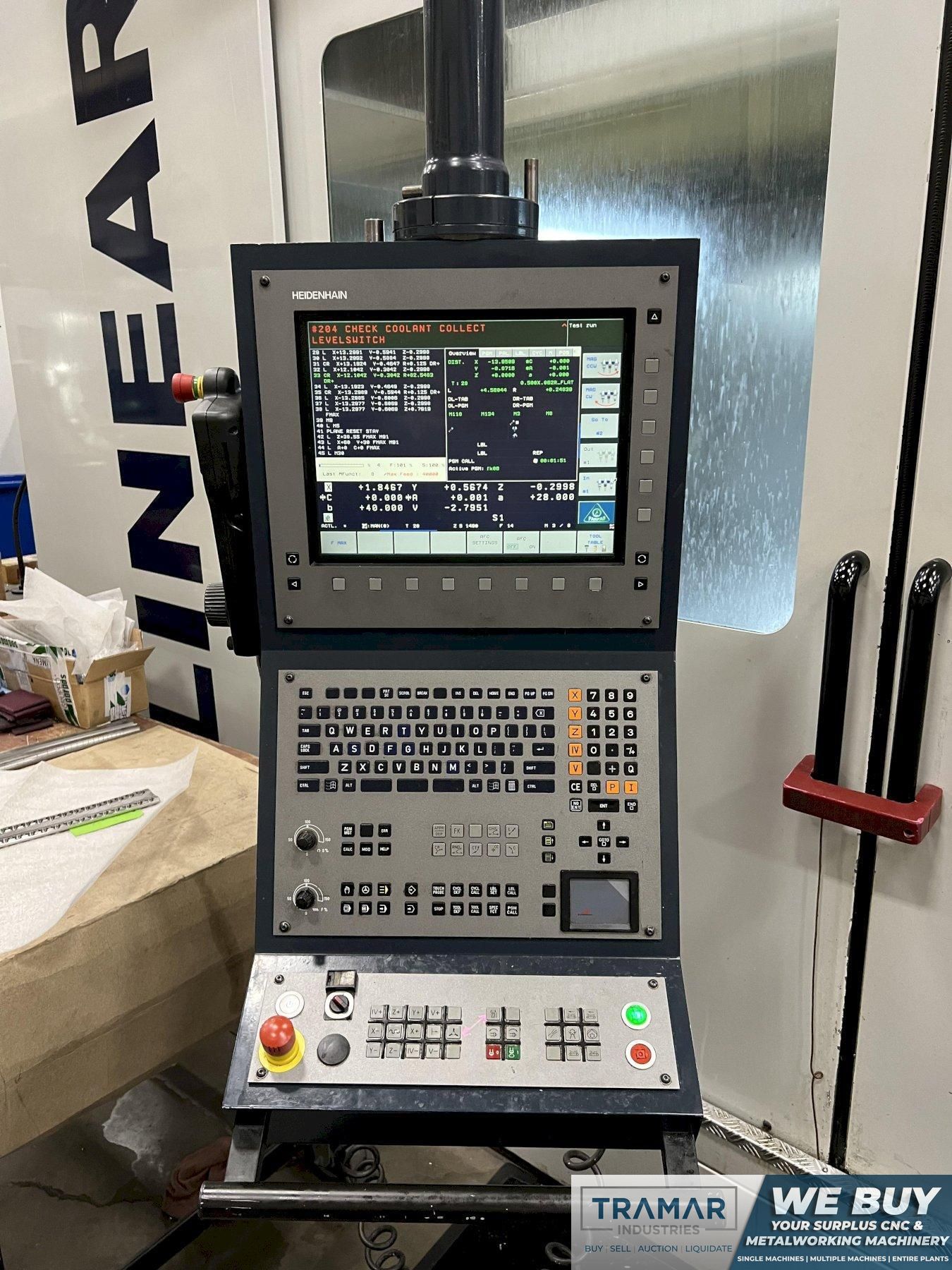

- Heidenhain iTNC 530 CNC Control
- 80 Station ATC
- 20,000 RPM HSK63A Spindle (newly replaced)
- Through Spindle Coolant
- Laser Tool Measuring
- Spindle Probe
- Linear Motor Drives

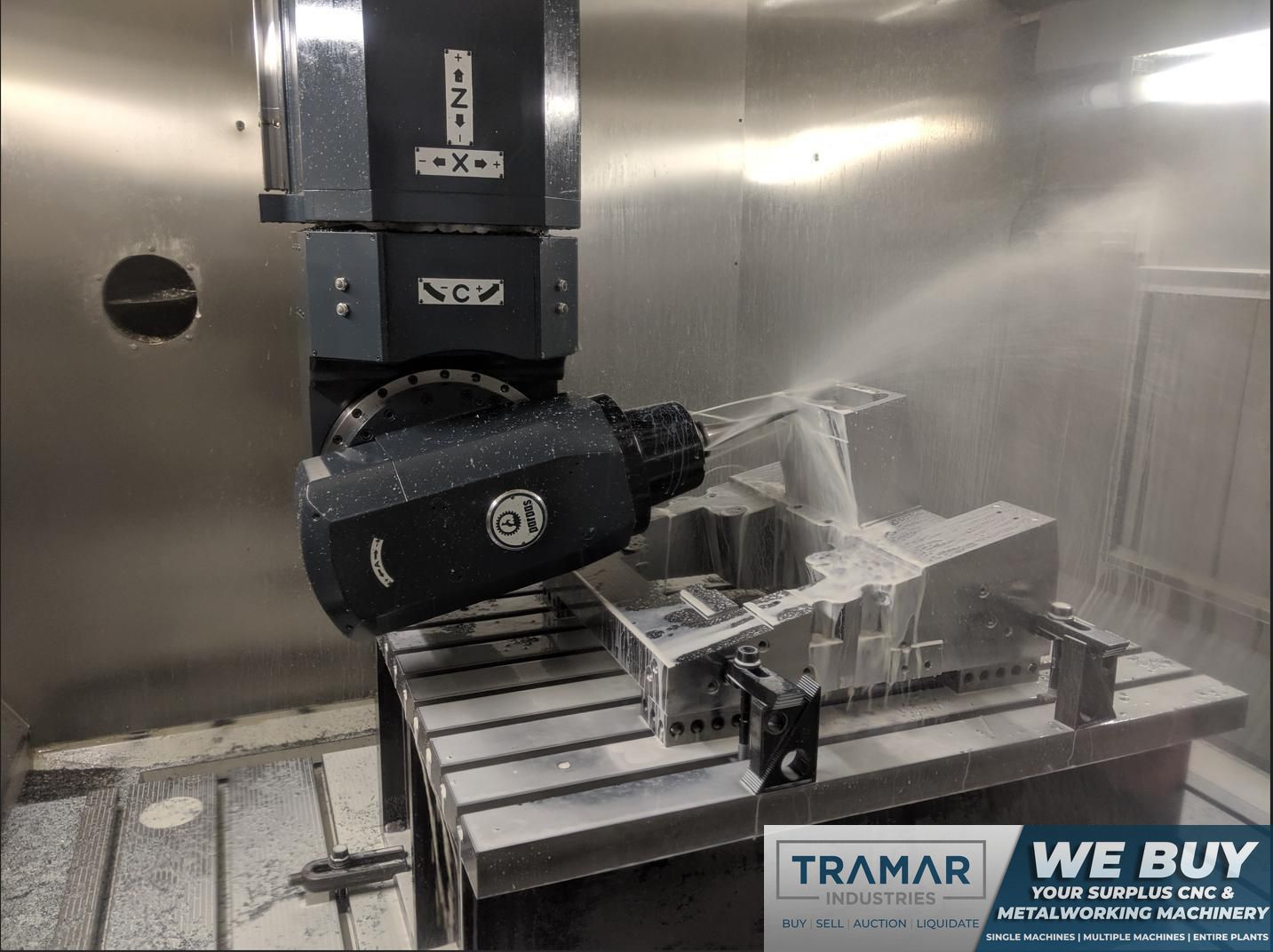

- 5-axis Machining

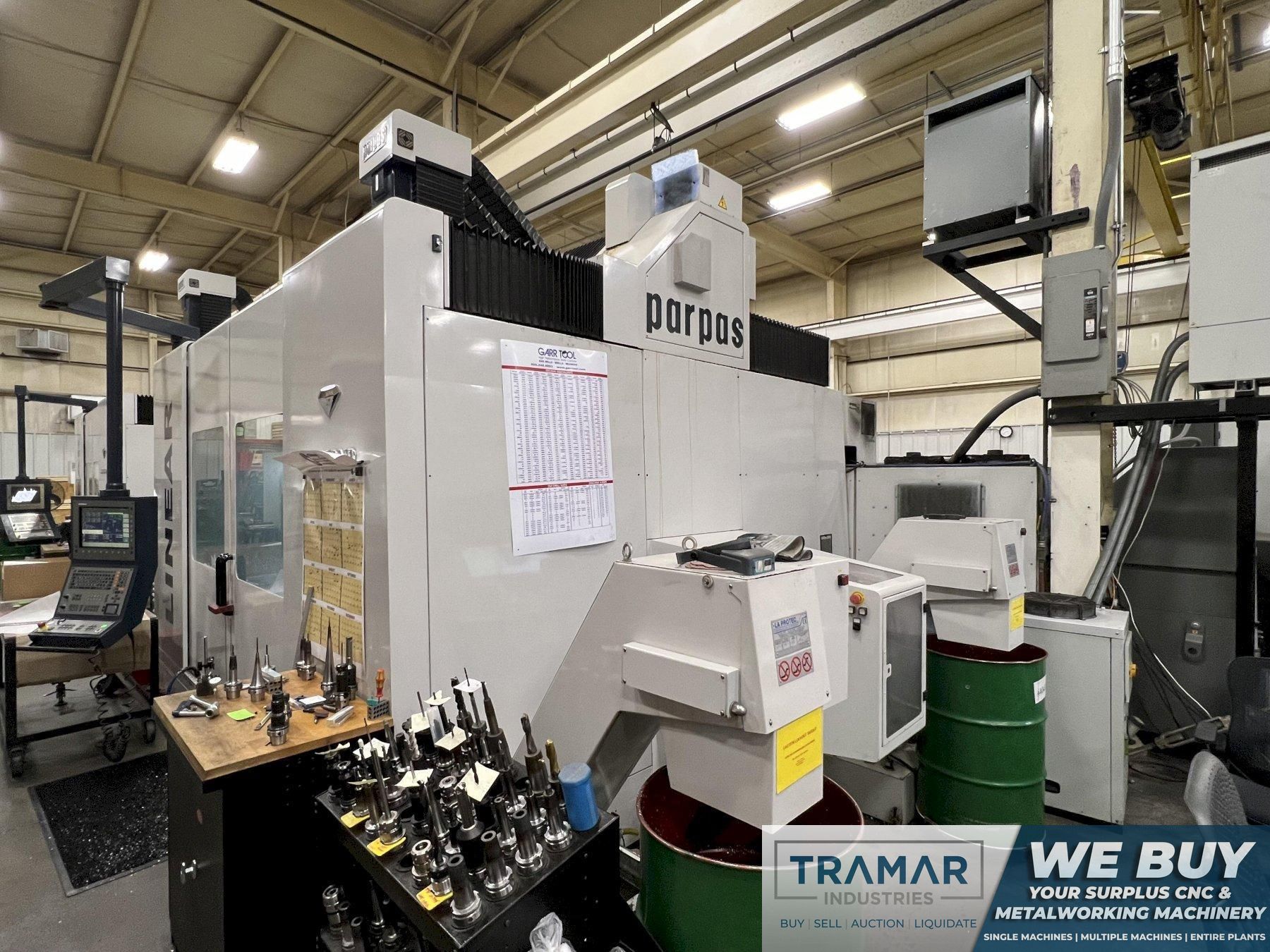

Parpas Diamond 5-axis High Dynamic Milling Center For Sale - 2011
Machine Specifications
CNC Control
yes
Control Type
Heidenhain iTNC 530
# Axis
5
Table Size
90.5" x 62.9
Max Table Load
13,227 pounds
X-Axis Travel
87"
Y-Axis Travel
59"
Z-Axis Travel
39"
C Axis Index
+/- 370°
A Axis Rotation
+/- 105°
Distance Between Columns
106.3"
Spindle Taper
HSK-63A
Spindle Speed
20,000 rpm
Main Motor
40 hp
ATC Capacity
80
Coolant Thru Spindle
yes
Machine Weight
42,000 pounds

Equipped With:

- Heidenhain iTNC 530 CNC Control
- 80 Station ATC
- 20,000 RPM HSK63A Spindle (newly replaced)
- Through Spindle Coolant
- Laser Tool Measuring
- Spindle Probe

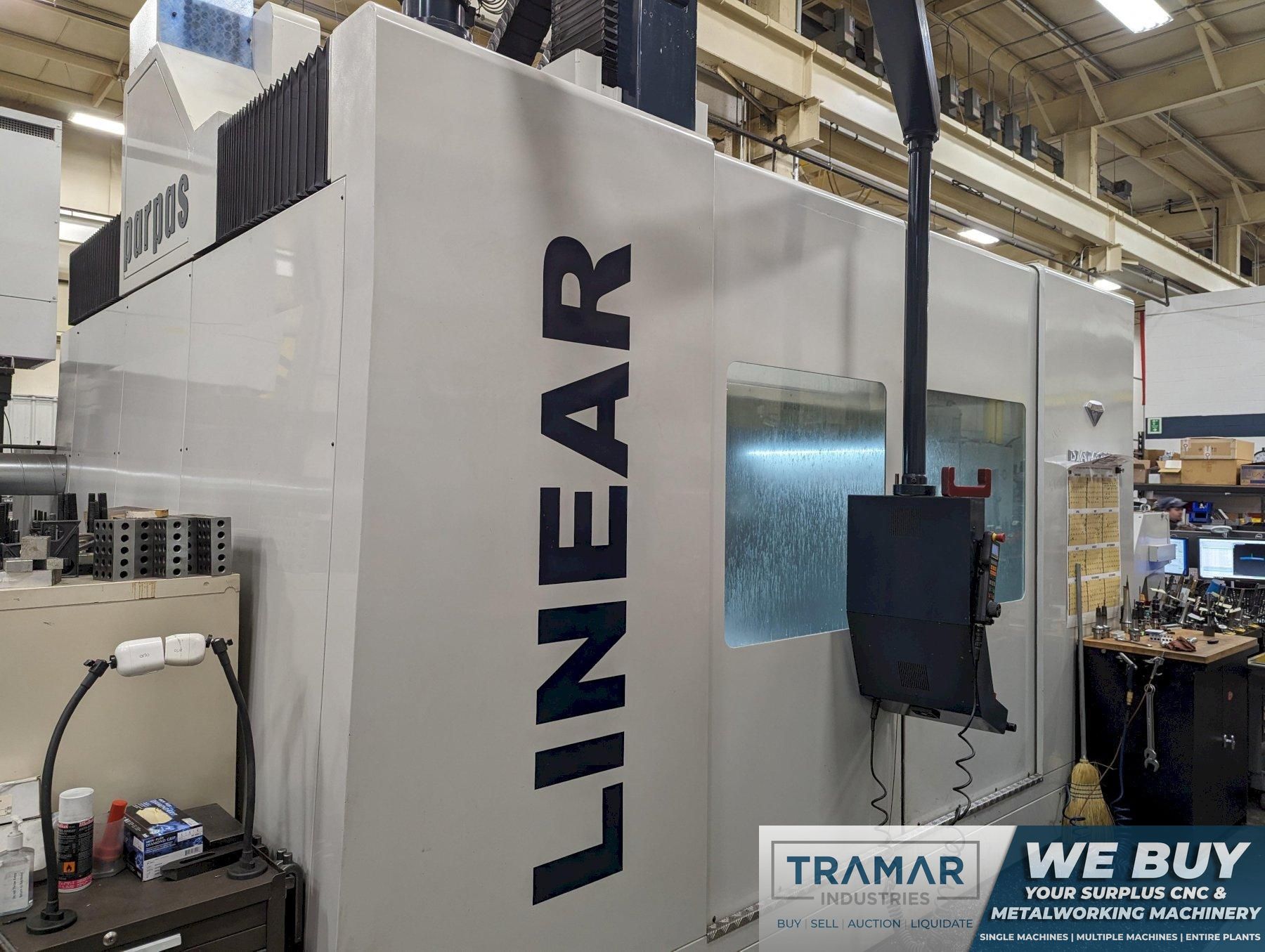

- Linear Motor Drives


The Parpas Diamond is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
