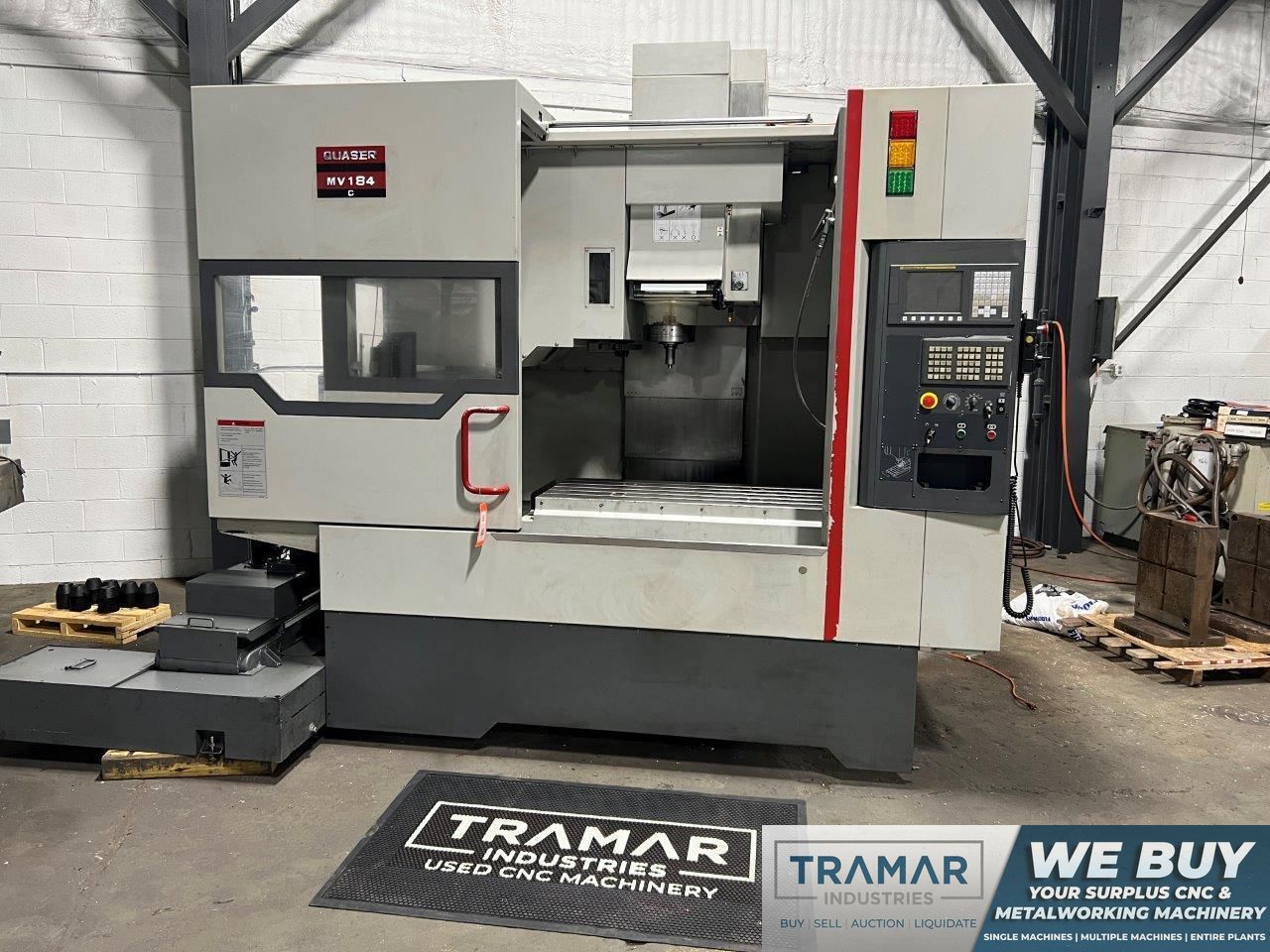

Quaser MV184C/10C - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: MV184C/10C
Year: 2011
Stock #: 13987
Highlights:

Quaser MV184C/10C Used CNC Vertical Machining Center For Sale - 2011
Machine Specifications
Year
2011
Control Type
Fanuc 0i-MD
# Axis
3
Table Size
47.2" x 23.6"
Table Capacity
1,100 pounds
X-Axis Travel
40"
Y-Axis Travel
24"
Z-Axis Travel
24"
Rapid Traverse Rate (X/Y/Z)
1,260/1,260/944 ipm
Spindle Taper
CAT 40
Spindle Speed
10,000 rpm
Main Motor
20 hp
Tool Changer Capacity
30
Coolant Thru Spindle
no
Machine Dimensions
83" x 103" x 121"
Machine Weight
17,000 pounds

Equipped With:

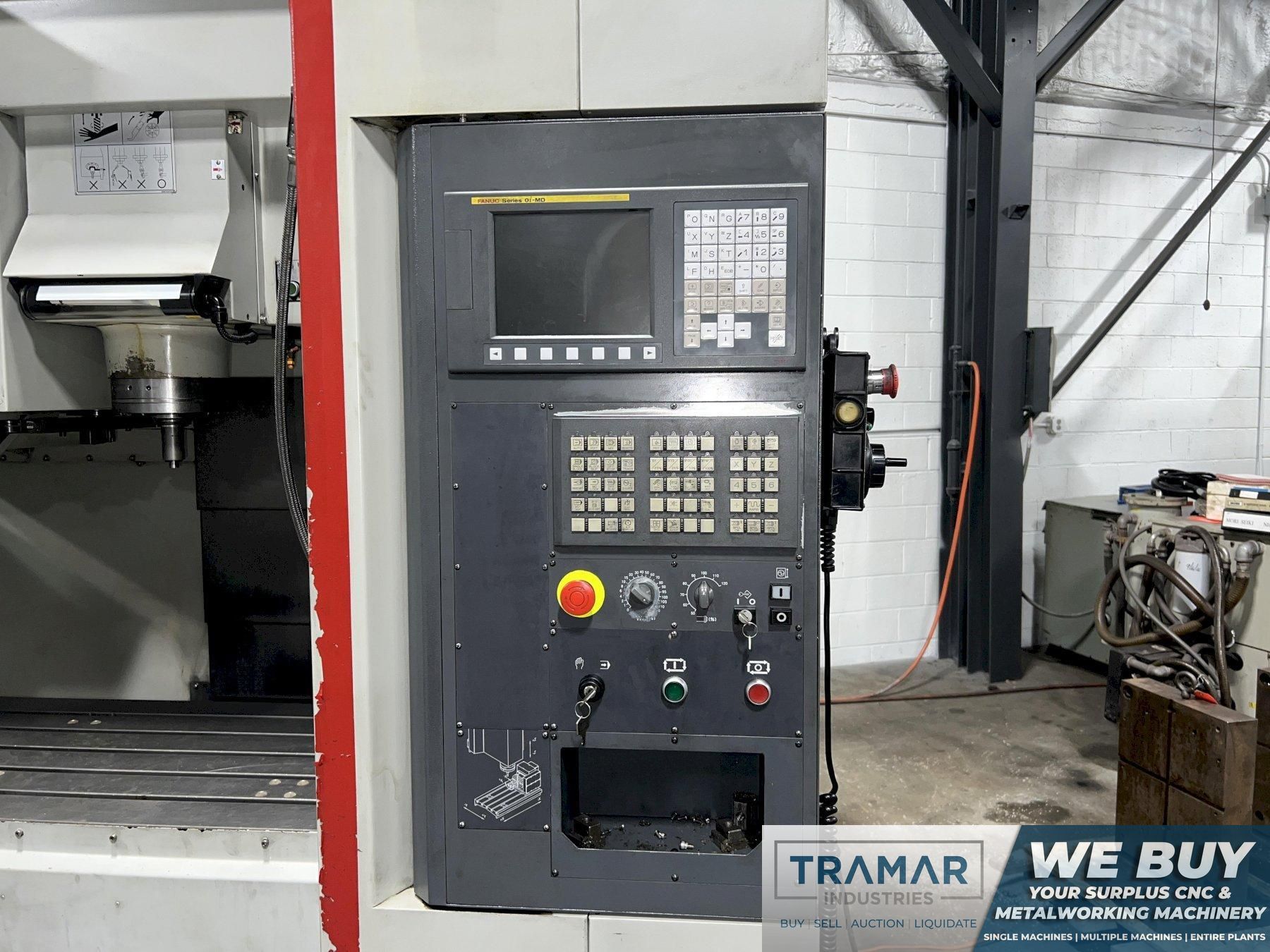

- Fanuc 0i-MD CNC Control
- Data Server

- Chip Conveyor
- Coolant Tank & Pump

The Quaser MV184C/10C is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
