Model: SMTW GC12-39
Year: 2019
Stock #: 14112
Highlights:

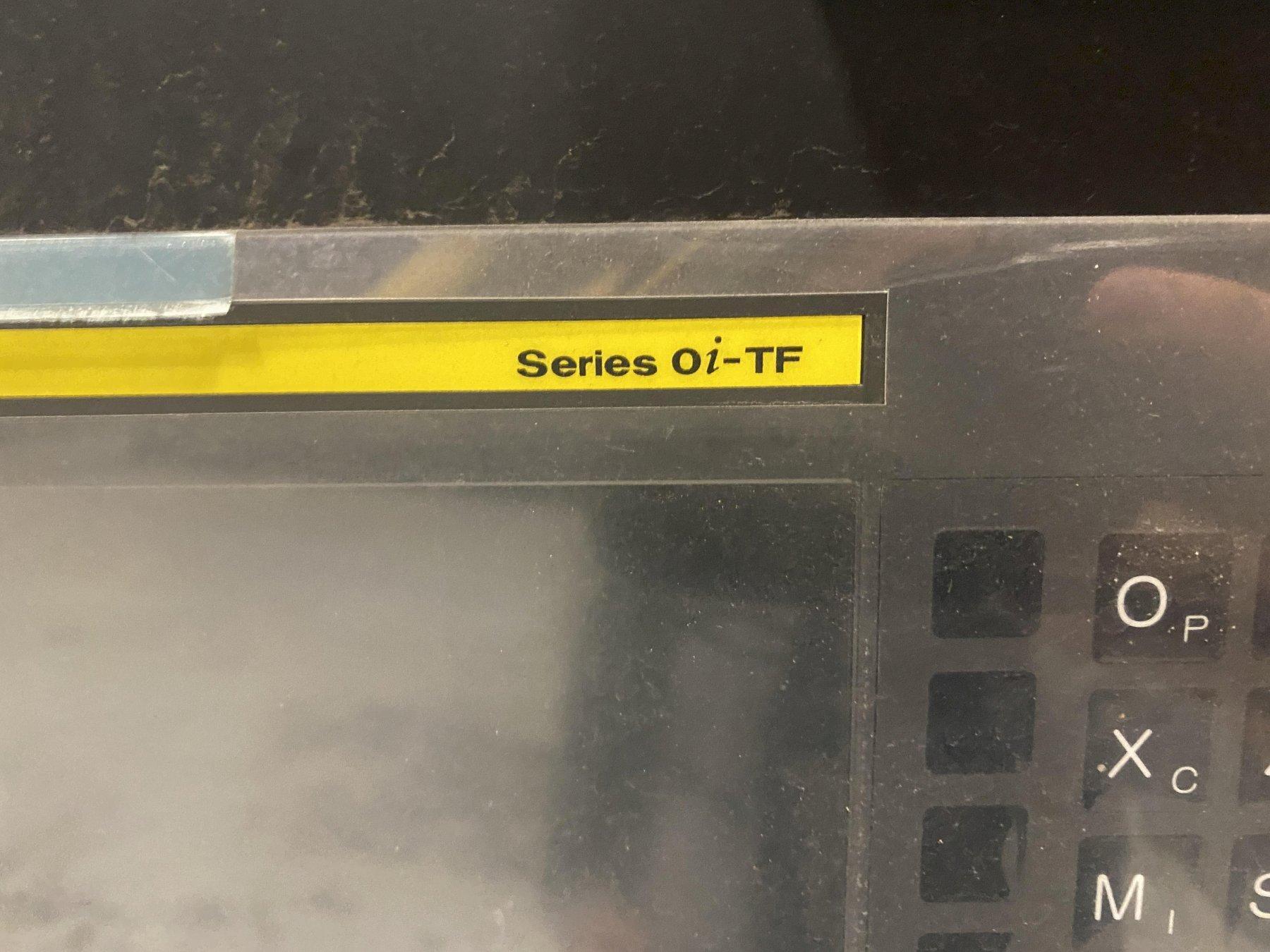

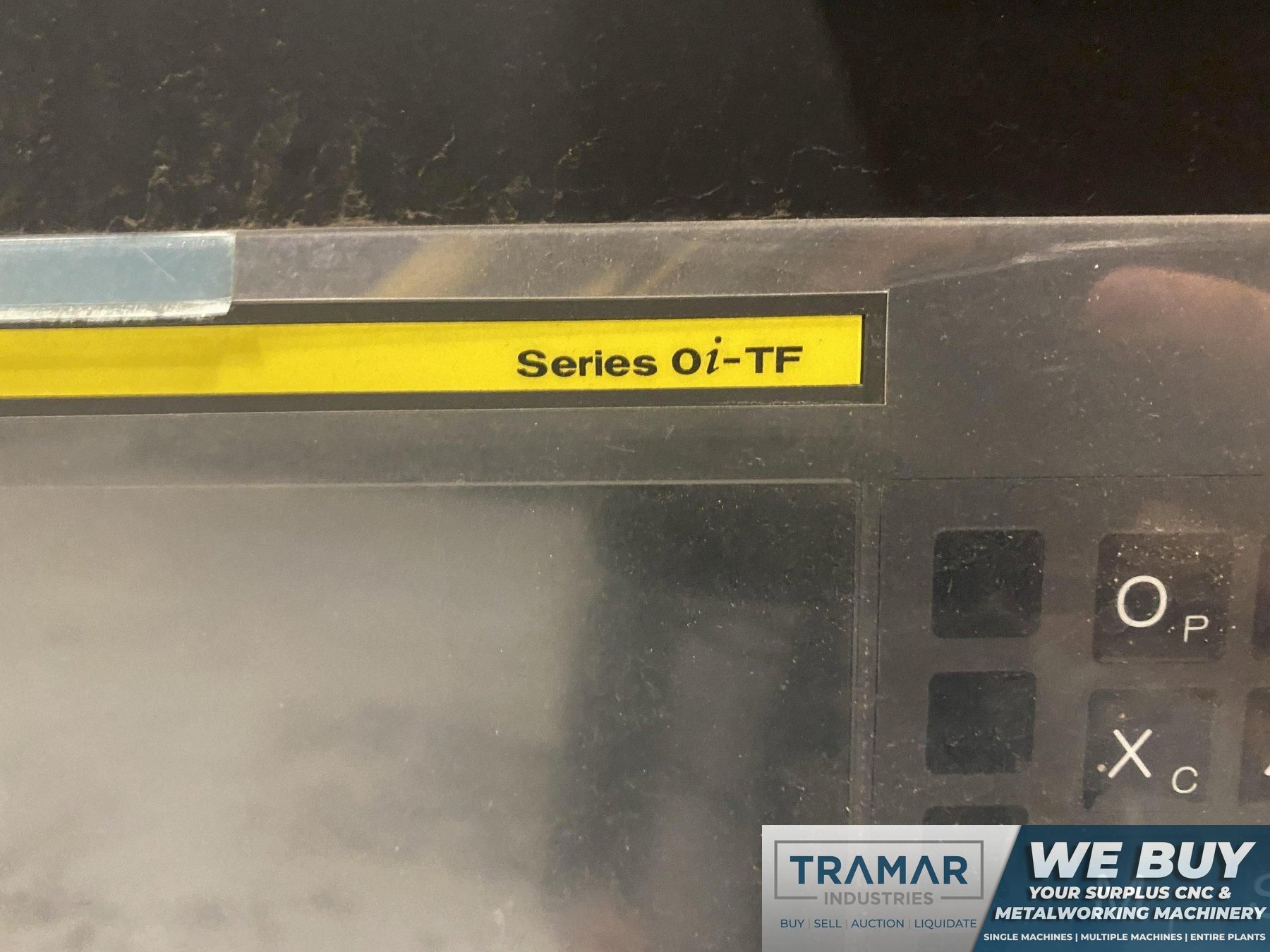

Fanuc 0i-TF CNC Control
SBS Balance System - SB-5,500
Marpos P3 SE

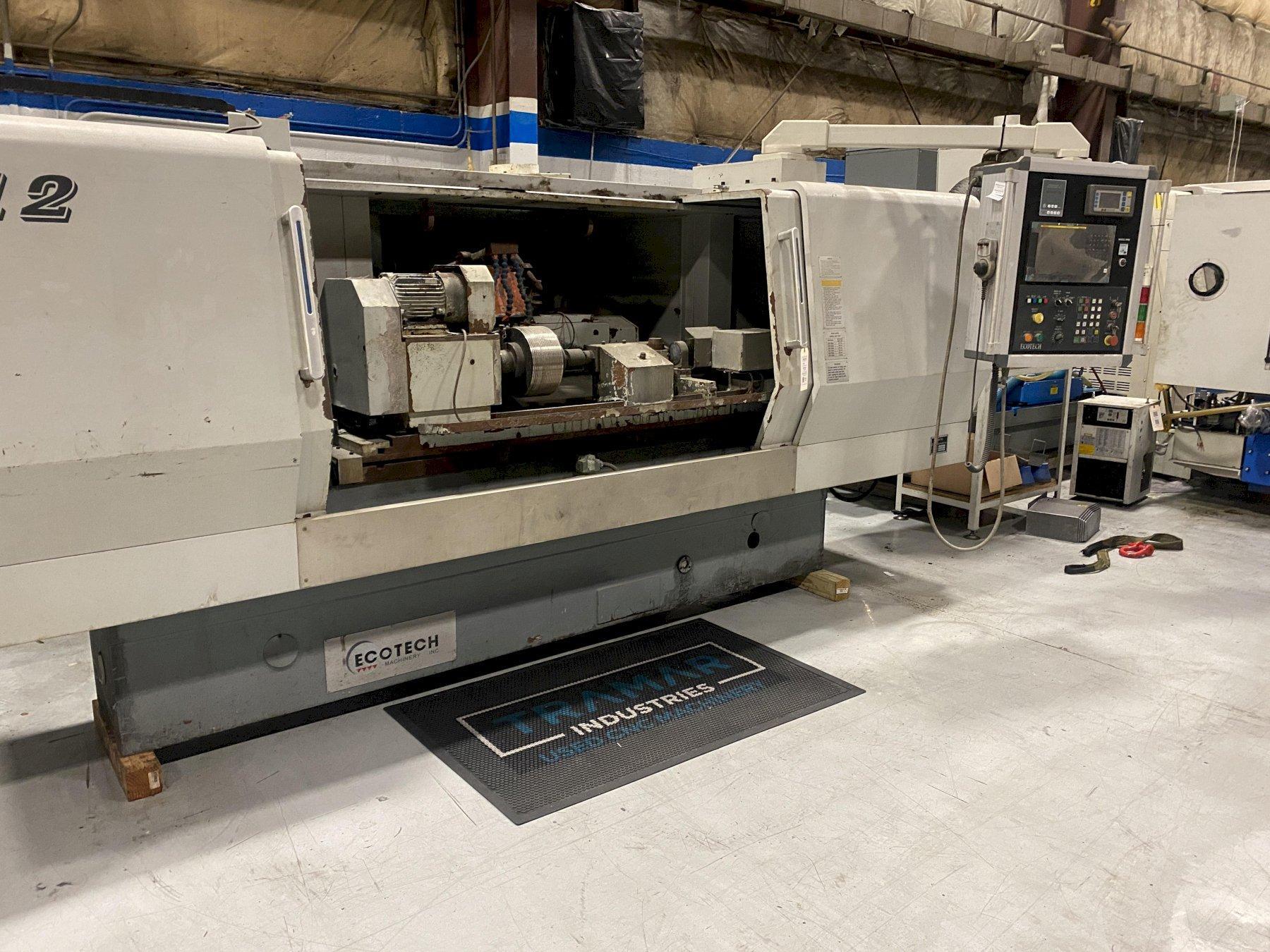

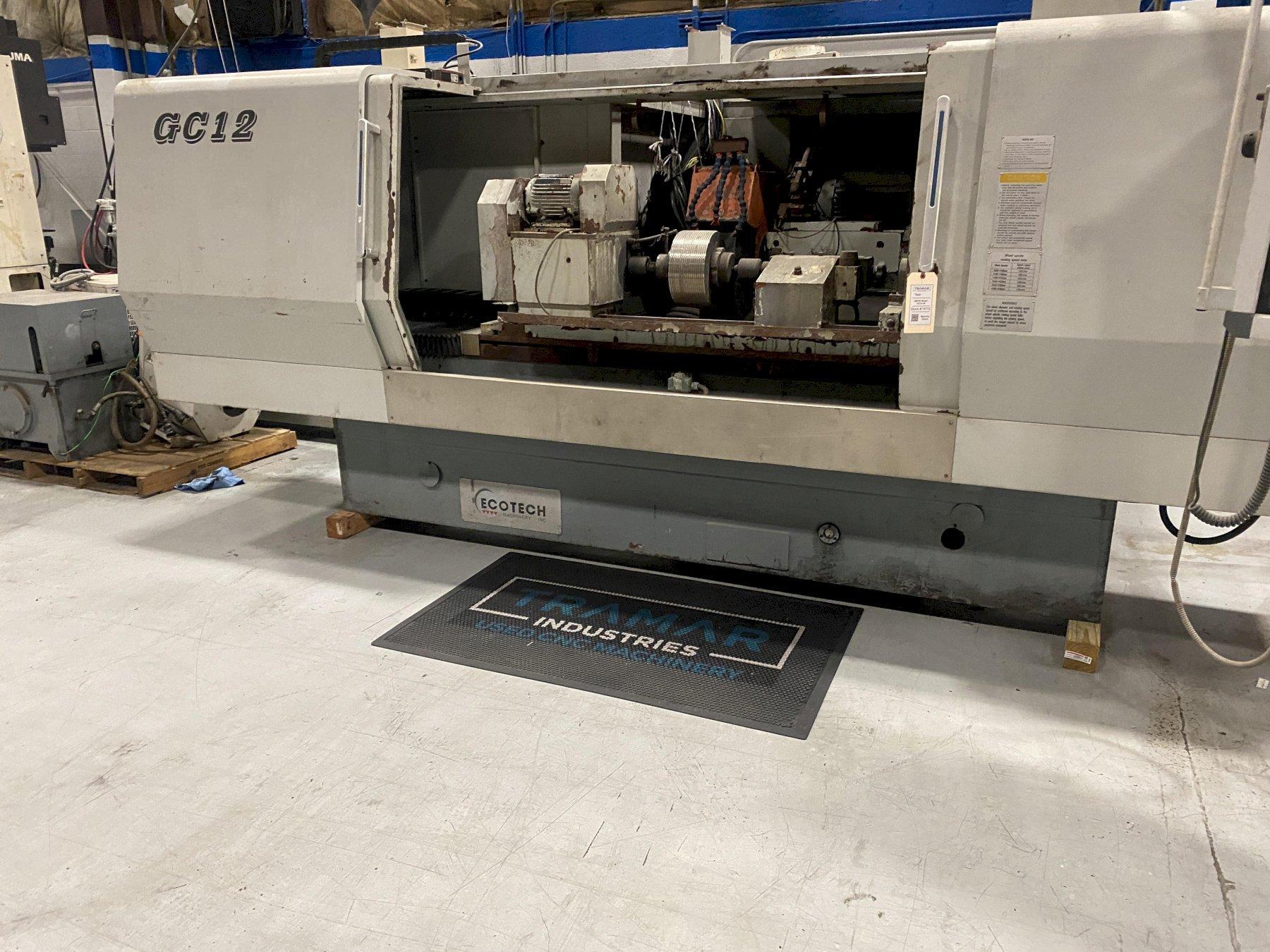

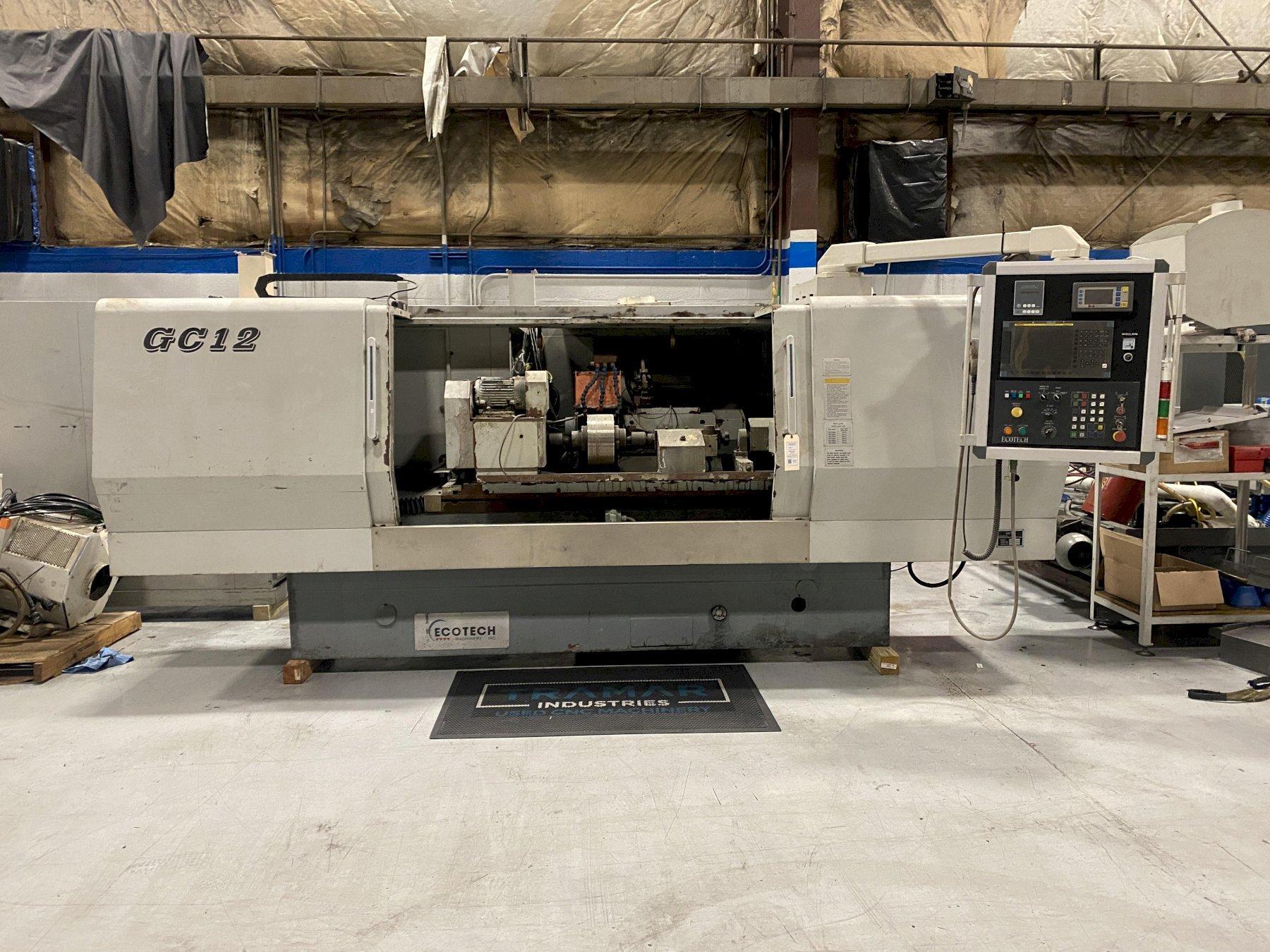

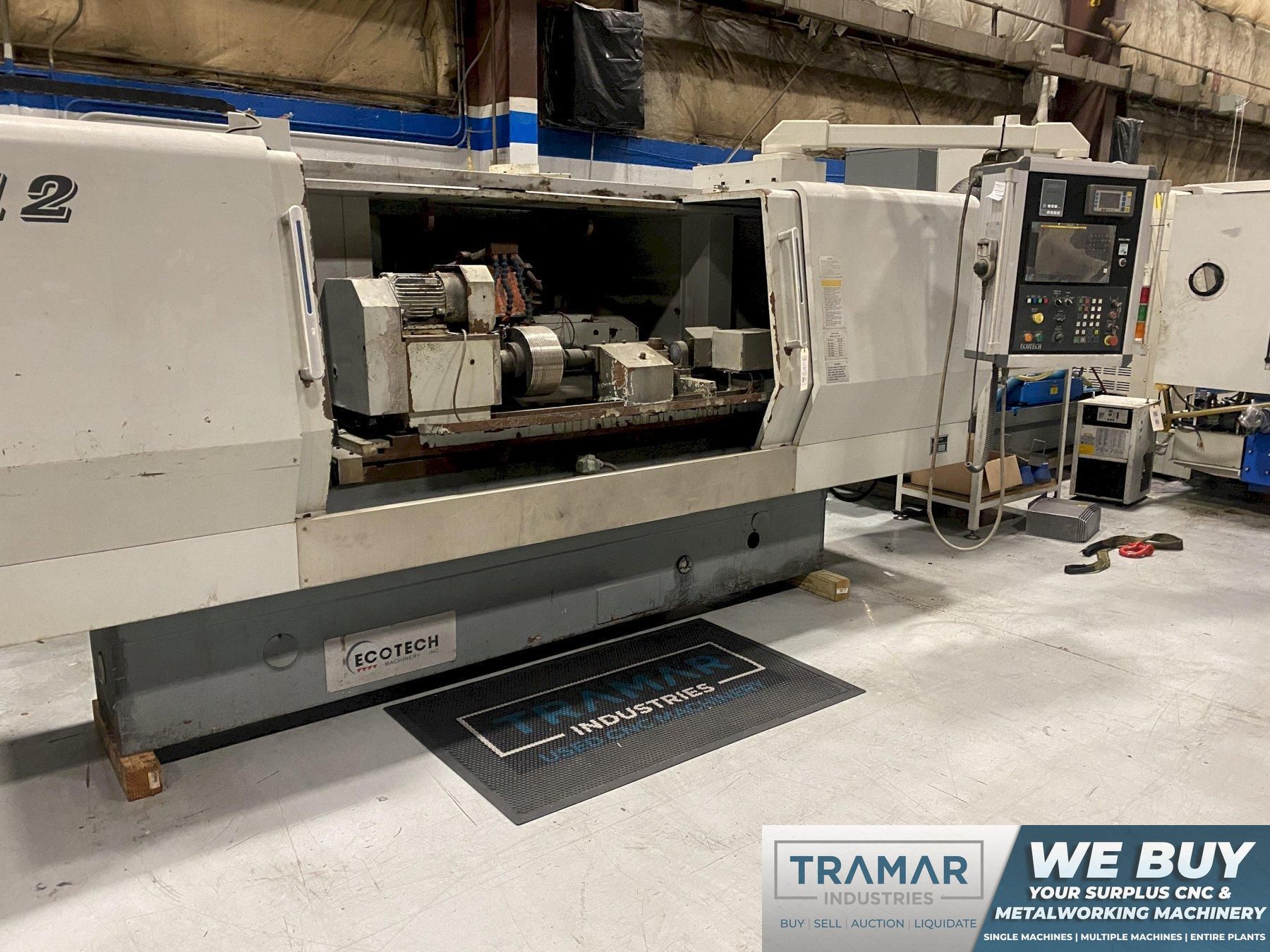

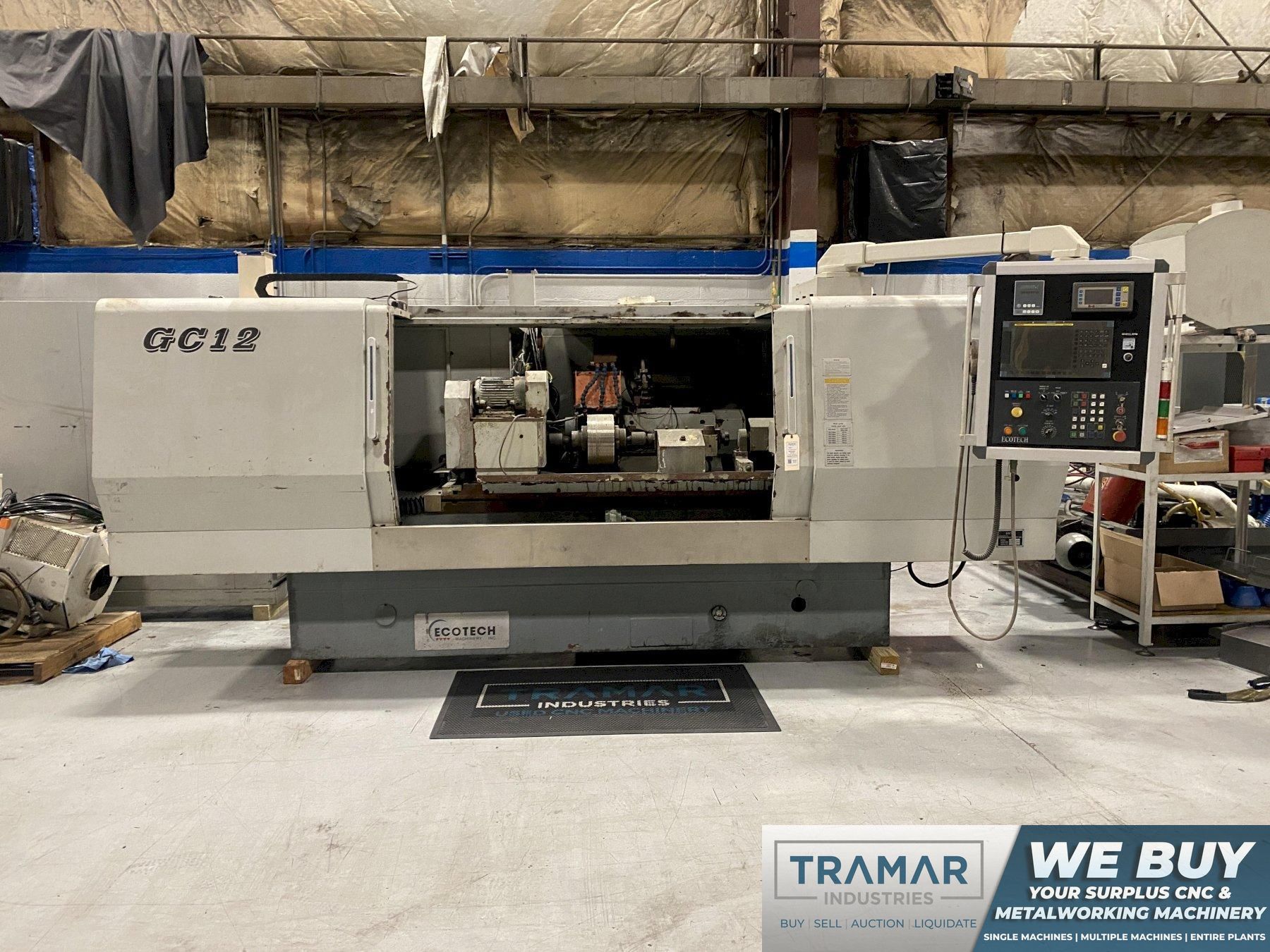

Ecotech SMTW GC12-39 CNC Cylindrical Grinder For Sale - 2019
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TF
Swing
13.77"
Center Distance
29.52"
Max Weight Between Centers
330 pounds

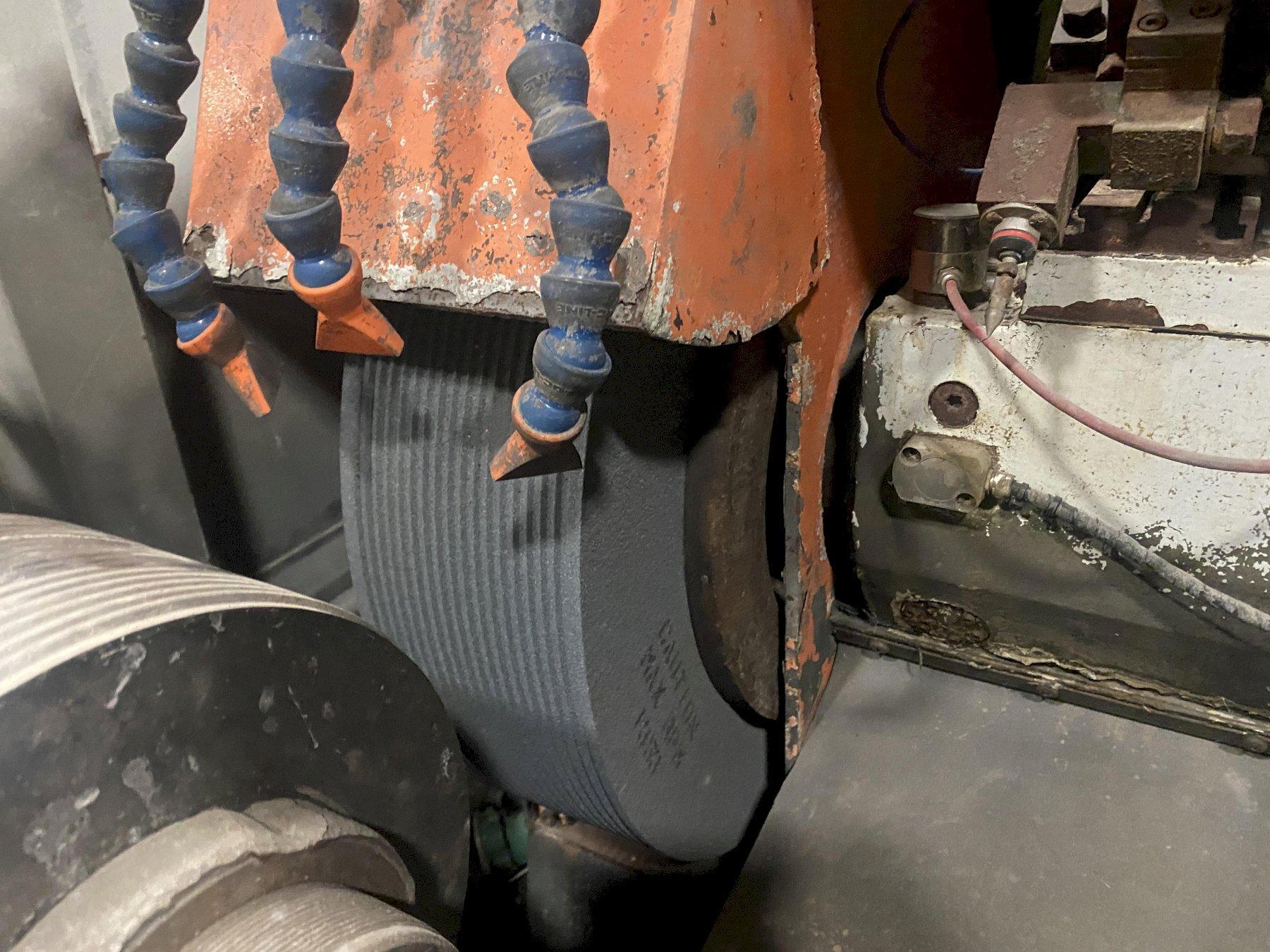

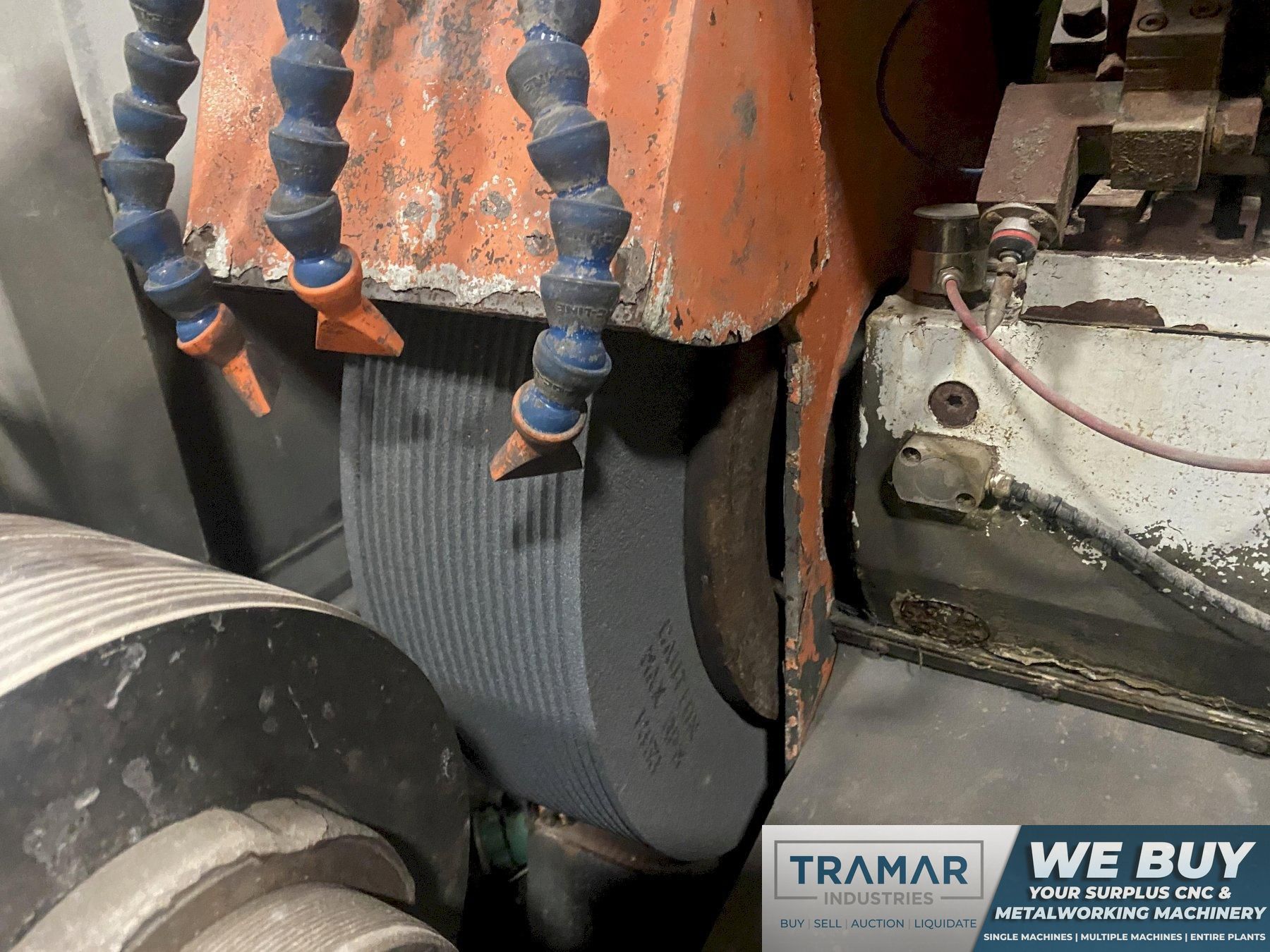

Grinding Wheel Dimensions
24" x 3" x 12"
Grinding Wheel Speed RPM
620 rpm
Grinding Wheel Spindle Motor
15 hp
Wheelhead (Angle / Straight / Universal)
Straight
Workhead Taper
MT #5
Workhead Speed
30-270 rpm
Workhead Motor
2 horsepower
Workhead (Live / Dead)
Dead
X-Axis Travel
13.77"
Z-Axis Travel
29.52"
Internal Grinding Attachment
no

Equipped With:

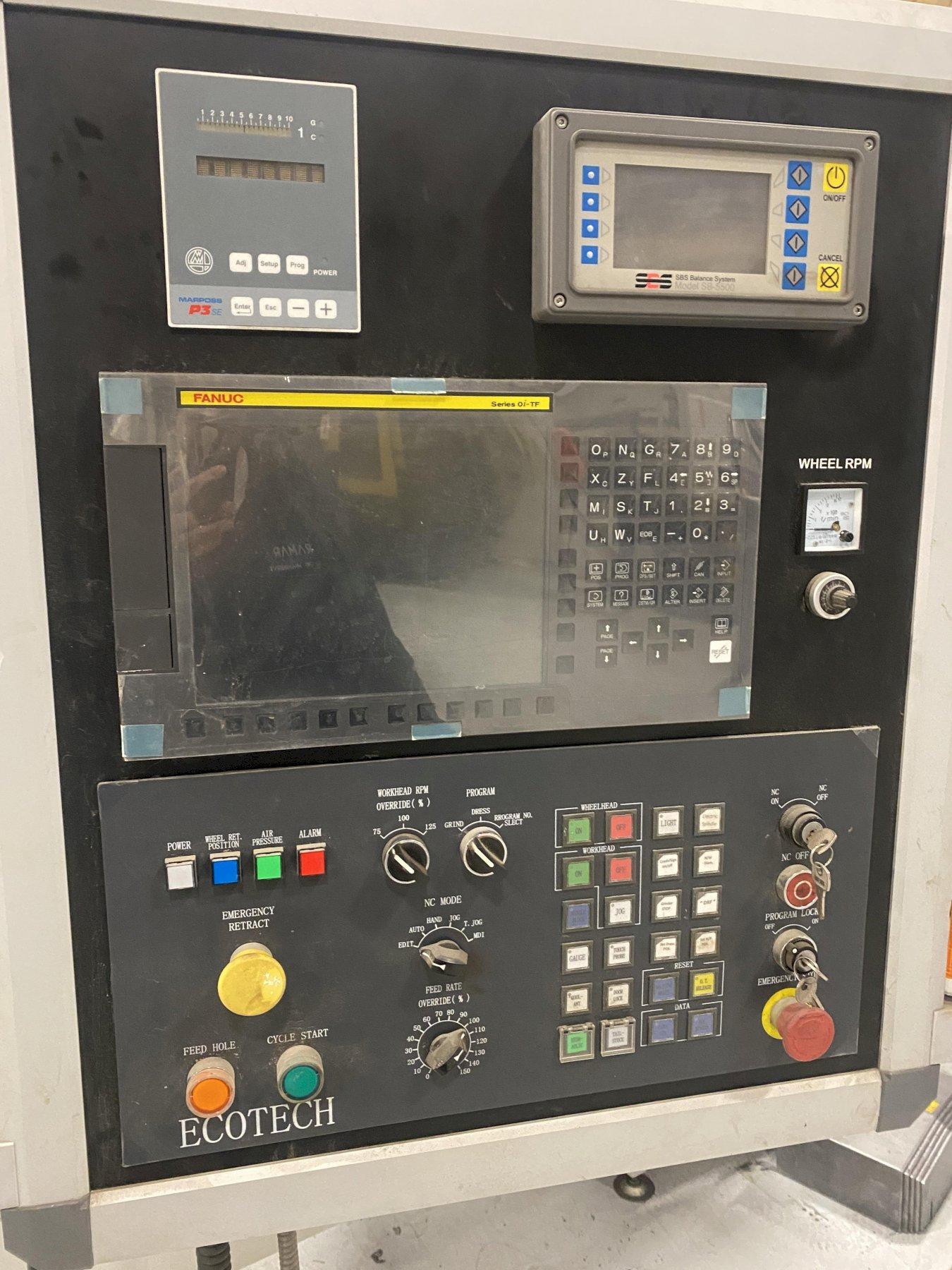

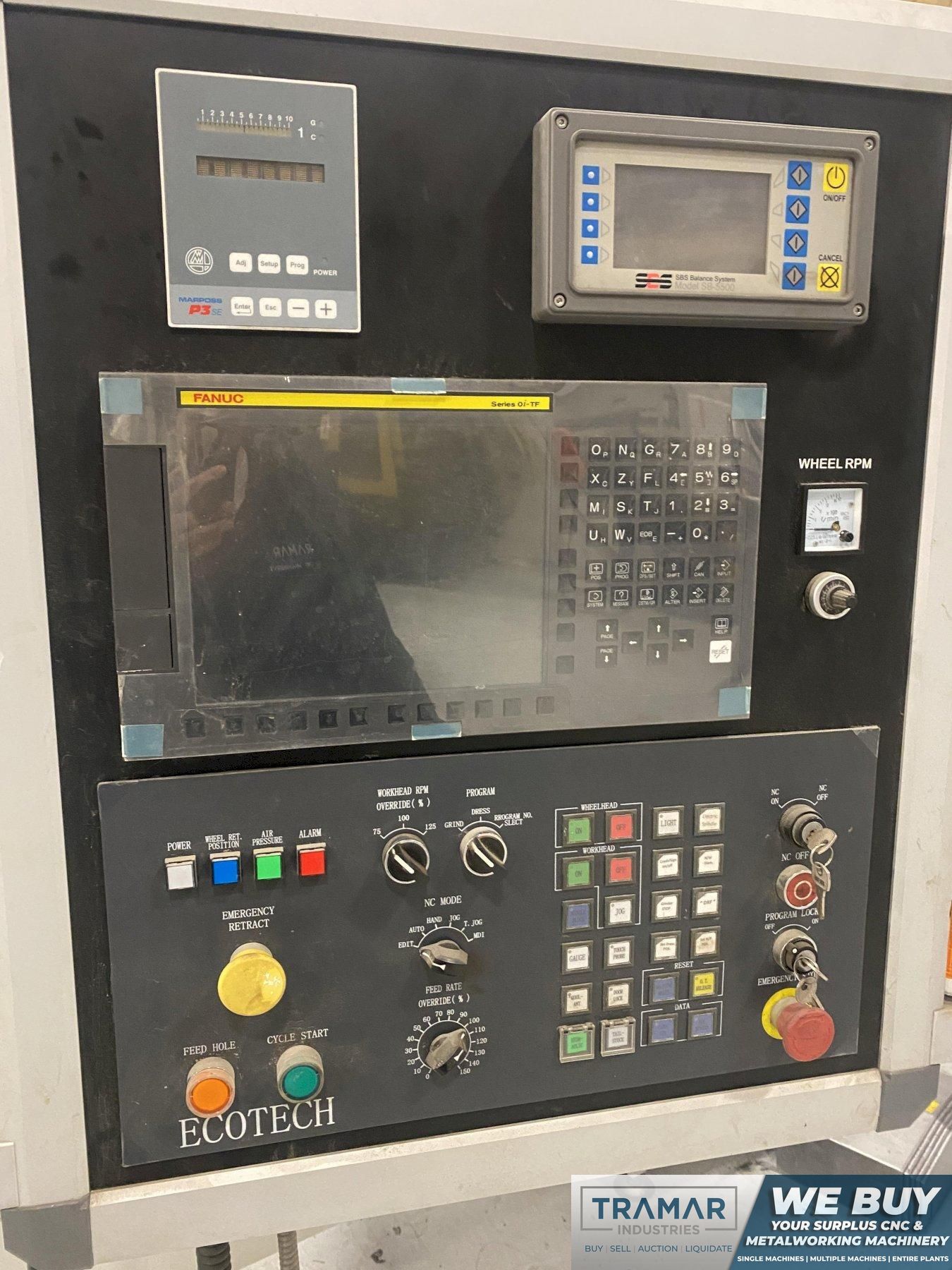

- Fanuc 0i-TF CNC Control
- SBS Balance System - SB-5,500
- Marpos P3 SE

The Ecotech SMTW GC12-39 is an exclusive part of our Cylindrical Grinders (Incl Plain & Angle Head) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
