You Ji YV-800A - Vertical Lathes

Share Machine

Specifications Print Specs

Model: YV-800A

Year: 2005

Stock #: 13571 Sold

Type: Vertical Lathes

Manufacturer: Used You Ji Machines

Highlights:

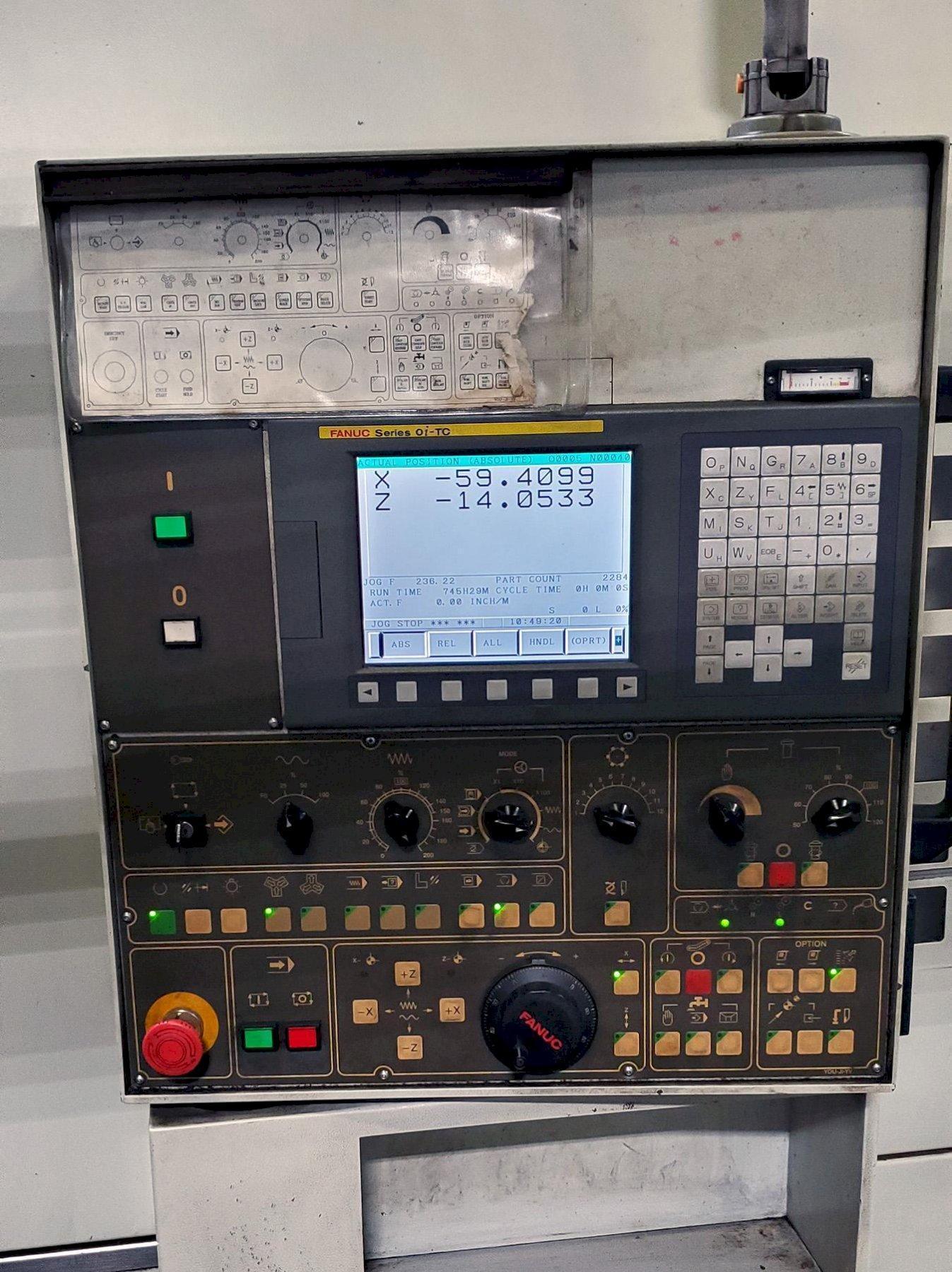

Fanuc 0i-TC Control
Swing: 48" | Max Cutting Diameter: 40"

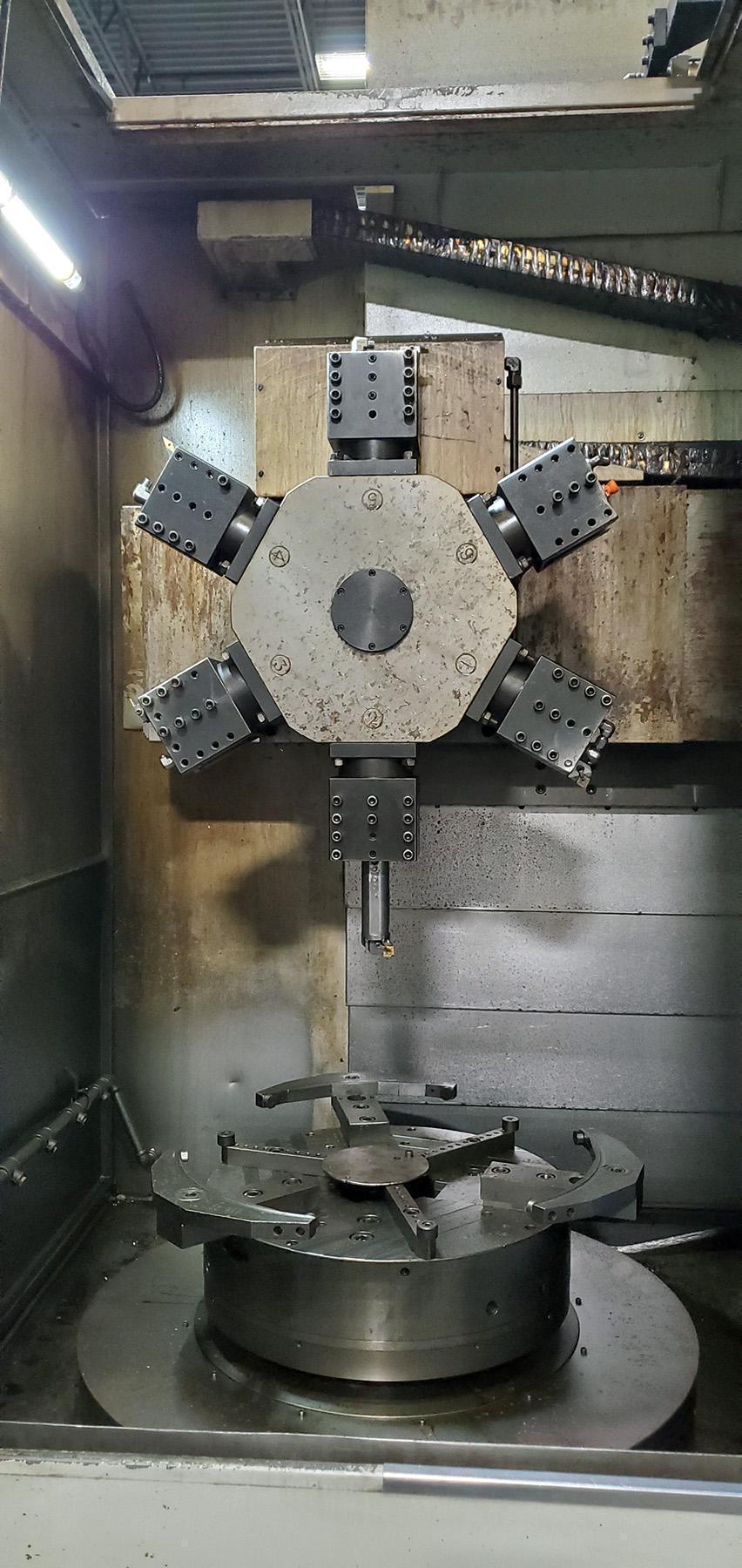

6 Station Hex Turret
2-Speed Gear Box

Equipped With:

- Fanuc 0i-TC Control

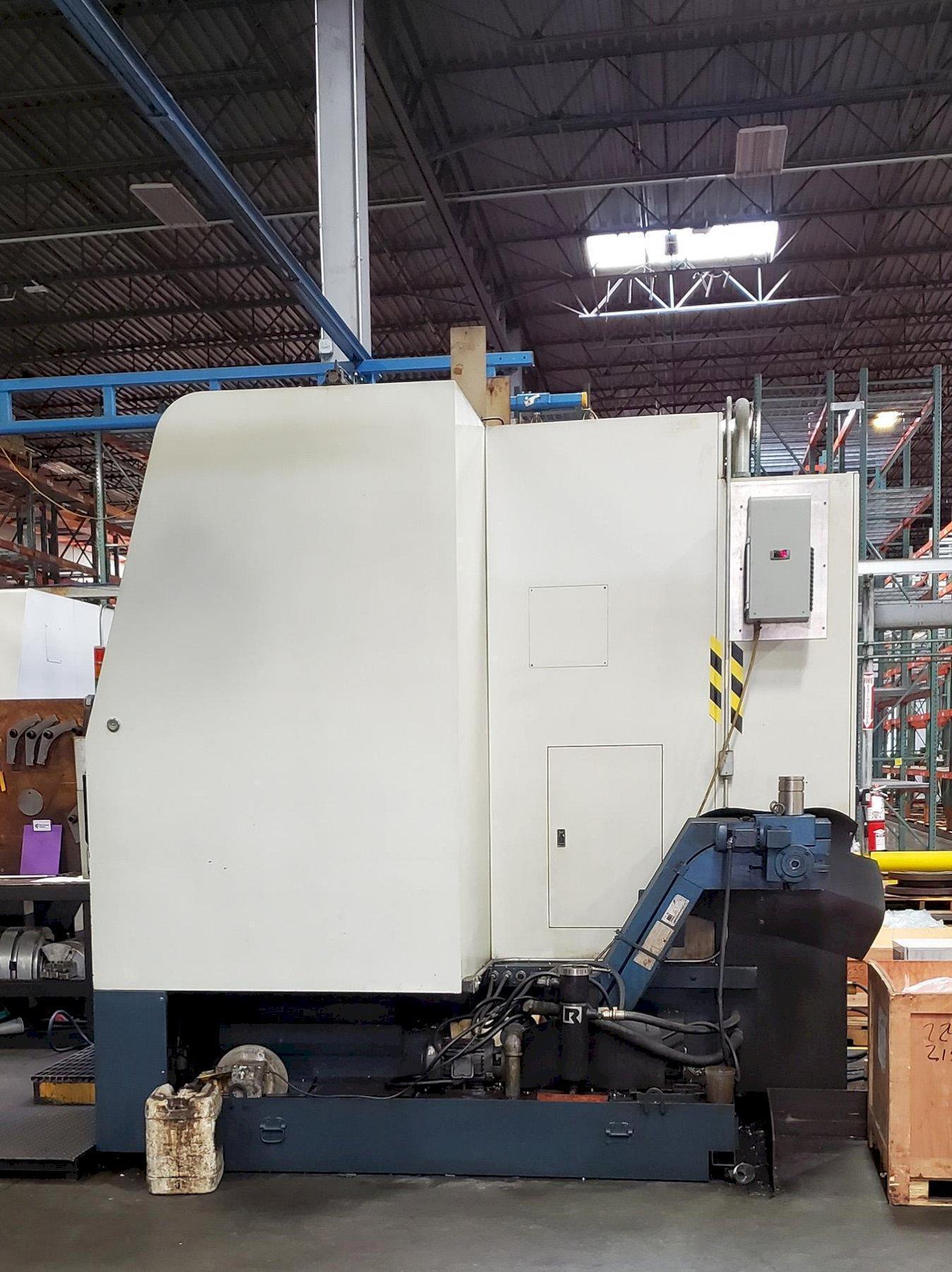

- Chip Conveyor
- Coolant Tank & Pump
- Chiller
- 2 Speed GearBox

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 0i-TC

Swing

48"

Turning Diameter

40"

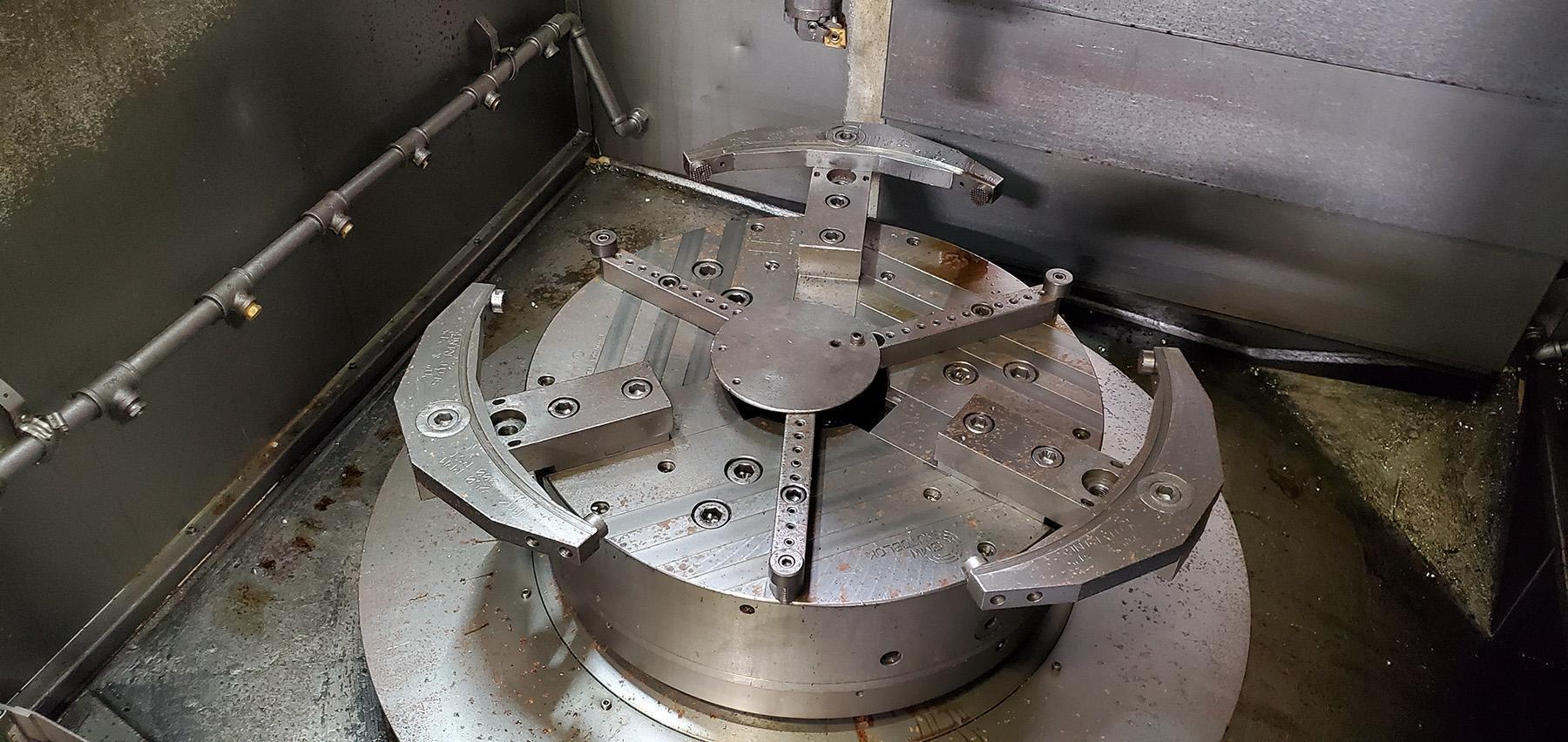

Table Diameter

24.8"

Max Table Load

6,600 lbs

Max Height Under Rail

35.4"

Vertical Travel of Crossrail

19.7

X-Axis Travel

32"

Z-Axis Travel

33.5"

Table Speed

800 rpm

Spindle Motor

50 hp

Live Tooling

C-Axis

Turret Capacity

6 Station Hex Turret

Machine Dimensions

182" x 152" x 195"

Weight

35,200 pounds

Equipped With:

- Fanuc 0i-TC Control
- Chip Conveyor
- Coolant Tank & Pump
- Chiller
- 2 Speed GearBox

The You Ji YV-800A is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
